NEW PRODUCTS - NOVEMBER 14, 2019
STRADA-2X2, STRADELLA-16, STRADA-IP-2X6 and STRADA-IP-16MX product families have been updated with new beams for street and outdoor area lighting.

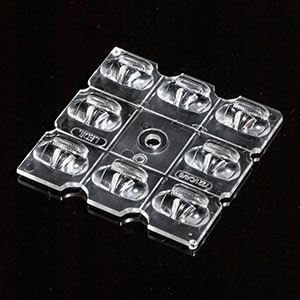

STRADELLA-8-CSP
These beams are the first members of our new STRADELLA-8-CSP family optimized for top emitting CSP LEDs up to 0.55 mm high. The industry standard 50 x 50 mm lenses have exceptional performance with over 90 % optical efficiency. On a luminaire level they provide up to 150 lm/w* when used with the latest Fortimo FastFlex Gen 5 from Signify.
C17222_STRADELLA-8-HV-CSP-LM1
C17223_STRADELLA-8-HV-CSP-LW1
C17224_STRADELLA-8-HV-CSP-VSM

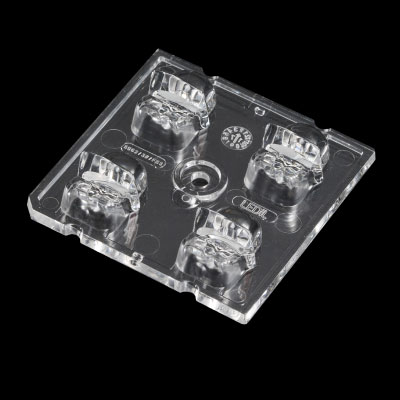

STRADA-2X2-FS3-PC
Forward throw beam optimized for European tunnels, resulting in extremely efficient lighting with counter-beam method. Compatible with up to 5050 size LED packages. Variant made from PC.

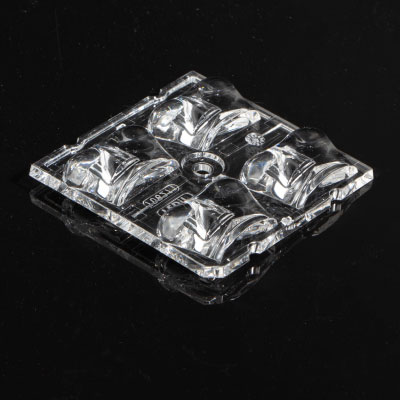

STRADA-2X2-5050-T2-C2
IESNA Type II (medium) beam with added house side backlight. Designed for tilted and long armatures and optimized for flat 5050 size LED packages.

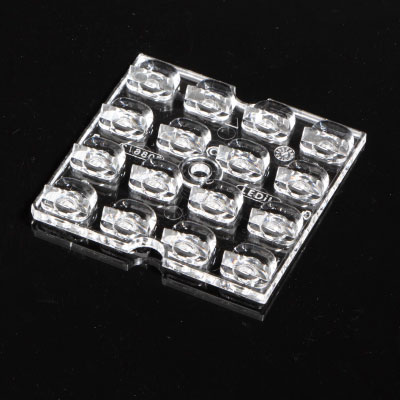

STRADELLA-16-T4
IESNA Type IV beam for wider roads and outdoor area lighting. Compatible with up to 3535 size mid-power LEDs.

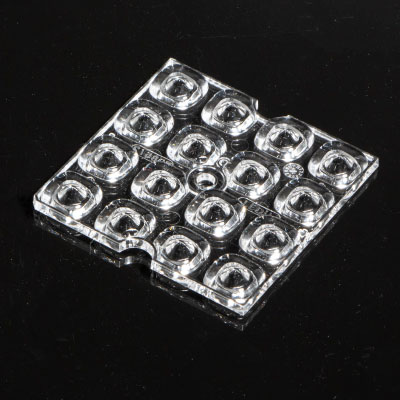

STRADELLA-16-VSM
IESNA Type V (square) beam for wide outdoor areas such as car parks. Compatible with up to 3535 size mid-power LEDs.

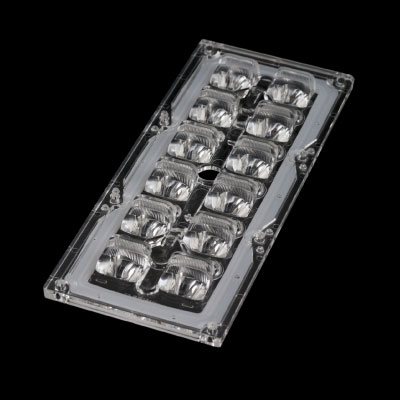

STRADA-IP-2X6-T2-B-PC
IESNA Type II (medium) beam with minimized house side backlight. Compatible with up to 5050 size LED packages and comes with an integrated silicone seal for ingress protection. Variant made from PC.

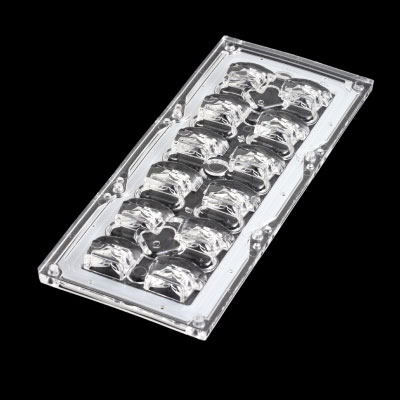

STRADA-IP-2X6-T3-L-PC
IESNA Type III Medium beam for long pole distances and up to 8x mounting height. Suitable for European P-class and pathway lighting. Compatible with up to 5050 size LED packages and comes with an integrated silicone seal for ingress protection. Variant made from PC.

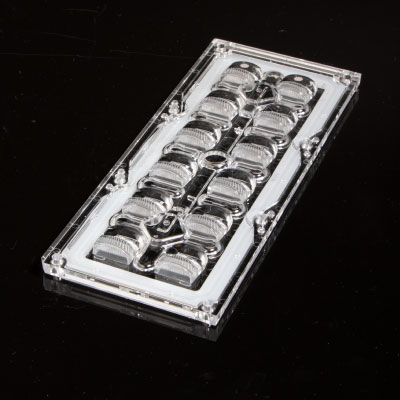

STRADA-IP-2X6-T4-B-PC
Wide IESNA Type IV beam with forward-throw beam for wide outdoor area lighting like car parks. Compatible with up to 5050 size LED packages and comes with an integrated silicone gasket for ingress protection. Variant made from PC.

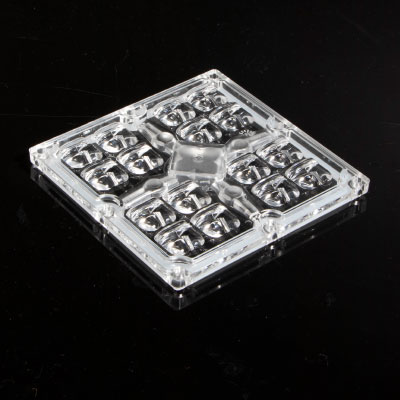

STRADA-IP-16MX-SCL
Type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. Meets the requirements for EN13201 P-classes. 16 lens array with integrated silicone gasket for ingress protection and optimized for high-power CSP LEDs.
