C17224_STRADELLA-8-HV-CSP-VSM

Print

IESNA Type V (square) beam for wide areas such as car parks. Variant with improved creepage distance for high voltage circuit design.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    4.89 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.6 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17224_STRADELLA-8-HV-CSP-VSM

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

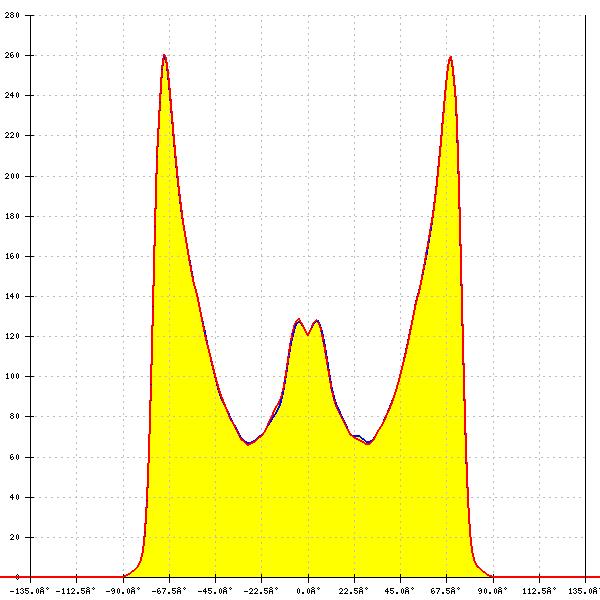

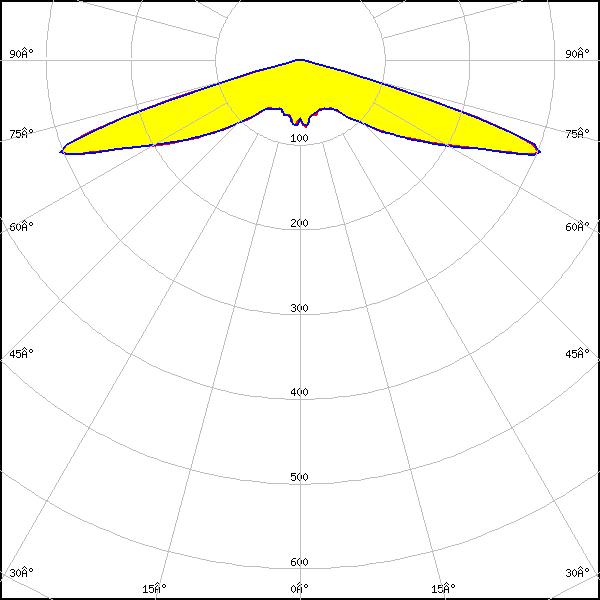

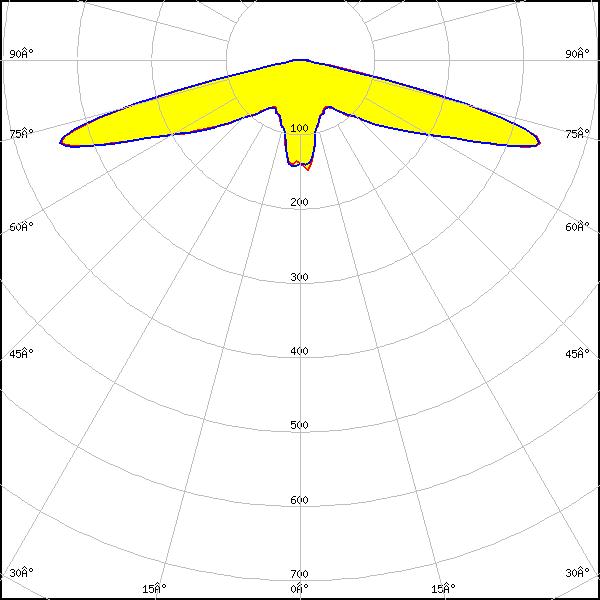

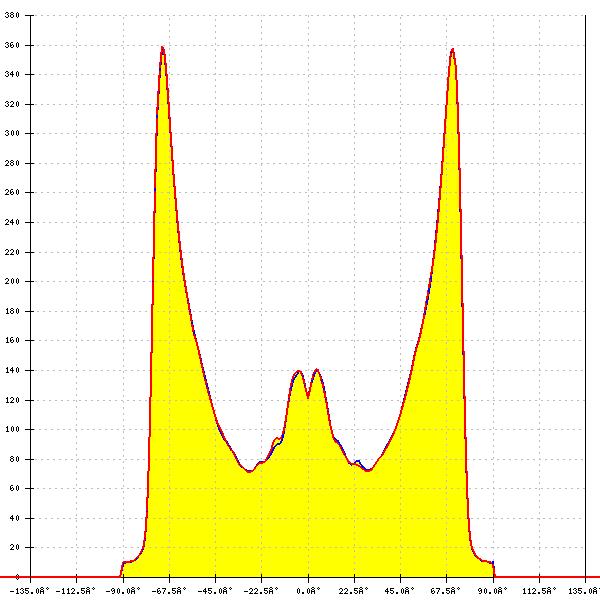

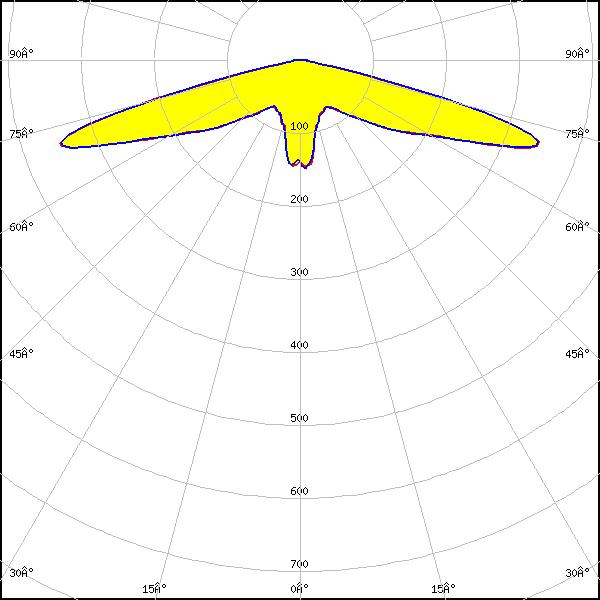

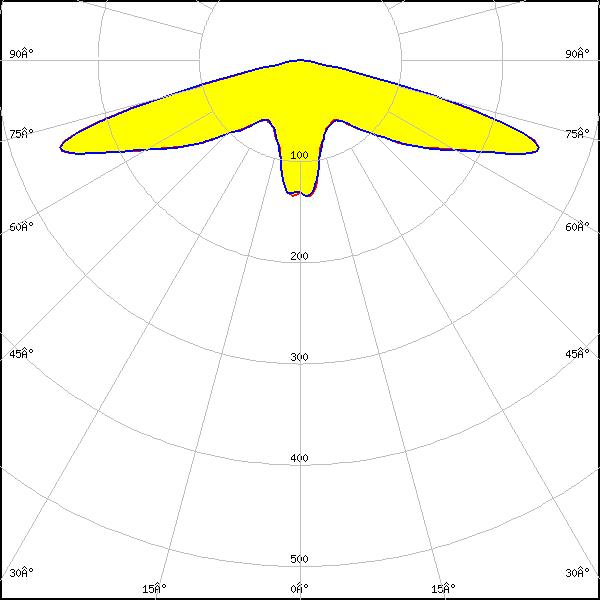

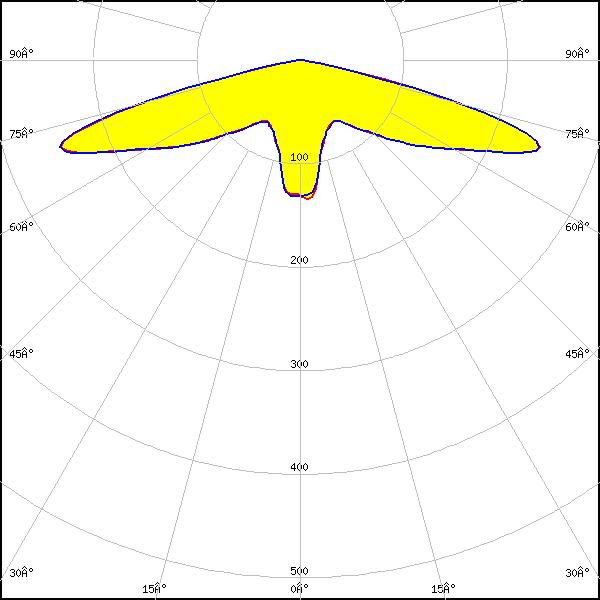

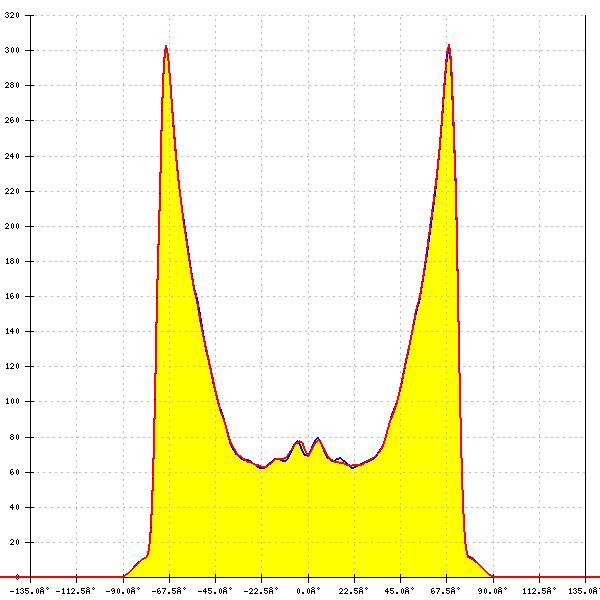

Optical results

LED: XD16
FWHM: asymmetric
Peak intensity: 0.623 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CZ
FWHM: 158°
FWTM: 164°
Peak intensity: 0.618 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HL2Z
FWHM: 152°
FWTM: 158°
Peak intensity: 0.583 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HL2Z
FWHM: 152°
FWTM: 158°
Peak intensity: 0.357 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: 150°
FWTM: 157°
Peak intensity: 0.621 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: 150°
FWTM: 158°
Peak intensity: 0.385 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 2424
FWHM: 154°
FWTM: 160°
Peak intensity: 0.591 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 2424
FWHM: 152°
FWTM: 158°
Peak intensity: 0.389 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 4x8up PR G5
FWHM: asymmetric
Peak intensity: 0.443 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 4x8up PR G5
FWHM: 147°
FWTM: 151°
Peak intensity: 0.646 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: LH151B
FWHM: 146°
FWTM: 152°
Peak intensity: 0.524 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: LH151B
FWHM: 144°
FWTM: 148°
Peak intensity: 0.854 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: LH181B
LEDs/each optic: 1
Light colour/type: White
LED: LH181B
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
