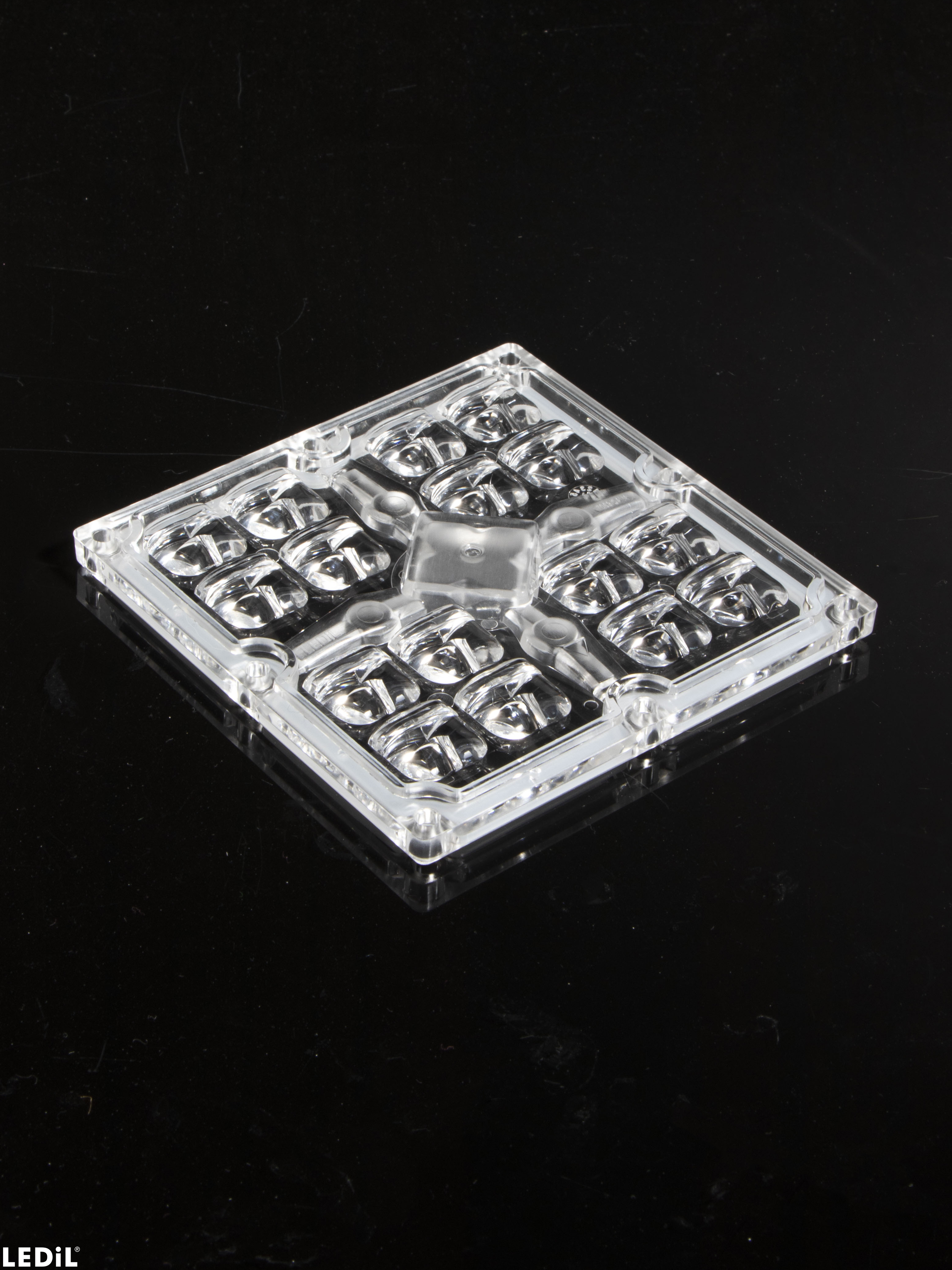

CS17070_STRADA-IP-16MX-SCL
PrintType II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. EN13201 P-classes.
Specification
-
Dimensions:90 x 90 mm
-
Height:8.62 mm
-
Fastening:screw
-
Colour:clear
-
Ingress protection classes:IP66, IP67
-
RoHS and REACH compliant:Yes
Materials
- STRADA-IP-16MX-SCL, Multi-lens, PMMA
- STRADA-IP-8MX-SEAL, Seal, Silicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:156 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:6.3 kg
-
MPQ:52 pcs
-
MOQ:52 pcs
-
MOQ size:480 x 280 x 110 mm
-
MOQ weight:2.3 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
- PCB drawing
Related Content
Optical results

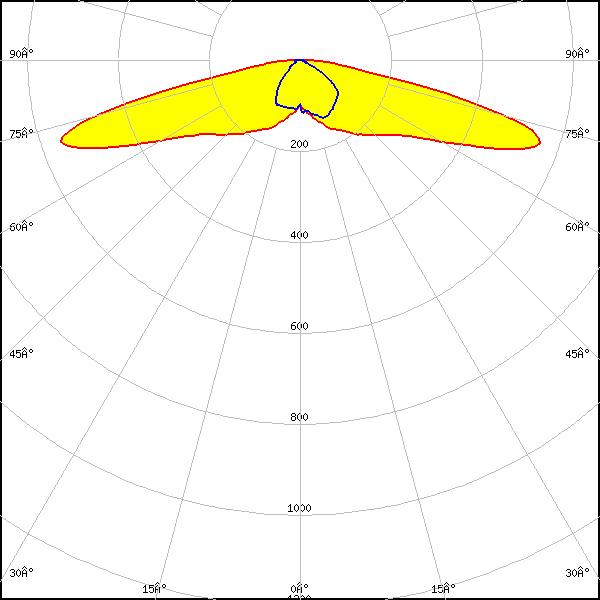

LED:
LUXEON HL2Z
FWHM: asymmetric
Peak intensity:
0.725 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

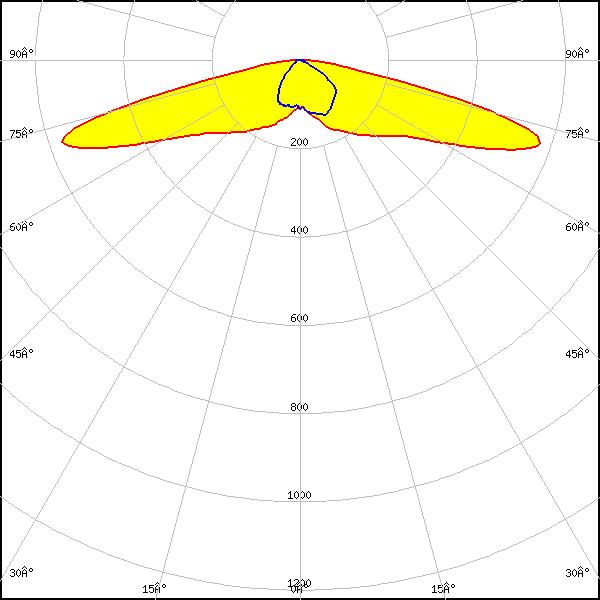

LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.703 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.813 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM: asymmetric
Peak intensity:
0.583 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM SC16 S1 (LH181B)
FWHM: asymmetric
Peak intensity:
0.854 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM SC16 S2 (LH231B)
FWHM: asymmetric
Peak intensity:
0.712 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH231B
FWHM: asymmetric
Peak intensity:
0.788 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM: asymmetric
Peak intensity:
0.648 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
