    C17086_STRADELLA-16-T4

    Print

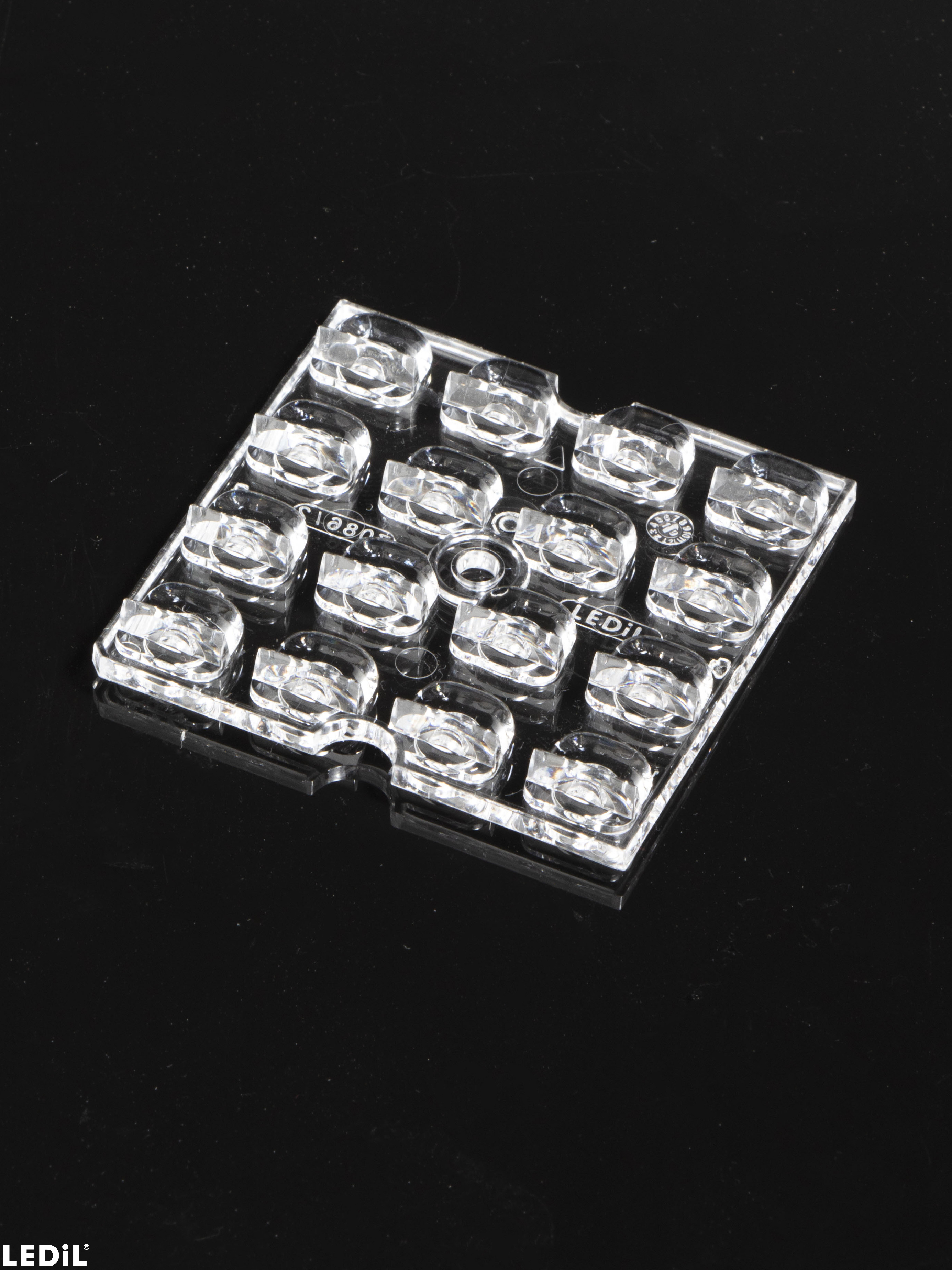

    IESNA Type IV for wider roads and area lighting like car parks and yards.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      5.30 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.8 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17086_STRADELLA-16-T4
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New Products 2019-11-14

    Reference product

    E+ AVIS lighting series

    News

    PRODUCT NEWS - STRADELLA-16

    Application guide

    Guide for Street lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    AVAILABLE LEDiL ACCESSORIES

    STRADELLA-16-SHD-BLK

    Black shade for additional backlight control.

    STRADELLA-16-SHD-WHT

    White shade for additional backlight control.

    Optical results

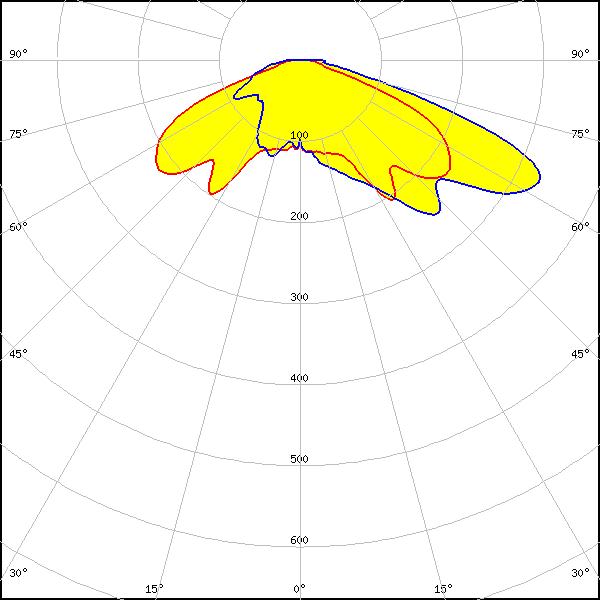

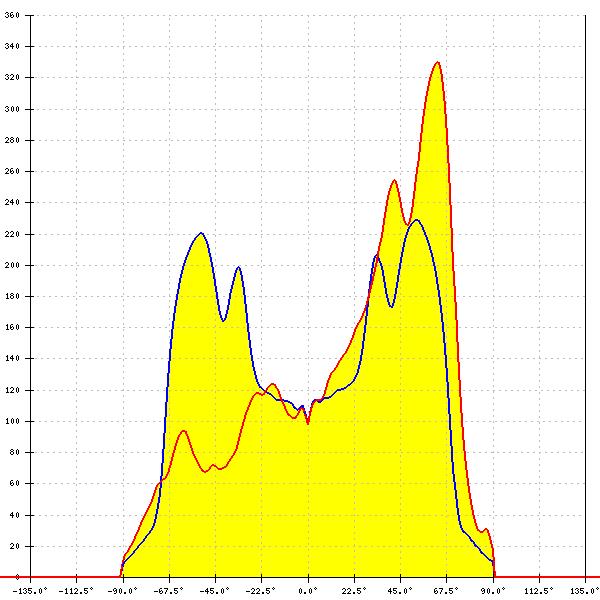

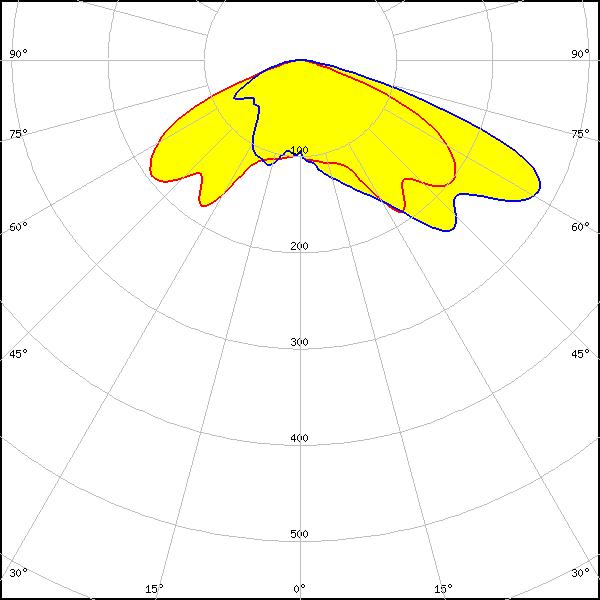

    LED: CSP 2727 (BXCP)
    FWHM: asymmetric
    Peak intensity: 0.444 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

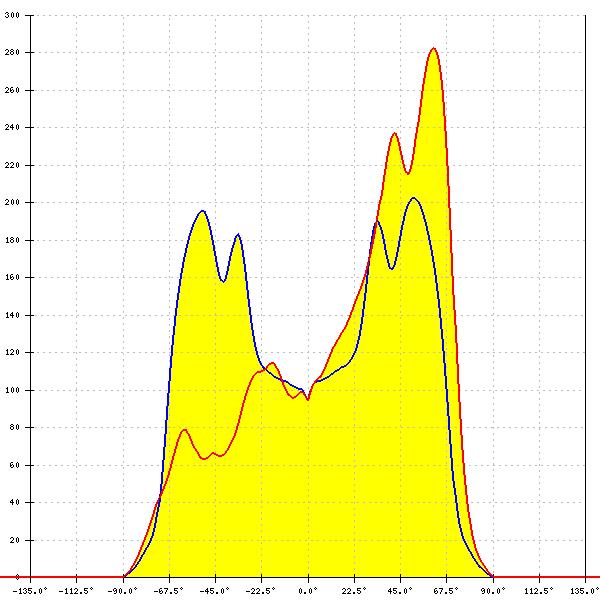

    LED: CSP 2727 (BXCP)
    FWHM: asymmetric
    Peak intensity: 0.355 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

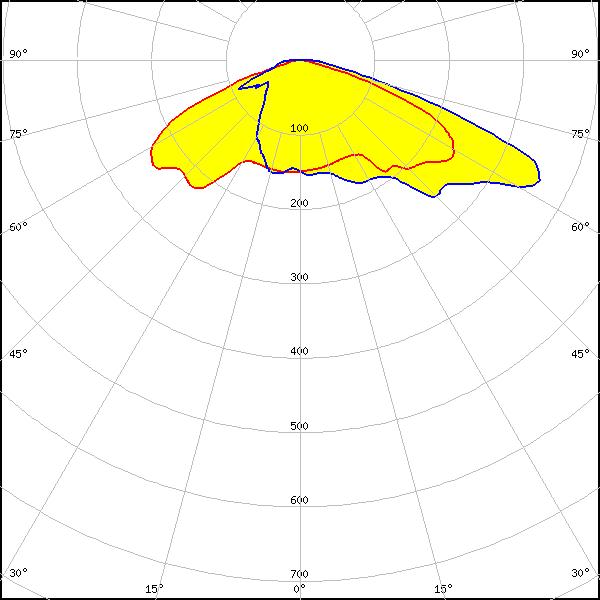

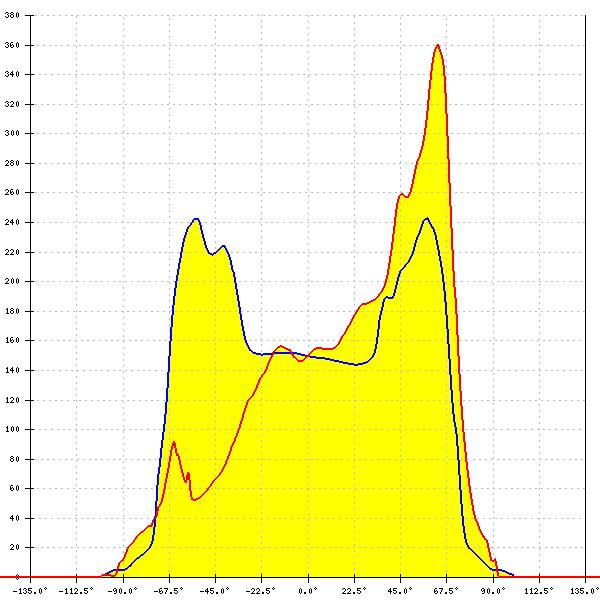

    LED: JB3030 HE B Class
    FWHM: asymmetric
    Peak intensity: 0.482 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: EHP-223.5x50-1604-xx-70-LS30-06-NTC
    FWHM: asymmetric
    Peak intensity: 0.523 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

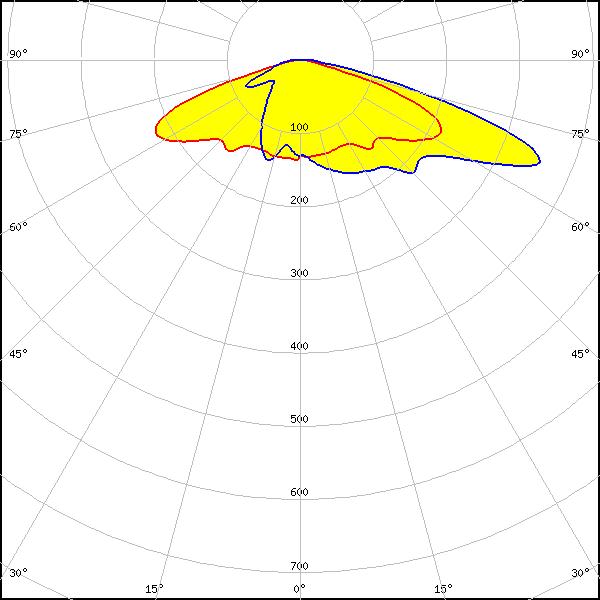

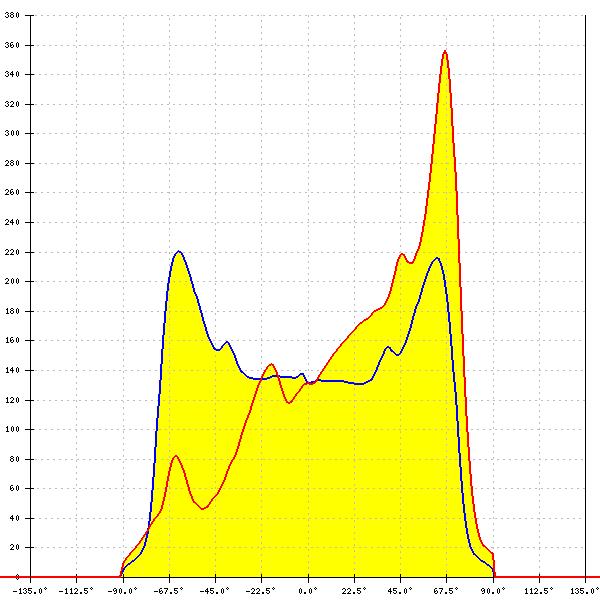

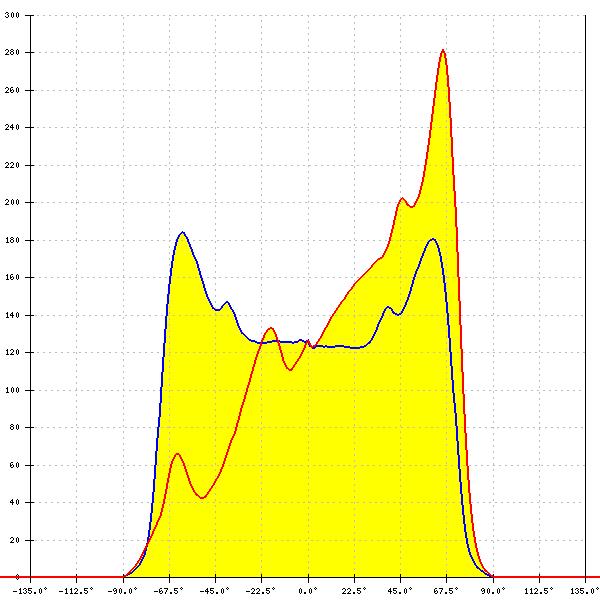

    LED: LUXEON 2835 Architectural
    FWHM: asymmetric
    Peak intensity: 0.462 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 2835 Architectural
    FWHM: asymmetric
    Peak intensity: 0.342 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

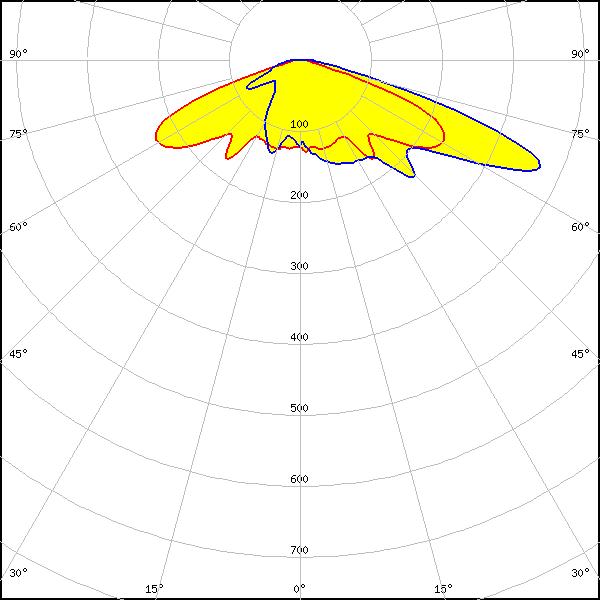

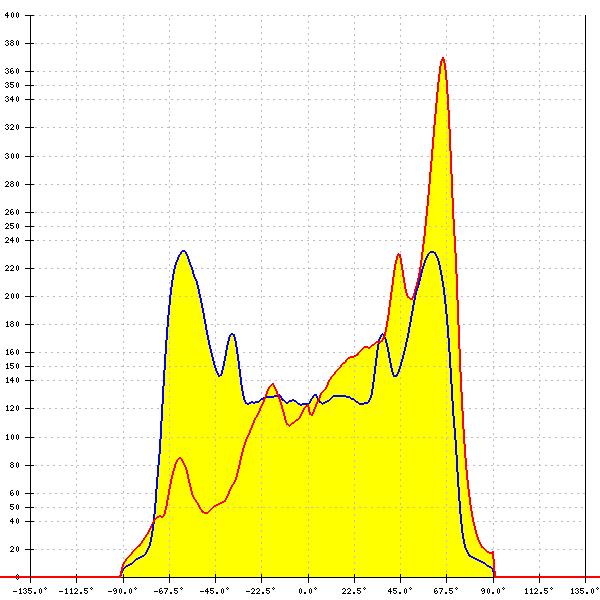

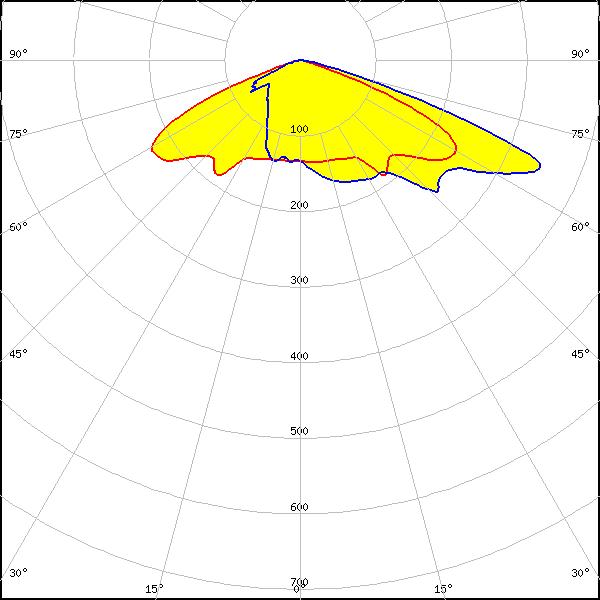

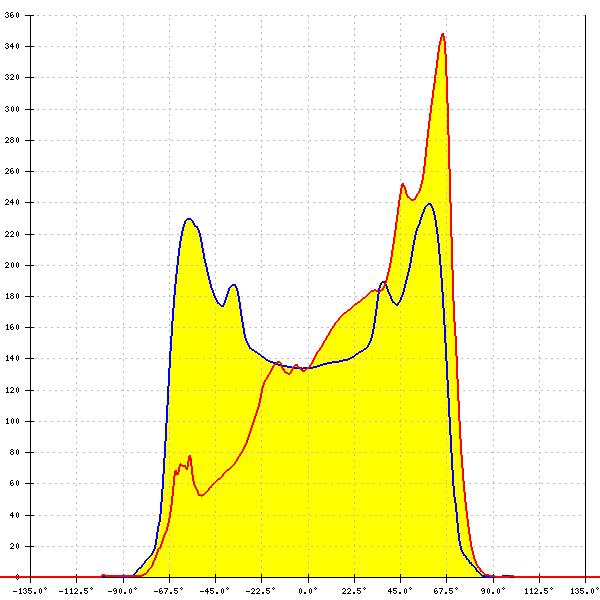

    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.497 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.453 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

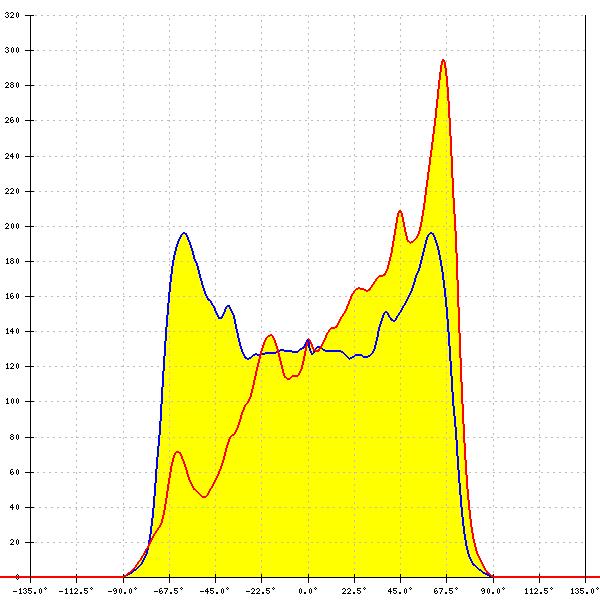

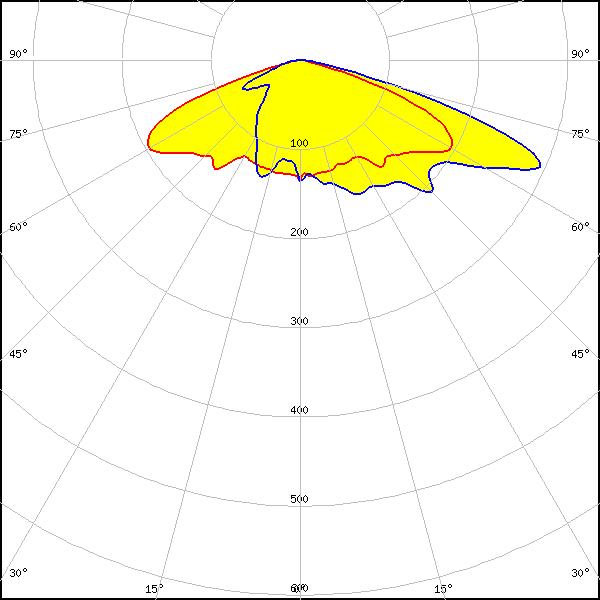

    LED: LUXEON 3030 2D (Square LES)
    FWHM: asymmetric
    Peak intensity: 0.385 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

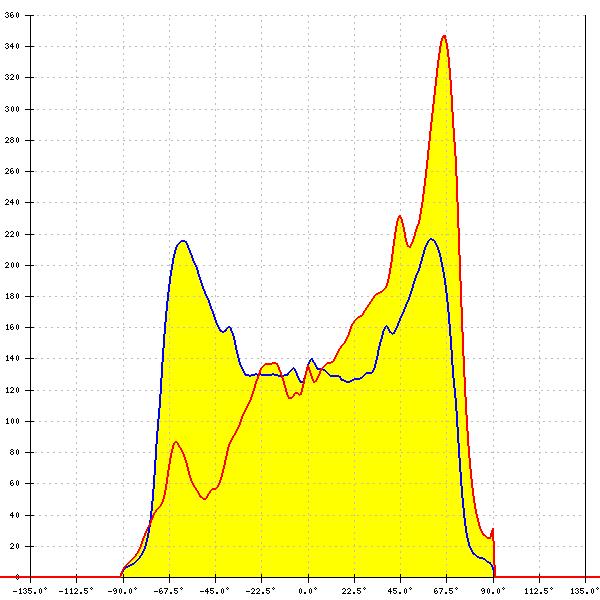

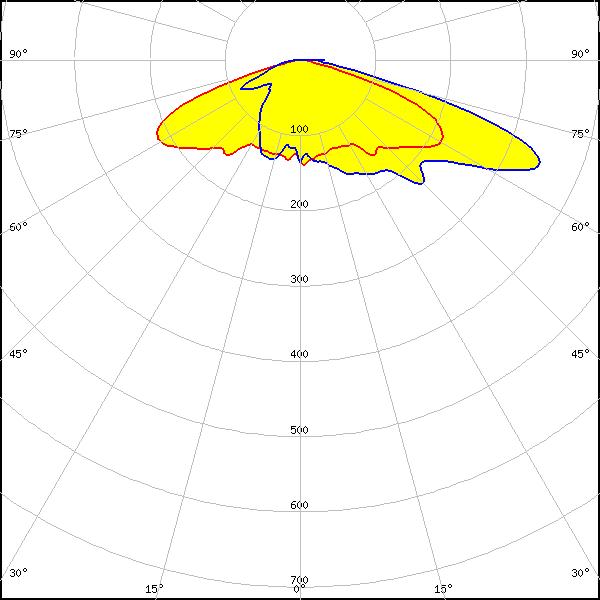

    LED: LUXEON 3030 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.487 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

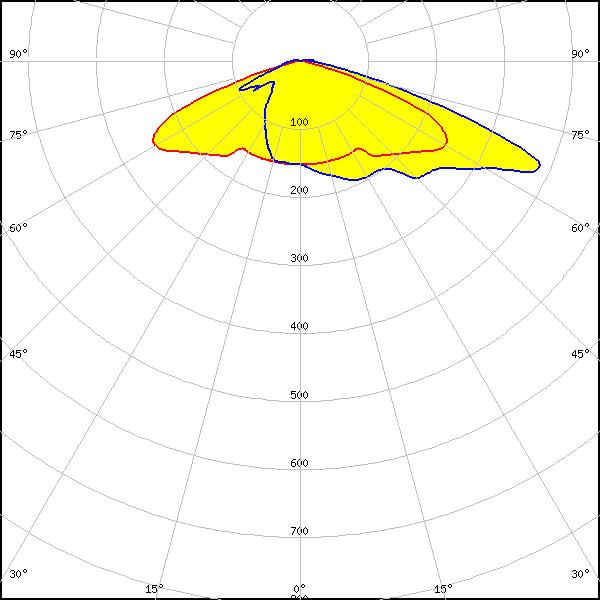

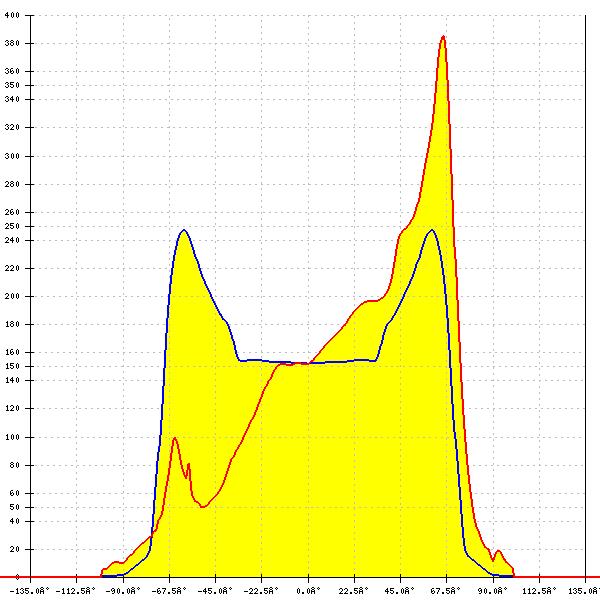

    LED: RecLED 172x50mm 3000lm 3x16 STRADELLA-16
    FWHM: asymmetric
    Peak intensity: 0.554 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

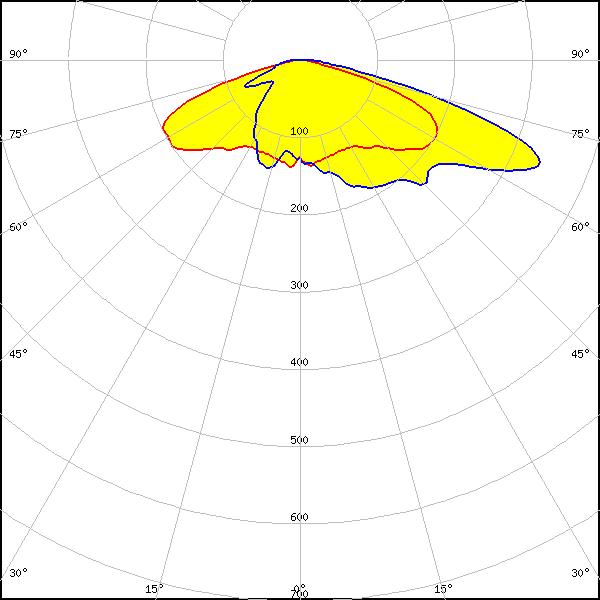

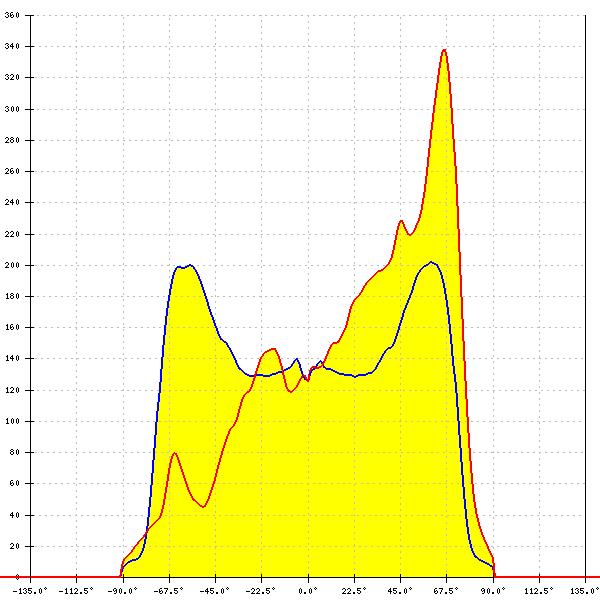

    LED: NF2W757G-MT (Tunable White)
    FWHM: asymmetric
    Peak intensity: 0.465 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

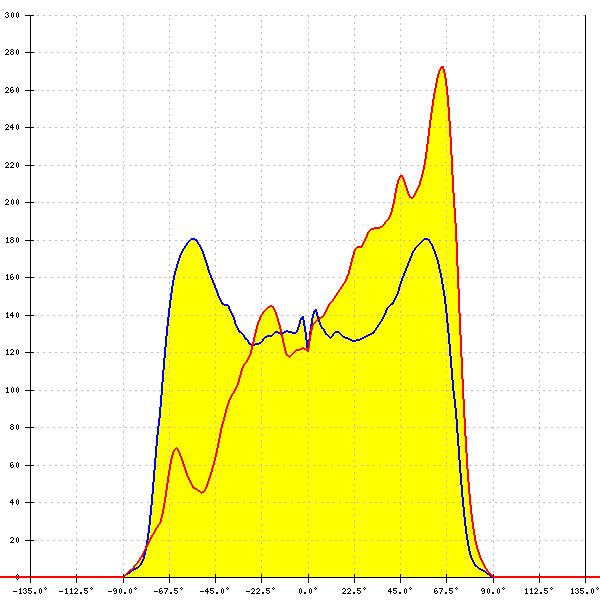

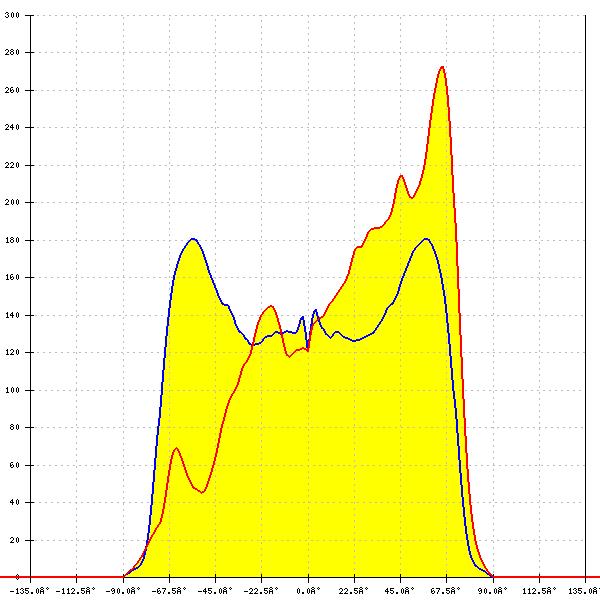

    LED: NF2W757G-MT (Tunable White)
    FWHM: asymmetric
    Peak intensity: 0.354 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

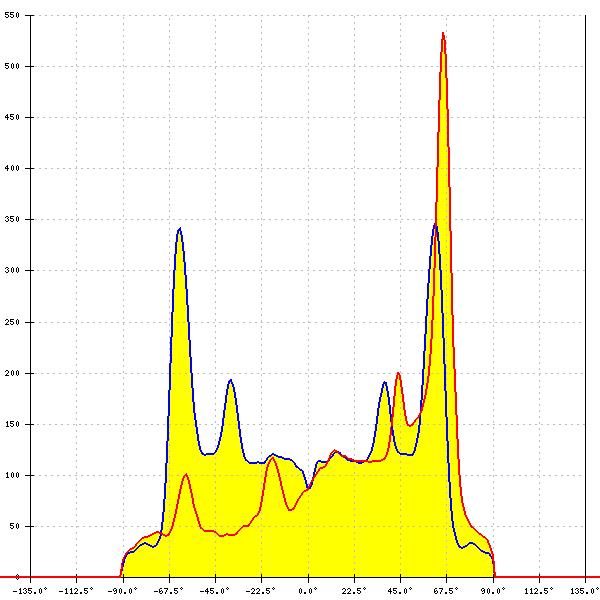

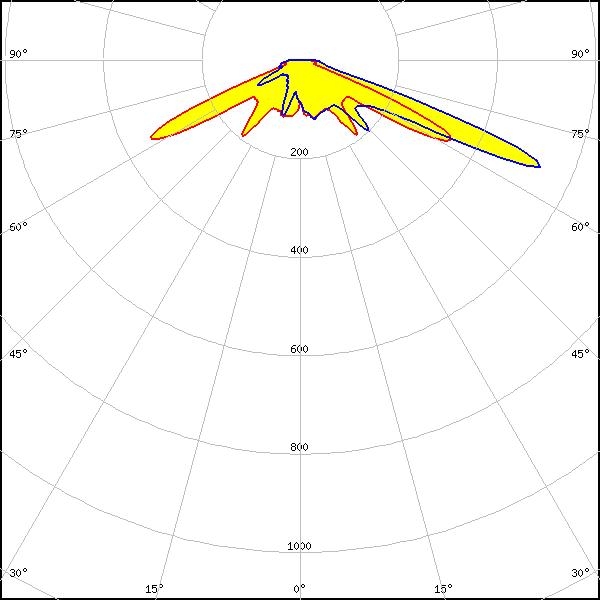

    LED: NFSWE11A
    FWHM: asymmetric
    Peak intensity: 0.798 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

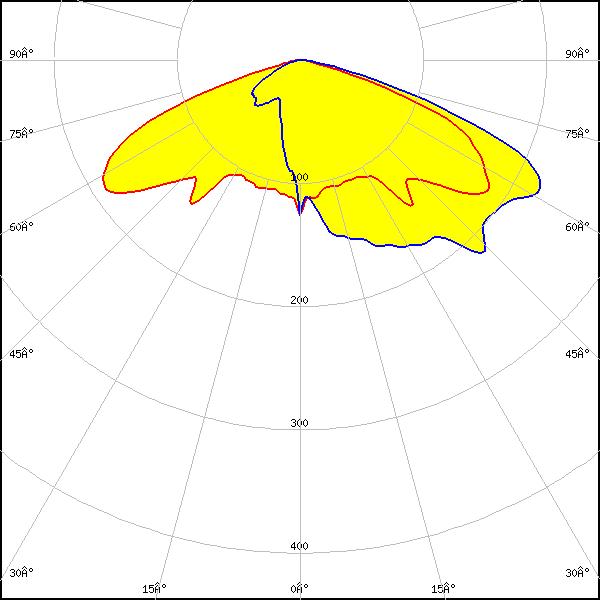

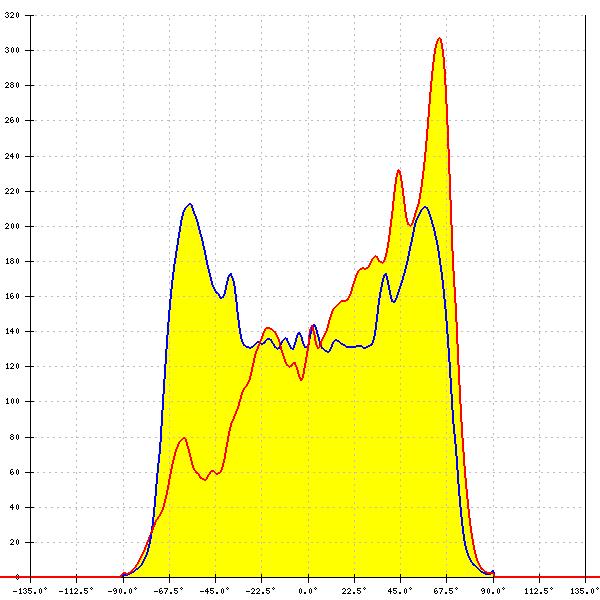

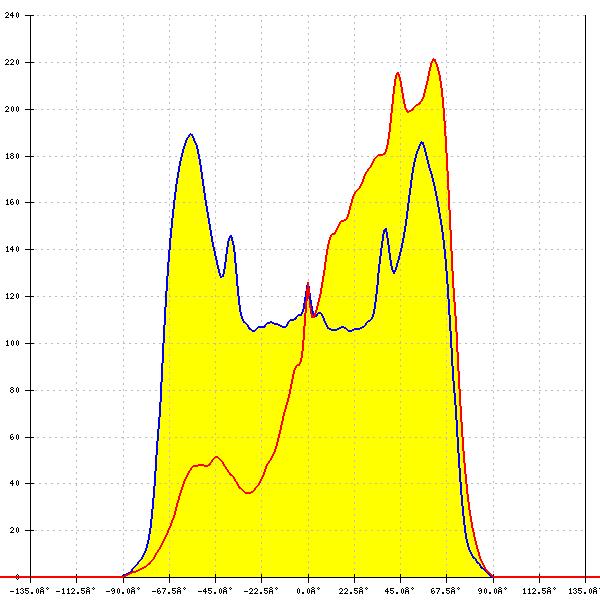

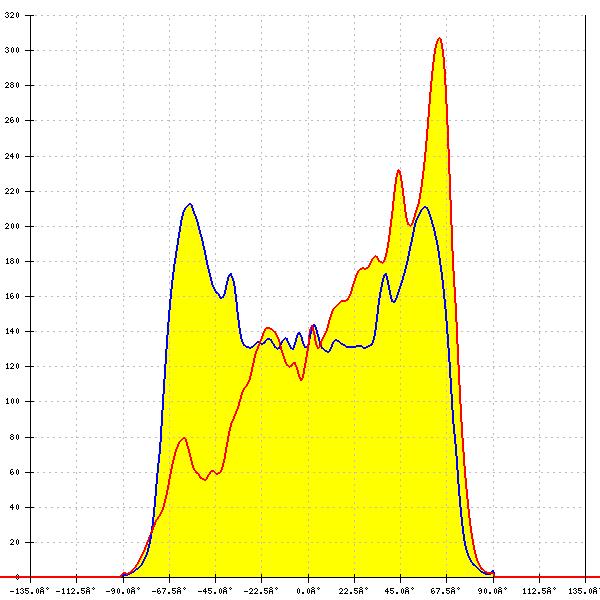

    LED: DURIS S5 (2 chip)
    Required components:
    C19771_STRADELLA-16-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.343 cd/lm
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: White

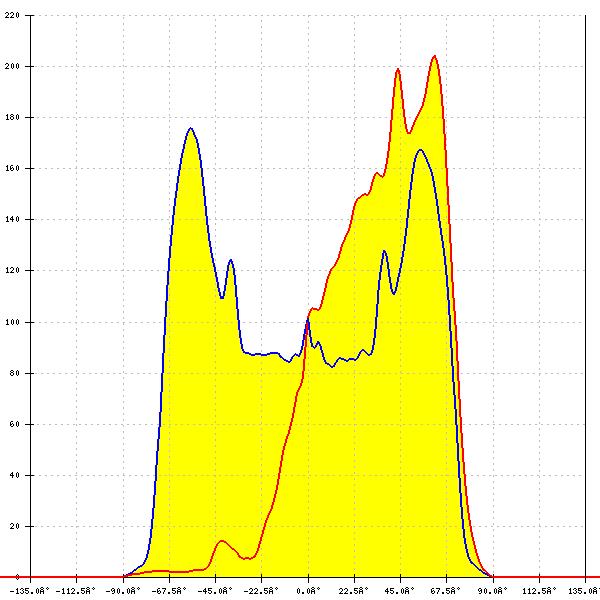

    LED: DURIS S5 (2 chip)
    Required components:
    C19770_STRADELLA-16-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.325 cd/lm
    Efficiency: 54 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: DURIS S5 (2 chip)
    FWHM: asymmetric
    Peak intensity: 0.388 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

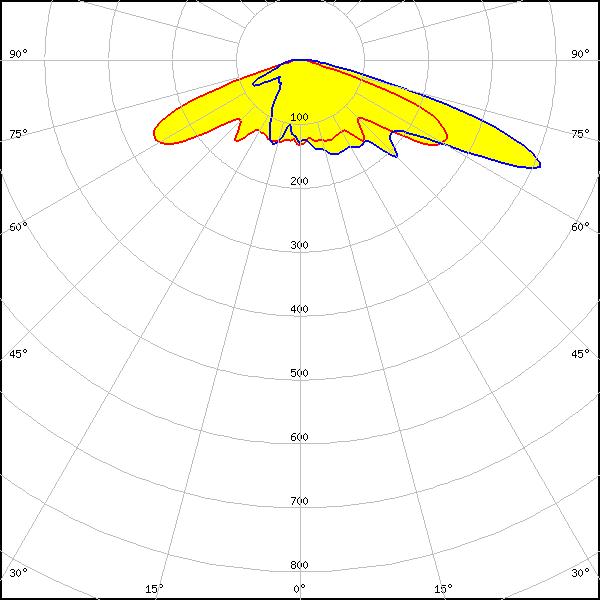

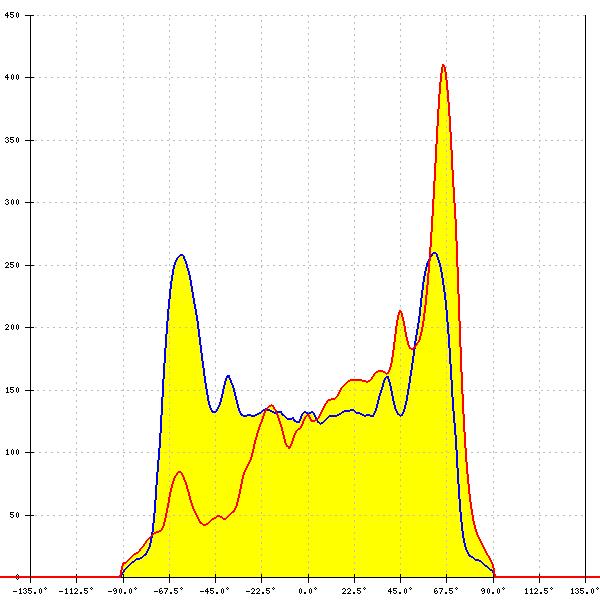

    LED: OSCONIQ C 2424 Gen1
    FWHM: asymmetric
    Peak intensity: 0.573 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

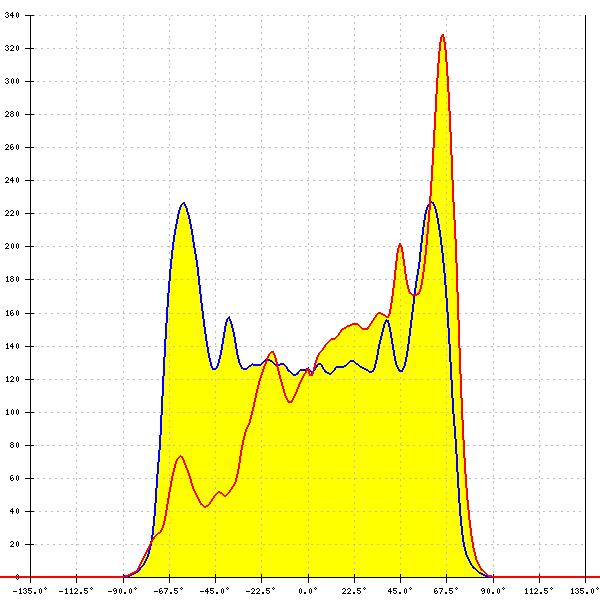

    LED: OSCONIQ C 2424 Gen1
    FWHM: asymmetric
    Peak intensity: 0.433 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

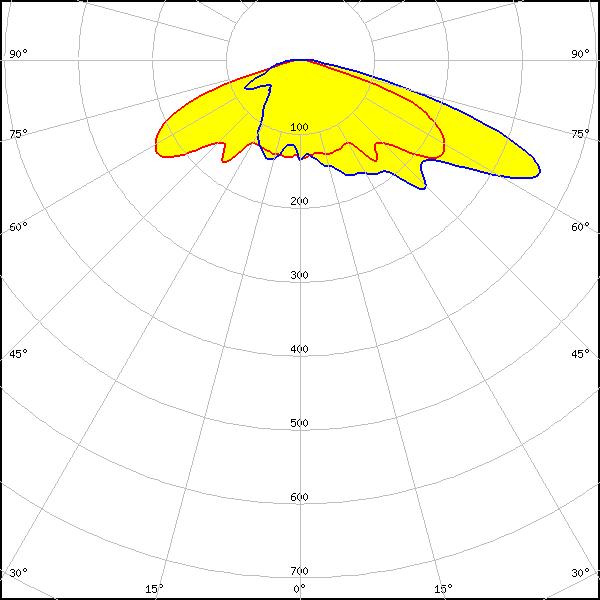

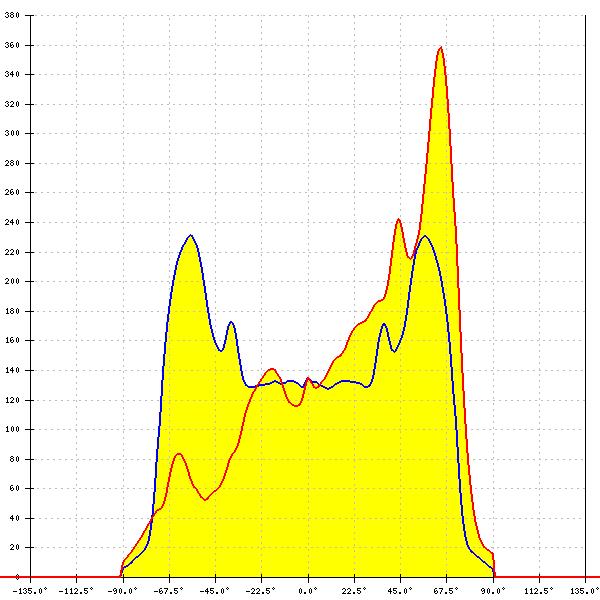

    LED: OSCONIQ C 3030
    FWHM: asymmetric
    Peak intensity: 0.478 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: asymmetric
    Peak intensity: 0.360 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

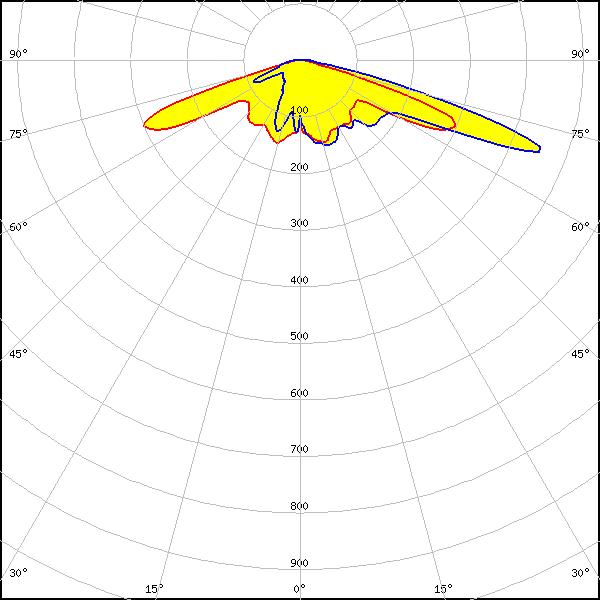

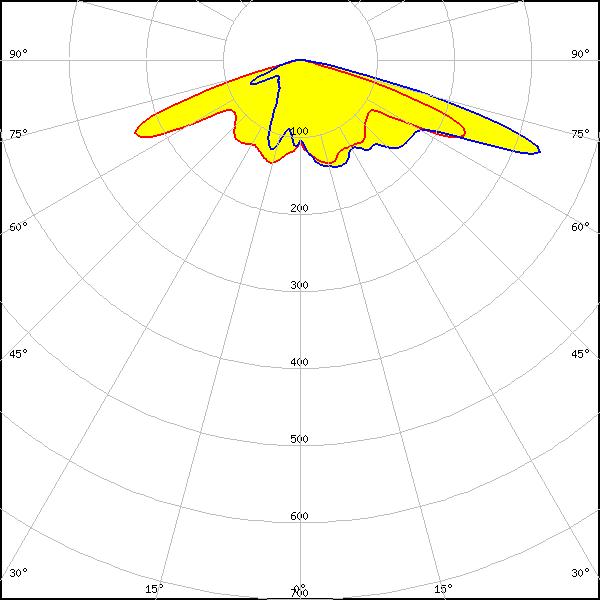

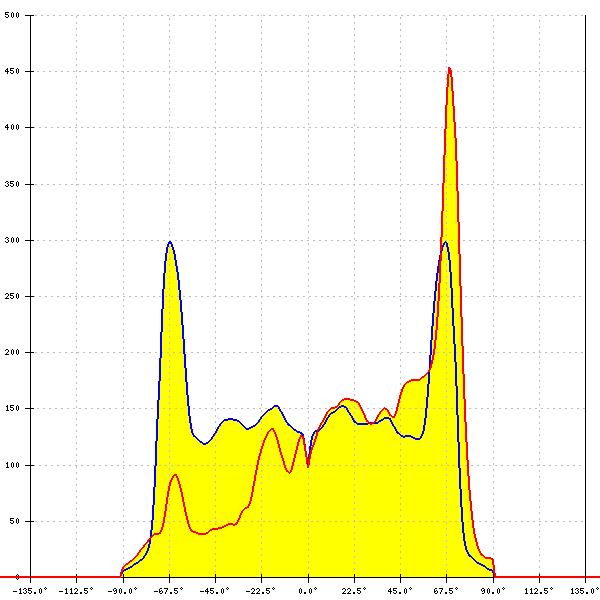

    LED: OSLON Pure 1414
    FWHM: asymmetric
    Peak intensity: 0.677 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

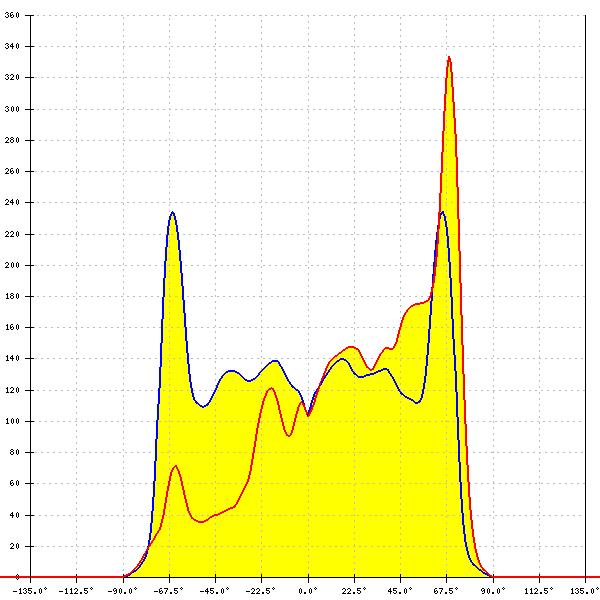

    LED: OSLON Pure 1414
    FWHM: asymmetric
    Peak intensity: 0.433 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

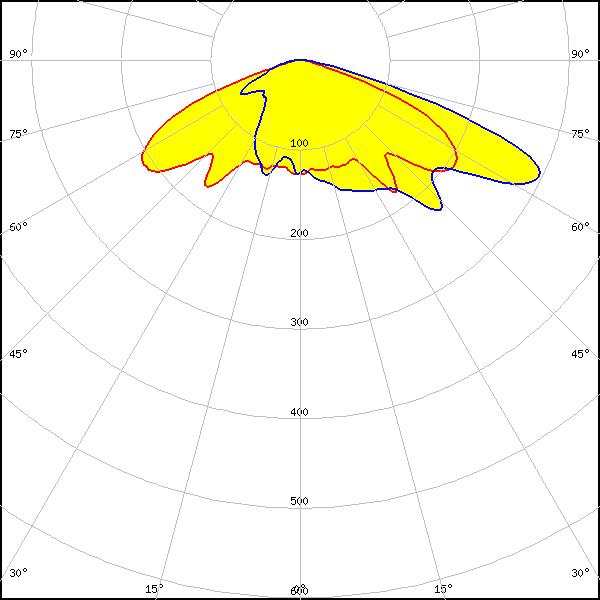

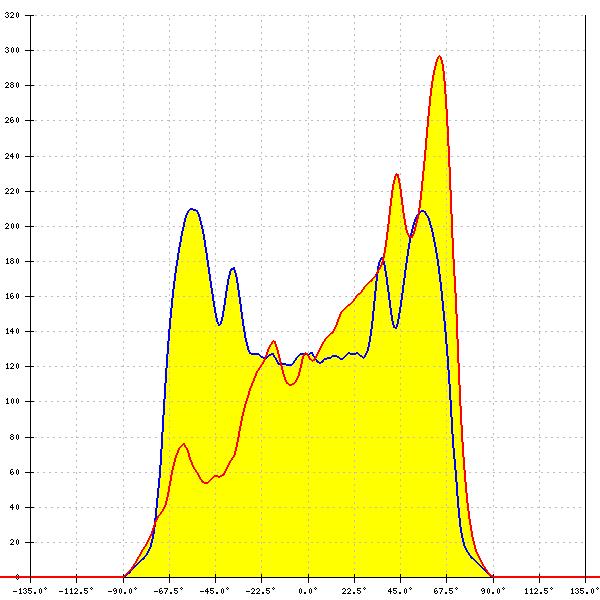

    LED: LH181B
    FWHM: asymmetric
    Peak intensity: 0.384 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

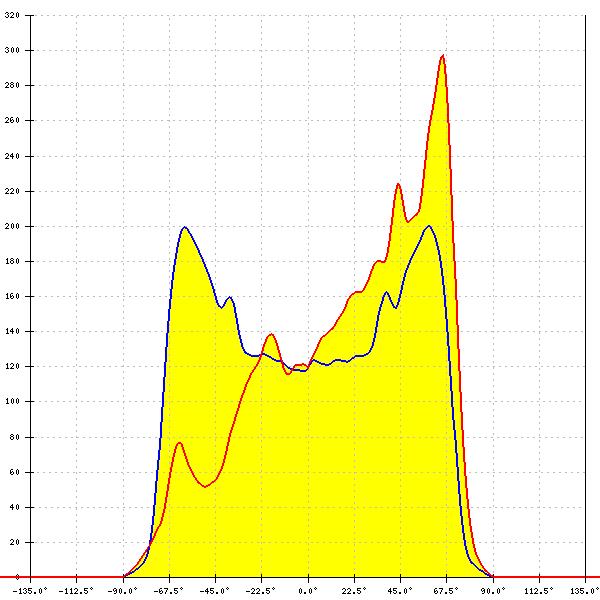

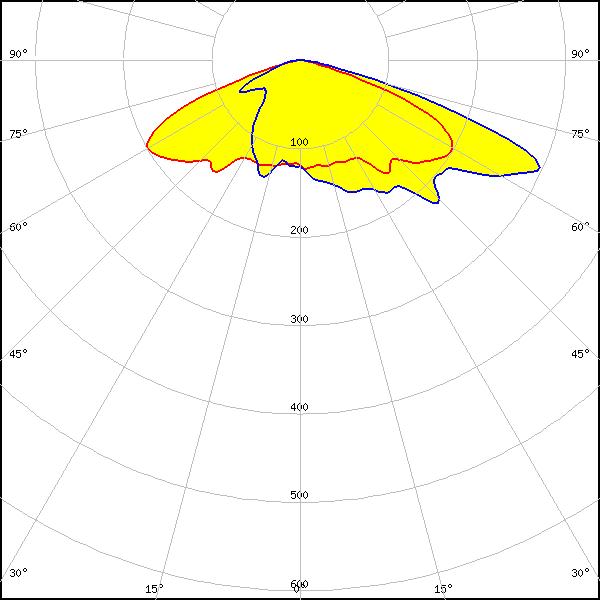

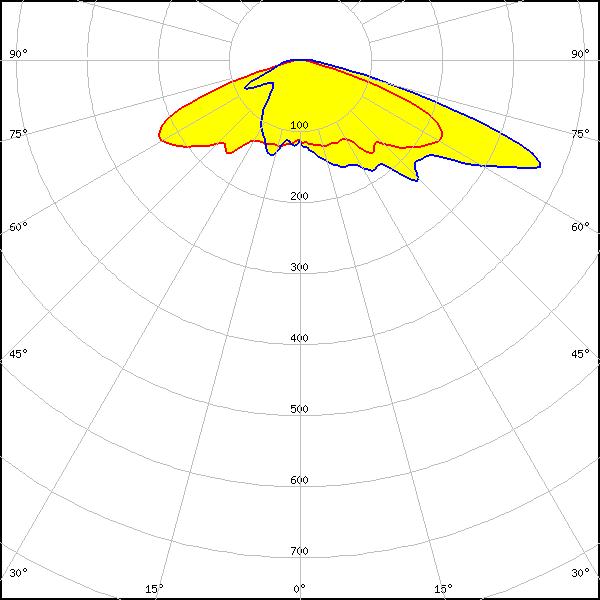

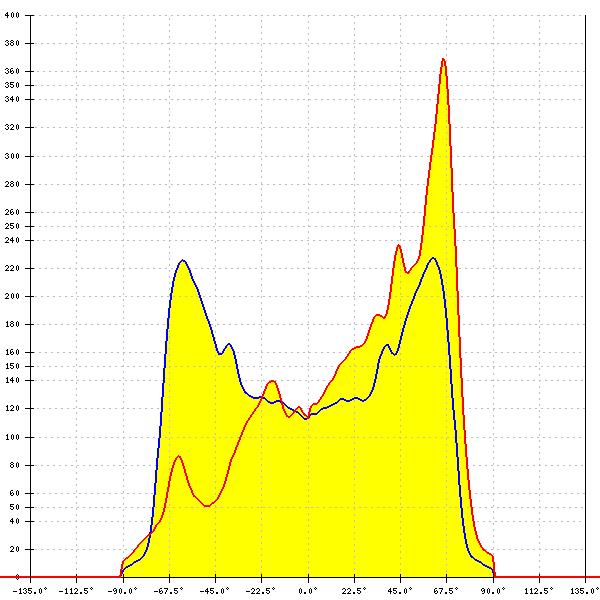

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.485 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.373 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

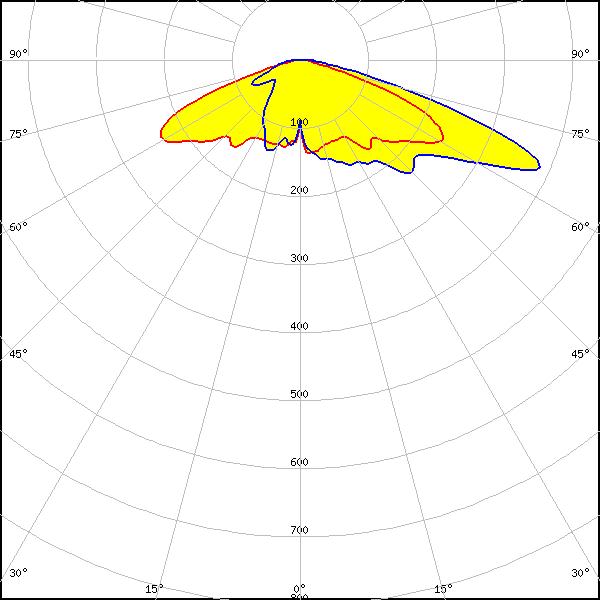

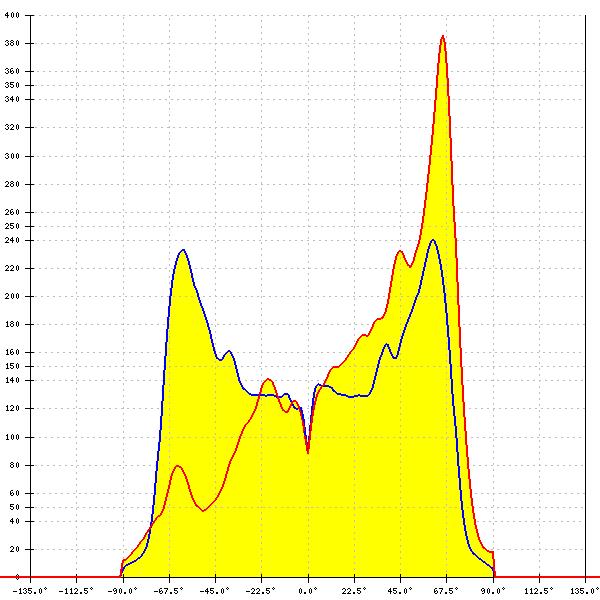

    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 0.490 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

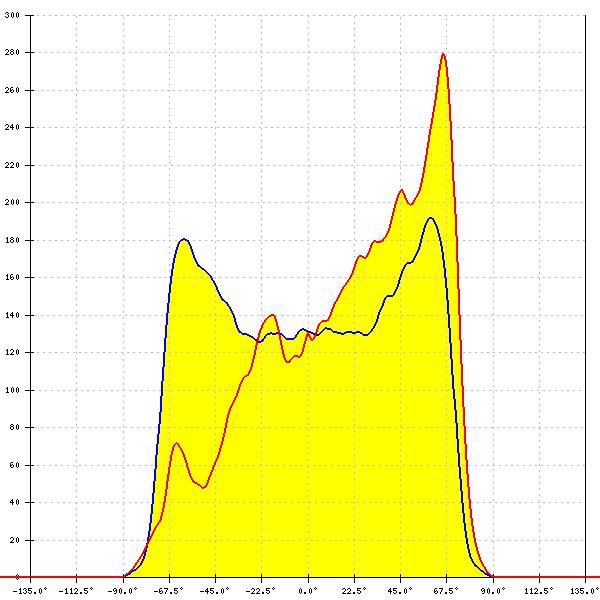

    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 0.374 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

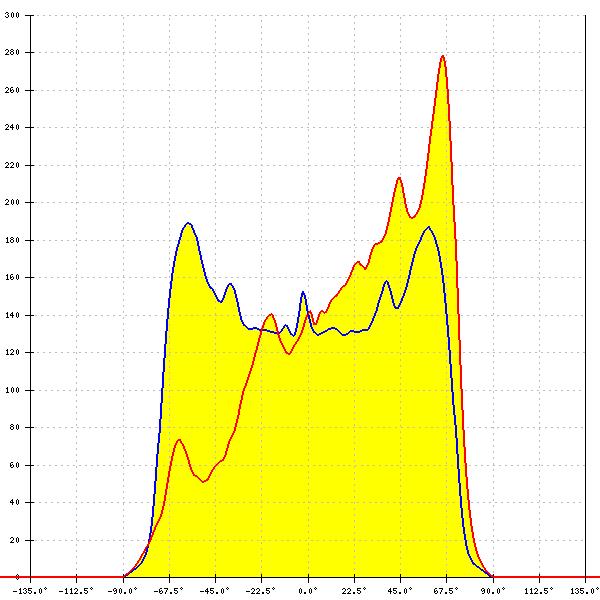

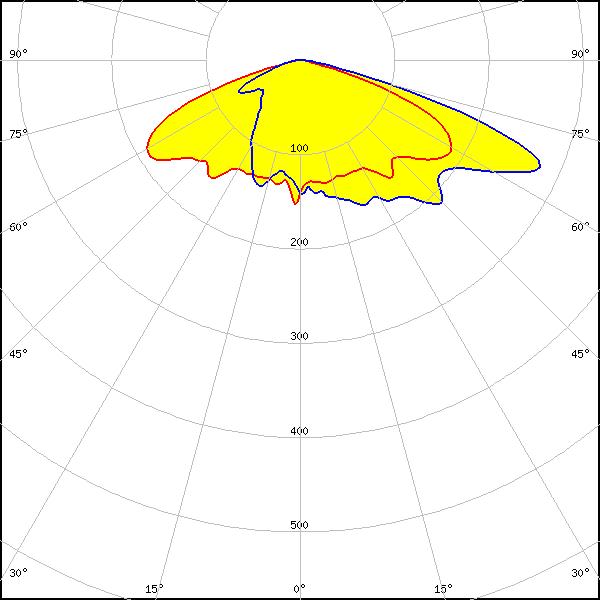

    LED: LM302D
    FWHM: asymmetric
    Peak intensity: 0.358 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

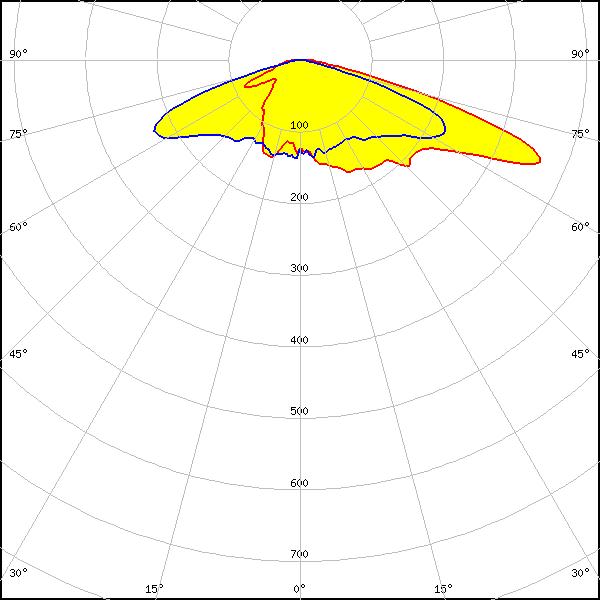

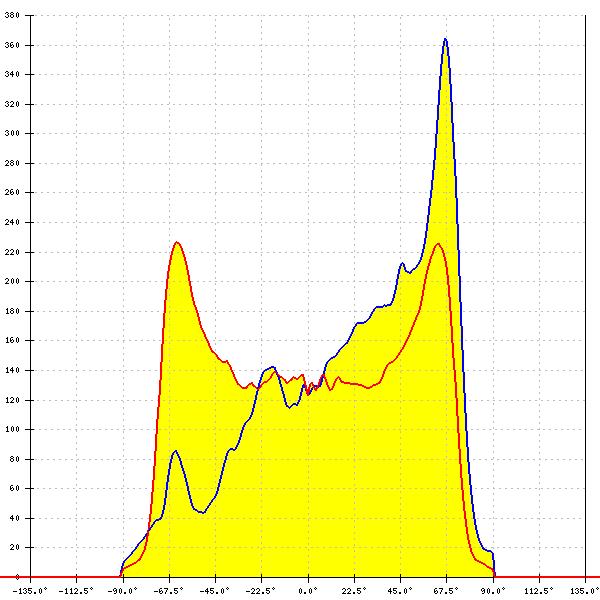

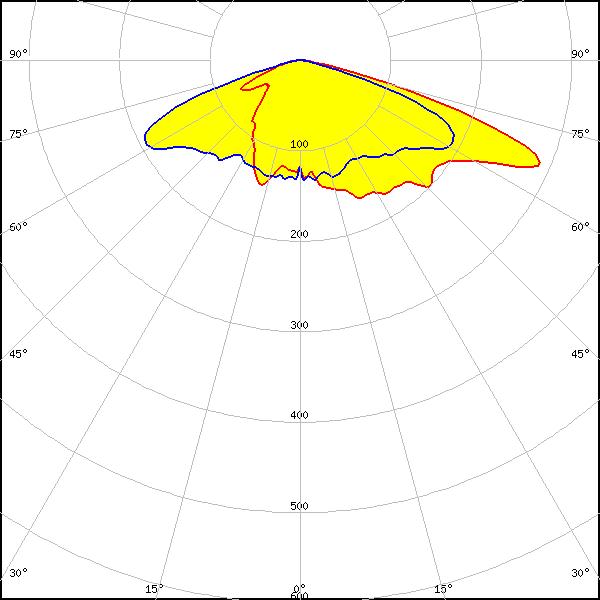

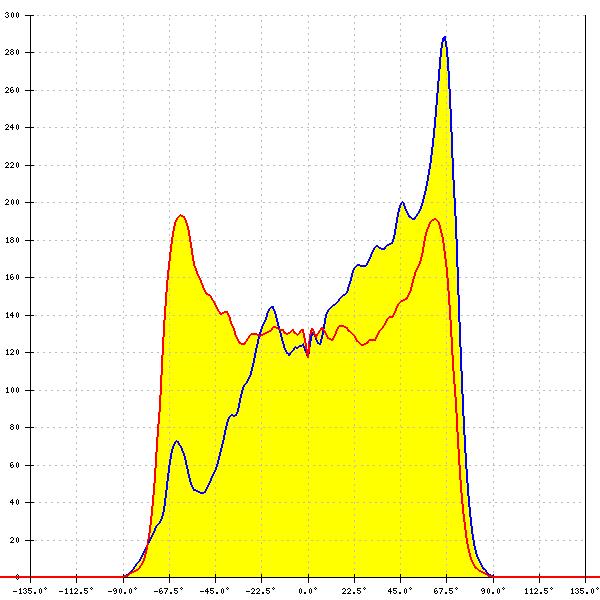

    LED: SEOUL DC 3030C
    FWHM: asymmetric
    Peak intensity: 0.512 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030C
    FWHM: asymmetric
    Peak intensity: 0.376 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

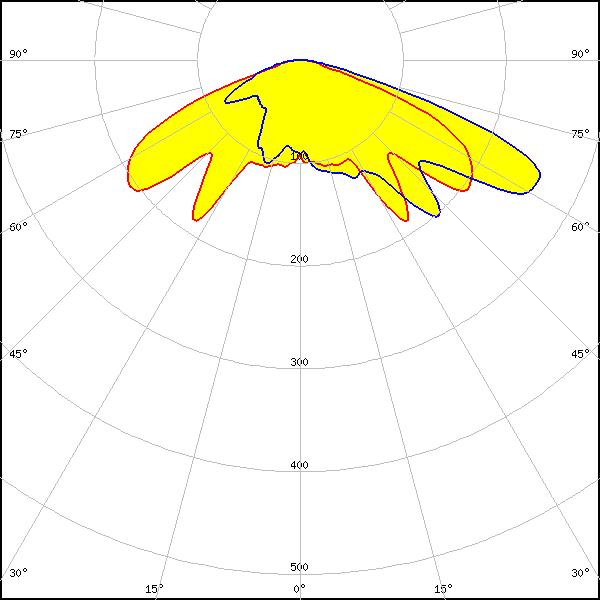

    LED: Z8Y19
    FWHM: asymmetric
    Peak intensity: 0.375 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

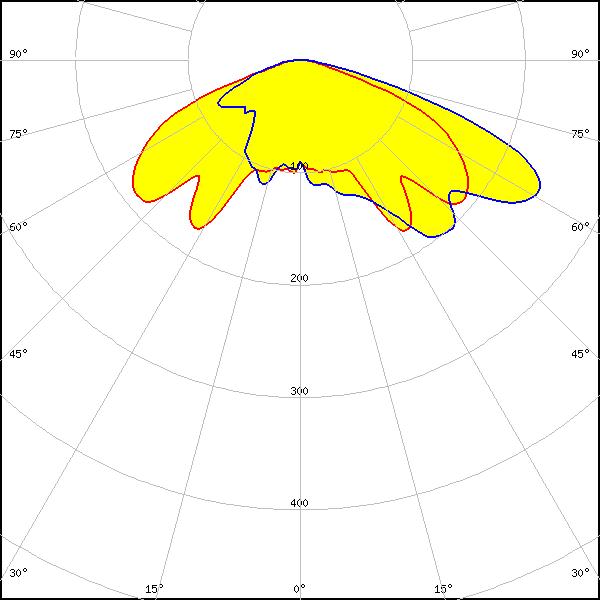

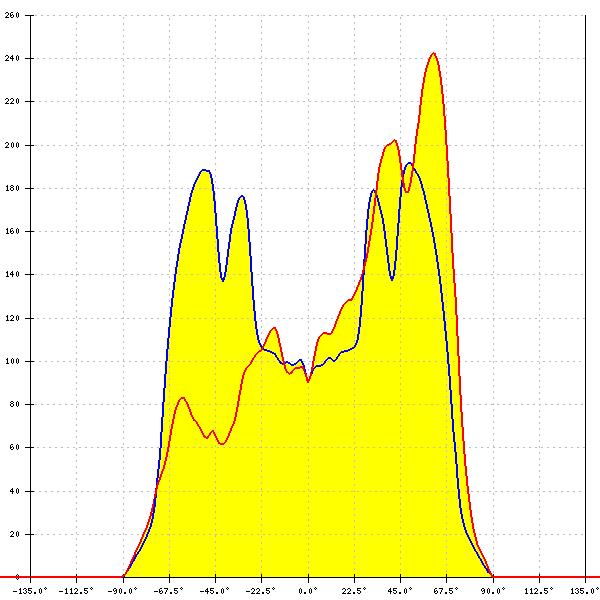

    LED: Z8Y22
    FWHM: asymmetric
    Peak intensity: 0.346 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

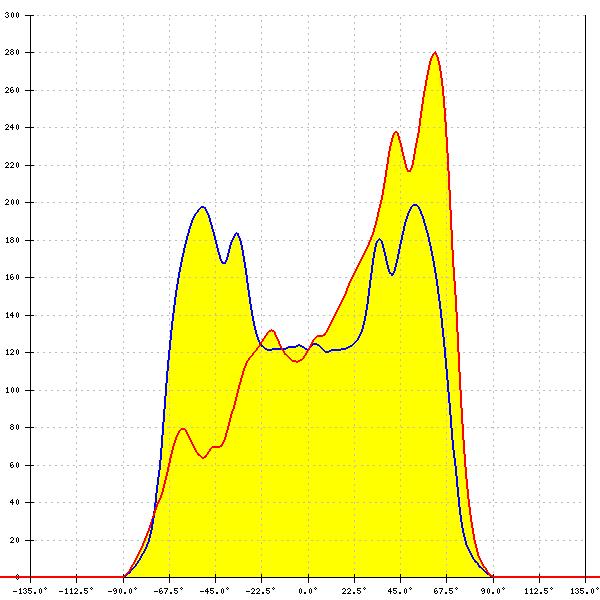

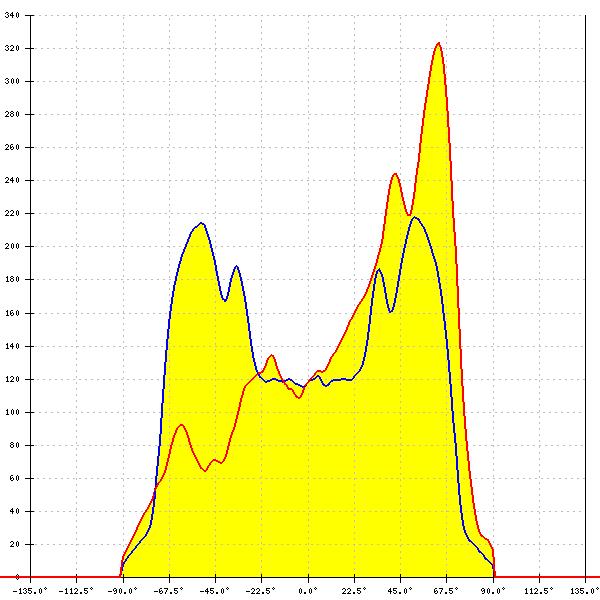

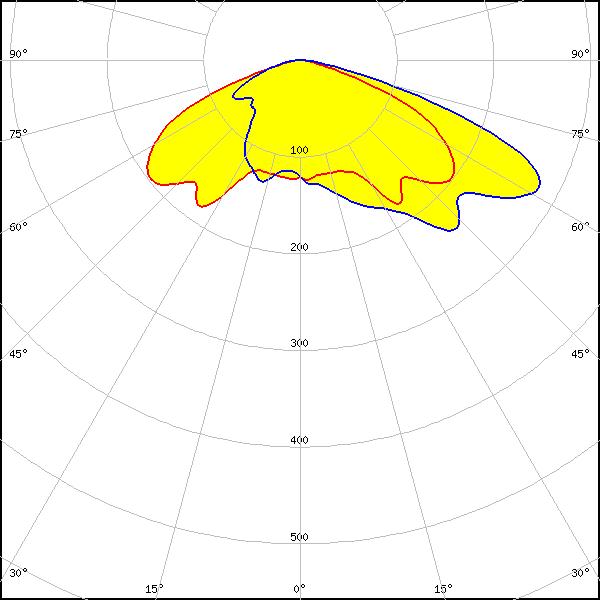

    LED: Z8Y22T
    FWHM: asymmetric
    Peak intensity: 0.436 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22T
    FWHM: asymmetric
    Peak intensity: 0.353 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
