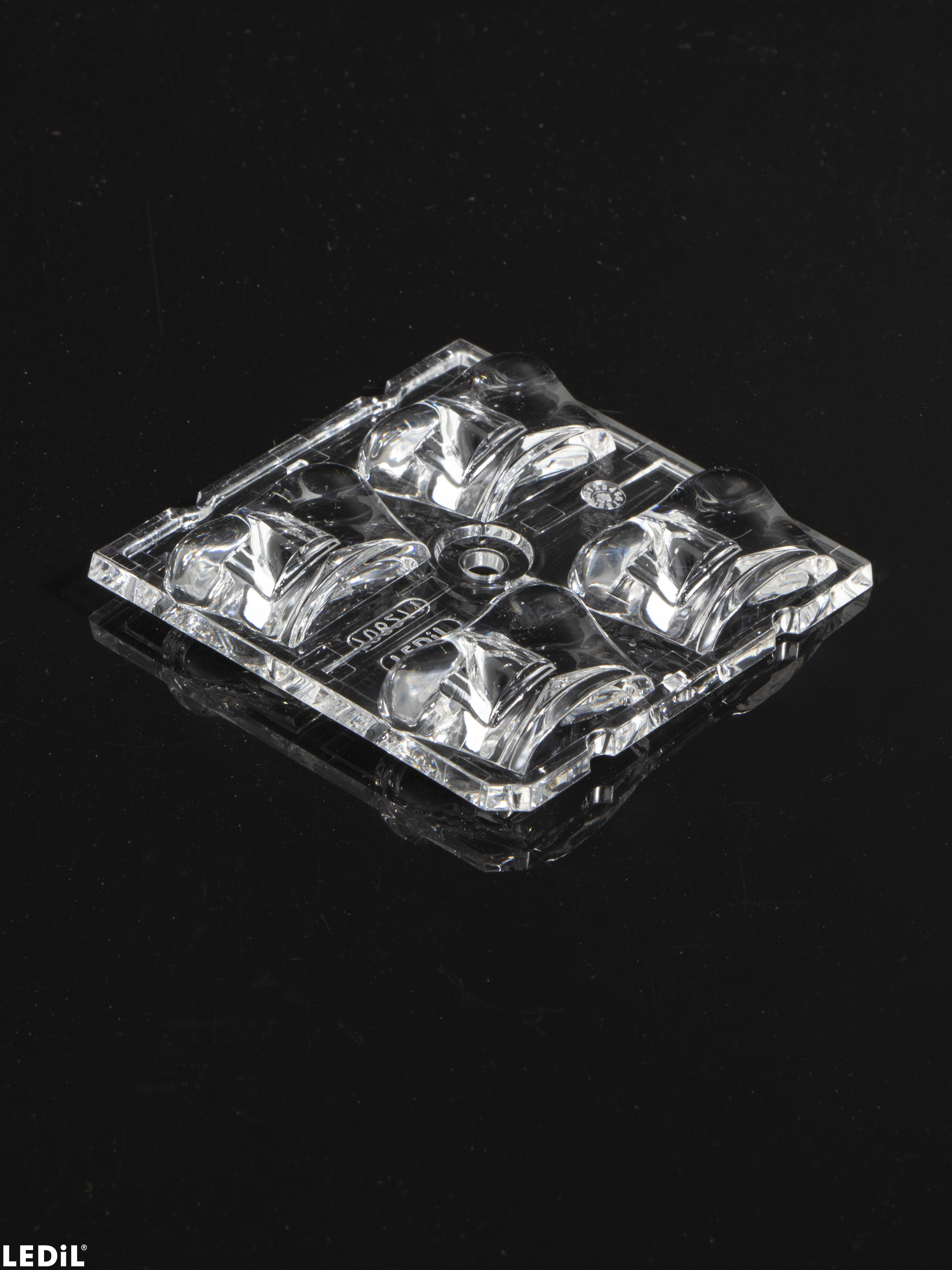

C17062_STRADA-2X2-5050-T2-C2
Print
IESNA Type II (medium) beam with added house side backlight. Designed for tilted and long armatures. Variant optimized for flat 5050 size LED packages.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
J Series 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.537 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.816 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.767 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

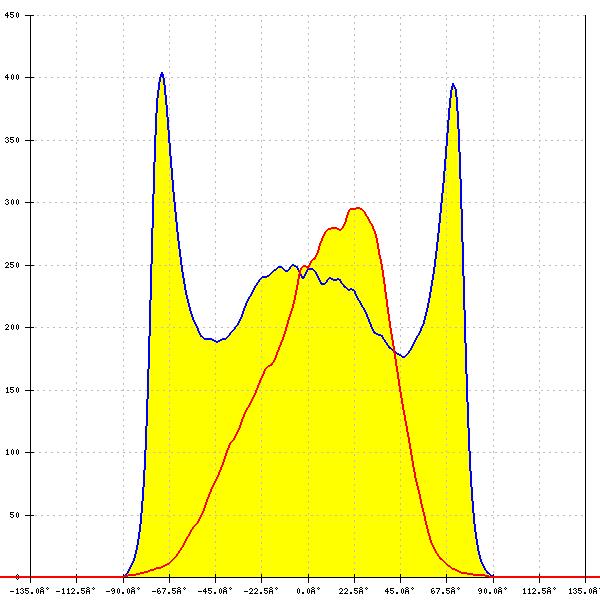

LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.497 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

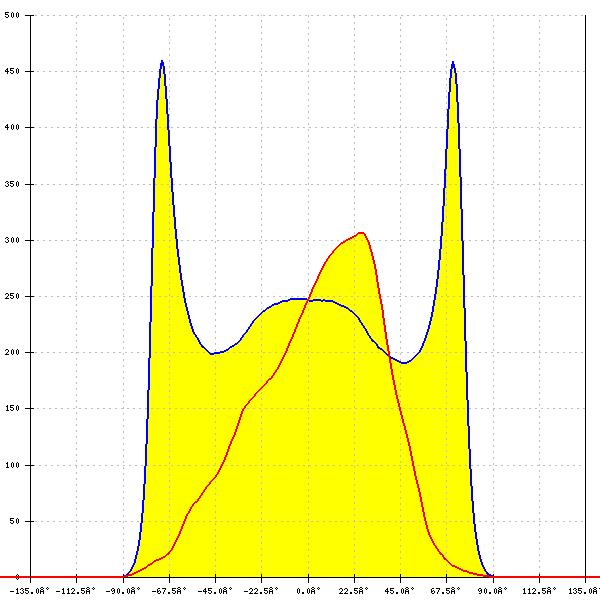

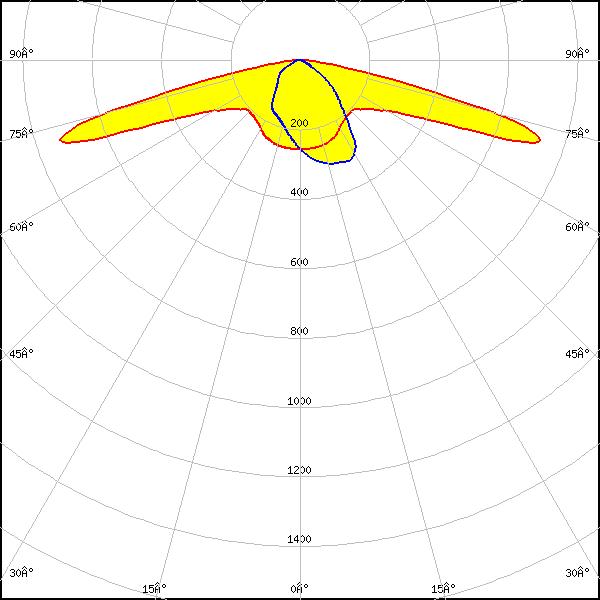

LED:
J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity:
0.558 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity:
0.954 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM: asymmetric
Peak intensity:
0.950 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2 HE
FWHM: asymmetric
Peak intensity:
0.820 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
1.053 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.607 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 HE
FWHM: asymmetric
Peak intensity:
0.516 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

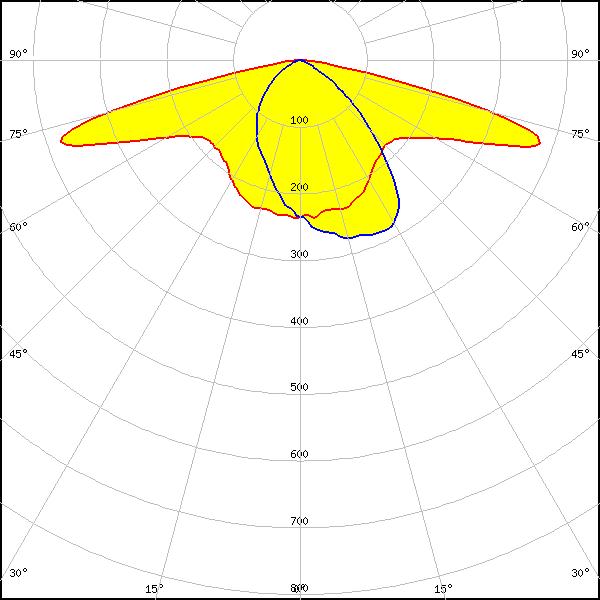

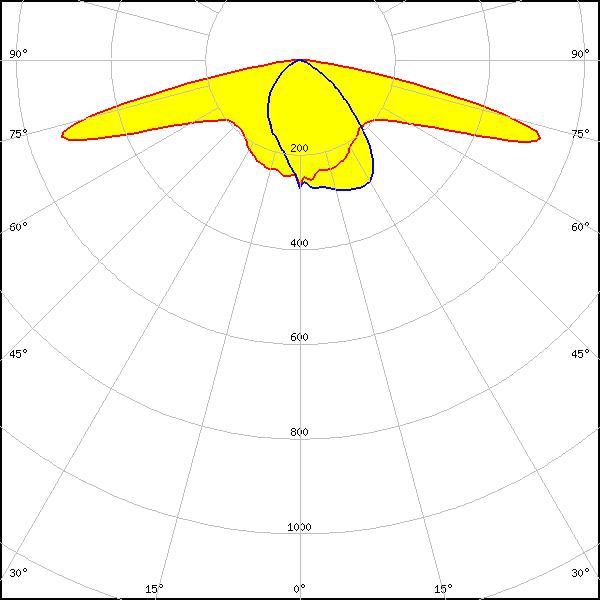

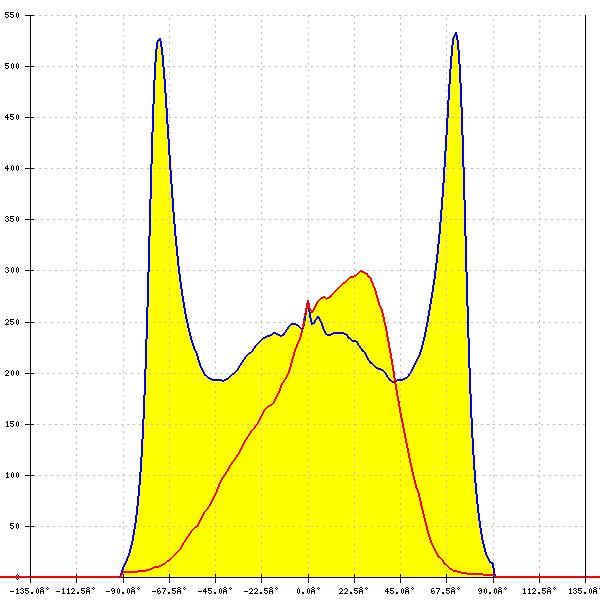

LED:
LUXEON 5050 HE Plus
FWHM: asymmetric
Peak intensity:
0.461 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

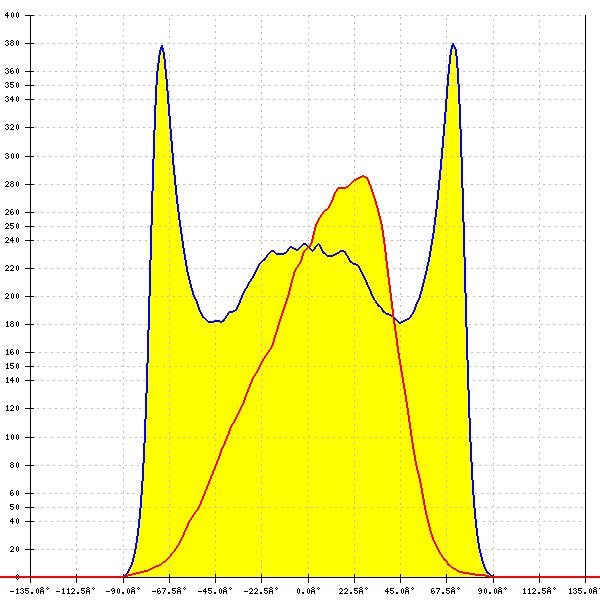

LED:
LUXEON 5050 HE Plus
FWHM: asymmetric
Peak intensity:
0.653 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

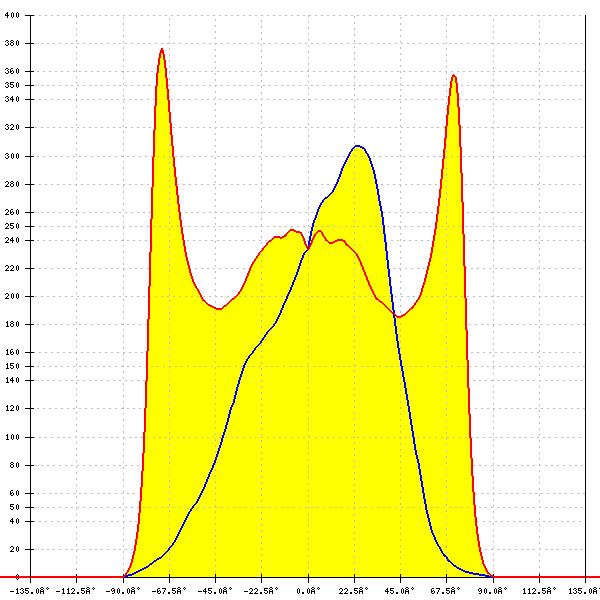

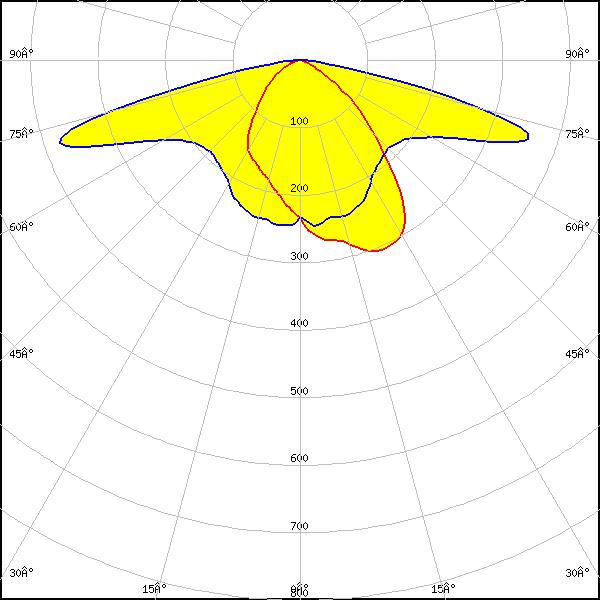

LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.451 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.640 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

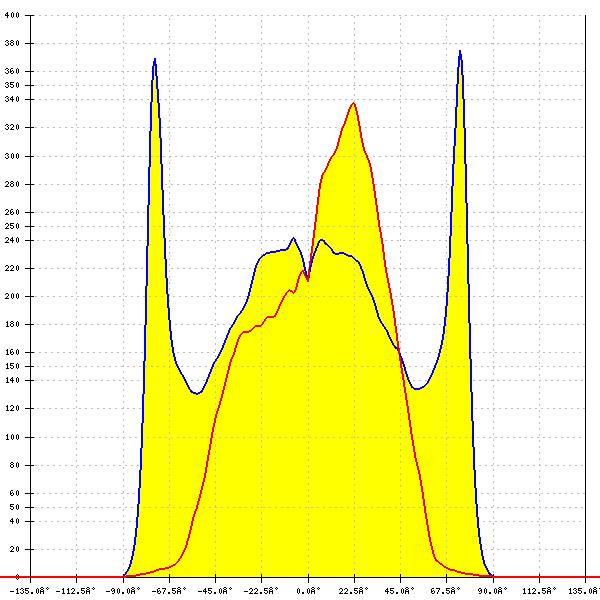

LED:
LUXEON HL2X
FWHM: asymmetric
Peak intensity:
0.527 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-5050 SQR (L213-xxxx016MRH001)
FWHM: asymmetric
Peak intensity:
0.869 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

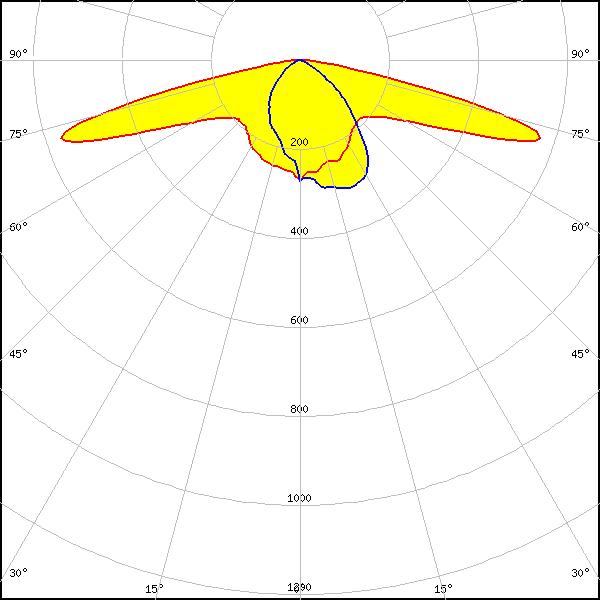

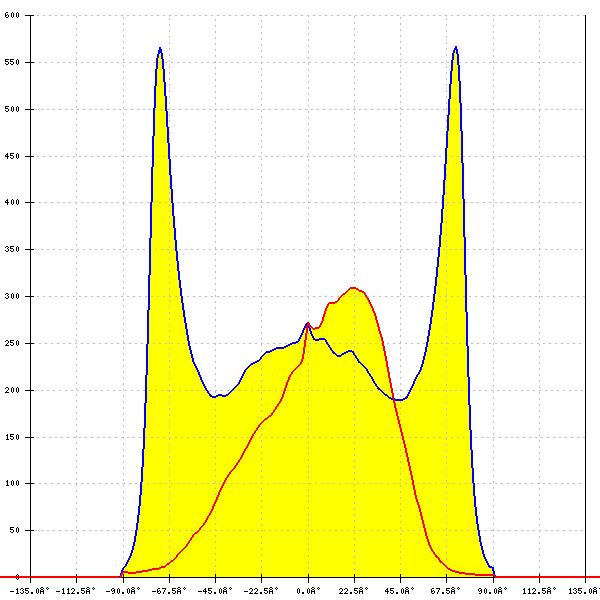

LED:
MP-5050-240E_810E
FWHM: asymmetric
Peak intensity:
0.699 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

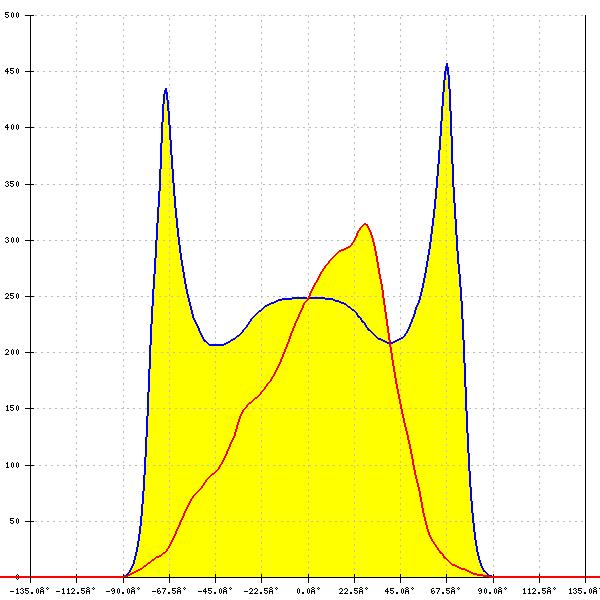

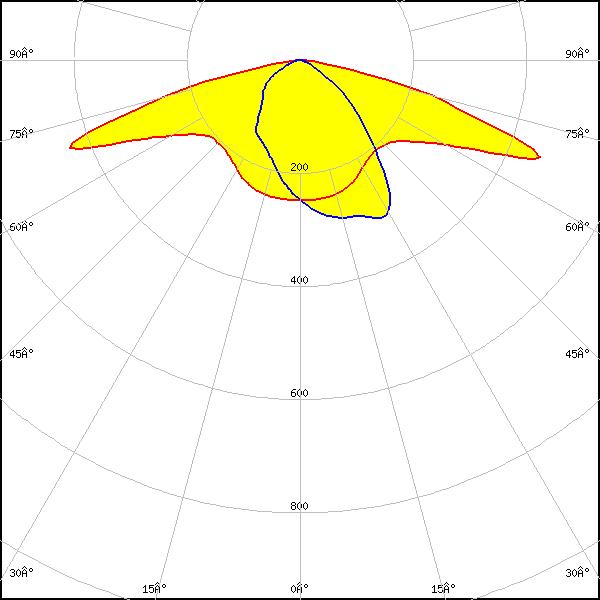

LED:
RecLED 173x50mm 2900lm 740 2x6 5050 Opt G1
FWHM: asymmetric
Peak intensity:
0.539 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RecLED 173x50mm 2900lm 740 2x6 5050 Opt G1
FWHM: asymmetric
Peak intensity:
0.872 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.612 cd/lm
Efficiency:
91 %
LEDs/each optic:
4
Light colour/type:
White

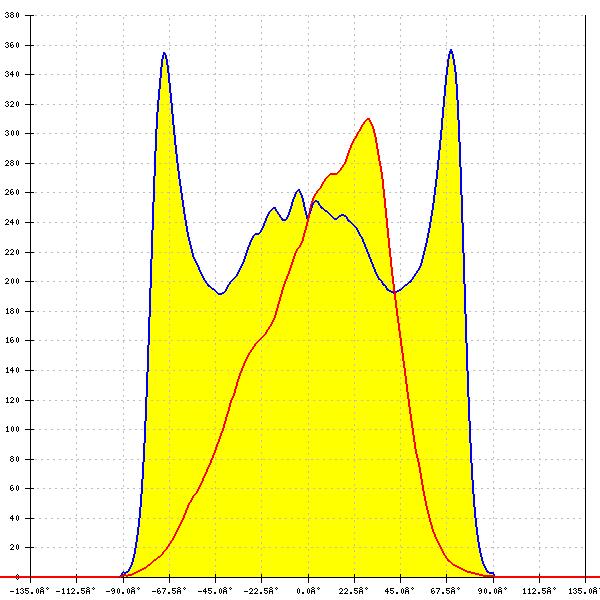

LED:
Duris S8
FWHM: asymmetric
Peak intensity:
0.407 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM: asymmetric
Peak intensity:
0.637 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR32)
FWHM: asymmetric
Peak intensity:
0.693 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR32)
FWHM: asymmetric
Peak intensity:
0.434 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 SFC
FWHM: asymmetric
Peak intensity:
0.833 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 SFC
FWHM: asymmetric
Peak intensity:
0.539 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

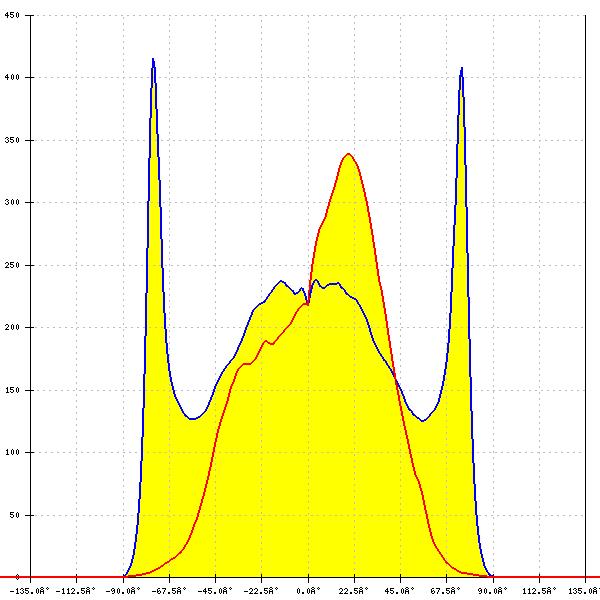

LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.592 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA (U)HE
FWHM: asymmetric
Peak intensity:
0.521 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA (U)HE
FWHM: asymmetric
Peak intensity:
0.873 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM: asymmetric
Peak intensity:
0.469 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502C
FWHM: asymmetric
Peak intensity:
0.485 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502D
FWHM: asymmetric
Peak intensity:
0.429 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

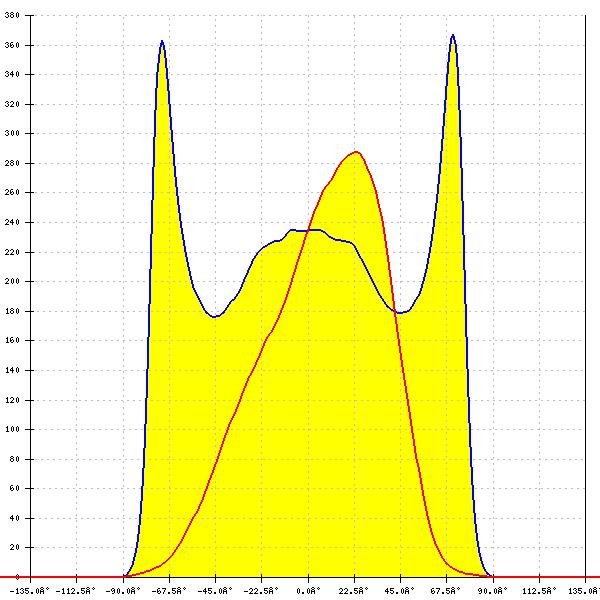

LED:
LH502D
FWHM: asymmetric
Peak intensity:
0.717 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT 5050
FWHM: asymmetric
Peak intensity:
0.666 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

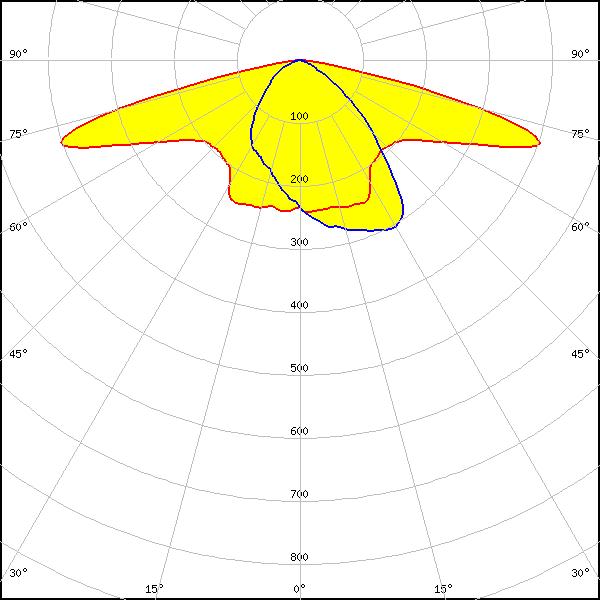

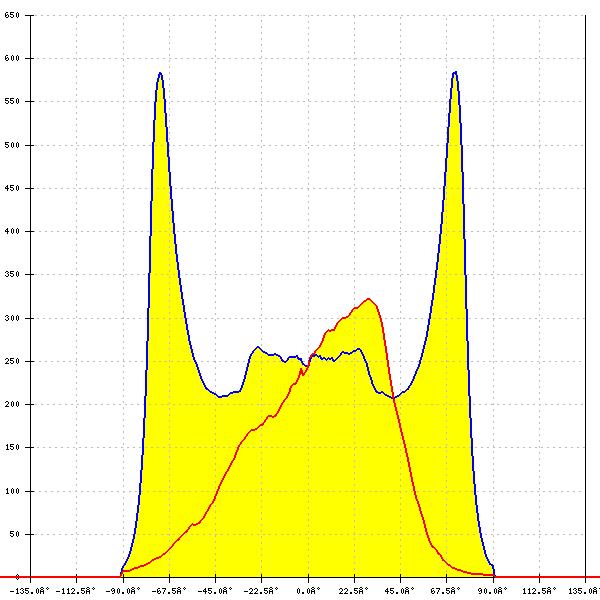

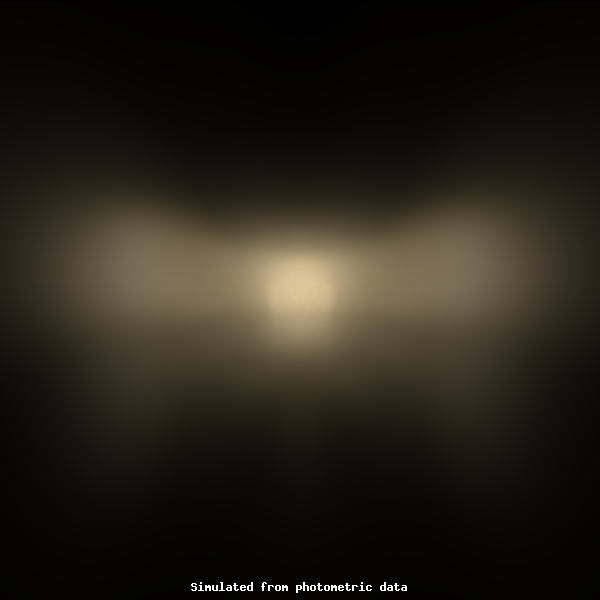

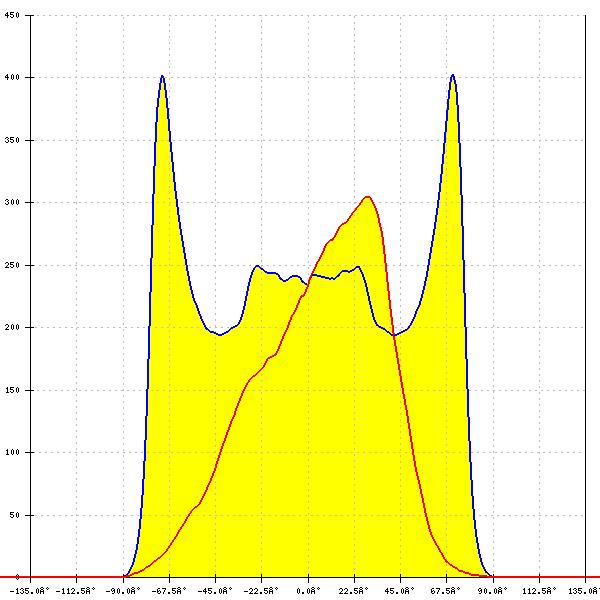

LED:
Seoul 5050 G-Series
FWHM: asymmetric
Peak intensity:
0.722 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Seoul 5050 G-Series
FWHM: asymmetric
Peak intensity:
0.487 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity:
0.619 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity:
0.448 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

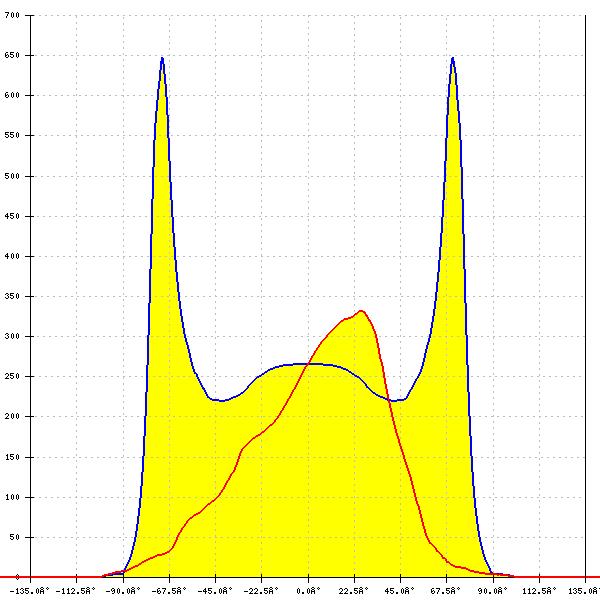

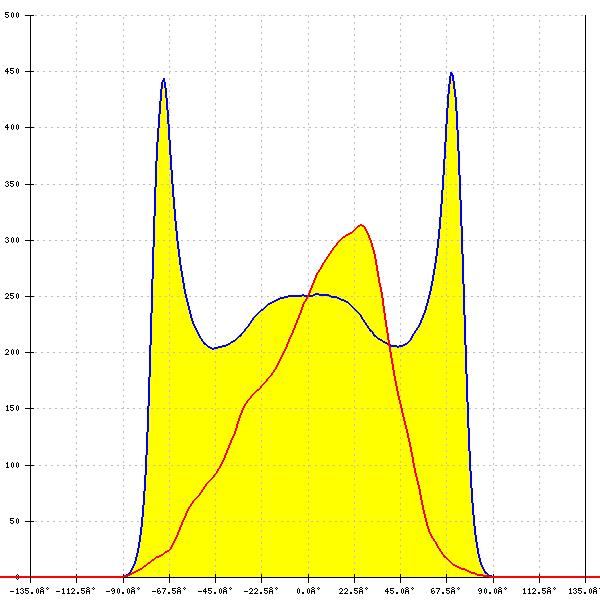

LED:

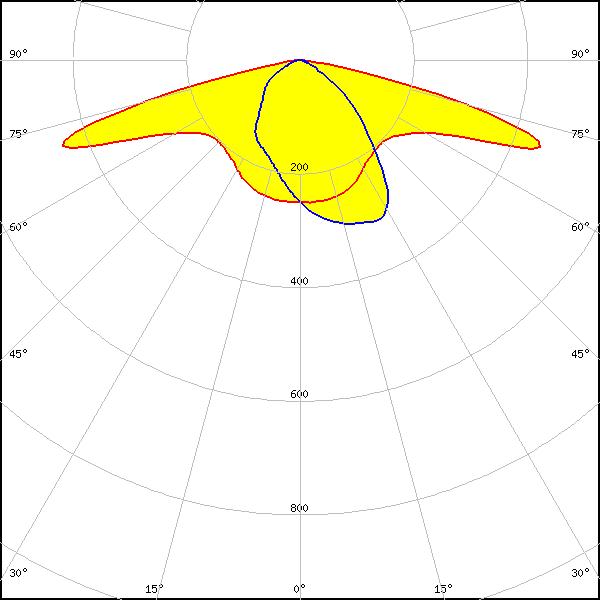

RLE 2x8 6000lm HP HE EXC3 OTD
FWHM: asymmetric
Peak intensity:
0.934 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
