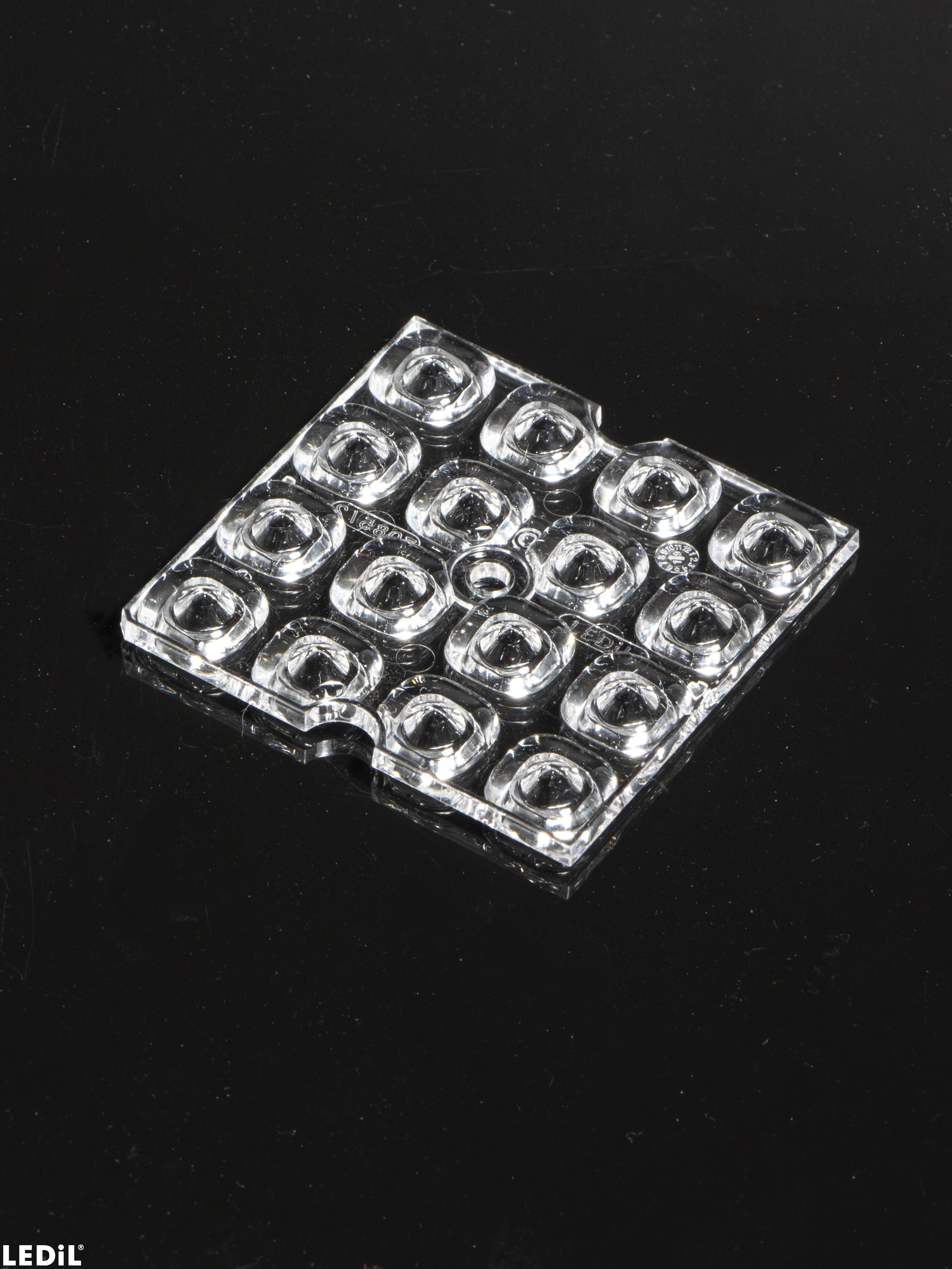

C17085_STRADELLA-16-VSM
Print
IESNA Type V (square) beam for wide areas such as car parks.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

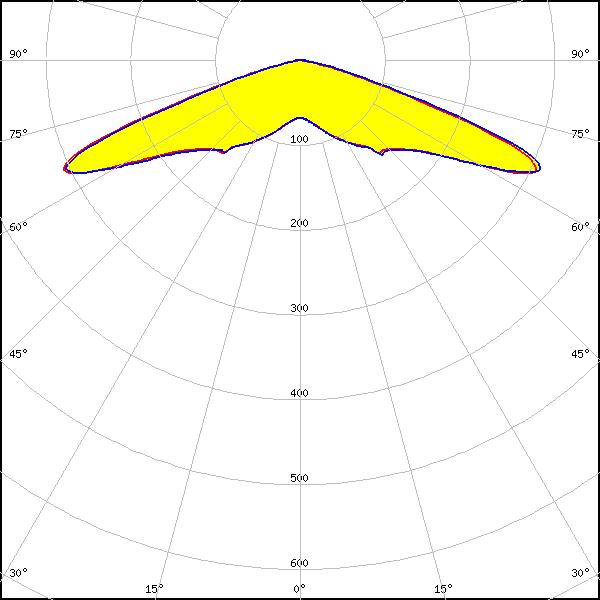

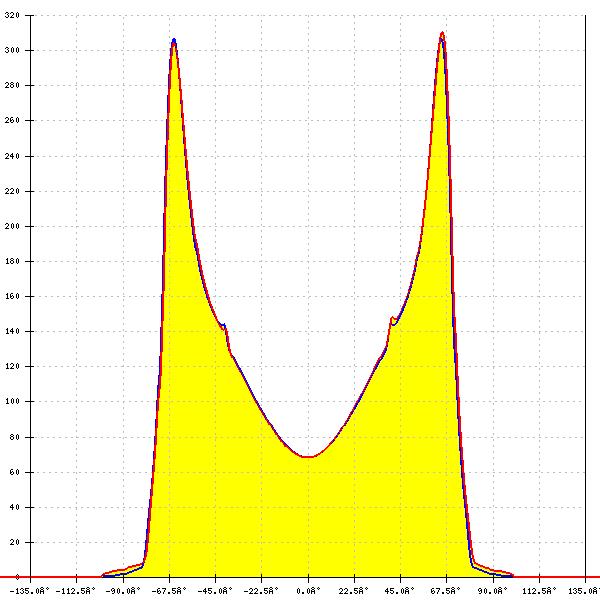

Optical results

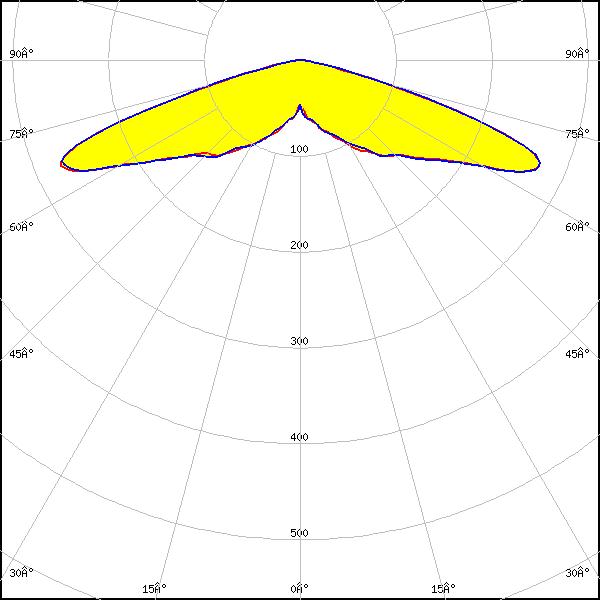

LED:

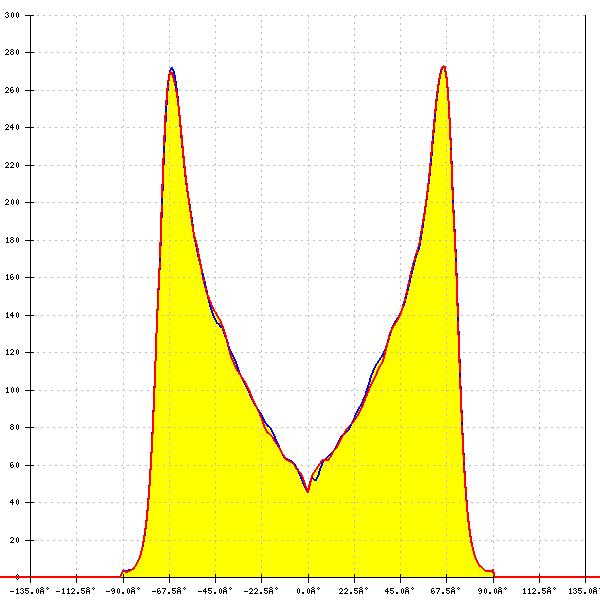

Bridgelux SMD 2835
FWHM:
146°
FWTM:
158°
Peak intensity:
0.419 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

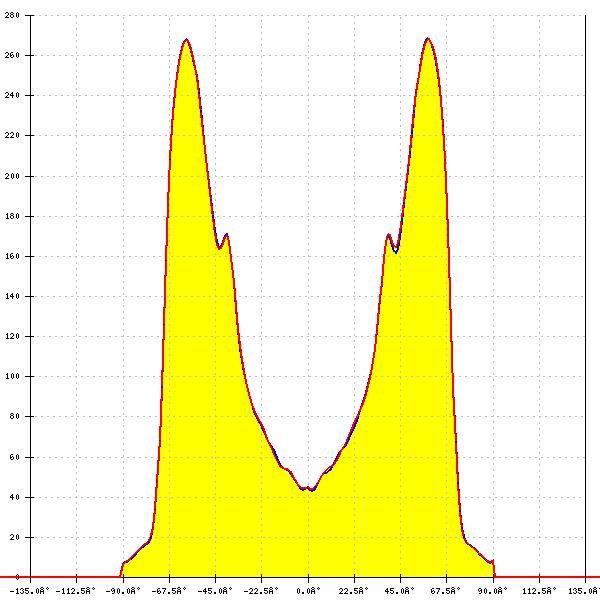

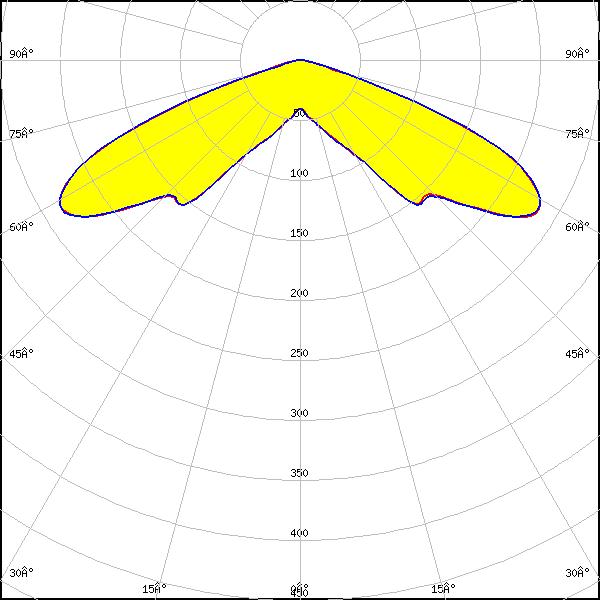

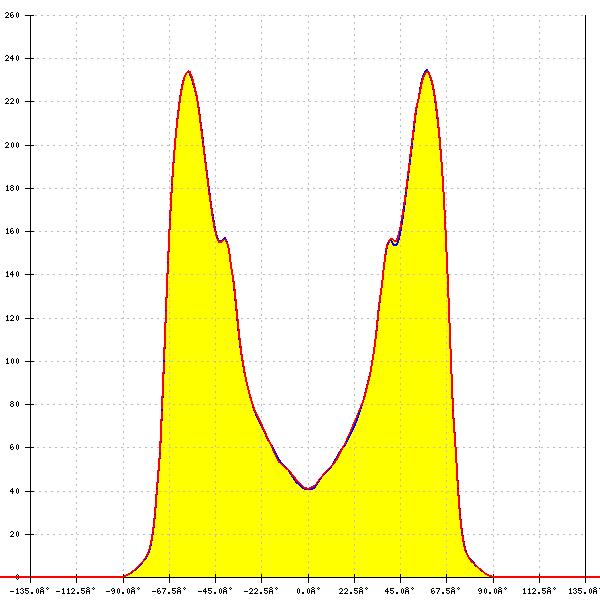

LED:
CSP 2727 (BXCP)
FWHM:
140°
FWTM:
150°
Peak intensity:
0.405 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

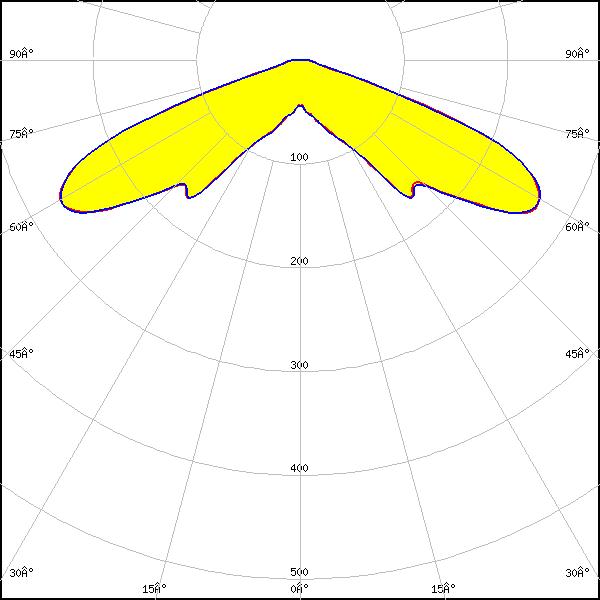

LED:
CSP 2727 (BXCP)
FWHM:
138°
FWTM:
150°
Peak intensity:
0.315 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

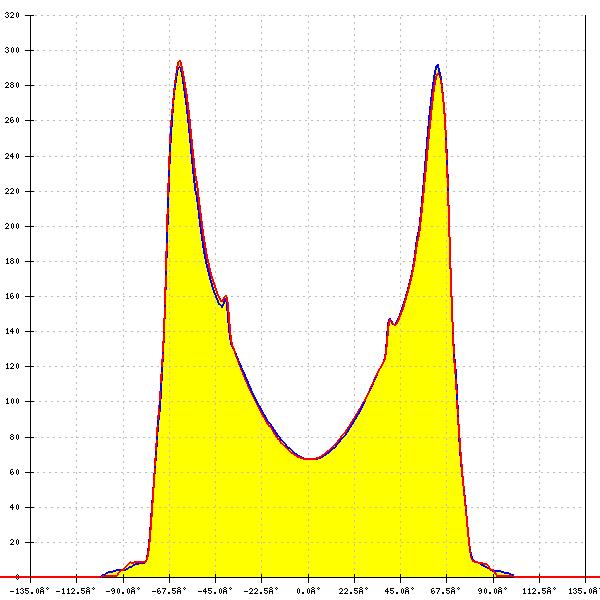

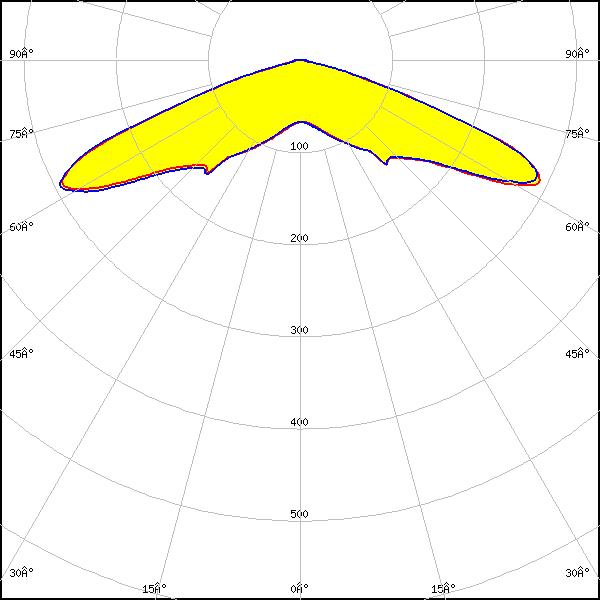

J Series 3030
FWHM: asymmetric
Peak intensity:
0.491 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

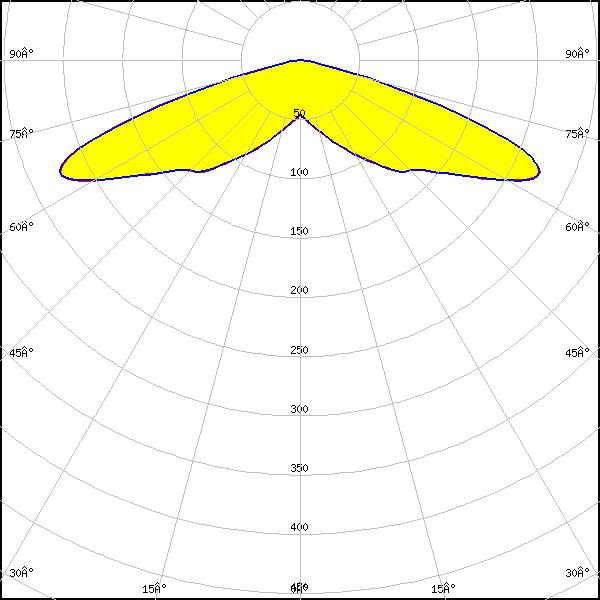

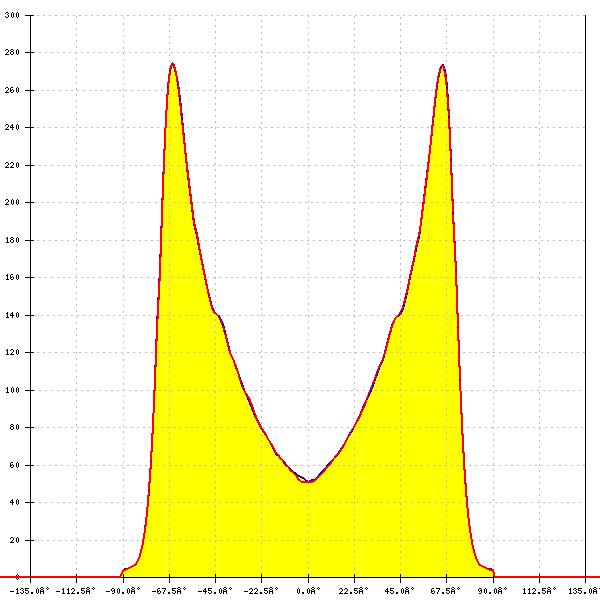

LED:

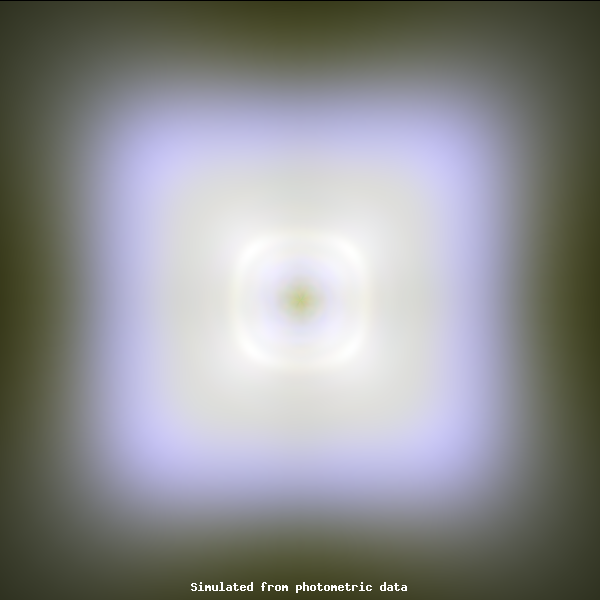

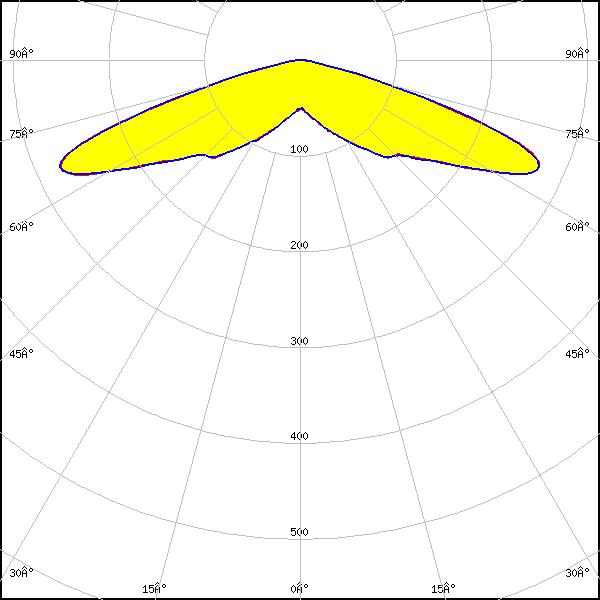

J Series 3030C
FWHM:
146°
FWTM:
158°
Peak intensity:
0.429 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

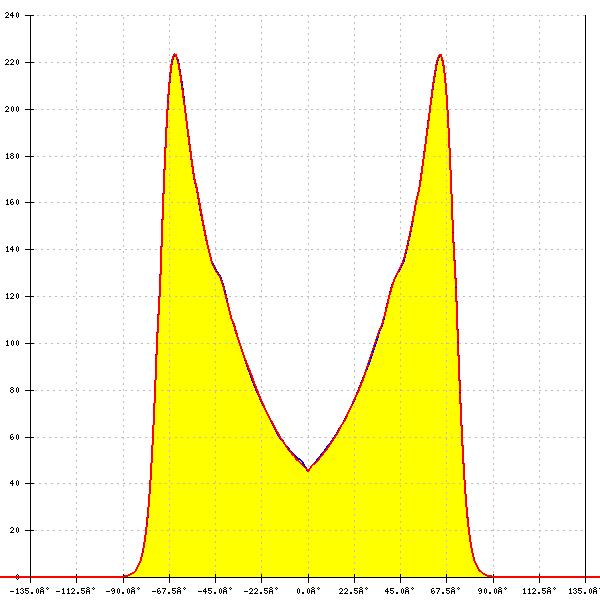

LED:
J Series 3030C
FWHM:
146°
FWTM:
156°
Peak intensity:
0.300 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

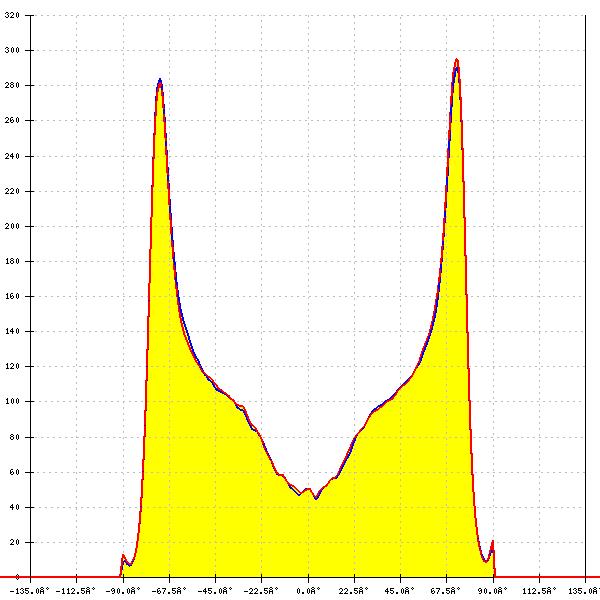

LED:

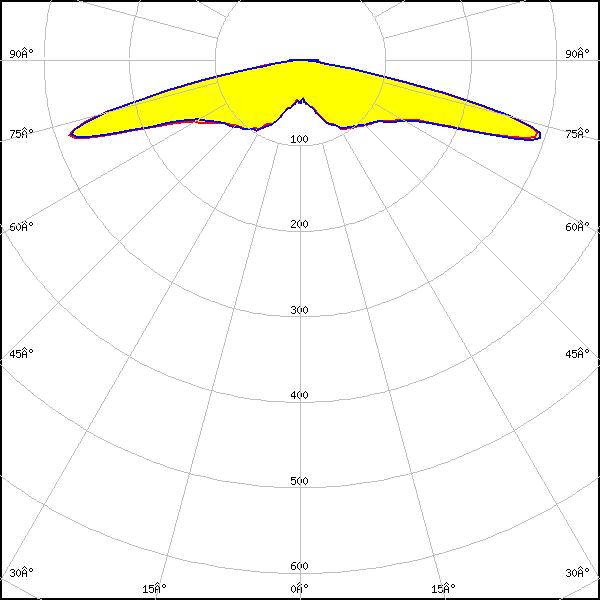

XP-E2
FWHM:
155°
FWTM:
164°
Peak intensity:
0.575 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Far Red
LED:

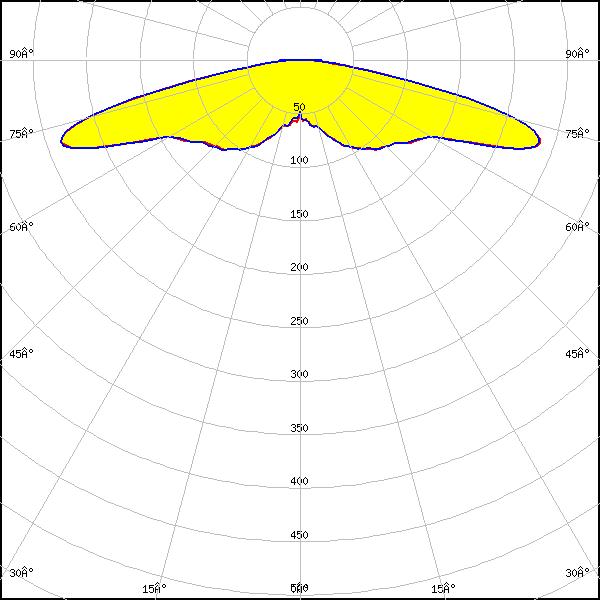

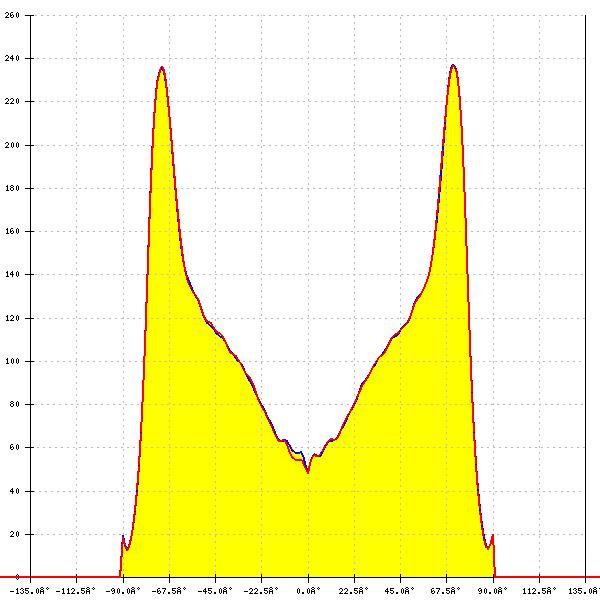

XP-G
FWHM:
158°
FWTM:
170°
Peak intensity:
0.438 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

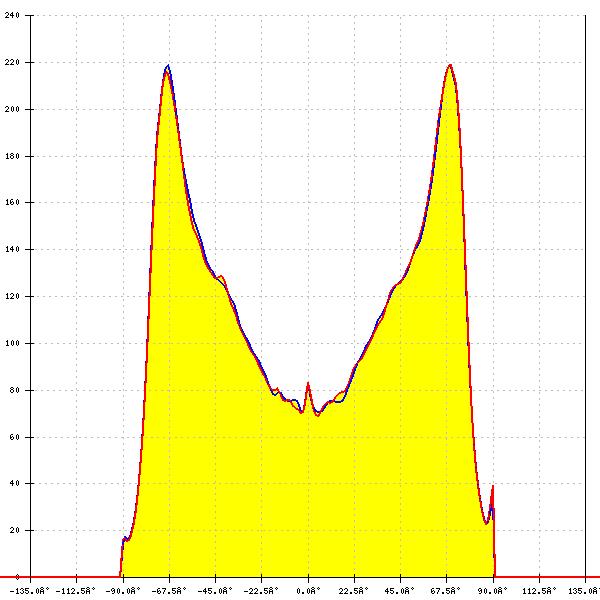

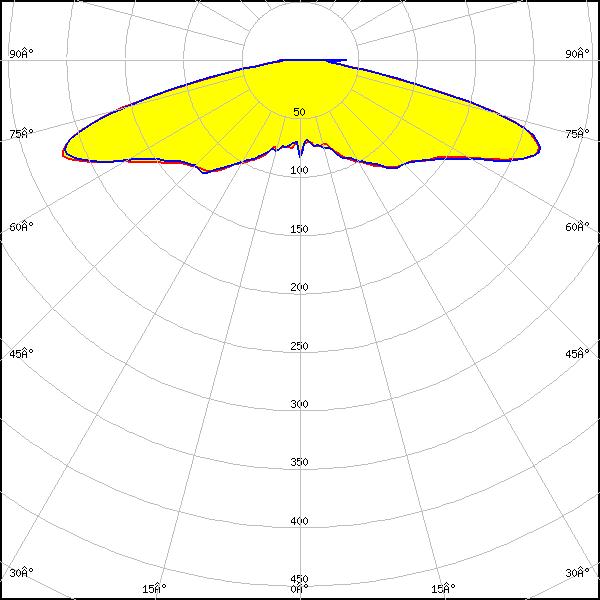

XP-G3
FWHM:
155°
FWTM:
175°
Peak intensity:
0.369 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

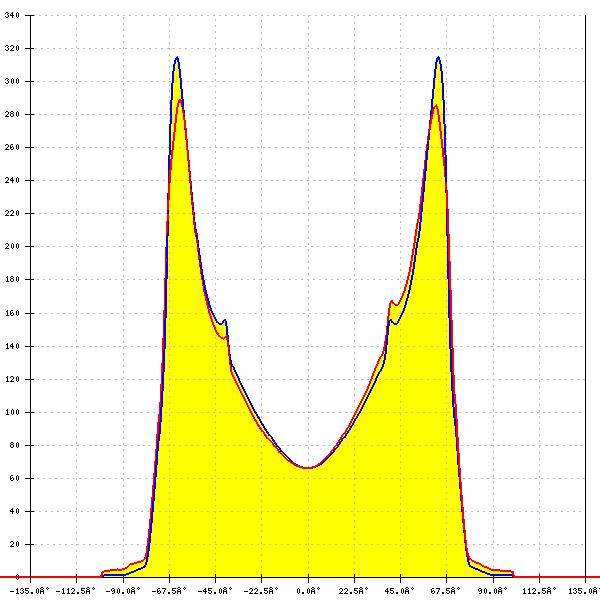

LED:
EHP-223.5x50-1604-xx-70-LS30-06-NTC
FWHM: asymmetric
Peak intensity:
0.526 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

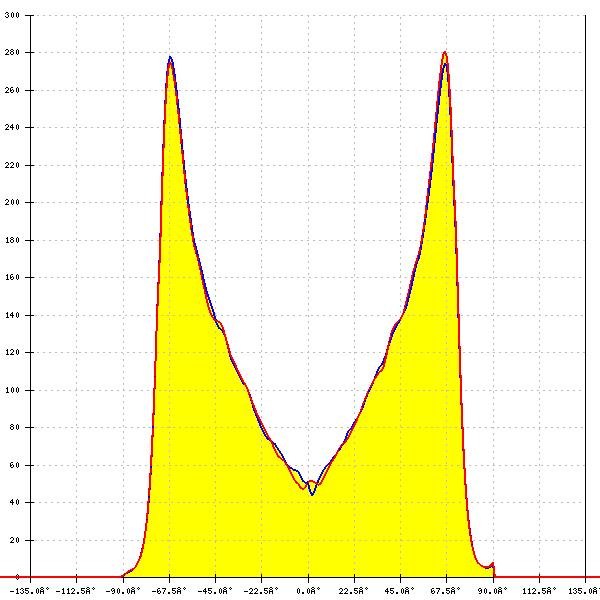

LUXEON 2835 Architectural
FWHM:
146°
FWTM:
157°
Peak intensity:
0.481 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

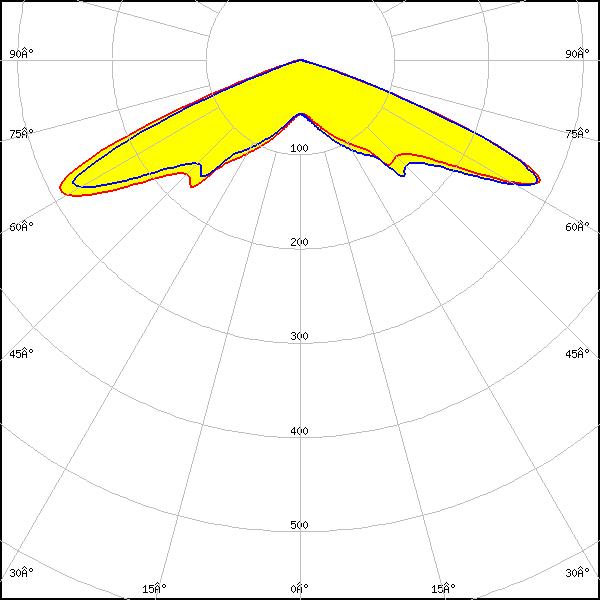

LUXEON 3030 2D (Square LES)
FWHM:
139°
FWTM:
147°
Peak intensity:
0.453 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

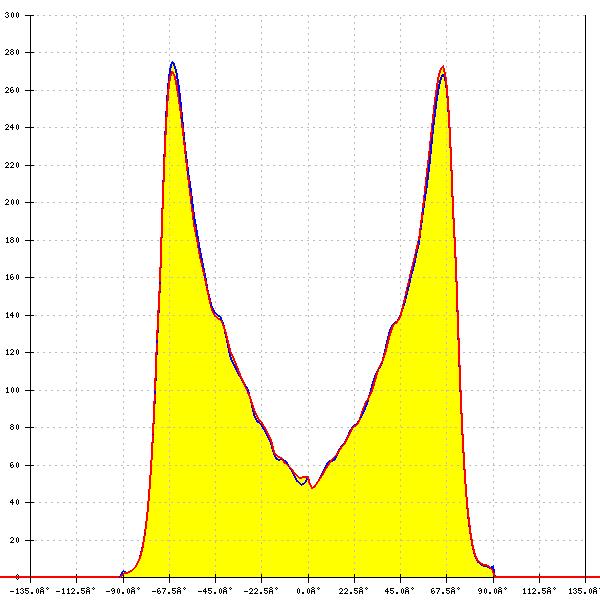

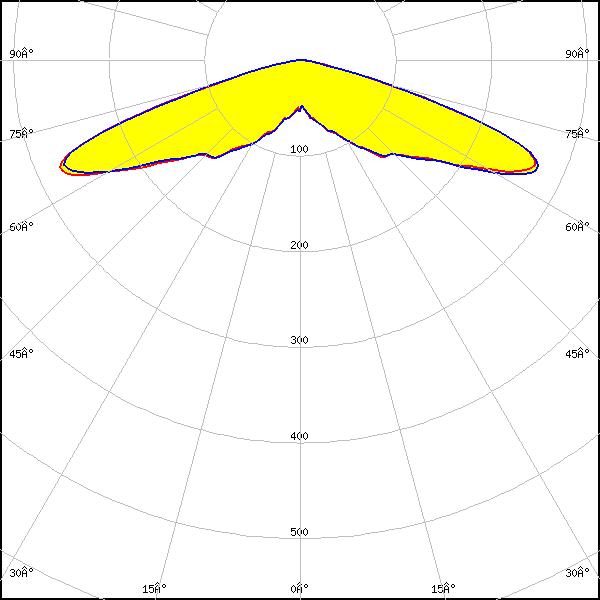

LUXEON 3030 HE Plus
FWHM:
146°
FWTM:
158°
Peak intensity:
0.461 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

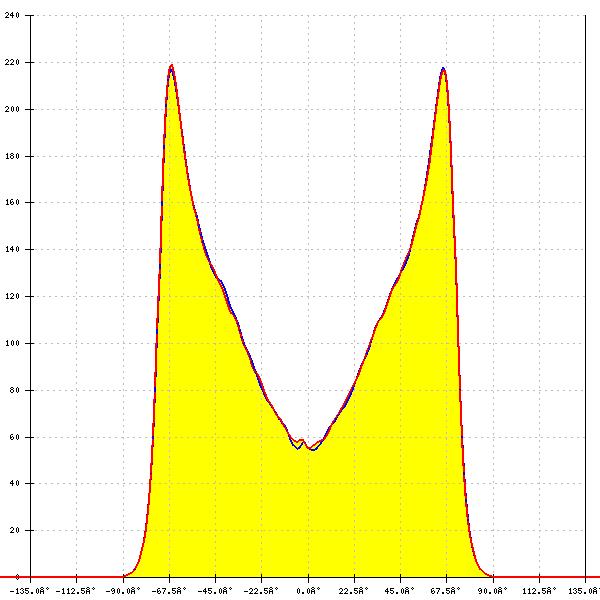

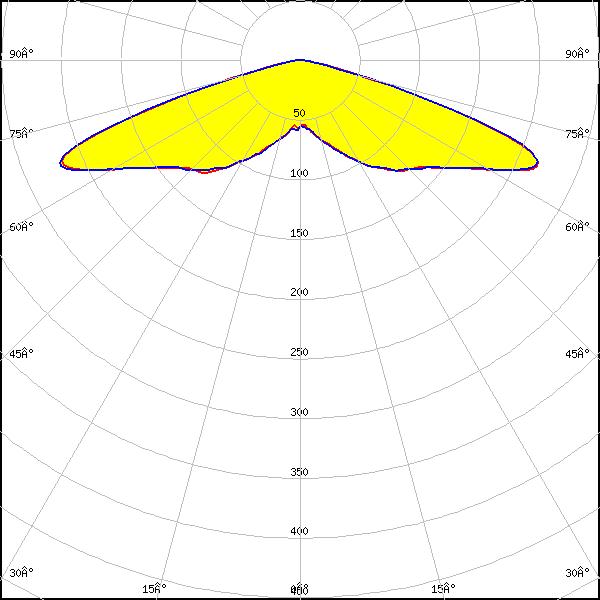

LED:
LUXEON 3535L HE PLUS
FWHM:
146°
FWTM:
156°
Peak intensity:
0.341 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

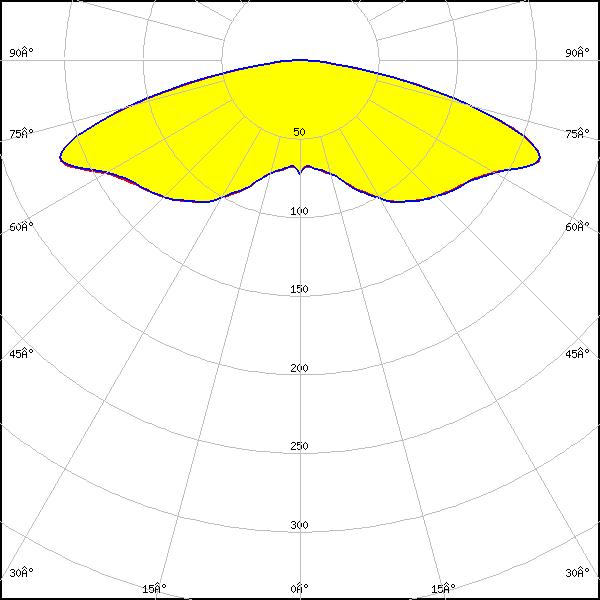

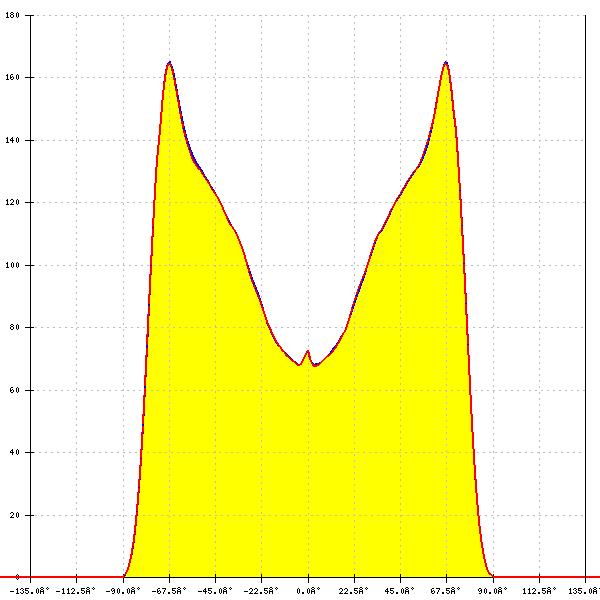

LED:

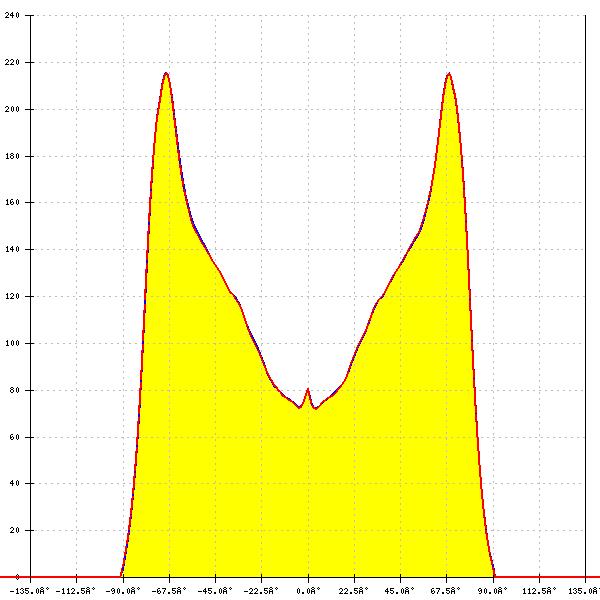

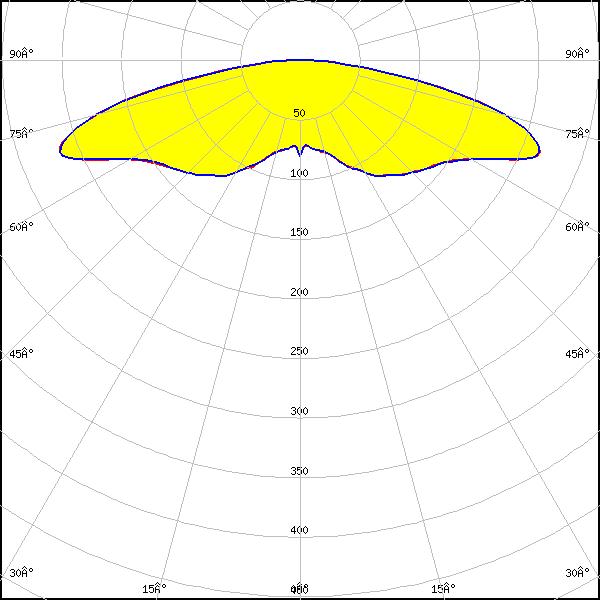

LUXEON HL2X
FWHM:
160°
FWTM:
174°
Peak intensity:
0.299 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2X
FWHM:
154°
FWTM:
168°
Peak intensity:
0.202 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

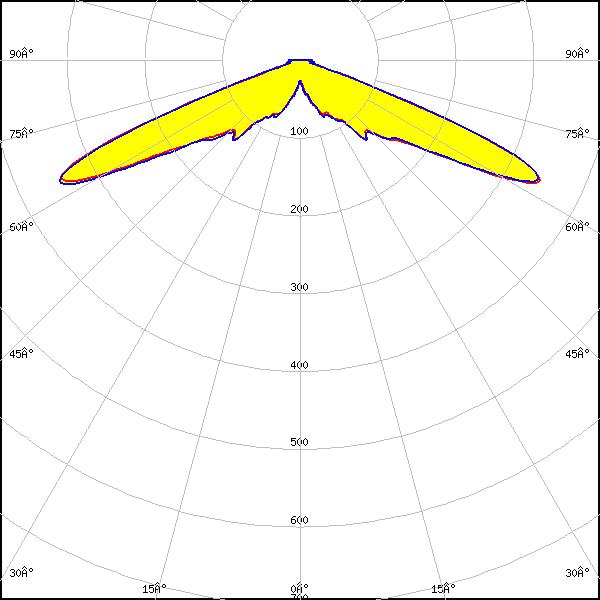

LED:

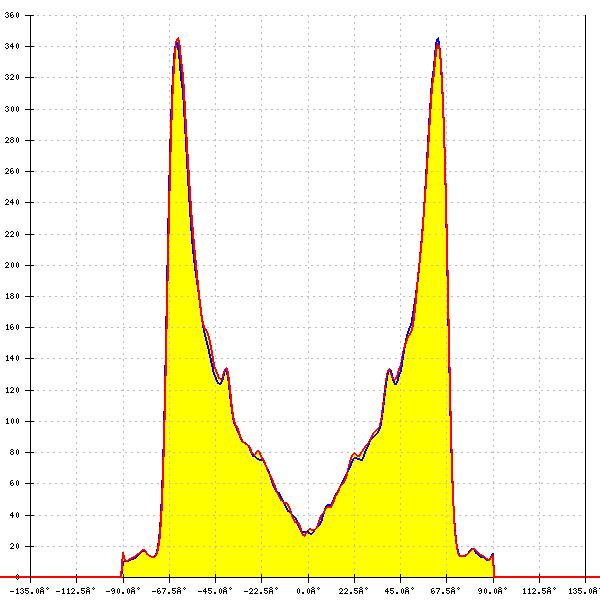

NCSxE17A
FWHM:
137°
FWTM:
143°
Peak intensity:
0.650 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

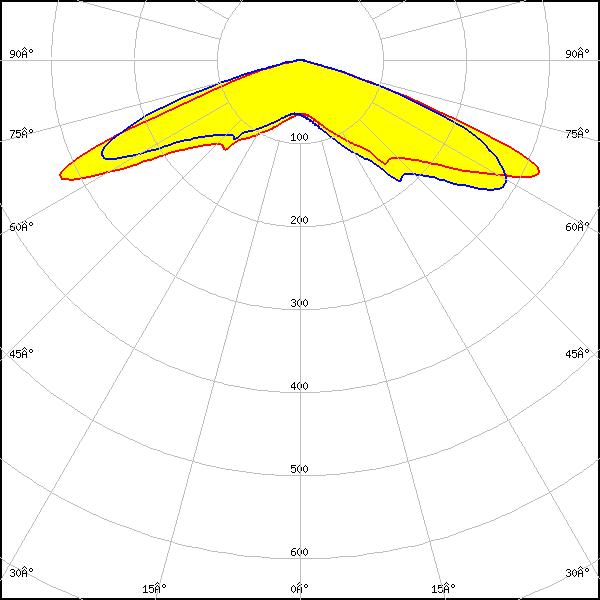

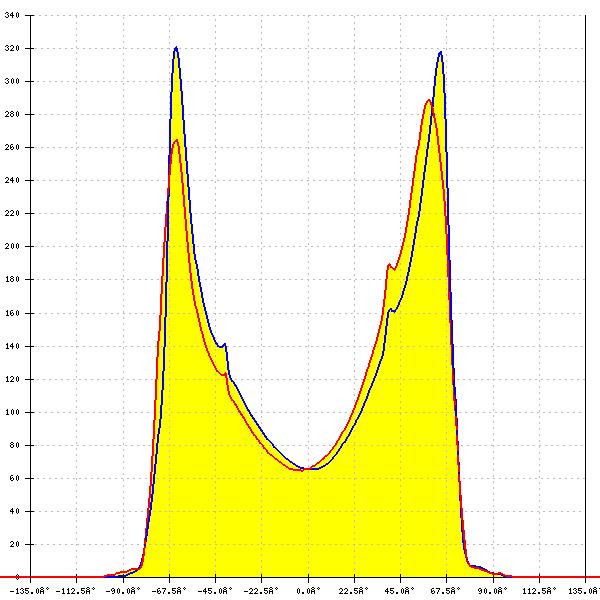

LED:
NF2x757G
FWHM:
141°
FWTM:
153°
Peak intensity:
0.525 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

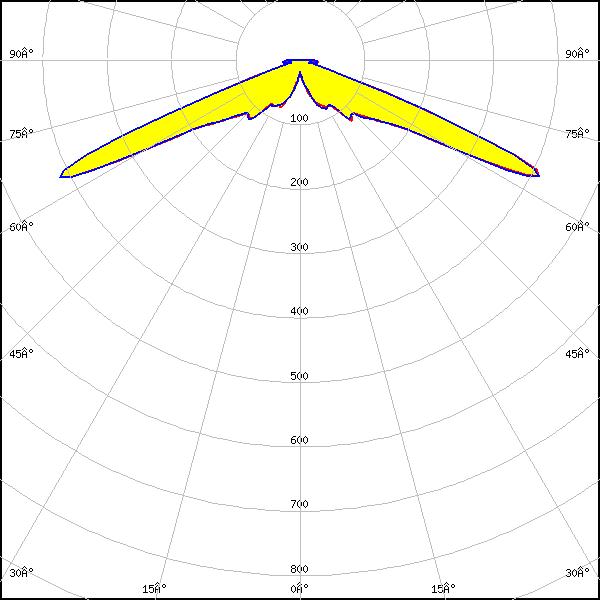

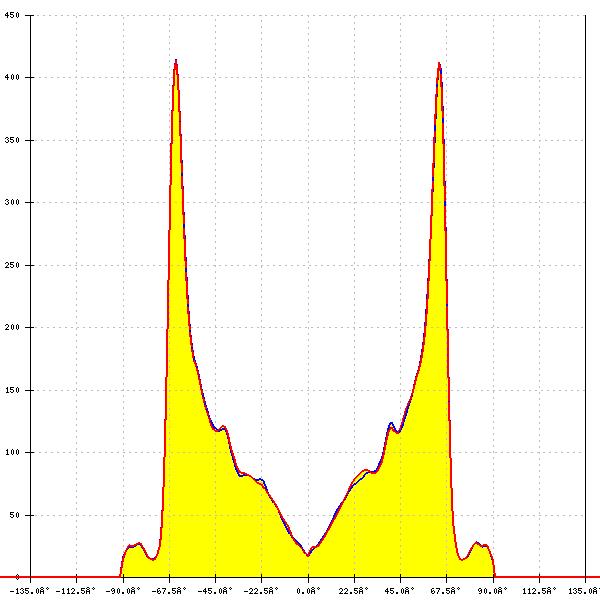

NFSWE11A
FWHM:
136°
FWTM:
142°
Peak intensity:
0.790 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

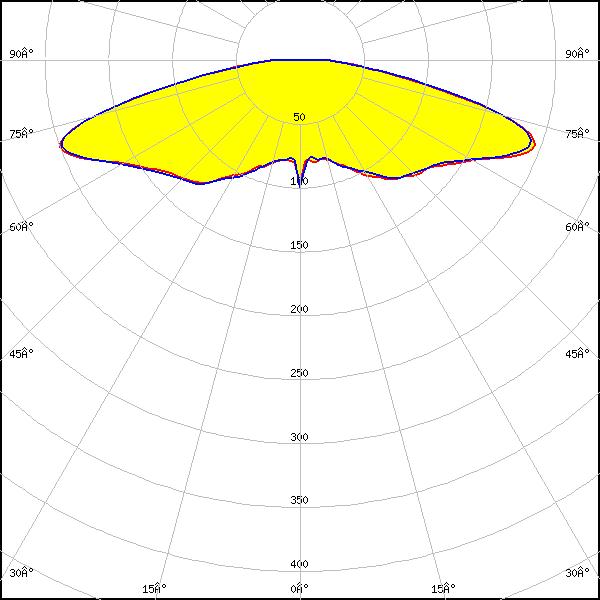

LED:

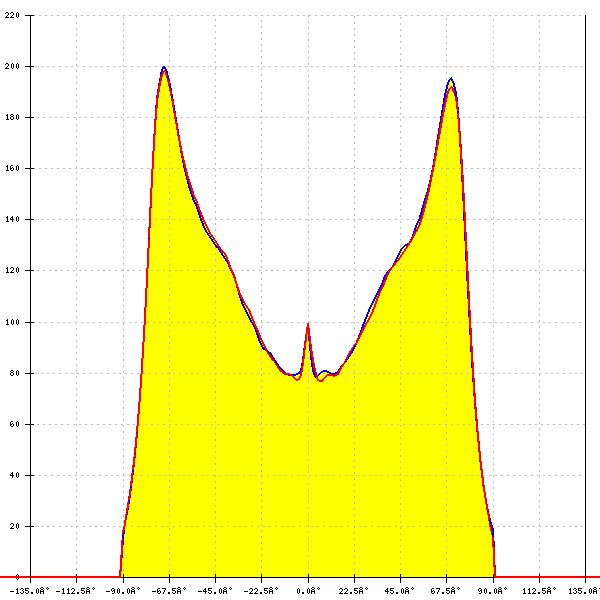

NVSW519A
FWHM:
158°
FWTM:
179°
Peak intensity:
0.275 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

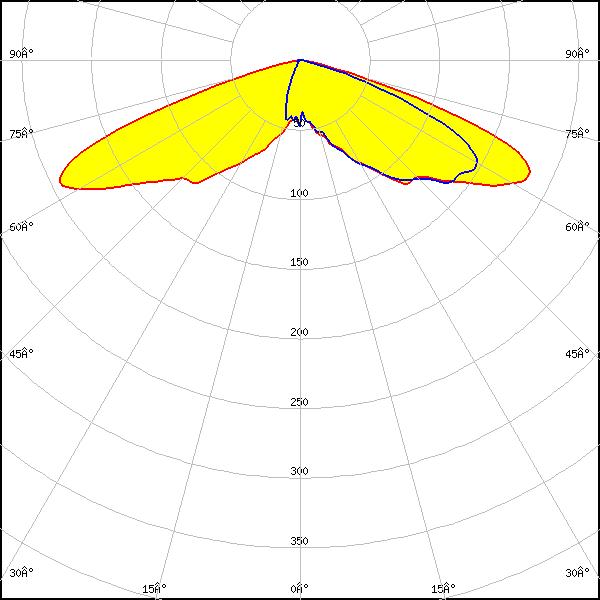

LED:

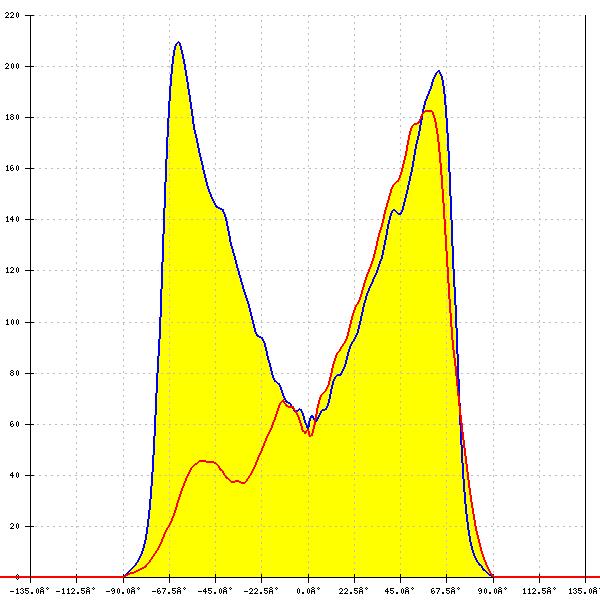

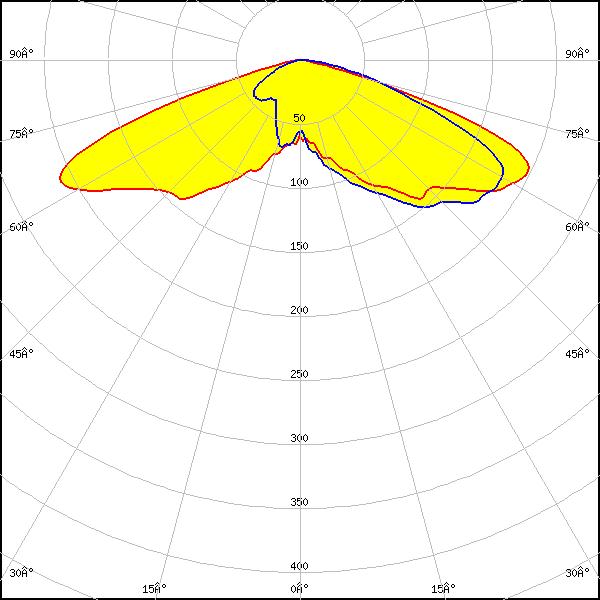

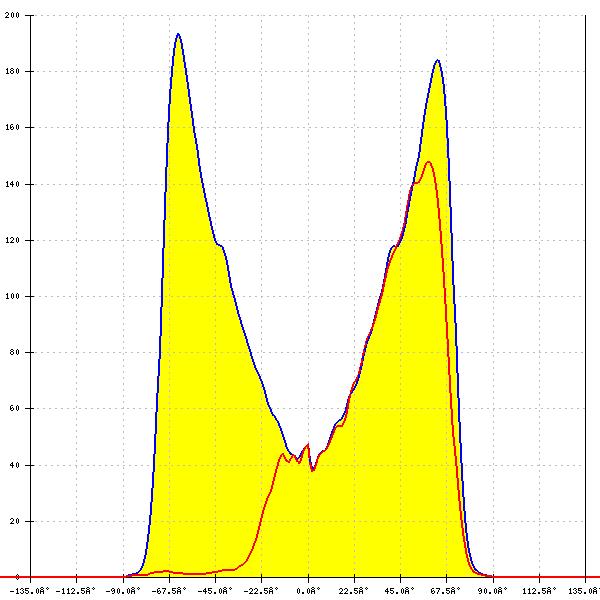

DURIS S5 (2 chip)
Required components:
FWHM: asymmetric
Peak intensity:
0.303 cd/lm
Efficiency:
57 %
LEDs/each optic:
1
Light colour/type:
White
LED:
DURIS S5 (2 chip)
Required components:
FWHM: asymmetric
Peak intensity:
0.283 cd/lm
Efficiency:
43 %
LEDs/each optic:
1
Light colour/type:
White

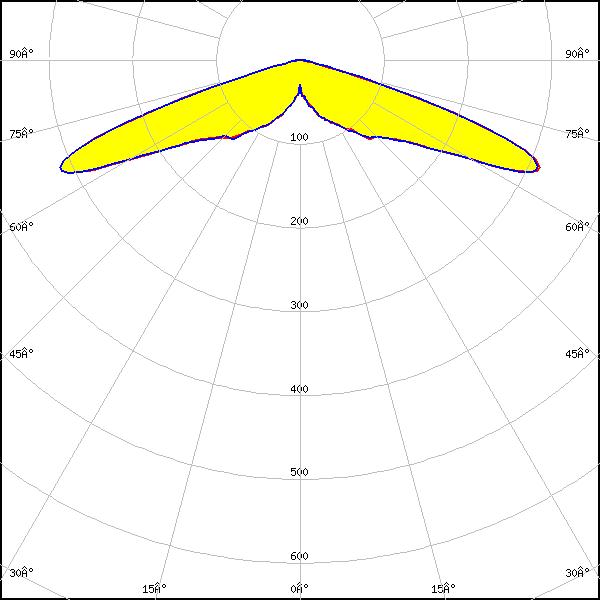

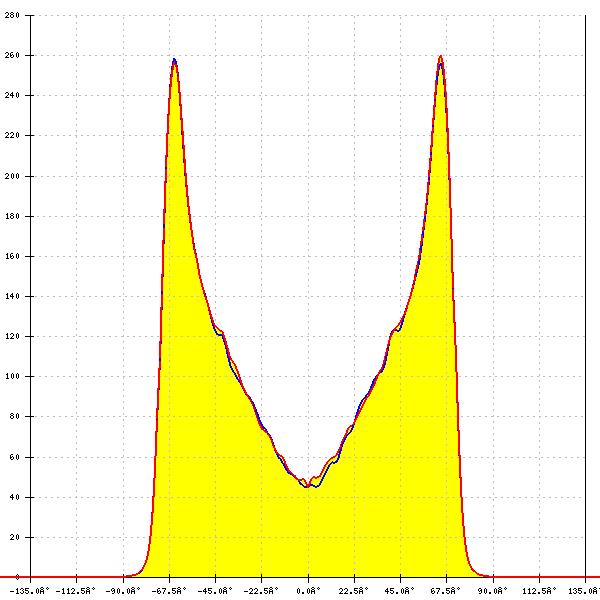

LED:

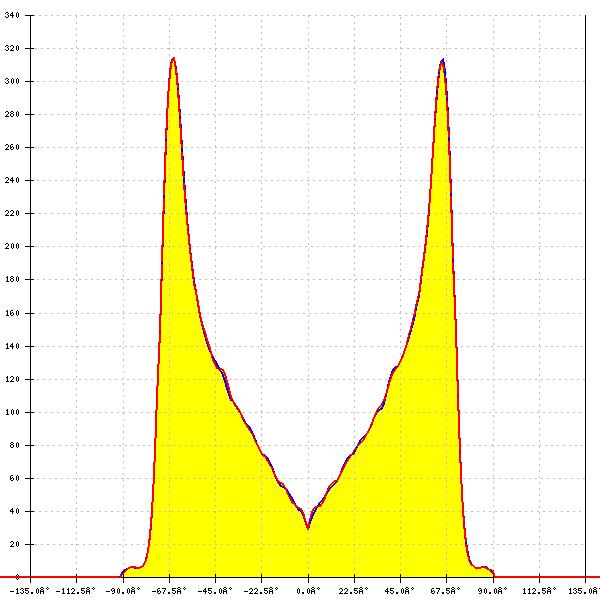

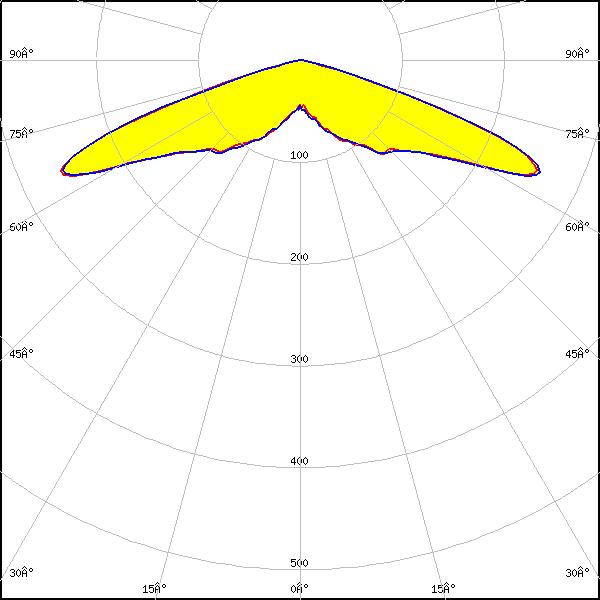

OSCONIQ C 2424
FWHM:
144°
FWTM:
152°
Peak intensity:
0.572 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM:
142°
FWTM:
152°
Peak intensity:
0.428 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

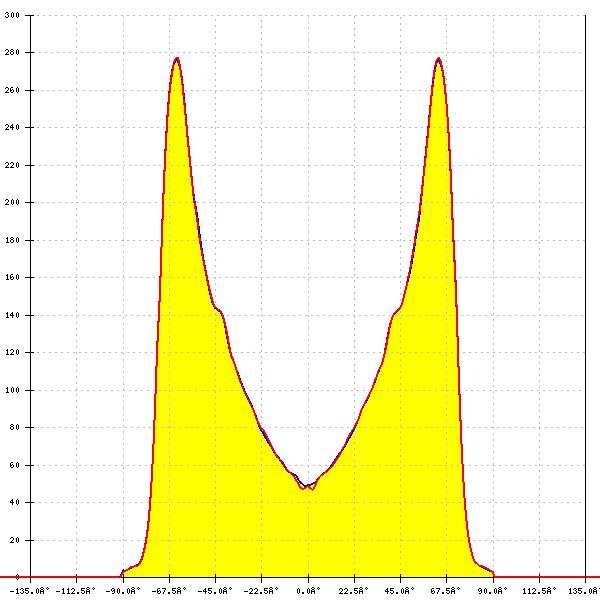

OSCONIQ C 3030
FWHM:
144°
FWTM:
156°
Peak intensity:
0.433 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

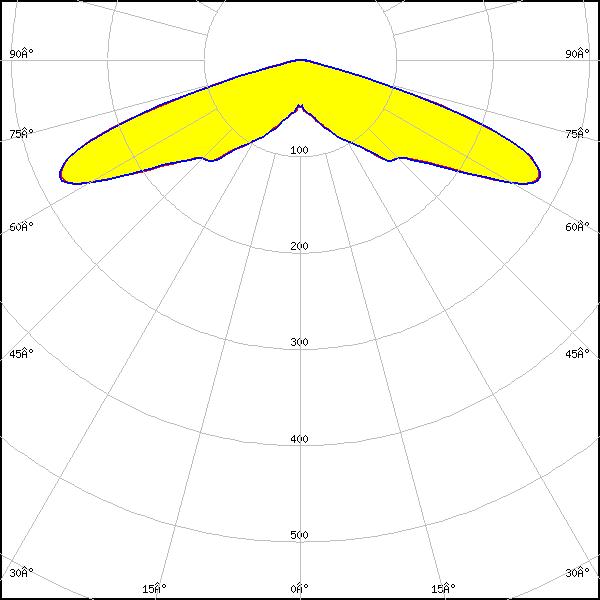

LED:
OSCONIQ C 3030
FWHM:
144°
FWTM:
154°
Peak intensity:
0.309 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

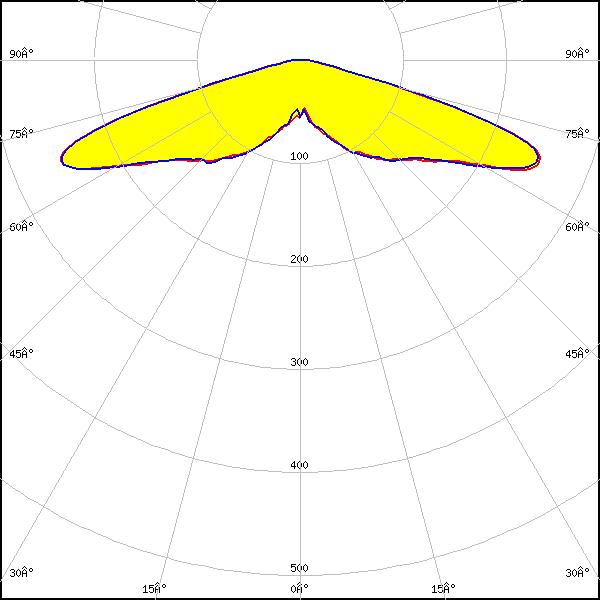

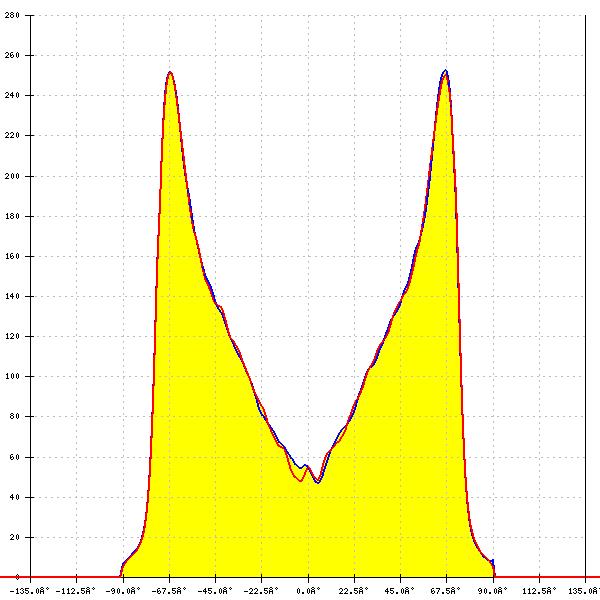

LED:
OSCONIQ P 3737 (2W version)
FWHM:
148°
FWTM:
158°
Peak intensity:
0.453 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

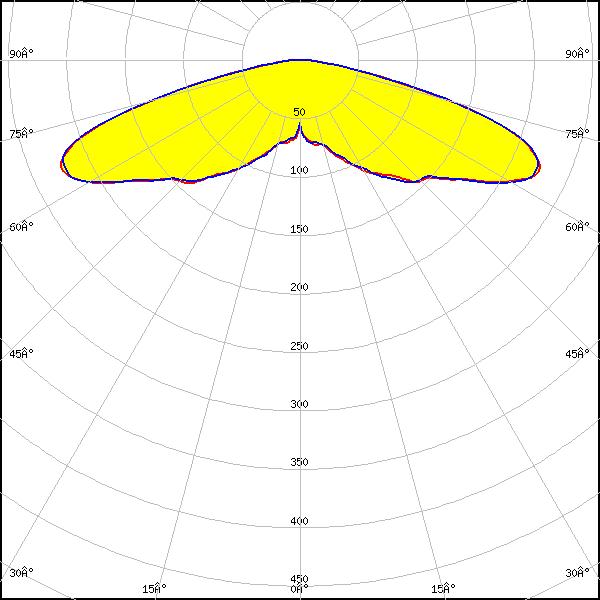

LED:

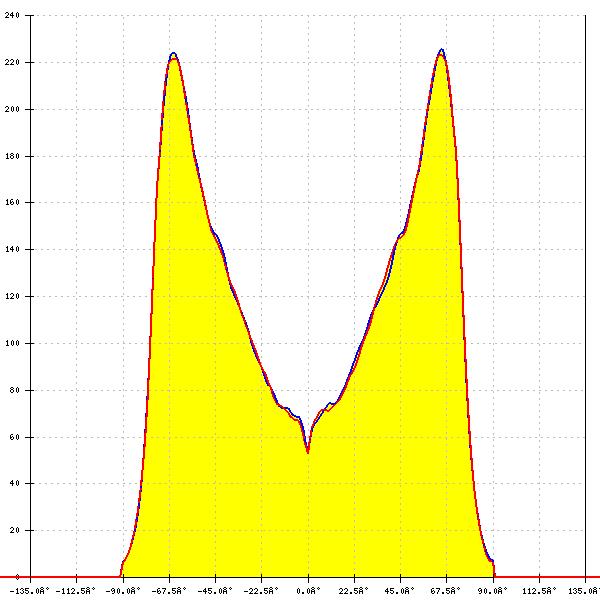

OSCONIQ P 3737 (3W version)
FWHM:
152°
FWTM:
168°
Peak intensity:
0.328 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (3W version)
FWHM:
148°
FWTM:
162°
Peak intensity:
0.240 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

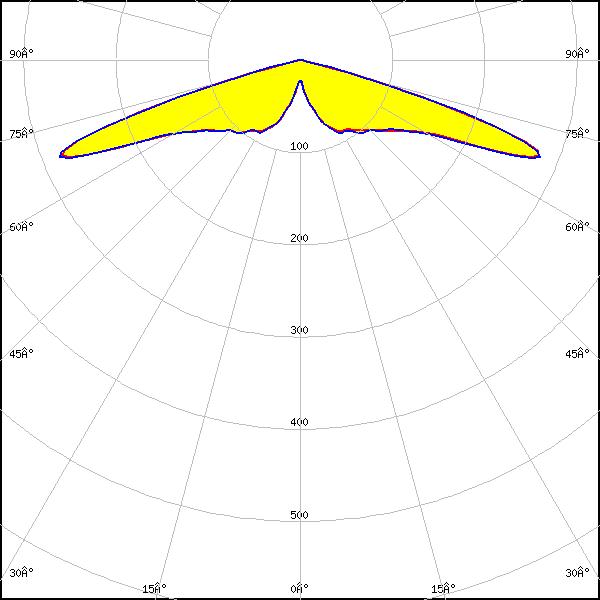

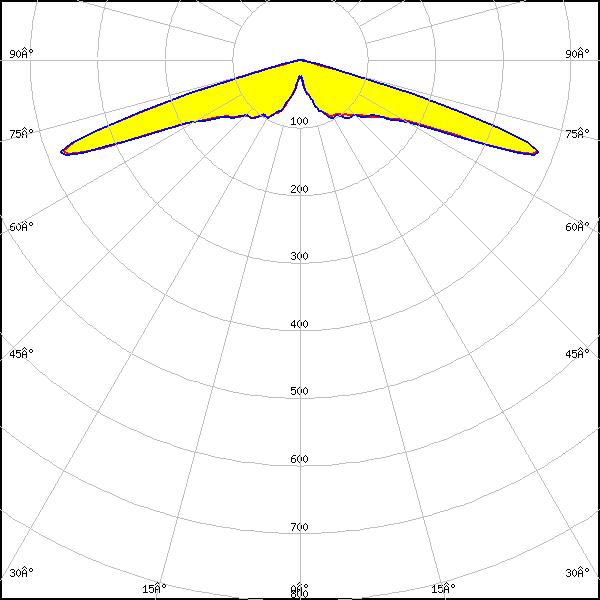

LED:

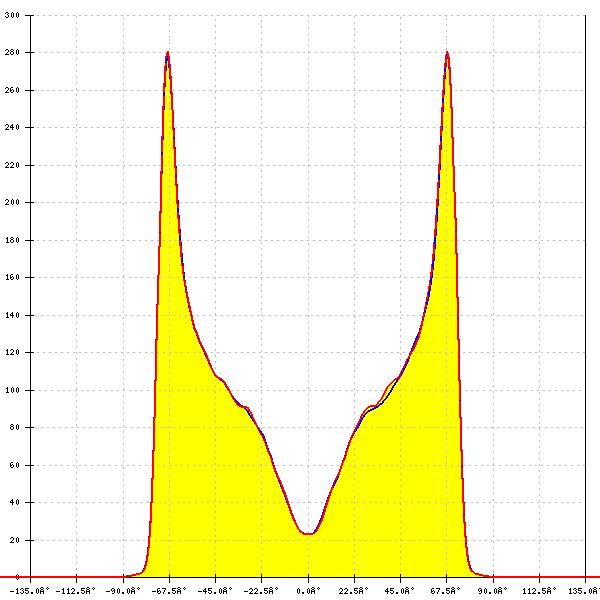

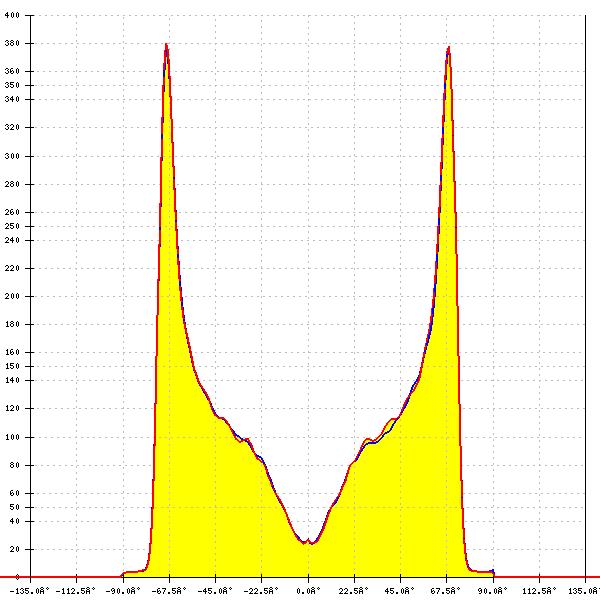

OSLON Pure 1414
FWHM:
146°
FWTM:
152°
Peak intensity:
0.675 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Pure 1414
FWHM:
146°
FWTM:
152°
Peak intensity:
0.405 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

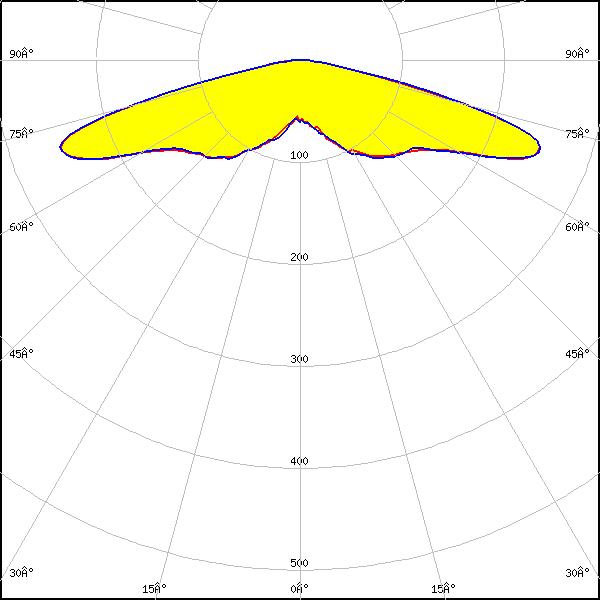

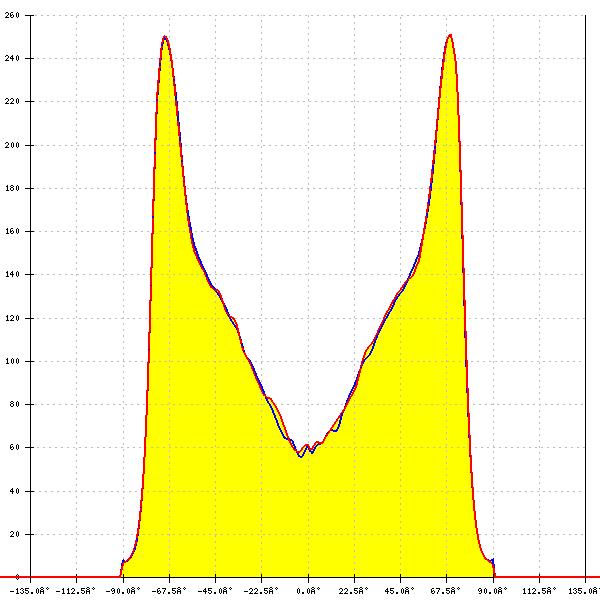

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
152°
FWTM:
164°
Peak intensity:
0.373 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

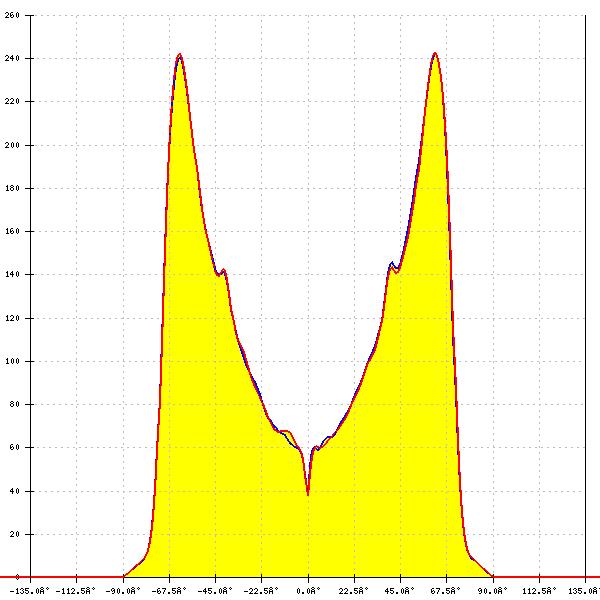

LH181B
FWHM:
142°
FWTM:
151°
Peak intensity:
0.357 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

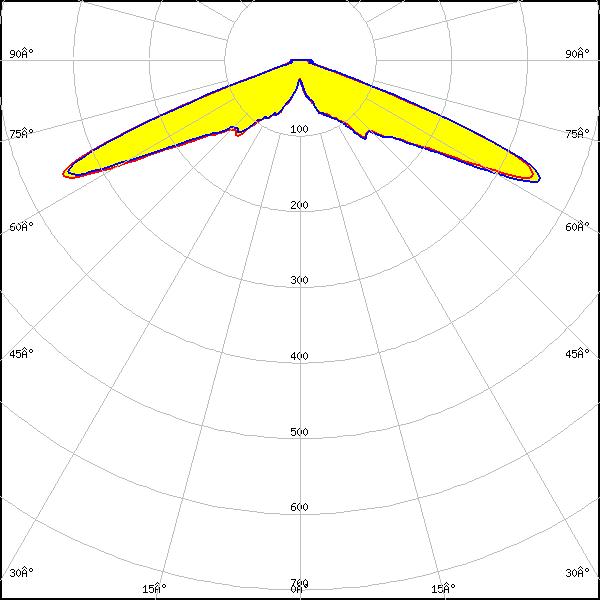

LED:

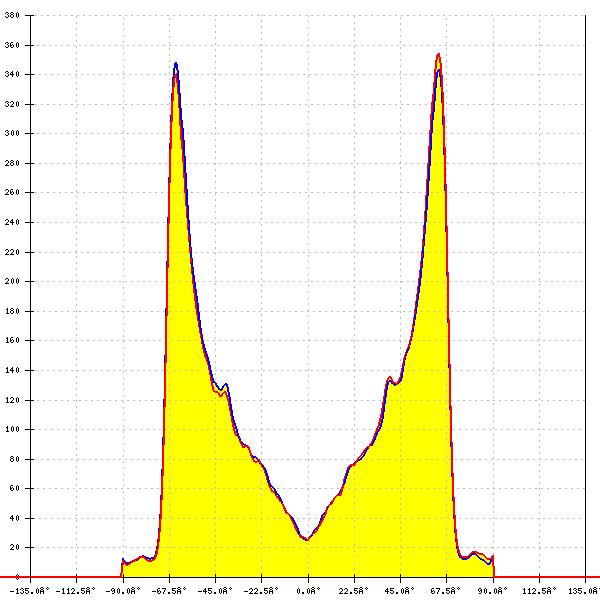

LM101B
FWHM:
137°
FWTM:
143°
Peak intensity:
0.660 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

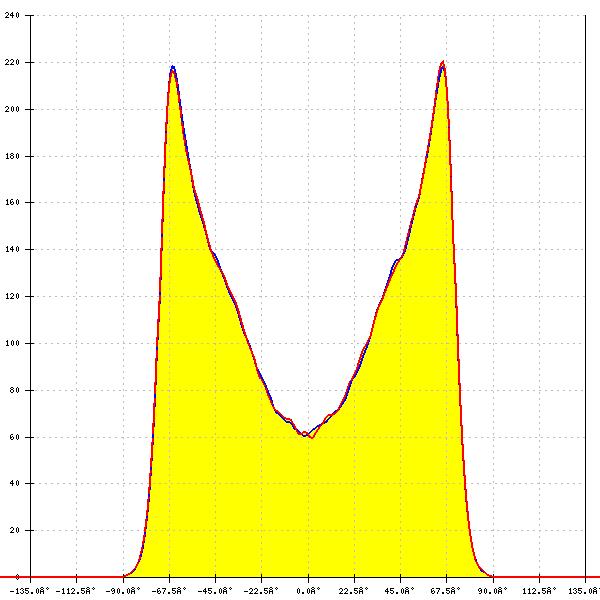

LED:

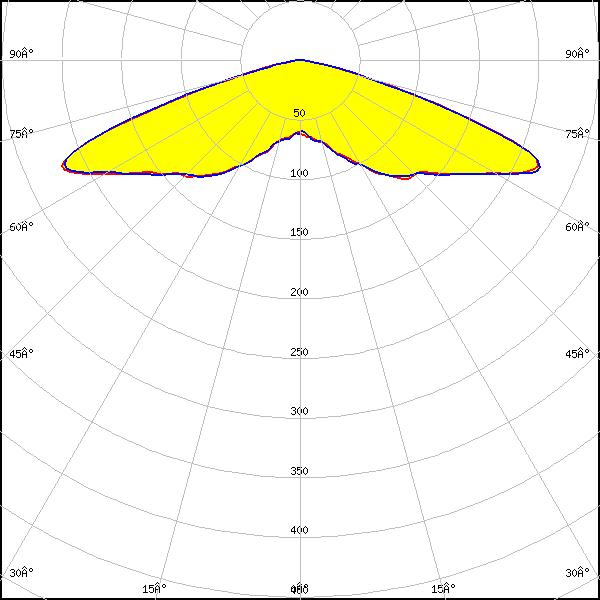

LM301B
FWHM: asymmetric
Peak intensity:
0.343 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

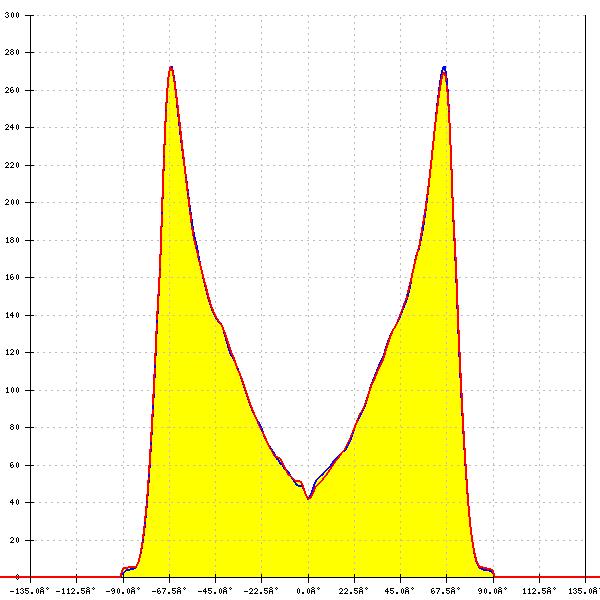

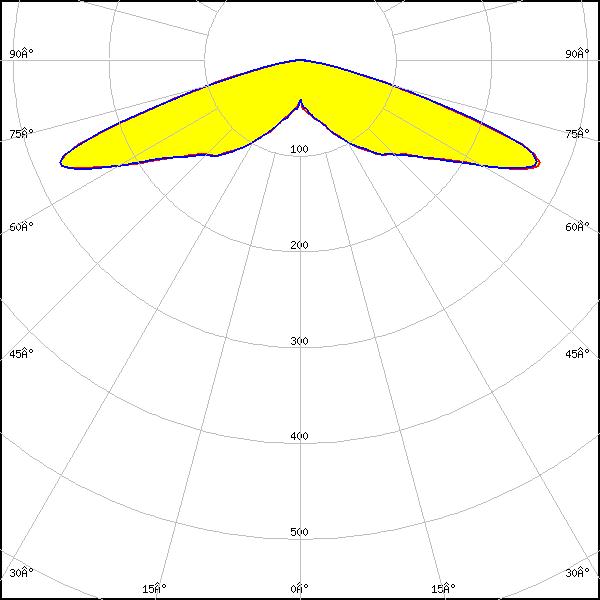

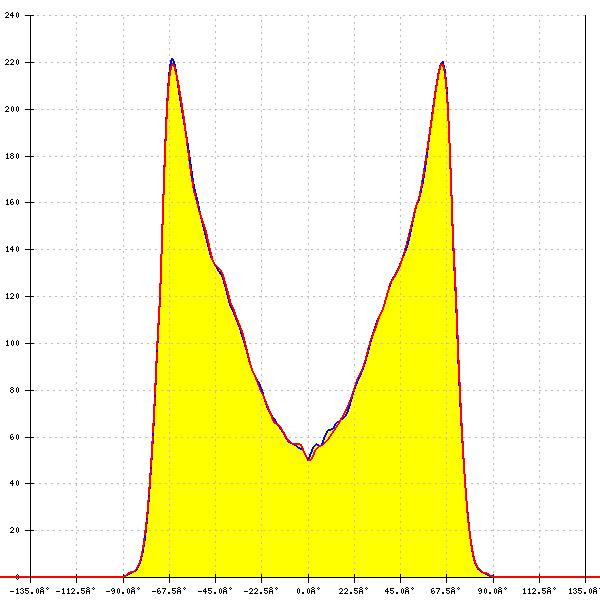

LED:
LM301B EVO
FWHM:
146°
FWTM:
158°
Peak intensity:
0.480 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

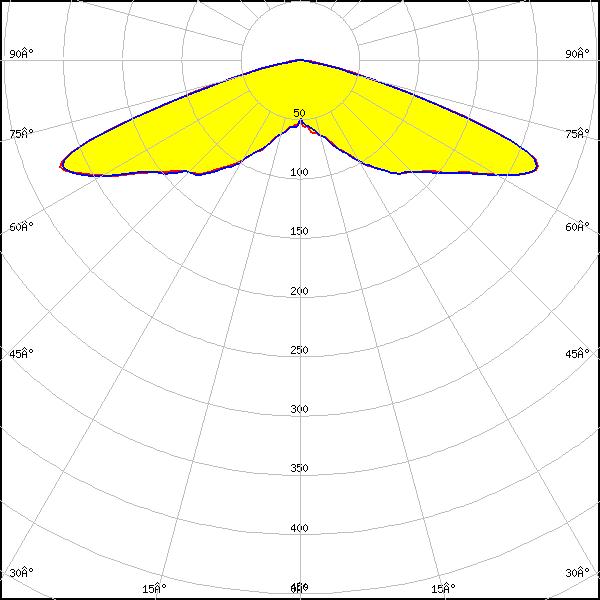

LED:
LM301B EVO
FWHM:
144°
FWTM:
157°
Peak intensity:
0.351 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

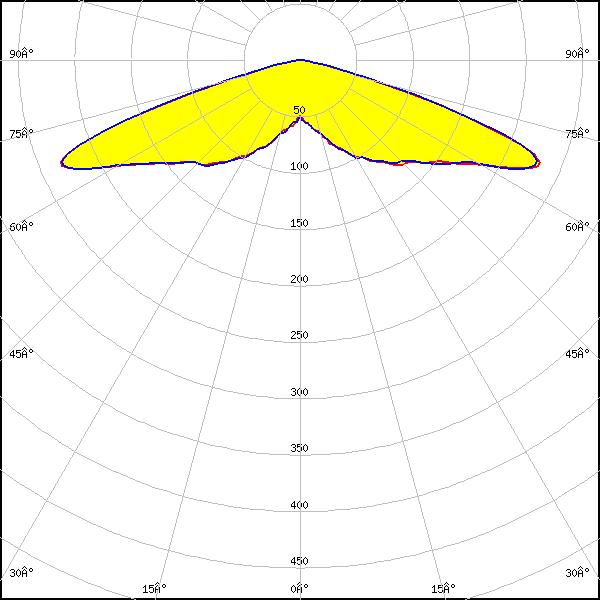

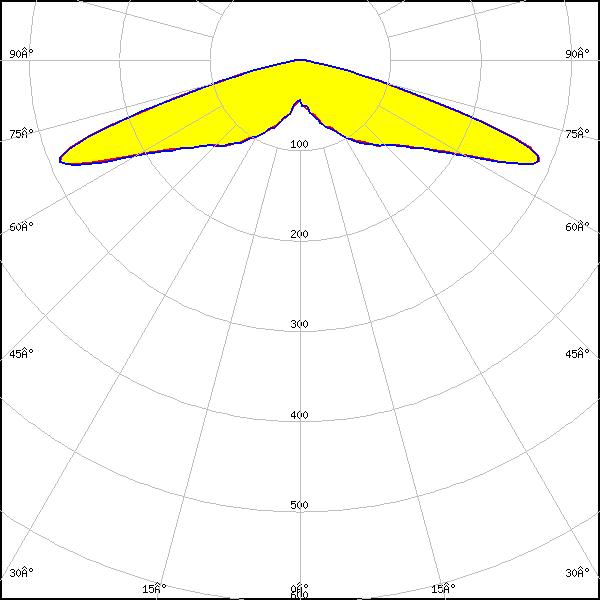

LED:

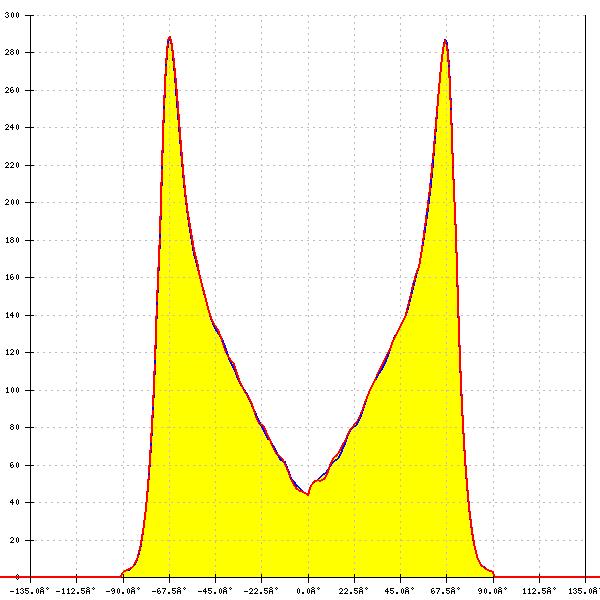

SEOUL DC 3030C
FWHM:
146°
FWTM:
158°
Peak intensity:
0.465 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030C
FWHM:
146°
FWTM:
156°
Peak intensity:
0.336 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

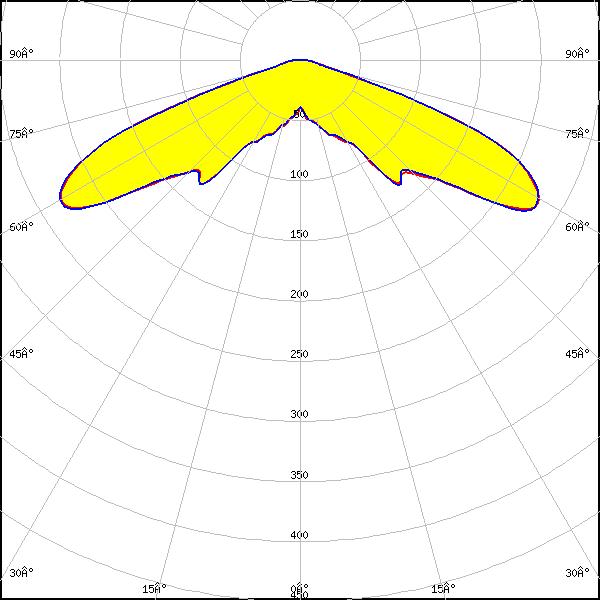

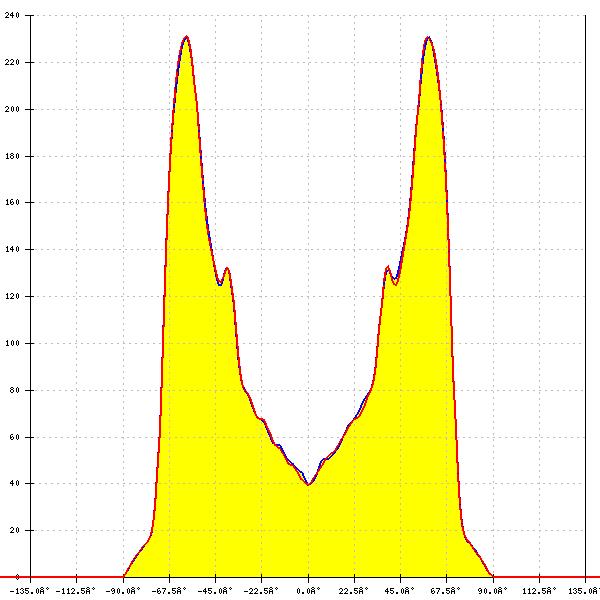

Z8Y19
FWHM:
140°
FWTM:
150°
Peak intensity:
0.370 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

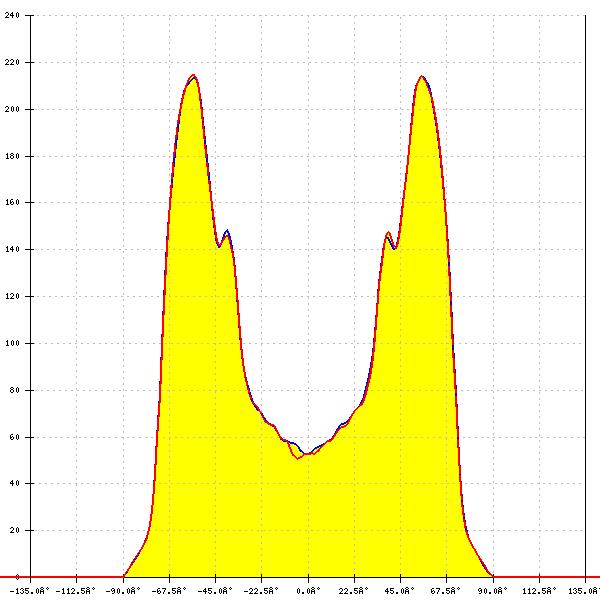

Z8Y22
FWHM:
142°
FWTM:
154°
Peak intensity:
0.323 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

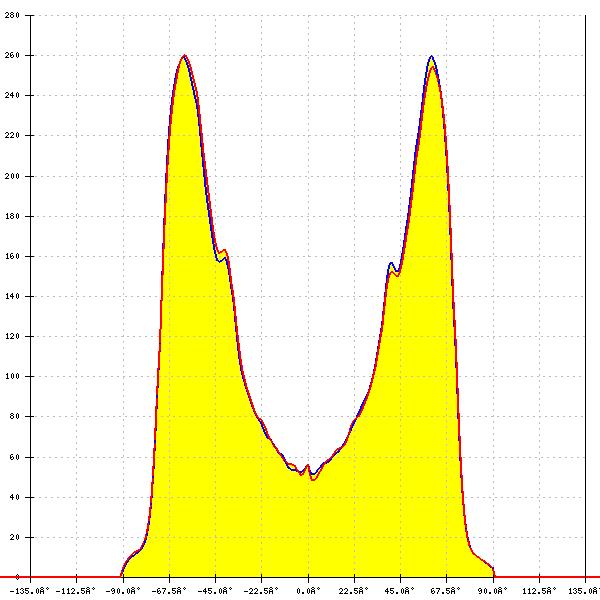

LED:

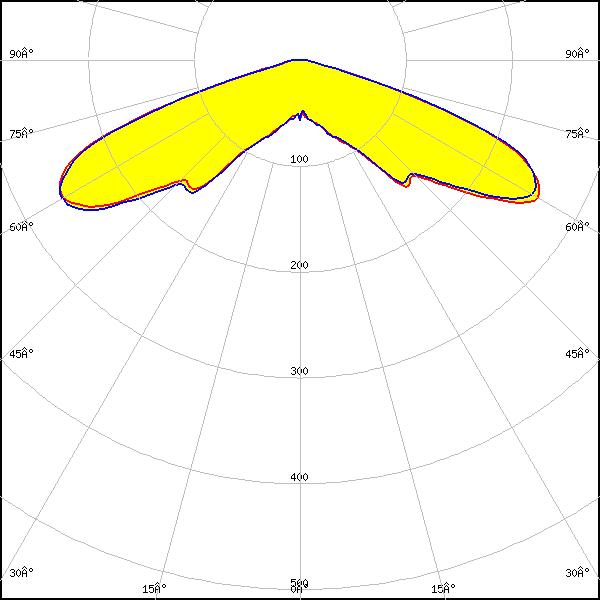

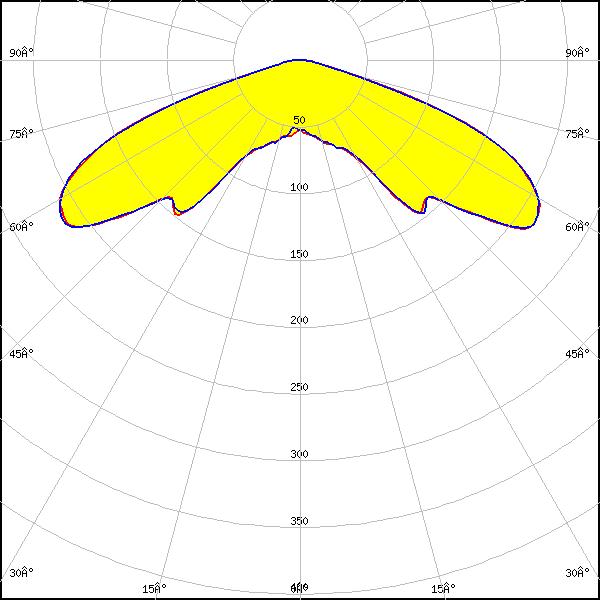

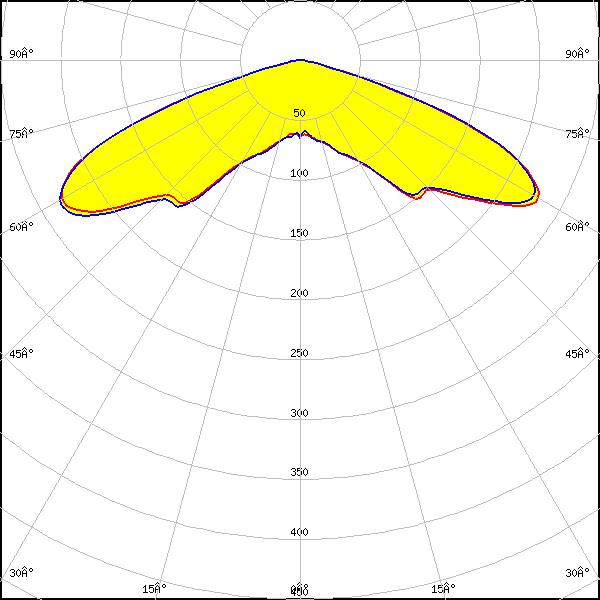

Z8Y22T
FWHM:
143°
FWTM:
154°
Peak intensity:
0.389 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

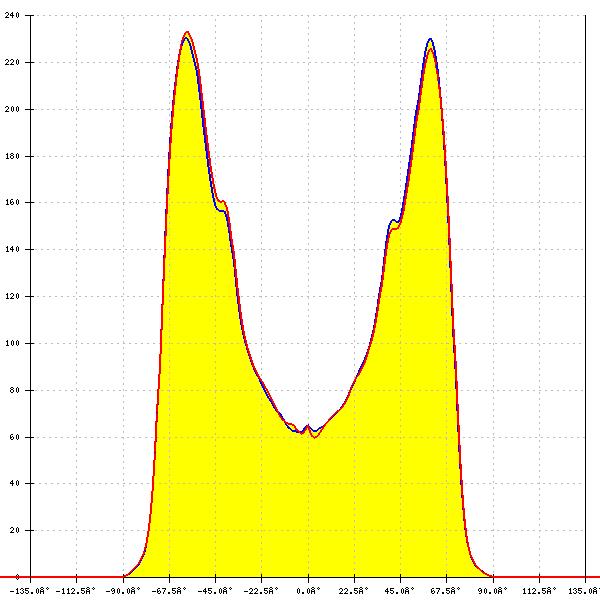

LED:
Z8Y22T
FWHM:
142°
FWTM:
153°
Peak intensity:
0.308 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

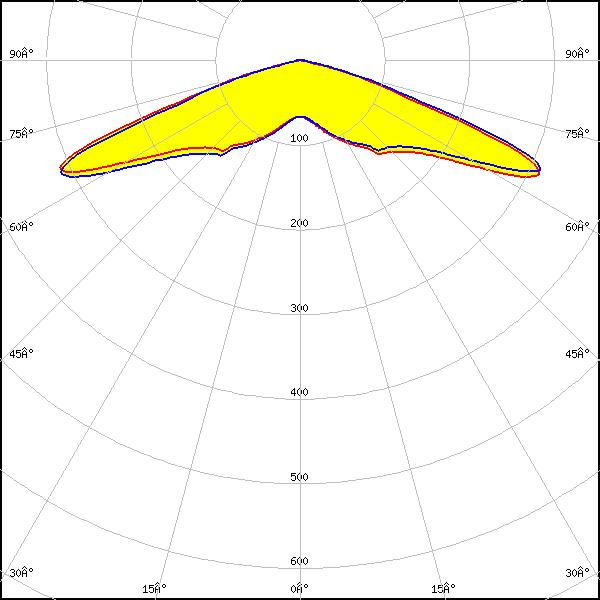

LED:

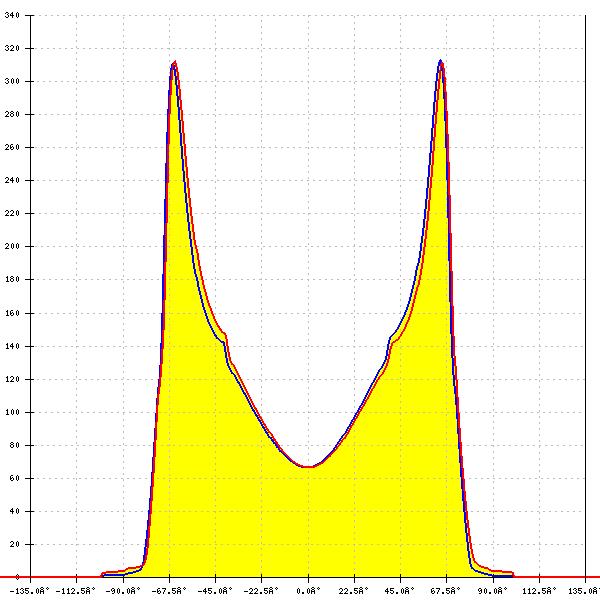

RLE 4x16 4000lm MP ADV2 OTD
FWHM:
141°
FWTM:
155°
Peak intensity:
0.574 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
