    C16791_CLAMP-Z45-A

    Print

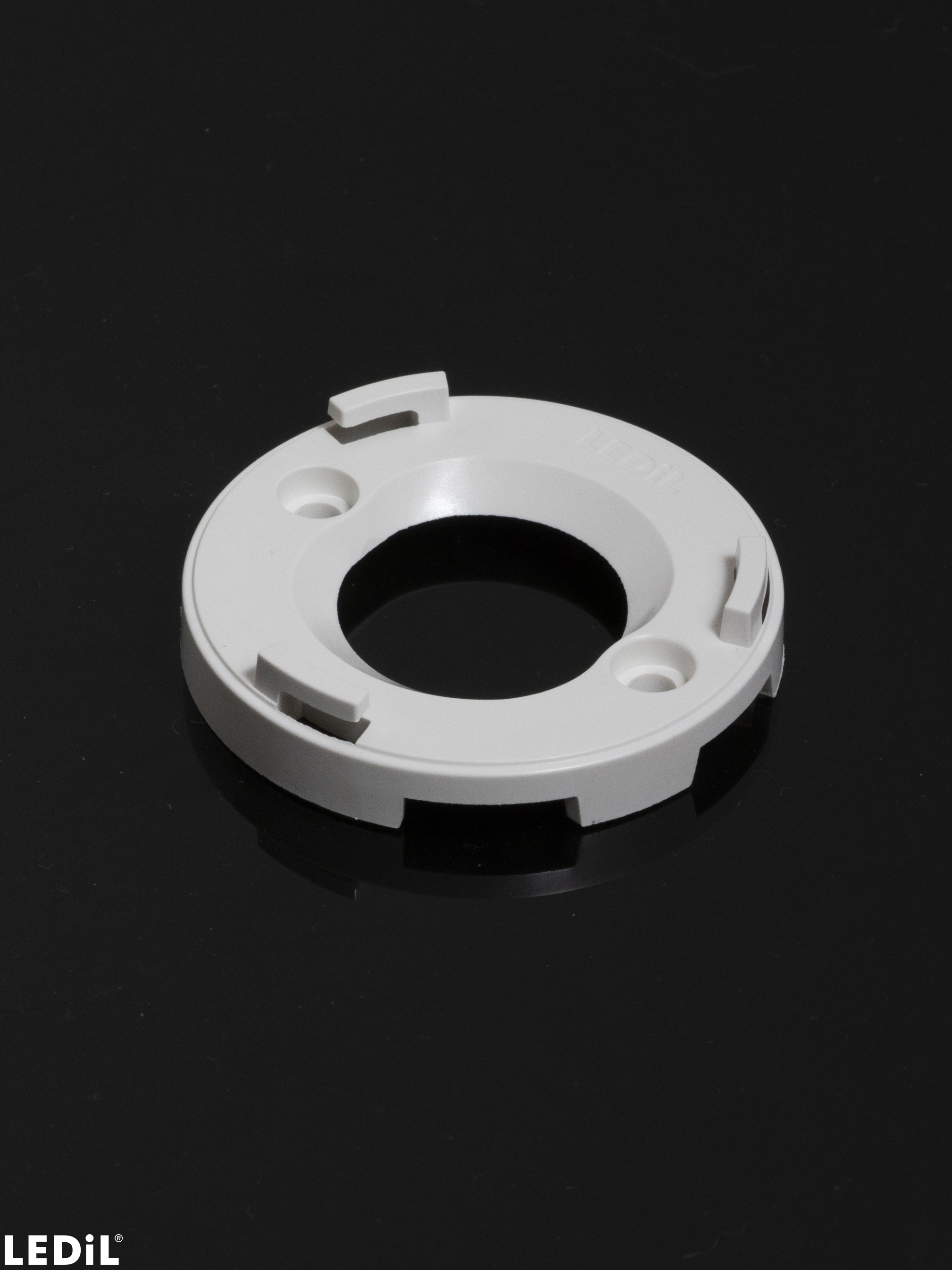

    Adapter for ANGELA, ANGELINA, ANGELETTE, MOLLY and RONDA-A. Compatible with TE Z45 connector.

    Specification
    • Dimensions:
      49 mm
    • Height:
      10.30 mm
    • Fastening:
      screw
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      240 pcs
    • Box size:
      380 x 240 x 120 mm
    • Box weight:
      1.5 kg
    • MPQ:
      10 pcs
    • MOQ:
      60 pcs
    • MOQ size:
      280 x 180 x 90 mm
    • MOQ weight:
      0.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16791_CLAMP-Z45-A
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New Products - 2018-12-20

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Case story

    Machang bridge

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    PRODUCT NEWS - SYSTEM REFLECTORS

    Application area

    Indoor Architectural Lighting

    Compatibility guide

    LEDiL System Reflector Compatibility Guide

    Application area

    Retail Lighting

    AVAILABLE LEDiL PRODUCTS

    ANGELETTE-WAS

    Asymmetric wall-washer beam

    MOLLY-S

    ~25° spot beam

    MOLLY-M

    ~35° medium beam

    MOLLY-W

    ~60° wide beam

    ANGELINA-S

    ~20° spot beam

    ANGELA-S

    ~10° spot beam

    ANGELA-M

    ~30° medium beam

    ANGELA-W

    ~45° wide beam

    ANGELINA-M

    ~30° medium beam

    ANGELINA-W

    ~50° wide beam

    ANGELETTE-S

    ~10° spot beam

    ANGELETTE-M

    ~50° medium beam

    ANGELETTE-WW

    ~60° wide beam

    ANGELETTE-S-PLAIN

    ~10° spot beam. Clean appearance with no additional attachment interface.

    ANGELETTE-M-PLAIN

    ~50° medium beam. Clean appearance with no additional attachment interface.

    RONDA-WAS

    Asymmetric beam for wall washing with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-WWW

    ~90° very wide beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-WW

    ~60° wide beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-ZT45

    Double asymmetric beam for wall-washing and aisle lighting with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-W

    ~45° wide beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-REC-60

    ~60° + 60° rectangular beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-S

    ~25° spot beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-REC-90

    ~80°+80° rectangular beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-WAS2

    Asymmetric wall washing beam ideal for floor installations with holder A compatible with TE, Bender+Wirth and IDEAL

    RONDA-O

    ~50° + 30° oval beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL.

    Compatible LEDs

    LED: V13 Gen7
    LES size: 14.0 mm
    LED: CLU03x
    LES size: 14.5 mm
    LED: CLU710/711
    LES size: 8.5 mm
    LED: CLU720/721/723
    LES size: 11.0 mm
    LED: CMT19xx
    LES size: 14.5 mm
    LED: LUXEON CoB 1204/1205
    LES size: 13.0 mm
    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    LED: CxM-14 (19x19)
    LES size: 14.3 mm
    LED: Soleriq S13 19x19
    LES size: 13.0 mm
    LED: Soleriq S15
    LES size: 14.7 mm
    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    LED: Fortimo SLM L15 CoB
    LES size: 15.0 mm
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    LED: LC020C G2
    LES size: 8.5 mm
    LED: LC030C/040C G2
    LES size: 11.5 mm
    LED: MJT COB LES 14.5
    LES size: 14.5 mm
    LED: ZC12/18
    LES size: 14.6 mm
