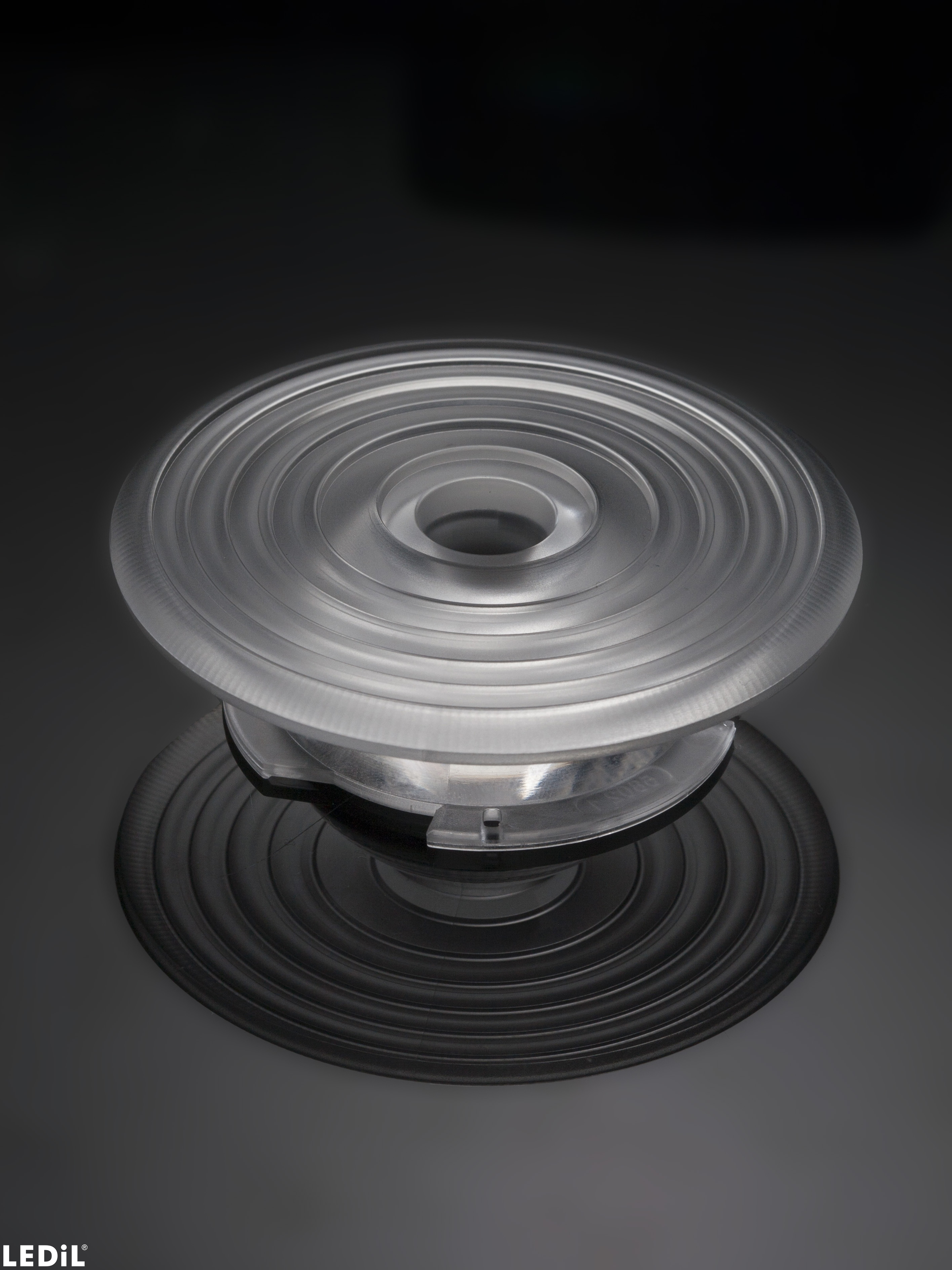

    C15802_MOLLY-W

    Print

    ~60° wide beam

    Specification
    • Dimensions:
      70 mm
    • Height:
      22.10 mm
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      198 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      8.1 kg
    • MPQ:
      18 pcs
    • MOQ:
      36 pcs
    • MOQ size:
      480 x 280 x 70 mm
    • MOQ weight:
      1.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C15802_MOLLY-W
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    MOLLY represents LEDiL’s cutting-edge optical lens design taking full advantage of bigger size COBs

    Article

    Office luminaire examples from LEDiL

    Application example

    Reception lighting with FLORENTINA, MOLLY and VANESSA

    Application guide

    LEDiL Guide for Retail Lighting Optics

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    Luminaire, example

    Track light luminaire with MOLLY

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    Effective fashion retail lighting

    Case story

    MOLLY goes to Italy

    News

    MOLLY Winner in German Design Award 2019

    News

    PRODUCT NEWS - MOLLY

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    AVAILABLE LEDiL ACCESSORIES

    CLAMP-VERO29

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux VERO29.

    CLAMP-VERO13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux VERO13 and VERO18.

    CLAMP

    Basepart for reflectors and lenses with A-type interface. Compatible with CREE CXA/B25xx and CXA/B30xx.

    CLAMP-CXA15-18

    Basepart for reflectors and lenses with A-type interface. Compatible with CREE CXA/B 15xx and CXA/B 18xx.

    CLAMP-VEROSE-13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux Vero 13 SE and Vero 18 SE COBs.

    XTM-ADAPTER-50-A

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with LEDiL A-type interface.

    CLAMP-PRV-A

    Adapter for ANGELA, ANGELINA, ANGELETTE, MOLLY and RONDA-A. Compatible with Osram PrevaLED Core connector.

    CLAMP-Z45-A

    Adapter for ANGELA, ANGELINA, ANGELETTE, MOLLY and RONDA-A. Compatible with TE Z45 connector.

    Optical results

    LED: V11 HD Gen 8
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d 3Hook
    FWHM: 59°
    FWTM: 83°
    Peak intensity: 0.913 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V9 HD Gen7
    LES size: 9.2 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 496 Typ L1
    FWHM: 58°
    FWTM: 77°
    Peak intensity: 1.035 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 13
    LES size: 13.4 mm
    Required components:
    C16402_CLAMP-VEROSE-13-18
    FWHM: 62°
    FWTM: 85°
    Peak intensity: 0.860 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 18
    LES size: 18.6 mm
    Required components:
    C16402_CLAMP-VEROSE-13-18
    FWHM: 62°
    FWTM: 87°
    Peak intensity: 0.810 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO13
    LES size: 13.4 mm
    Required components:
    C13658_CLAMP-VERO13-18
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.100 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 15mm DP
    LES size: 16.3 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 482 Typ L2
    FWHM: 61°
    FWTM: 85°
    Peak intensity: 0.847 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 18mm (31W) DP
    LES size: 19.7 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 483 Typ L3
    FWHM: 60°
    FWTM: 86°
    Peak intensity: 0.824 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 22mm DP
    LES size: 23.1 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 494 Typ L3
    FWHM: 61°
    FWTM: 87°
    Peak intensity: 0.805 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    Bender Wirth: 434 Typ L1
    FWHM: 54°
    FWTM: 73°
    Peak intensity: 1.190 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    Bender Wirth: 433 Typ L1
    FWHM: 61°
    FWTM: 86°
    Peak intensity: 0.850 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    C16791_CLAMP-Z45-A
    TE Connectivity: 2325807-3
    FWHM: 58°
    FWTM: 83°
    Peak intensity: 0.930 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LCN-C02B (Tunable White)
    LES size: 14.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 481 Typ L2
    FWHM: 62°
    FWTM: 84°
    Peak intensity: 0.900 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1840
    LES size: 14.0 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 64°
    FWTM: 87°
    Peak intensity: 0.820 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA2550
    LES size: 19.0 mm
    Required components:
    C14036_CLAMP_CXA25-30
    FWHM: 63°
    FWTM: 88°
    Peak intensity: 0.770 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA3090
    LES size: 23.0 mm
    Required components:
    C14036_CLAMP_CXA25-30
    FWHM: 64°
    FWTM: 89°
    Peak intensity: 0.750 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    LES size: 9.8 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 60°
    FWTM: 83°
    Peak intensity: 0.900 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

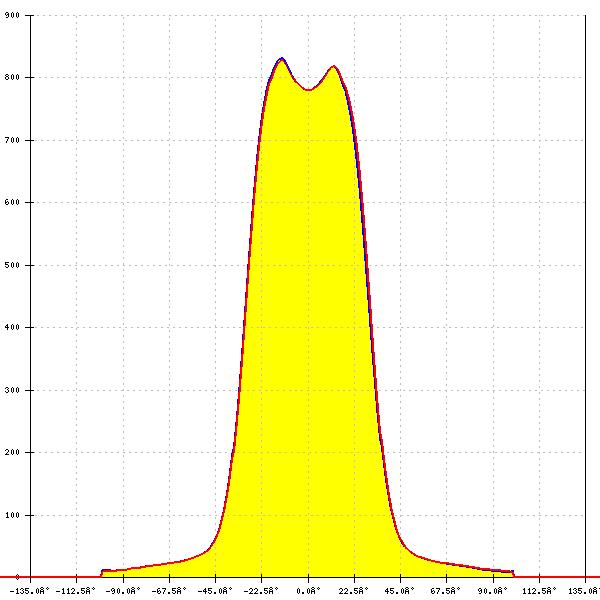

    LED: CMT19xx
    LES size: 14.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 477 Typ L1
    FWHM: 61°
    FWTM: 85°
    Peak intensity: 0.831 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT28xx
    LES size: 22.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 471 Typ L3
    FWHM: 61°
    FWTM: 87°
    Peak intensity: 0.800 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 61°
    FWTM: 84°
    Peak intensity: 0.870 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 58°
    FWTM: 78°
    Peak intensity: 1.070 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 25xx
    LES size: 19.0 mm
    Required components:
    C14036_CLAMP_CXA25-30
    FWHM: 57°
    FWTM: 77°
    Peak intensity: 1.070 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Core G7 L15 H1
    LES size: 15.0 mm
    Required components:
    C16685_CLAMP-PRV-A
    FWHM: 57°
    FWTM: 82°
    Peak intensity: 0.950 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    LES size: 9.0 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 57°
    FWTM: 80°
    Peak intensity: 0.960 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-14 (Dim-To-Warm)
    LES size: 15.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 491 Typ L2
    FWHM: 64°
    FWTM: 86°
    Peak intensity: 0.800 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-18 (Dim-To-Warm)
    LES size: 16.8 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 491 Typ L2
    FWHM: 63°
    FWTM: 87°
    Peak intensity: 0.800 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-9 (Dim-To-Warm)
    LES size: 9.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 490 Typ L1
    FWHM: 61°
    FWTM: 83°
    Peak intensity: 0.860 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 (Tunable White)
    LES size: 14.5 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 442 Typ L3
    FWHM: 62°
    FWTM: 85°
    Peak intensity: 0.830 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 RGBW
    LES size: 14.5 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 500 Typ L3-1
    FWHM: 61°
    FWTM: 84°
    Peak intensity: 0.835 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: CTM-18 (Tunable White)
    LES size: 17.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 0.992 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-22 (Tunable White)
    LES size: 22.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 494 Typ L3
    FWHM: 62°
    FWTM: 88°
    Peak intensity: 0.700 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    LES size: 10.6 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 498 Typ L2
    FWHM: 60°
    FWTM: 82°
    Peak intensity: 0.900 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 60°
    FWTM: 83°
    Peak intensity: 0.900 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L15 + SLM holder
    LES size: 15.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 57°
    FWTM: 81°
    Peak intensity: 0.900 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L15 CoB
    LES size: 15.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 60°
    FWTM: 83°
    Peak intensity: 0.900 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC035T (Tunable white)
    LES size: 22.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 502 Typ L3
    FWHM: 62°
    FWTM: 88°
    Peak intensity: 0.793 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: XTM - 19mm LES
    LES size: 19.0 mm
    Required components:
    C16491_XTM-ADAPTER-50-A
    FWHM: 60°
    FWTM: 85°
    Peak intensity: 0.880 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
