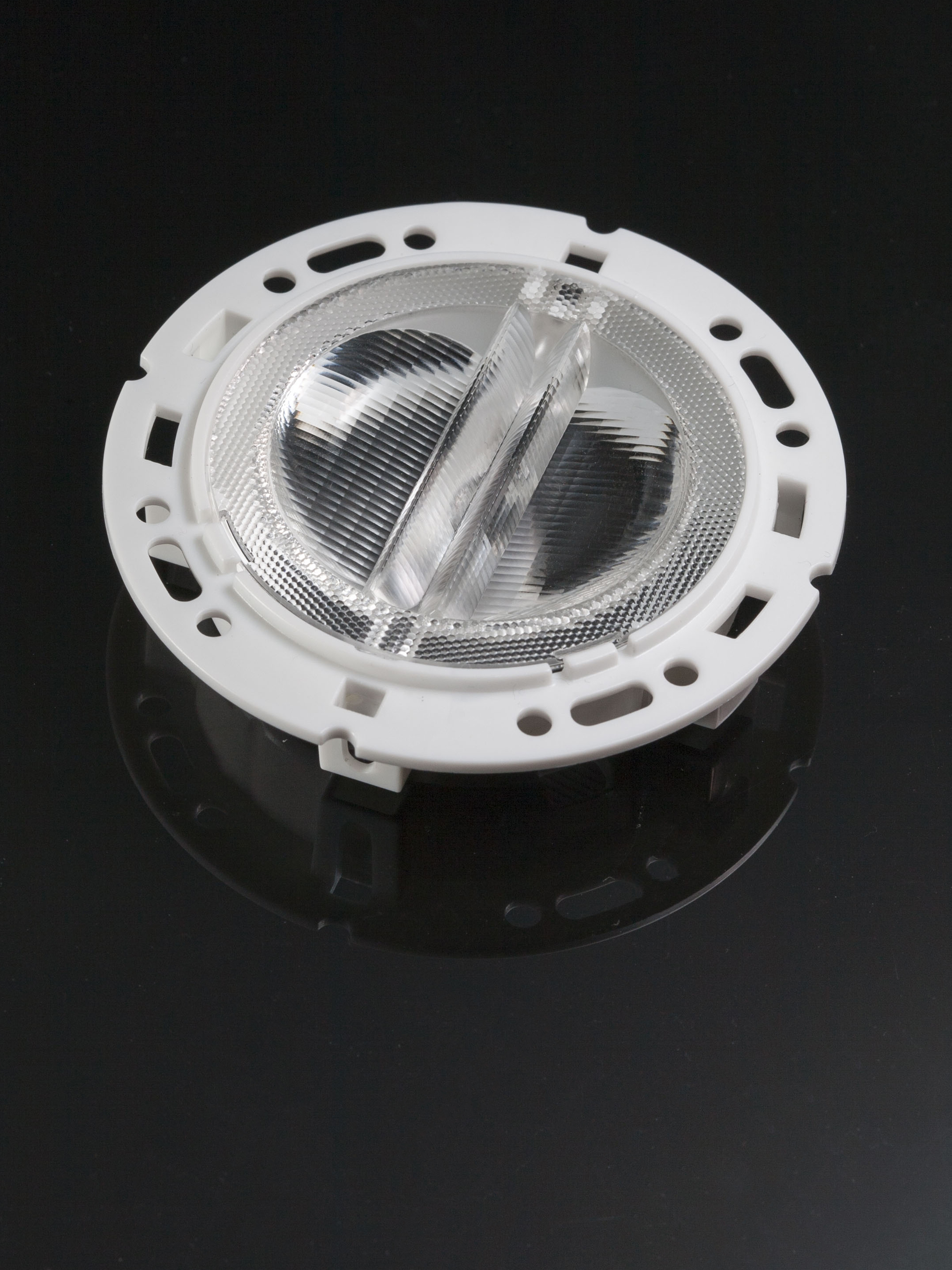

RONDA-ZT45

Print

Double asymmetric beam for wall-washing and aisle lighting with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    70 mm
  • Height:
    15.00 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15159_RONDA-ZT45
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.50 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    1.90 kg
  • Holder
  • F15155_RONDA-HLD-A
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.40 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.30 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15159_RONDA-ZT45
    F15155_RONDA-HLD-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: V10 Gen6
LES size: 9.9 mm
Required components:
FWHM: asymmetric
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: V10 Gen6
LES size: 9.9 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 455 Typ L1
FWHM: asymmetric
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: V10 Gen7
LES size: 10.2 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 486 Typ L1
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: asymmetric
Peak intensity: 0.440 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.380 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: Vero SE 13
LES size: 13.4 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.420 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: asymmetric
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
FWHM: asymmetric
Peak intensity: 0.390 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: asymmetric
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU710/711
LES size: 8.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 470 Typ L1
FWHM: asymmetric
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU730/731/733
LES size: 13.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1840
LES size: 14.0 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.370 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 448 Typ L1
FWHM: asymmetric
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: asymmetric
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 42°
FWTM: -
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.430 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM: asymmetric
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 452 Typ L1
FWHM: asymmetric
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: COB J-Type
LES size: 14.6 mm
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.830 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: NSCxL036A
LES size: 7.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.370 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S13 19x19
LES size: 13.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S13 19x19
LES size: 13.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L13 + SLM holder
LES size: 13.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L15 + SLM holder
LES size: 15.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.350 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: LC040C
LES size: 11.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: AC Zhaga COB
LES size: 14.5 mm
Required components:
Optosource: SEHSMJD-A
FWHM: asymmetric
Peak intensity: 0.370 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 14.5
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.300 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 452 Typ L1
FWHM: asymmetric
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: WU-M-484
LES size: 14.9 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: asymmetric
Peak intensity: 0.370 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
