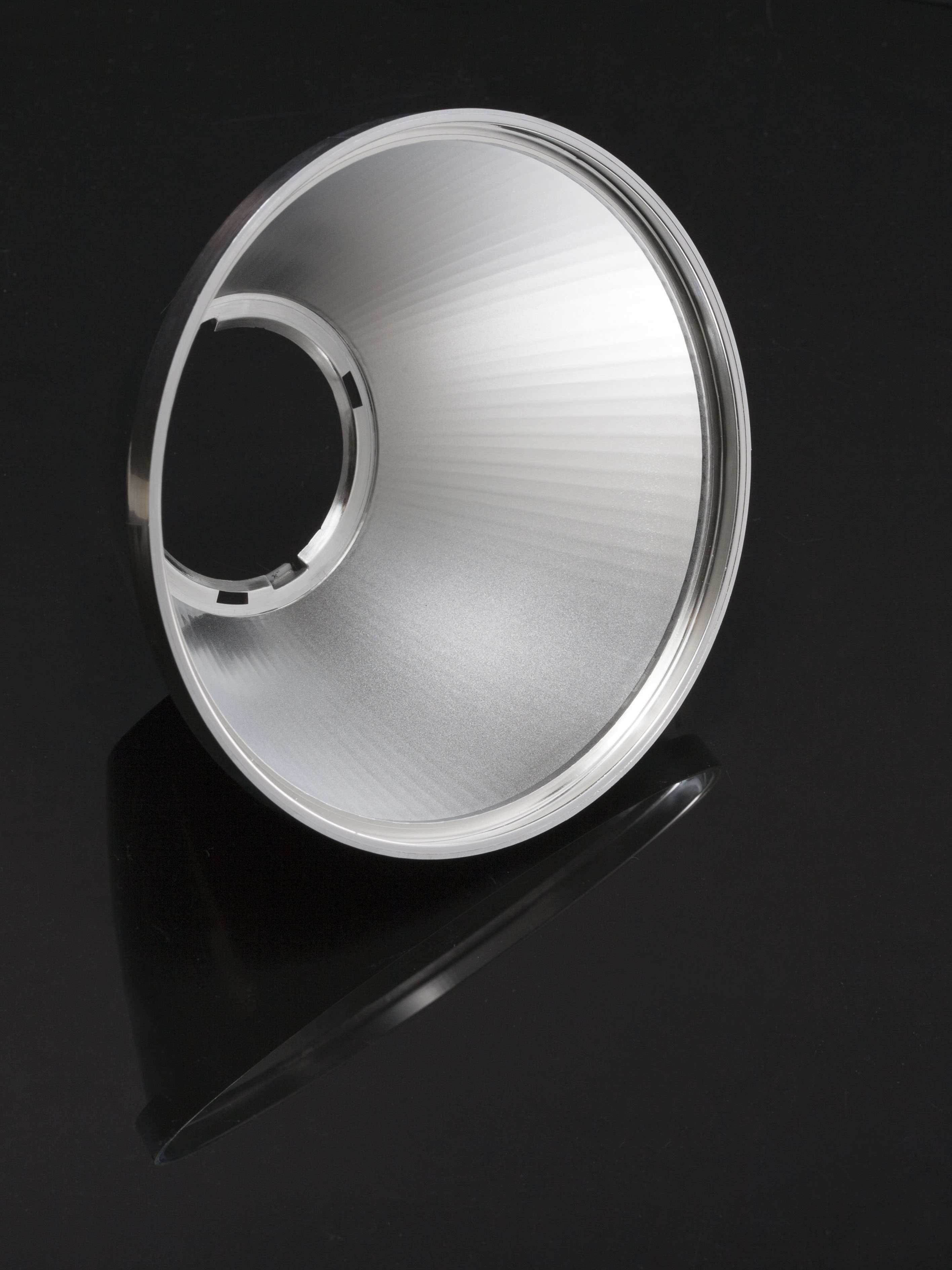

F14619_ANGELETTE-S-PLAIN
Print
~10° spot beam. Clean appearance with no additional attachment interface.
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V13 Gen7
Required components:
FWHM:
11°
FWTM:
22°
Peak intensity:
10.320 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
13°
FWTM:
31°
Peak intensity:
6.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
Required components:
FWHM:
15°
FWTM:
43°
Peak intensity:
4.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen6
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
19°
FWTM:
64°
Peak intensity:
3.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen6
Required components:
FWHM:
21°
FWTM:
71°
Peak intensity:
2.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen7
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
14°
FWTM:
34°
Peak intensity:
5.760 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen7
Required components:
FWHM:
16°
FWTM:
32°
Peak intensity:
5.815 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
Required components:
FWHM:
11°
FWTM:
25°
Peak intensity:
8.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
Required components:
FWHM:
15°
FWTM:
38°
Peak intensity:
4.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO29
Required components:
FWHM:
27°
FWTM:
76°
Peak intensity:
2.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 15mm DP
Required components:
FWHM:
13°
FWTM:
28°
Peak intensity:
6.929 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 15mm DP
Required components:
FWHM:
14°
FWTM:
38°
Peak intensity:
5.009 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 18mm (31W) DP
Required components:
FWHM:
16°
FWTM:
38°
Peak intensity:
4.980 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 18mm (31W) DP
Required components:
FWHM:
17°
FWTM:
51°
Peak intensity:
3.774 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 22mm DP
Required components:
FWHM:
18°
FWTM:
47°
Peak intensity:
4.103 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 22mm DP
Required components:
FWHM:
20°
FWTM:
64°
Peak intensity:
3.230 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CLU03x
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
13°
FWTM:
31°
Peak intensity:
6.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
13°
FWTM:
33°
Peak intensity:
6.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
Required components:
FWHM:
15°
FWTM:
41°
Peak intensity:
4.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
Required components:
FWHM:
15°
FWTM:
44°
Peak intensity:
4.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU04x
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
19°
FWTM:
65°
Peak intensity:
3.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU04x
Required components:
FWHM:
21°
FWTM:
71°
Peak intensity:
2.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU730/731/733
Required components:
FWHM:
14°
FWTM:
41°
Peak intensity:
4.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU730/731/733
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
12°
FWTM:
30°
Peak intensity:
6.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
Required components:
FWHM:
8°
FWTM:
20°
Peak intensity:
12.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
12°
FWTM:
29°
Peak intensity:
7.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM:
11°
FWTM:
25°
Peak intensity:
8.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
Required components:
FWHM:
15°
FWTM:
38°
Peak intensity:
5.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 30xx
Required components:
FWHM:
19°
FWTM:
55°
Peak intensity:
3.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core Z4 LES19
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
14°
FWTM:
36°
Peak intensity:
5.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core Z4 LES19
Required components:
FWHM:
16°
FWTM:
48°
Peak intensity:
4.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
12°
FWTM:
28°
Peak intensity:
7.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
13°
FWTM:
31°
Peak intensity:
6.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
13°
FWTM:
35°
Peak intensity:
5.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Required components:
FWHM:
16°
FWTM:
48°
Peak intensity:
4.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Required components:
FWHM:
15°
FWTM:
41°
Peak intensity:
4.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
17°
FWTM:
48°
Peak intensity:
4.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
Required components:
FWHM:
18°
FWTM:
62°
Peak intensity:
3.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
20°
FWTM:
68°
Peak intensity:
3.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
Required components:
FWHM:
21°
FWTM:
71°
Peak intensity:
2.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
10°
FWTM:
26°
Peak intensity:
8.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
10°
FWTM:
23°
Peak intensity:
9.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
12°
FWTM:
29°
Peak intensity:
7.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
11°
FWTM:
26°
Peak intensity:
7.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
Required components:
FWHM:
14°
FWTM:
39°
Peak intensity:
4.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
Required components:
FWHM:
13°
FWTM:
34°
Peak intensity:
5.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
Required components:
TE Connectivity: 2213407-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
14°
FWTM:
36°
Peak intensity:
5.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
Required components:
FWHM:
16°
FWTM:
47°
Peak intensity:
4.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 + SLM holder
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
13°
FWTM:
32°
Peak intensity:
6.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC035T (Tunable white)
Required components:
FWHM:
18°
FWTM:
46°
Peak intensity:
4.116 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC035T (Tunable white)
Required components:
FWHM:
20°
FWTM:
62°
Peak intensity:
3.311 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC040C
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
10°
FWTM:
24°
Peak intensity:
8.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
Required components:
FWHM:
12°
FWTM:
32°
Peak intensity:
6.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
AC Zhaga COB
Required components:
Optosource: SEHSMJD-A
FWHM:
13°
FWTM:
29°
Peak intensity:
6.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
AC Zhaga COB
Required components:
FWHM:
14°
FWTM:
41°
Peak intensity:
4.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
14°
FWTM:
33°
Peak intensity:
5.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-484
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
12°
FWTM:
29°
Peak intensity:
7.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-484
Required components:
FWHM:
13°
FWTM:
36°
Peak intensity:
5.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XIM - 19mm LES
Required components:
FWHM:
15°
FWTM:
37°
Peak intensity:
5.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
