    RONDA-WAS

    Print

    Asymmetric beam for wall washing with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      70 mm
    • Height:
      21.80 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Single lens
      1 pcs
    • Holder
      1 pcs
    • Single lens
    • F15156_RONDA-WAS
      clear
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.30 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 100 mm
    • MOQ Weight:
      2.20 kg
    • Holder
    • F15155_RONDA-HLD-A
      white
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.40 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 120 mm
    • MOQ Weight:
      1.30 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15156_RONDA-WAS
      F15155_RONDA-HLD-A
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR182 - Change of ordering method and quantities

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Case story

    RiQuardo modular bedhead

    Article

    Office luminaire examples from LEDiL

    Compatibility guide

    LEDiL connector and socket compatibility

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    Effective fashion retail lighting

    News

    PRODUCT NEWS - RONDA

    News

    PRODUCT NEWS - RONDA

    News

    HEKLA - Innovative family of sockets and solderless connectors

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    AVAILABLE LEDiL ACCESSORIES

    CLAMP-VERO13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux VERO13 and VERO18.

    CLAMP-CXA15-18

    Basepart for reflectors and lenses with A-type interface. Compatible with CREE CXA/B 15xx and CXA/B 18xx.

    CLAMP-VEROSE-13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux Vero 13 SE and Vero 18 SE COBs.

    XTM-ADAPTER-50-A

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with LEDiL A-type interface.

    CLAMP-PRV-A

    Adapter for ANGELA, ANGELINA, ANGELETTE, MOLLY and RONDA-A. Compatible with Osram PrevaLED Core connector.

    CLAMP-Z45-A

    Adapter for ANGELA, ANGELINA, ANGELETTE, MOLLY and RONDA-A. Compatible with TE Z45 connector.

    Optical results

    LED: V10 Gen6
    LES size: 9.9 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: asymmetric
    Peak intensity: 1.050 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V10 Gen7
    LES size: 10.2 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 486 Typ L1
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 477 Typ L1
    FWHM: asymmetric
    Peak intensity: 0.740 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    IDEAL: 50-2103CT
    IDEAL: 50-2100AN
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.620 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 13
    LES size: 13.4 mm
    Required components:
    C16402_CLAMP-VEROSE-13-18
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO13
    LES size: 13.4 mm
    Required components:
    C13658_CLAMP-VERO13-18
    FWHM: asymmetric
    Peak intensity: 0.680 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: asymmetric
    Peak intensity: 1.030 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    C16791_CLAMP-Z45-A
    TE Connectivity: 2325807-3
    FWHM: asymmetric
    Peak intensity: 0.630 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    IDEAL: 50-2103CT
    IDEAL: 50-2100AN
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU04x
    LES size: 22.0 mm
    Required components:
    IDEAL: 50-2204-CT
    IDEAL: 50-2100AN
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: asymmetric
    Peak intensity: 1.220 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU710/711
    LES size: 8.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 470 Typ L1
    FWHM: asymmetric
    Peak intensity: 1.070 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU730/731/733
    LES size: 13.0 mm
    Required components:
    IDEAL: 50-2204-CT
    IDEAL: 50-2100AN
    FWHM: asymmetric
    Peak intensity: 0.640 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1840
    LES size: 14.0 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: asymmetric
    Peak intensity: 0.640 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 448 Typ L1
    FWHM: asymmetric
    Peak intensity: 1.210 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 441 Typ L1
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: asymmetric
    Peak intensity: 0.950 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 437 Typ L1
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: asymmetric
    Peak intensity: 0.730 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    TE Connectivity: 2213401-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.680 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

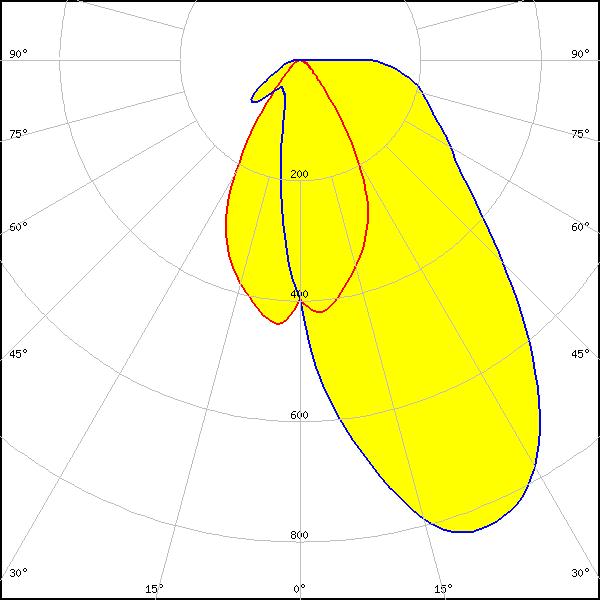

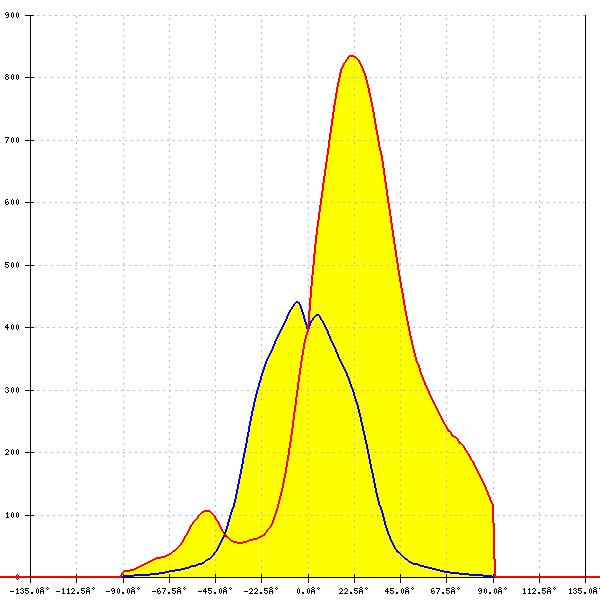

    LED: CXA/B 1830
    LES size: 14.0 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: asymmetric
    Peak intensity: 0.860 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Core G7 L15 H1
    LES size: 15.0 mm
    Required components:
    C16685_CLAMP-PRV-A
    FWHM: asymmetric
    Peak intensity: 0.550 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202/1203
    LES size: 9.0 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.970 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202s
    LES size: 6.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 452 Typ L1
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    LES size: 14.6 mm
    Required components:
    IDEAL: 50-2103NC
    IDEAL: 50-2100AN
    FWHM: asymmetric
    Peak intensity: 0.570 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    IDEAL: 50-2100NC
    IDEAL: 50-2100AN
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.830 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 9)
    LES size: 8.7 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 1.130 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NSCxL036A
    LES size: 7.0 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 1.170 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S10
    LES size: 0.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S13
    LES size: 13.2 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S13 19x19
    LES size: 13.0 mm
    Required components:
    IDEAL: 50-2103CT
    IDEAL: 50-2100AN
    FWHM: asymmetric
    Peak intensity: 0.660 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S13 19x19
    LES size: 13.0 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.670 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S9
    LES size: 9.8 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: asymmetric
    Peak intensity: 0.910 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 + SLM holder
    LES size: 13.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.640 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.650 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L15 + SLM holder
    LES size: 15.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.540 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040C
    LES size: 11.0 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.770 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: AC Zhaga COB
    LES size: 14.5 mm
    Required components:
    Optosource: SEHSMJD-A
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    LES size: 14.5 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Mini Zenigata (GW6BM)
    LES size: 8.6 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 452 Typ L1
    FWHM: asymmetric
    Peak intensity: 1.060 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: WU-M-484
    LES size: 14.9 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: asymmetric
    Peak intensity: 0.570 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
