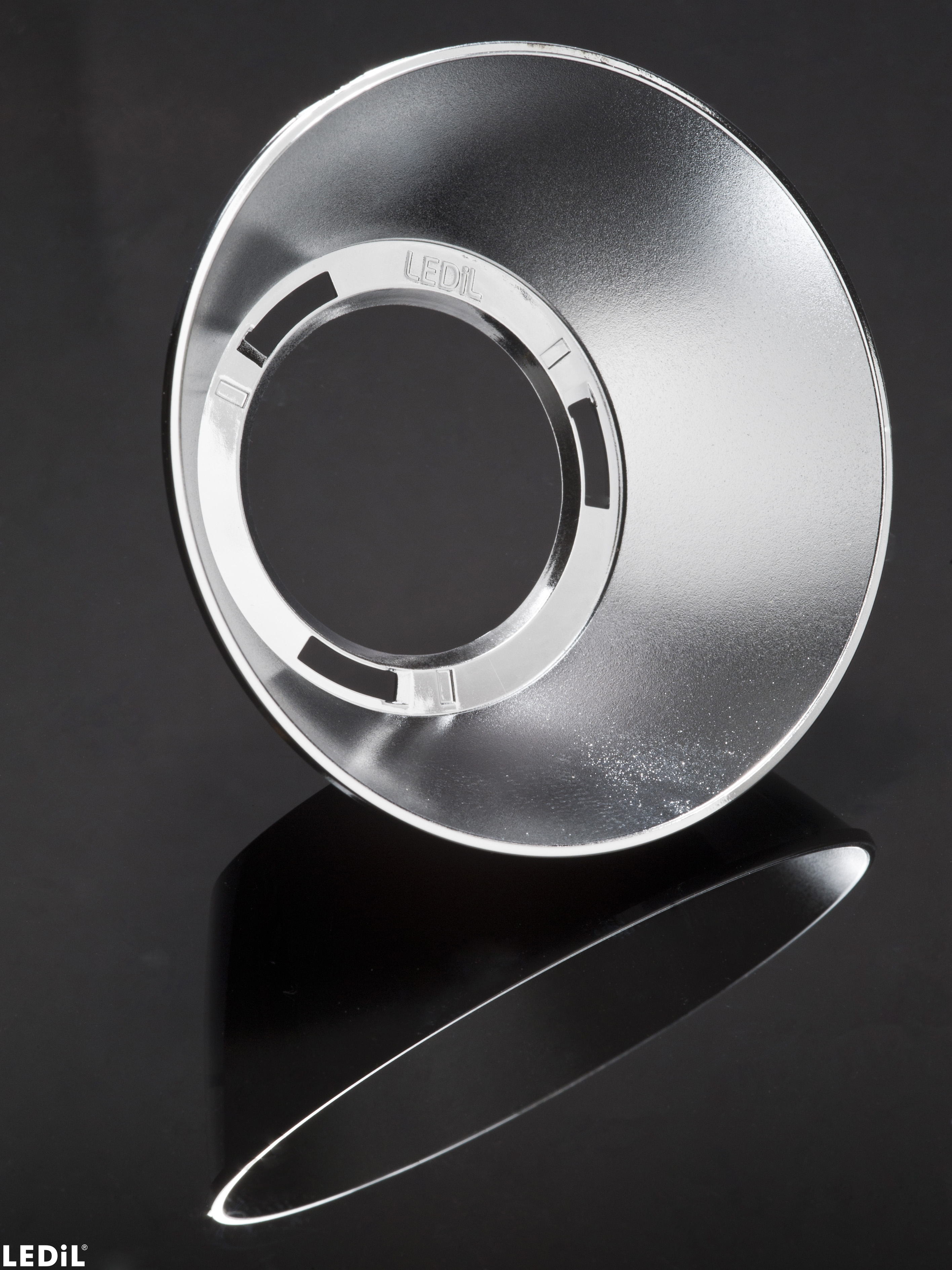

F13325_ANGELINA-S
Print
~20° spot beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

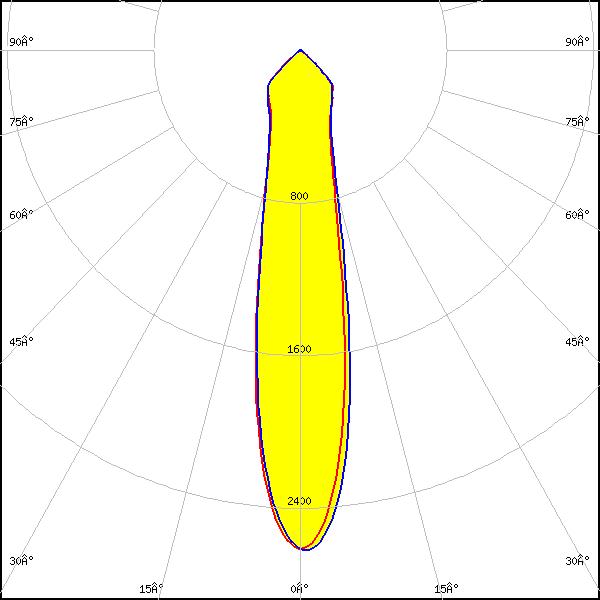

Optical results
LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
IDEAL: 50-2100BL
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
17°
FWTM:
75°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
17°
FWTM:
33°
Peak intensity:
4.230 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
17°
FWTM:
32°
Peak intensity:
4.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
22°
FWTM:
92°
Peak intensity:
2.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
16°
FWTM:
34°
Peak intensity:
4.580 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
20°
FWTM:
87°
Peak intensity:
2.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V15 Gen6
LES size: 15.2 mm
Required components:
FWHM:
23°
FWTM:
94°
Peak intensity:
2.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen6
LES size: 22.0 mm
Required components:
FWHM:
32°
FWTM:
93°
Peak intensity:
1.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen6
LES size: 22.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
29°
FWTM:
91°
Peak intensity:
1.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen7
LES size: 22.6 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
21°
FWTM:
74°
Peak intensity:
3.038 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vero SE 13
LES size: 13.4 mm
Required components:
FWHM:
20°
FWTM:
89°
Peak intensity:
2.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vero SE 18
LES size: 18.6 mm
Required components:
FWHM:
26°
FWTM:
91°
Peak intensity:
2.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
20°
FWTM:
68°
Peak intensity:
3.000 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
25°
FWTM:
92°
Peak intensity:
1.820 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
25°
FWTM:
88°
Peak intensity:
2.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
29°
FWTM:
94°
Peak intensity:
1.520 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO29
LES size: 29.2 mm
Required components:
FWHM:
39°
FWTM:
96°
Peak intensity:
1.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO29
LES size: 29.2 mm
Required components:
FWHM:
44°
FWTM:
99°
Peak intensity:
1.040 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 15mm DP
LES size: 16.3 mm
Required components:
FWHM:
24°
FWTM:
90°
Peak intensity:
2.080 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 15mm DP
LES size: 16.3 mm
Required components:
FWHM:
28°
FWTM:
94°
Peak intensity:
1.556 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 18mm (31W) DP
LES size: 19.7 mm
Required components:
FWHM:
27°
FWTM:
92°
Peak intensity:
1.784 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 18mm (31W) DP
LES size: 19.7 mm
Required components:
FWHM:
30°
FWTM:
94°
Peak intensity:
1.479 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 22mm DP
LES size: 23.1 mm
Required components:
FWHM:
30°
FWTM:
93°
Peak intensity:
1.607 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 22mm DP
LES size: 23.1 mm
Required components:
FWHM:
33°
FWTM:
95°
Peak intensity:
1.364 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
17°
FWTM:
75°
Peak intensity:
2.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
90°
Peak intensity:
1.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
25°
FWTM:
92°
Peak intensity:
1.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
21°
FWTM:
89°
Peak intensity:
2.300 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
20°
FWTM:
88°
Peak intensity:
2.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
91°
Peak intensity:
1.900 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
22°
FWTM:
87°
Peak intensity:
2.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
19°
FWTM:
83°
Peak intensity:
2.710 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
29°
FWTM:
91°
Peak intensity:
1.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
33°
FWTM:
93°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
30°
FWTM:
91°
Peak intensity:
1.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
14°
FWTM:
56°
Peak intensity:
3.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
18°
FWTM:
81°
Peak intensity:
2.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
17°
FWTM:
84°
Peak intensity:
2.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
15°
FWTM:
75°
Peak intensity:
3.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU730/731/733
LES size: 13.0 mm
Required components:
FWHM:
21°
FWTM:
88°
Peak intensity:
2.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU730/731/733
LES size: 13.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
18°
FWTM:
84°
Peak intensity:
2.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU730/731/733
LES size: 13.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
18°
FWTM:
84°
Peak intensity:
2.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1840
LES size: 14.0 mm
Required components:
FWHM:
22°
FWTM:
88°
Peak intensity:
2.500 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA2550
LES size: 19.0 mm
Required components:
FWHM:
26°
FWTM:
90°
Peak intensity:
2.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA3090
LES size: 23.0 mm
Required components:
FWHM:
30°
FWTM:
92°
Peak intensity:
1.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
17°
FWTM:
65°
Peak intensity:
3.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
21°
FWTM:
85°
Peak intensity:
2.622 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT28xx
LES size: 22.0 mm
Required components:
FWHM:
29°
FWTM:
91°
Peak intensity:
1.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
15°
FWTM:
65°
Peak intensity:
3.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
20°
FWTM:
81°
Peak intensity:
2.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
19°
FWTM:
87°
Peak intensity:
2.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
22°
FWTM:
89°
Peak intensity:
2.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
22°
FWTM:
90°
Peak intensity:
2.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
IDEAL: 50-2101CR
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
16°
FWTM:
68°
Peak intensity:
3.290 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
19°
FWTM:
83°
Peak intensity:
2.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
25°
FWTM:
92°
Peak intensity:
1.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
IDEAL: 50-2102CR
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
22°
FWTM:
87°
Peak intensity:
2.280 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
FWHM:
32°
FWTM:
95°
Peak intensity:
1.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
IDEAL: 50-2234C
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
28°
FWTM:
89°
Peak intensity:
1.730 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 3590
LES size: 30.0 mm
Required components:
IDEAL: 50-2303CR
IDEAL: 50-2300AN
IDEAL: 50-2300AN
FWHM:
40°
FWTM:
97°
Peak intensity:
1.190 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHI3030 19W
LES size: 20.0 mm
Required components:
FWHM:
29°
FWTM:
90°
Peak intensity:
1.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHI3030 29W
LES size: 26.0 mm
Required components:
FWHM:
39°
FWTM:
90°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
18°
FWTM:
83°
Peak intensity:
2.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
17°
FWTM:
76°
Peak intensity:
2.980 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
19°
FWTM:
68°
Peak intensity:
3.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
15°
FWTM:
53°
Peak intensity:
3.700 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
17°
FWTM:
65°
Peak intensity:
3.300 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
23°
FWTM:
89°
Peak intensity:
1.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
25°
FWTM:
92°
Peak intensity:
1.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
20°
FWTM:
84°
Peak intensity:
2.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
21°
FWTM:
79°
Peak intensity:
2.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM:
26°
FWTM:
91°
Peak intensity:
1.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM:
30°
FWTM:
93°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
26°
FWTM:
91°
Peak intensity:
1.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
34°
FWTM:
95°
Peak intensity:
1.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
31°
FWTM:
93°
Peak intensity:
1.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM:
25°
FWTM:
93°
Peak intensity:
1.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
TE Connectivity: 2213134-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
20°
FWTM:
86°
Peak intensity:
2.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM:
26°
FWTM:
92°
Peak intensity:
1.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
TE Connectivity: 2213134-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
22°
FWTM:
90°
Peak intensity:
2.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON S2000
LES size: 10.5 mm
Required components:
FWHM:
17°
FWTM:
55°
Peak intensity:
3.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON S3000
LES size: 13.5 mm
Required components:
FWHM:
18°
FWTM:
65°
Peak intensity:
3.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON S5000
LES size: 17.0 mm
Required components:
FWHM:
22°
FWTM:
86°
Peak intensity:
2.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
20°
FWTM:
80°
Peak intensity:
2.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
23°
FWTM:
89°
Peak intensity:
2.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM:
24°
FWTM:
89°
Peak intensity:
2.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM:
26°
FWTM:
91°
Peak intensity:
1.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
18°
FWTM:
81°
Peak intensity:
2.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
21°
FWTM:
91°
Peak intensity:
2.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM:
20°
FWTM:
86°
Peak intensity:
2.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
90°
Peak intensity:
2.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 RGBW
LES size: 14.5 mm
Required components:
FWHM:
22°
FWTM:
87°
Peak intensity:
2.205 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
CTM-14 RGBW
LES size: 14.5 mm
Required components:
FWHM:
18°
FWTM:
62°
Peak intensity:
3.216 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM:
29°
FWTM:
-
Peak intensity:
1.570 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM:
32°
FWTM:
95°
Peak intensity:
1.350 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
21°
FWTM:
89°
Peak intensity:
2.300 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
20°
FWTM:
86°
Peak intensity:
2.530 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
17°
FWTM:
75°
Peak intensity:
2.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
22°
FWTM:
89°
Peak intensity:
2.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
24°
FWTM:
90°
Peak intensity:
1.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
20°
FWTM:
85°
Peak intensity:
2.530 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
18°
FWTM:
78°
Peak intensity:
2.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
17°
FWTM:
86°
Peak intensity:
2.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
19°
FWTM:
88°
Peak intensity:
2.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
23°
FWTM:
92°
Peak intensity:
1.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
Molex: 180580-0005
FWHM:
22°
FWTM:
93°
Peak intensity:
2.160 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
17°
FWTM:
86°
Peak intensity:
2.660 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
16°
FWTM:
71°
Peak intensity:
3.080 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
22°
FWTM:
91°
Peak intensity:
2.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
18°
FWTM:
80°
Peak intensity:
2.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core AC (LEP-2000)
LES size: 19.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
23°
FWTM:
88°
Peak intensity:
2.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core AC (LEP-800)
LES size: 13.5 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
16°
FWTM:
76°
Peak intensity:
3.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM:
21°
FWTM:
88°
Peak intensity:
2.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM:
24°
FWTM:
90°
Peak intensity:
1.900 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core Z3 LES19
LES size: 19.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
23°
FWTM:
89°
Peak intensity:
2.210 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core Z3 LES23
LES size: 23.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
27°
FWTM:
91°
Peak intensity:
1.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core Z3 LES9
LES size: 9.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
14°
FWTM:
54°
Peak intensity:
3.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core Z4 LES19
LES size: 19.0 mm
Required components:
FWHM:
26°
FWTM:
92°
Peak intensity:
1.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core Z4 LES19
LES size: 19.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
21°
FWTM:
87°
Peak intensity:
2.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
20°
FWTM:
89°
Peak intensity:
2.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
20°
FWTM:
82°
Peak intensity:
2.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
19°
FWTM:
84°
Peak intensity:
2.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
FWHM:
22°
FWTM:
90°
Peak intensity:
2.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
FWHM:
22°
FWTM:
90°
Peak intensity:
1.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
17°
FWTM:
86°
Peak intensity:
2.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
FWHM:
23°
FWTM:
89°
Peak intensity:
2.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
FWHM:
27°
FWTM:
93°
Peak intensity:
1.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
TE Connectivity: 2213407-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
22°
FWTM:
87°
Peak intensity:
2.380 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L09 + SLM holder
LES size: 9.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
15°
FWTM:
70°
Peak intensity:
3.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 + SLM holder
LES size: 13.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
19°
FWTM:
86°
Peak intensity:
2.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
23°
FWTM:
89°
Peak intensity:
2.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
20°
FWTM:
78°
Peak intensity:
2.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 + SLM holder
LES size: 15.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
21°
FWTM:
88°
Peak intensity:
2.240 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 + SLM holder
LES size: 15.0 mm
Required components:
FWHM:
27°
FWTM:
93°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM:
24°
FWTM:
90°
Peak intensity:
2.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
22°
FWTM:
86°
Peak intensity:
2.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 + SLM holder
LES size: 19.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
26°
FWTM:
91°
Peak intensity:
1.770 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
FWHM:
25°
FWTM:
92°
Peak intensity:
1.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
TE Connectivity: 2213258-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
24°
FWTM:
89°
Peak intensity:
2.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC035T (Tunable white)
LES size: 22.0 mm
Required components:
FWHM:
31°
FWTM:
93°
Peak intensity:
1.622 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC035T (Tunable white)
LES size: 22.0 mm
Required components:
FWHM:
34°
FWTM:
95°
Peak intensity:
1.347 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC040C
LES size: 11.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
18°
FWTM:
87°
Peak intensity:
2.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
LES size: 11.0 mm
Required components:
FWHM:
21°
FWTM:
89°
Peak intensity:
2.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
AC Zhaga COB
LES size: 14.5 mm
Required components:
FWHM:
30°
FWTM:
96°
Peak intensity:
1.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
22°
FWTM:
89°
Peak intensity:
2.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 22
LES size: 22.0 mm
Required components:
FWHM:
30°
FWTM:
93°
Peak intensity:
1.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
21°
FWTM:
89°
Peak intensity:
2.300 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
17°
FWTM:
75°
Peak intensity:
2.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
FWHM:
24°
FWTM:
91°
Peak intensity:
1.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
21°
FWTM:
75°
Peak intensity:
2.770 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
20°
FWTM:
84°
Peak intensity:
2.650 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-461
LES size: 14.9 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
20°
FWTM:
78°
Peak intensity:
2.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-462
LES size: 20.6 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
26°
FWTM:
89°
Peak intensity:
2.030 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-464
LES size: 20.6 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
26°
FWTM:
89°
Peak intensity:
2.040 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-484
LES size: 14.9 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
21°
FWTM:
88°
Peak intensity:
2.430 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-484
LES size: 14.9 mm
Required components:
FWHM:
25°
FWTM:
91°
Peak intensity:
1.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-485
LES size: 20.6 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
27°
FWTM:
81°
Peak intensity:
1.870 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-486
LES size: 20.6 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
26°
FWTM:
91°
Peak intensity:
1.880 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
