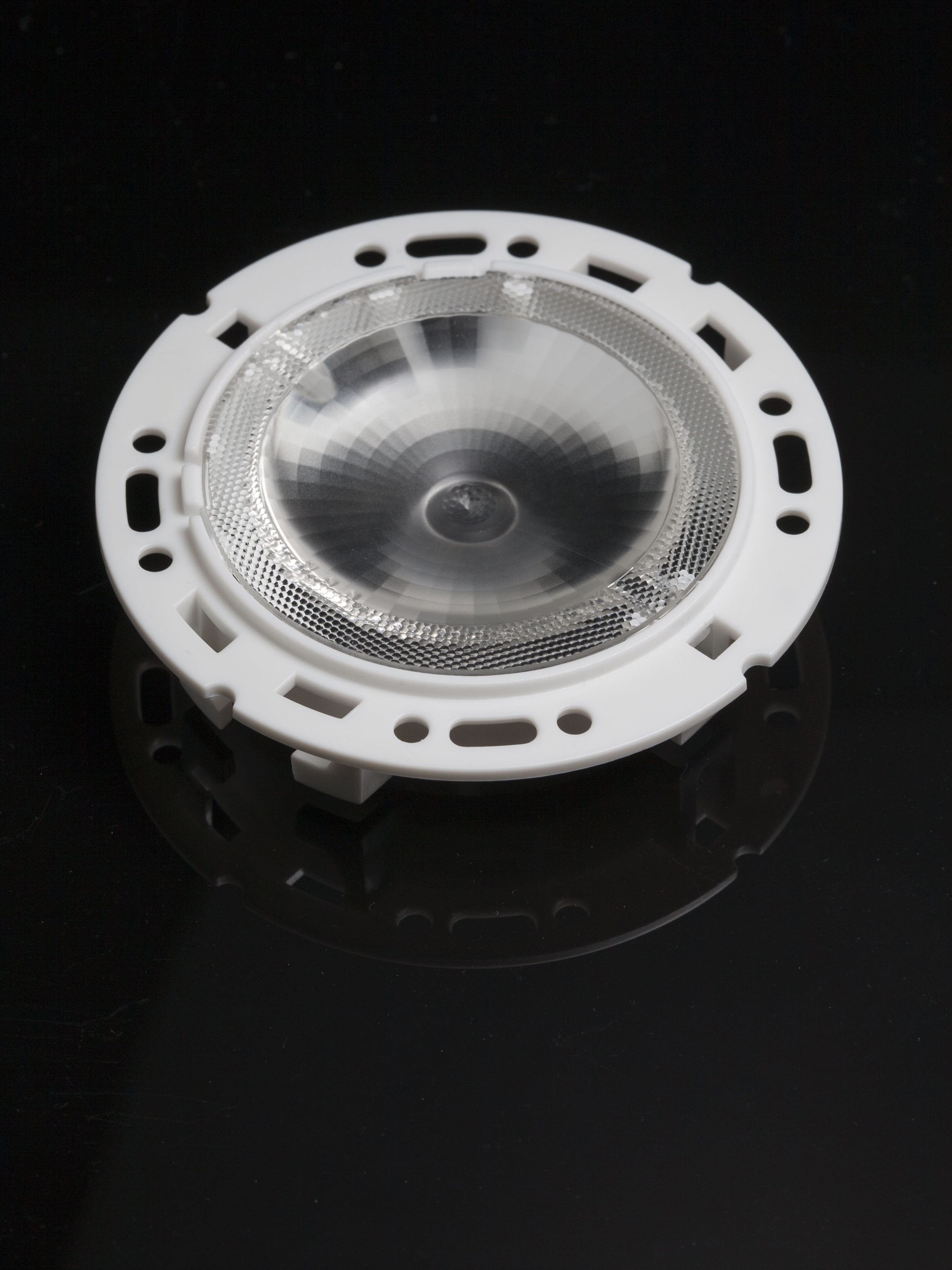

RONDA-WWW
Print
~90° very wide beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Holder
- F15155_RONDA-HLD-APC
- Request material files from Tech Support
- Single lens
- F15157_RONDA-WWWPMMA
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

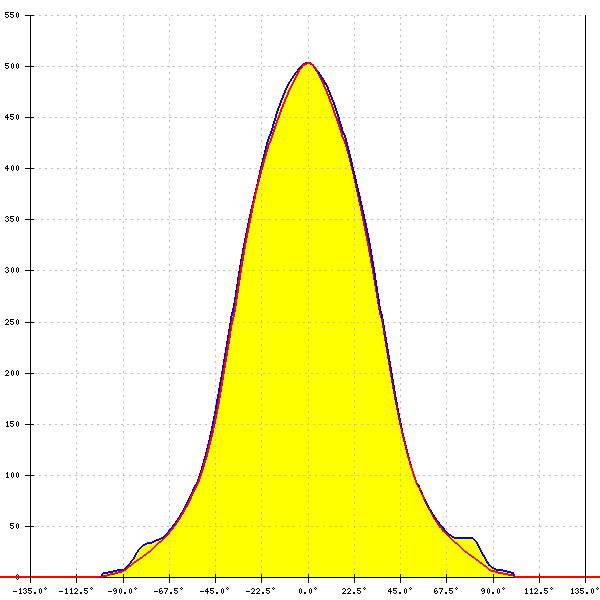

Optical results

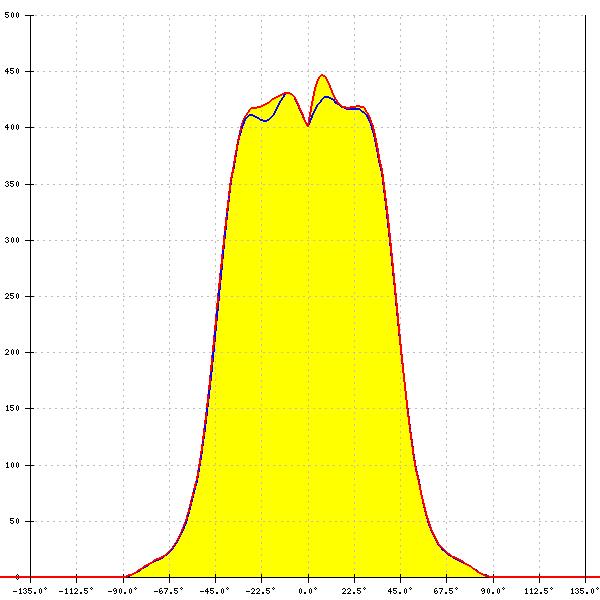

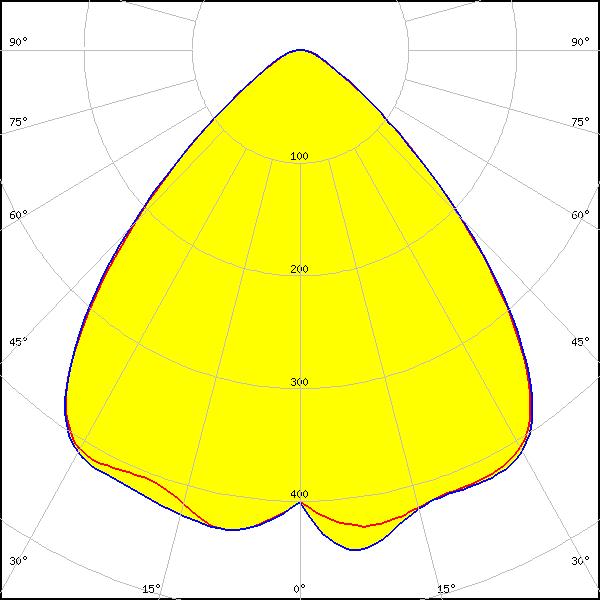

LED:
V10 Gen6
LES size: 9.9 mm
Required components:
FWHM:
89°
FWTM:
120°
Peak intensity:
0.450 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

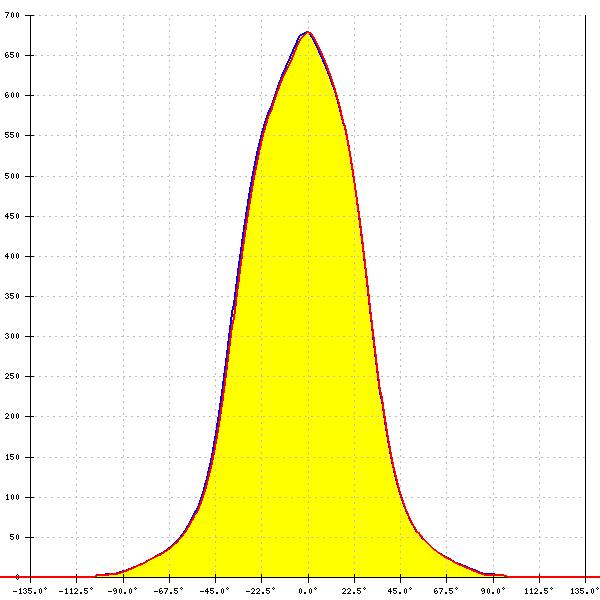

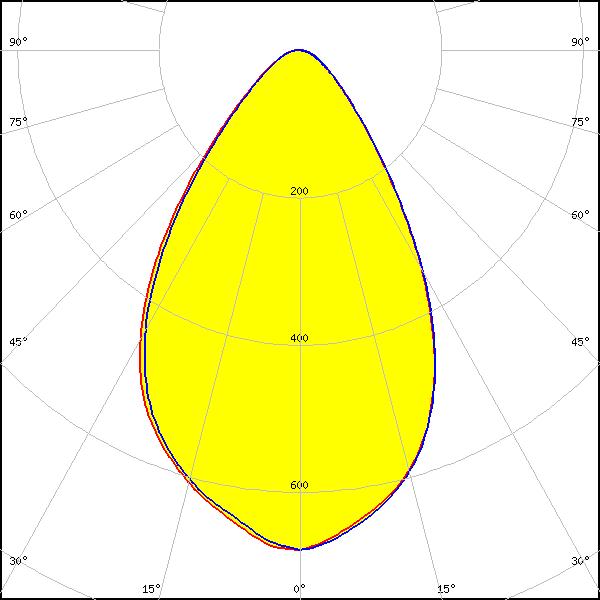

V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
66°
FWTM:
108°
Peak intensity:
0.680 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

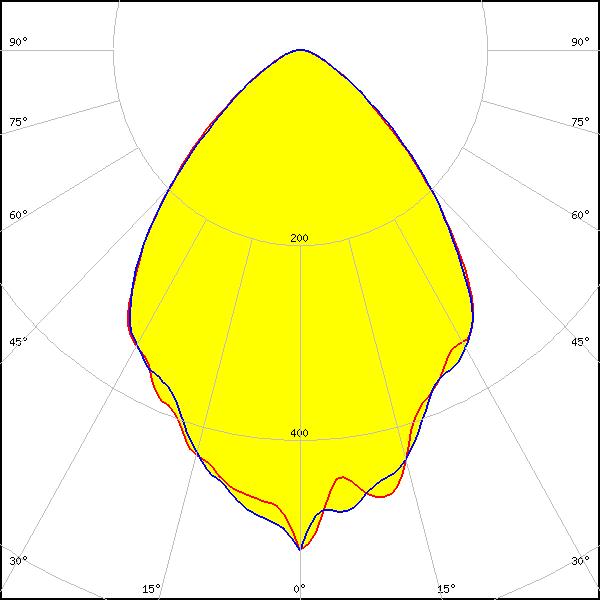

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
80°
FWTM:
121°
Peak intensity:
0.510 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

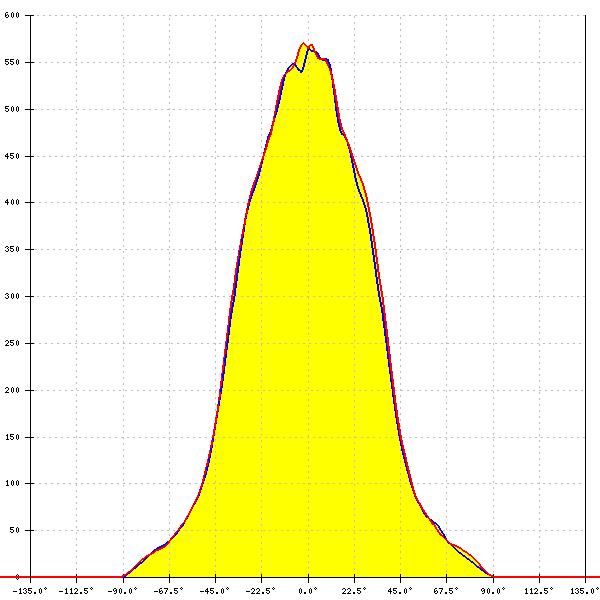

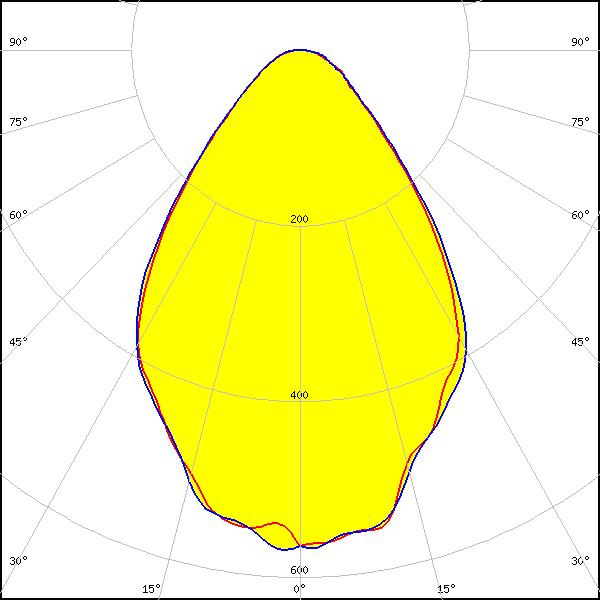

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
72°
FWTM:
120°
Peak intensity:
0.580 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

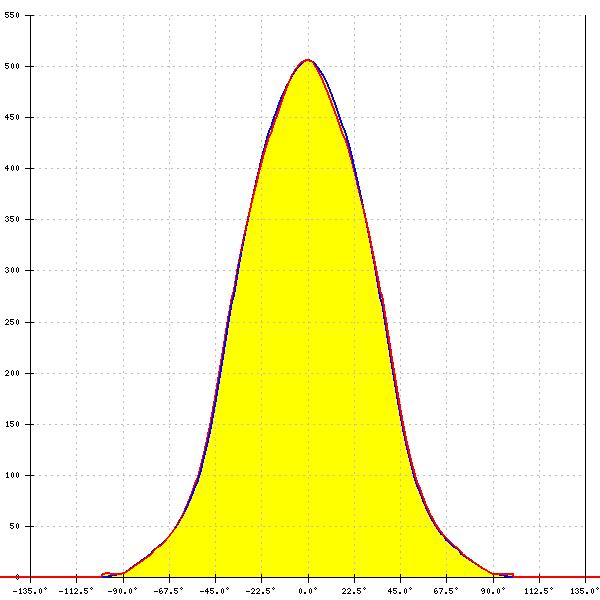

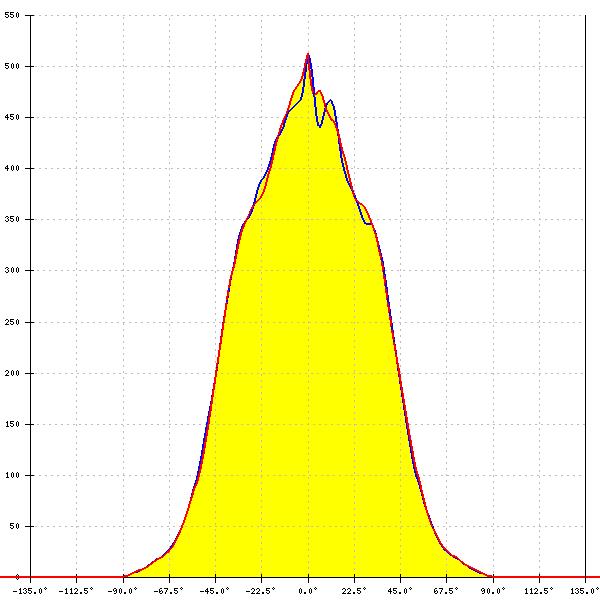

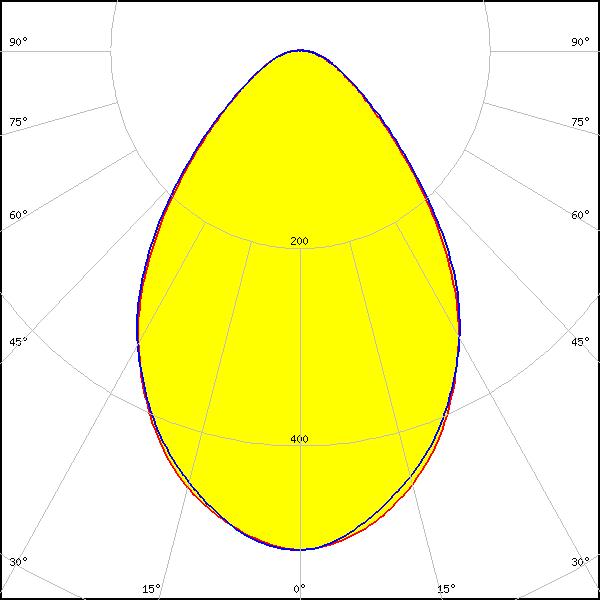

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
76°
FWTM:
126°
Peak intensity:
0.510 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

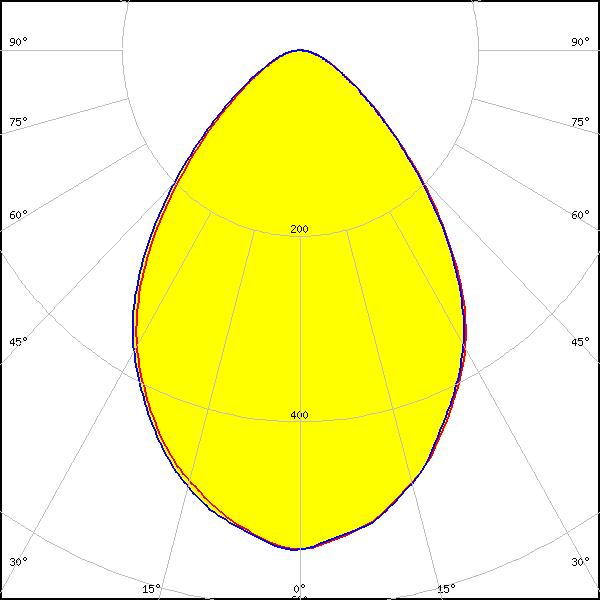

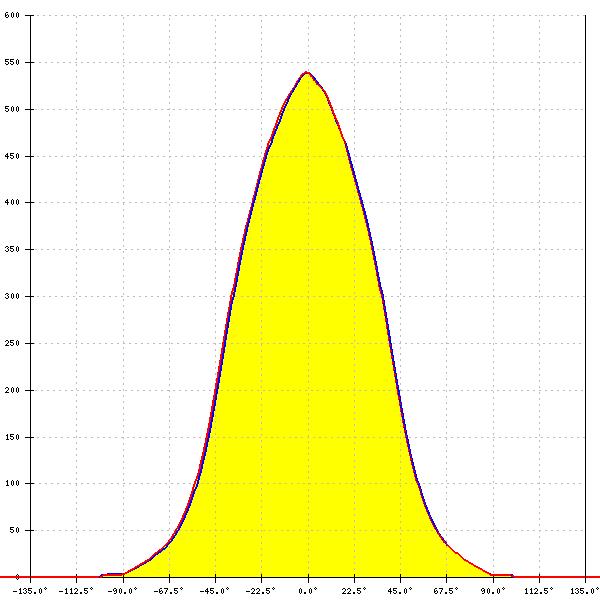

LED:
Vero SE 13
LES size: 13.4 mm
Required components:
FWHM:
78°
FWTM:
124°
Peak intensity:
0.540 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

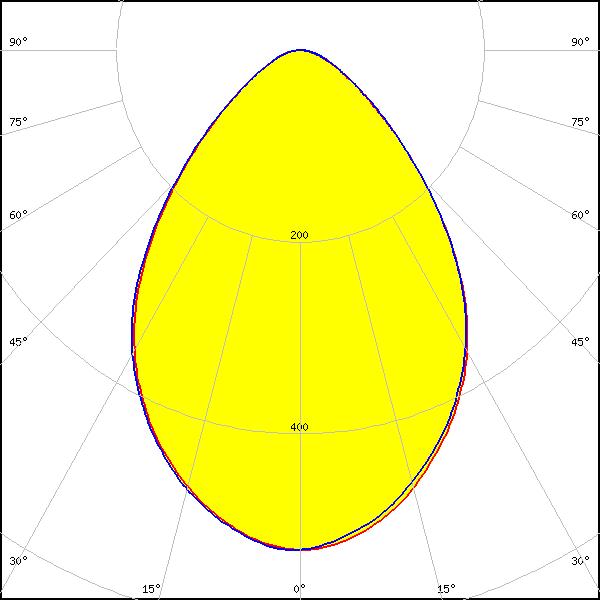

LED:

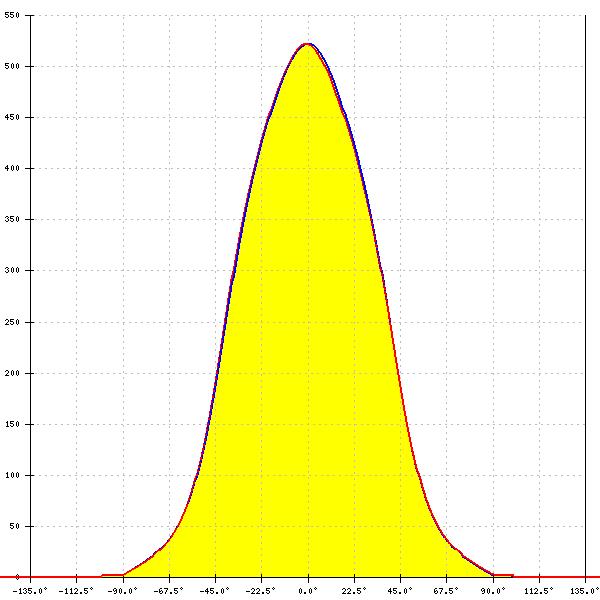

VERO13
LES size: 13.4 mm
Required components:
FWHM:
78°
FWTM:
125°
Peak intensity:
0.520 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

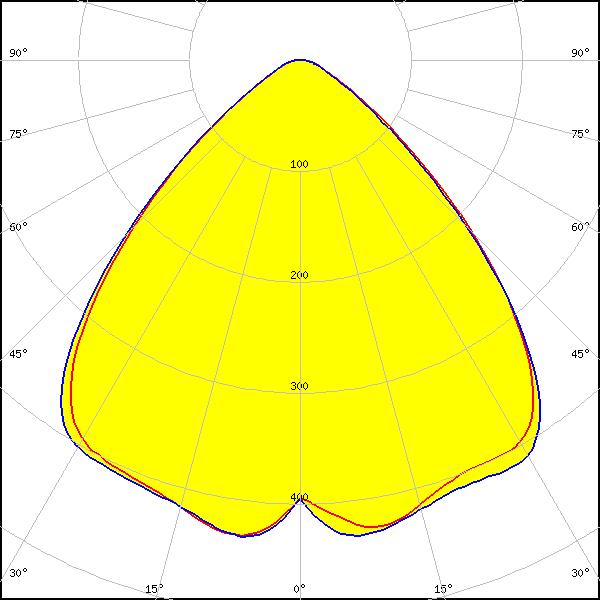

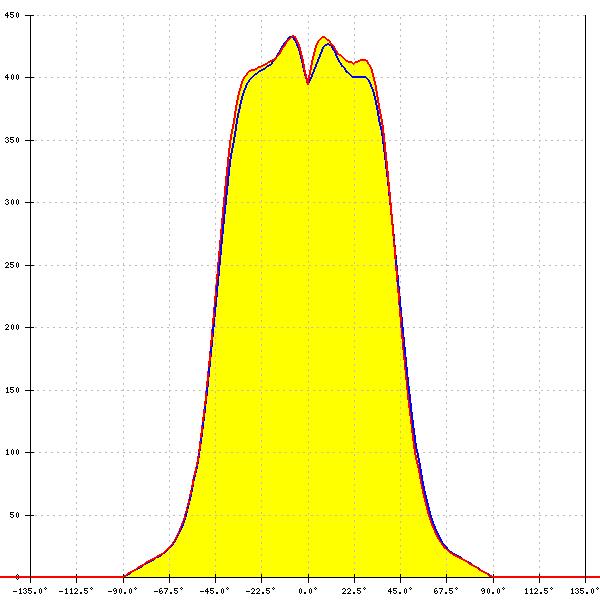

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
90°
FWTM:
120°
Peak intensity:
0.430 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

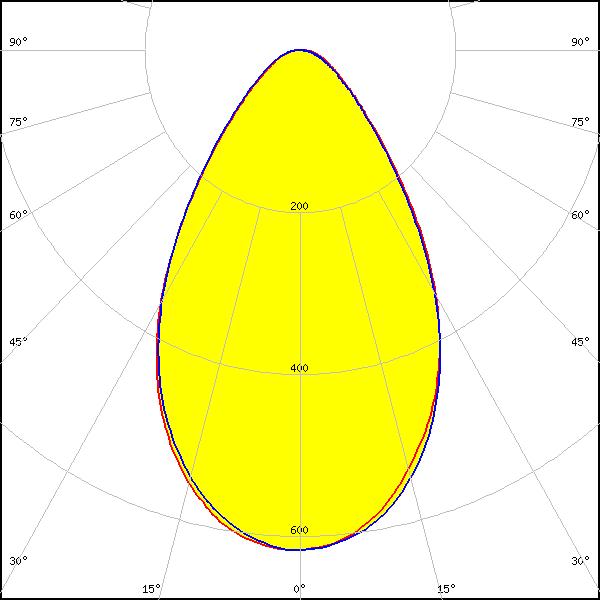

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
75°
FWTM:
127°
Peak intensity:
0.540 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
73°
FWTM:
130°
Peak intensity:
0.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

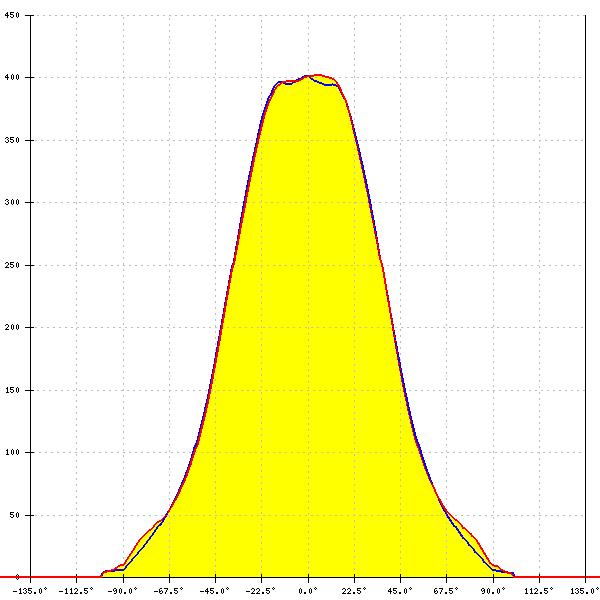

LED:

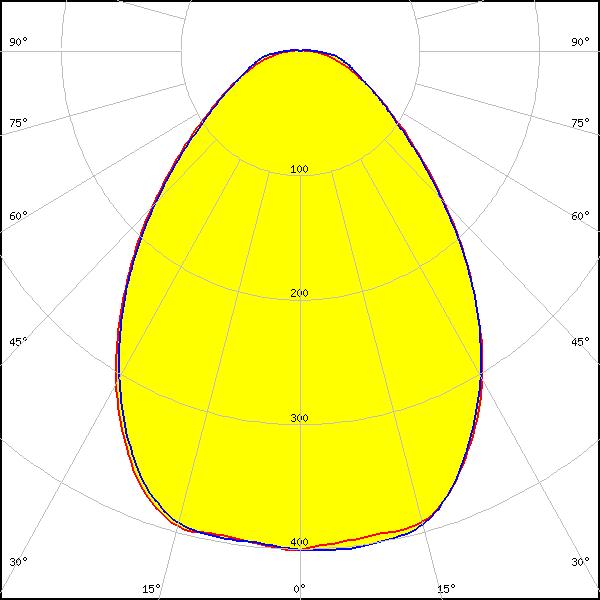

CLL04x/CLU04x
LES size: 22.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
83°
FWTM:
147°
Peak intensity:
0.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

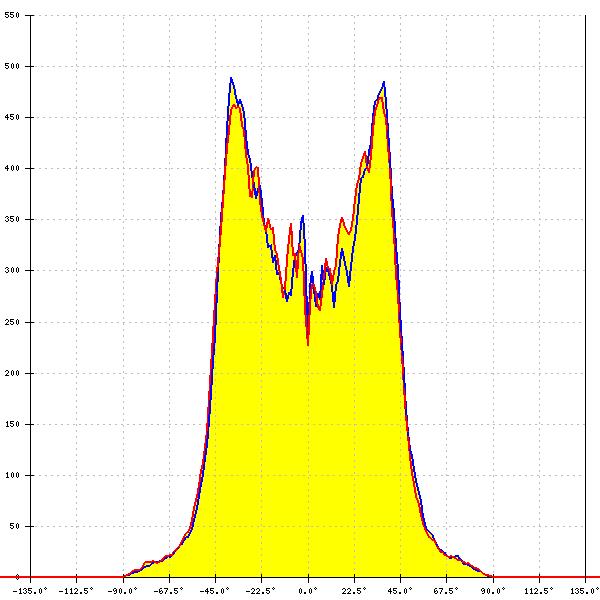

LED:

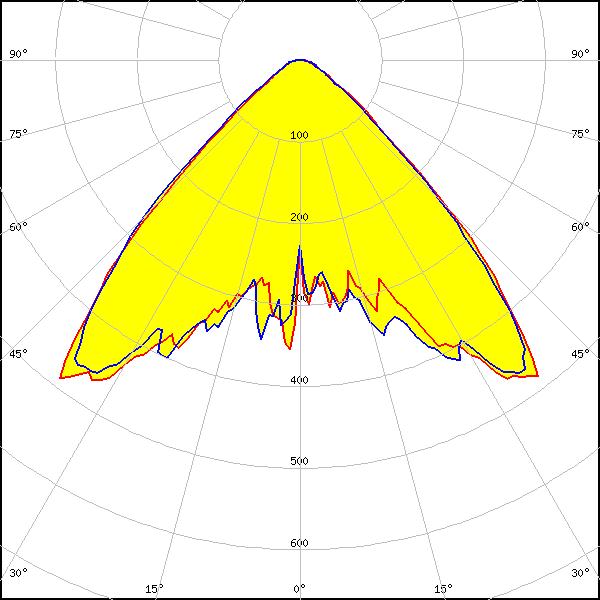

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
90°
FWTM:
97°
Peak intensity:
0.490 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

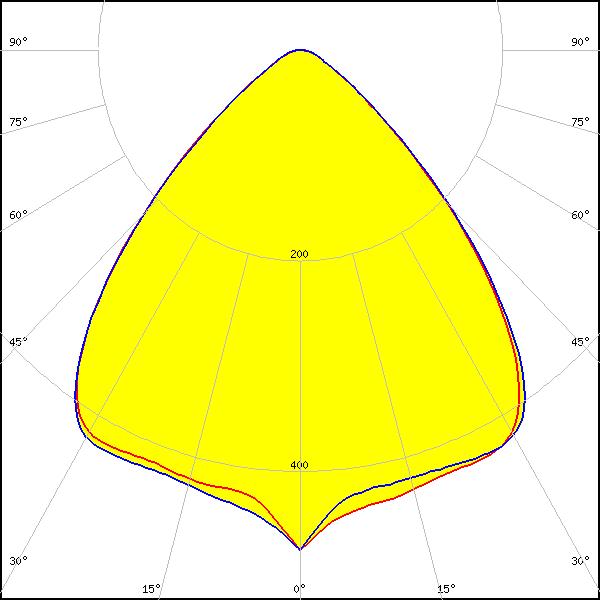

LED:

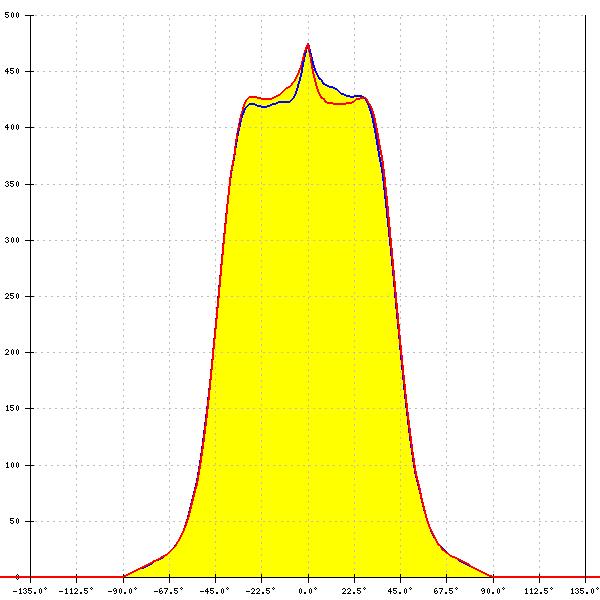

CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
88°
FWTM:
118°
Peak intensity:
0.470 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

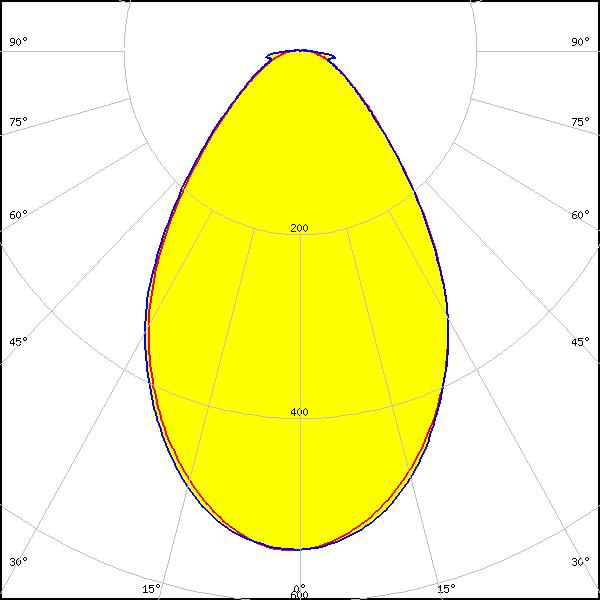

LED:

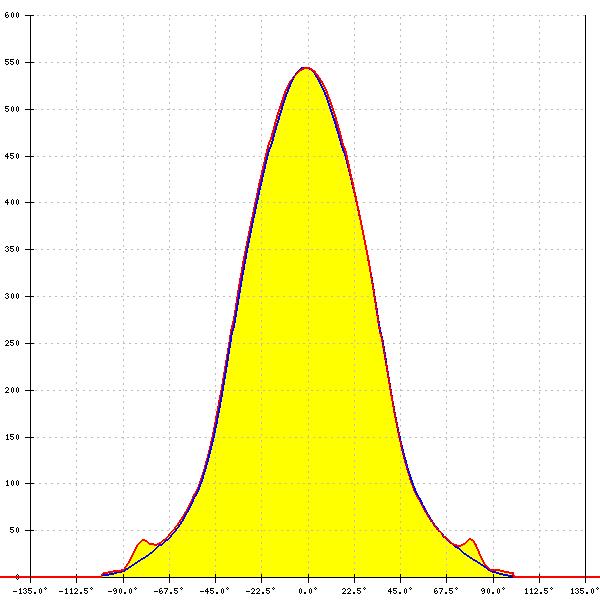

CLU730/731/733
LES size: 13.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
71°
FWTM:
125°
Peak intensity:
0.540 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

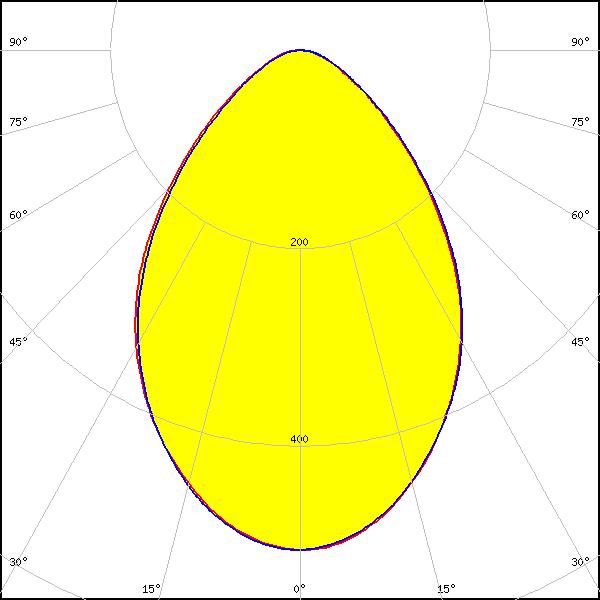

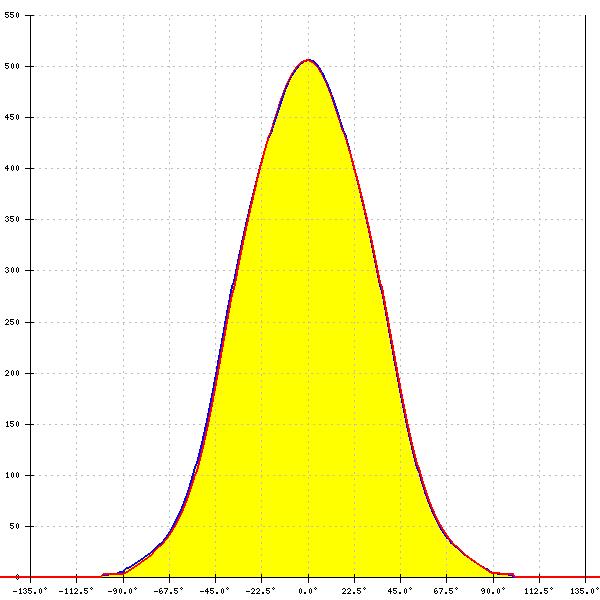

CMA1840
LES size: 14.0 mm
Required components:
FWHM:
78°
FWTM:
129°
Peak intensity:
0.510 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

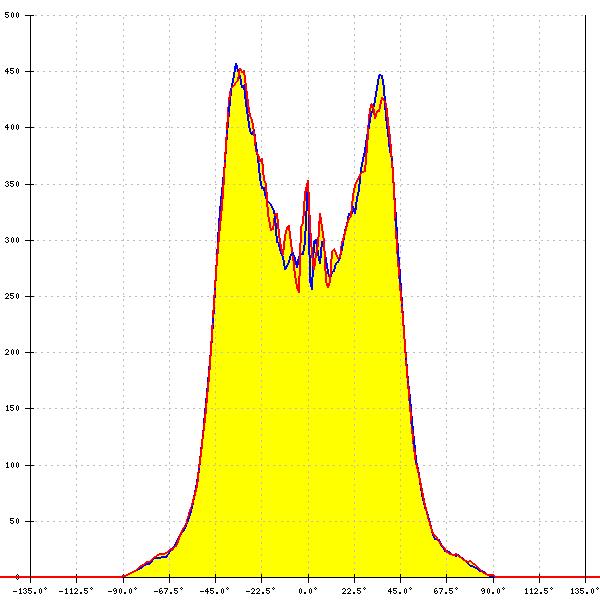

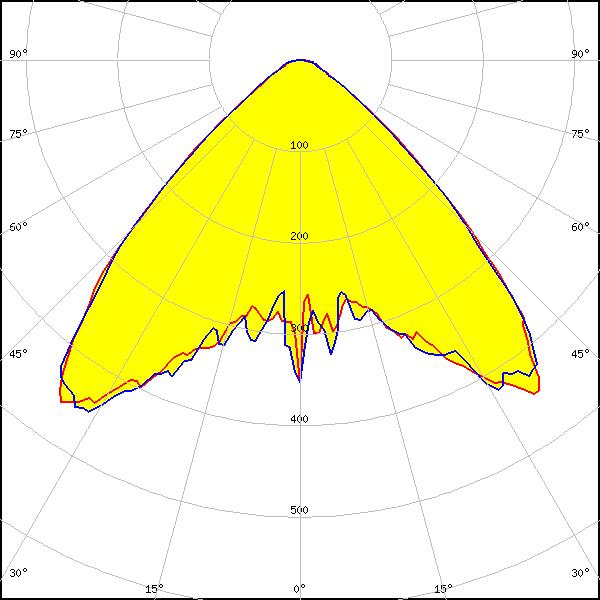

LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
90°
FWTM:
103°
Peak intensity:
0.460 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

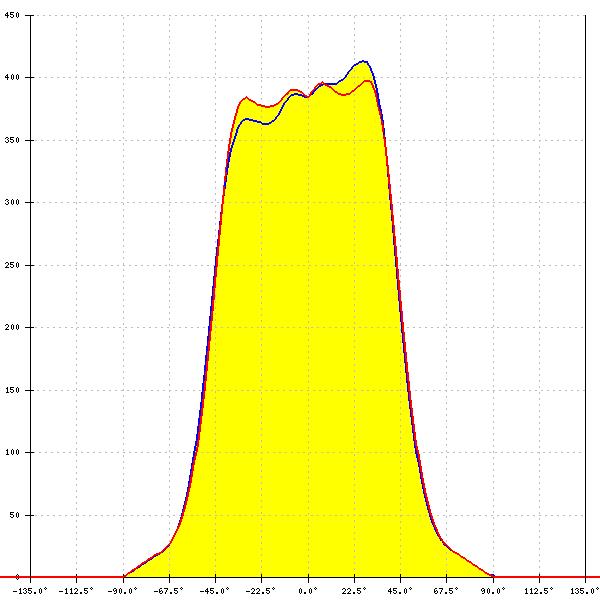

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
90°
FWTM:
116°
Peak intensity:
0.410 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
90°
FWTM:
116°
Peak intensity:
0.410 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

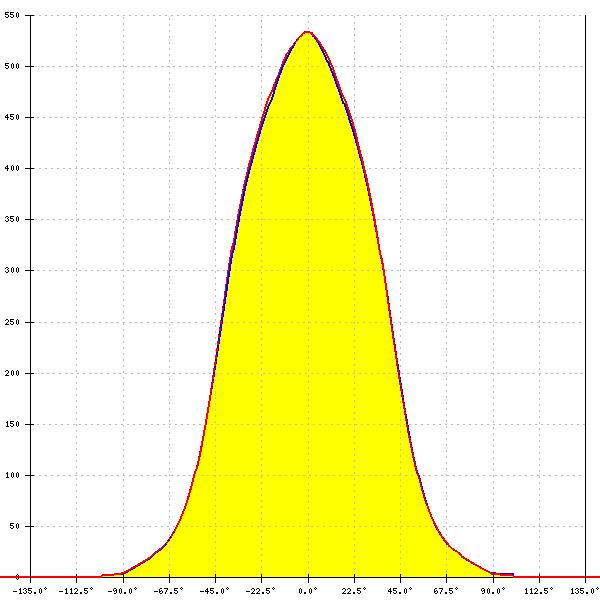

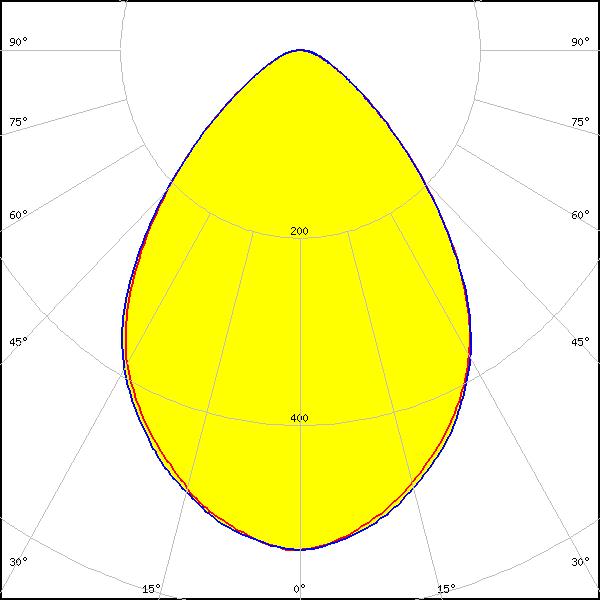

CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
90°
FWTM:
124°
Peak intensity:
0.430 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
80°
FWTM:
124°
Peak intensity:
0.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

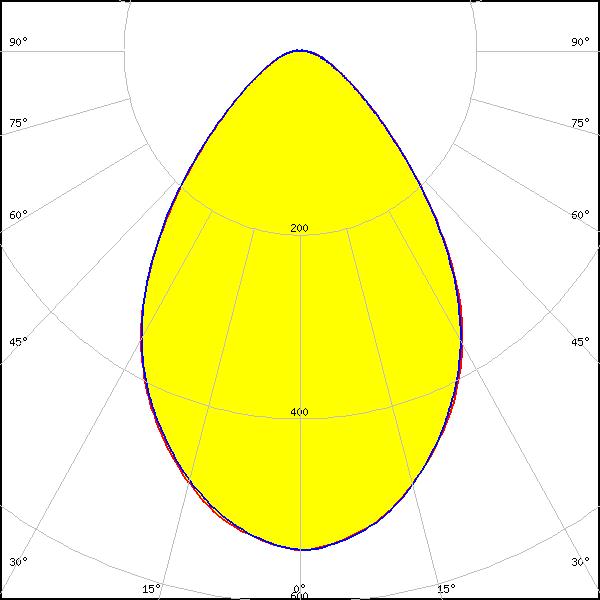

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
75°
FWTM:
122°
Peak intensity:
0.540 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM:
84°
FWTM:
-
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

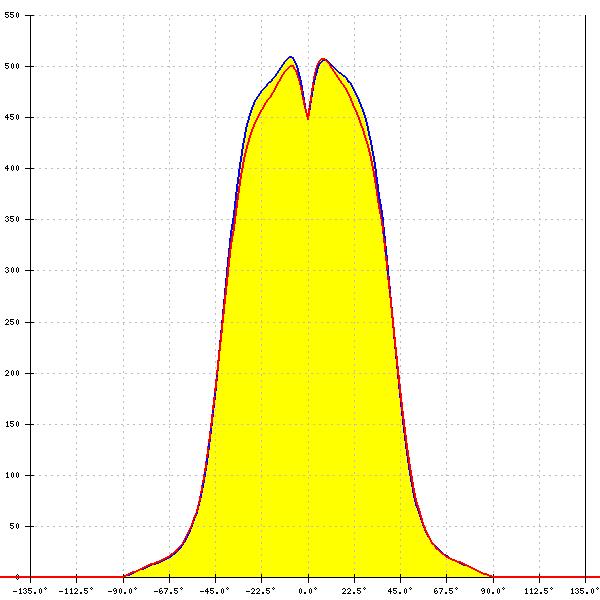

LED:

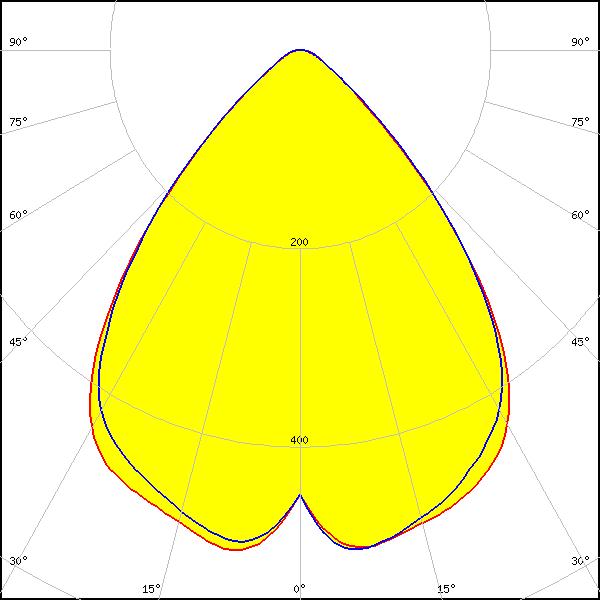

LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
82°
FWTM:
112°
Peak intensity:
0.510 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

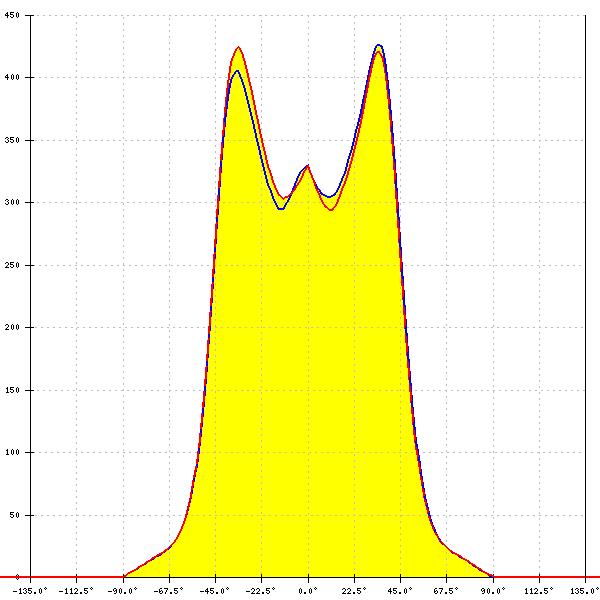

LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
90°
FWTM:
110°
Peak intensity:
0.420 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
74°
FWTM:
132°
Peak intensity:
0.490 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
65°
FWTM:
114°
Peak intensity:
0.620 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
74°
FWTM:
119°
Peak intensity:
0.550 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
83°
FWTM:
112°
Peak intensity:
0.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

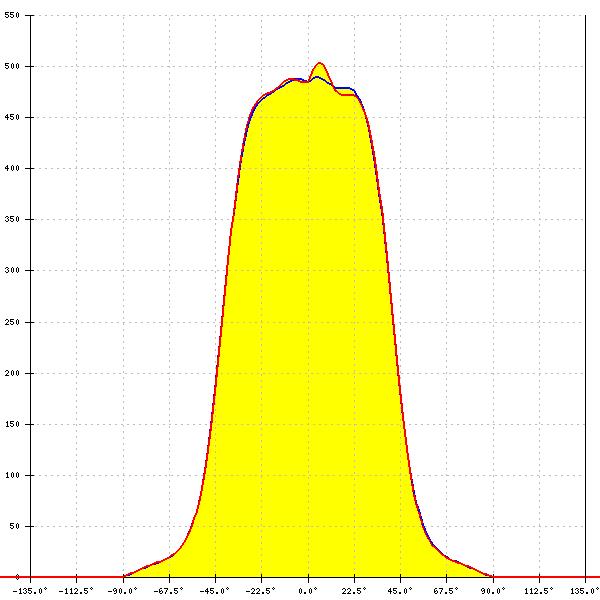

NSCxL036A
LES size: 7.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
85°
FWTM:
109°
Peak intensity:
0.490 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM:
73°
FWTM:
128°
Peak intensity:
0.500 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

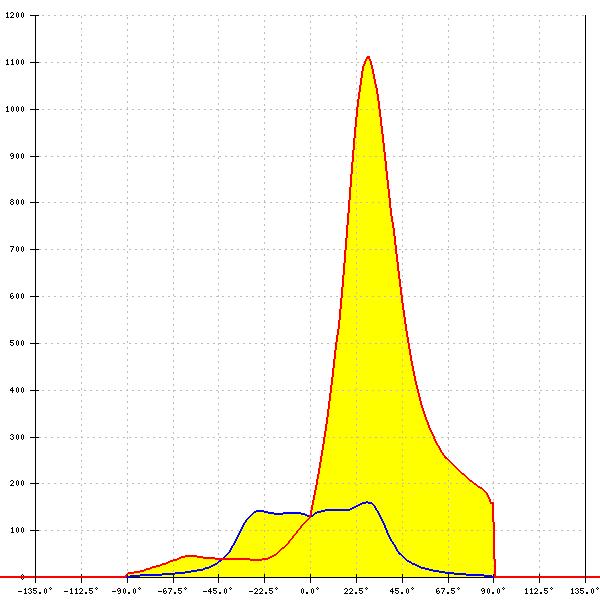

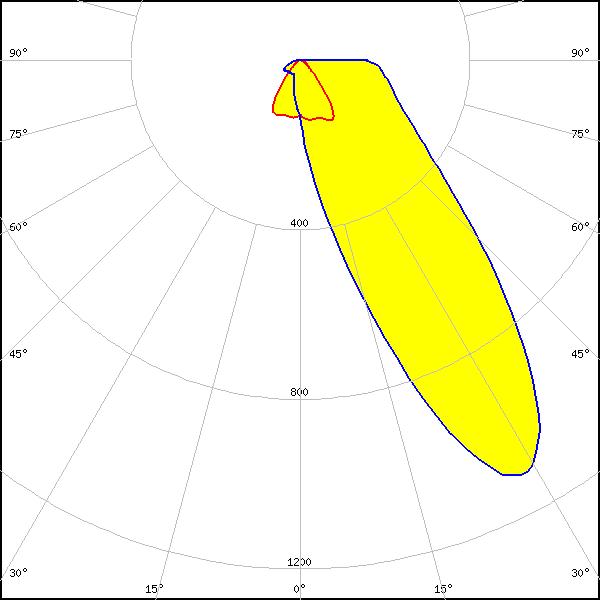

LED:
Duris S10
LES size: 0.0 mm
Required components:
FWHM:
99°
FWTM:
128°
Peak intensity:
0.360 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

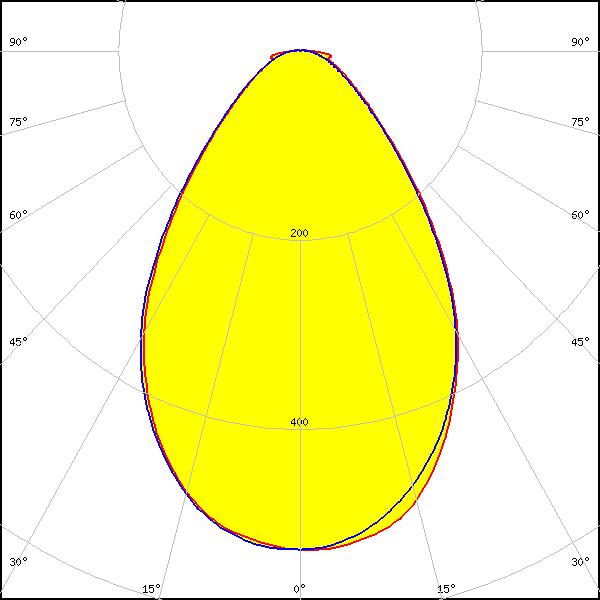

LED:

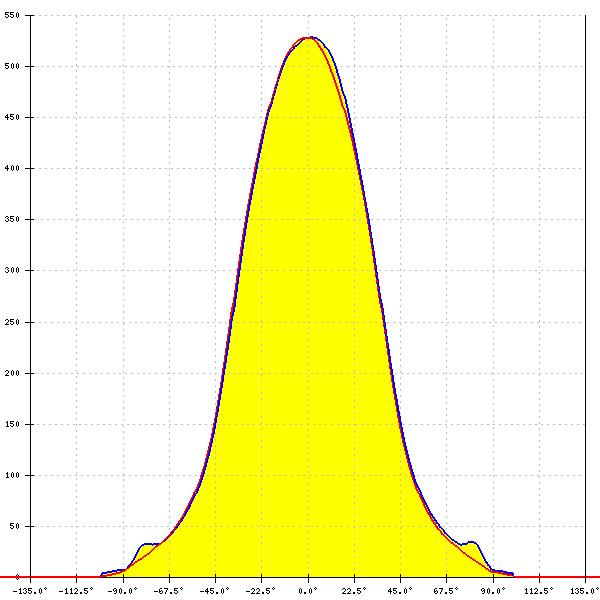

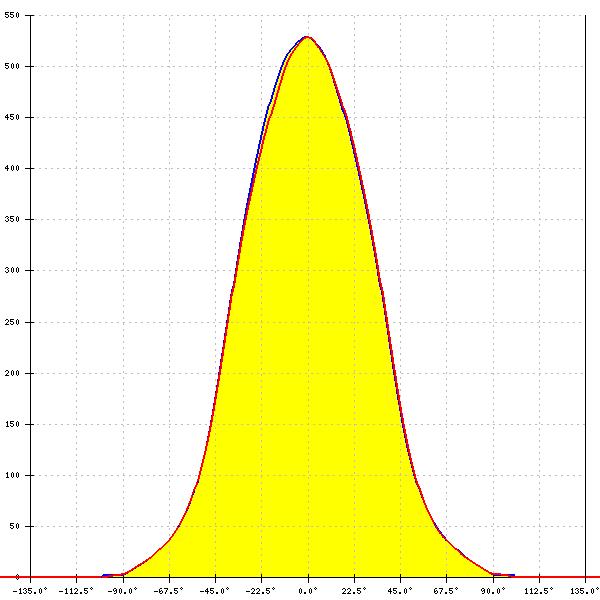

Soleriq S13 19x19
LES size: 13.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
72°
FWTM:
125°
Peak intensity:
0.530 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

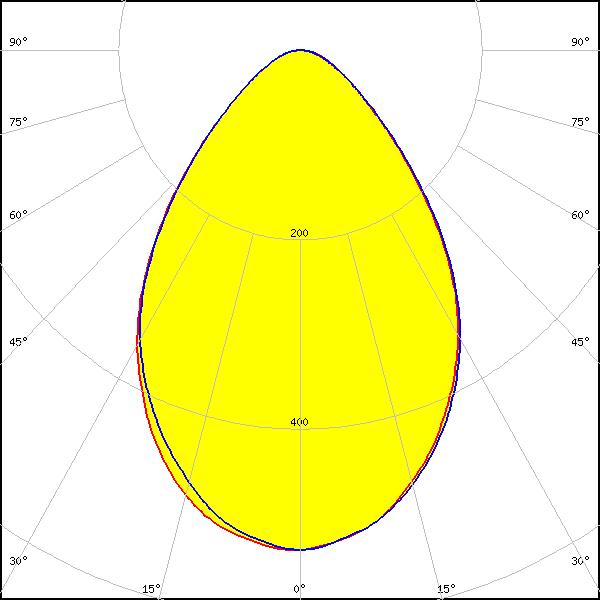

LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
75°
FWTM:
123°
Peak intensity:
0.530 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 + SLM holder
LES size: 13.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
73°
FWTM:
124°
Peak intensity:
0.530 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

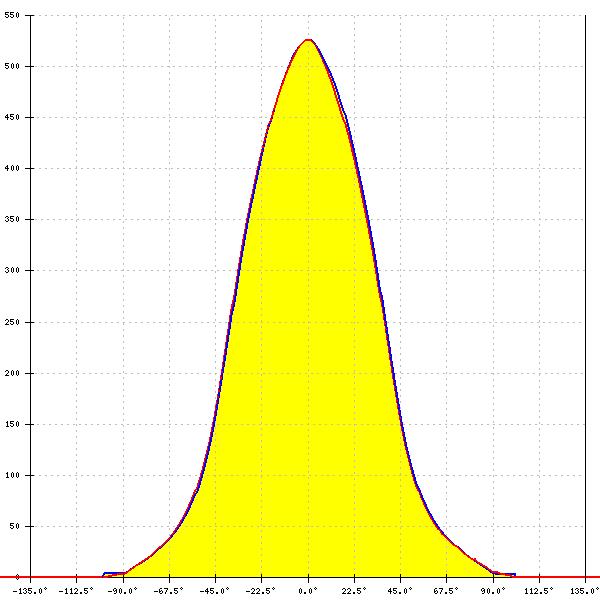

LED:

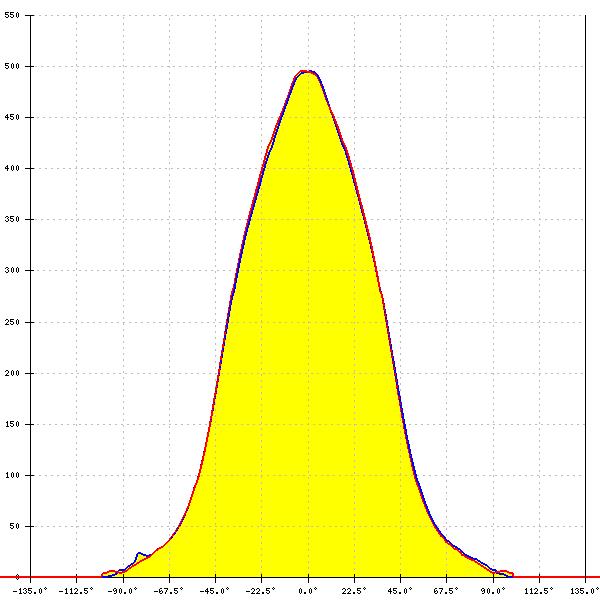

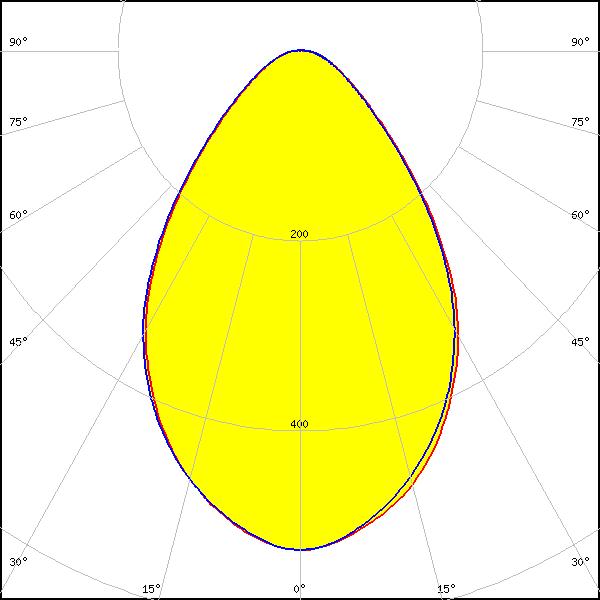

Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
78°
FWTM:
125°
Peak intensity:
0.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

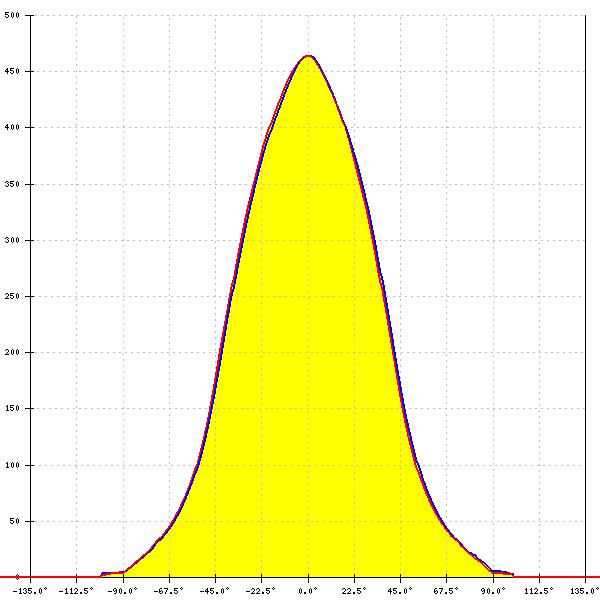

LED:

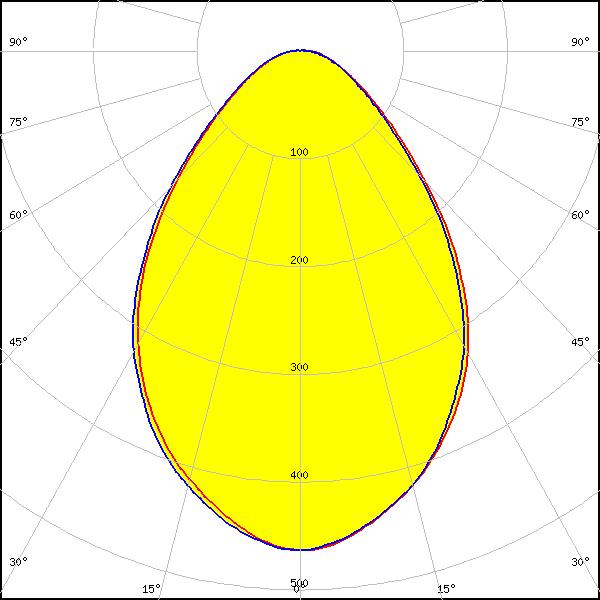

Fortimo SLM L15 + SLM holder
LES size: 15.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
78°
FWTM:
133°
Peak intensity:
0.460 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

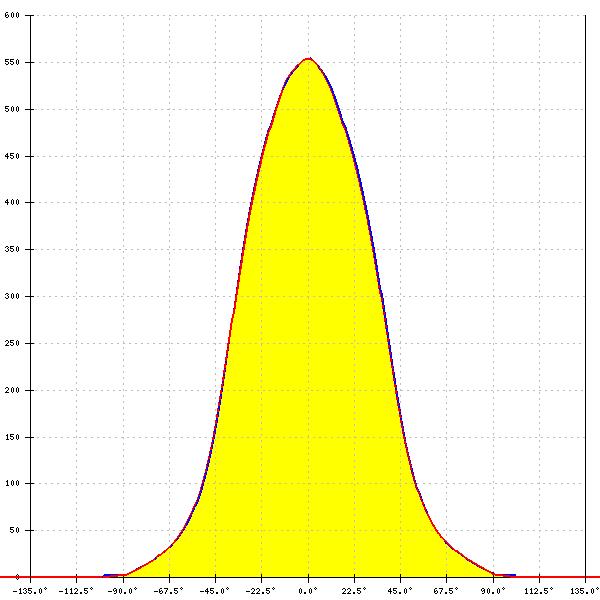

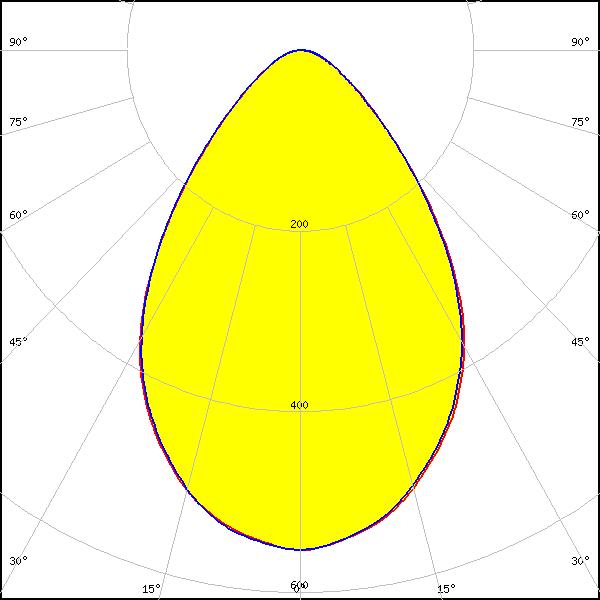

LED:
LC040C
LES size: 11.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
74°
FWTM:
120°
Peak intensity:
0.550 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

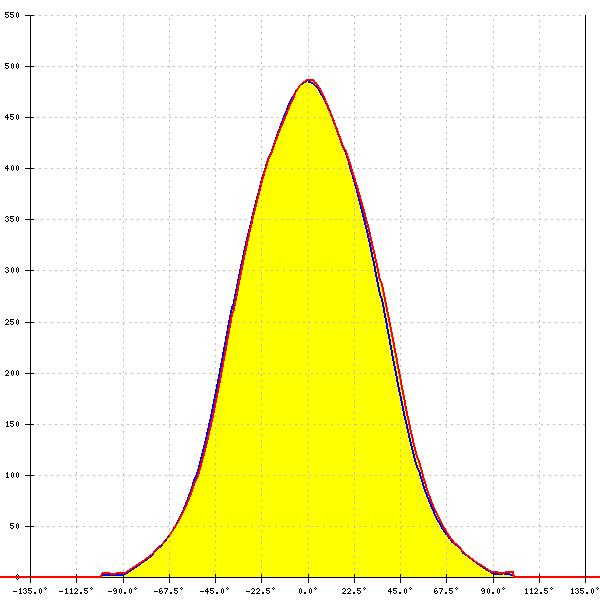

LED:

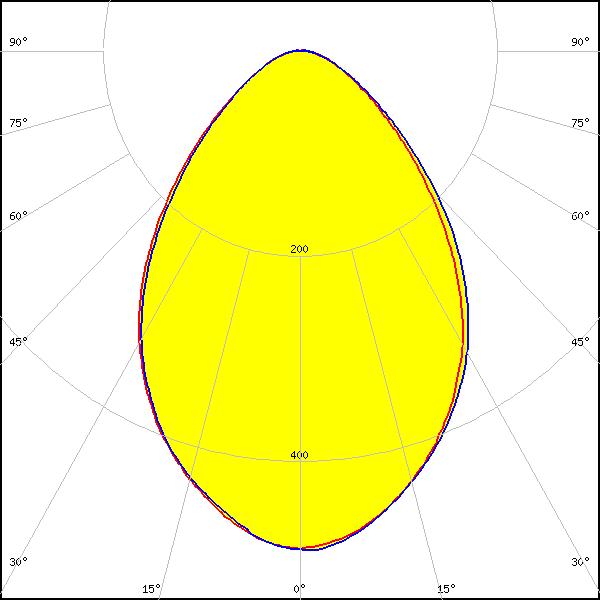

AC Zhaga COB
LES size: 14.5 mm
Required components:
Optosource: SEHSMJD-A
FWHM:
78°
FWTM:
130°
Peak intensity:
0.490 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

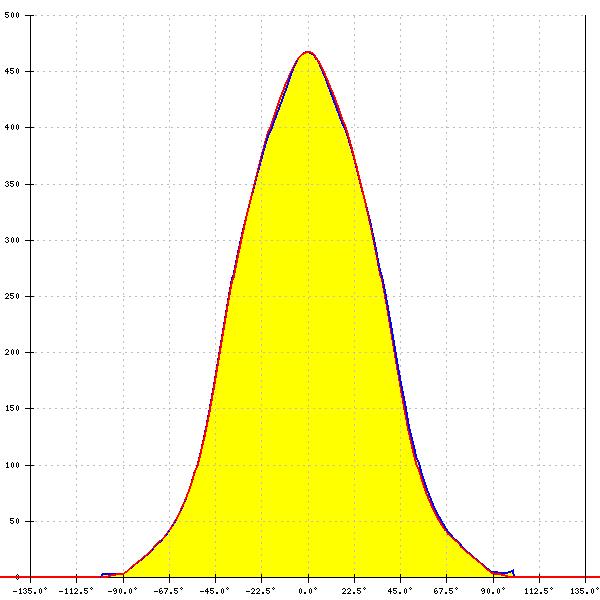

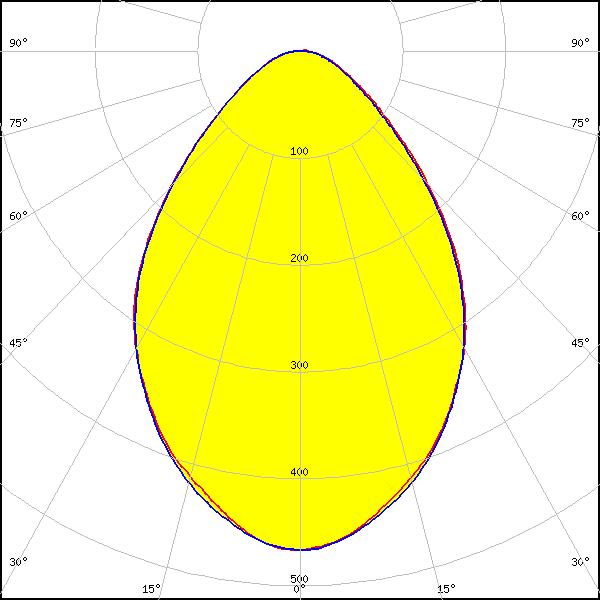

MJT COB LES 14.5
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
79°
FWTM:
130°
Peak intensity:
0.500 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

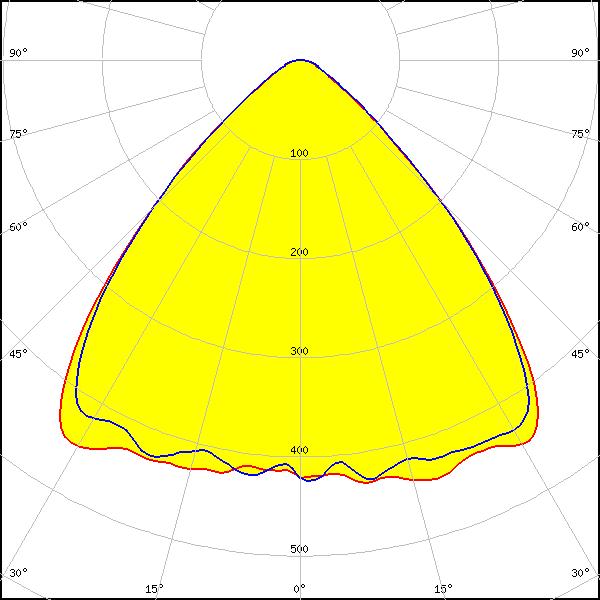

LED:

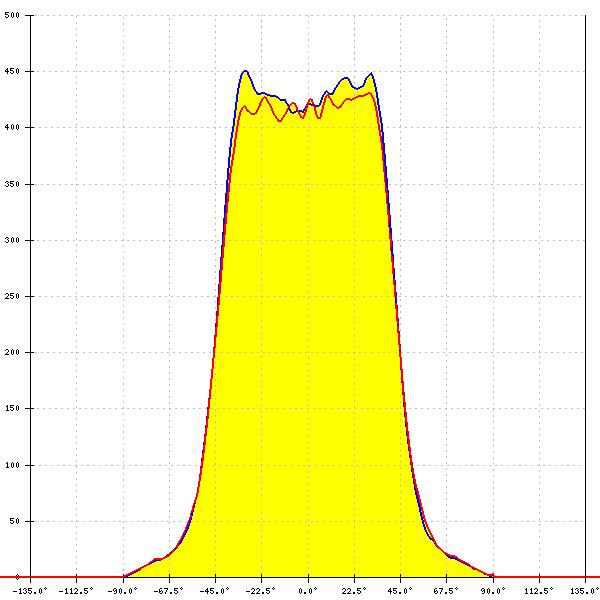

Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
FWHM:
88°
FWTM:
116°
Peak intensity:
0.470 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

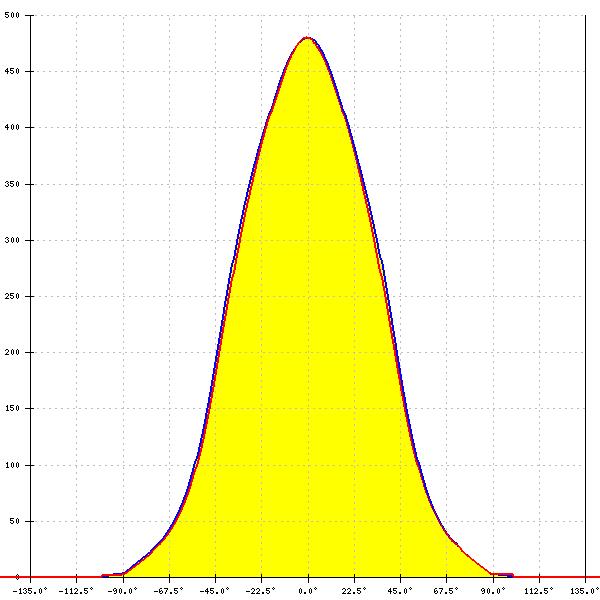

LED:

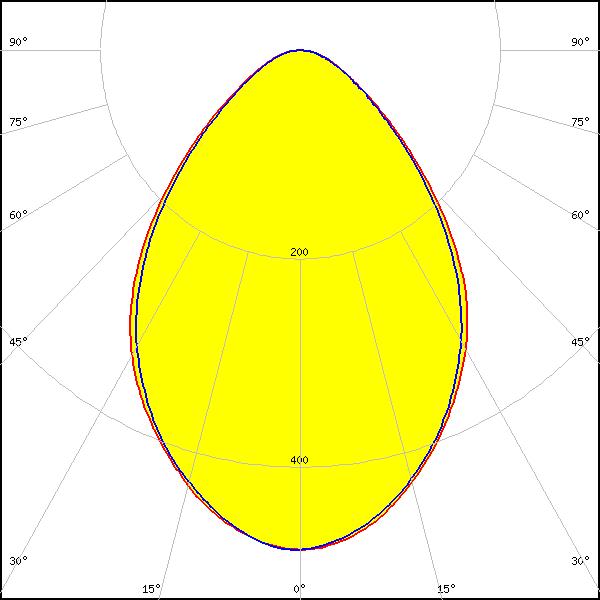

WU-M-484
LES size: 14.9 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
79°
FWTM:
130°
Peak intensity:
0.480 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
