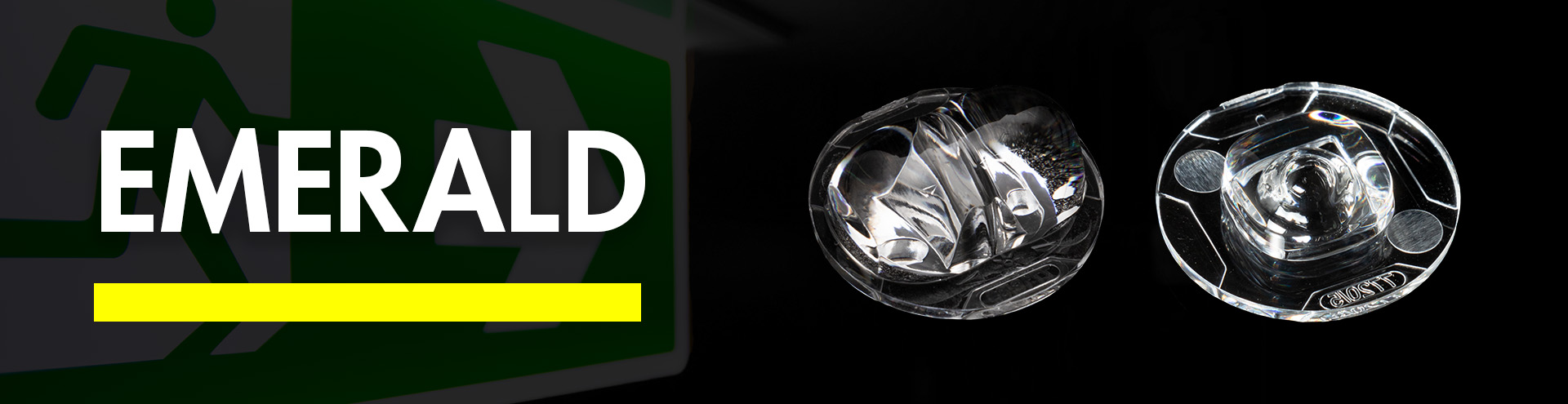

EMERALD – New optics for emergency lighting

Performs when you need it the most

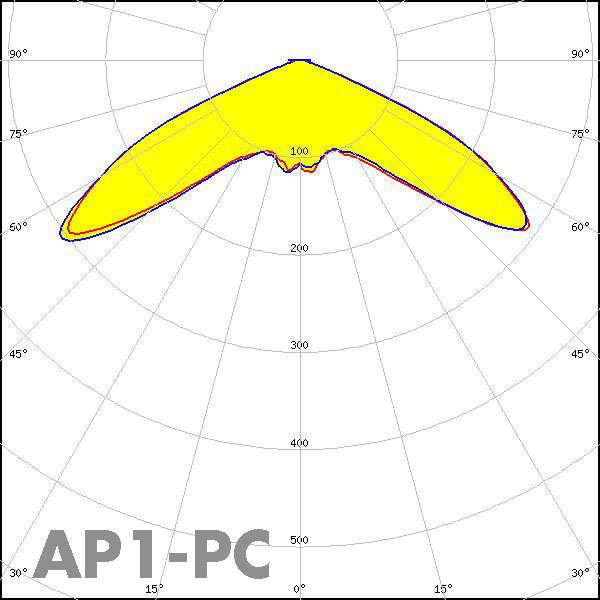

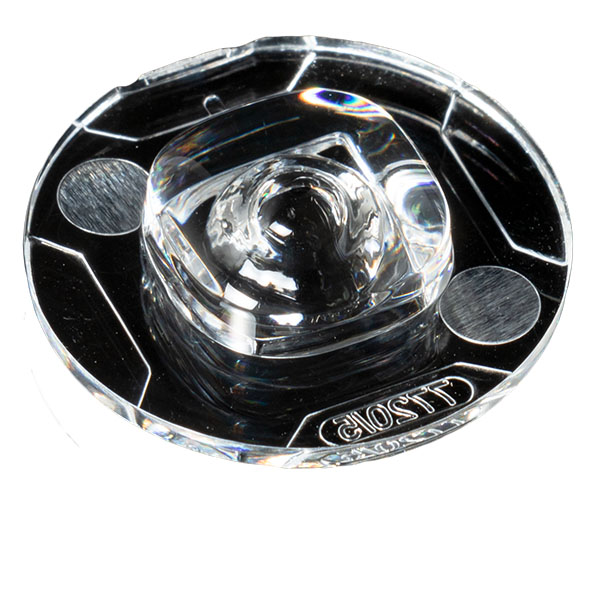

The three new beams ER1, ER2 and AP1 are designed for emergency exit route and anti-panic lighting applications with up to 5050 size LED packages. ER1 is ideal for 2 to 5-meter mounting heights and ER2 for anything higher. AP1 is our first lens especially designed for anti-panic lighting, delivering uniform, highly efficient results.


emerald-er1emerald-er2

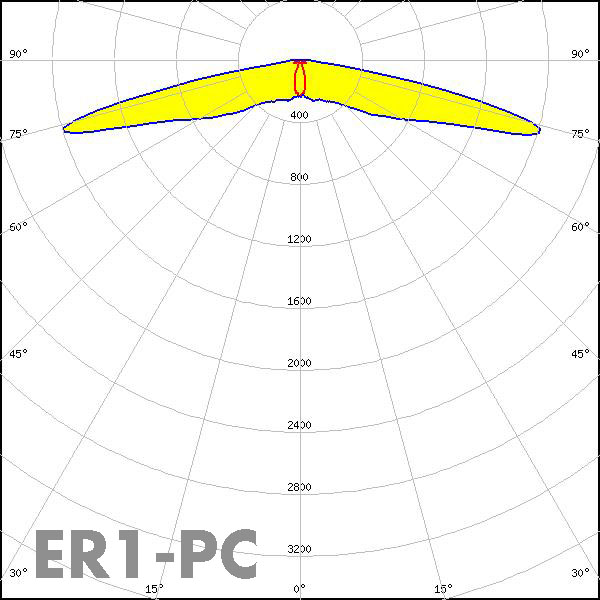

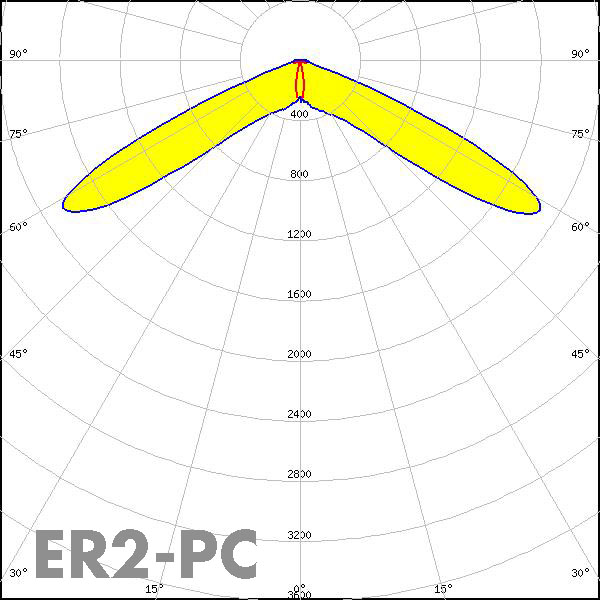

emerald-er1-pcemerald-er2-pc
Meeting the EN 1838 emergency lighting standard with these optics is easy. EMERALD lenses can meet the requirements with longer installation distances and less lumens than other optical solutions.
Use the following table, check our application examples or contact your local LEDiL sales representative for more details to see which EMERALD lens is the best fit for your project.

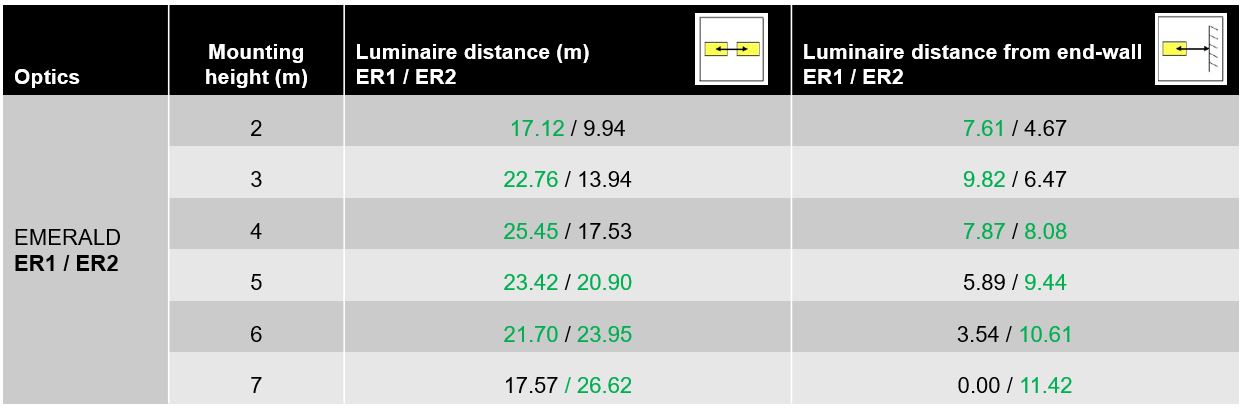

Luminaire distances for even escape routes with 180 lm

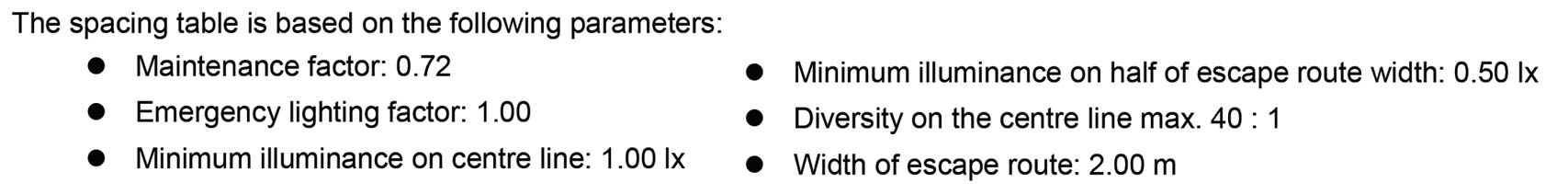

emergency lighting distanceemergency light table

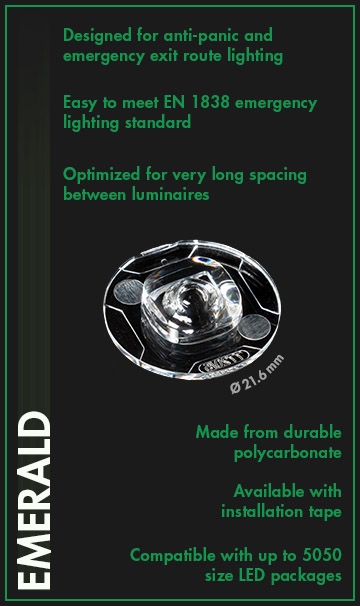

emerald-nutshell
