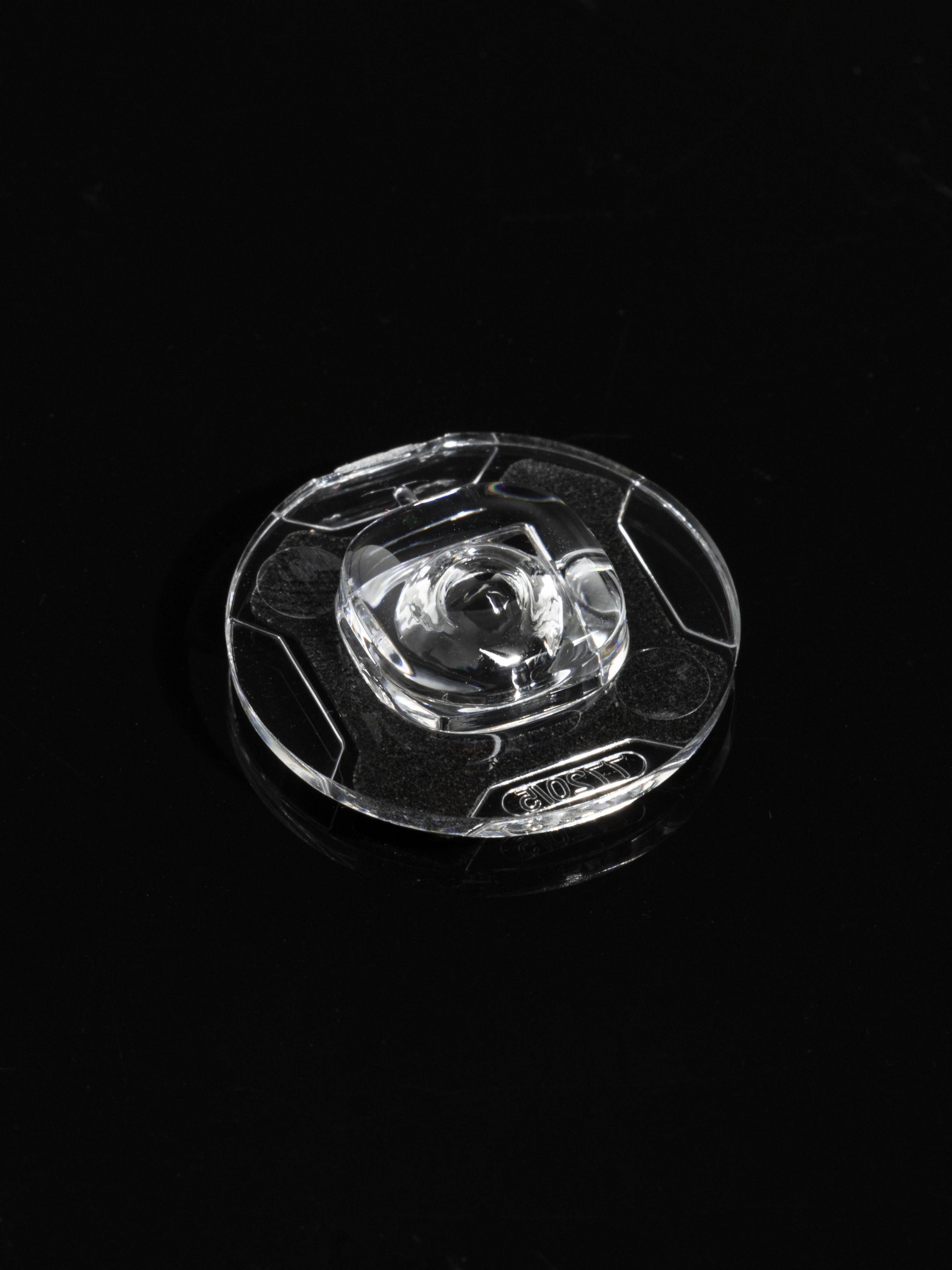

CA17723_EMERALD-AP1-PC

Print

Symmetric beam for anti-panic lighting. Assembly with installation tape.

Specification
  • Dimensions:
    22 mm
  • Height:
    6.90 mm
  • Fastening:
    tape, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    3456 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.6 kg
  • MPQ:
    144 pcs
  • MOQ:
    288 pcs
  • MOQ size:
    480 x 280 x 40 mm
  • MOQ weight:
    0.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CA17723_EMERALD-AP1-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

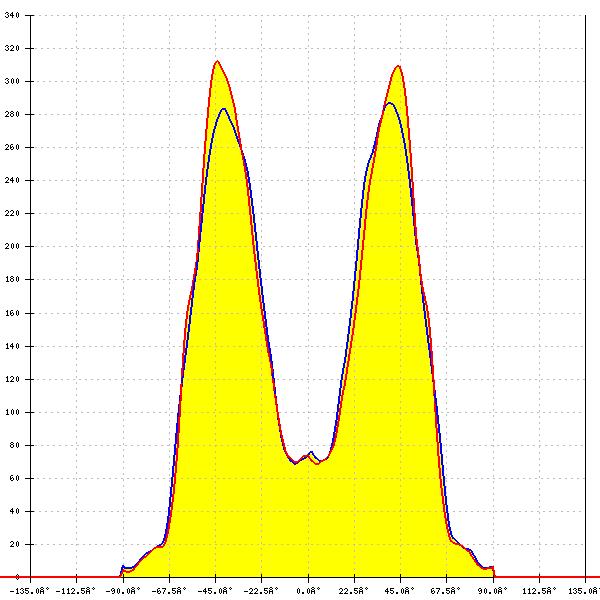

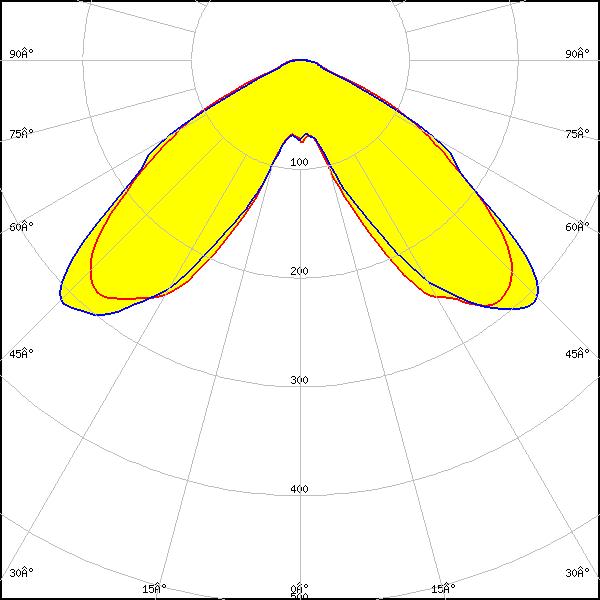

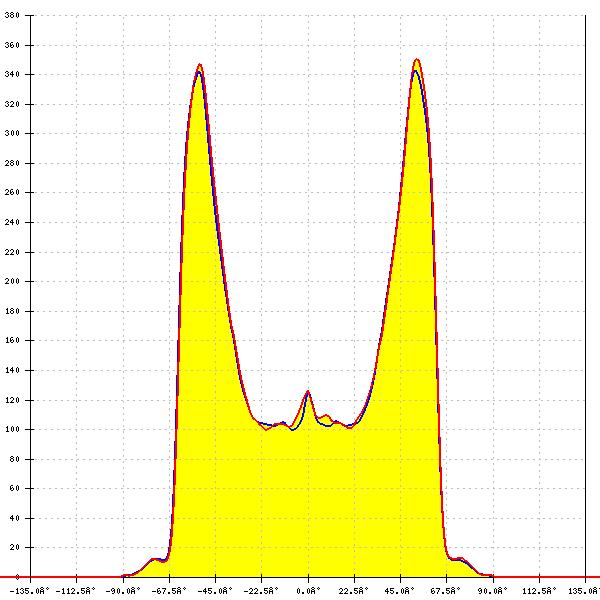

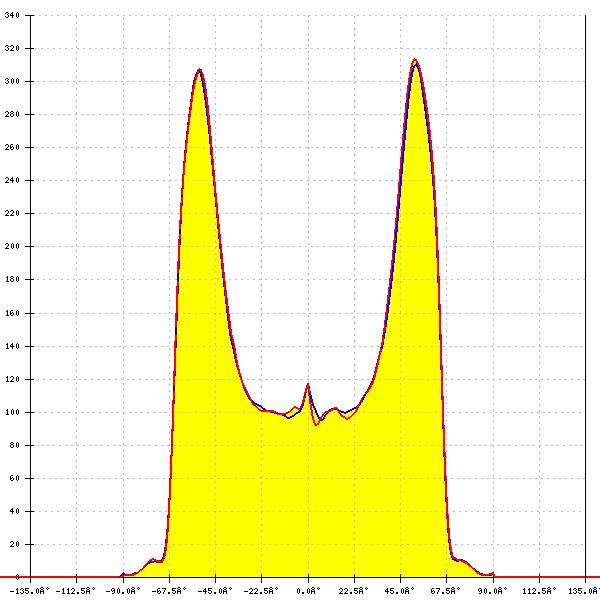

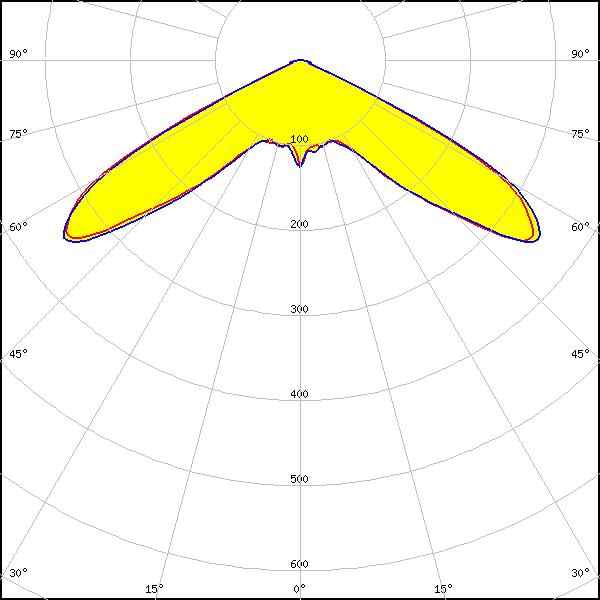

Optical results

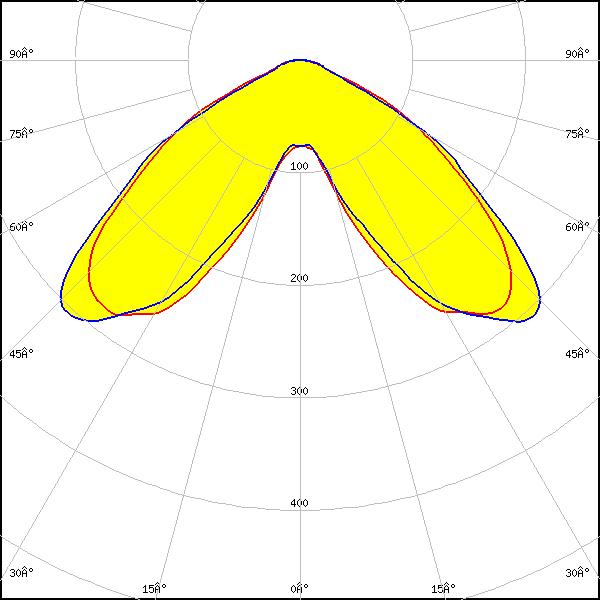

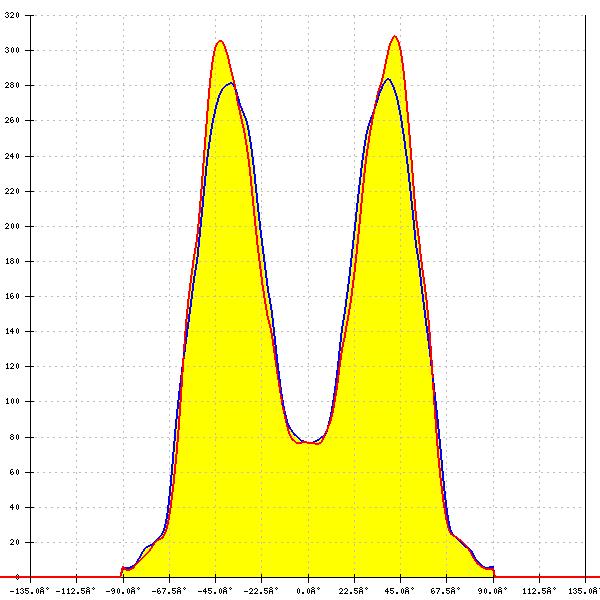

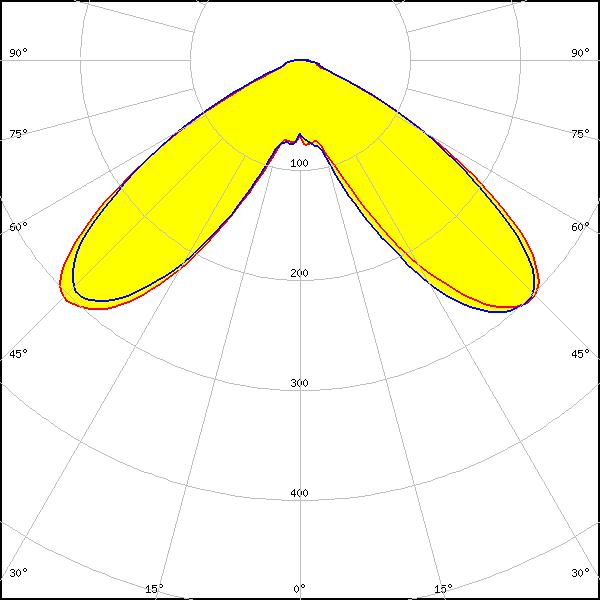

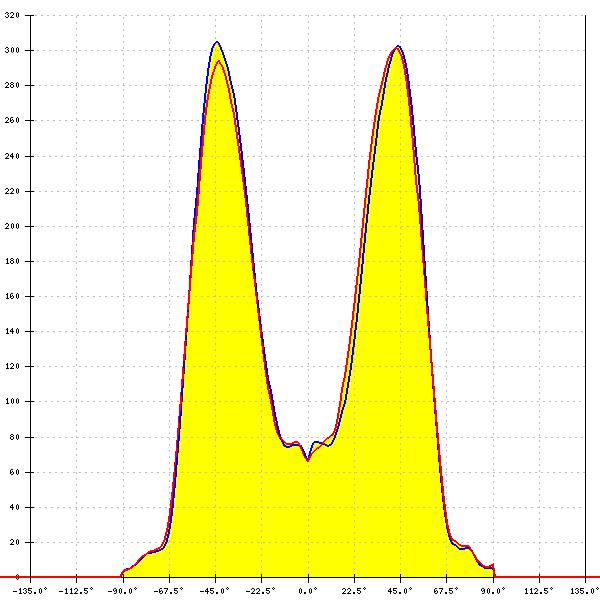

LED: J Series 5050 Round LES
FWHM: 116°
FWTM: 136°
Peak intensity: 0.410 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

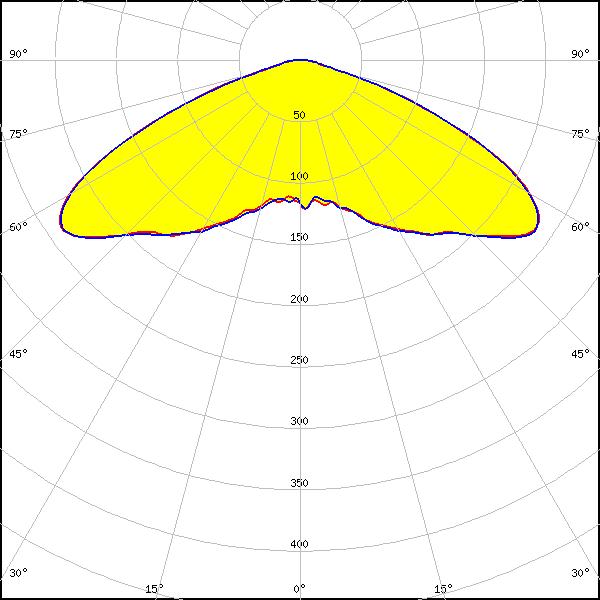

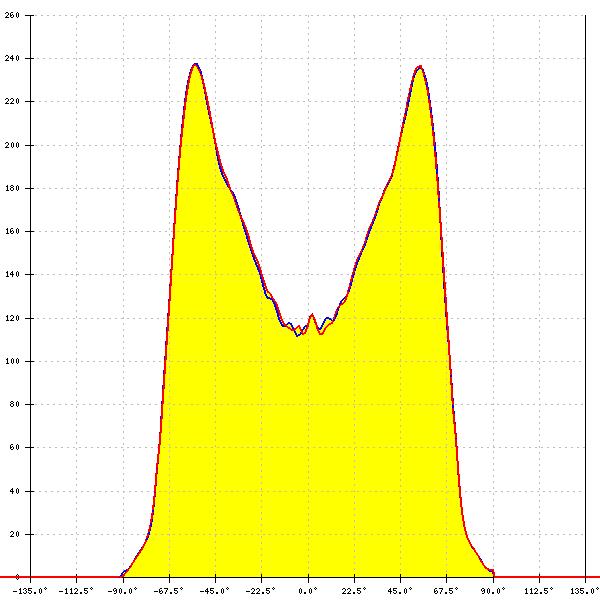

LED: XHP35 HD
FWHM: asymmetric
Peak intensity: 0.298 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

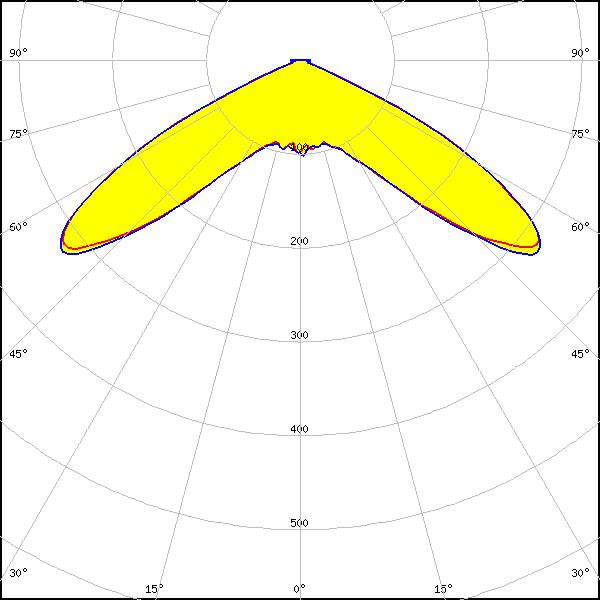

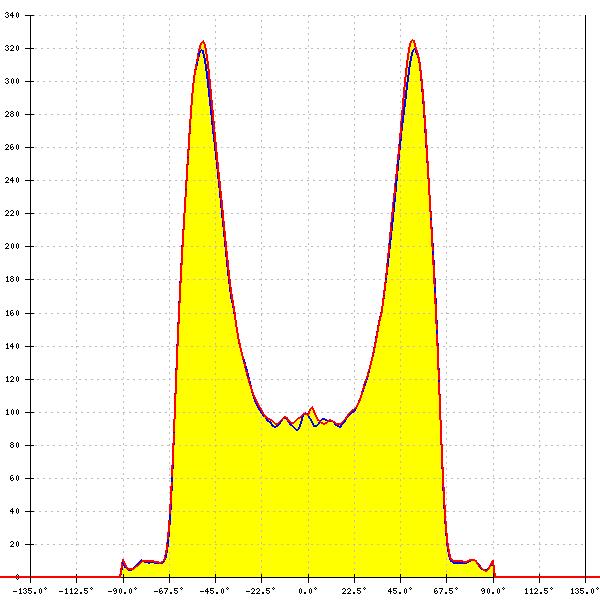

LED: XHP35 HI
FWHM: asymmetric
Peak intensity: 0.416 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

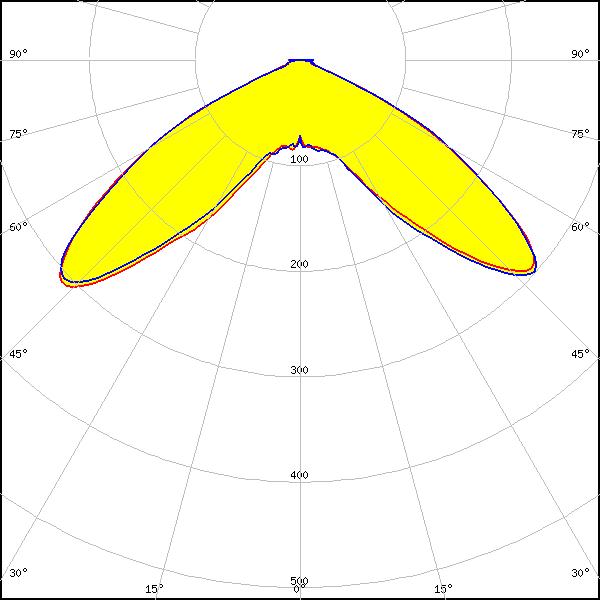

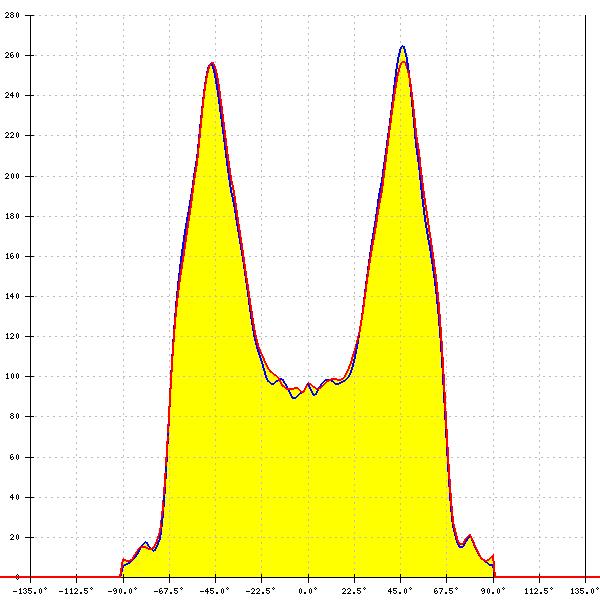

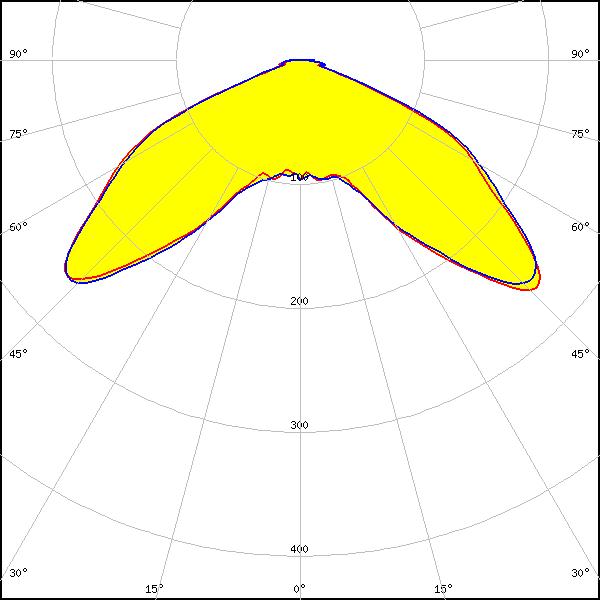

LED: XHP35.2 HD
FWHM: 128°
FWTM: 143°
Peak intensity: 0.335 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

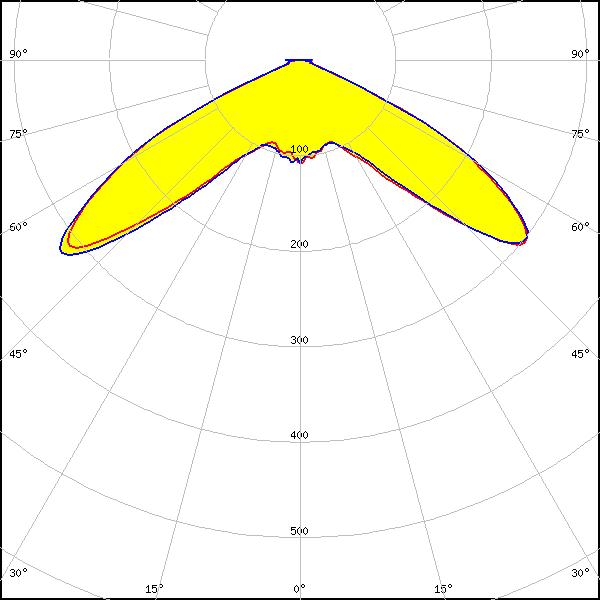

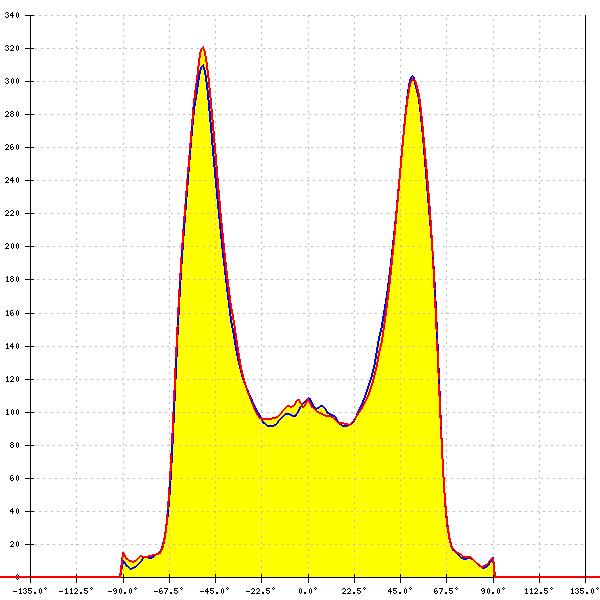

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.420 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

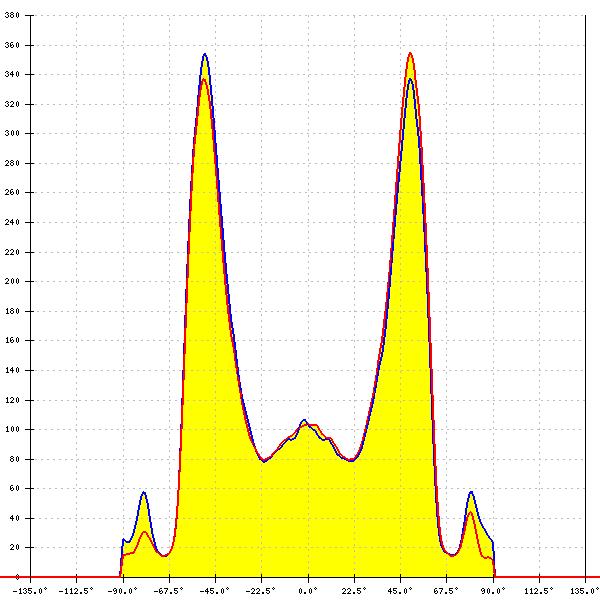

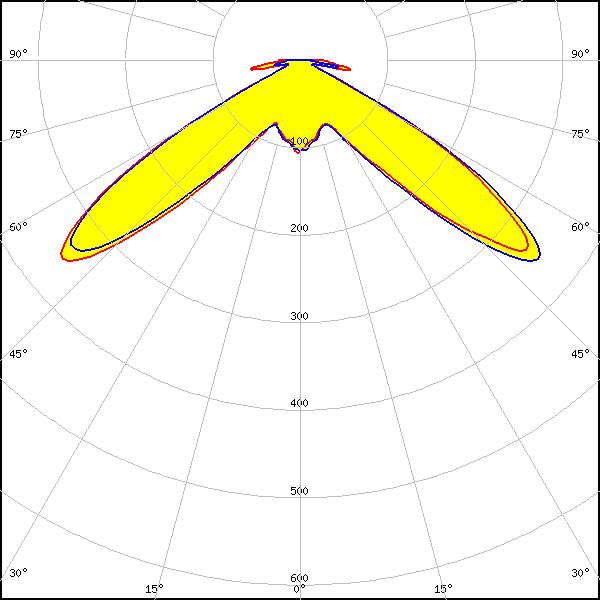

LED: XT-E
FWHM: 118°
FWTM: 155°
Peak intensity: 0.478 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

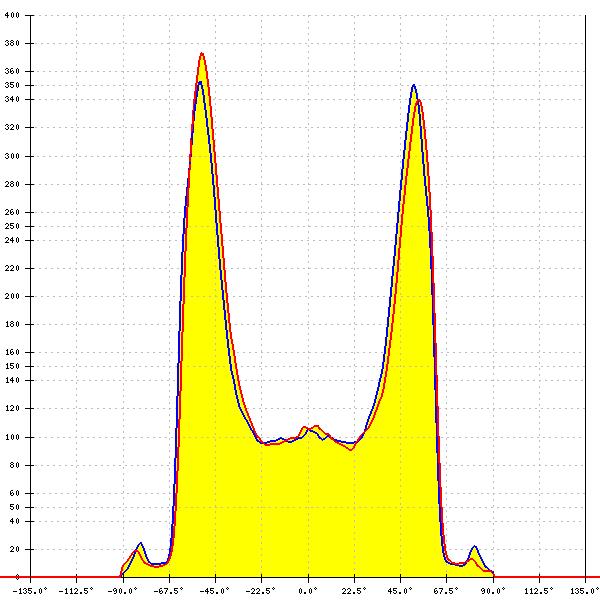

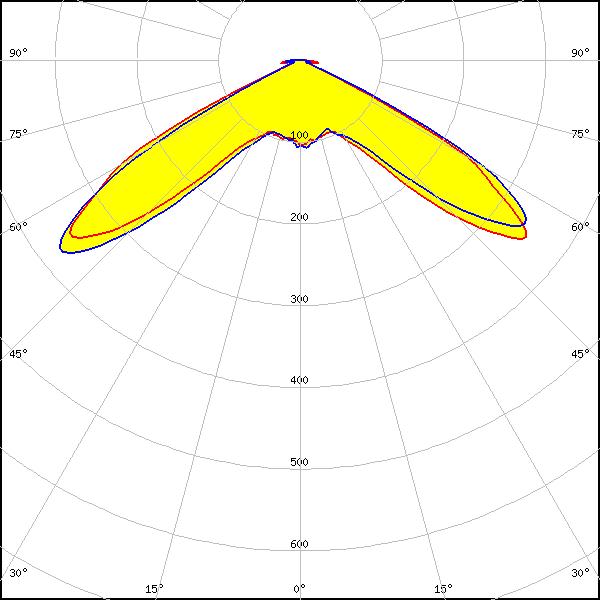

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
