    CA17722_EMERALD-ER2-PC

    Print

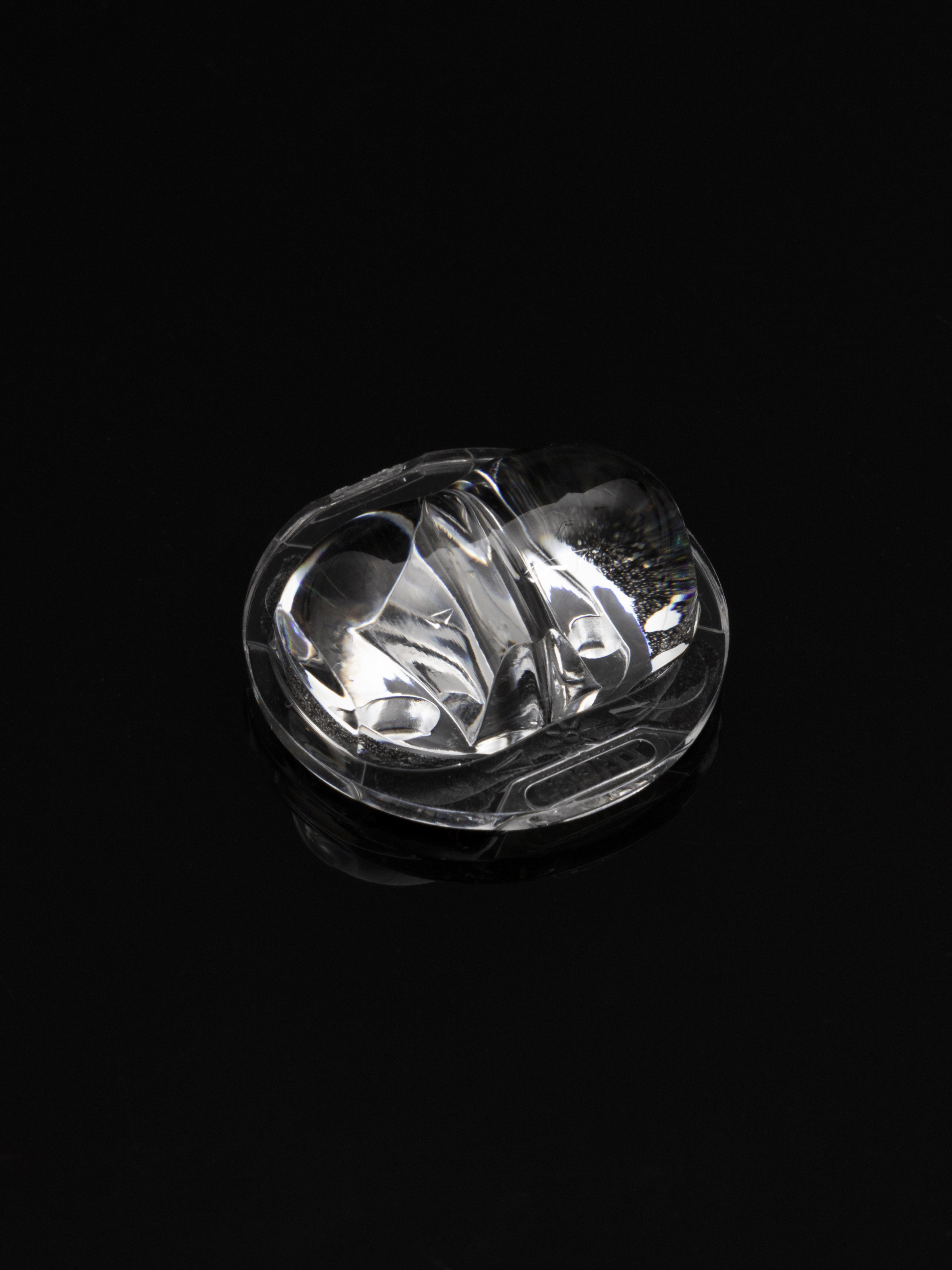

    Rectangular beam for escape routes with greater than 5 m mounting height. Assembly with installation tape.

    Specification
    • Dimensions:
      22 mm
    • Height:
      9.31 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      3456 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.8 kg
    • MPQ:
      144 pcs
    • MOQ:
      288 pcs
    • MOQ size:
      480 x 280 x 40 mm
    • MOQ weight:
      0.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA17722_EMERALD-ER2-PC

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    EMERALD – New optics for emergency lighting

    Application example

    Escape route lighting with EMERALD-ER2

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Article

    This is an emergency – how the right light can help you out

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

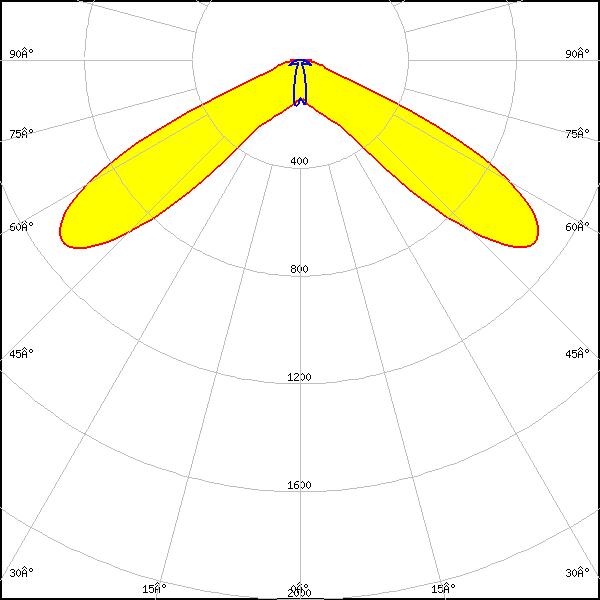

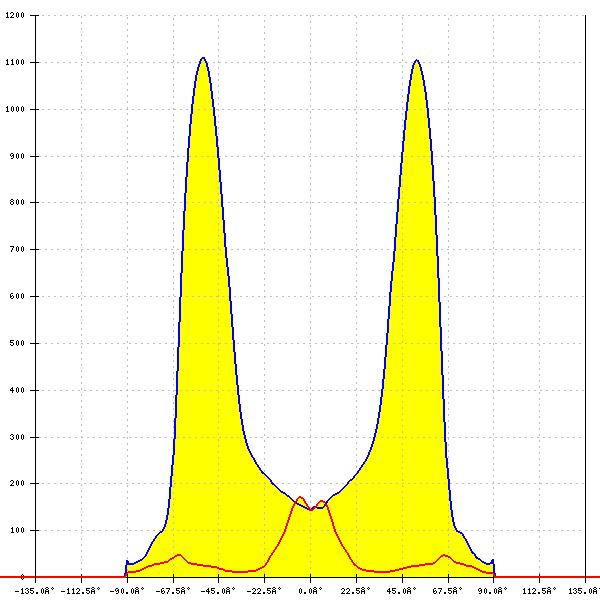

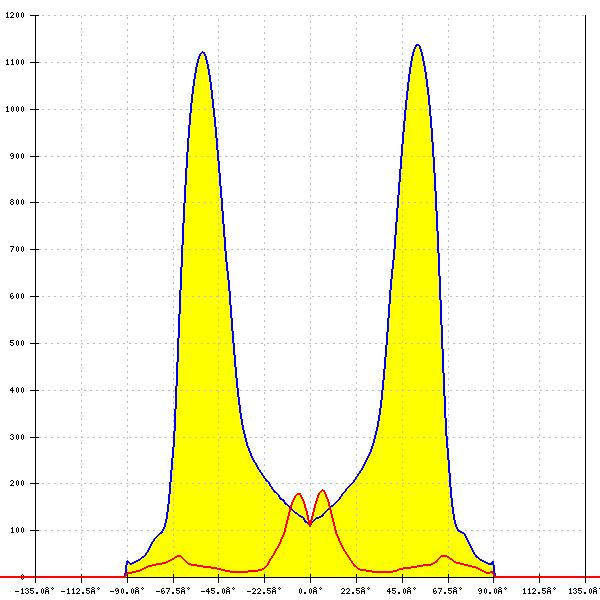

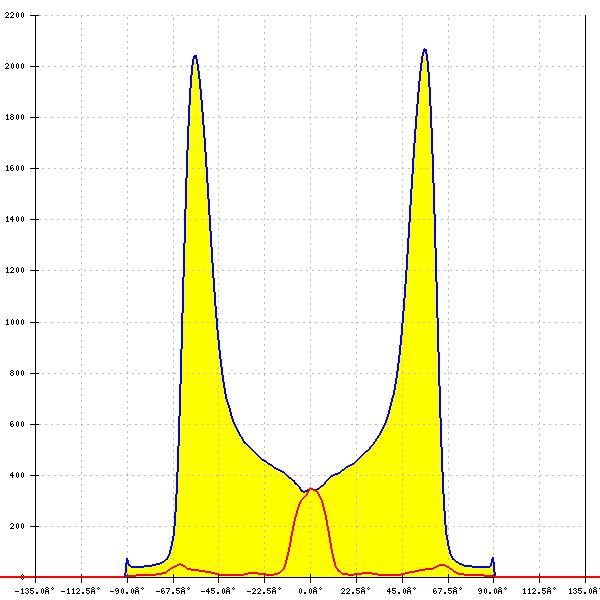

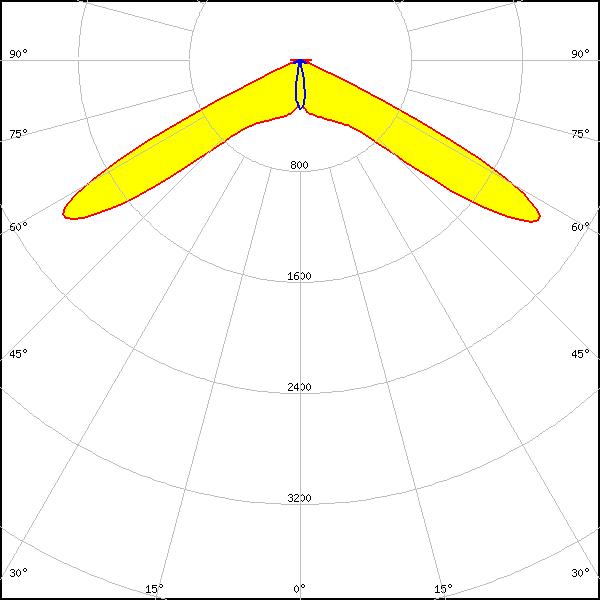

    Optical results

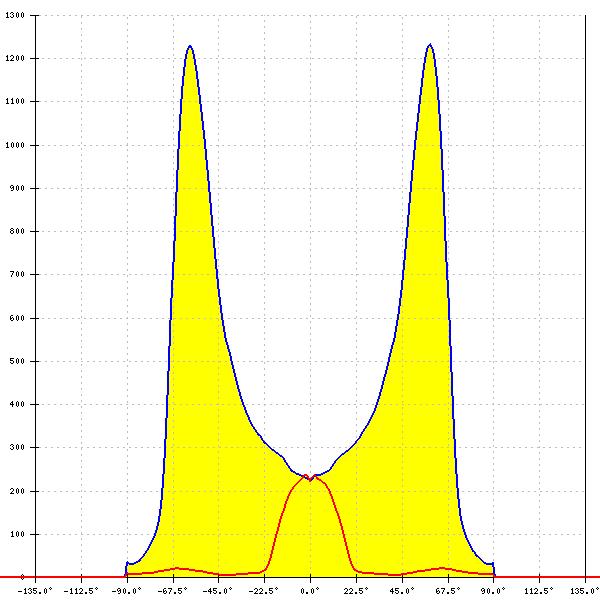

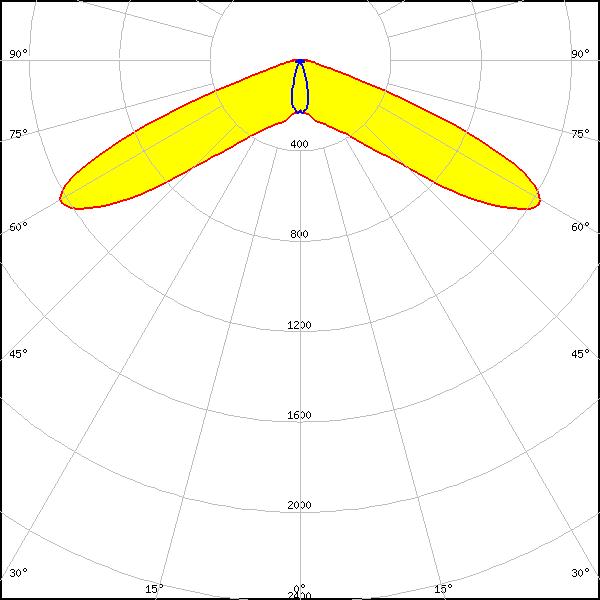

    LED: XHP35 HD
    FWHM: asymmetric
    Peak intensity: 1.234 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

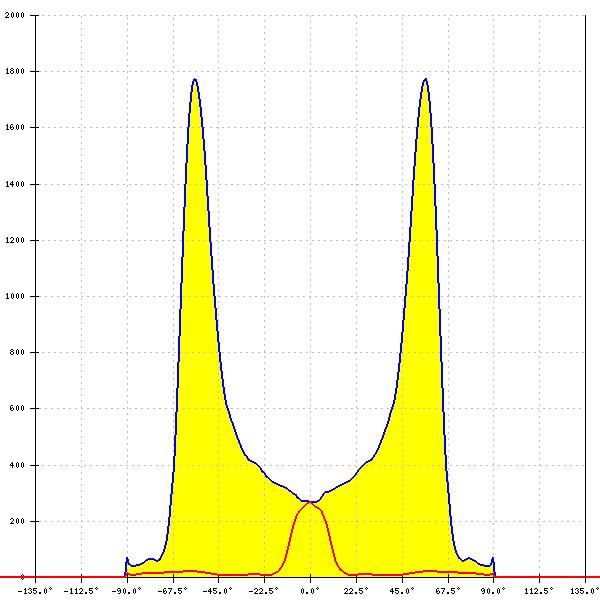

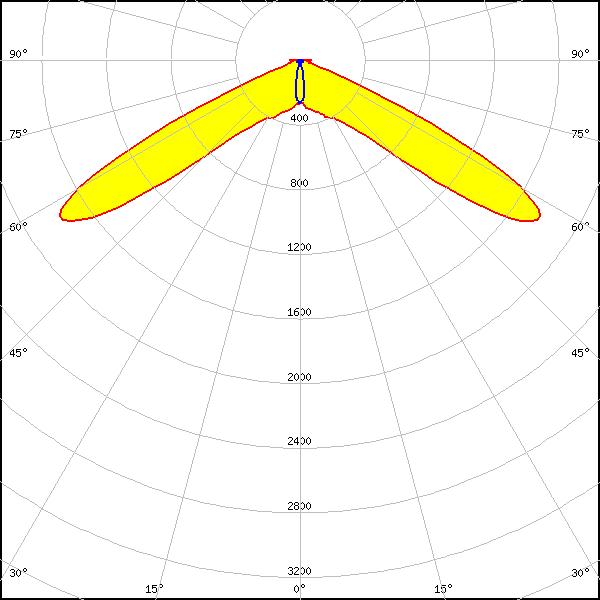

    LED: XHP35 HI
    FWHM: asymmetric
    Peak intensity: 1.771 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

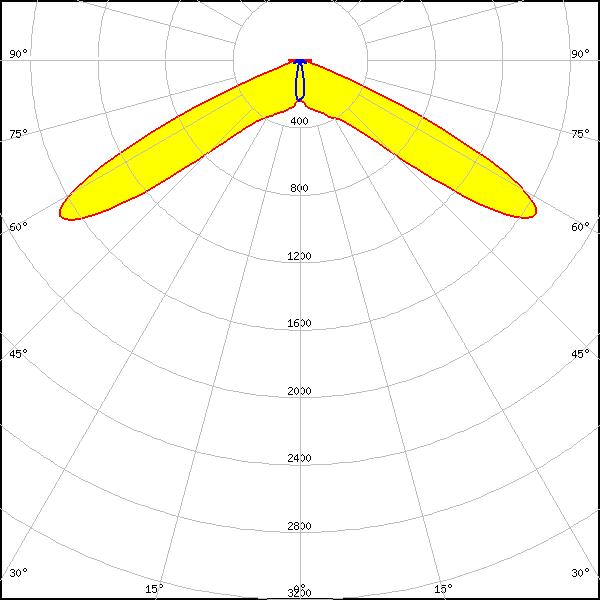

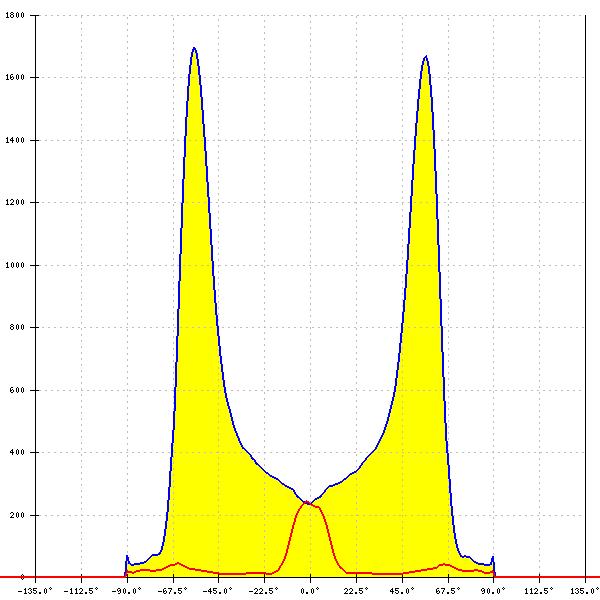

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.697 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

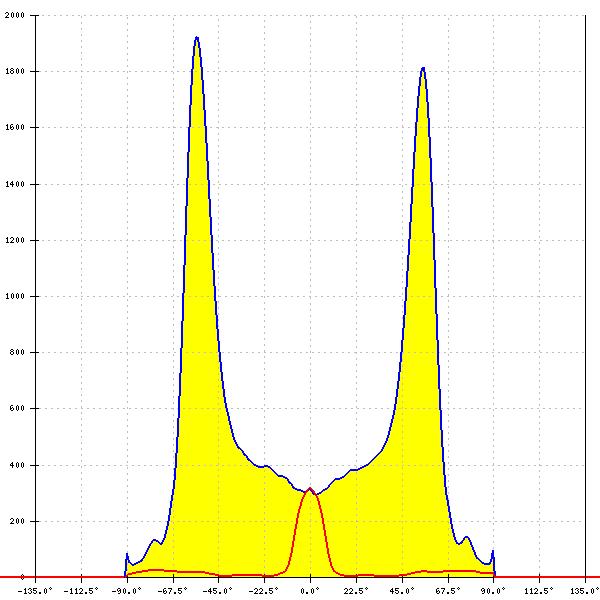

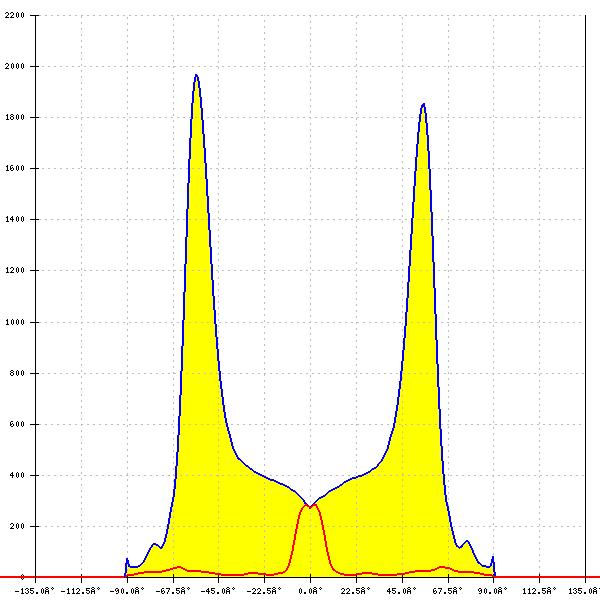

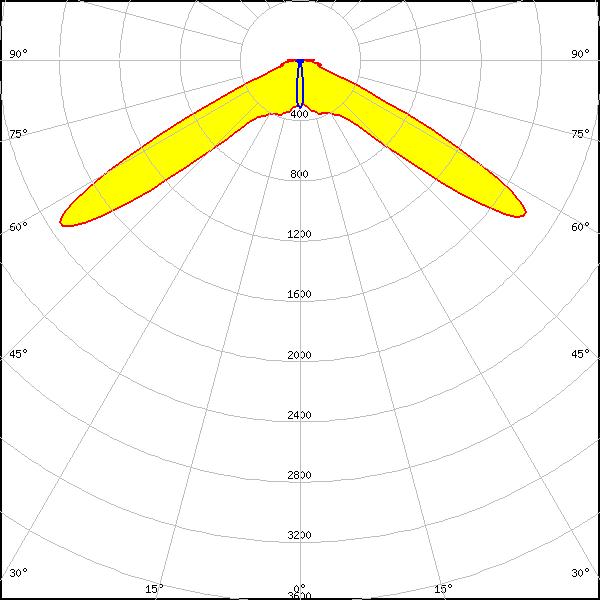

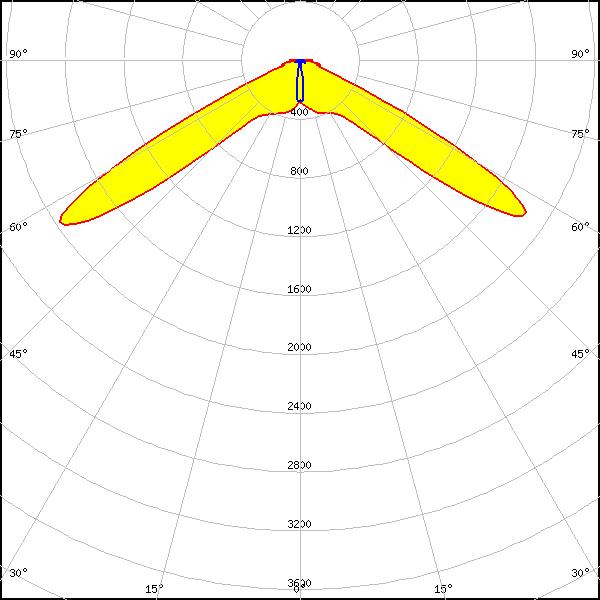

    LED: XT-E
    FWHM: 125° + 16°
    FWTM: 139° + 23°
    Peak intensity: 1.922 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

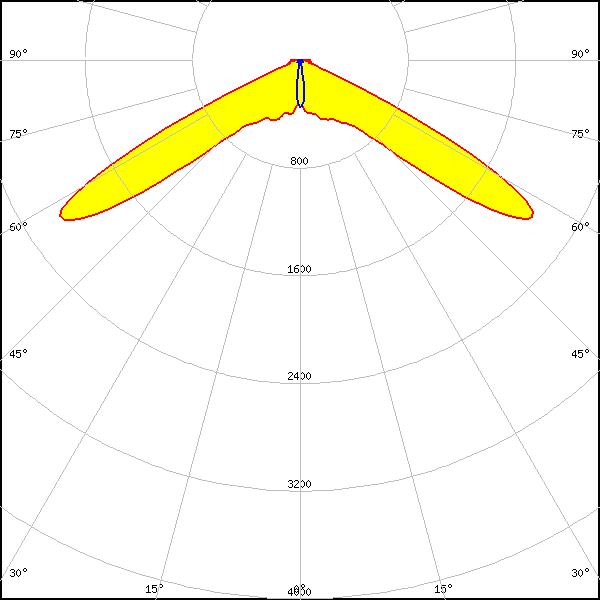

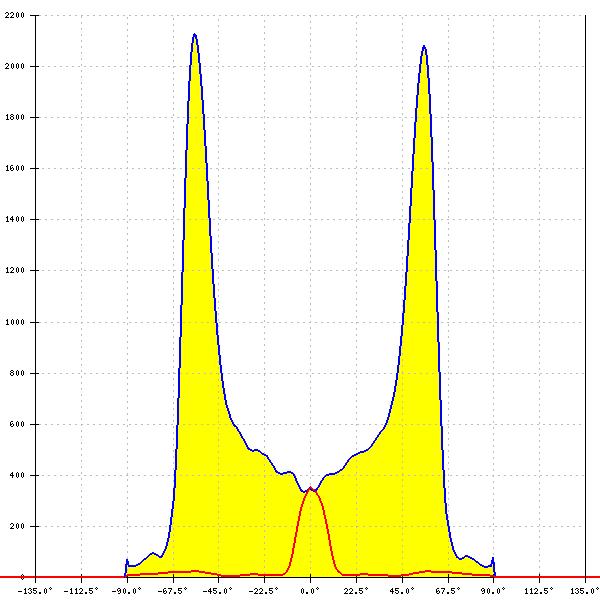

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 2.126 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

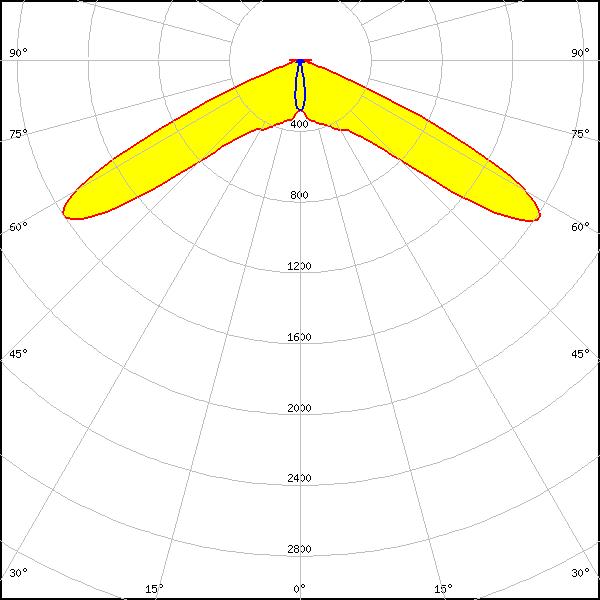

    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 1.617 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
