APPLICATION EXAMPLE

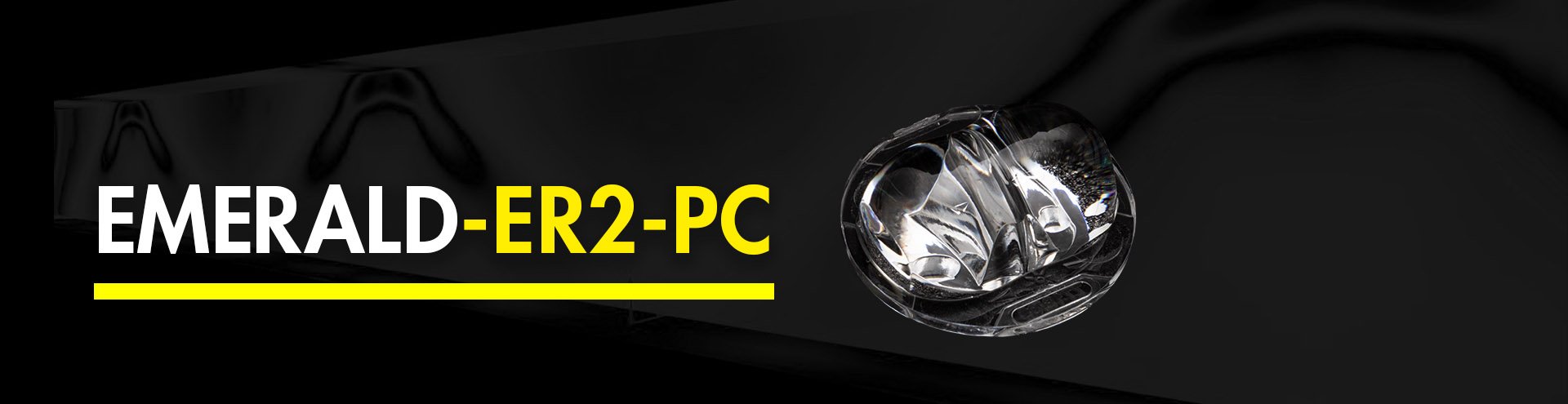

Escape route lighting with EMERALD-ER2


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

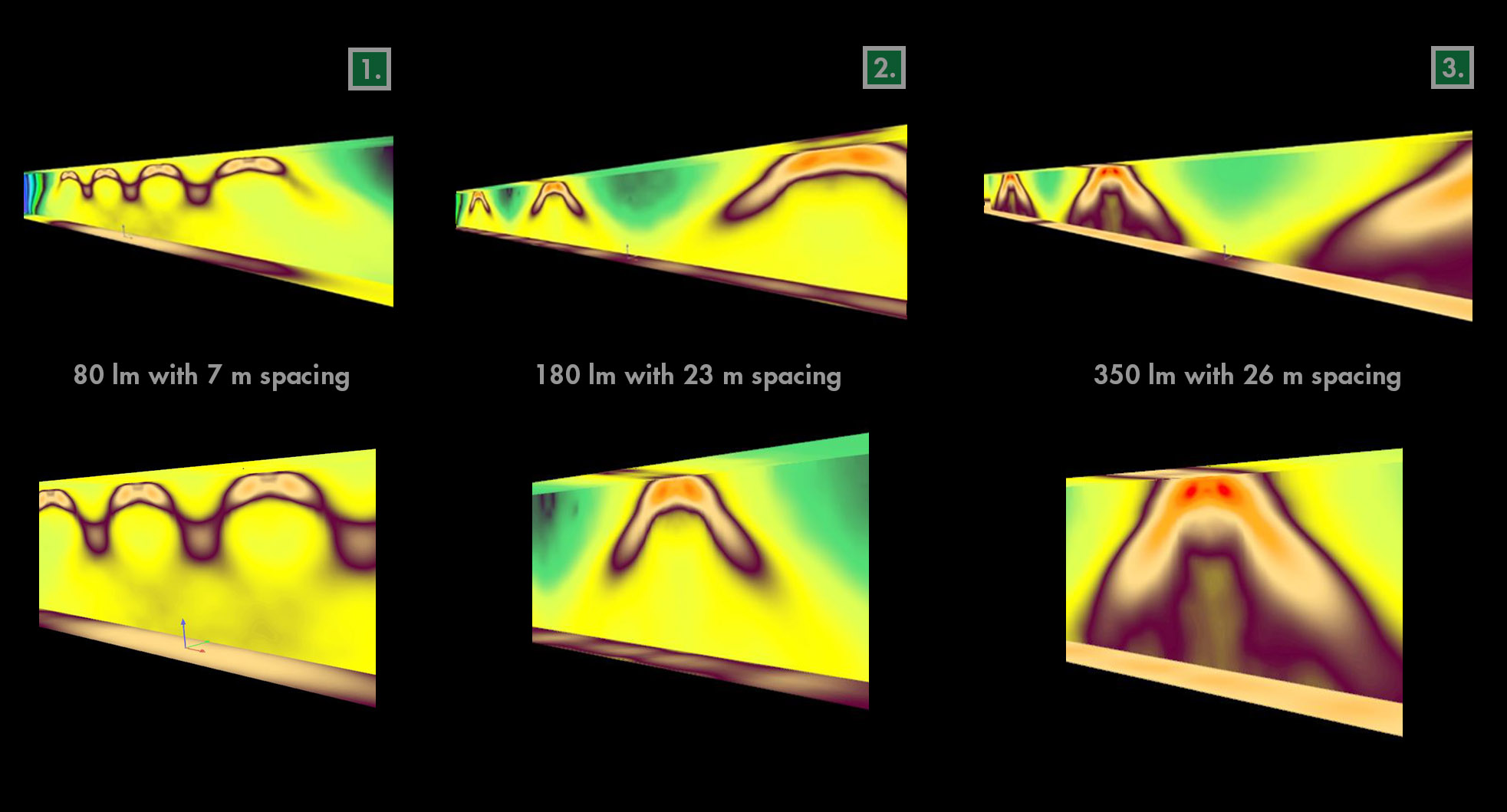

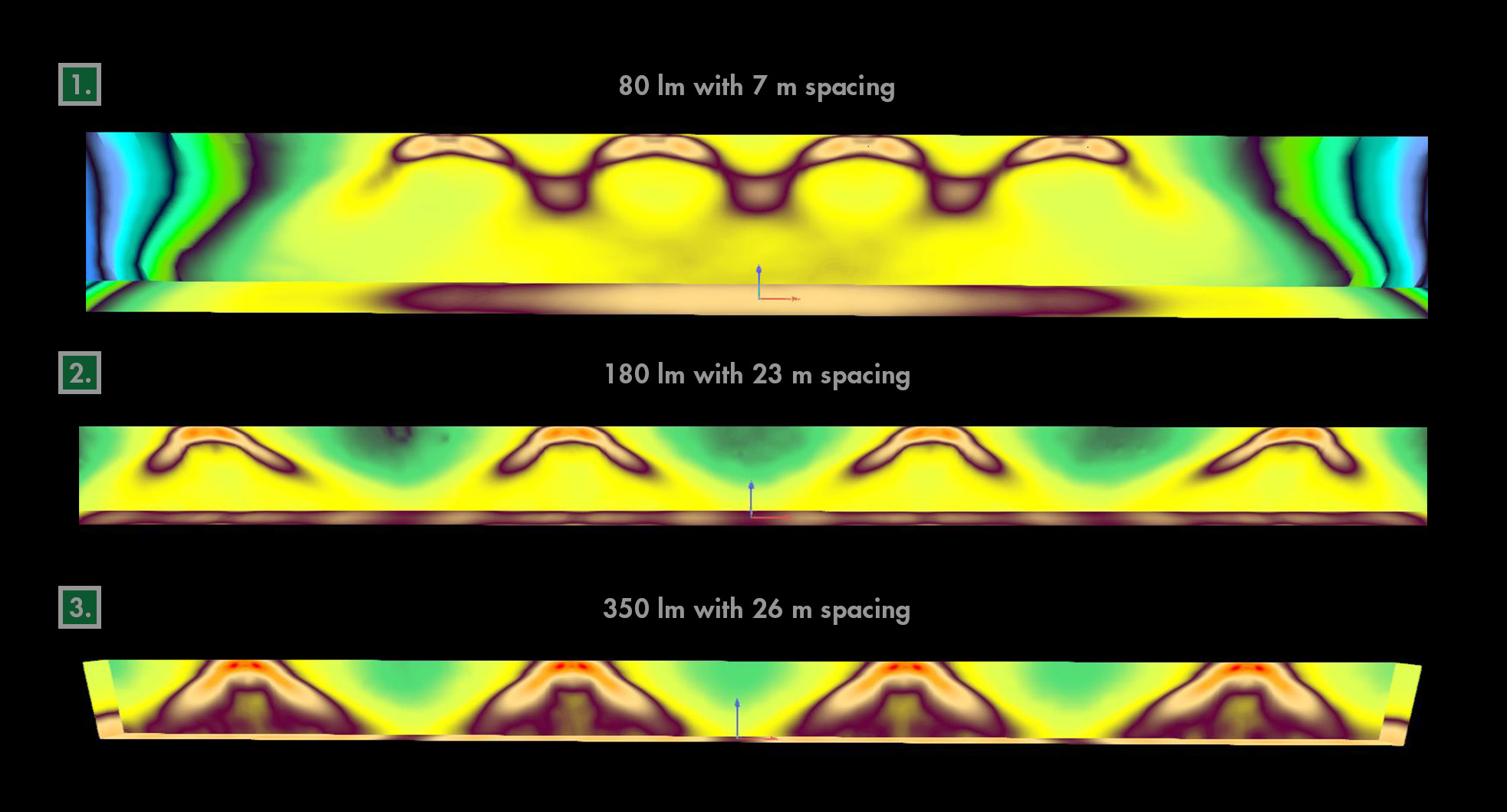

Three different setups using EMERALD-ER2 optics for escape route lighting.

Setup:1.2.3.
Installation height:6 m6 m6 m
Hallway width:2 m2 m2 m
Luminous flux:80 lm180 lm350 lm
Luminaire spacing:7 m23 m26 m
Average (center line):1.08 lx1.24 lx2.13 lx
Min (center line):1.07 lx1.07 lx1.09 lx
Uo (min/ave):0.990.860.51


Escape route lighting with EMERALD-ER2


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
