LUMINAIRE EXAMPLE
Track light luminaire with ELLA-30
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

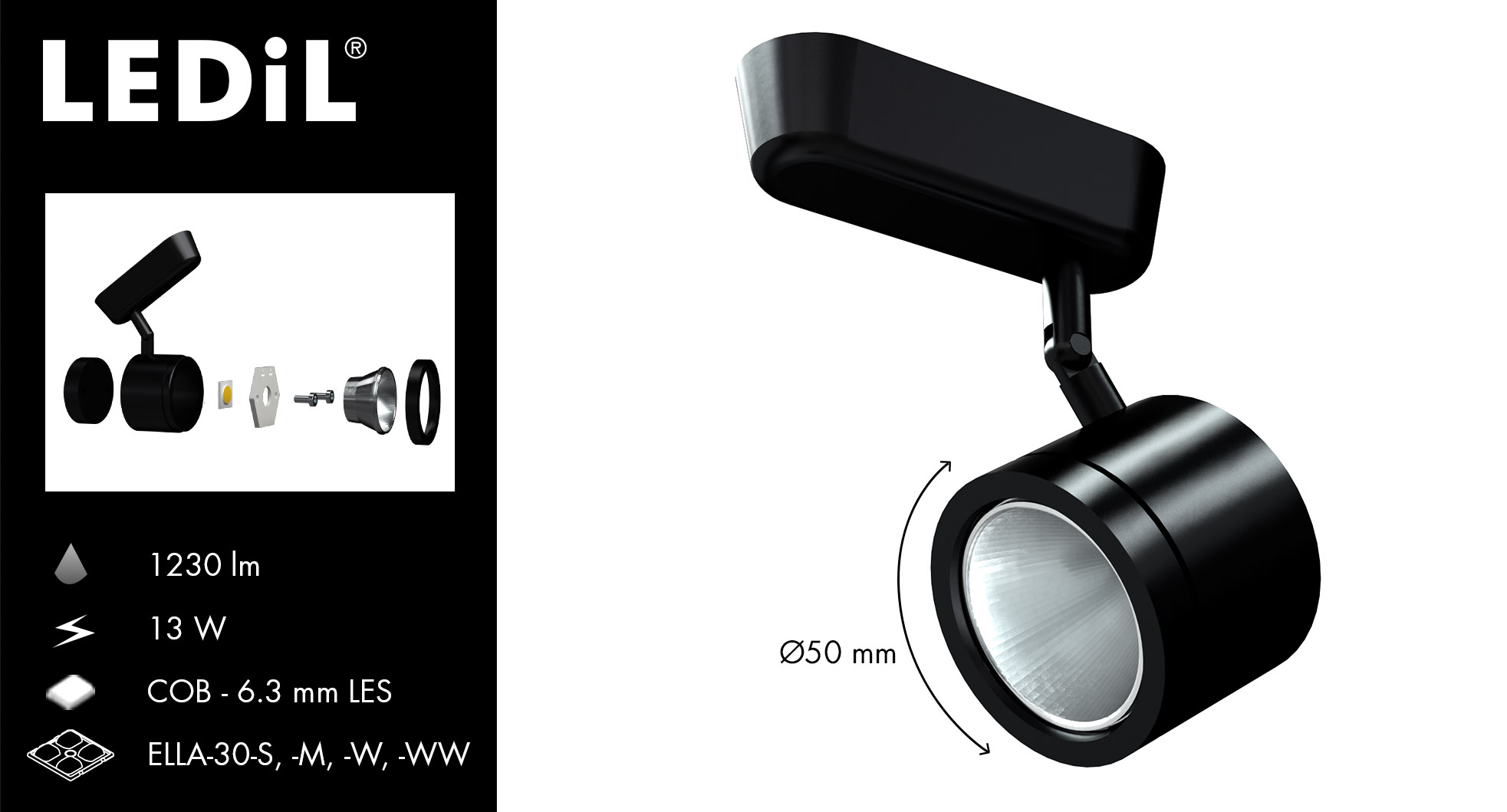

ELLA-30 luminaire example with COB
SPECIFICATION
| Optics: | ELLA-30-S, -M, -W, -WW |
| Optics size: | Ø30 mm |
| Luminaire size: | Ø50 mm |
| LED: | Bridgelux V6 Gen7 / Cree XHP35.2 |
| Luminous flux (Luminaire): | 1230 lm / 400 lm |
| Power (Luminaire): | 13 W / 4 W |
| C17246_ELLA-30-S | ||
| CA17280_ELLA-30-S | ||
| C17247_ELLA-30-M | ||
| CA17281_ELLA-30-M | ||
| C17248_ELLA-30-W | ||
| CA17282_ELLA-30-W | ||
| C17249_ELLA-30-WW | ||
| CA17283_ELLA-30-WW |

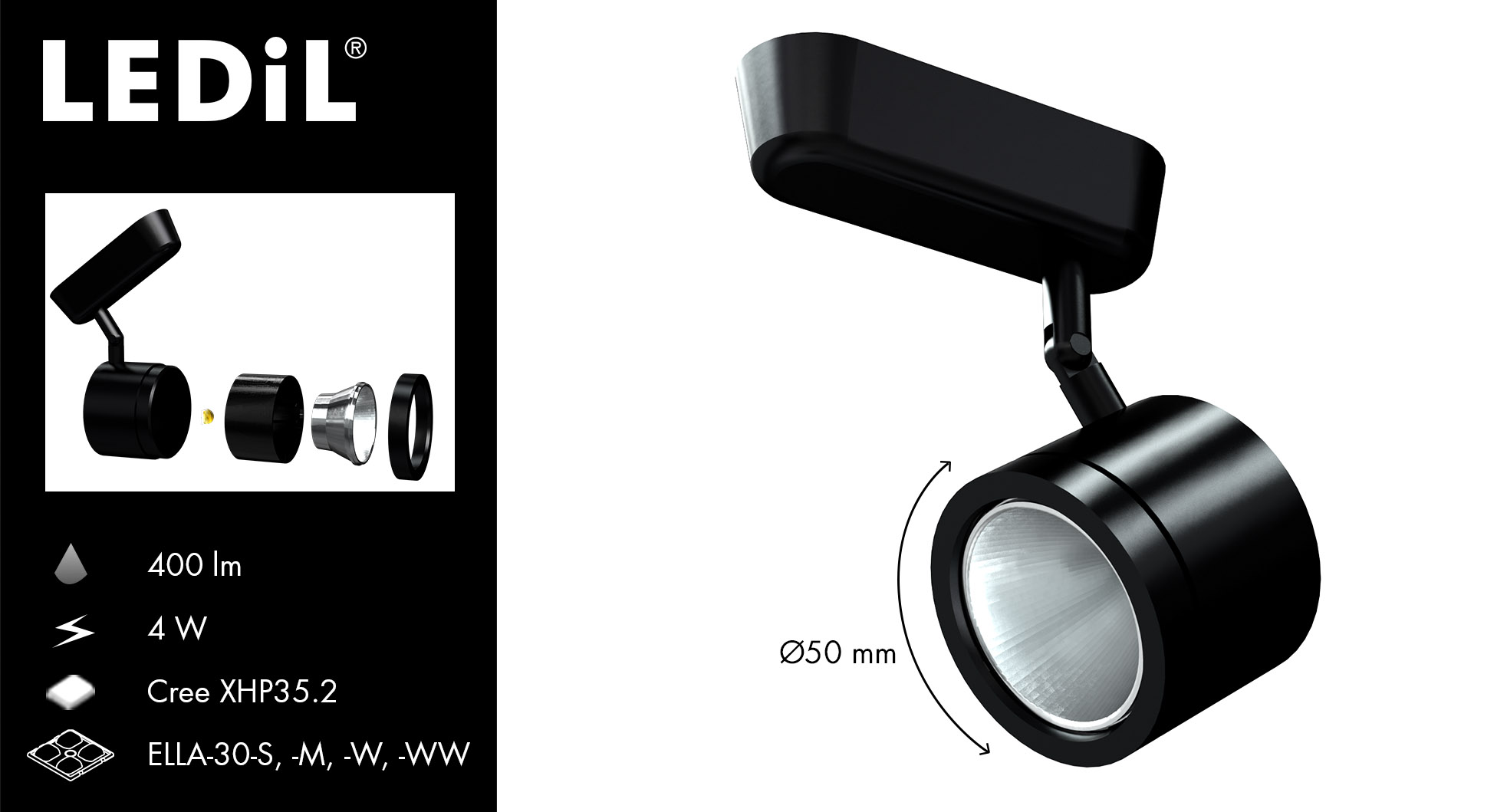

Track light luminaire with ELLA-30
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
