CA17281_ELLA-30-M
Print

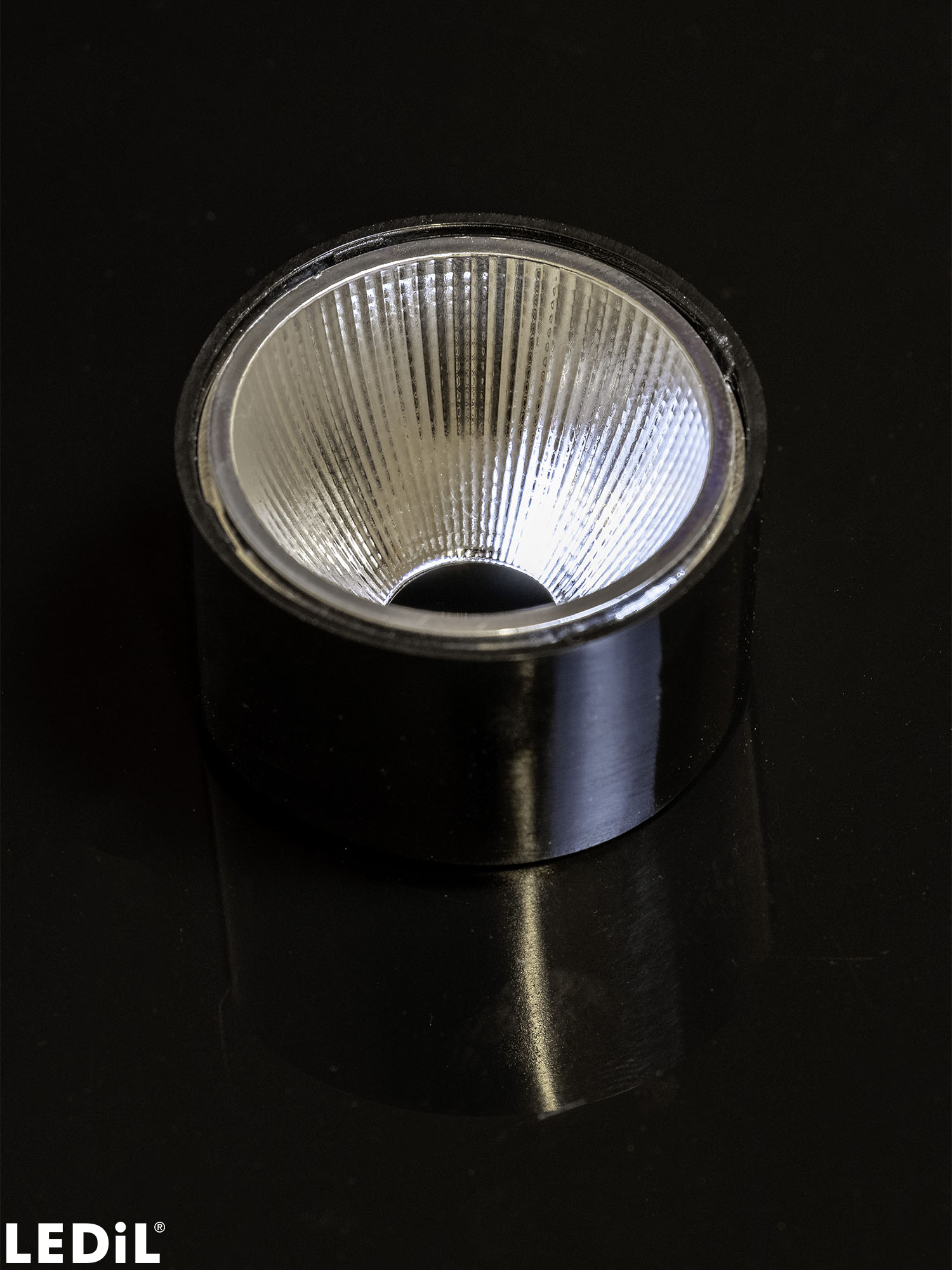

~28° wide beam. Assembly with black holder.
Materials
- ELLA-30-M, Reflector, HTPC, HMDS
- OLGA-HLD, Holder, PC
- SPUTNIK-TAPE3, Tape, Acrylic foam
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

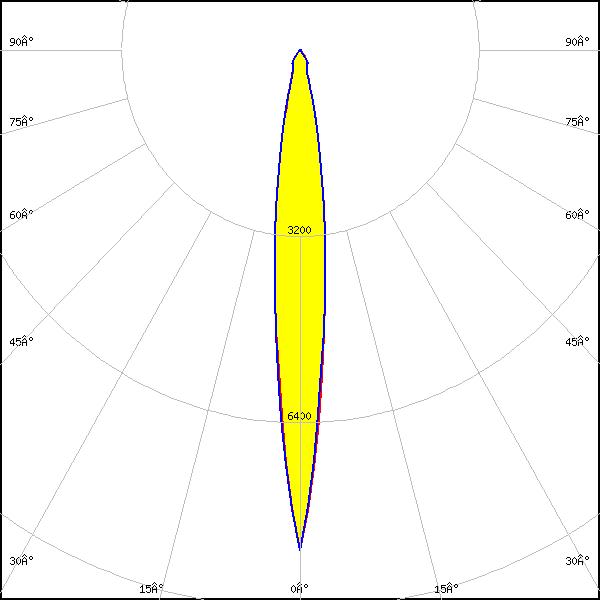

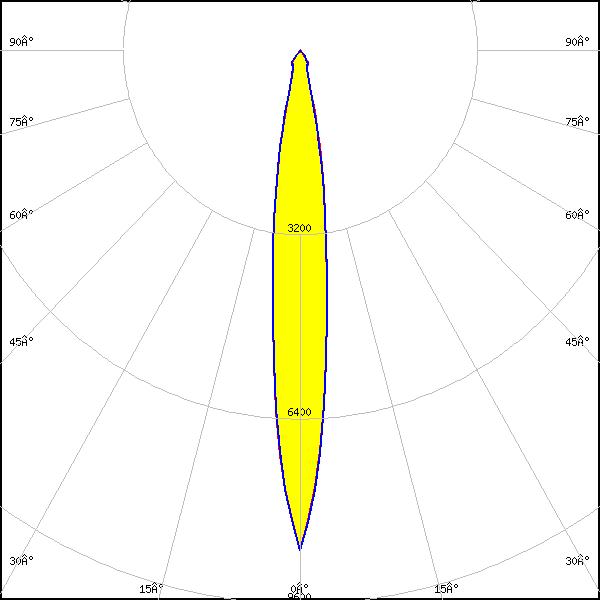

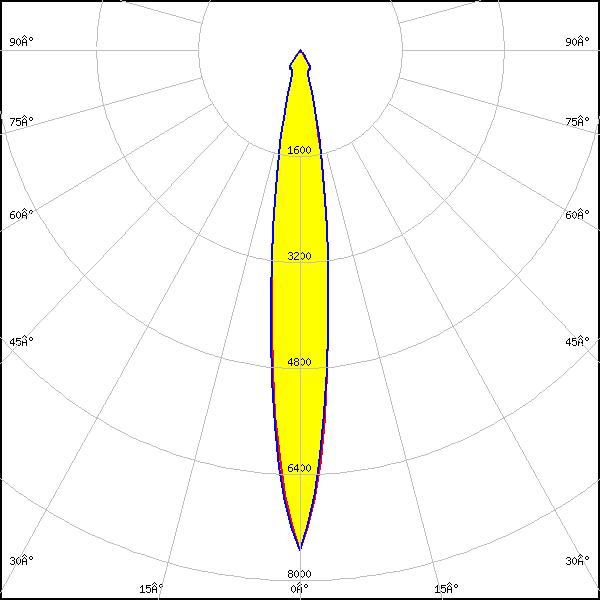

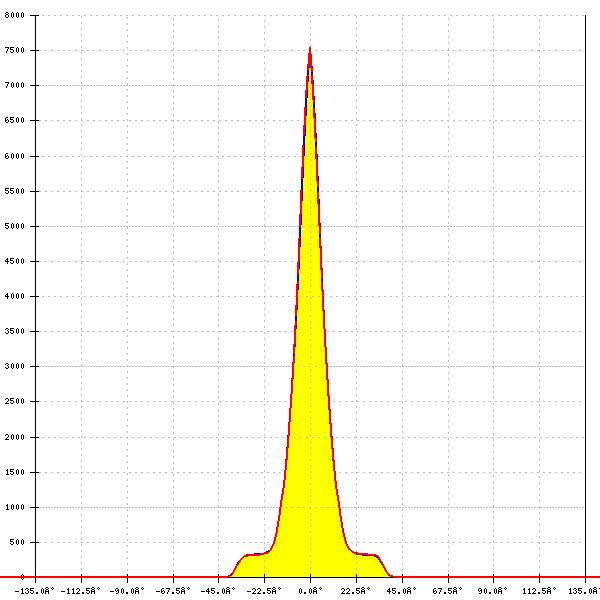

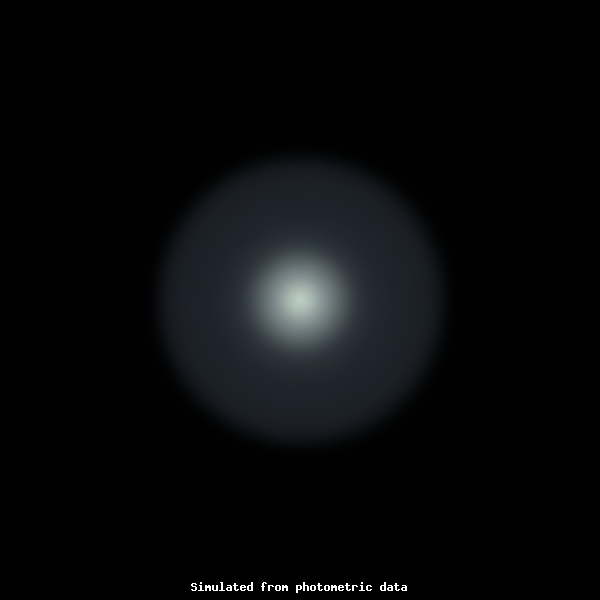

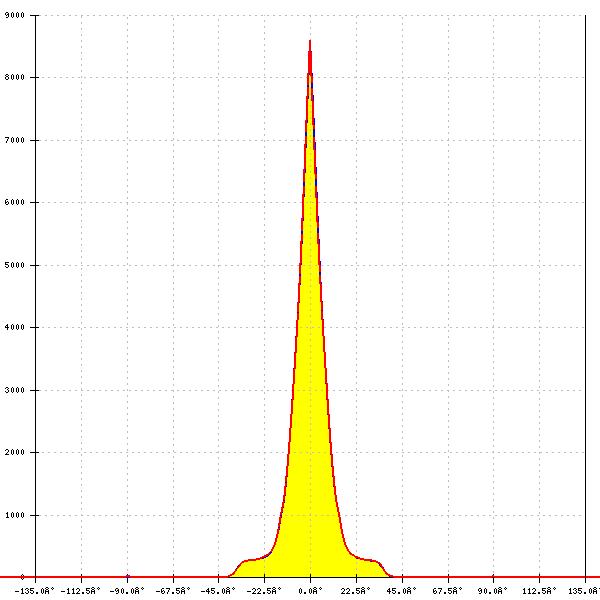

Optical results

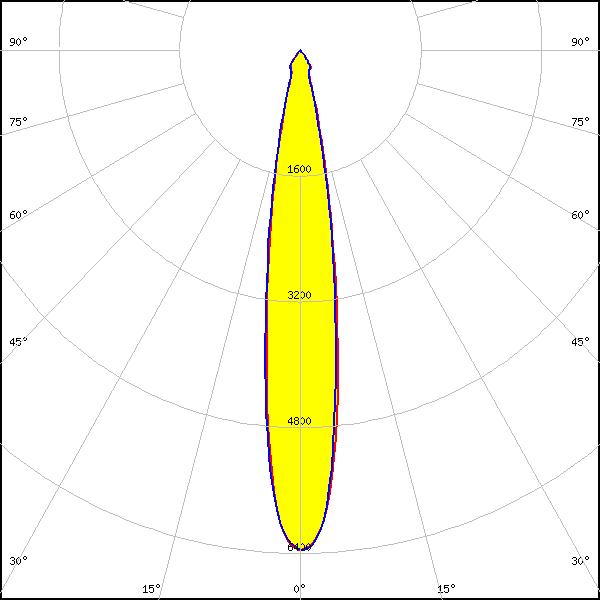

LED:
XHP35 HD
FWHM:
17°
FWTM:
33°
Peak intensity:
6.362 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

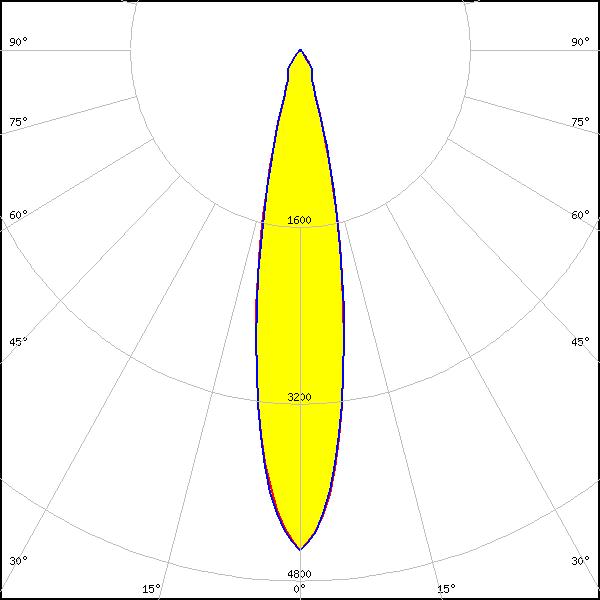

LED:
XHP35.2 HD
FWHM:
21°
FWTM:
39°
Peak intensity:
1.440 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

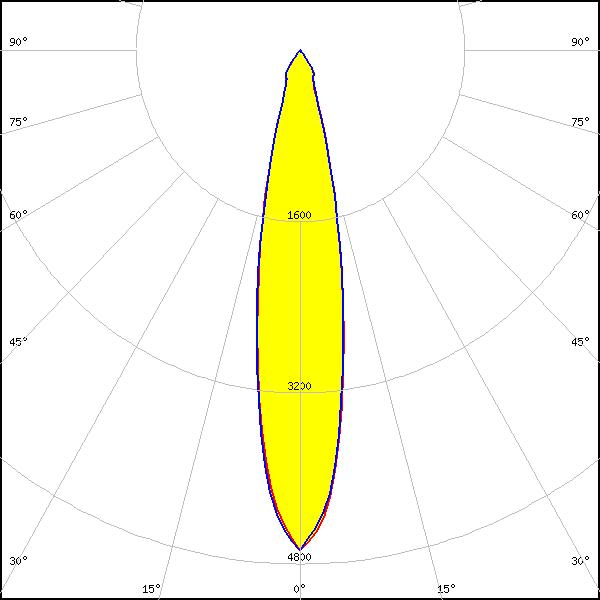

LED:
XHP50.3 HD
FWHM:
20°
FWTM:
40°
Peak intensity:
4.673 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

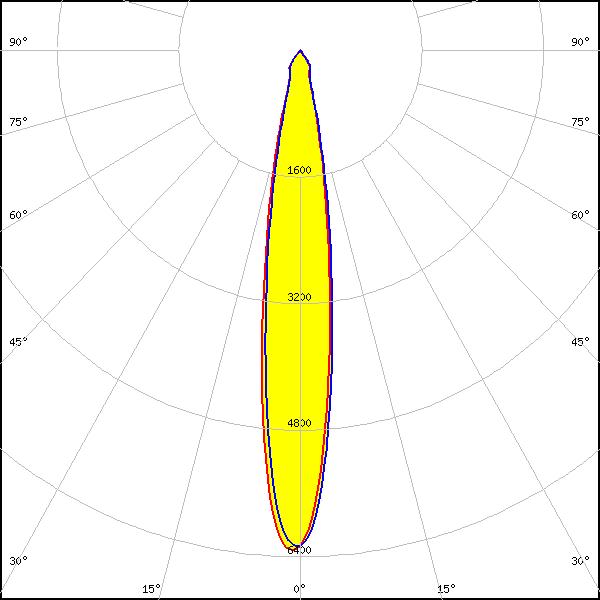

LED:
XP-L2
FWHM:
16°
FWTM:
34°
Peak intensity:
6.329 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

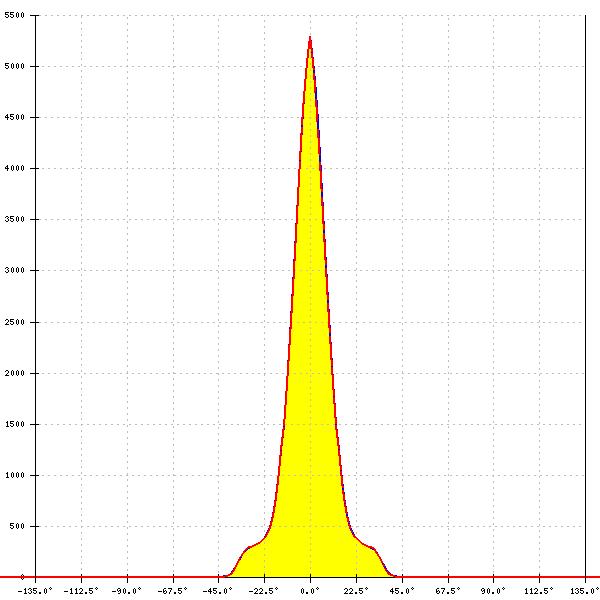

LED:
LUXEON 5050 Round LES
FWHM:
18°
FWTM:
38°
Peak intensity:
5.297 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

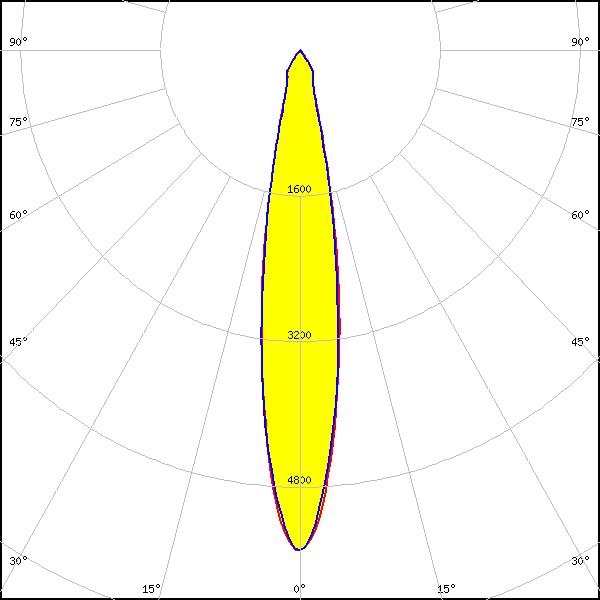

LED:
LUXEON 5050 Square LES
FWHM:
19°
FWTM:
37°
Peak intensity:
5.495 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

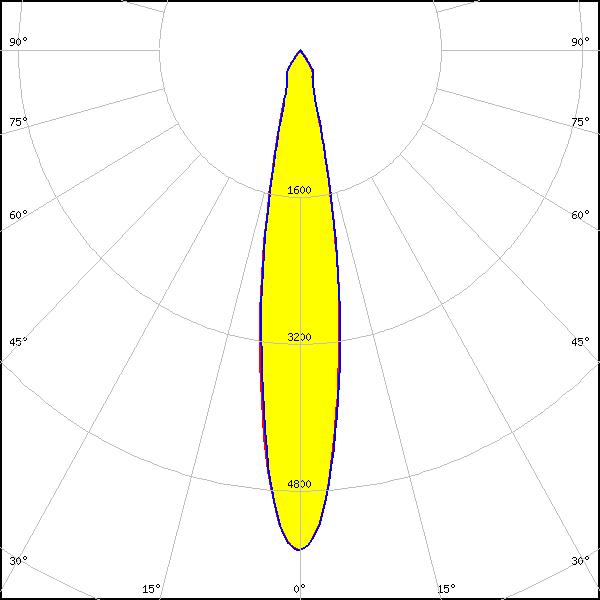

LED:
NFMW48xA
FWHM:
19°
FWTM:
37°
Peak intensity:
5.447 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

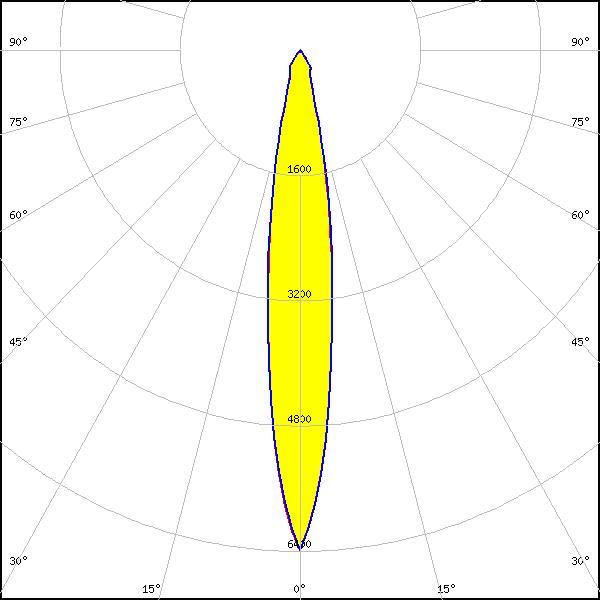

LED:

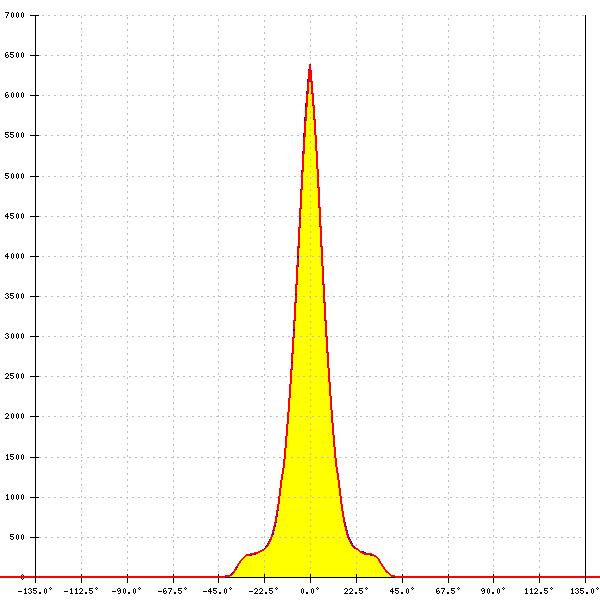

NV4WB35AM
FWHM:
16°
FWTM:
34°
Peak intensity:
6.388 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

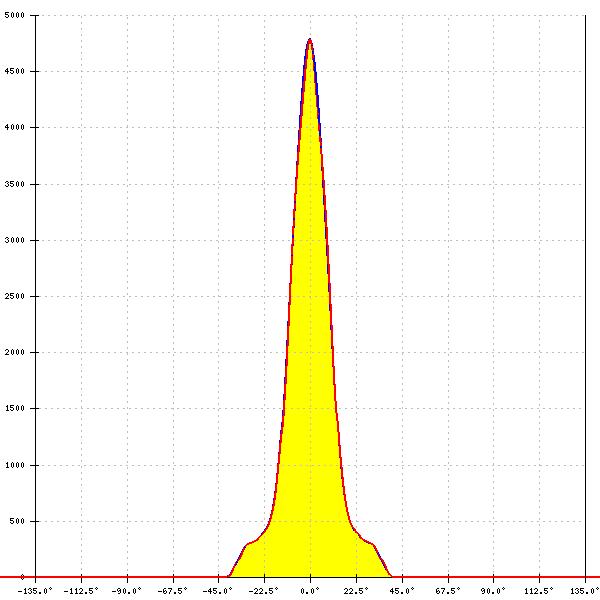

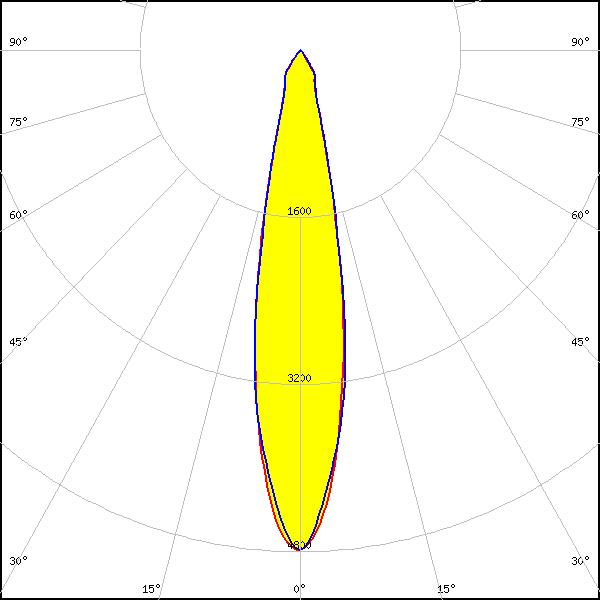

LED:
Duris S8
FWHM:
21°
FWTM:
40°
Peak intensity:
4.787 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

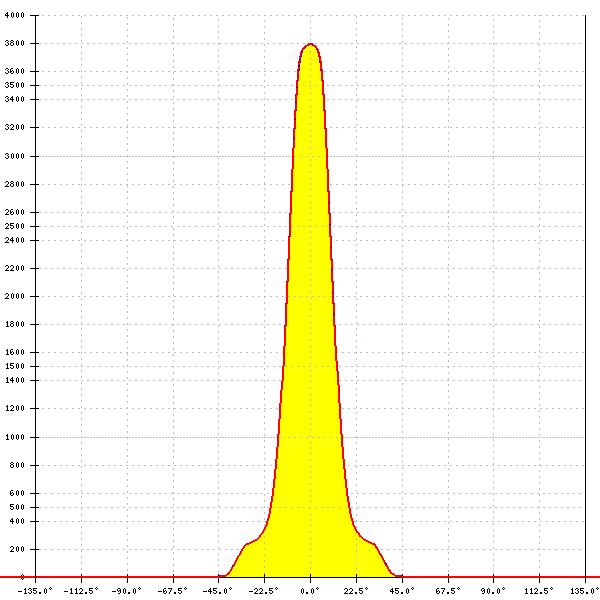

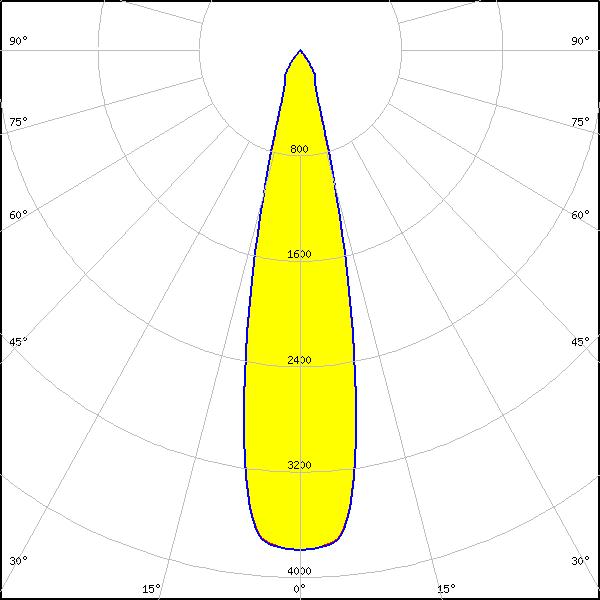

LED:
WICOP 5050
FWHM:
24°
FWTM:
43°
Peak intensity:
3.796 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
