CA17283_ELLA-30-WW
Print

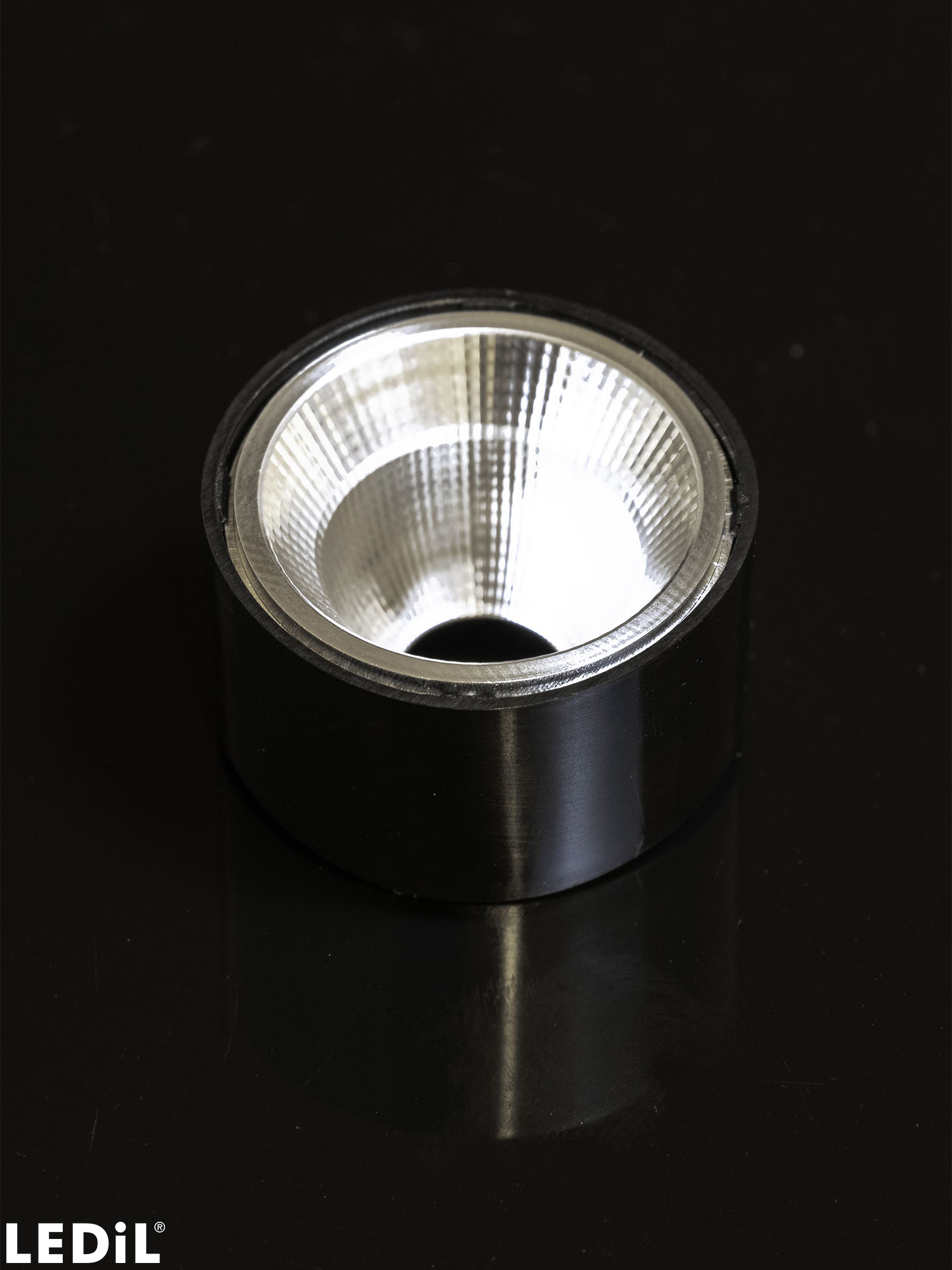

~55° wide beam. Assembly with black holder.
Materials
- ELLA-30-WW, Reflector, HTPC, HMDS
- OLGA-HLD, Holder, PC
- SPUTNIK-TAPE3, Tape, Acrylic foam
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

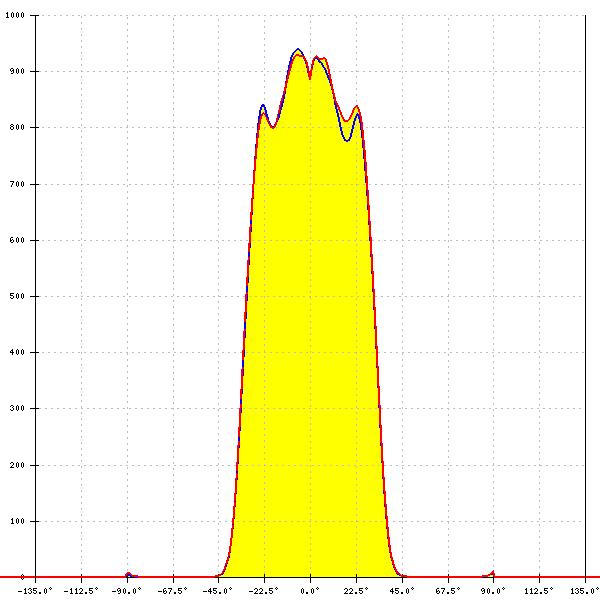

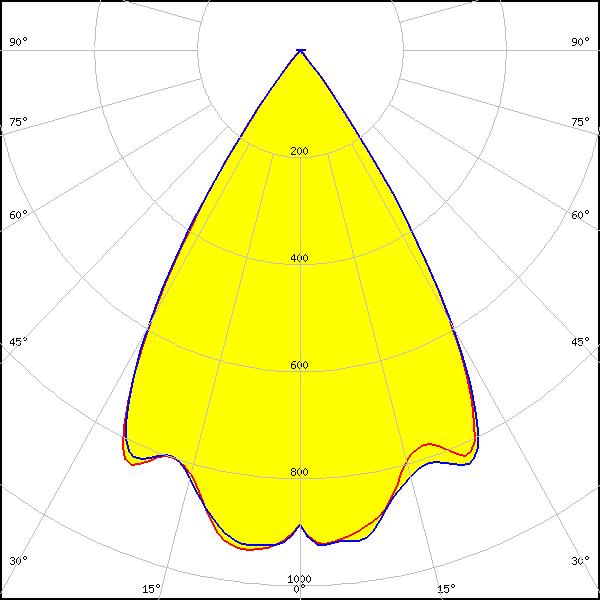

XHP35.2 HD
FWHM:
63°
FWTM:
76°
Peak intensity:
0.950 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

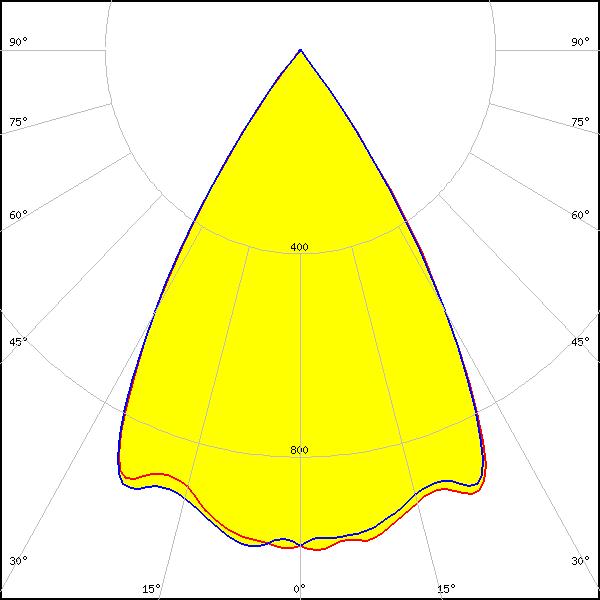

LED:

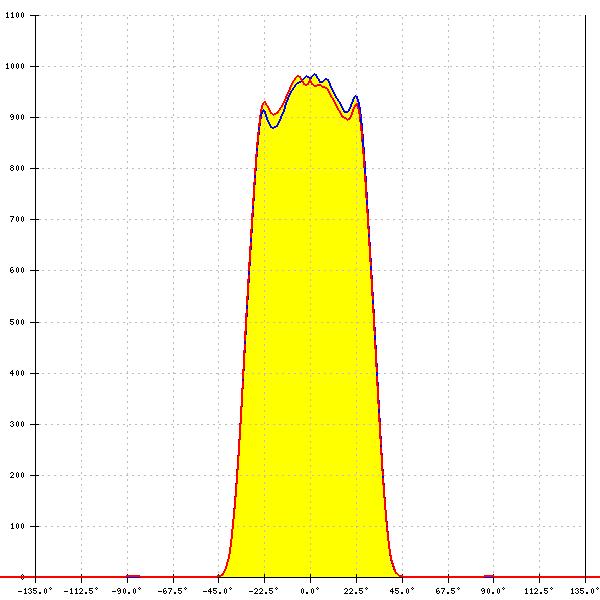

XHP50.3 HD
FWHM:
63° + 64°
FWTM:
76° + 76°
Peak intensity:
1.002 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

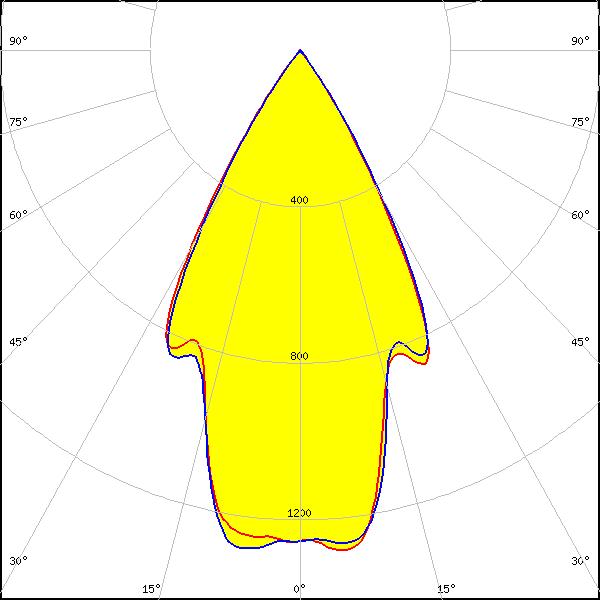

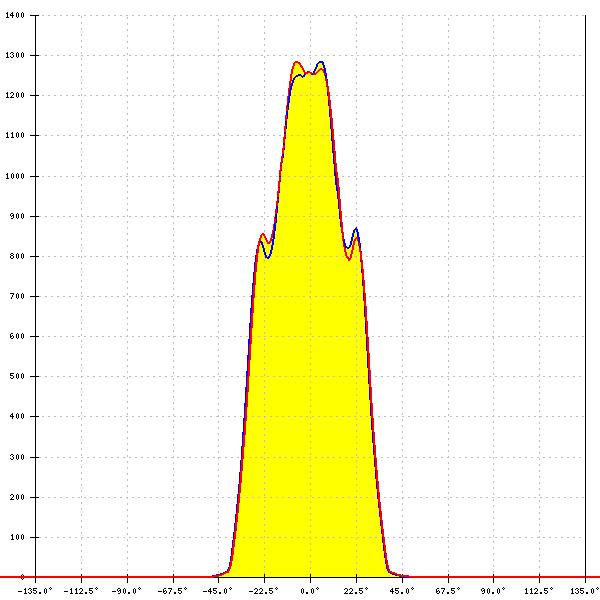

XP-L2
FWHM:
57°
FWTM:
73°
Peak intensity:
1.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

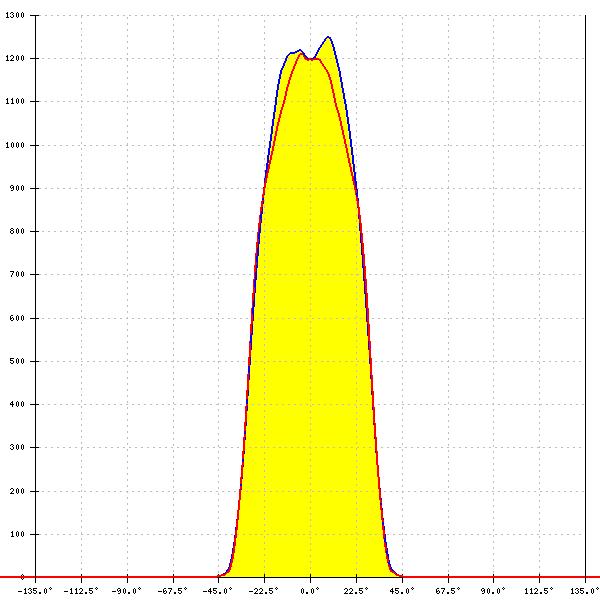

LED:

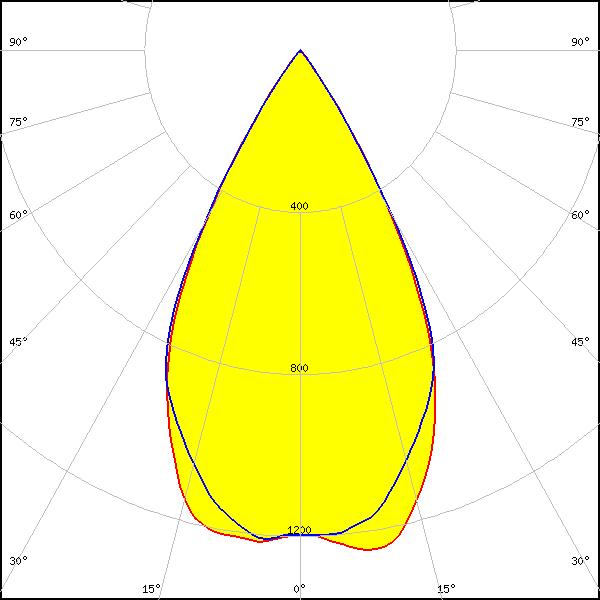

LUXEON 5050 Round LES
FWHM:
56°
FWTM:
72°
Peak intensity:
1.257 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

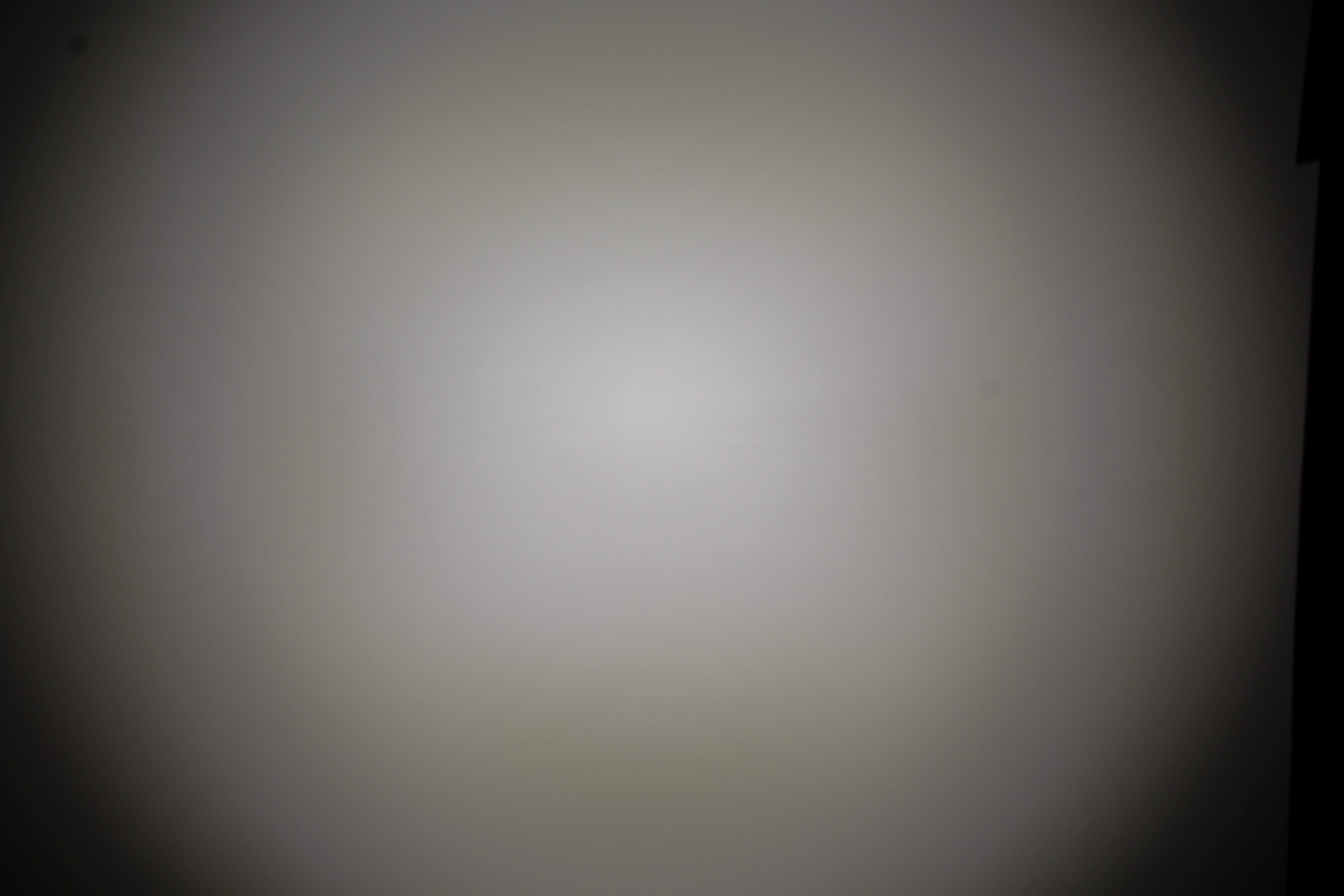

LED:

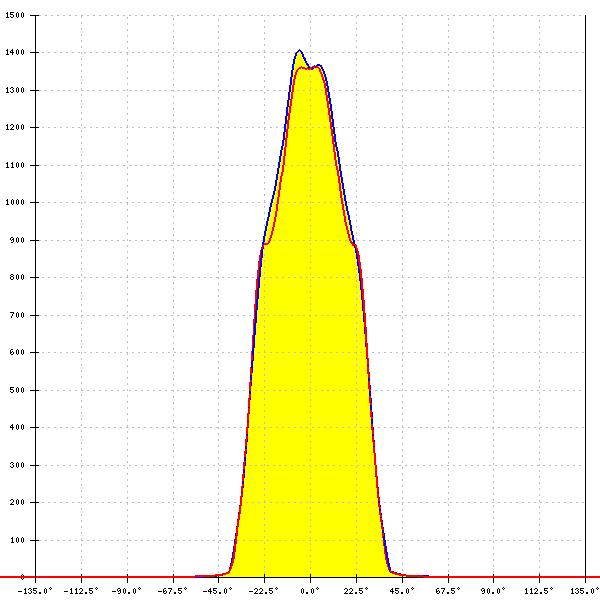

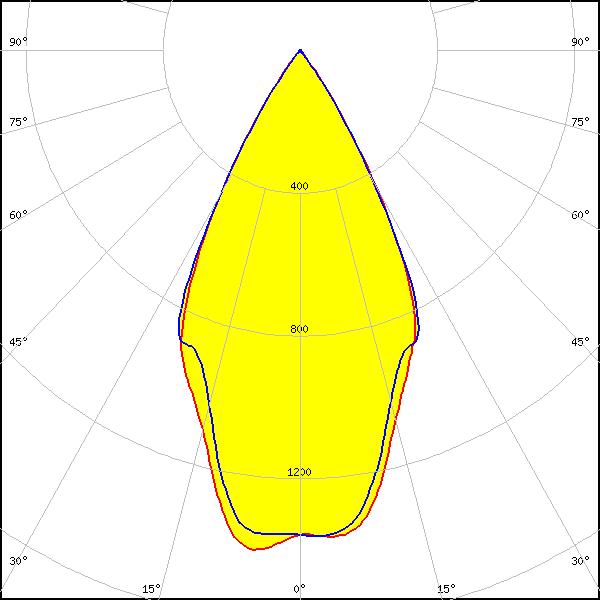

LUXEON 5050 Square LES
FWHM:
54°
FWTM:
71°
Peak intensity:
1.407 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

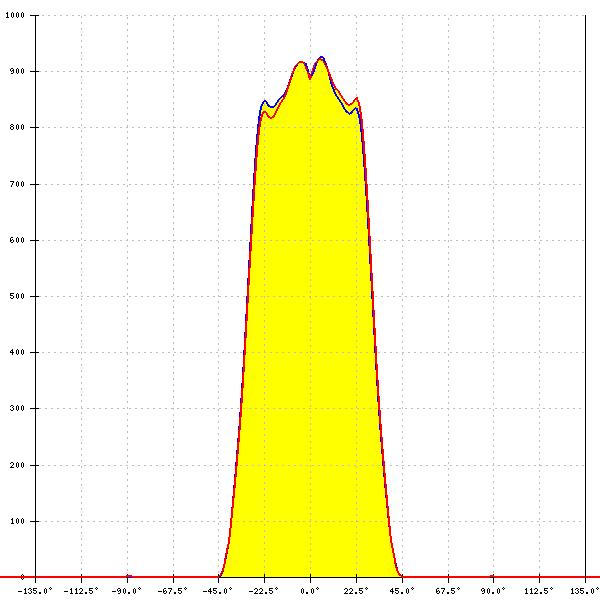

LED:

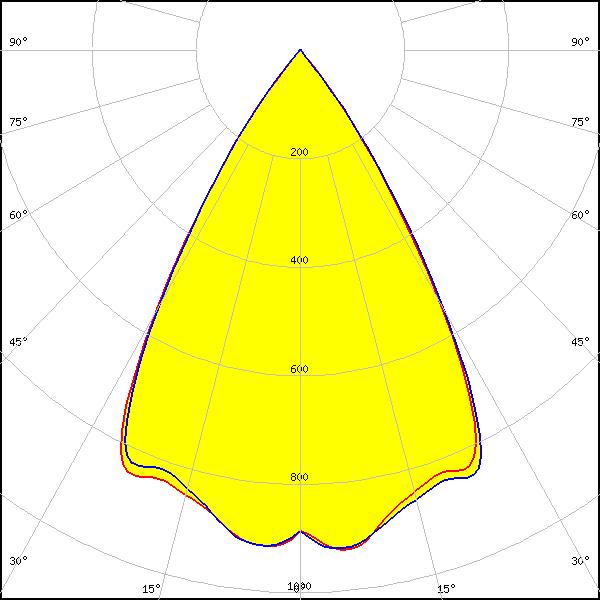

LUXEON HL2X
FWHM:
62°
FWTM:
78°
Peak intensity:
1.081 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White

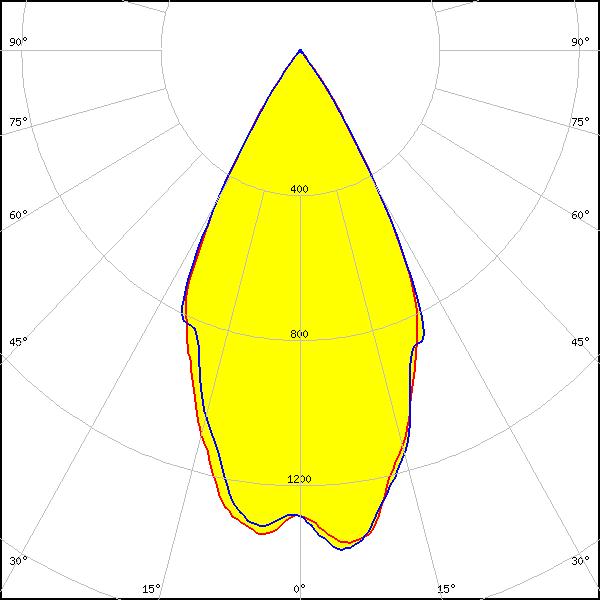

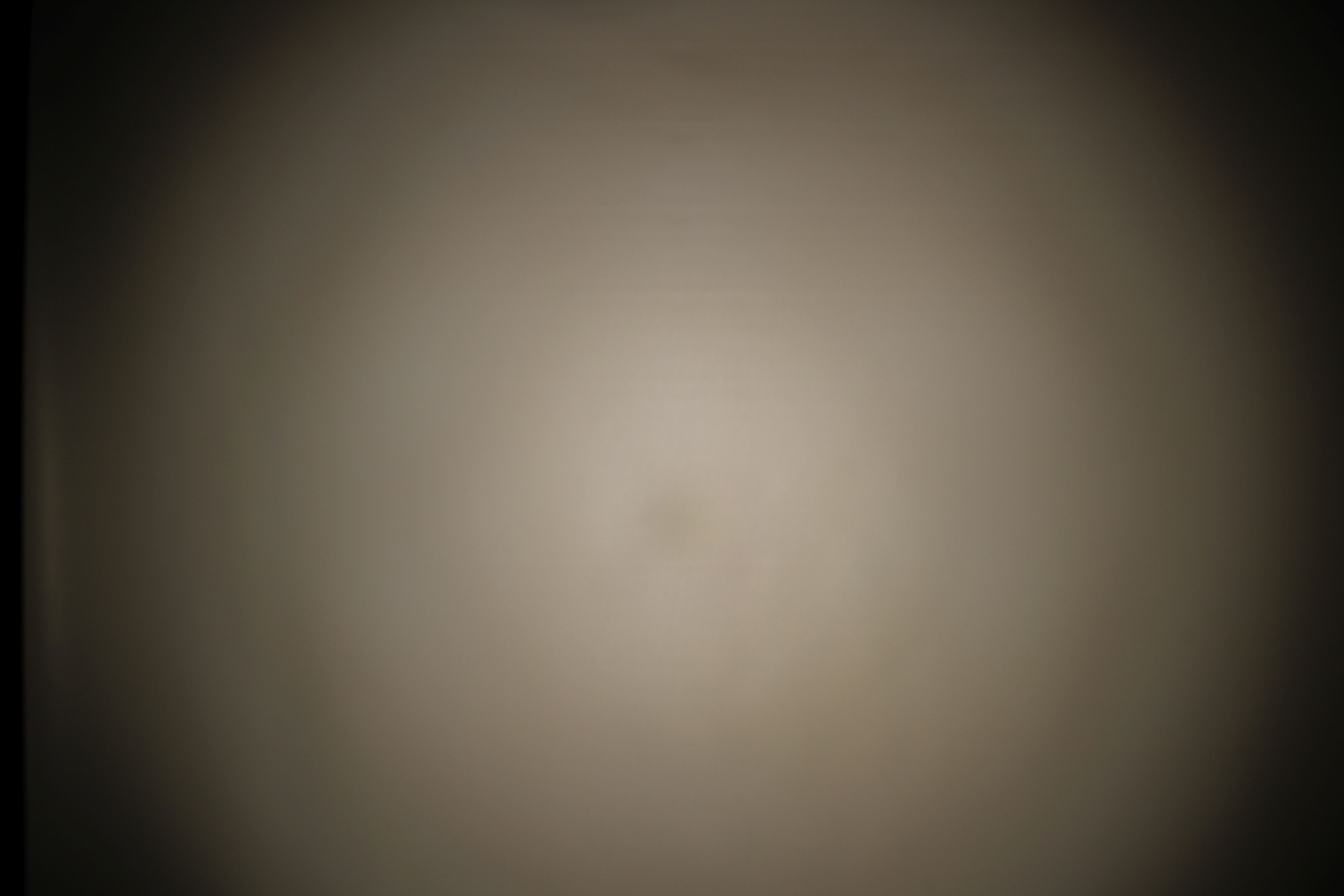

LED:

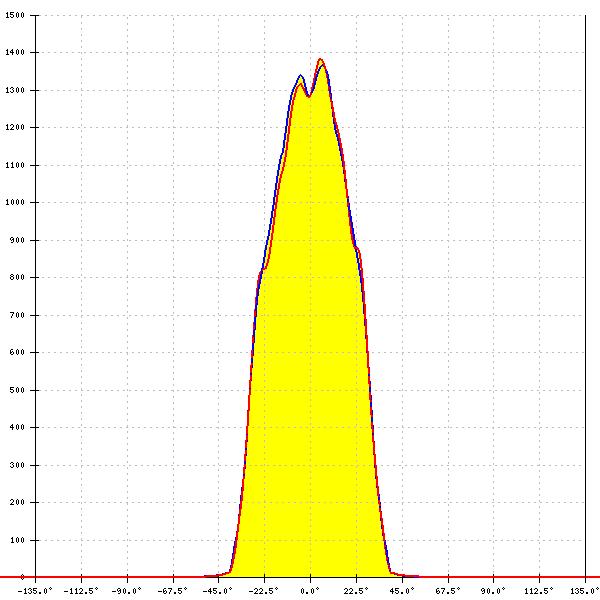

NFMW48xA
FWHM:
54°
FWTM:
72°
Peak intensity:
1.384 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

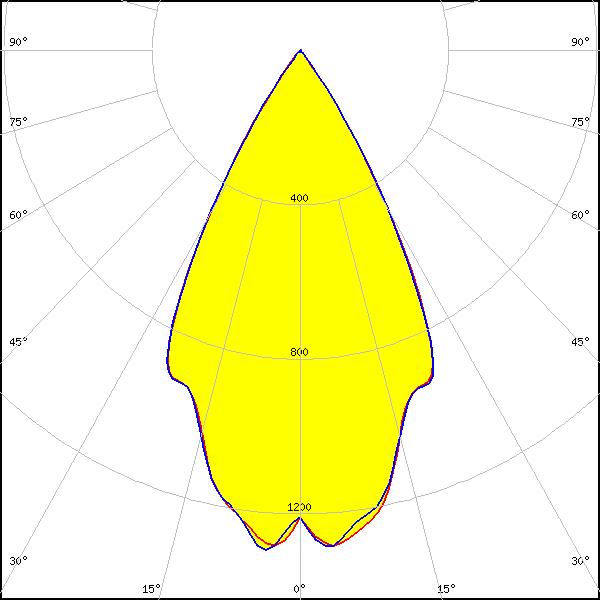

LED:

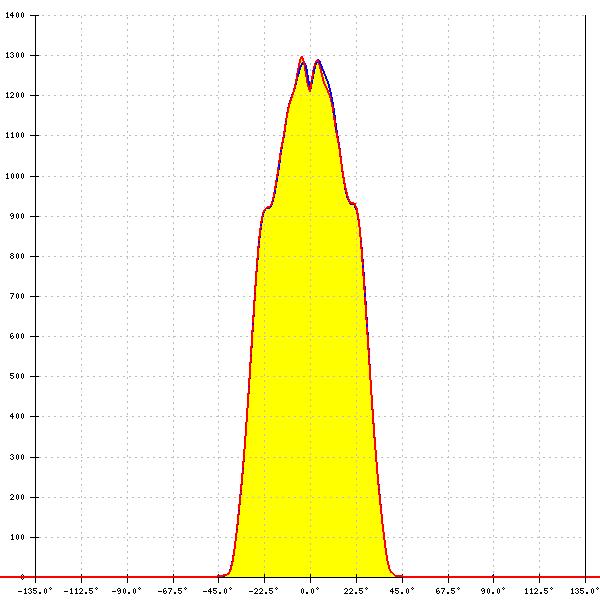

NV4WB35AM
FWHM:
56°
FWTM:
72°
Peak intensity:
1.308 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

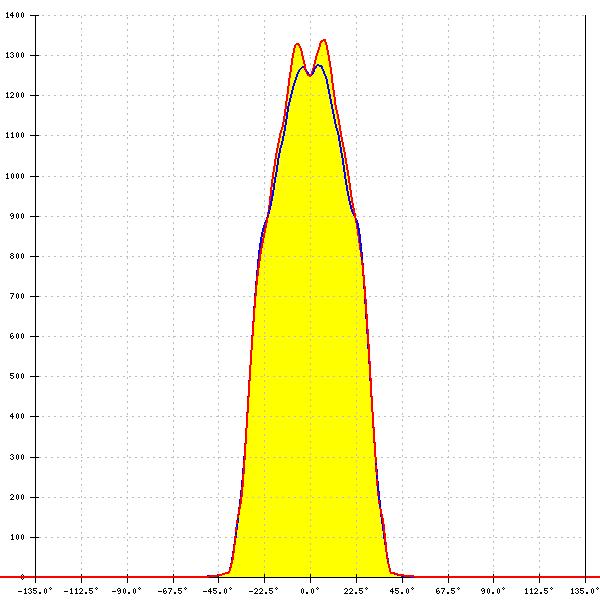

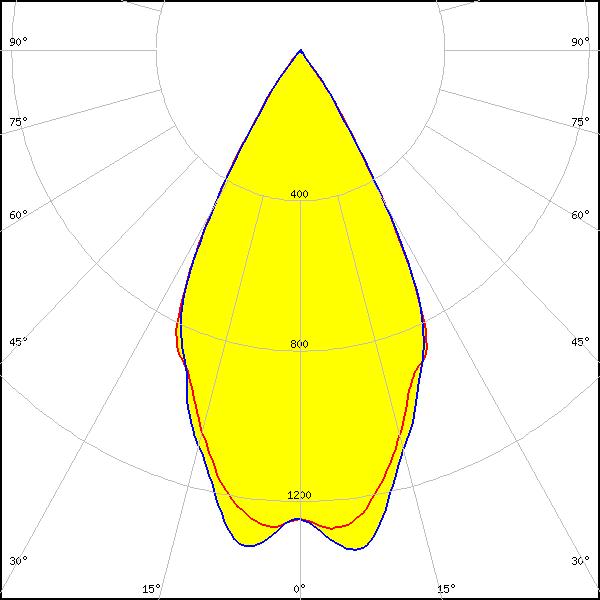

LED:
Duris S8
FWHM:
55°
FWTM:
72°
Peak intensity:
1.339 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

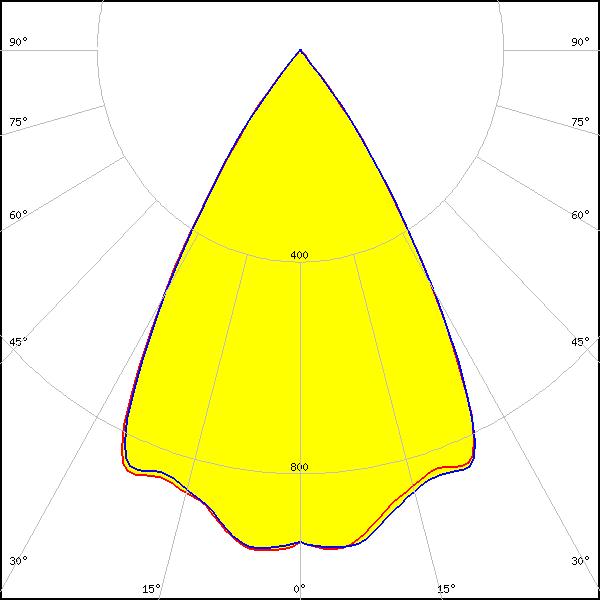

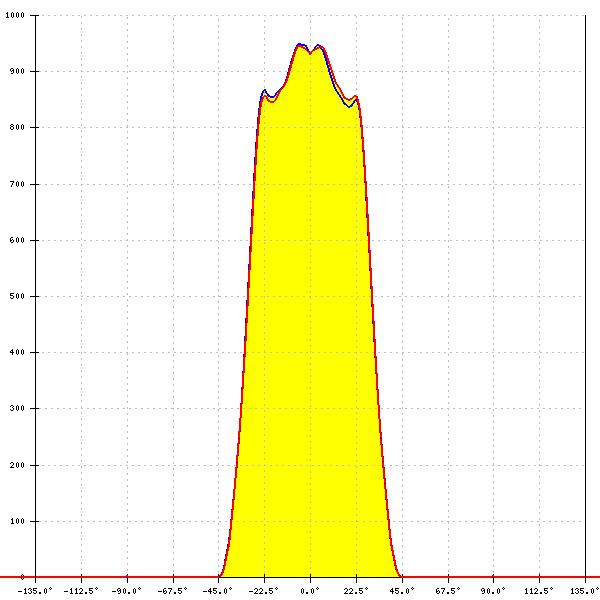

LH351C
FWHM:
62°
FWTM:
78°
Peak intensity:
1.097 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White

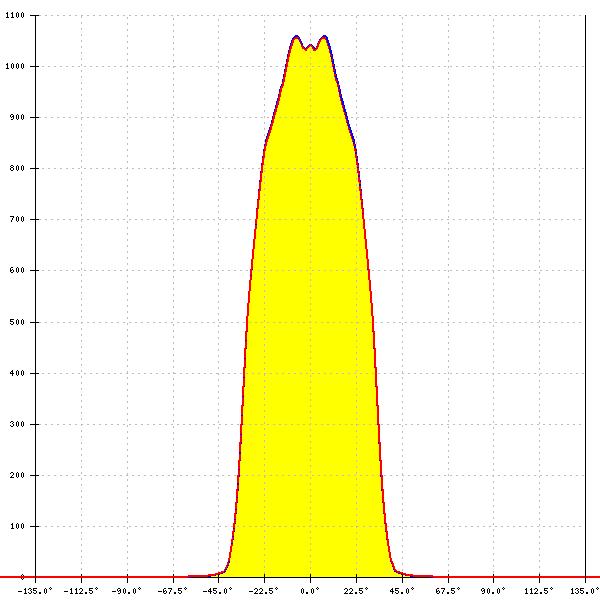

LED:

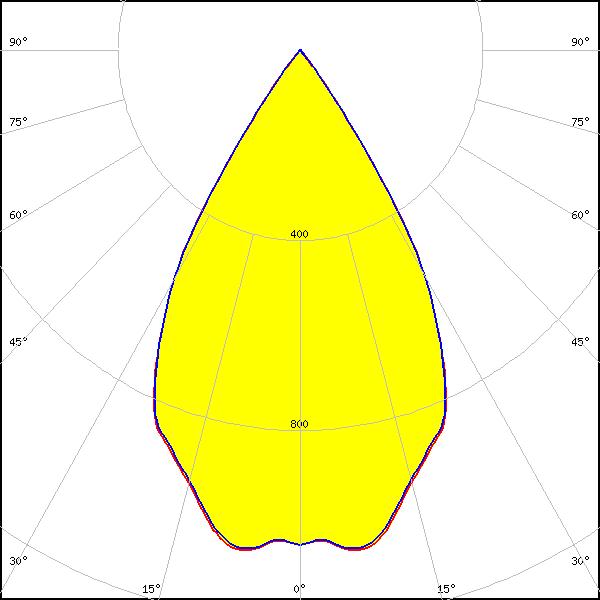

WICOP 5050
FWHM:
61°
FWTM:
75°
Peak intensity:
1.081 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
