CA17282_ELLA-30-W
Print

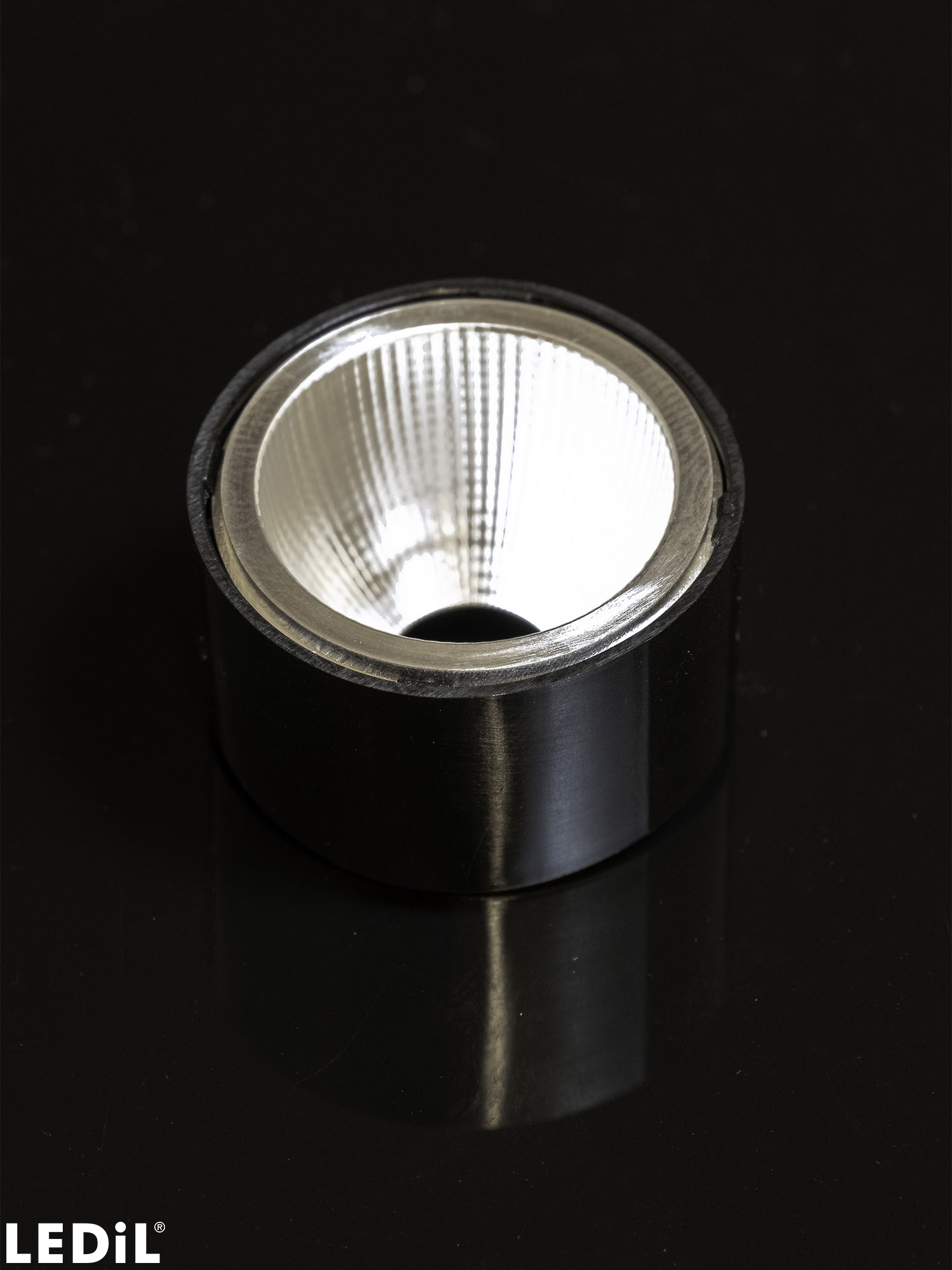

~38° wide beam. Assembly with black holder.
Materials
- ELLA-30-W, Reflector, HTPC, HMDS
- OLGA-HLD, Holder, PC
- SPUTNIK-TAPE3, Tape, Acrylic foam
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

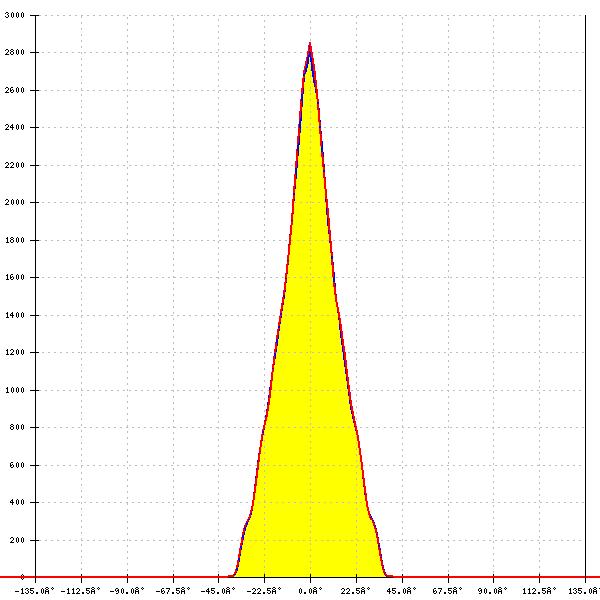

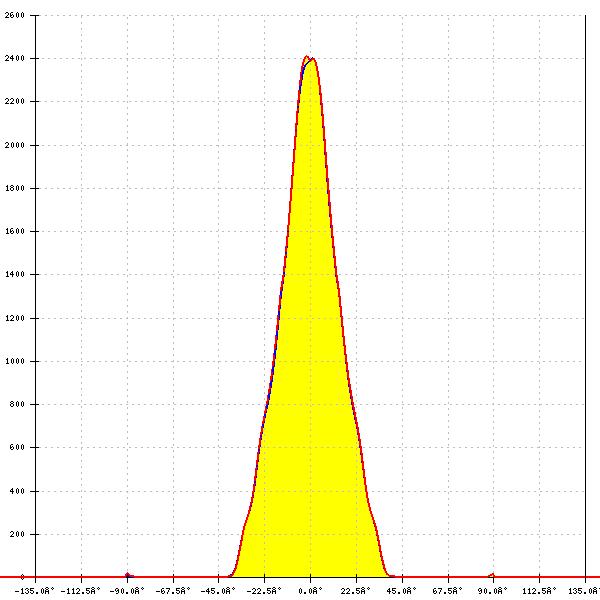

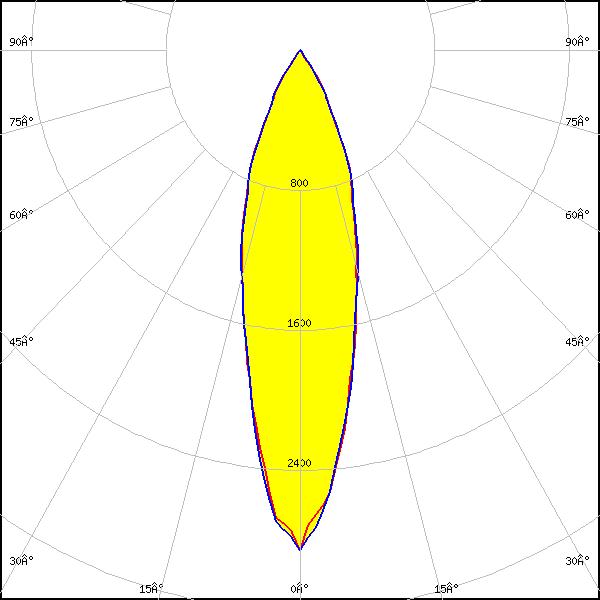

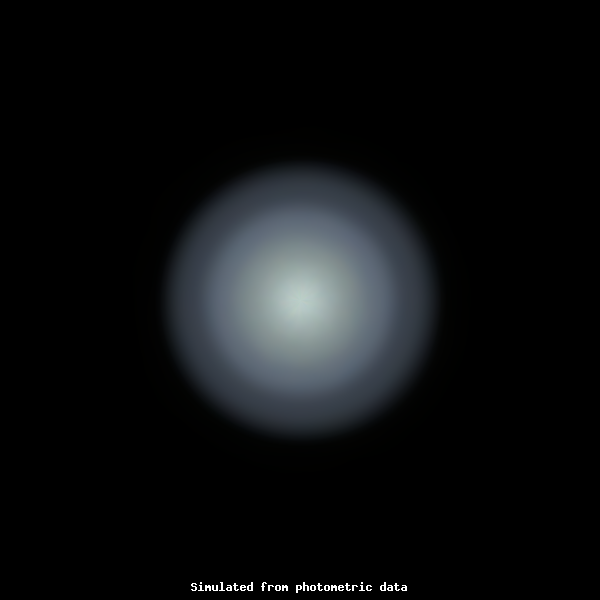

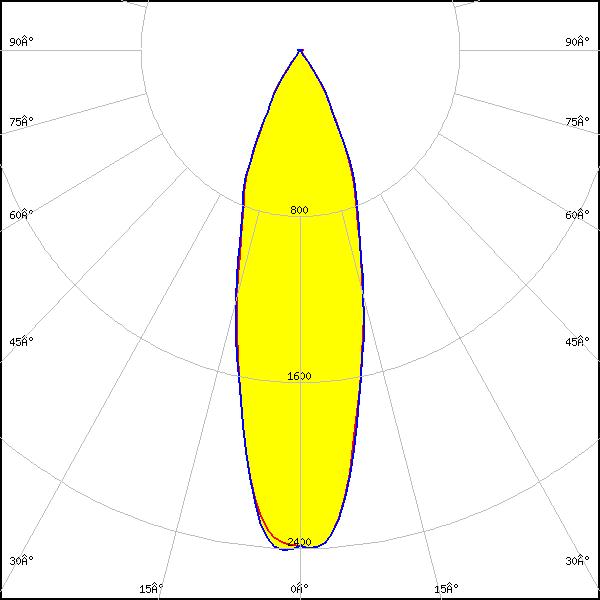

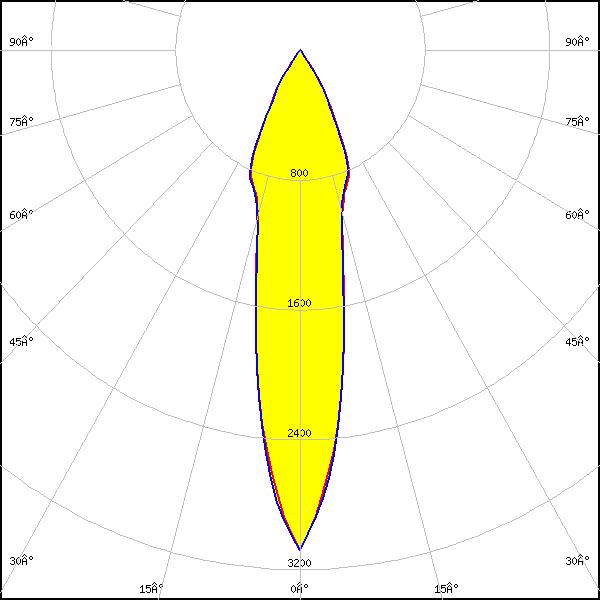

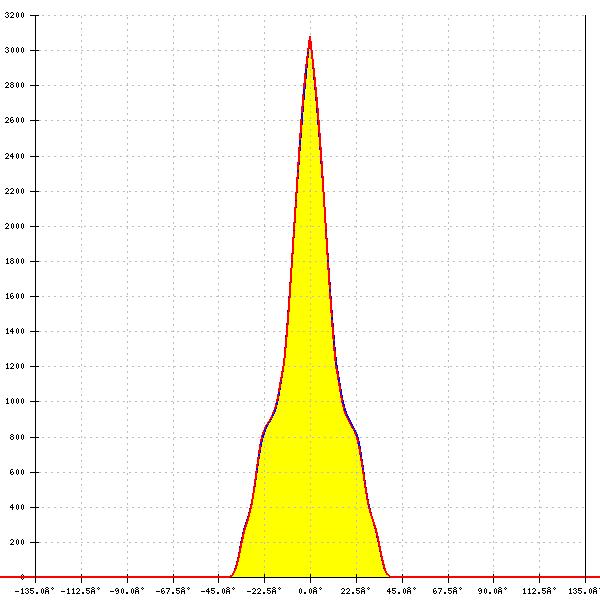

Optical results
LED:

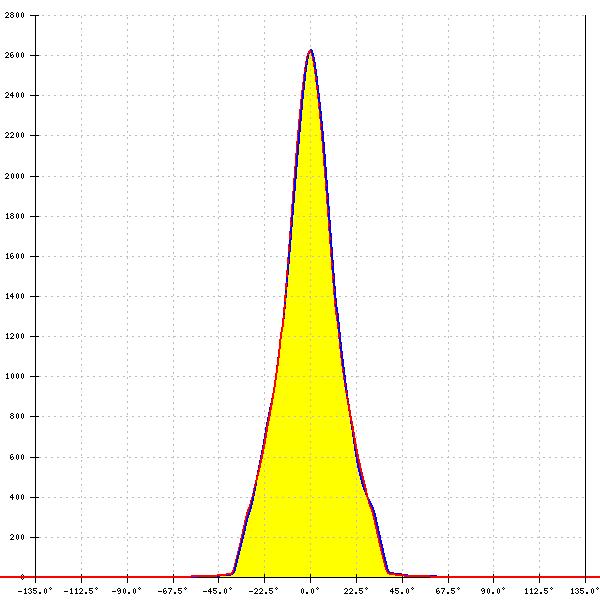

XHP35 HD
FWHM:
26°
FWTM:
65°
Peak intensity:
2.632 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

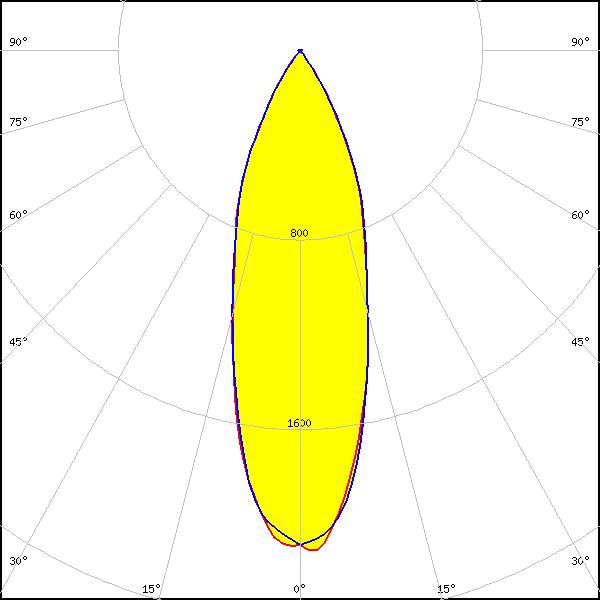

LED:

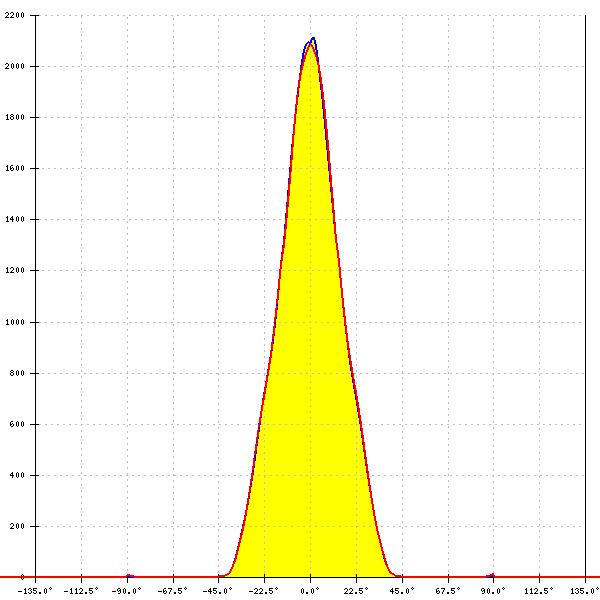

XHP35.2 HD
FWHM:
32°
FWTM:
65°
Peak intensity:
2.150 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

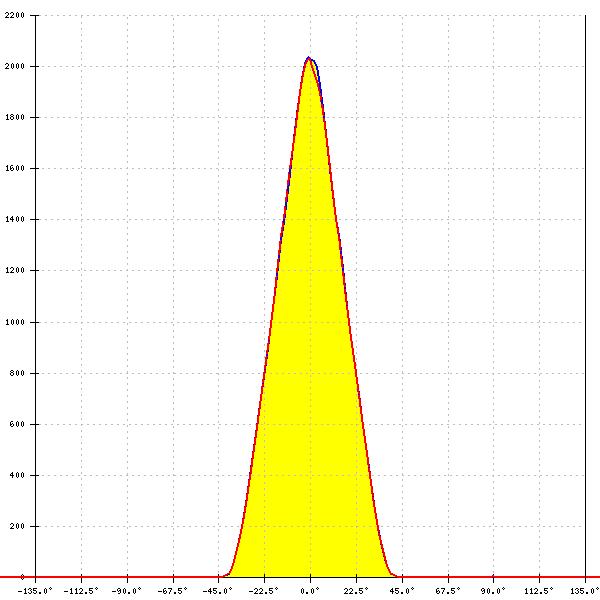

LED:

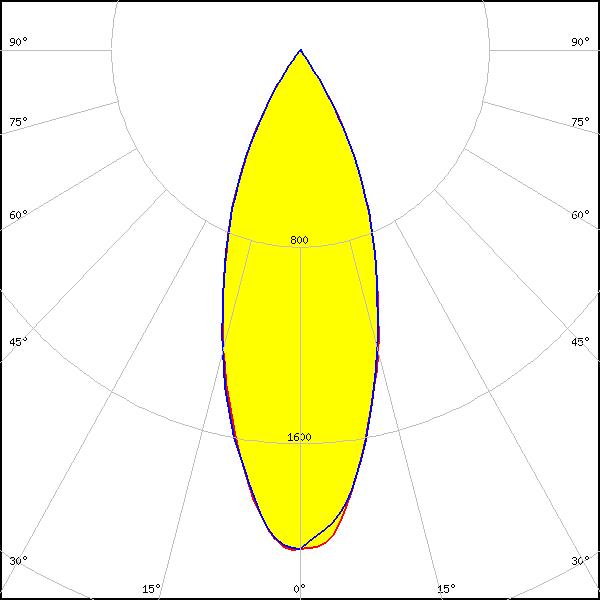

XHP50.3 HD
FWHM:
38°
FWTM:
66°
Peak intensity:
2.046 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

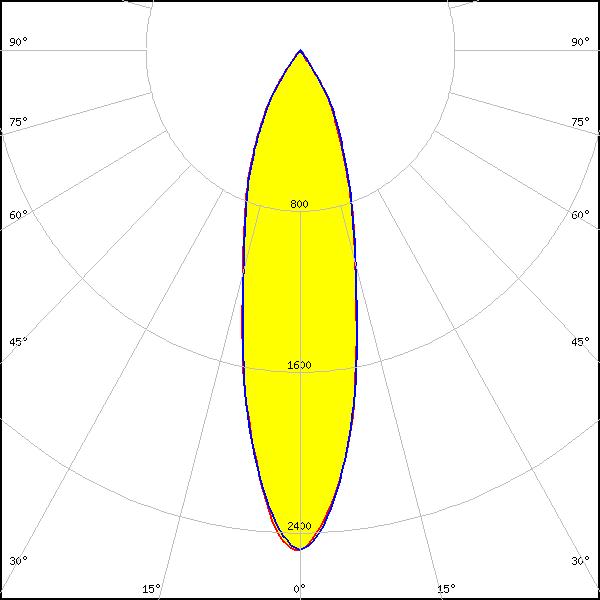

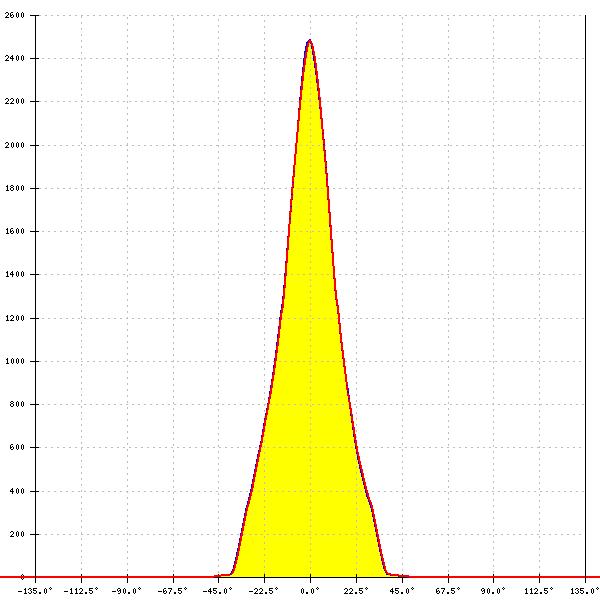

XP-L2
FWHM:
28°
FWTM:
65°
Peak intensity:
2.486 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

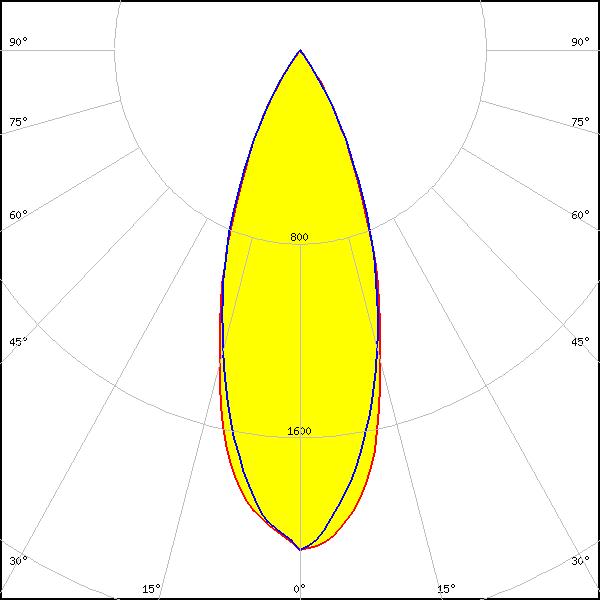

LED:

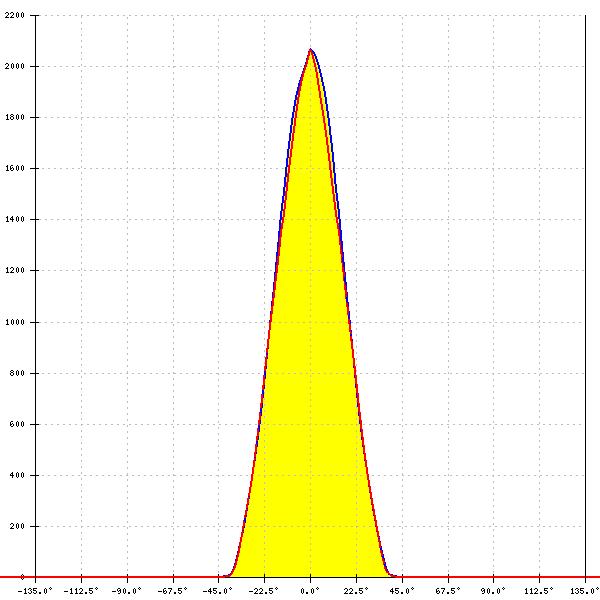

LUXEON 5050 Round LES
FWHM:
38°
FWTM:
66°
Peak intensity:
2.066 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

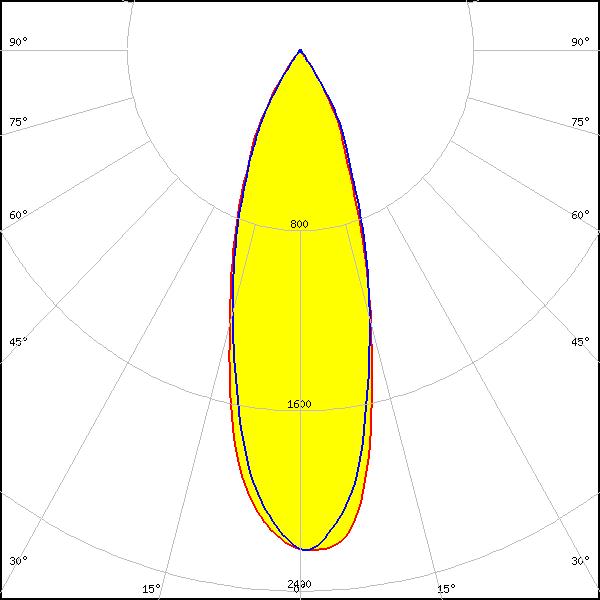

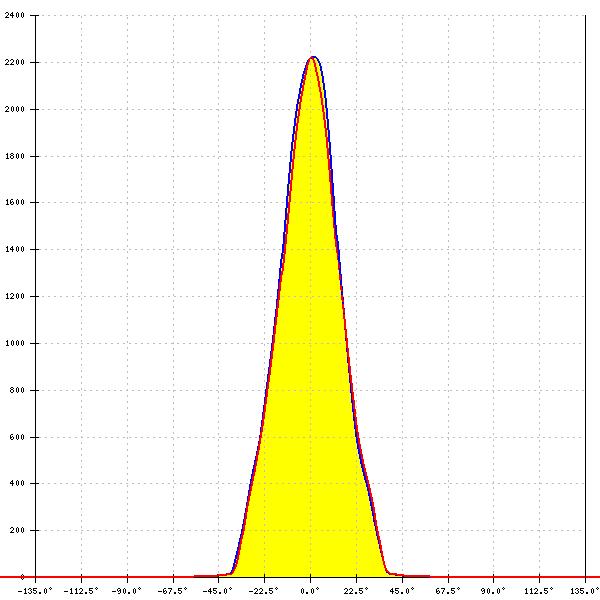

LUXEON 5050 Square LES
FWHM:
33°
FWTM:
65°
Peak intensity:
2.222 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

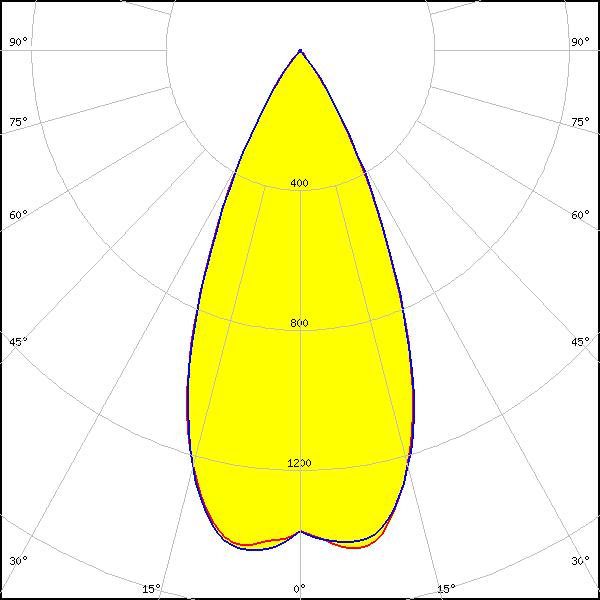

LED:

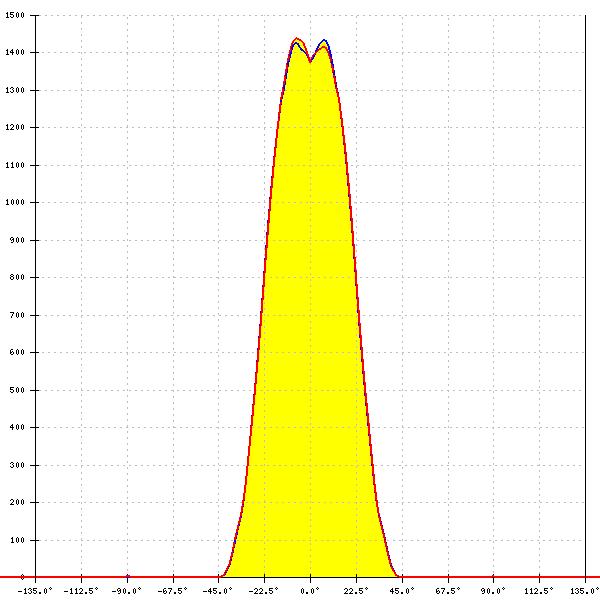

LUXEON HL2X
FWHM:
48°
FWTM:
70°
Peak intensity:
1.509 cd/lm
Efficiency:
87 %
LEDs/each optic:
4
Light colour/type:
White

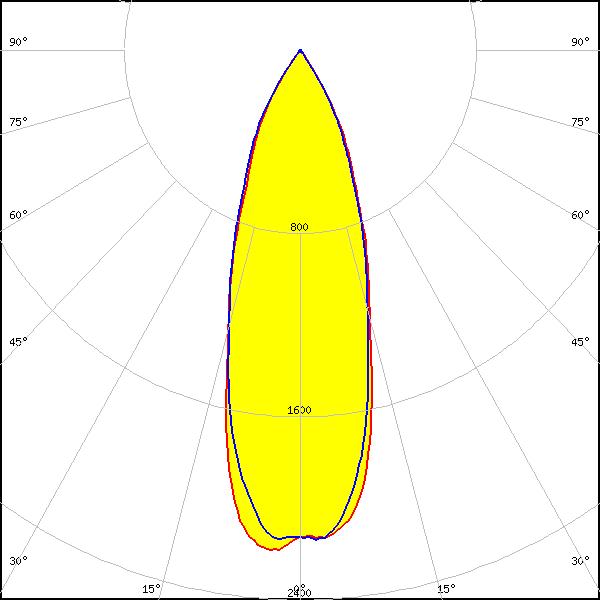

LED:

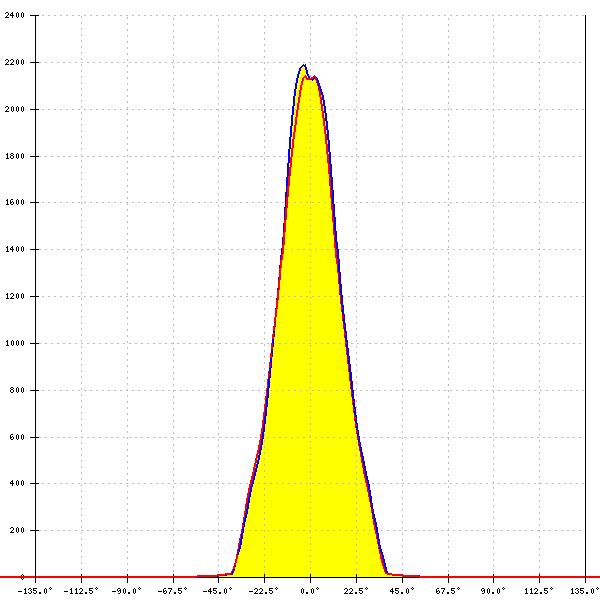

NFMW48xA
FWHM:
34°
FWTM:
65°
Peak intensity:
2.186 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

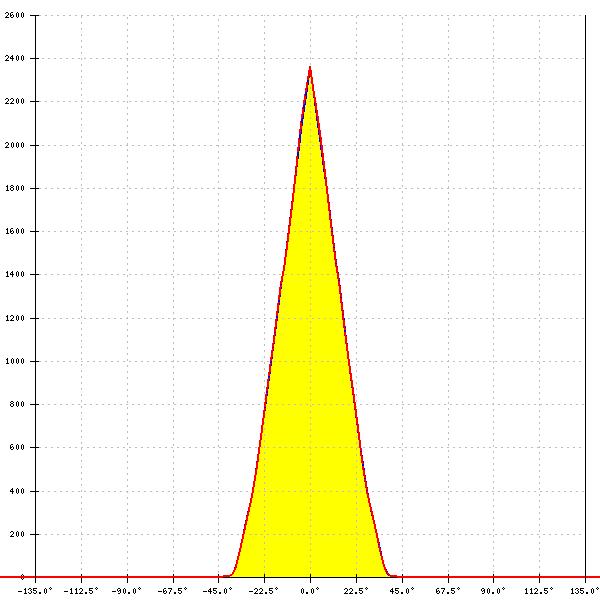

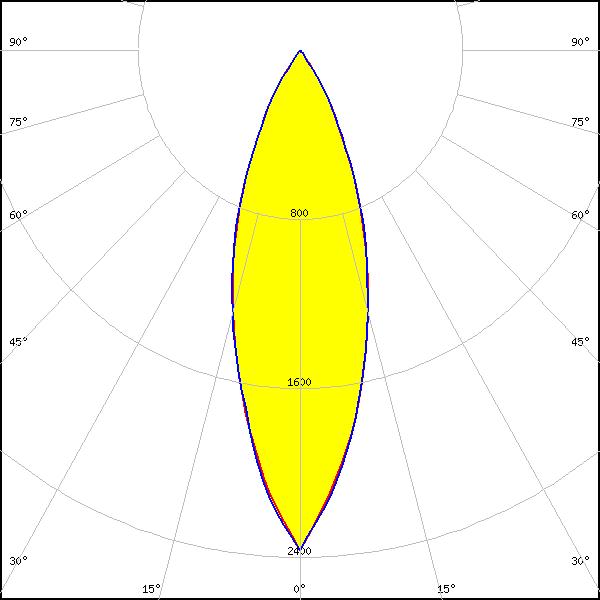

LED:
NV4WB35AM
FWHM:
32°
FWTM:
64°
Peak intensity:
2.366 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

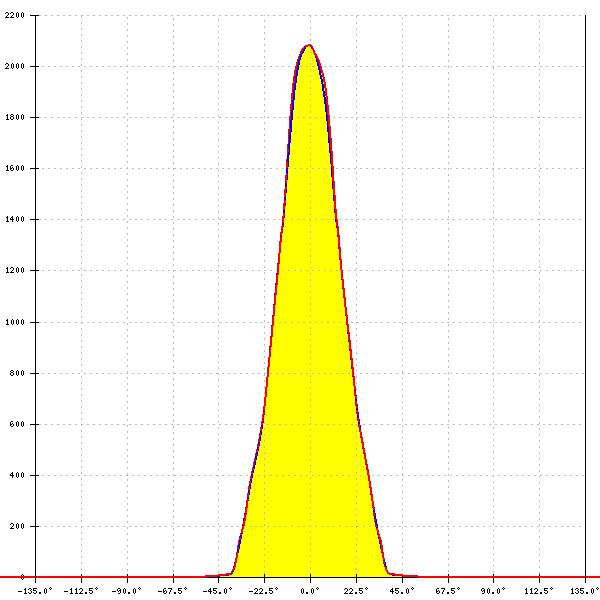

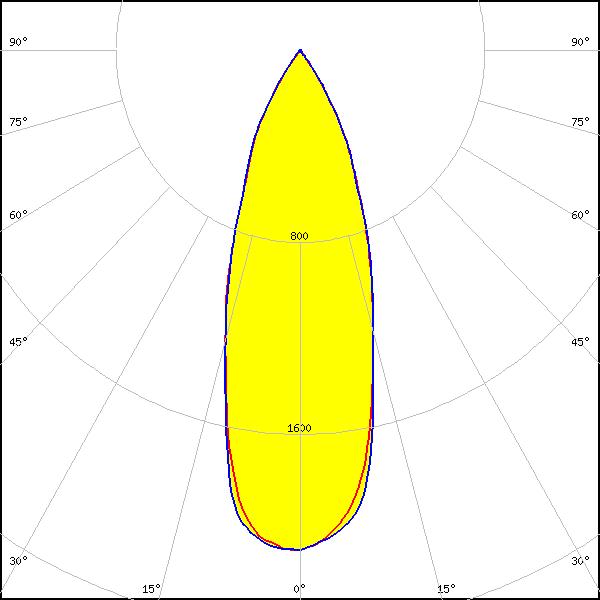

Duris S8
FWHM:
35°
FWTM:
66°
Peak intensity:
2.091 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

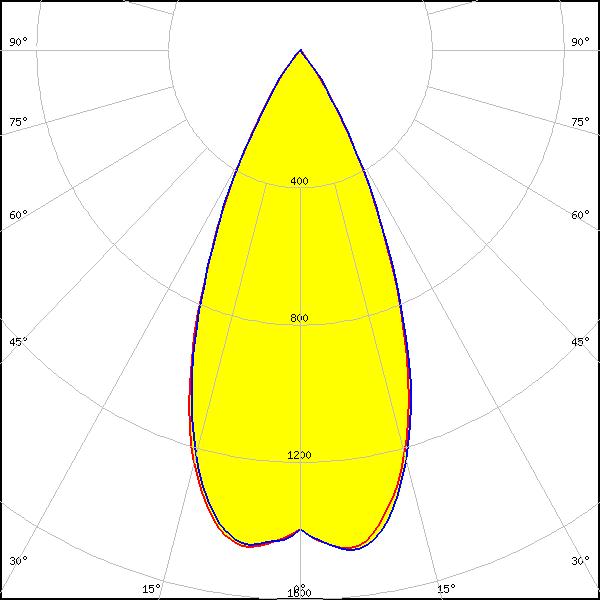

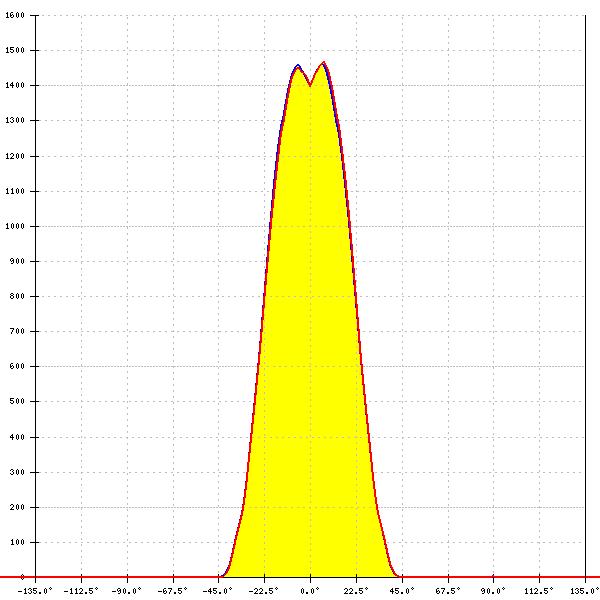

LH351C
FWHM:
46°
FWTM:
70°
Peak intensity:
1.534 cd/lm
Efficiency:
87 %
LEDs/each optic:
4
Light colour/type:
White

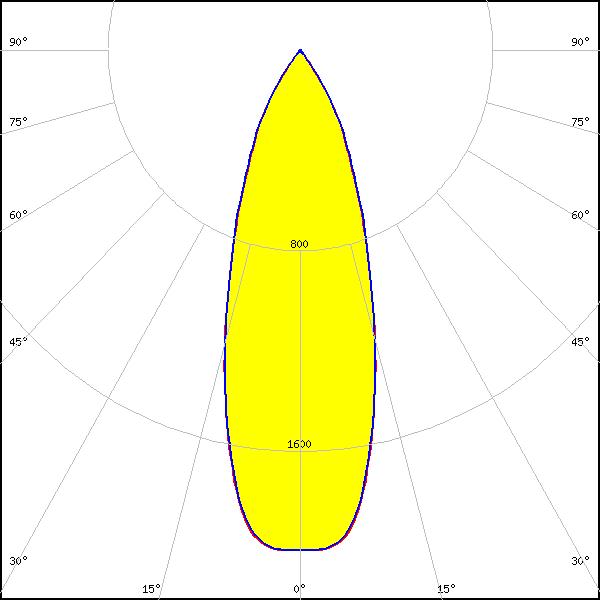

LED:

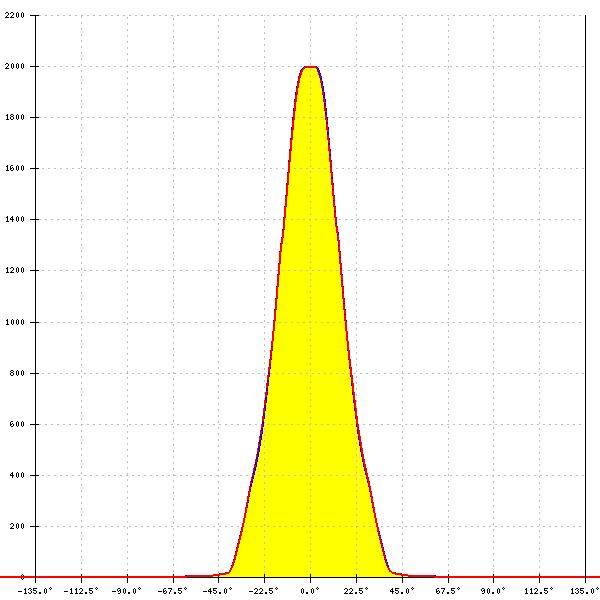

WICOP 5050
FWHM:
35°
FWTM:
66°
Peak intensity:
2.001 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
