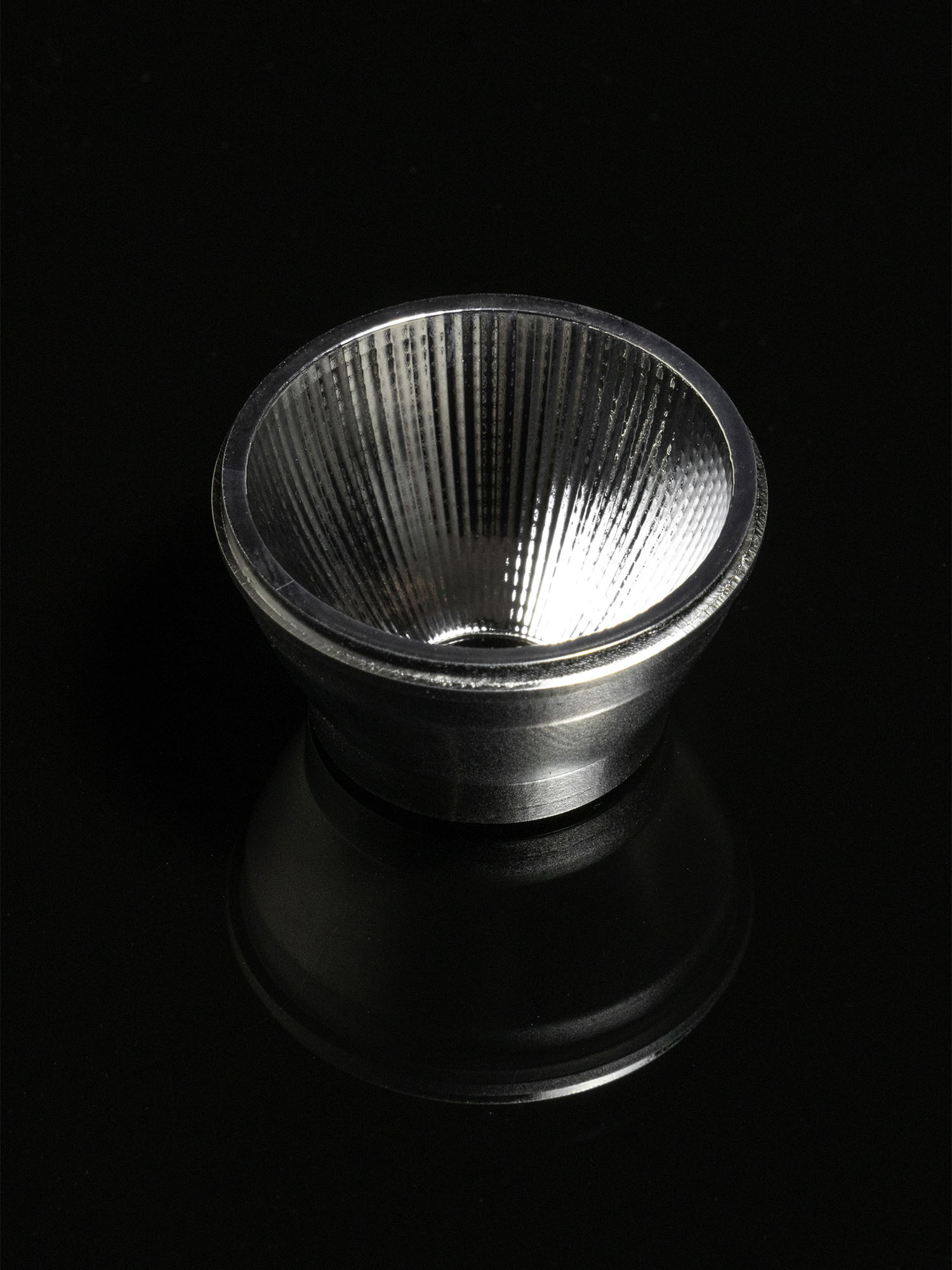

C17247_ELLA-30-M
Print
~28° wide beam
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
V4 HD Gen 7
LES size: 5.2 mm
FWHM:
28°
FWTM:
63°
Peak intensity:
2.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 7
LES size: 7.0 mm
FWHM:
28°
FWTM:
64°
Peak intensity:
2.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V8 Gen7
LES size: 8.1 mm
FWHM:
29°
FWTM:
62°
Peak intensity:
2.760 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7A2/7A3
LES size: 4.2 mm
FWHM:
18°
FWTM:
36°
Peak intensity:
5.571 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7B2
LES size: 3.3 mm
FWHM:
16°
FWTM:
34°
Peak intensity:
6.255 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1303
LES size: 4.5 mm
FWHM:
20°
FWTM:
40°
Peak intensity:
4.969 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
FWHM:
26°
FWTM:
54°
Peak intensity:
3.436 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
FWHM:
33°
FWTM:
64°
Peak intensity:
2.245 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35.2 HD
LES size: 0.0 mm
FWHM:
19°
FWTM:
38°
Peak intensity:
4.933 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-3
LES size: 3.5 mm
FWHM:
16°
FWTM:
34°
Peak intensity:
6.315 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

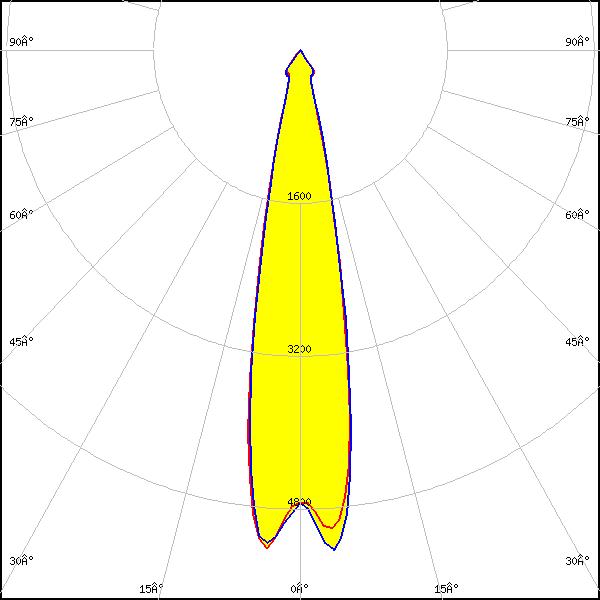

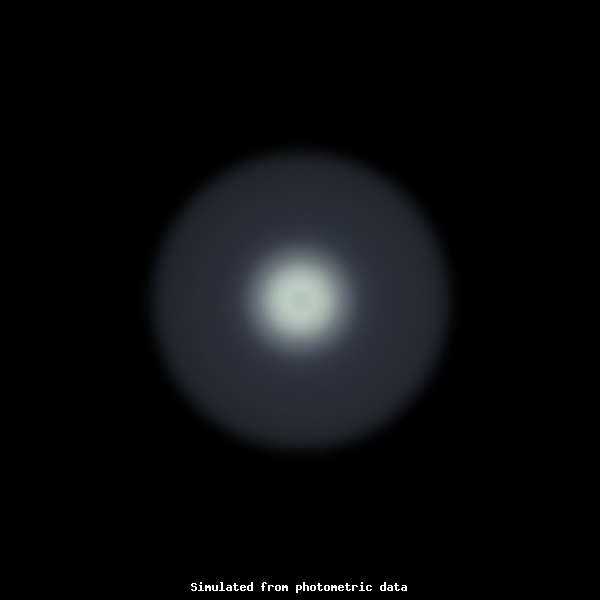

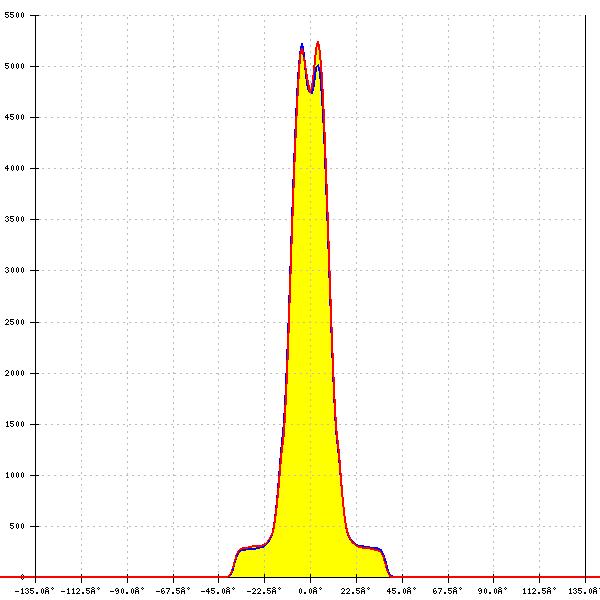

LED:
SST-12 Gen2
LES size: 0.0 mm
FWHM:
21° + 20°
FWTM:
34° + 34°
Peak intensity:
5.296 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

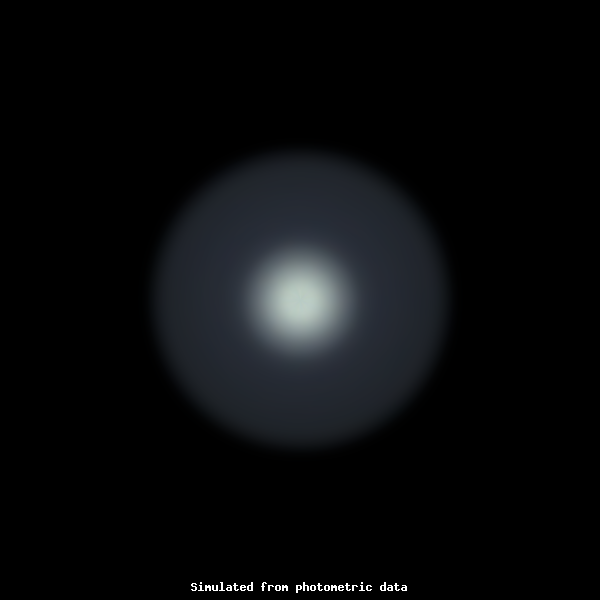

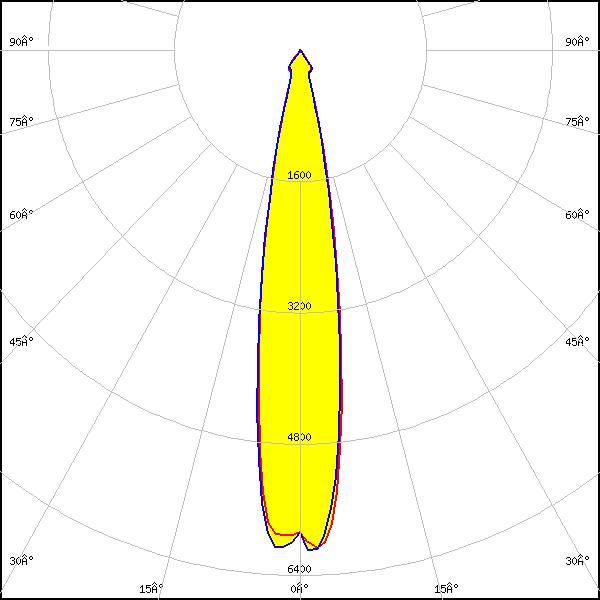

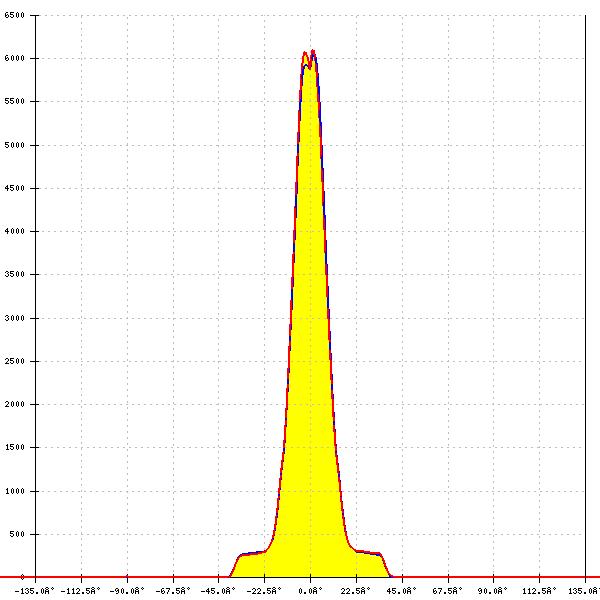

LED:
SST-20 Gen2
LES size: 0.0 mm
FWHM:
18° + 19°
FWTM:
34° + 34°
Peak intensity:
6.178 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NFMW48xA
LES size: 0.0 mm
FWHM:
29°
FWTM:
59°
Peak intensity:
3.000 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE SNC8 LES06
LES size: 6.0 mm
FWHM:
24°
FWTM:
54°
Peak intensity:
3.393 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 6 mm
LES size: 6.0 mm
FWHM:
24°
FWTM:
53°
Peak intensity:
3.482 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 9.8 mm
LES size: 9.8 mm
FWHM:
34°
FWTM:
66°
Peak intensity:
2.174 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
