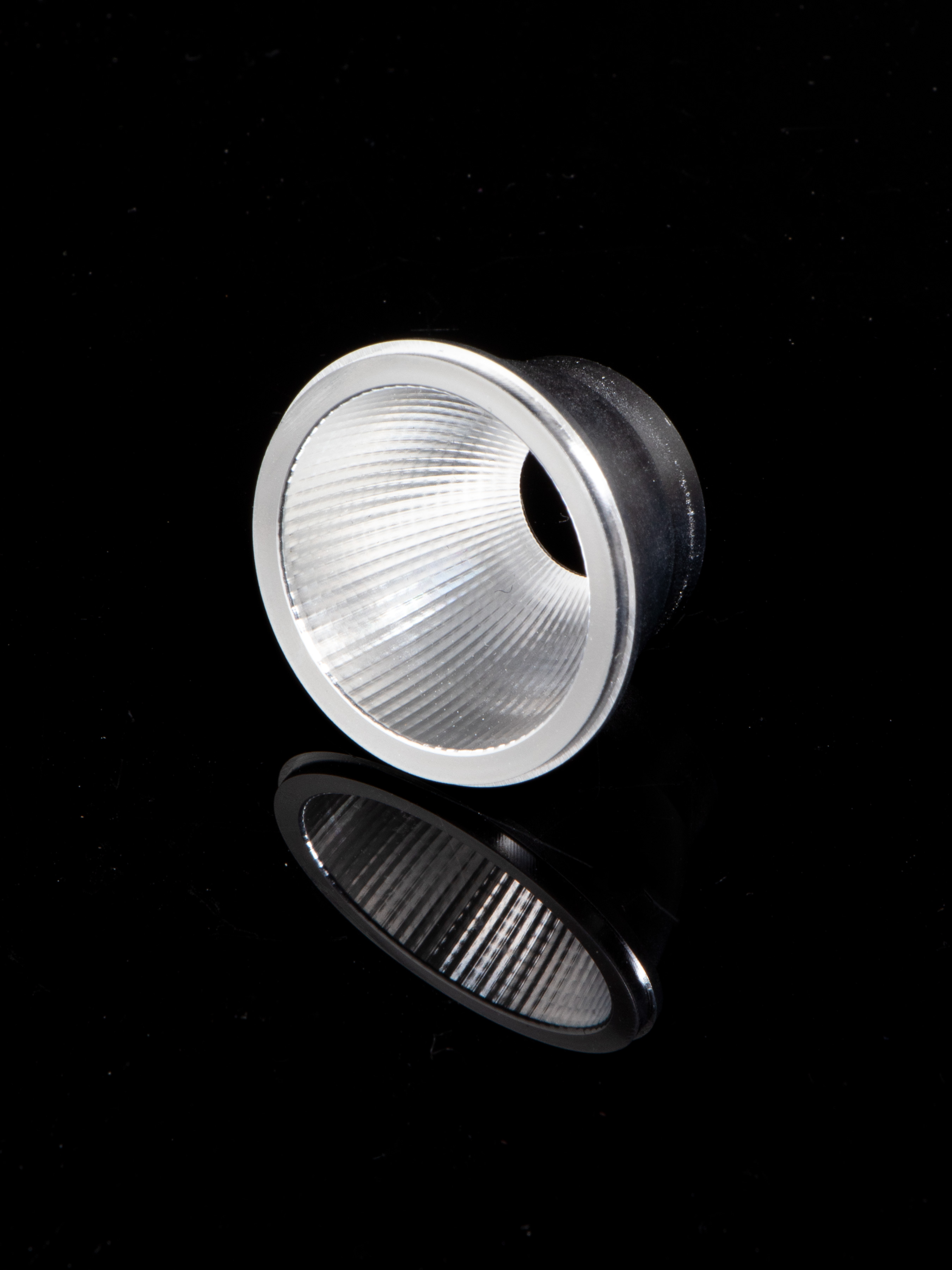

    C17248_ELLA-30-W

    Print

    ~38° wide beam

    Specification
    • Dimensions:
      30 mm
    • Height:
      17.20 mm
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1320 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.9 kg
    • MPQ:
      88 pcs
    • MOQ:
      264 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17248_ELLA-30-W
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New Products 2019-12-16

    News

    ELLA – a new family of compact reflectors for miniature luminaires

    Luminaire, example

    Track light luminaire with ELLA-30

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Optical results

    LED: V4 HD Gen 7
    LES size: 5.2 mm
    FWHM: 38°
    FWTM: 63°
    Peak intensity: 2.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 HD Gen 7
    LES size: 7.0 mm
    FWHM: 40°
    FWTM: 65°
    Peak intensity: 2.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen7
    LES size: 8.1 mm
    FWHM: 41°
    FWTM: 65°
    Peak intensity: 1.940 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7A2/7A3
    LES size: 4.2 mm
    FWHM: 36°
    FWTM: 64°
    Peak intensity: 2.196 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7B2
    LES size: 3.3 mm
    FWHM: 32°
    FWTM: 64°
    Peak intensity: 2.411 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1303
    LES size: 4.5 mm
    FWHM: 38°
    FWTM: 66°
    Peak intensity: 2.107 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 13xx
    LES size: 6.0 mm
    FWHM: 42°
    FWTM: 66°
    Peak intensity: 1.773 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    LES size: 8.9 mm
    FWHM: 48°
    FWTM: 70°
    Peak intensity: 1.525 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

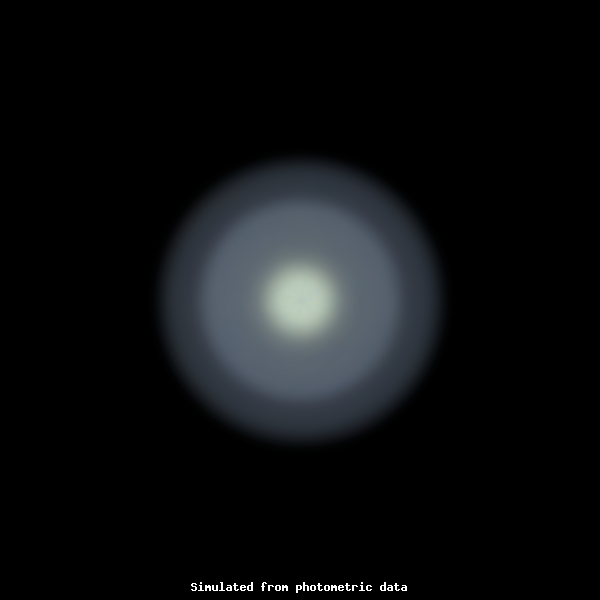

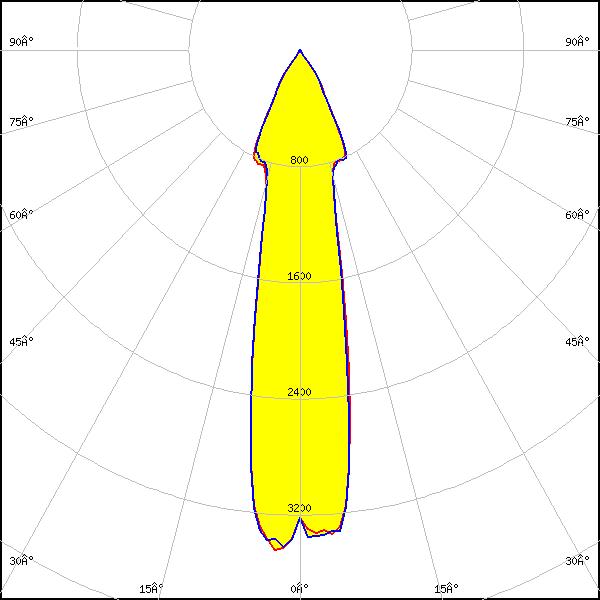

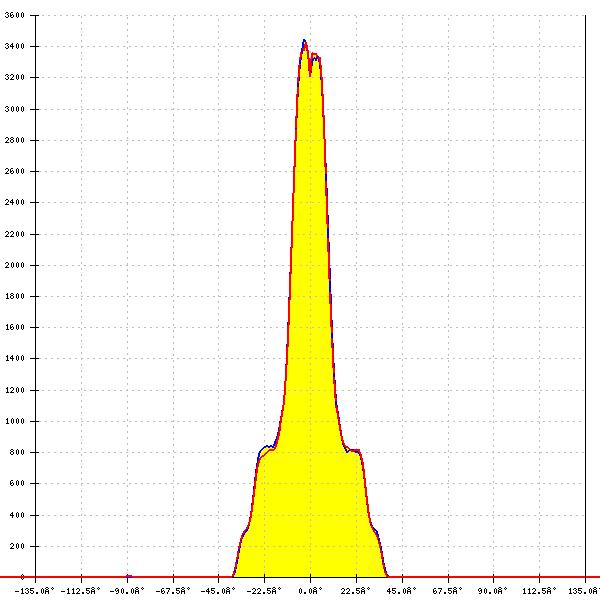

    LED: SST-12 Gen2
    LES size: 0.0 mm
    FWHM: 21° + 20°
    FWTM: 60° + 60°
    Peak intensity: 3.471 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

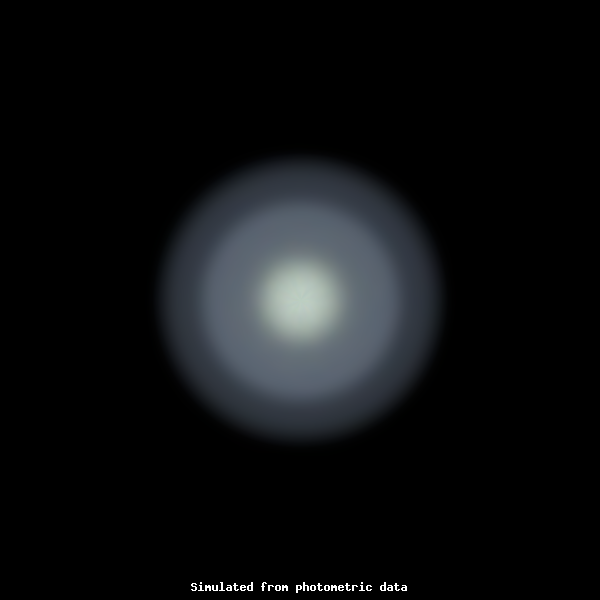

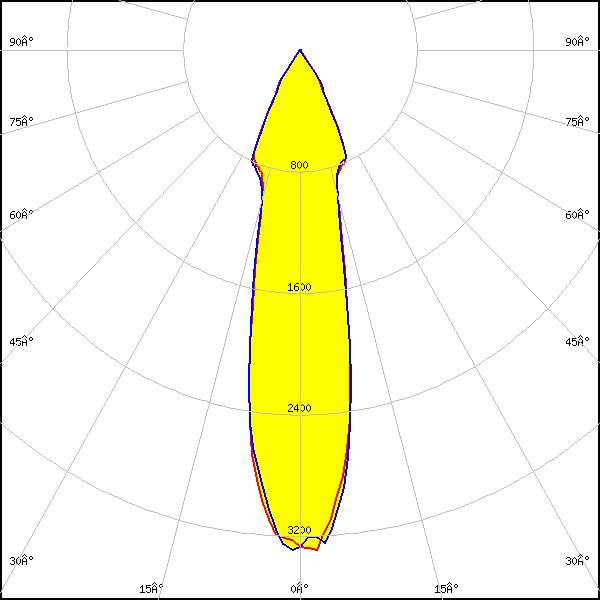

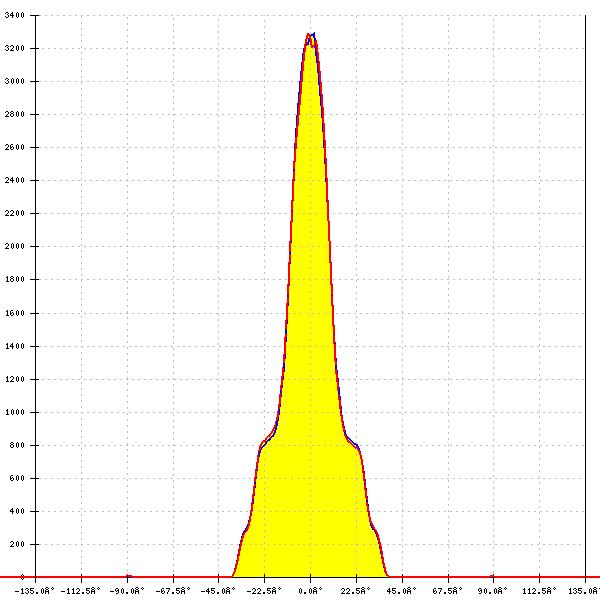

    LED: SST-20 Gen2
    LES size: 0.0 mm
    FWHM: 22°
    FWTM: 60°
    Peak intensity: 3.313 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE SNC8 LES06
    LES size: 6.0 mm
    FWHM: 38°
    FWTM: 65°
    Peak intensity: 1.920 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 6 mm
    LES size: 6.0 mm
    FWHM: 42°
    FWTM: 66°
    Peak intensity: 1.808 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 9.8 mm
    LES size: 9.8 mm
    FWHM: 47°
    FWTM: 70°
    Peak intensity: 1.480 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
