LUMINAIRE EXAMPLE
LINDA
Seamless continuous row luminaires with great colour and surface uniformity
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
LINDA-Z2T25 example luminaire
SETUP:
| Luminaire length: | 1150 mm (1 lenses) |
| Beams: | WWW, WW, W60, O, ZT25, Z2T25, UP |
| LEDs: | 5630 Mid-power |
| Number of LEDs: | 132 pcs |
| Output: | 4100 lm (after optic) |
| Luminaire power: | 26 W |
| Luminaire efficiency: | 150 lm/W |

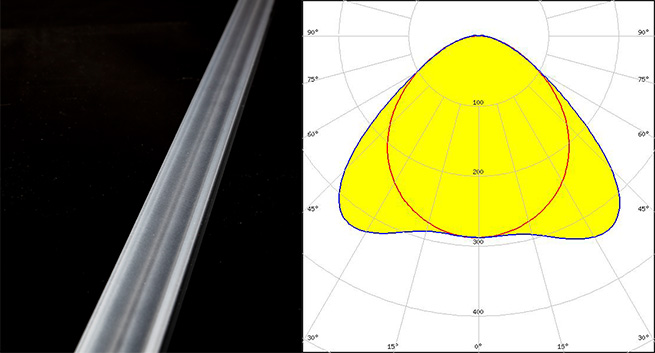

| F16747_LINDA-WWW | ||
| F16749_LINDA-WW | ||

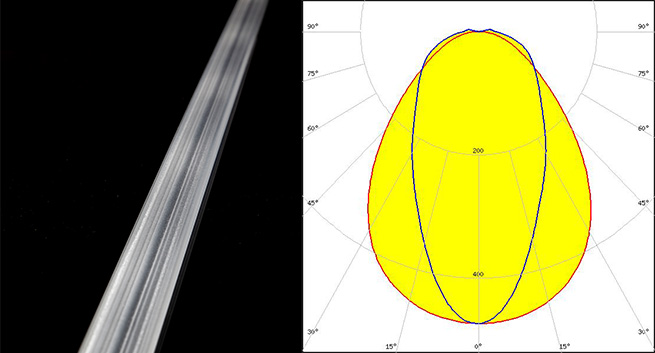

| F16636_LINDA-W60 | ||

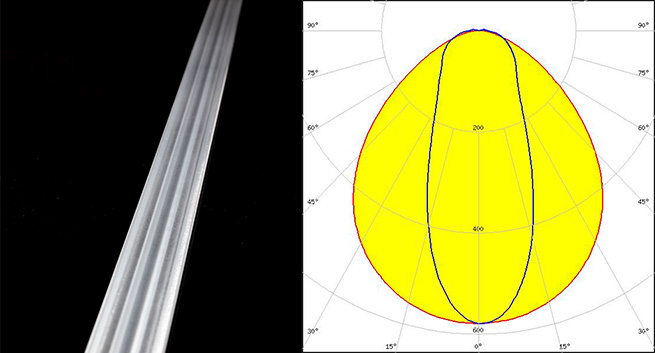

| F16748_LINDA-O | ||

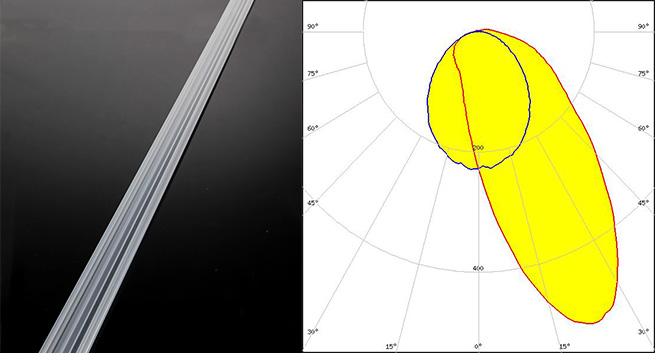

| F16859_LINDA-ZT25 | ||

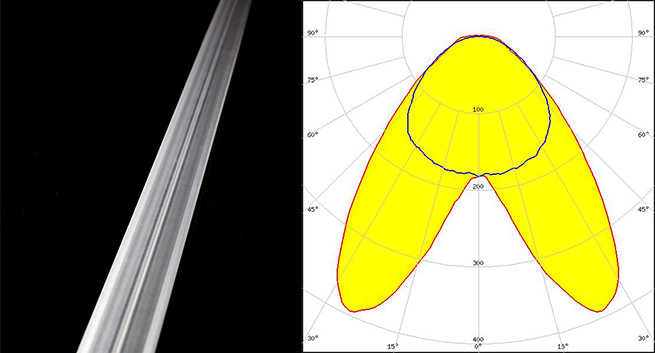

| F16858_LINDA-Z2T25 | ||

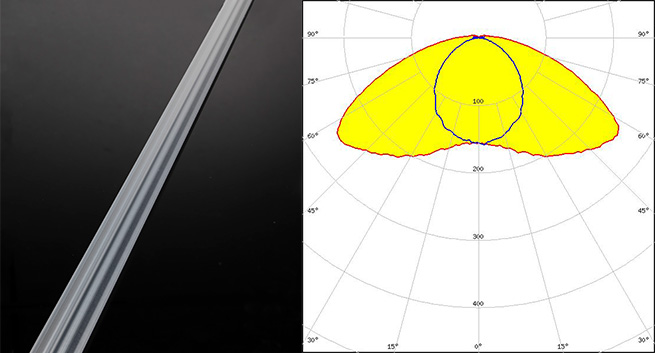

| F16860_LINDA-UP |
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
