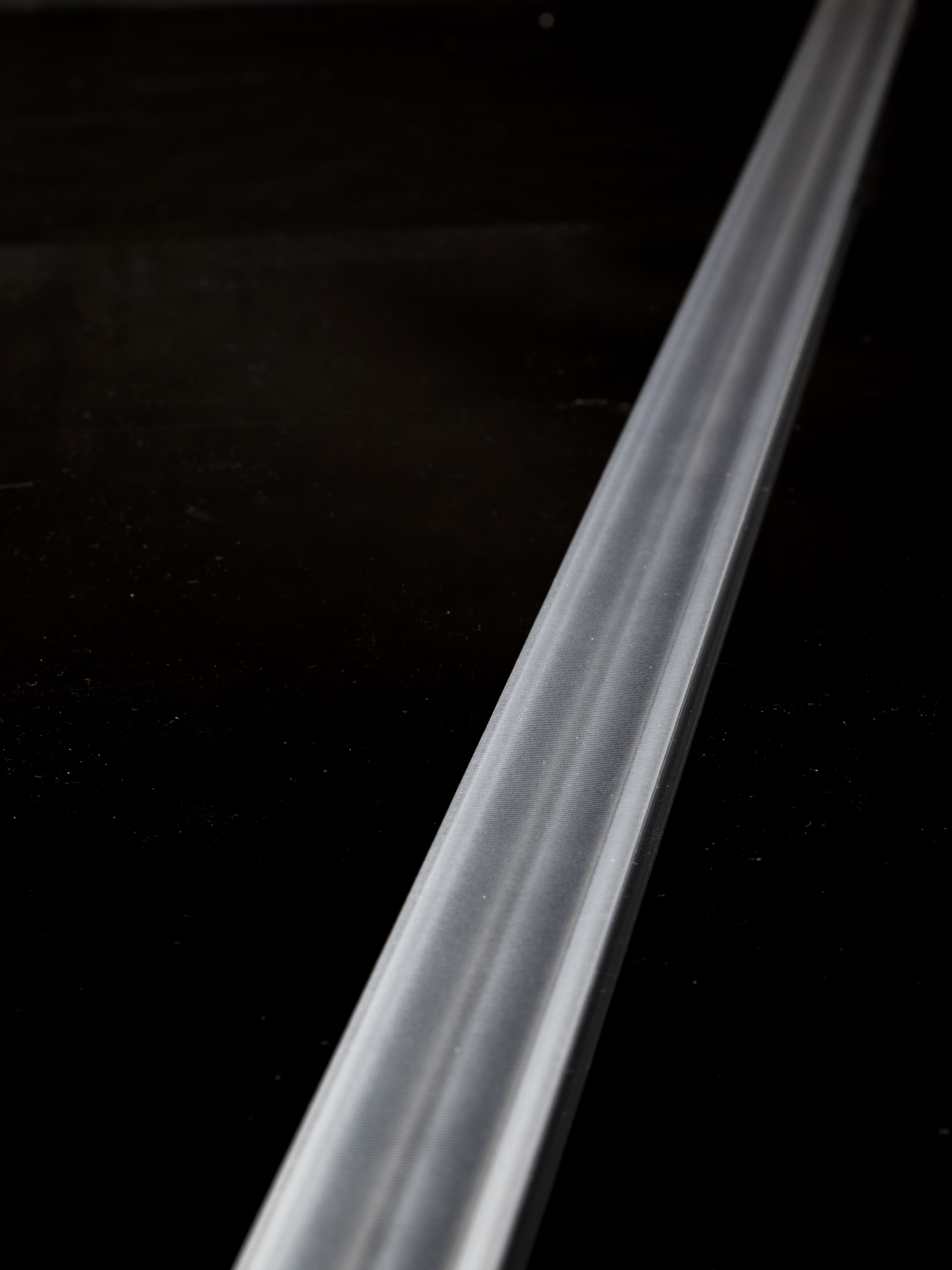

    F16747_LINDA-WWW

    Print

    ~110° + 100° wide beam

    Specification
    • Dimensions:
      26 x  1140 mm
    • Height:
      6.34 mm
    • Colour:
      milky
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      130 pcs
    • Box size:
      1185 x 150 x 115 mm
    • Box weight:
      11.4 kg
    • MPQ:
      130 pcs
    • MOQ:
      130 pcs
    • MOQ size:
      1185 x 150 x 115 mm
    • MOQ weight:
      11.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F16747_LINDA-WWW

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Other variants: F17127_LINDA-WWW-48in (North American 48 inch length)
    F17315_LINDA-WWW-3m (3.01 m length) and other custom lengths available

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LINDA is an industry first linear extrusion lens with accurate optical control in the longitudinal axis

    PCN

    Product change notification NR181 – Material change in the Linda product family

    PCN

    Product change notification NR167 - Change of mechanical design in LINDA-W60 and LINDA-WWW

    Luminaire, example

    Linear luminaire with LINDA

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    LEDiL guide for retail lighting optics

    Application guide

    LEDiL guide for office lighting optics

    News

    LINDA-40 – versatile 40 mm free pitch extrusion

    Case story

    Badia di Pomaio resort

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    New Products 2019-11-07

    News

    Effective fashion retail lighting

    Application example

    Retail lighting with LINDA and ELISE (low contrast)

    Article

    Illuminating supermarkets with LEDiL optics

    Application example

    Supermarket lighting with LINDA and ALISE

    News

    LINDA industrial scale extrusion optic for precise retail lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Optical results

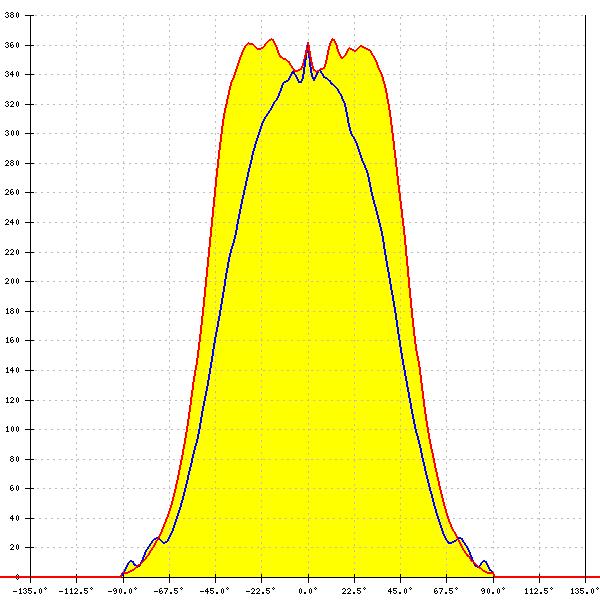

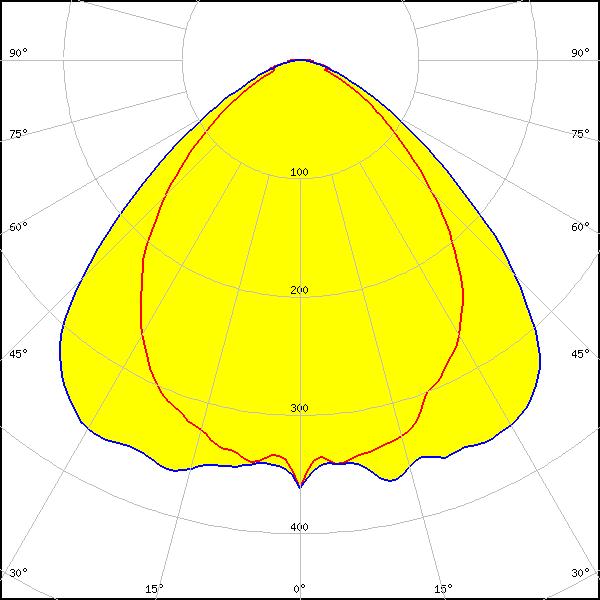

    LED: Bridgelux SMD 5050
    FWHM: 84° + 102°
    FWTM: 130° + 140°
    Peak intensity: 0.364 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

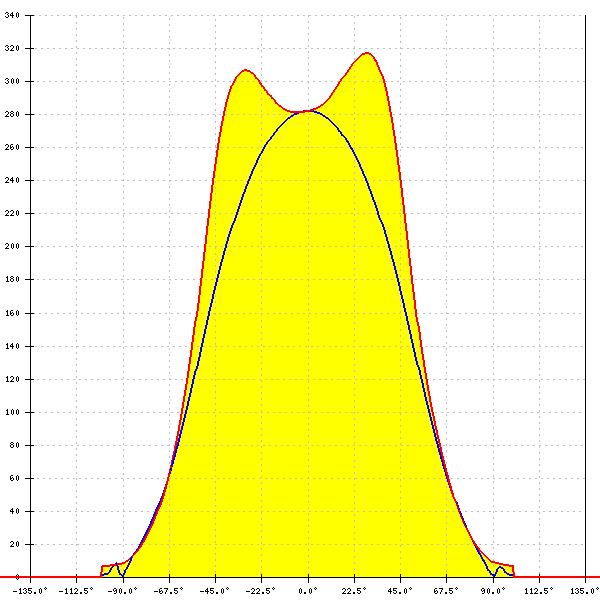

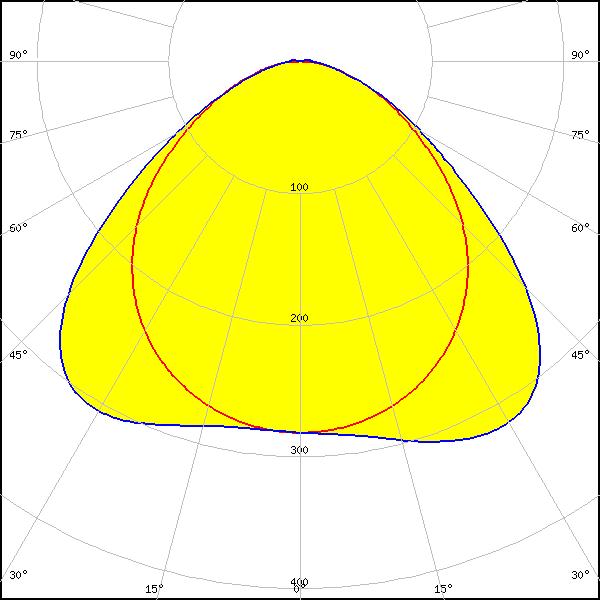

    LED: CLUC11
    FWHM: 103° + 107°
    FWTM: 156° + 152°
    Peak intensity: 0.317 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

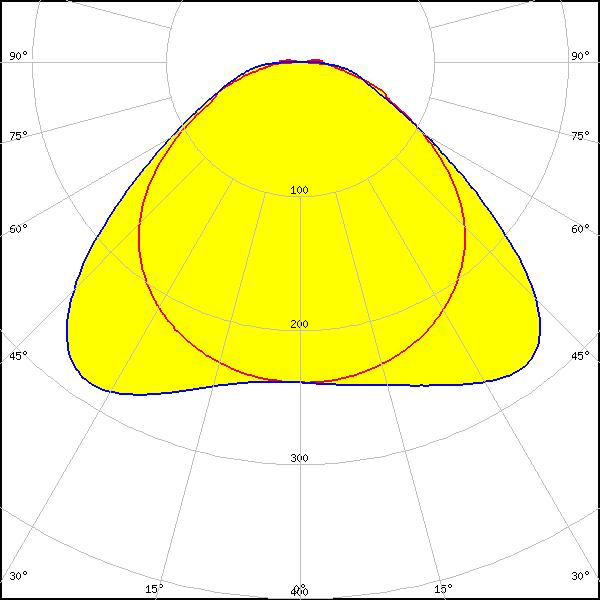

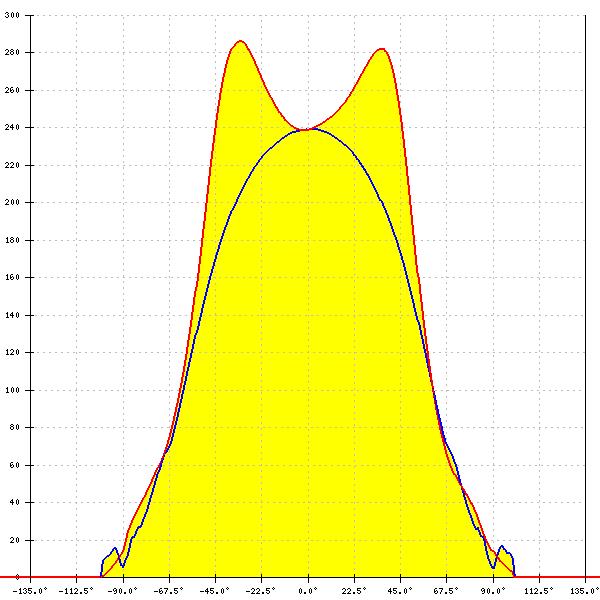

    LED: XP-G3
    FWHM: 114° + 117°
    FWTM: 167° + 173°
    Peak intensity: 0.286 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

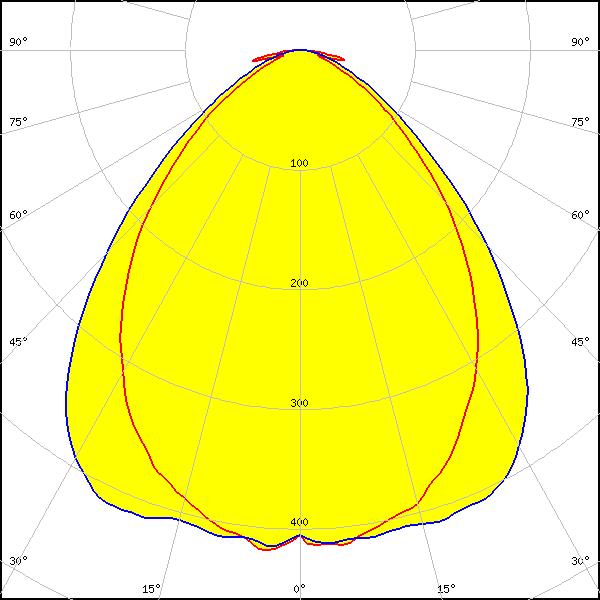

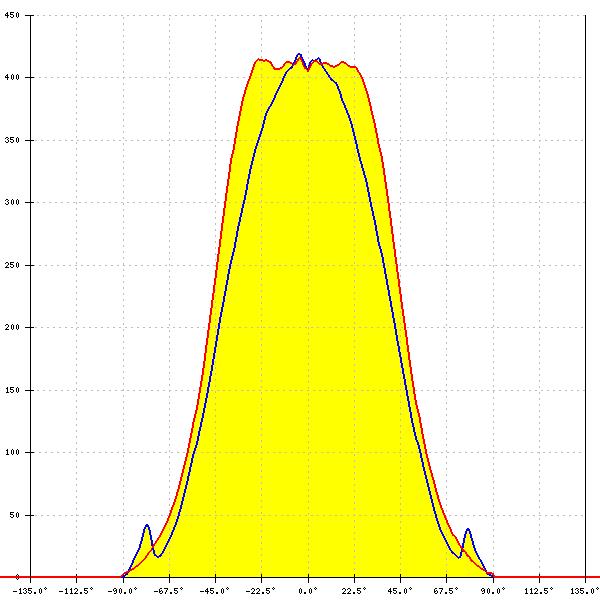

    LED: LUXEON CSP HL1
    FWHM: 84° + 94°
    FWTM: 142° + 138°
    Peak intensity: 0.425 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 5
    Light colour/type: White

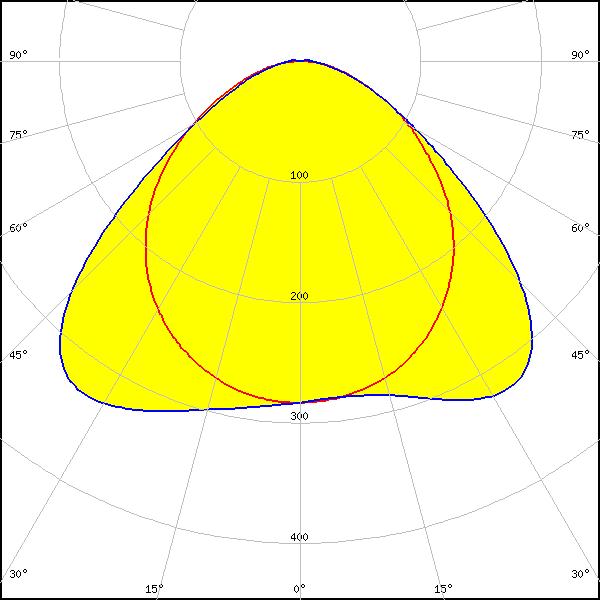

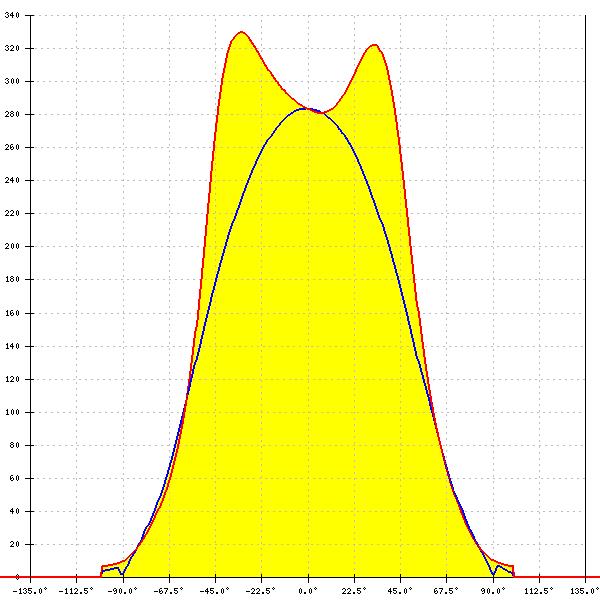

    LED: NF2W757G-MT (Tunable White)
    FWHM: 104° + 106°
    FWTM: 158° + 152°
    Peak intensity: 0.330 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

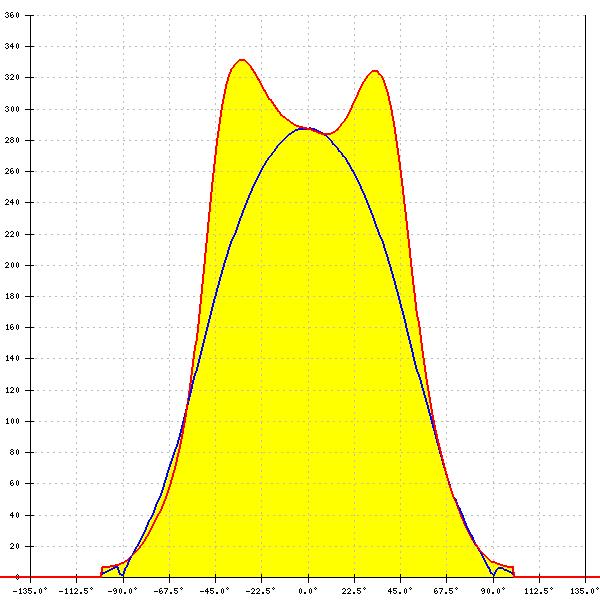

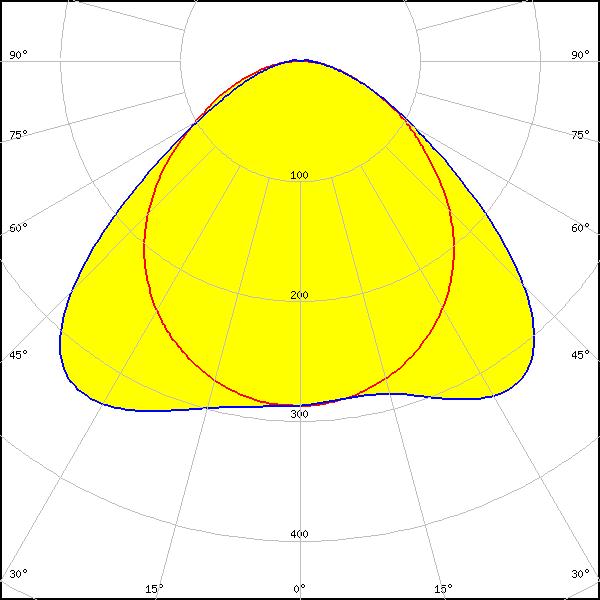

    LED: NFSW757H
    FWHM: 103° + 105°
    FWTM: 158° + 151°
    Peak intensity: 0.331 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

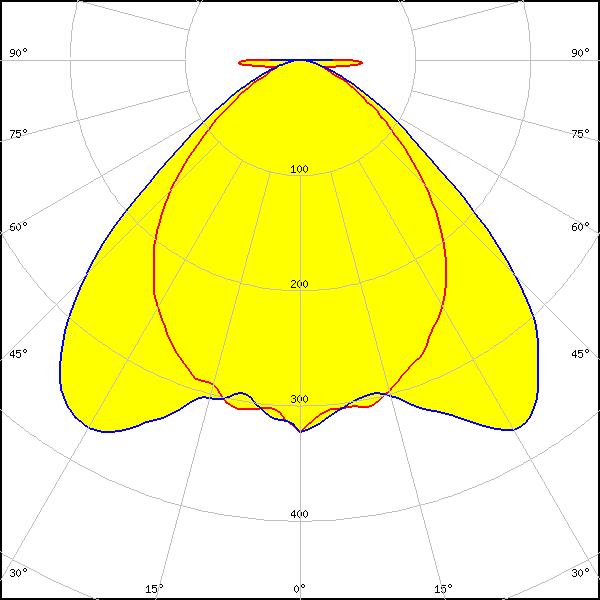

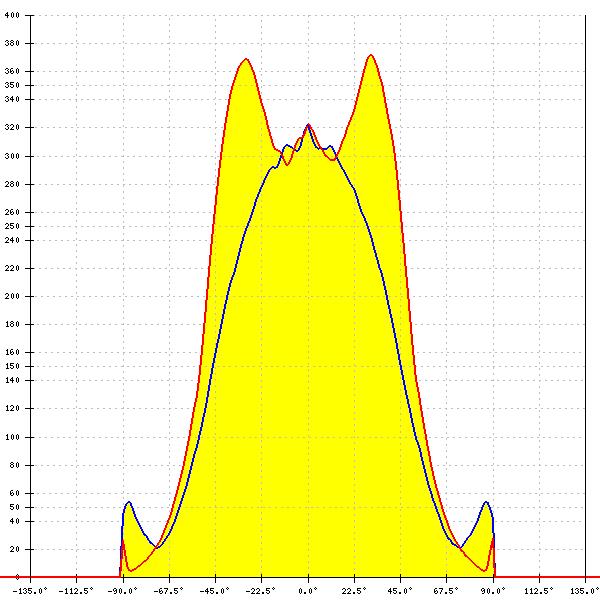

    LED: NFSWE11A
    FWHM: 89° + 100°
    FWTM: 180° + 138°
    Peak intensity: 0.373 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

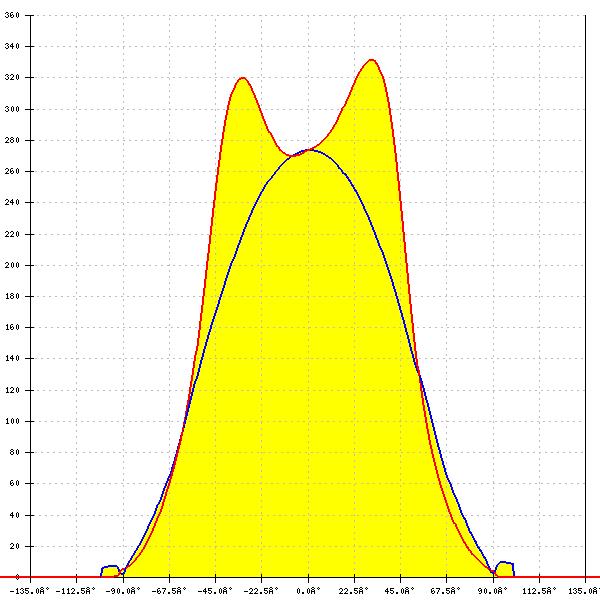

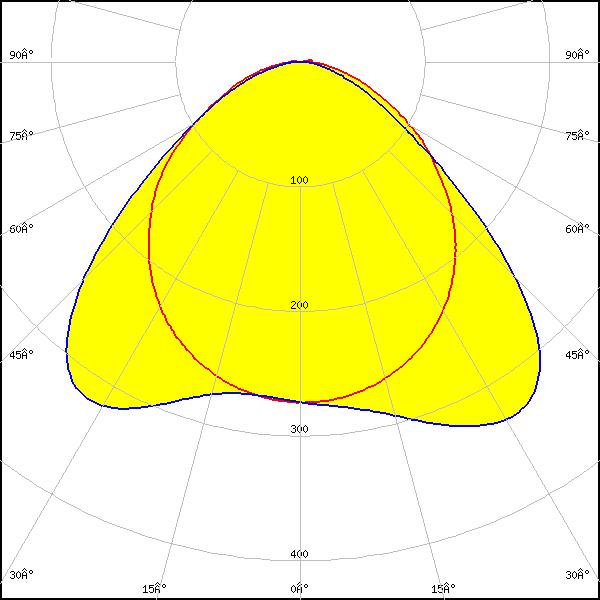

    LED: PL-LIN-Z5 1100 280x20
    FWHM: 105° + 103°
    FWTM: 159° + 146°
    Peak intensity: 0.331 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

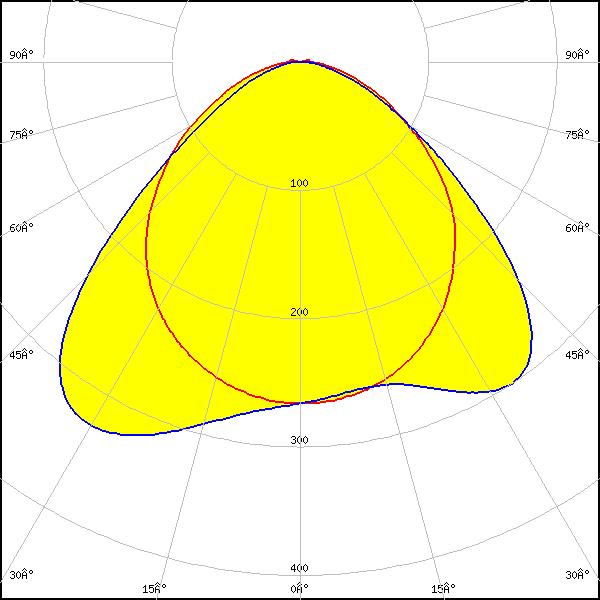

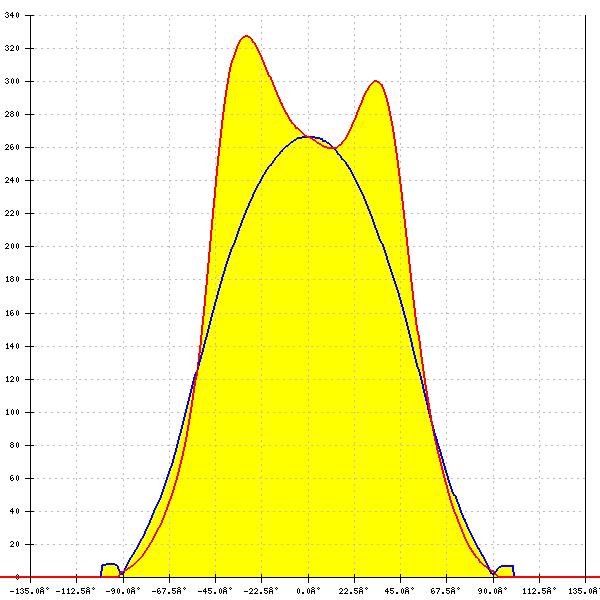

    LED: PL-LIN-Z5 2000 280x20
    FWHM: 105° + 103°
    FWTM: 159° + 145°
    Peak intensity: 0.327 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

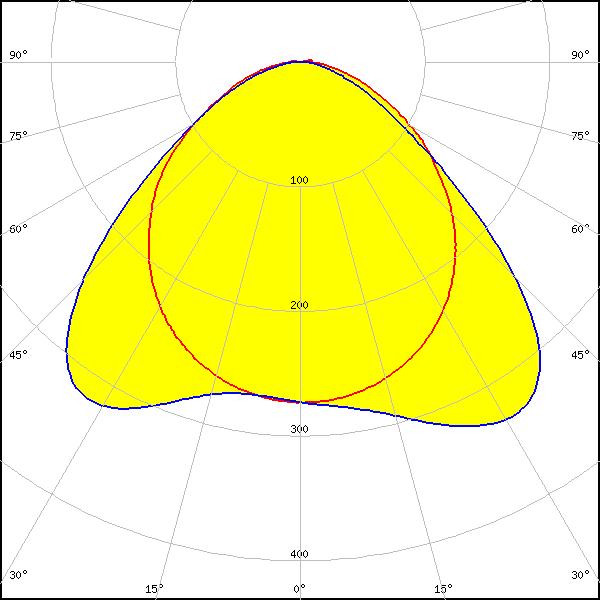

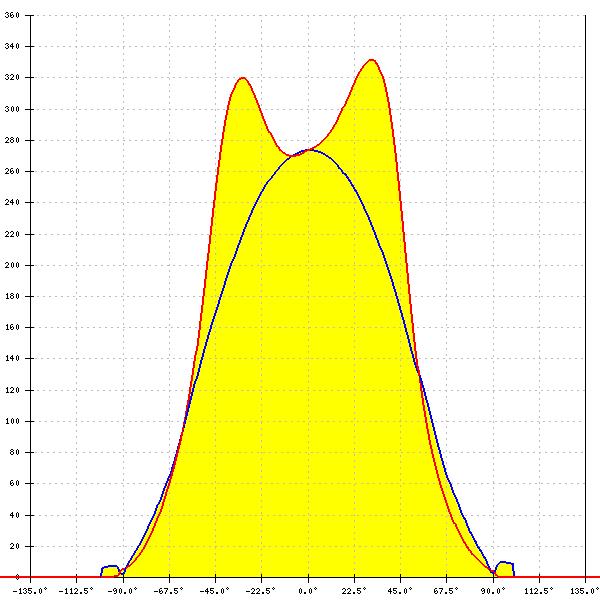

    LED: Duris E 2835
    FWHM: 105° + 103°
    FWTM: 159° + 145°
    Peak intensity: 0.327 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    FWHM: 105° + 103°
    FWTM: 159° + 146°
    Peak intensity: 0.331 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    FWHM: 104° + 106°
    FWTM: 159° + 152°
    Peak intensity: 0.332 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3030
    FWHM: 92° + 97°
    FWTM: 180° + 135°
    Peak intensity: 0.233 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Hyper Red

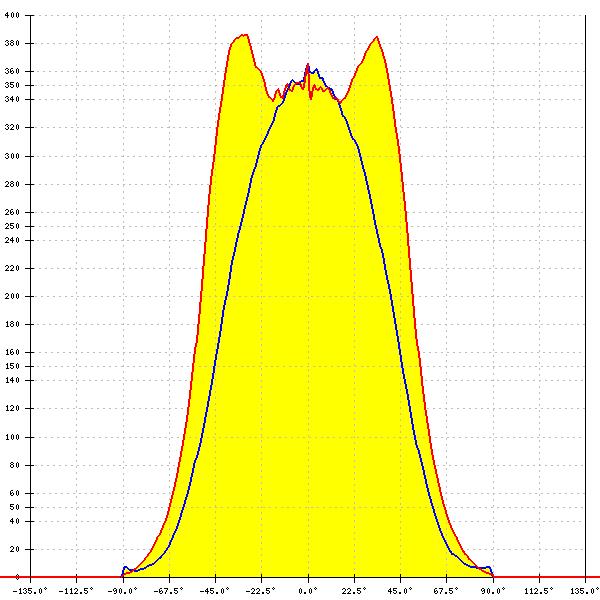

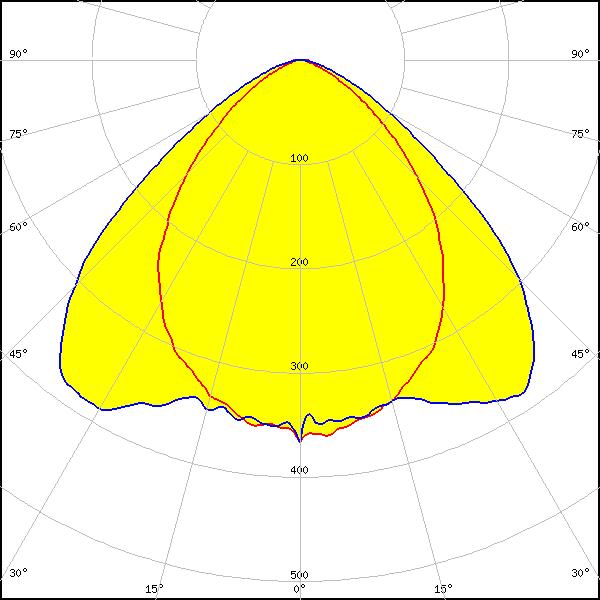

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 84° + 104°
    FWTM: 128° + 139°
    Peak intensity: 0.387 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

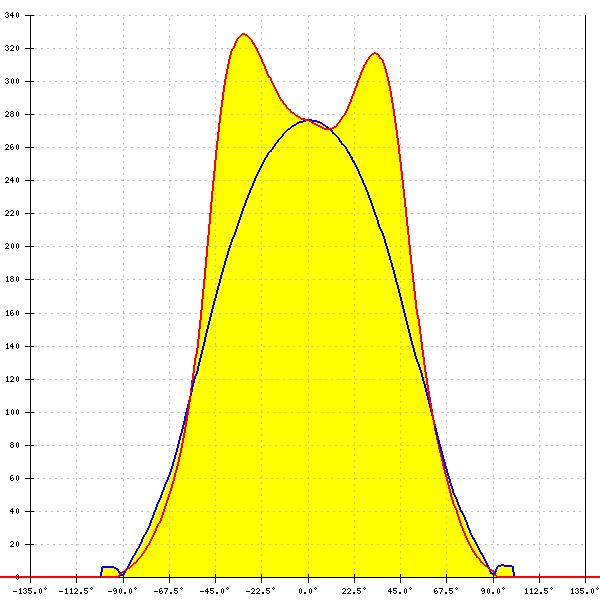

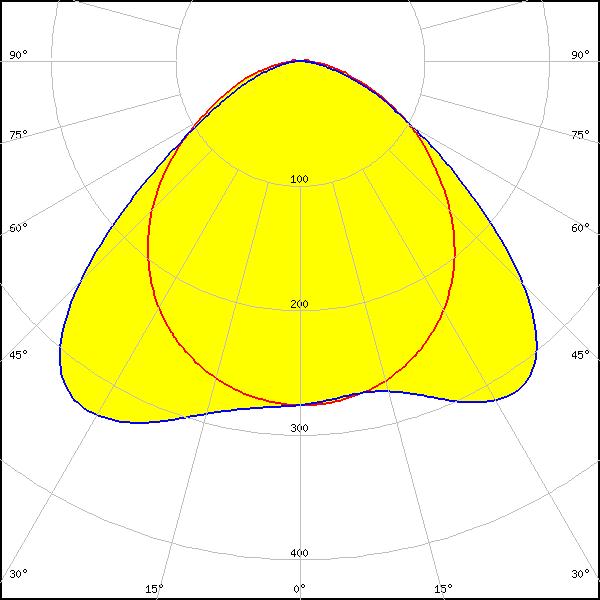

    LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
    FWHM: 103° + 105°
    FWTM: 157° + 147°
    Peak intensity: 0.328 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
    FWHM: 105° + 108°
    FWTM: 159° + 157°
    Peak intensity: 0.319 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

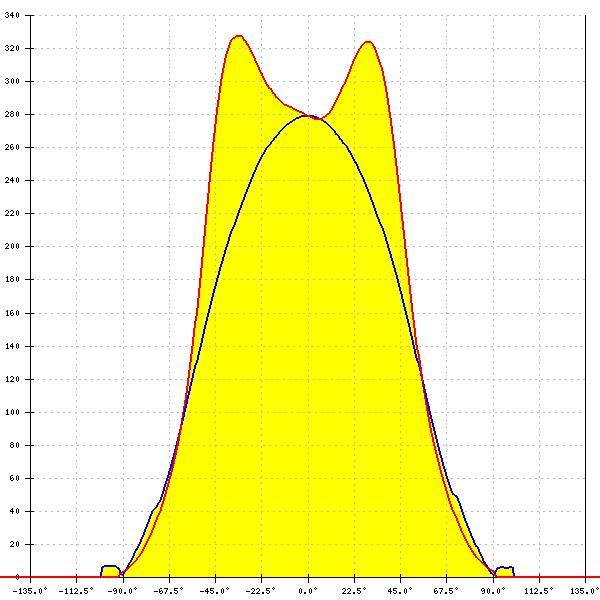

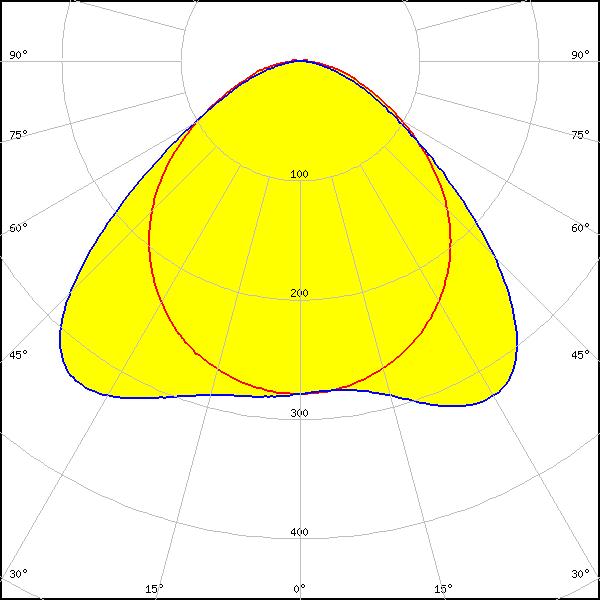

    LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
    FWHM: 104°
    FWTM: 158°
    Peak intensity: 0.328 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
    FWHM: 104° + 107°
    FWTM: 159° + 156°
    Peak intensity: 0.324 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

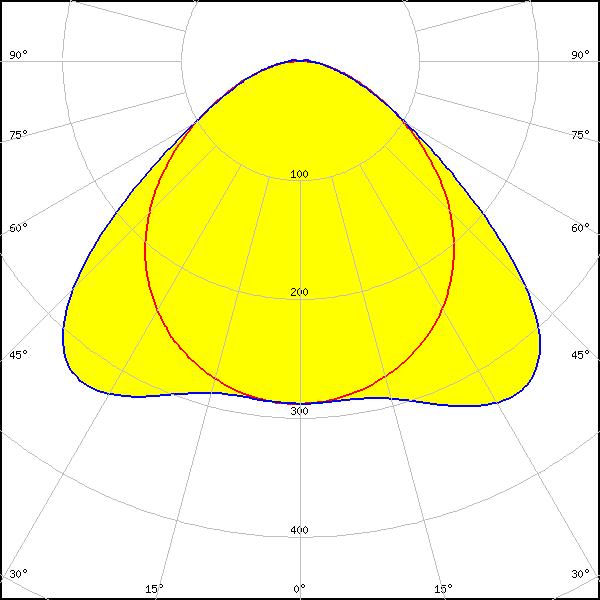

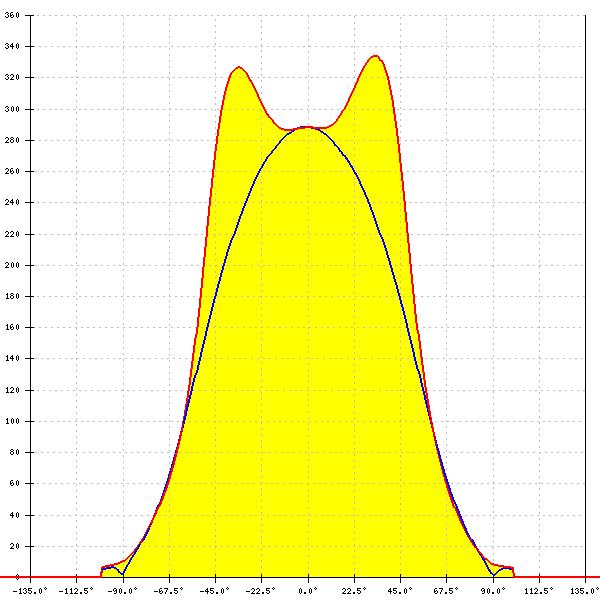

    LED: LM28xB Series
    FWHM: 110° + 103°
    FWTM: 155° + 155°
    Peak intensity: 0.330 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

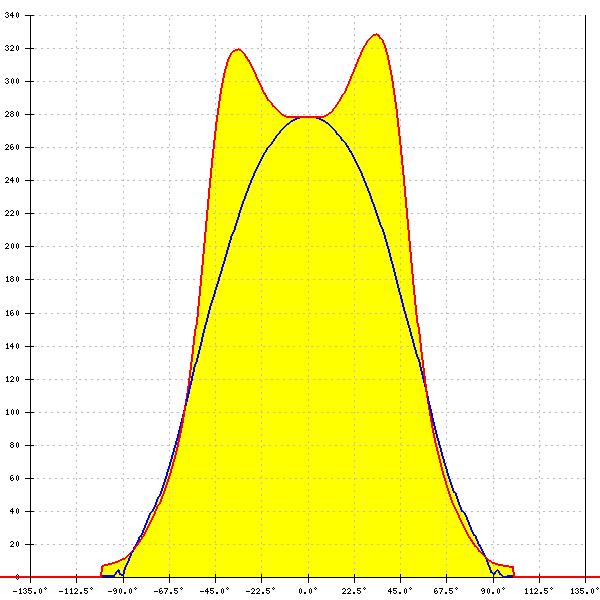

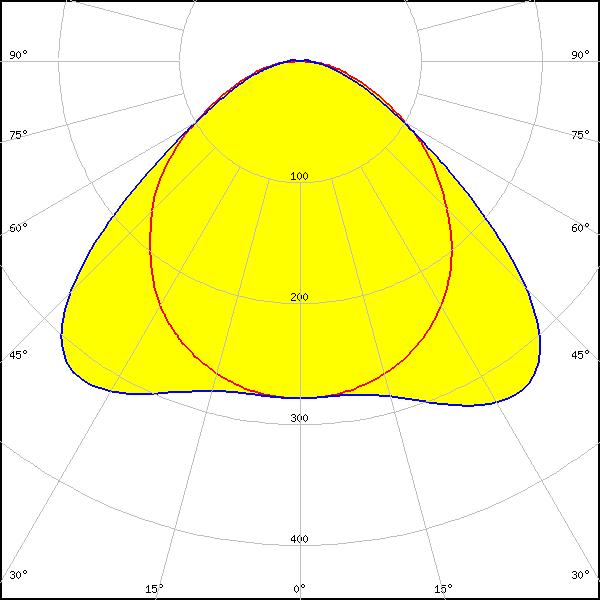

    LED: LM301B
    FWHM: 105° + 110°
    FWTM: 160° + 155°
    Peak intensity: 0.328 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

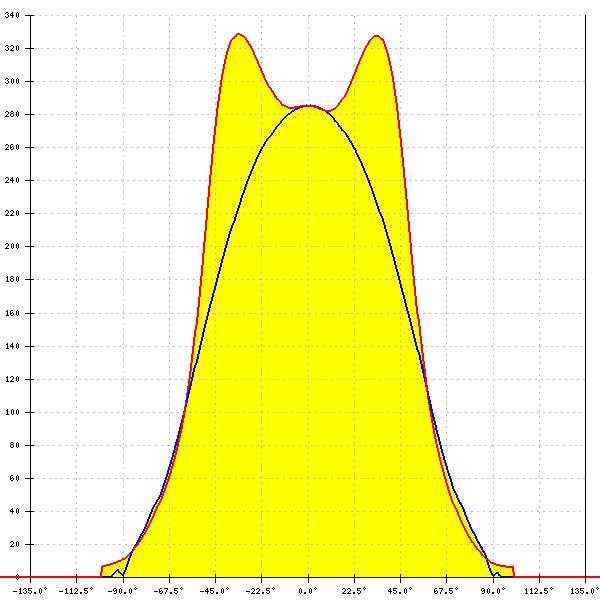

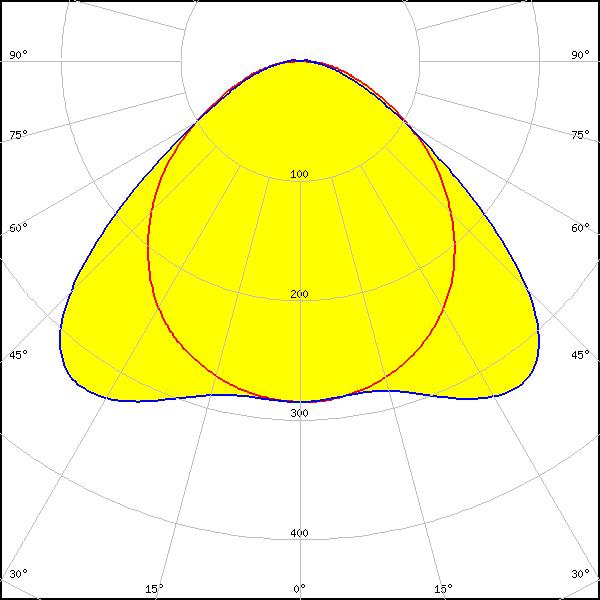

    LED: LM561C
    FWHM: 110° + 105°
    FWTM: 155° + 159°
    Peak intensity: 0.330 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

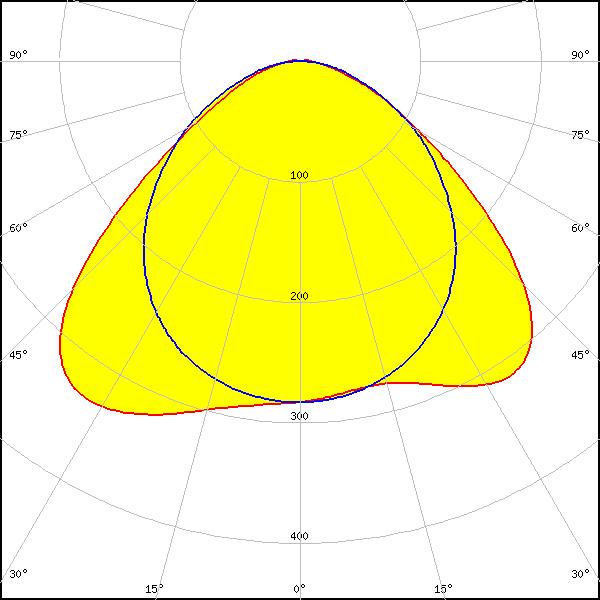

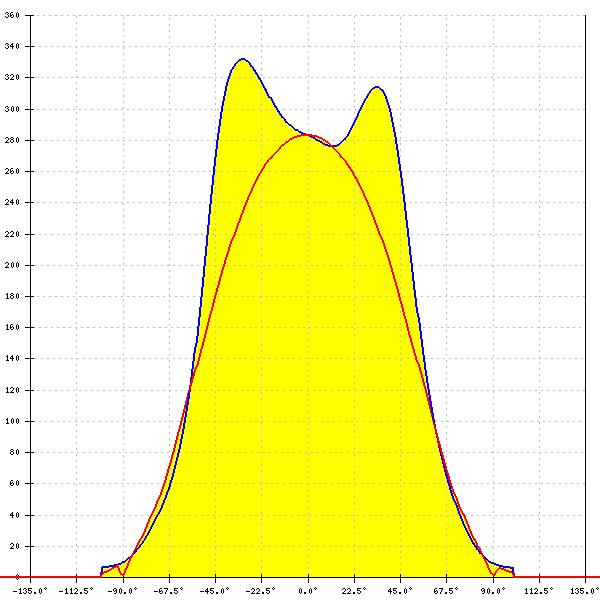

    LED: LT-H282C
    FWHM: 107° + 105°
    FWTM: 151° + 159°
    Peak intensity: 0.332 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

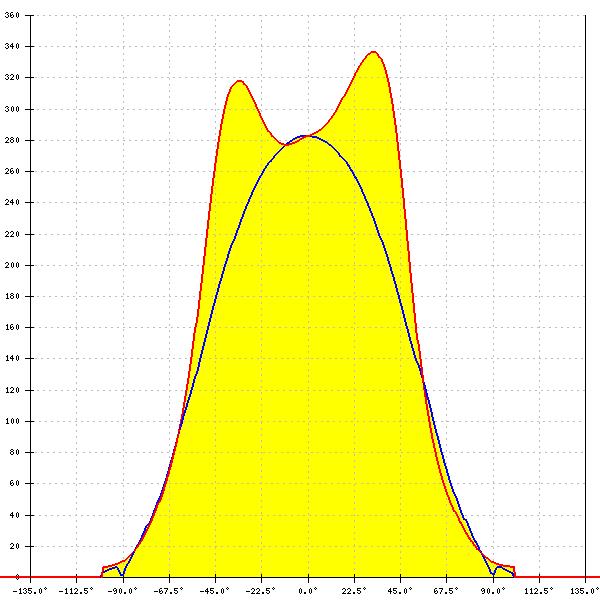

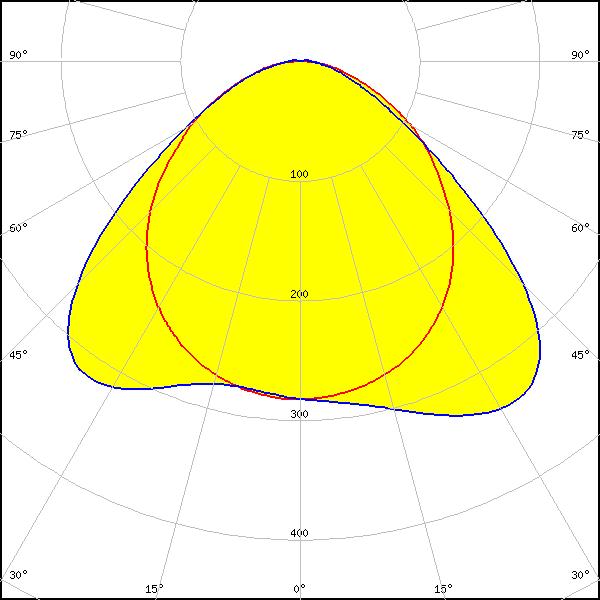

    LED: LT-Q282B
    FWHM: 104° + 106°
    FWTM: 159° + 151°
    Peak intensity: 0.336 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

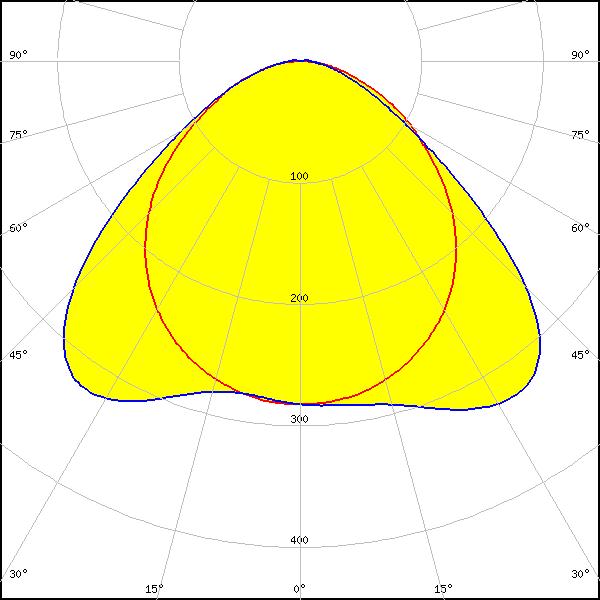

    LED: LT-S282H
    FWHM: 104° + 107°
    FWTM: 158° + 152°
    Peak intensity: 0.327 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

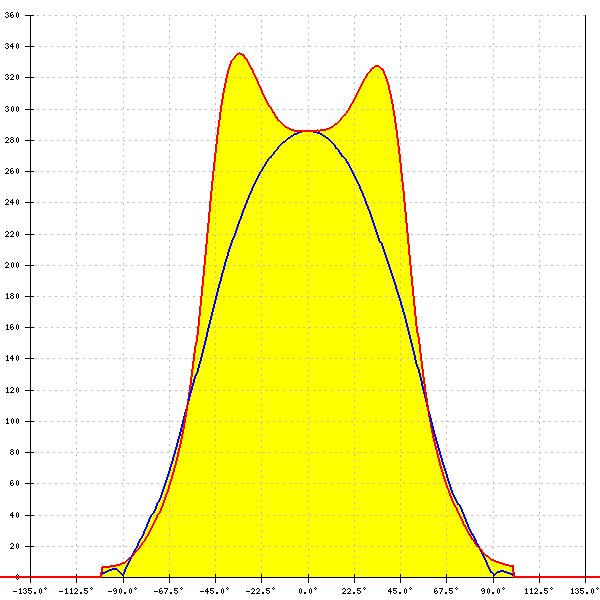

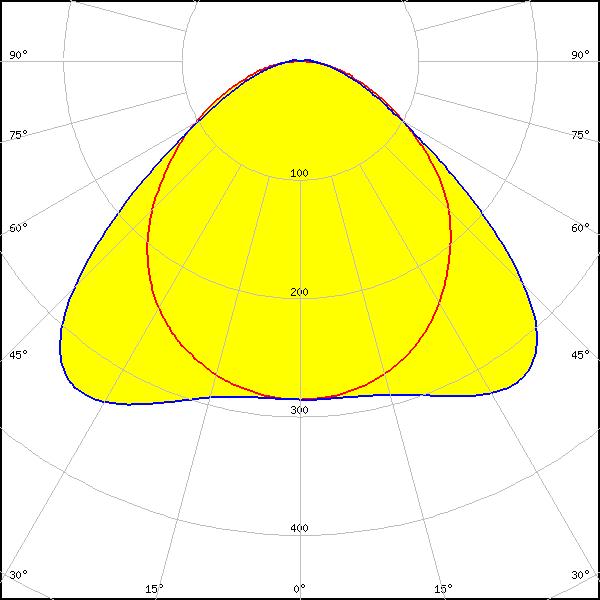

    LED: SEOUL DC 3528
    FWHM: 104° + 110°
    FWTM: 159° + 155°
    Peak intensity: 0.340 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

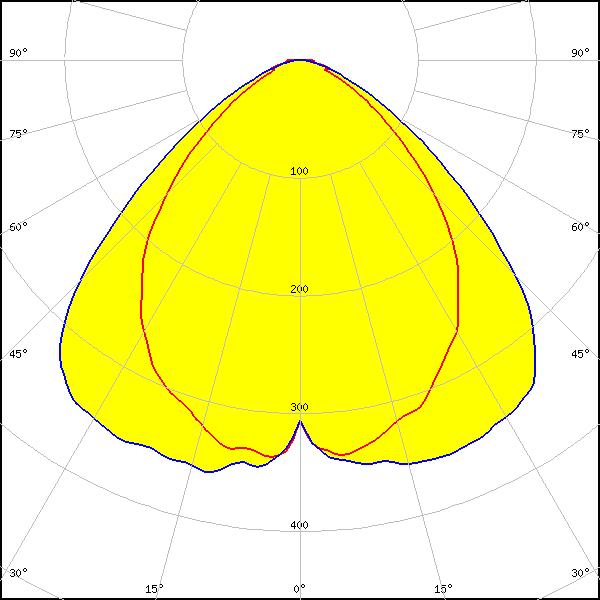

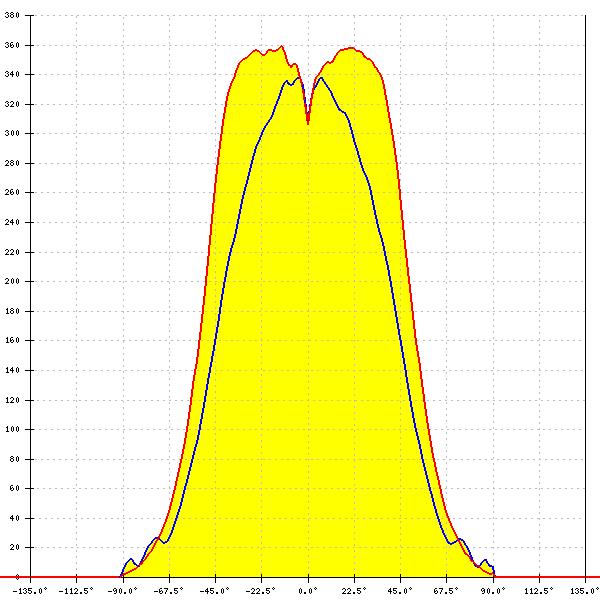

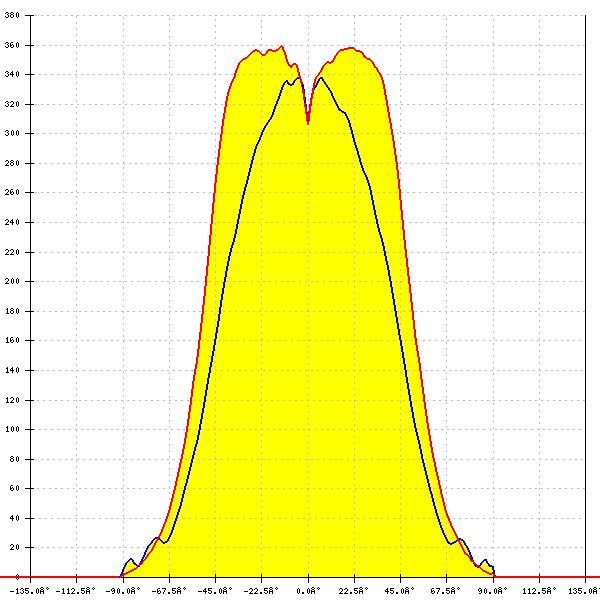

    LED: SEOUL DC 5050 6V
    FWHM: 88° + 102°
    FWTM: 130° + 140°
    Peak intensity: 0.362 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

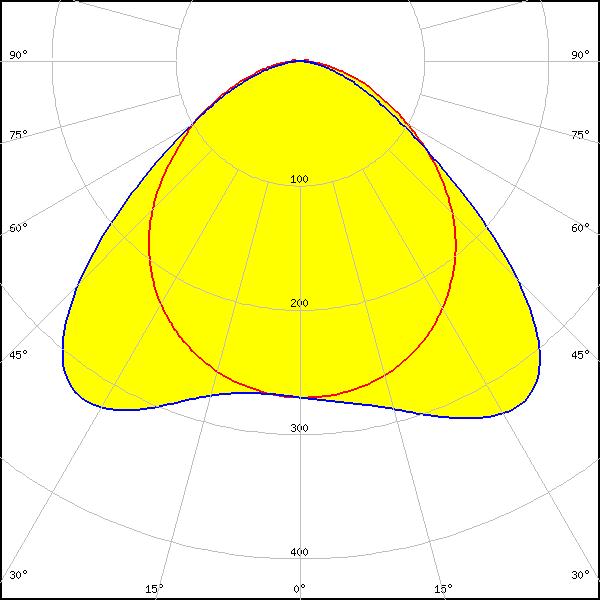

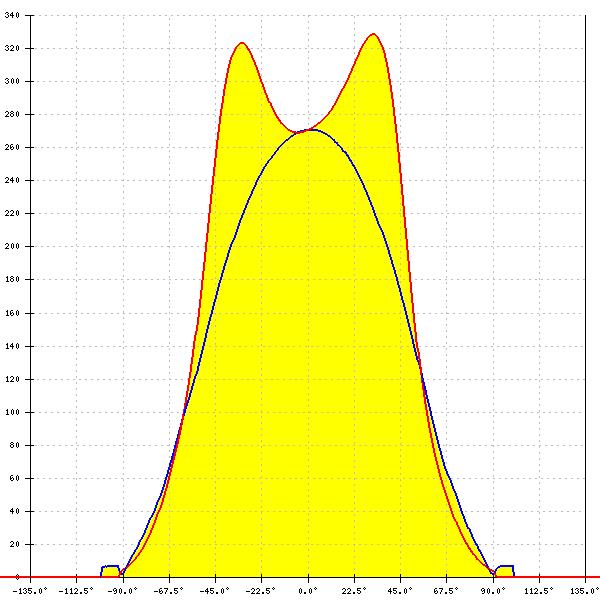

    LED: LLE 24x280mm 1250lm HV ADV5
    FWHM: 104°
    FWTM: 159°
    Peak intensity: 0.328 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

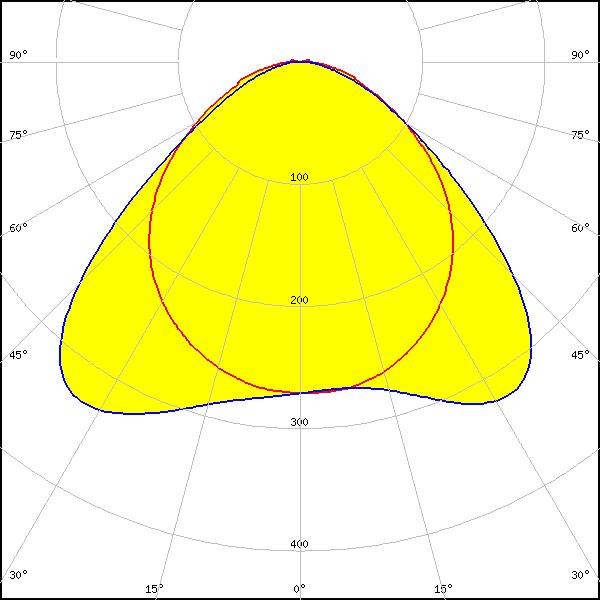

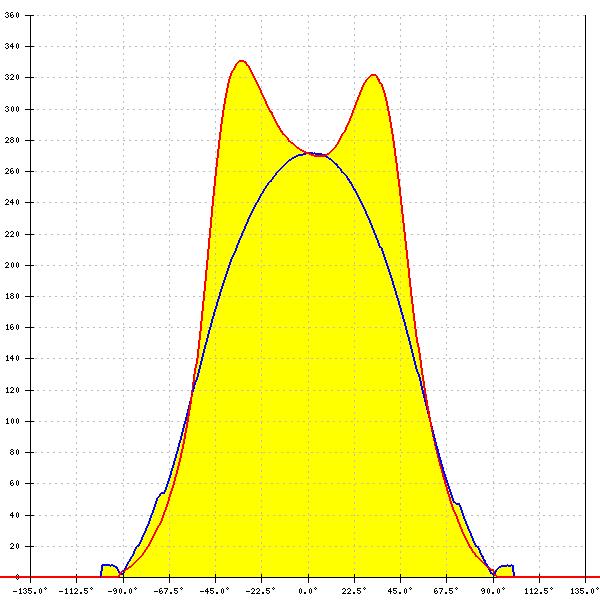

    LED: LLE 24x280mm 650lm HV ADV5
    FWHM: 106° + 104°
    FWTM: 159° + 147°
    Peak intensity: 0.331 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE FLEX CC 14mm 1250lm ADV1
    FWHM: 103° + 106°
    FWTM: 160° + 151°
    Peak intensity: 0.333 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
