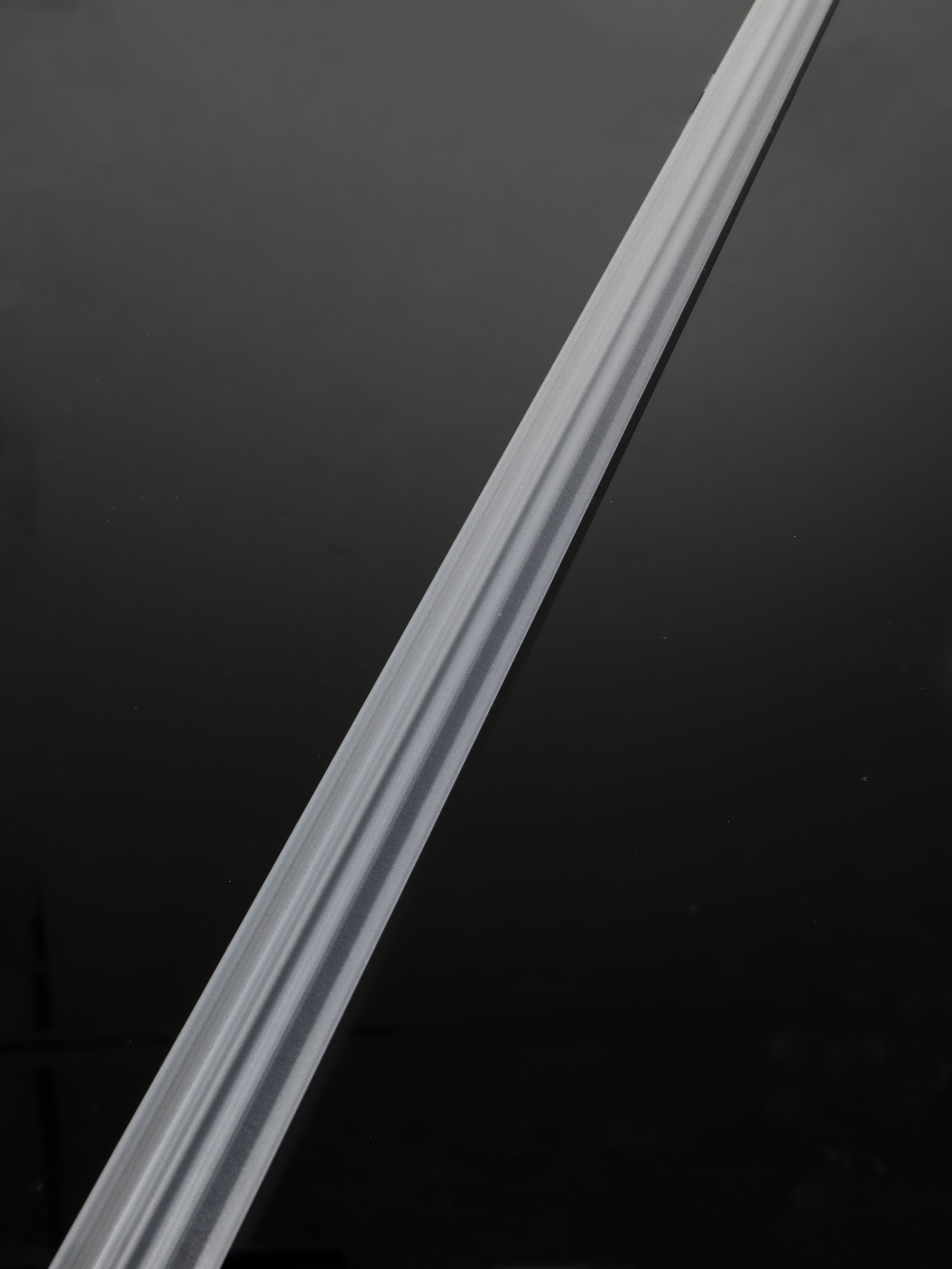

    F16860_LINDA-UP

    Print

    ~145° + 100° extra wide beam for uplighting

    Specification
    • Dimensions:
      26 x  1140 mm
    • Height:
      7.80 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      100 pcs
    • Box size:
      1200x160x120 mm
    • Box weight:
      12.6 kg
    • MPQ:
      100 pcs
    • MOQ:
      100 pcs
    • MOQ size:
      1200x160x120 mm
    • MOQ weight:
      12.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F16860_LINDA-UP
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LINDA is an industry first linear extrusion lens with accurate optical control in the longitudinal axis

    Application guide

    Guide for Office Lighting Optics

    Application example

    Office lighting with BRIANNA-28X1-WW and LINDA-UP

    PCN

    Product change notification NR181 – Material change in the Linda product family

    Luminaire, example

    Linear luminaire with LINDA

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    LEDiL Guide for Retail Lighting Optics

    News

    LINDA-40 – versatile 40 mm free pitch extrusion

    Case story

    Badia di Pomaio resort

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    New Products 2019-11-07

    News

    Effective fashion retail lighting

    Application example

    Retail lighting with LINDA and ELISE (low contrast)

    Article

    Illuminating supermarkets with LEDiL optics

    Application example

    Supermarket lighting with LINDA and ALISE

    News

    LINDA industrial scale extrusion optic for precise retail lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Optical results

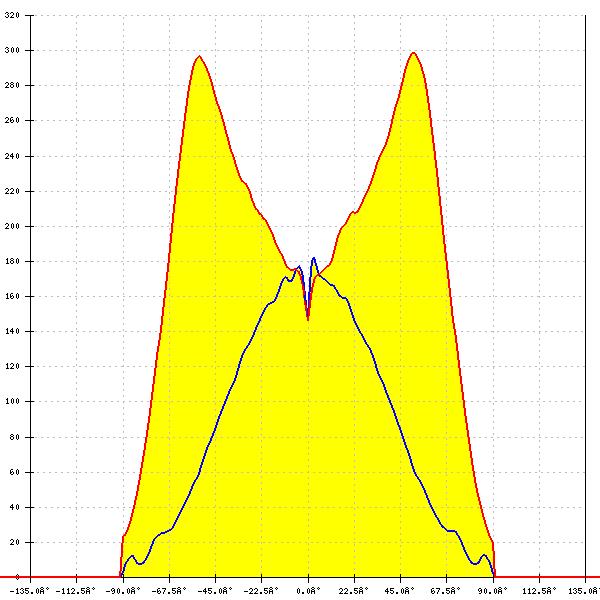

    LED: Bridgelux SMD 5050
    FWHM: asymmetric
    Peak intensity: 0.298 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLUC11
    FWHM: asymmetric
    Peak intensity: 0.280 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.234 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PL-LIN-Z5 1100 280x20
    FWHM: asymmetric
    Peak intensity: 0.263 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PL-LIN-Z5 2000 280x20
    FWHM: asymmetric
    Peak intensity: 0.266 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.261 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CSP HL1
    FWHM: 93° + 135°
    FWTM: 163° + 167°
    Peak intensity: 0.425 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 5
    Light colour/type: White
    LED: NF2W757G-MT (Tunable White)
    FWHM: asymmetric
    Peak intensity: 0.263 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NFSW757H
    FWHM: asymmetric
    Peak intensity: 0.266 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSWE11A
    FWHM: asymmetric
    Peak intensity: 0.331 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.266 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.263 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.267 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

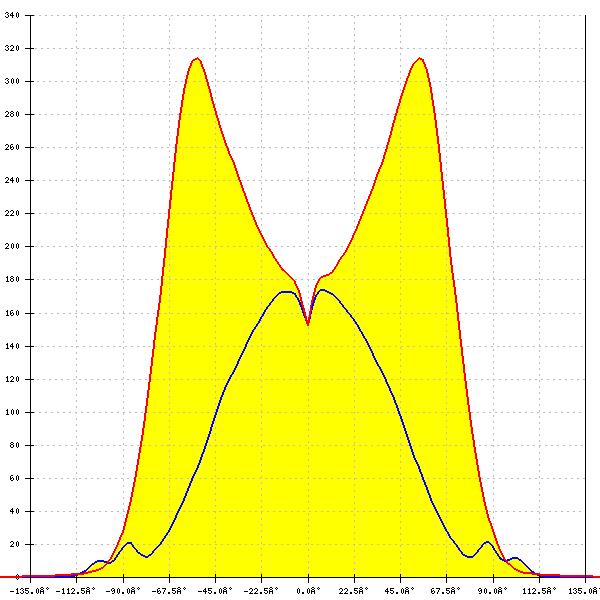

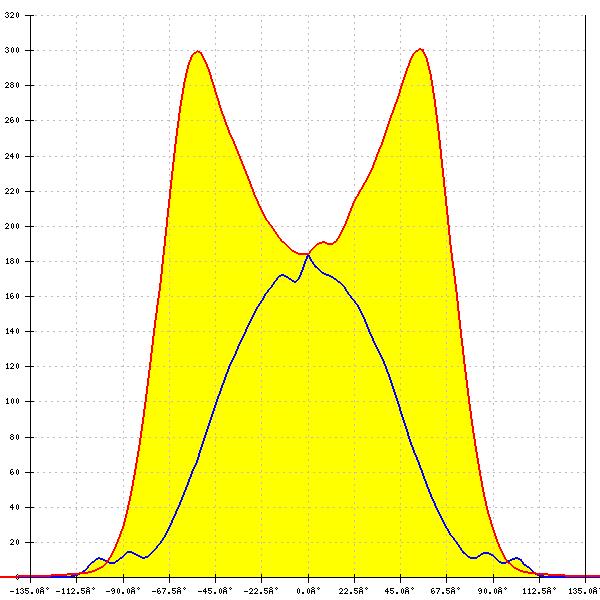

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.337 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.301 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.314 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Hyper Red

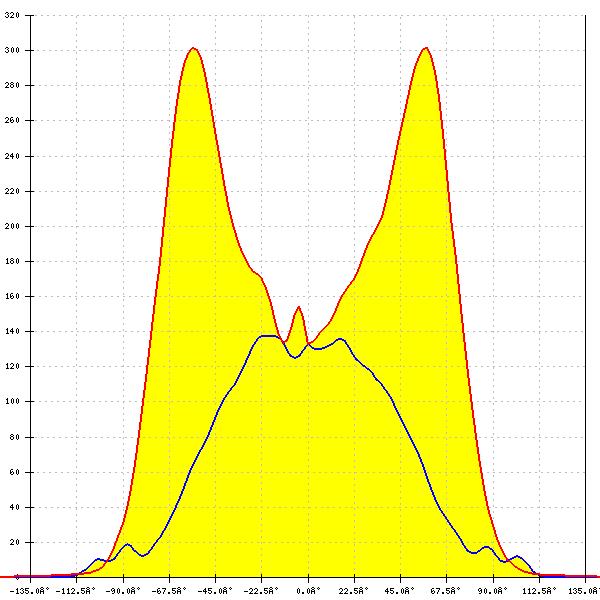

    LED: OSLON SSL 150
    FWHM: asymmetric
    Peak intensity: 0.301 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: Far Red
    LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
    FWHM: asymmetric
    Peak intensity: 0.266 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
    FWHM: asymmetric
    Peak intensity: 0.268 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
    FWHM: asymmetric
    Peak intensity: 0.270 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
    FWHM: asymmetric
    Peak intensity: 0.269 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.270 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 0.263 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

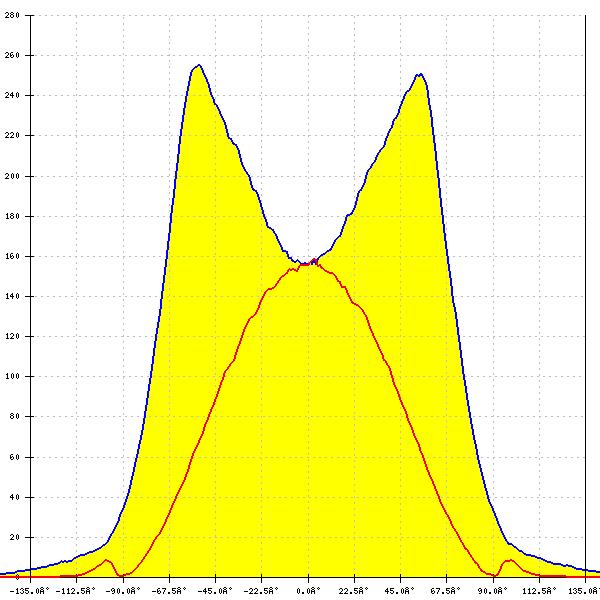

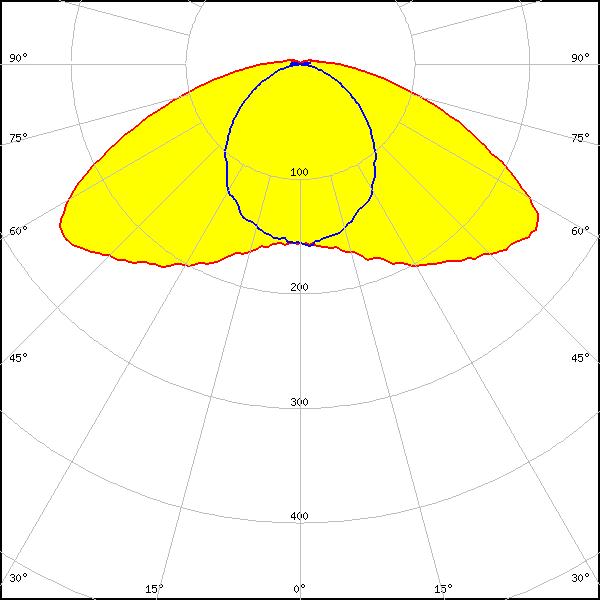

    LED: LM561B Plus
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM561C
    FWHM: asymmetric
    Peak intensity: 0.270 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-H282C
    FWHM: asymmetric
    Peak intensity: 0.264 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-Q282B
    FWHM: asymmetric
    Peak intensity: 0.279 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-S282H
    FWHM: asymmetric
    Peak intensity: 0.264 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: asymmetric
    Peak intensity: 0.270 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

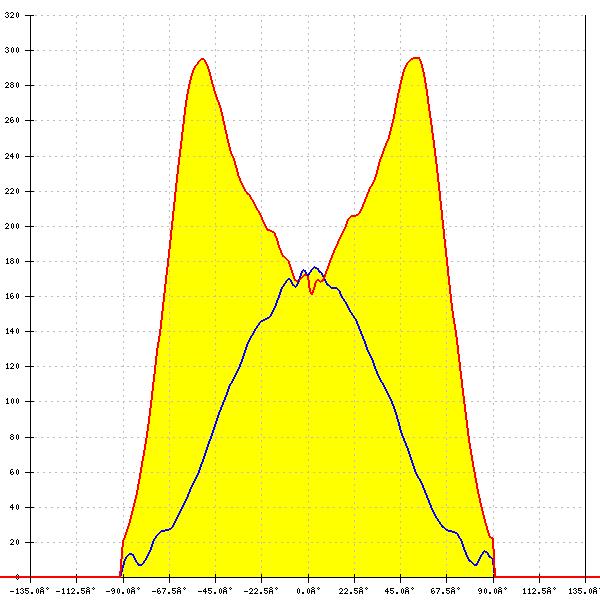

    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.296 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE 24x280mm 1250lm HV ADV5
    FWHM: asymmetric
    Peak intensity: 0.264 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE 24x280mm 650lm HV ADV5
    FWHM: asymmetric
    Peak intensity: 0.271 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE FLEX CC 14mm 1250lm ADV1
    FWHM: asymmetric
    Peak intensity: 0.269 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
