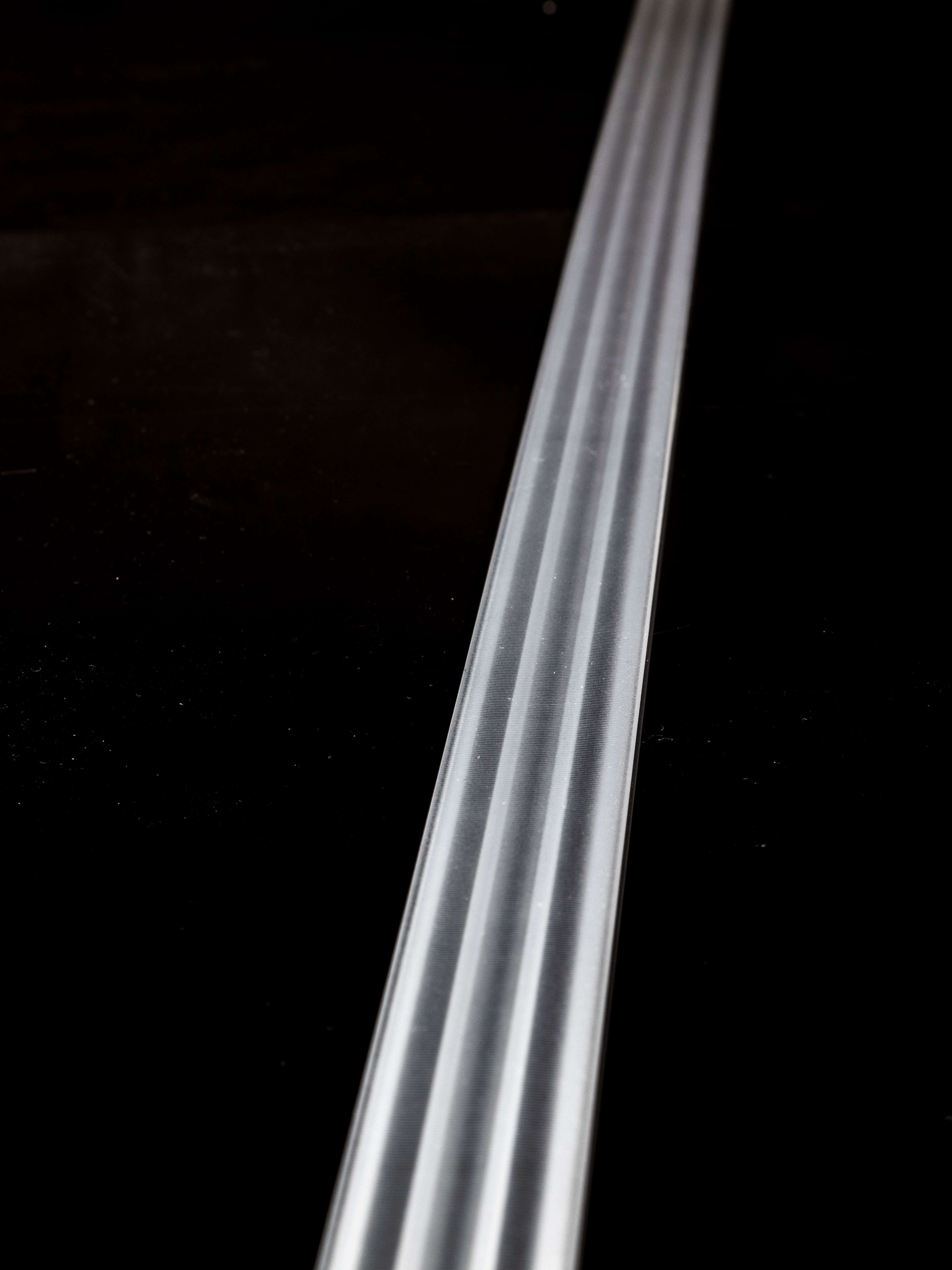

F16749_LINDA-WW
Print
~70° + 100° beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

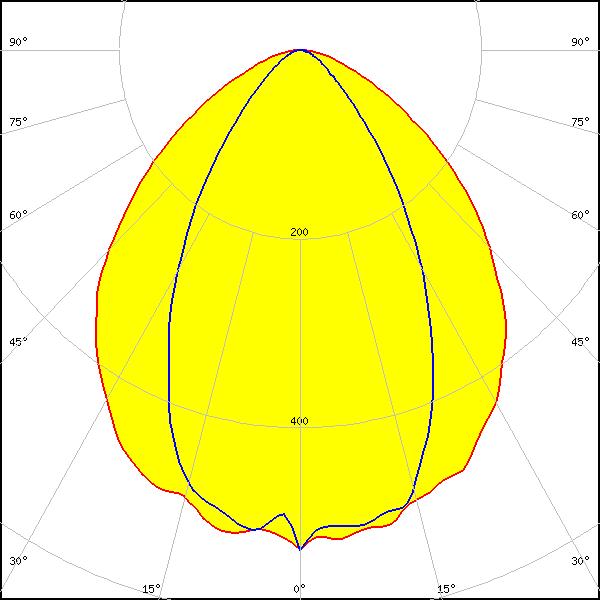

LED:

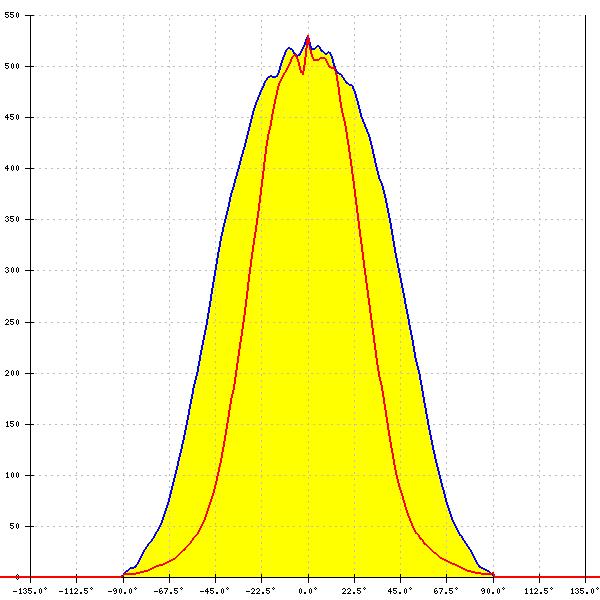

Bridgelux SMD 5050
FWHM:
96° + 60°
FWTM:
142° + 102°
Peak intensity:
0.538 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

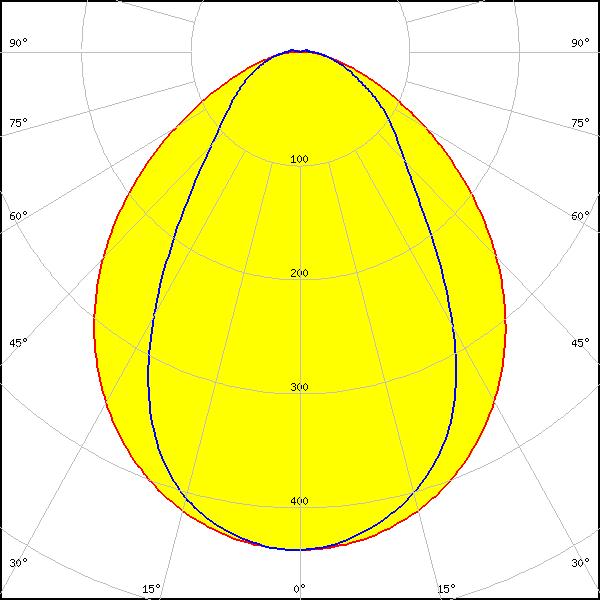

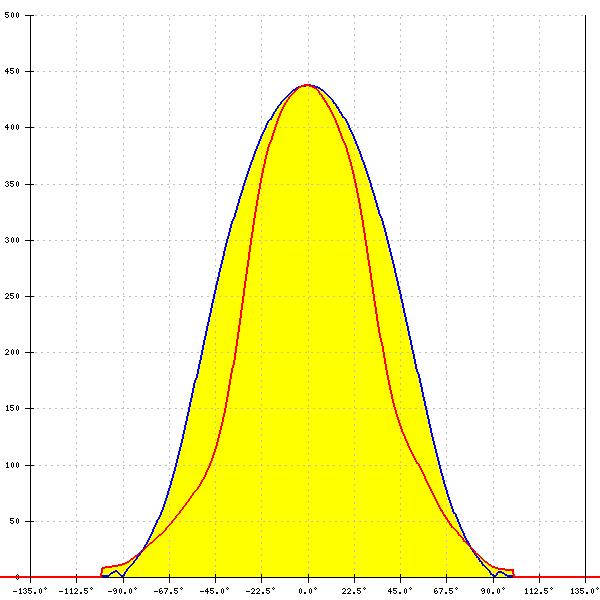

LED:
CLUC11
FWHM:
99° + 69°
FWTM:
149° + 140°
Peak intensity:
0.438 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

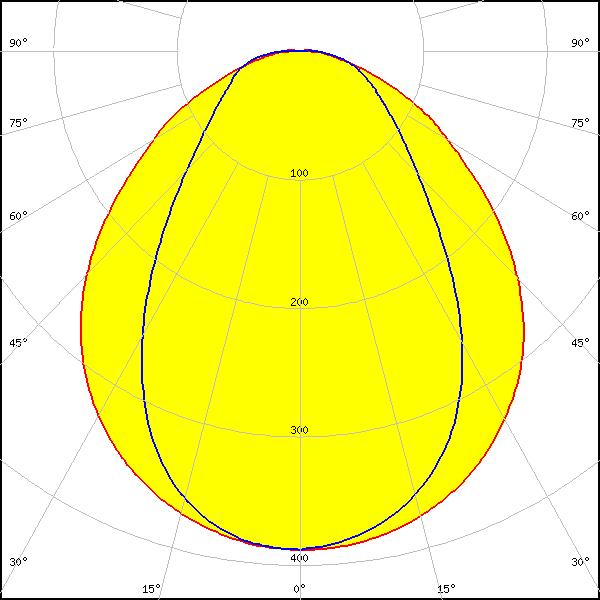

LED:

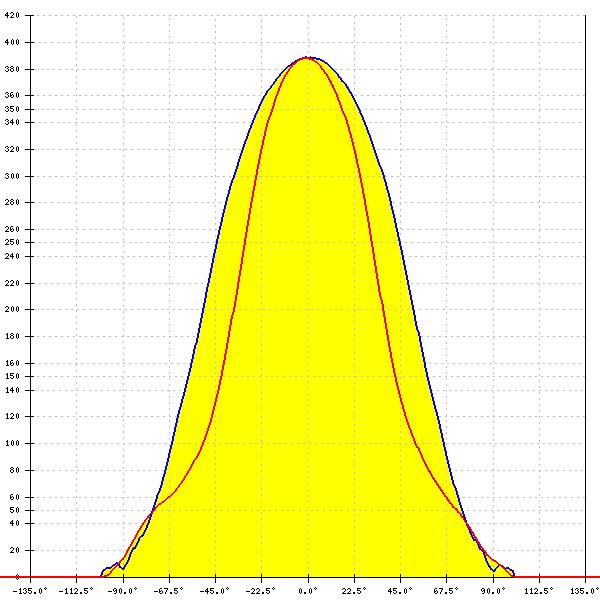

XP-G3
FWHM:
104° + 74°
FWTM:
156° + 159°
Peak intensity:
0.388 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

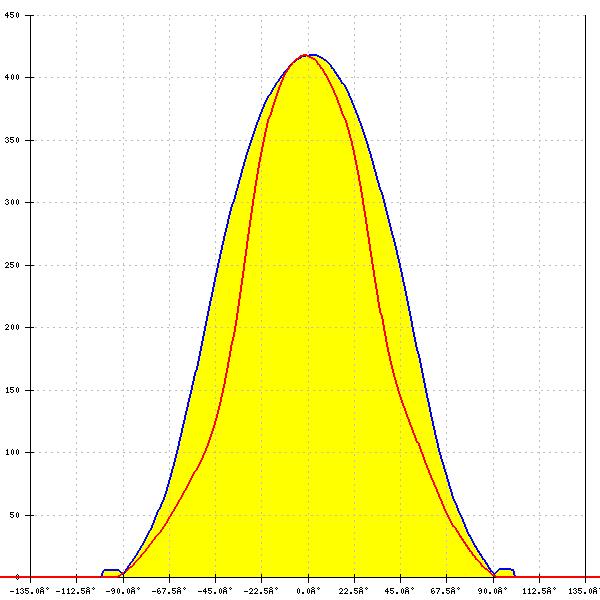

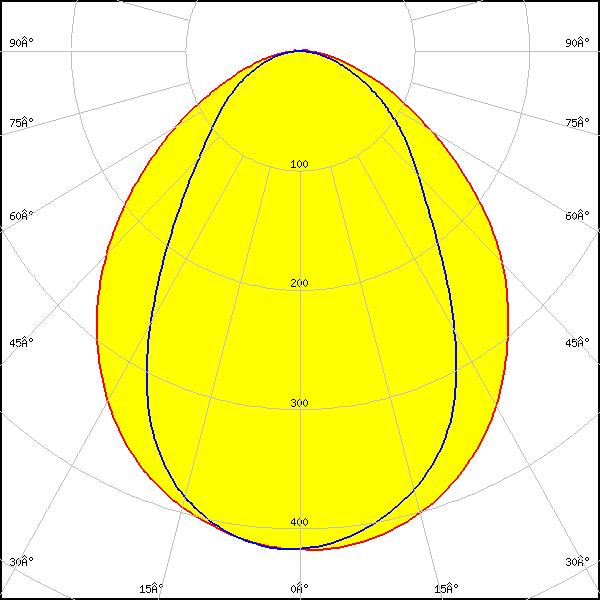

LED:
PL-LIN-Z5 1100 280x20
FWHM:
100° + 71°
FWTM:
151° + 141°
Peak intensity:
0.418 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

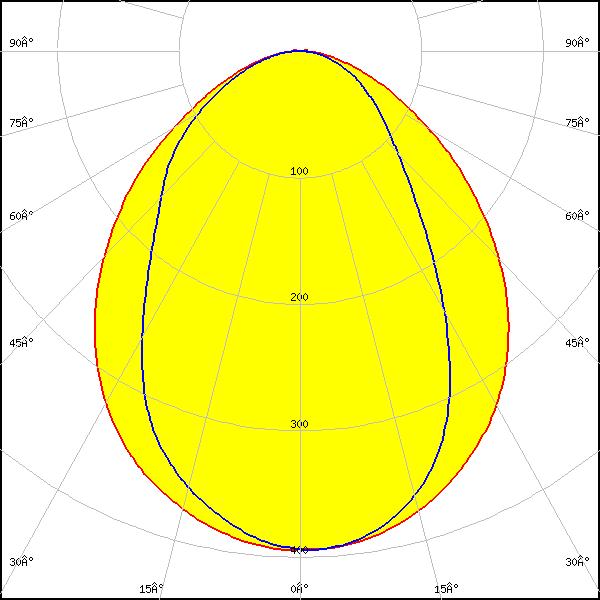

LED:

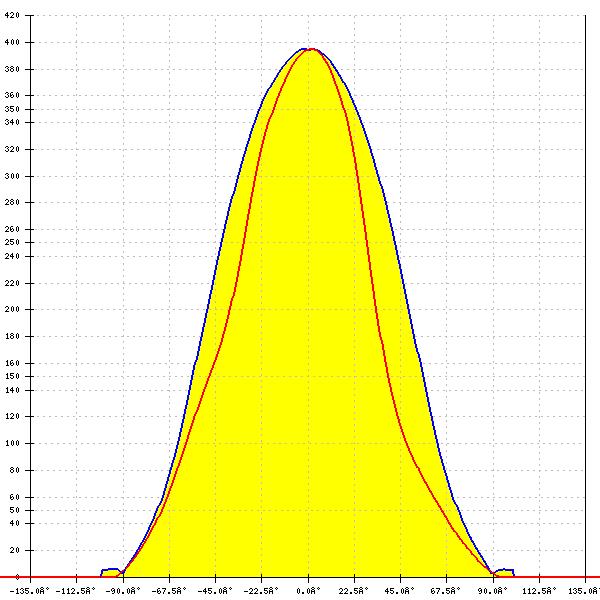

PL-LIN-Z5 2000 280x20
FWHM:
99° + 72°
FWTM:
152° + 144°
Peak intensity:
0.395 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

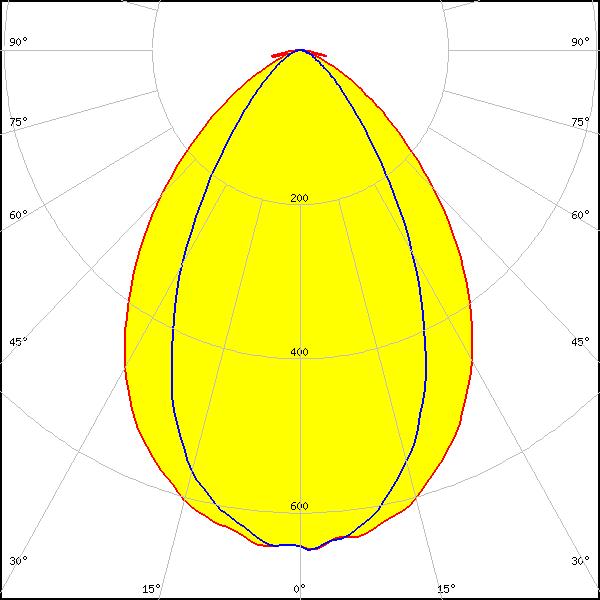

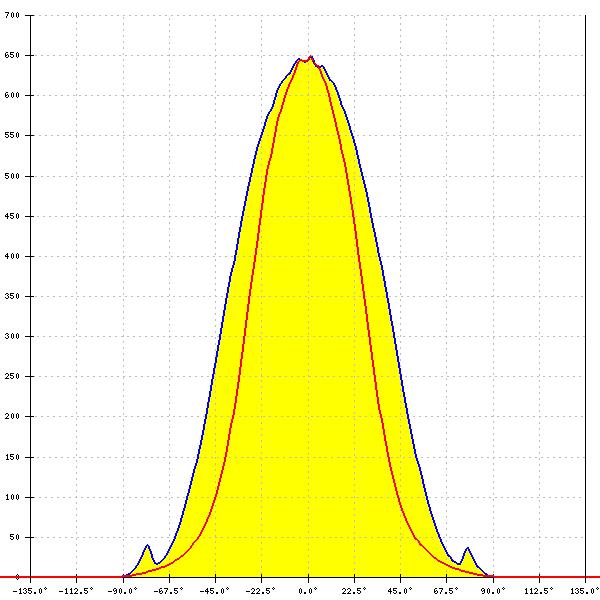

LUXEON CSP HL1
FWHM:
81° + 59°
FWTM:
124° + 99°
Peak intensity:
0.662 cd/lm
Efficiency:
88 %
LEDs/each optic:
5
Light colour/type:
White

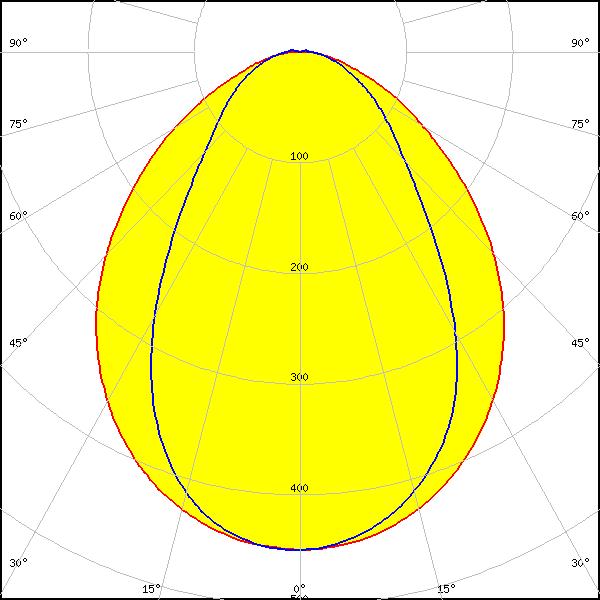

LED:
NF2W757G-MT (Tunable White)
FWHM:
98° + 70°
FWTM:
151° + 141°
Peak intensity:
0.450 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

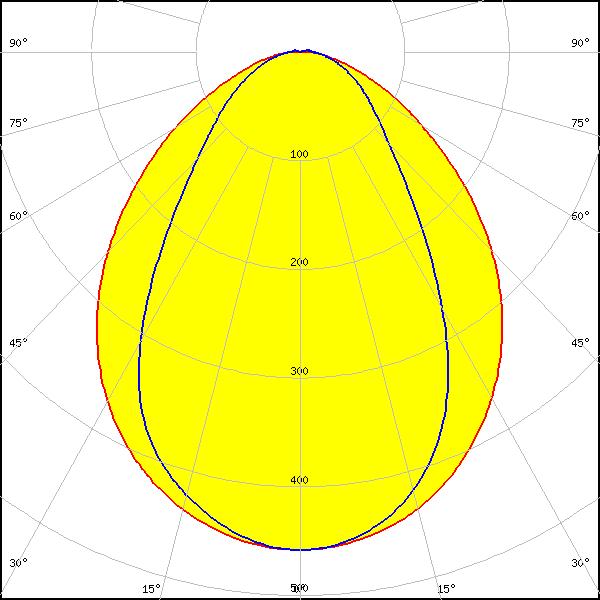

NFSW757H
FWHM:
97° + 69°
FWTM:
150° + 138°
Peak intensity:
0.459 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

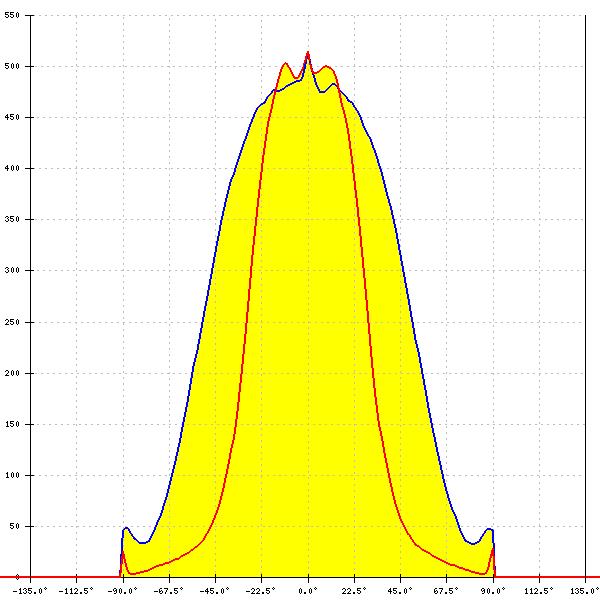

LED:

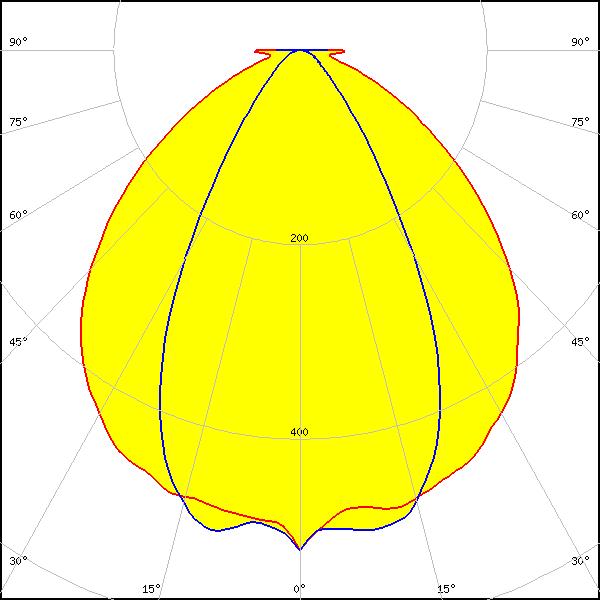

NFSWE11A
FWHM:
102° + 58°
FWTM:
146° + 94°
Peak intensity:
0.515 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

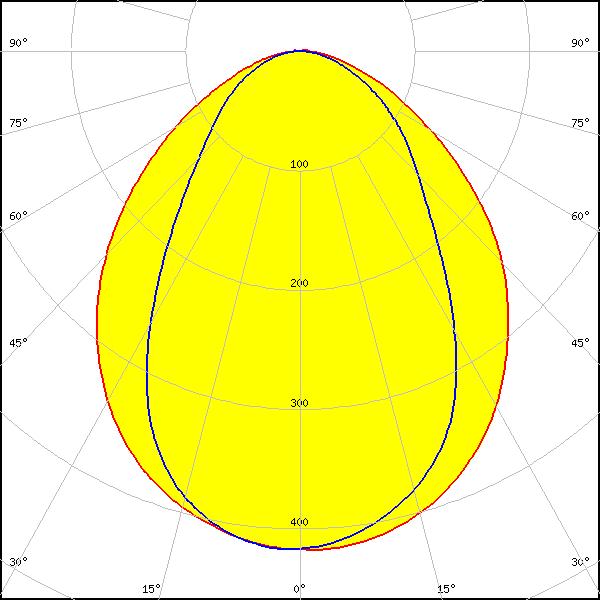

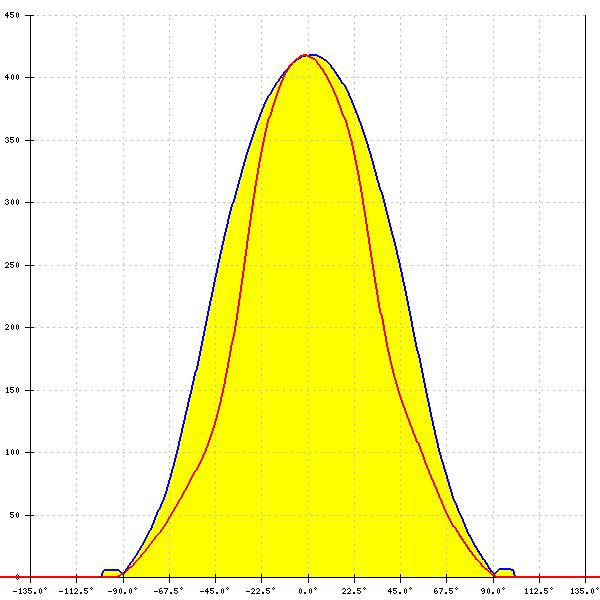

Duris E 2835
FWHM:
99° + 72°
FWTM:
152° + 144°
Peak intensity:
0.395 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris E 2835
FWHM:
100° + 71°
FWTM:
152° + 141°
Peak intensity:
0.418 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris E 2835
FWHM:
98° + 69°
FWTM:
151° + 141°
Peak intensity:
0.451 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

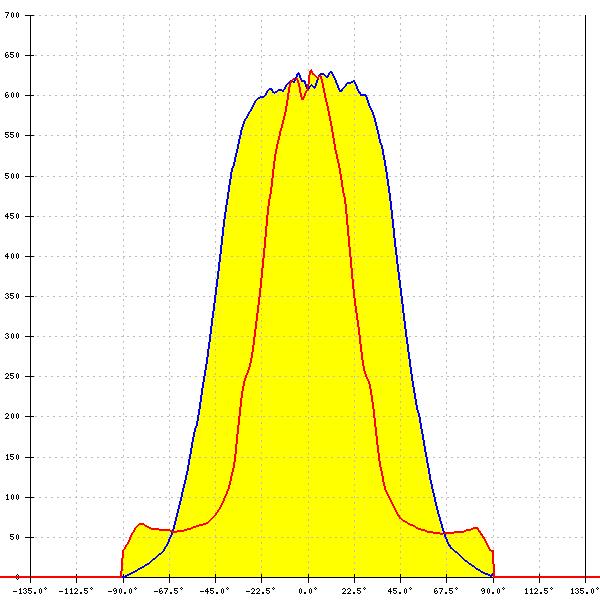

LED:

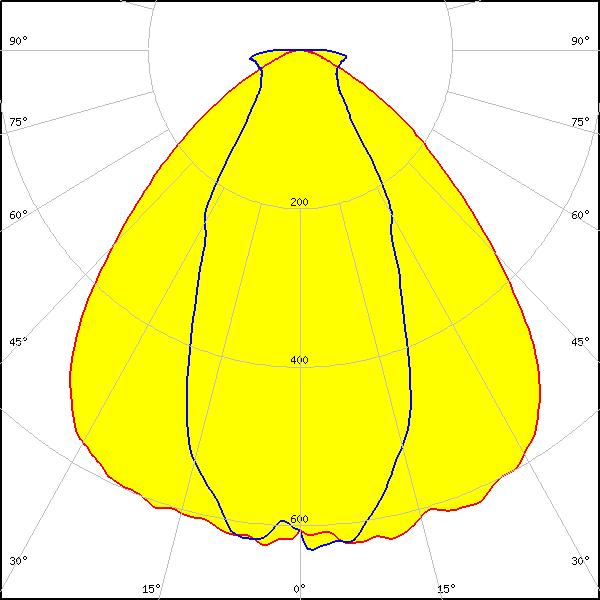

OSLON Square CSSRM2/CSSRM3
FWHM:
94° + 50°
FWTM:
131° + 135°
Peak intensity:
0.649 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

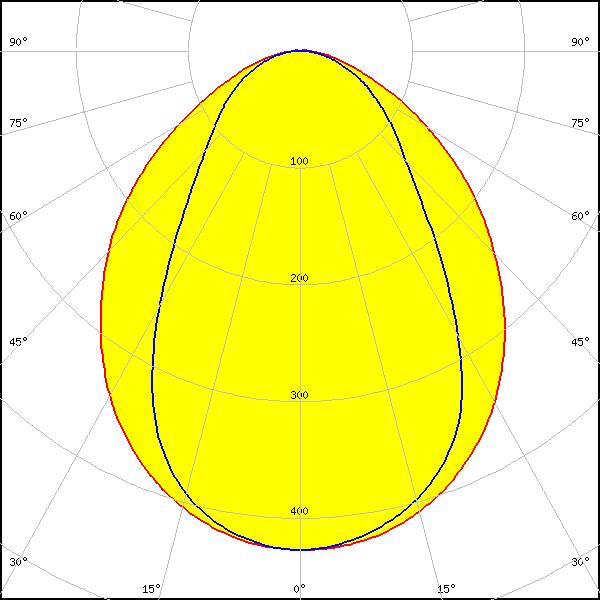

LED:

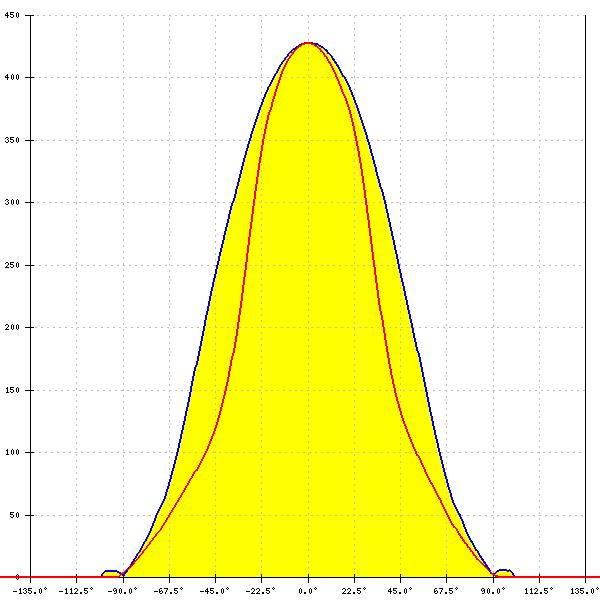

Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM:
98° + 69°
FWTM:
151° + 141°
Peak intensity:
0.428 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

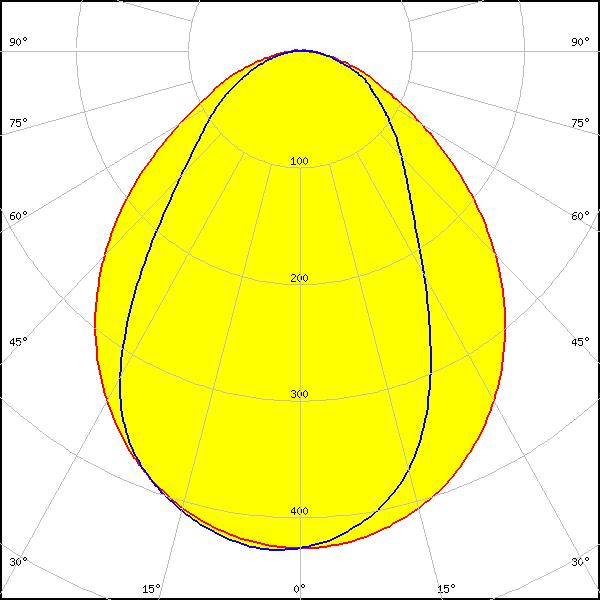

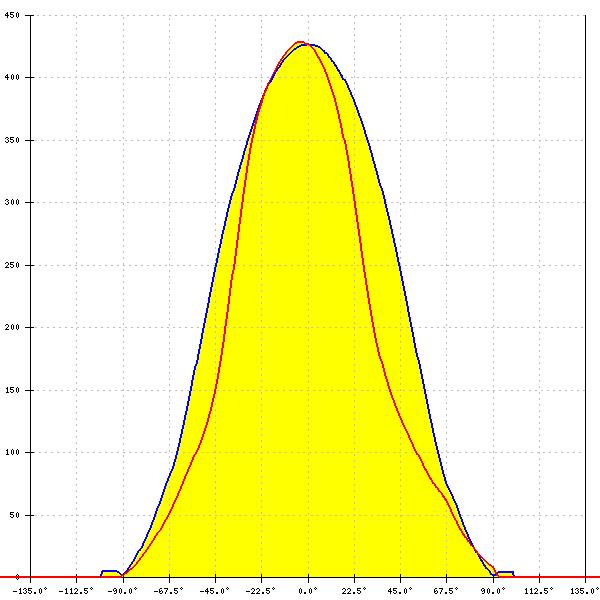

LED:
Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM:
98° + 69°
FWTM:
151° + 143°
Peak intensity:
0.429 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM:
97° + 69°
FWTM:
151° + 137°
Peak intensity:
0.455 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

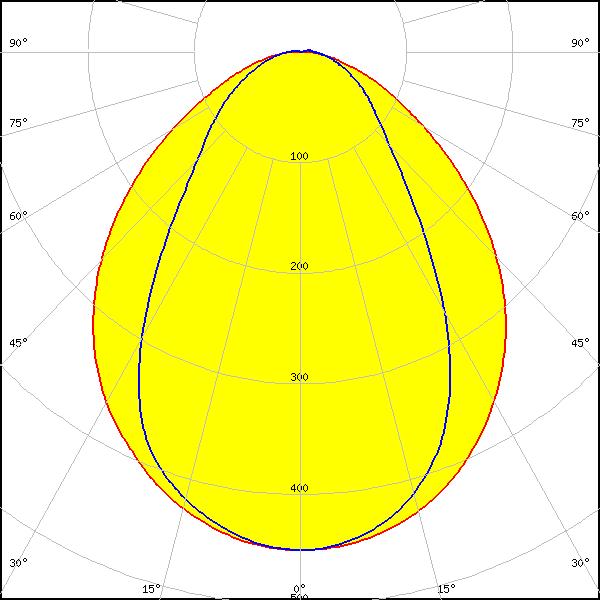

LM28xB Series
FWHM:
99° + 69°
FWTM:
151° + 140°
Peak intensity:
0.450 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

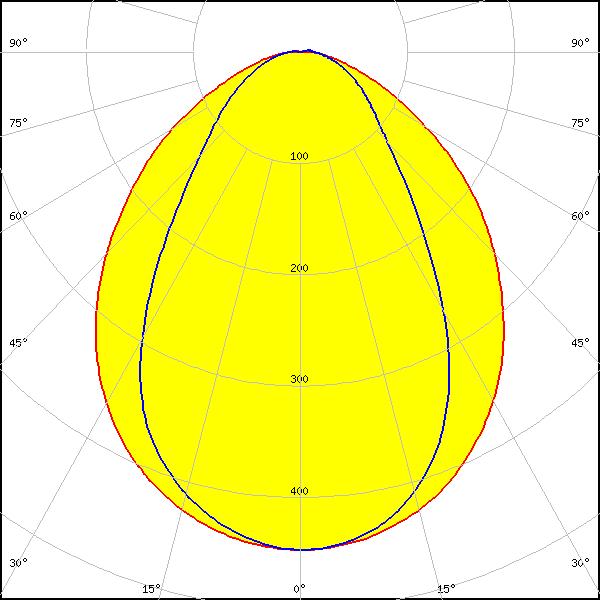

LED:
LM301B
FWHM:
98° + 69°
FWTM:
151° + 138°
Peak intensity:
0.448 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

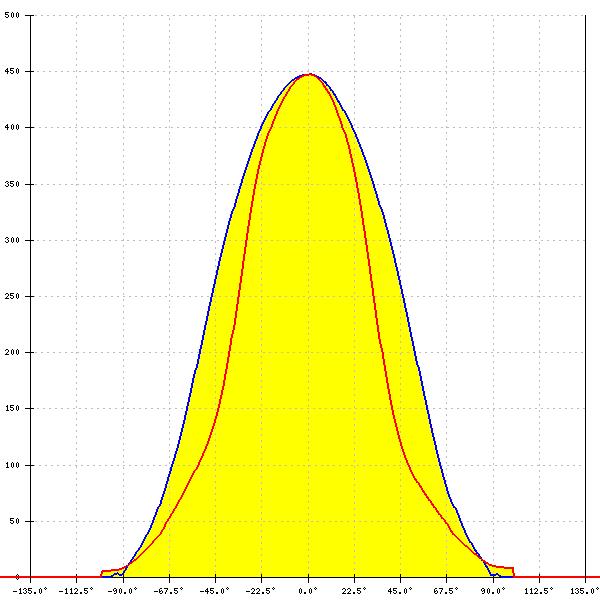

LM561C
FWHM:
100° + 70°
FWTM:
152° + 139°
Peak intensity:
0.450 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

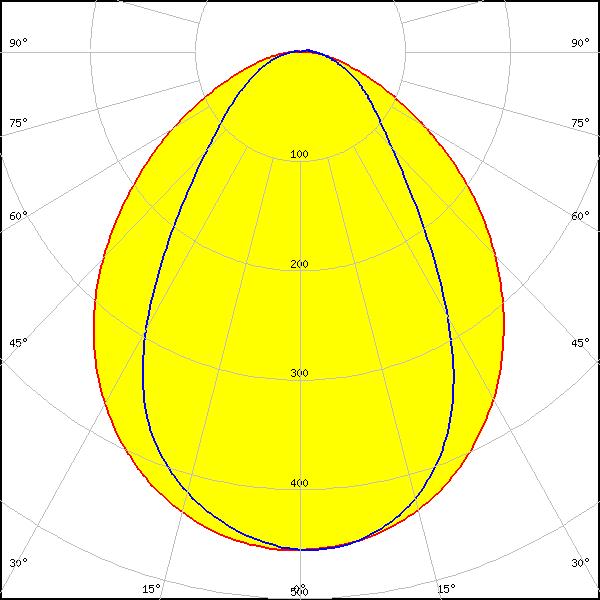

LED:
LT-H282C
FWHM:
98° + 69°
FWTM:
150° + 135°
Peak intensity:
0.456 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

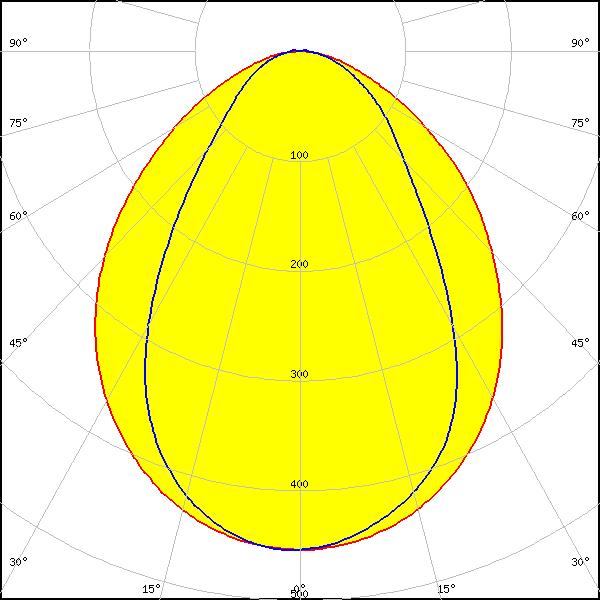

LT-Q282B
FWHM:
98° + 69°
FWTM:
150° + 136°
Peak intensity:
0.454 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

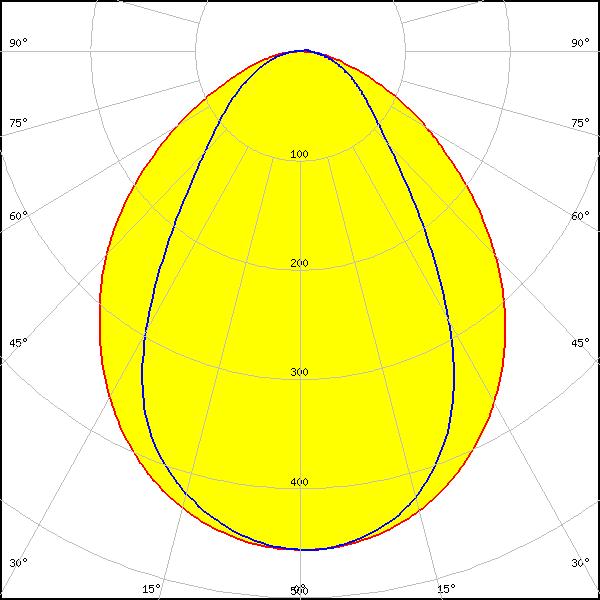

LED:
LT-S282H
FWHM:
98° + 68°
FWTM:
150° + 134°
Peak intensity:
0.457 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

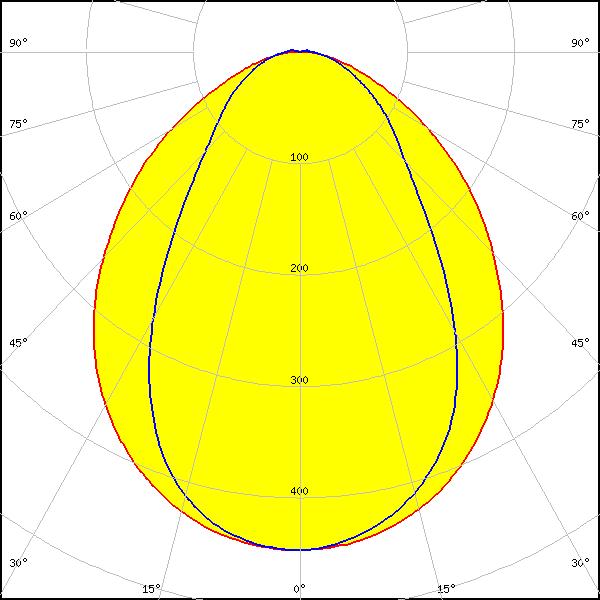

LED:
SEOUL DC 3528
FWHM:
99° + 70°
FWTM:
152° + 141°
Peak intensity:
0.450 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

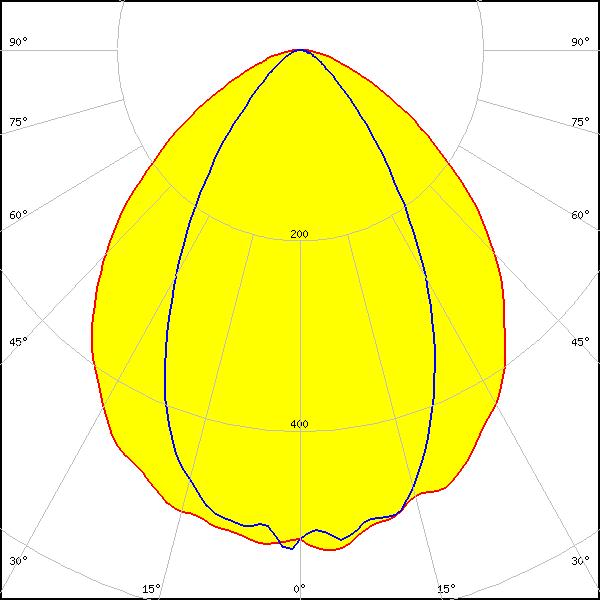

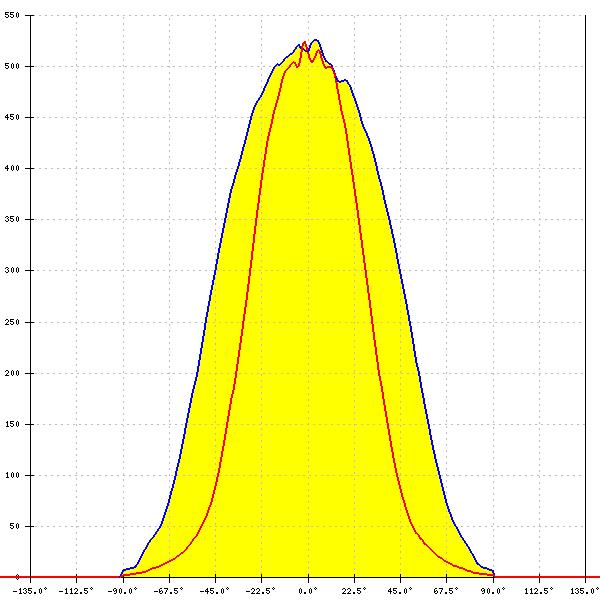

LED:
SEOUL DC 5050 6V
FWHM:
97° + 61°
FWTM:
142° + 102°
Peak intensity:
0.534 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

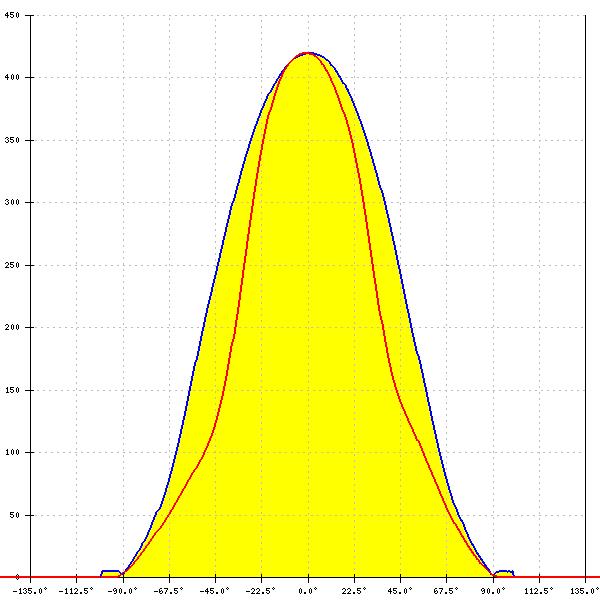

LLE 24x280mm 1250lm HV ADV5
FWHM:
99° + 70°
FWTM:
152° + 143°
Peak intensity:
0.420 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

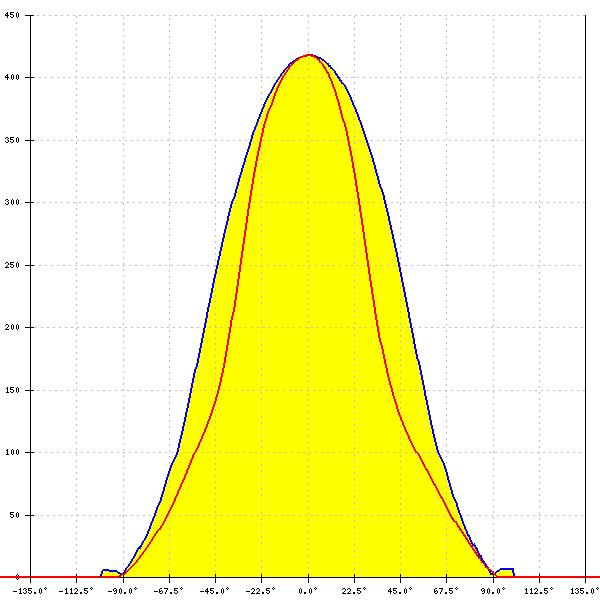

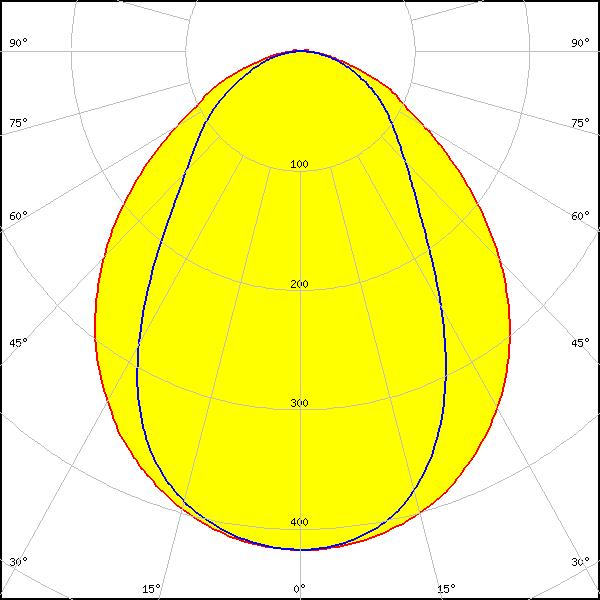

LED:
LLE 24x280mm 650lm HV ADV5
FWHM:
99° + 70°
FWTM:
152° + 144°
Peak intensity:
0.418 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LLE FLEX CC 14mm 1250lm ADV1
FWHM:
98° + 69°
FWTM:
151° + 135°
Peak intensity:
0.453 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
