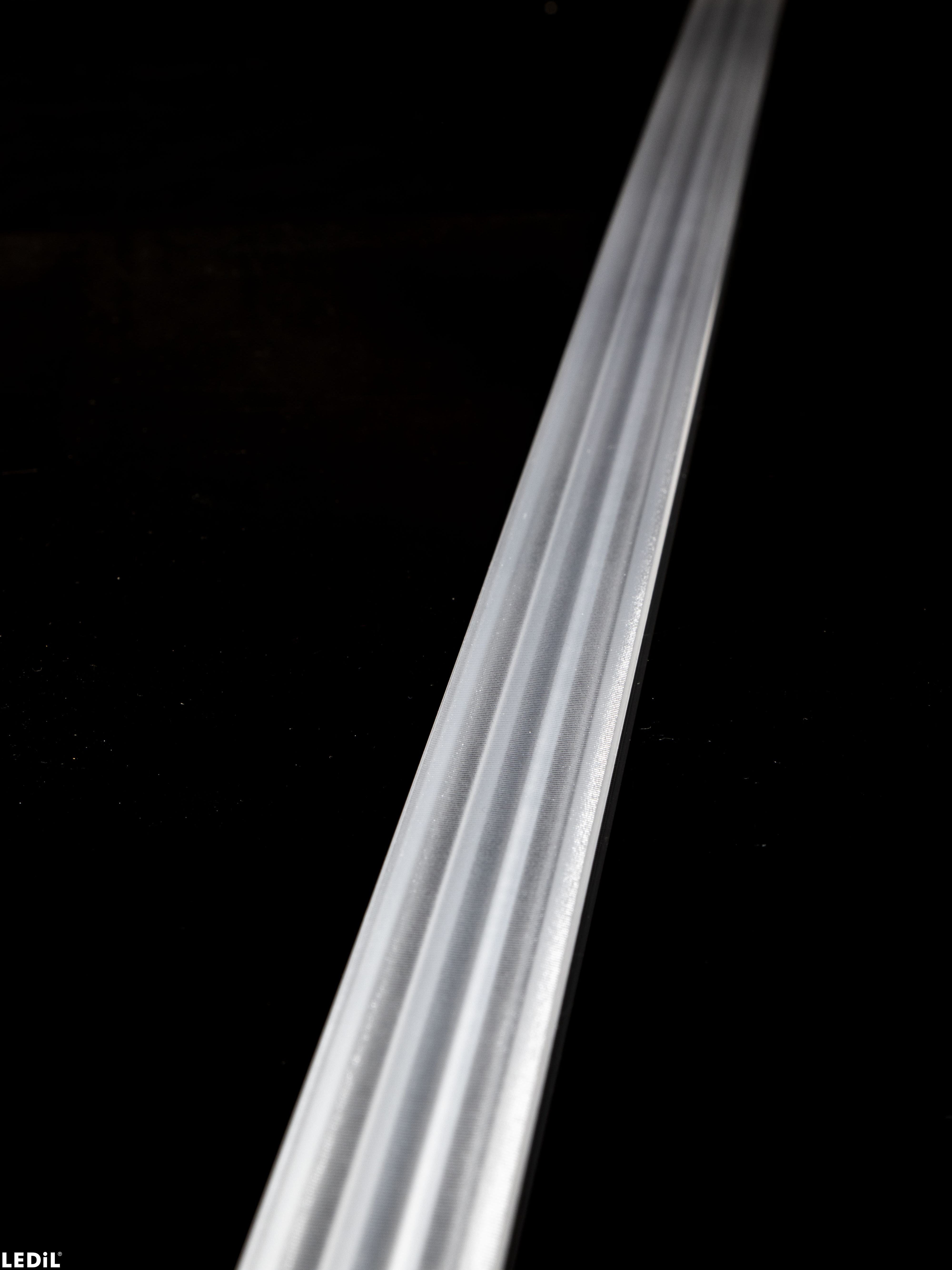

F16748_LINDA-O
Print
~40° + 100° oval beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Other variants: F17128_LINDA-O-48in (North American 48 inch length)
F17316_LINDA-O-3m (3.01 m length) and other custom lengths available
Related Content
Optical results

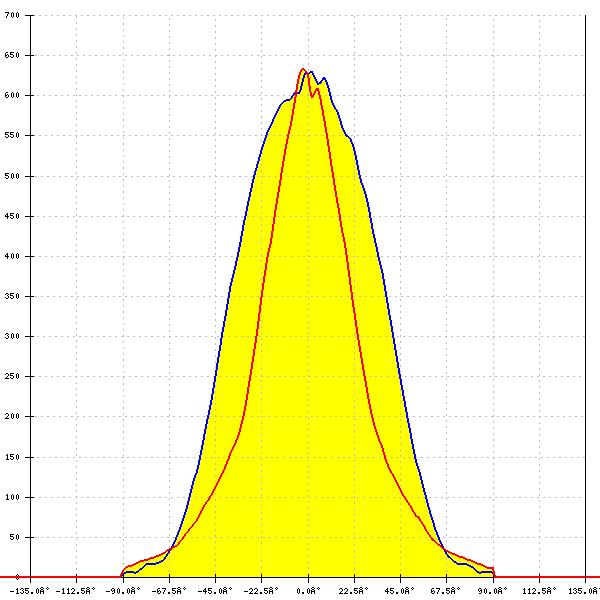

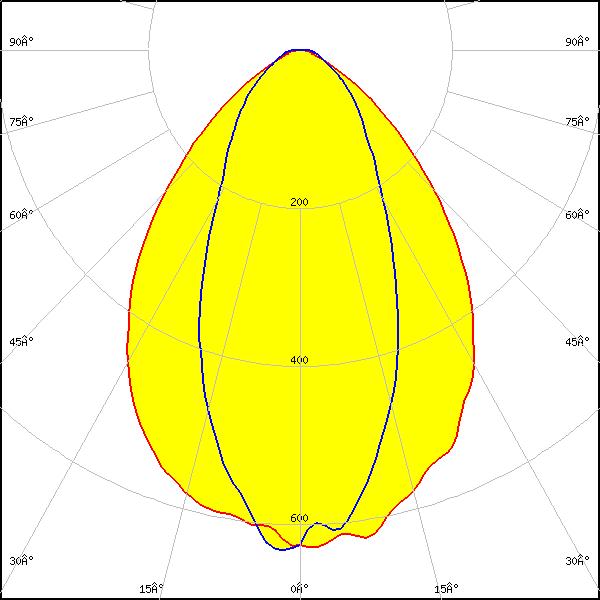

LED:
Bridgelux SMD 5050
FWHM:
82° + 47°
FWTM:
124° + 113°
Peak intensity:
0.648 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

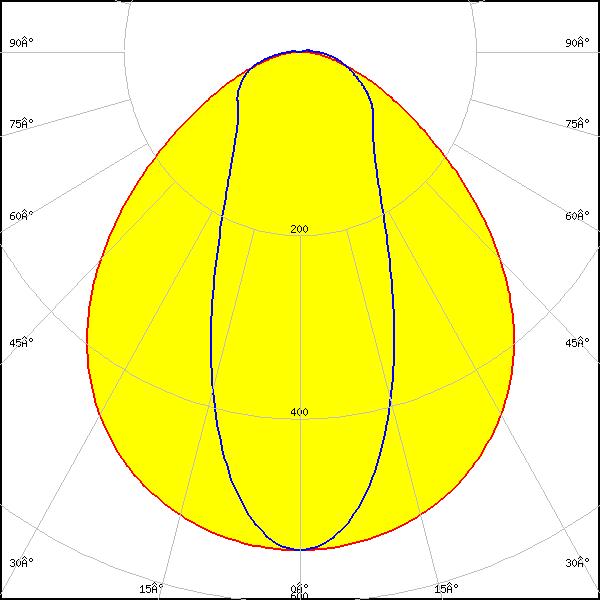

LED:

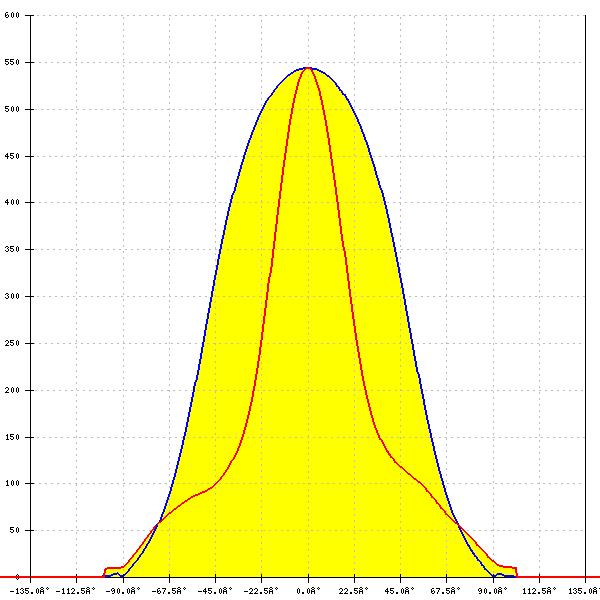

CLUC11
FWHM:
99° + 44°
FWTM:
147° + 148°
Peak intensity:
0.543 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

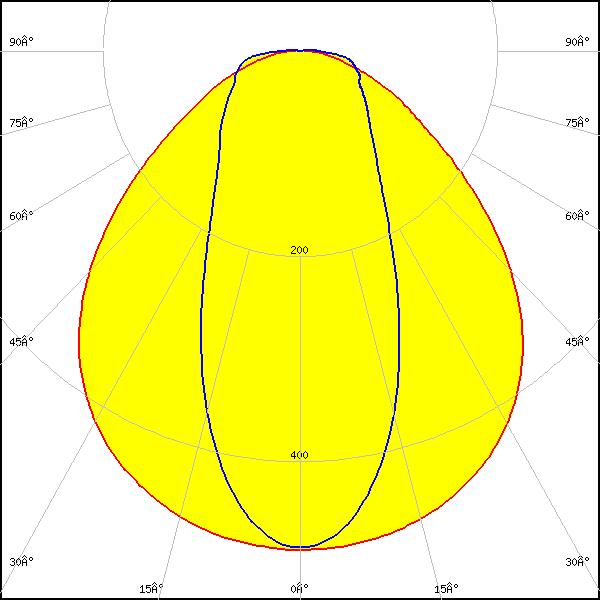

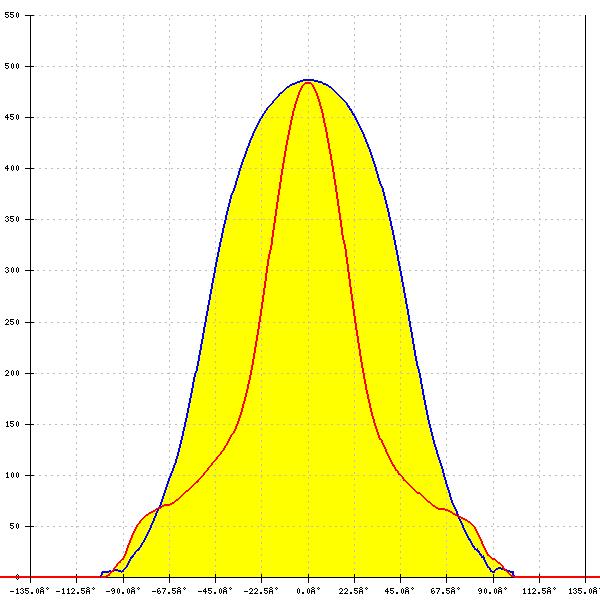

XP-G3
FWHM:
101° + 48°
FWTM:
152° + 165°
Peak intensity:
0.486 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

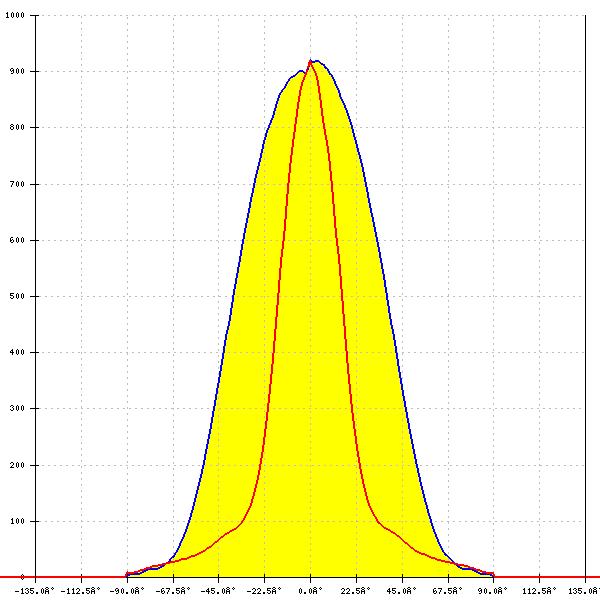

LED:

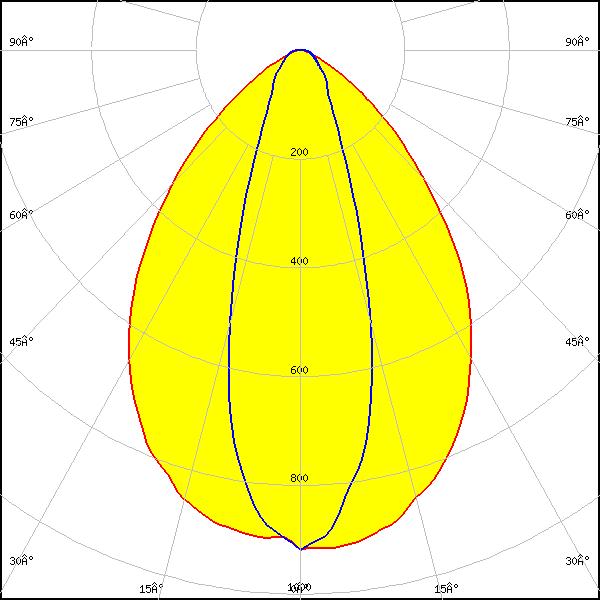

LUXEON 3014
FWHM:
80° + 32°
FWTM:
120° + 70°
Peak intensity:
0.930 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

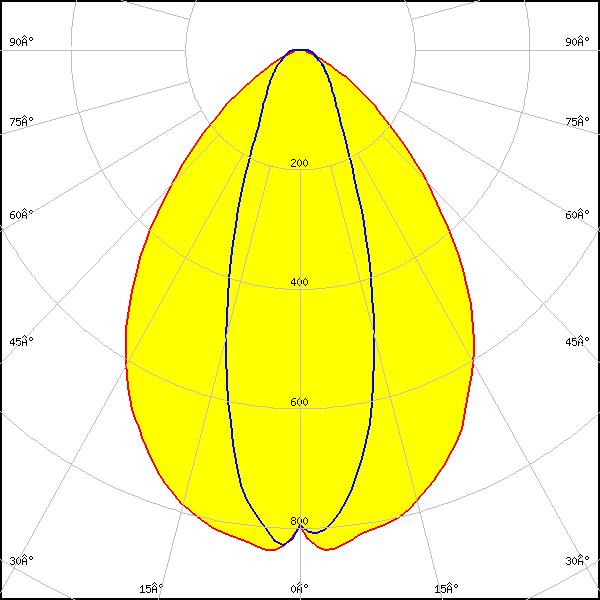

LED:

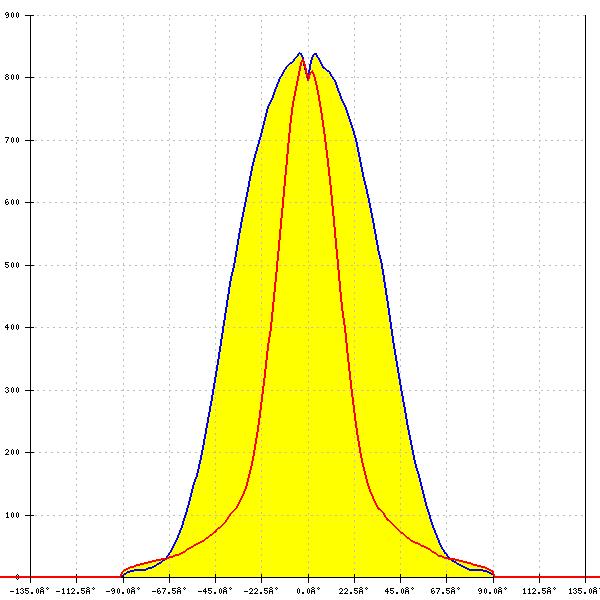

LUXEON 3030 2D (Round LES)
FWHM:
80° + 36°
FWTM:
122° + 83°
Peak intensity:
0.854 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

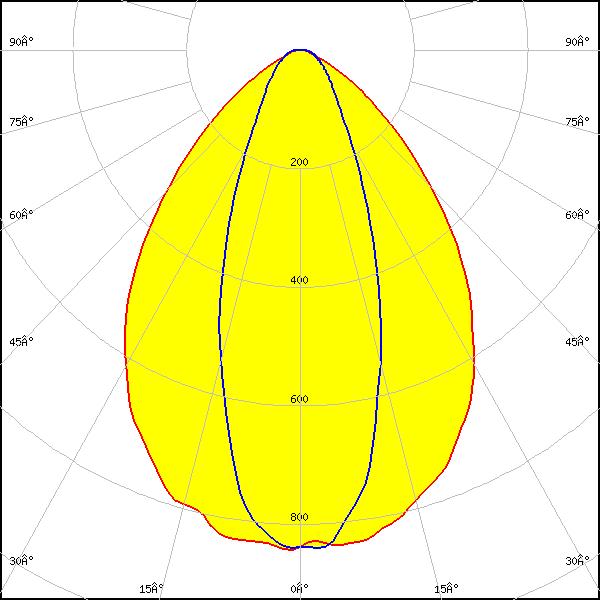

LED:
LUXEON 3535L HE PLUS
FWHM:
80° + 38°
FWTM:
122° + 86°
Peak intensity:
0.862 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

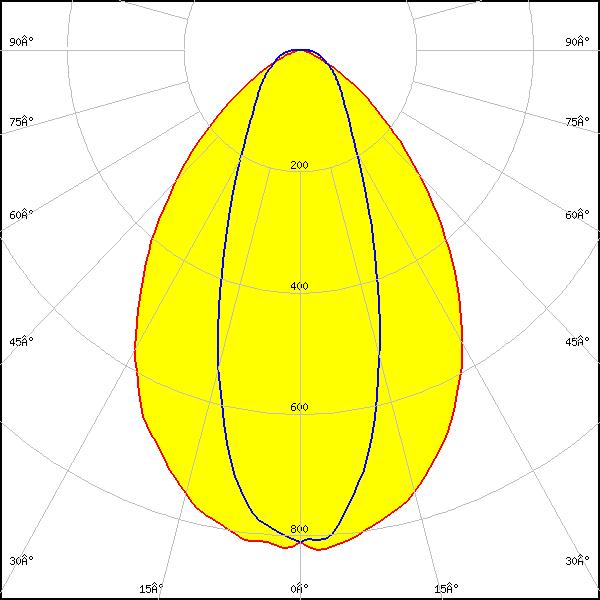

LUXEON CSP HL1
FWHM:
77° + 39°
FWTM:
122° + 104°
Peak intensity:
0.836 cd/lm
Efficiency:
89 %
LEDs/each optic:
5
Light colour/type:
White

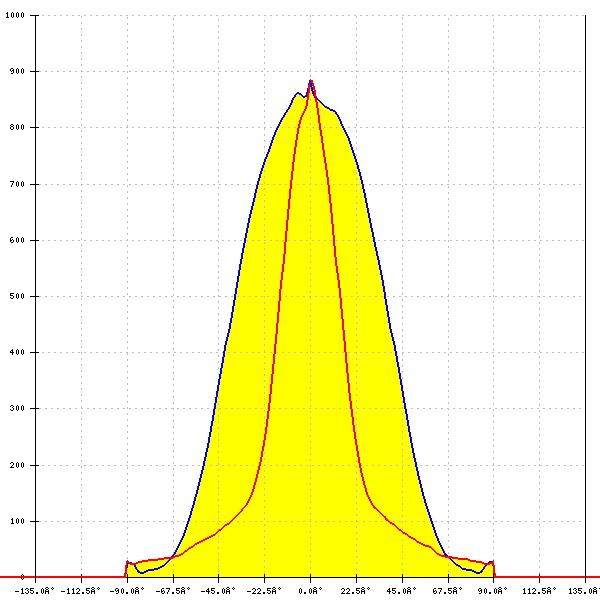

LED:

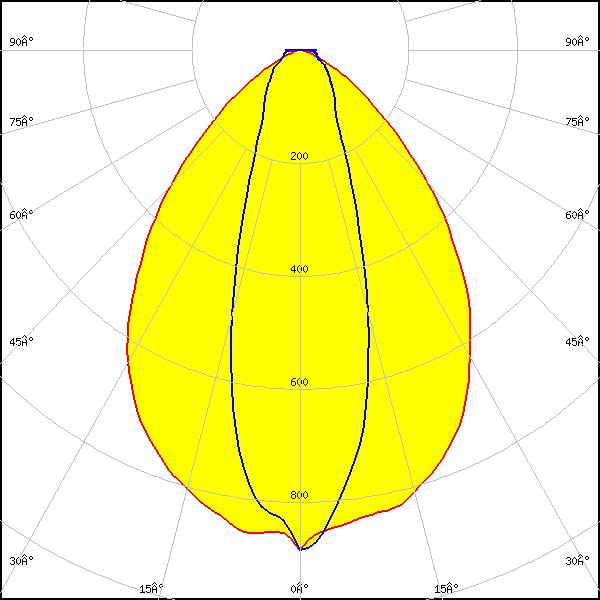

NCSxE17A
FWHM:
80° + 32°
FWTM:
122° + 85°
Peak intensity:
0.886 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

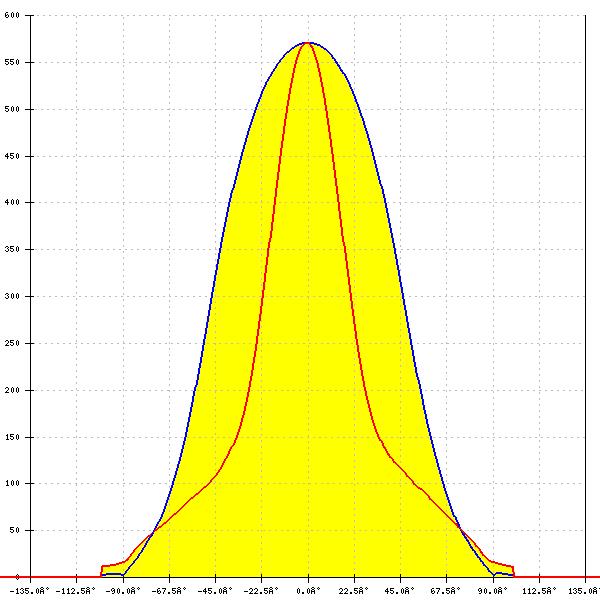

LED:

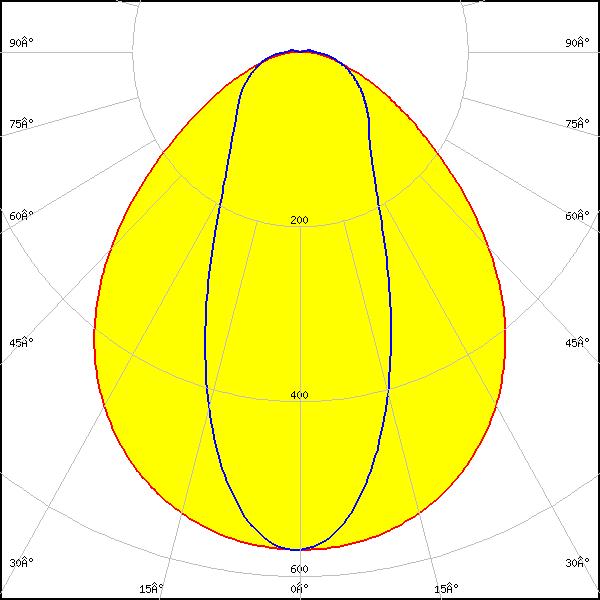

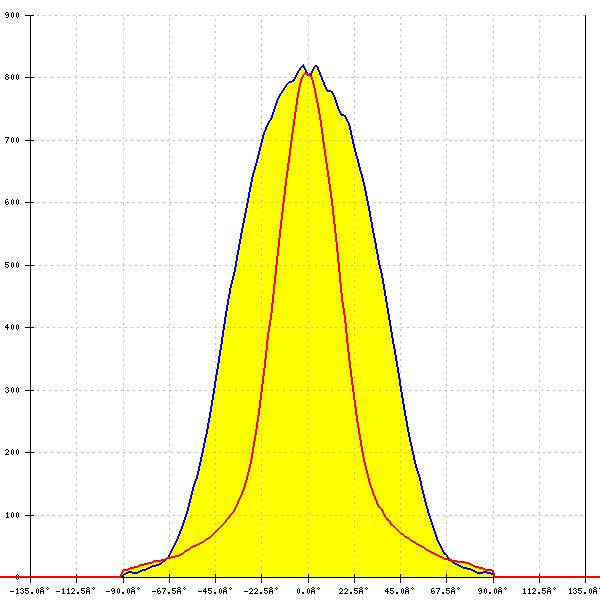

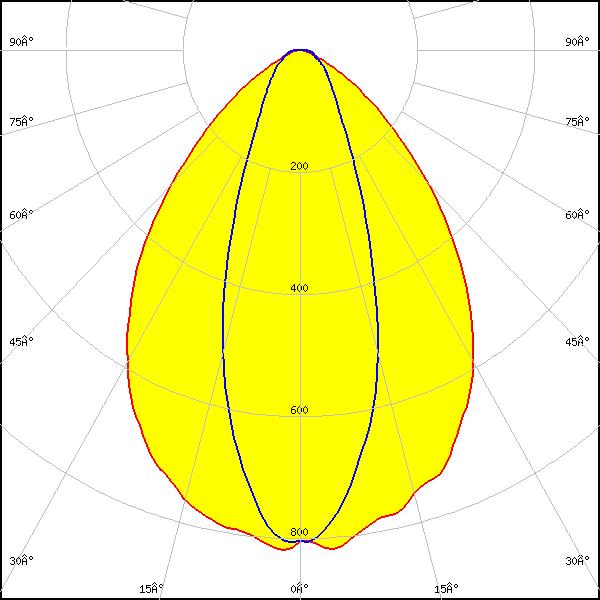

NF2W757G-MT (Tunable White)
FWHM:
96° + 45°
FWTM:
146° + 142°
Peak intensity:
0.571 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NF2x757G
FWHM:
80° + 36°
FWTM:
122° + 84°
Peak intensity:
0.838 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

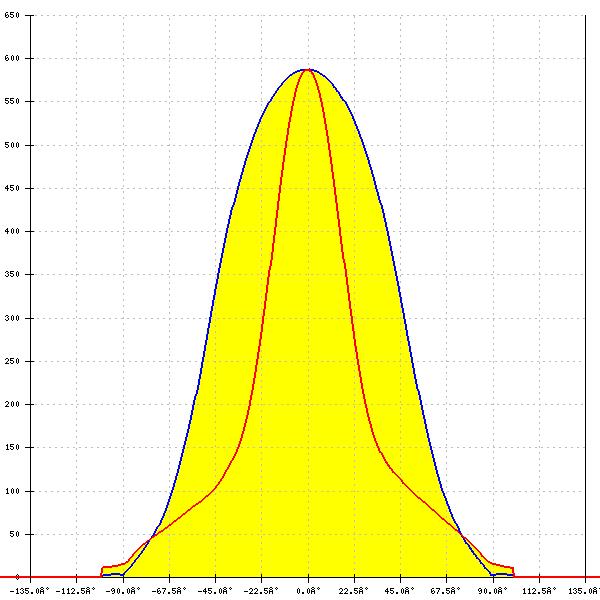

NFSW757H
FWHM:
95° + 43°
FWTM:
145° + 138°
Peak intensity:
0.587 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

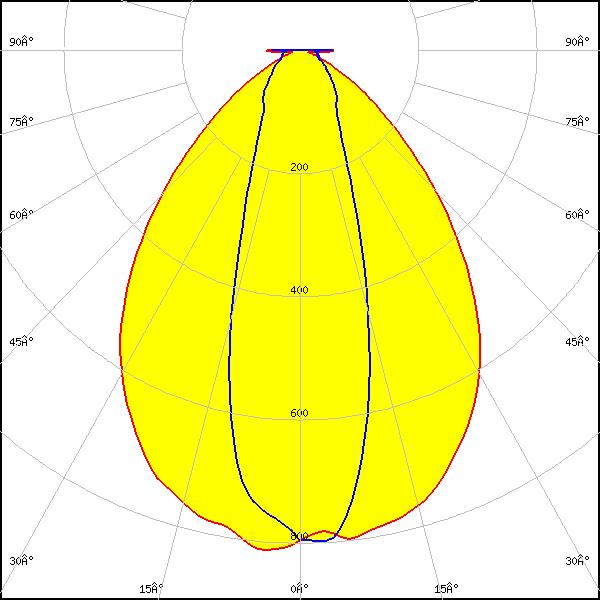

LED:
NFSWE11A
FWHM:
82° + 32°
FWTM:
124° + 90°
Peak intensity:
0.816 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PL-LIN-Z5 1100 280x20
FWHM:
97° + 42°
FWTM:
147° + 140°
Peak intensity:
0.542 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

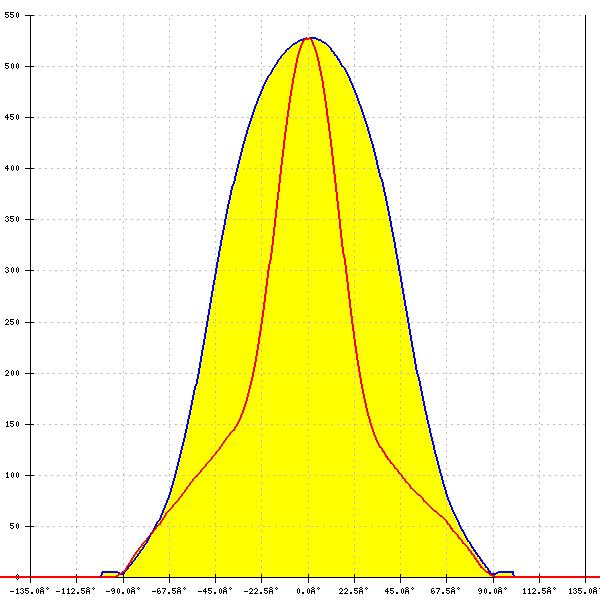

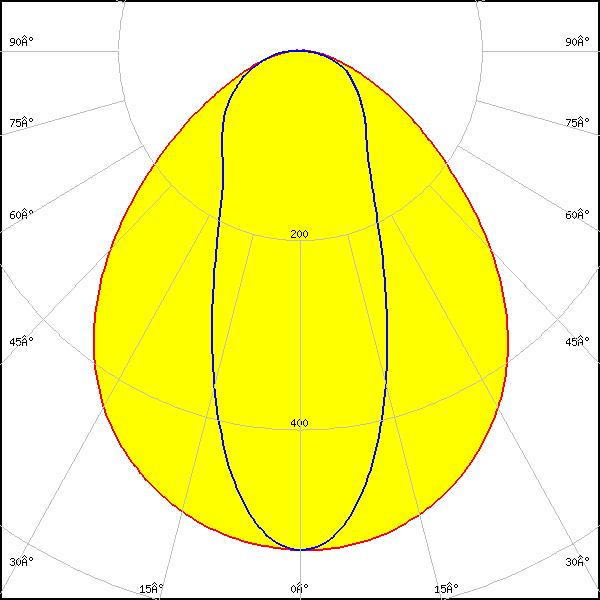

PL-LIN-Z5 2000 280x20
FWHM:
96° + 42°
FWTM:
147° + 141°
Peak intensity:
0.527 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

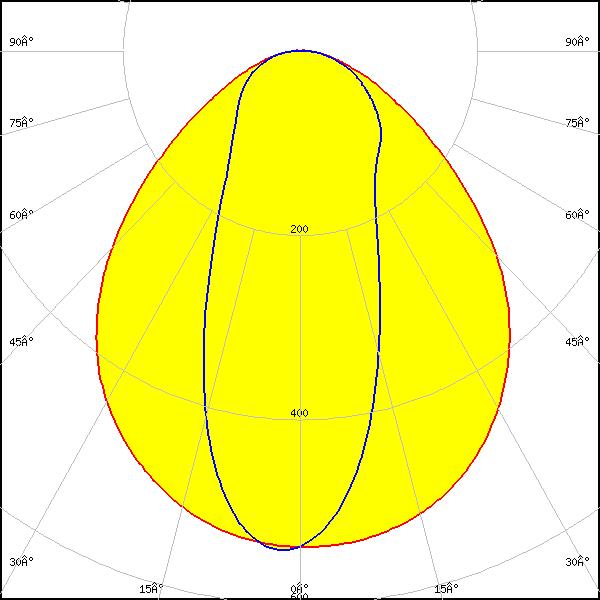

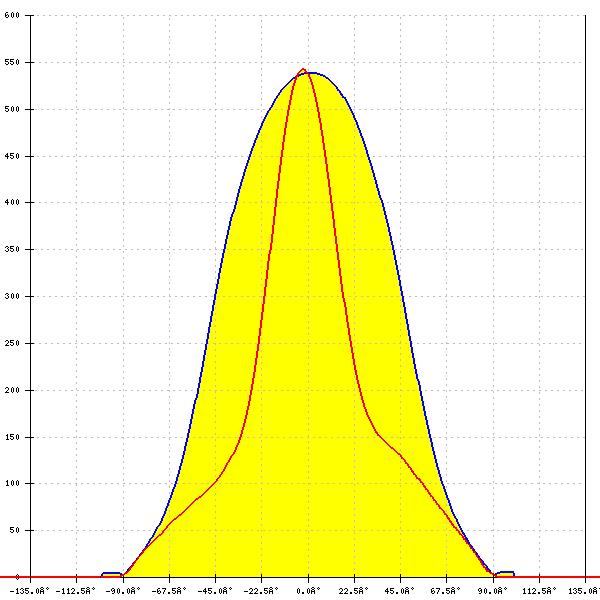

Duris E 2835
FWHM:
96° + 42°
FWTM:
147° + 141°
Peak intensity:
0.527 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris E 2835
FWHM:
97° + 42°
FWTM:
147° + 140°
Peak intensity:
0.542 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris E 2835
FWHM:
96° + 43°
FWTM:
146° + 142°
Peak intensity:
0.578 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

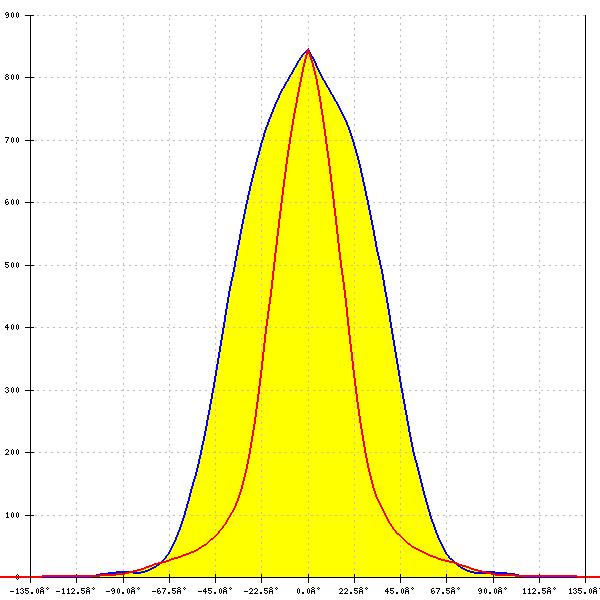

LED:

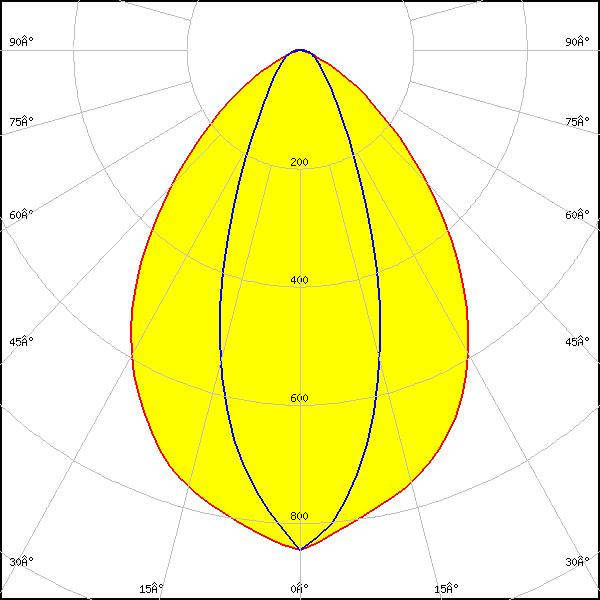

OSLON Square CSSRM2/CSSRM3
FWHM:
80° + 40°
FWTM:
124° + 80°
Peak intensity:
0.846 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

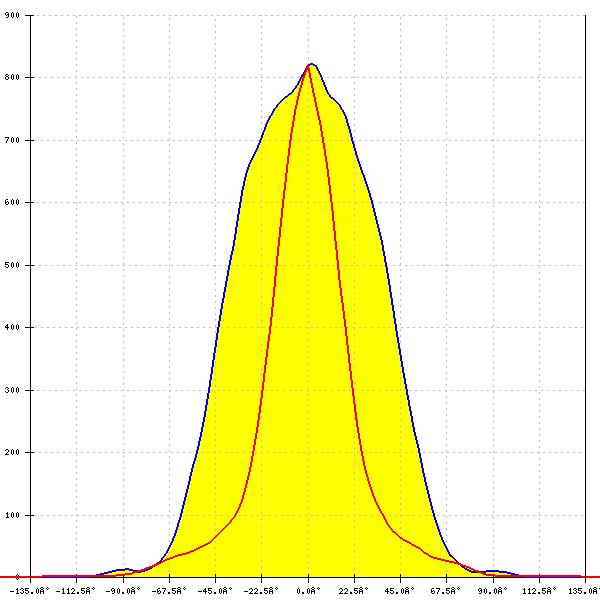

LED:

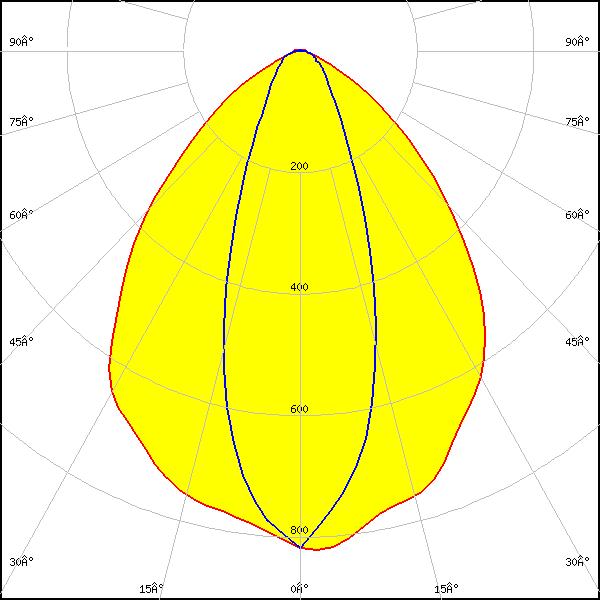

OSLON SSL 150
FWHM:
84° + 36°
FWTM:
128° + 80°
Peak intensity:
0.824 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Far Red
LED:

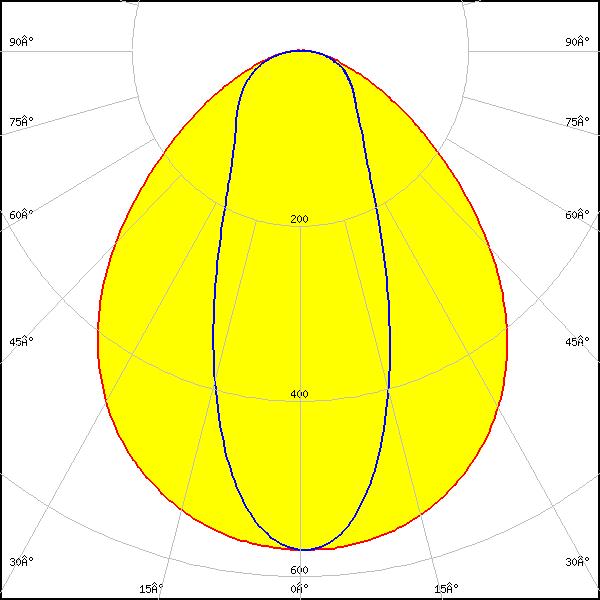

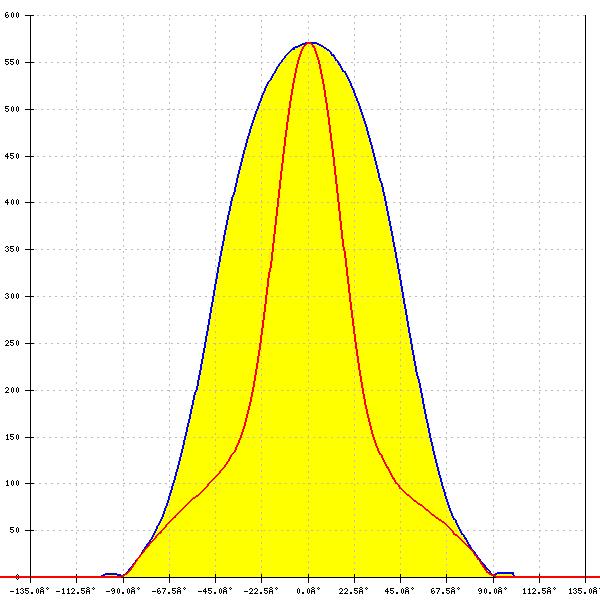

Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM:
95° + 42°
FWTM:
145° + 135°
Peak intensity:
0.571 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

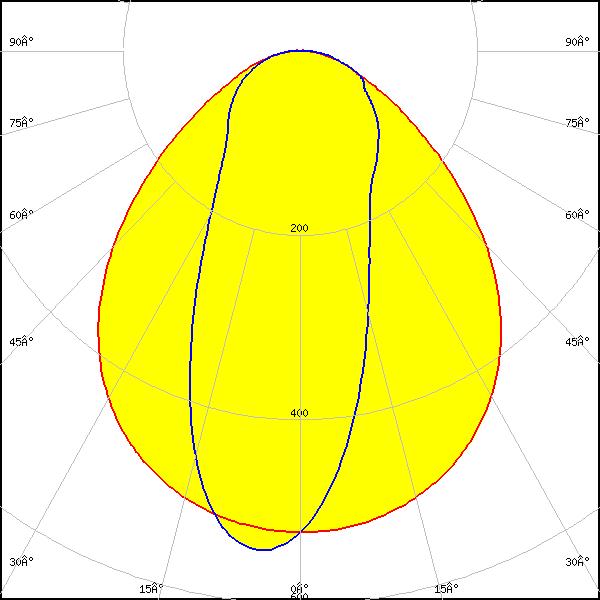

LED:

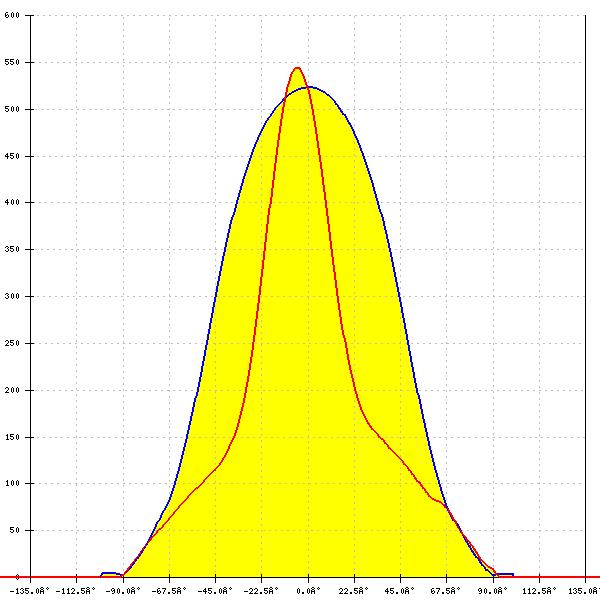

Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM:
94° + 42°
FWTM:
147° + 144°
Peak intensity:
0.544 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM:
94° + 42°
FWTM:
145° + 134°
Peak intensity:
0.599 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

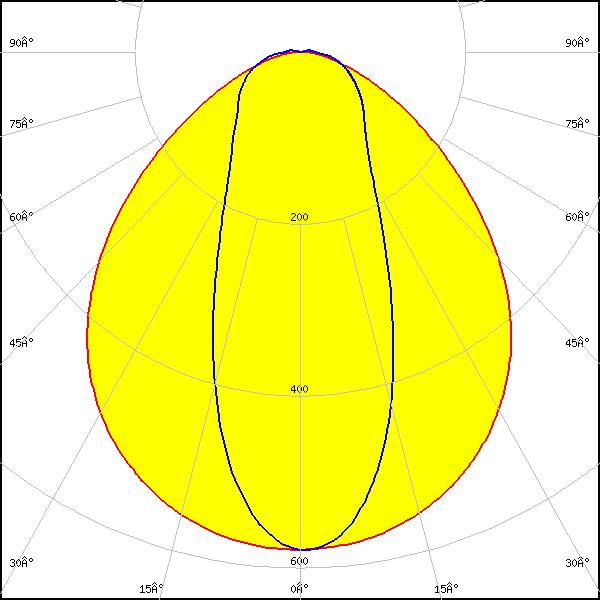

LM28xB Series
FWHM:
99° + 43°
FWTM:
147° + 143°
Peak intensity:
0.580 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

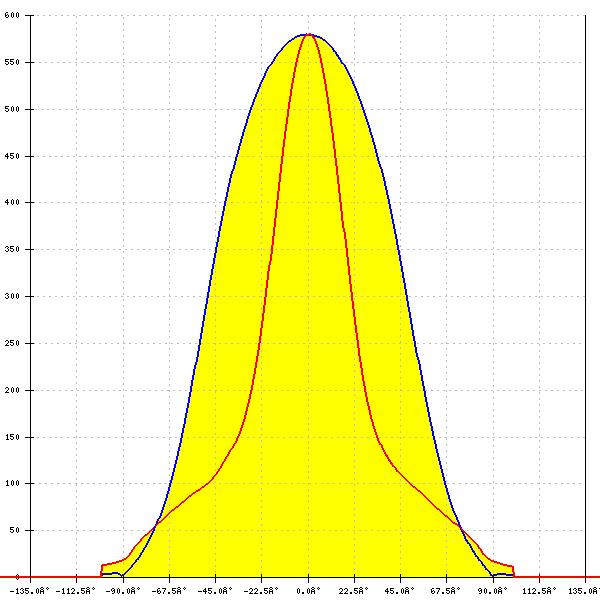

LED:

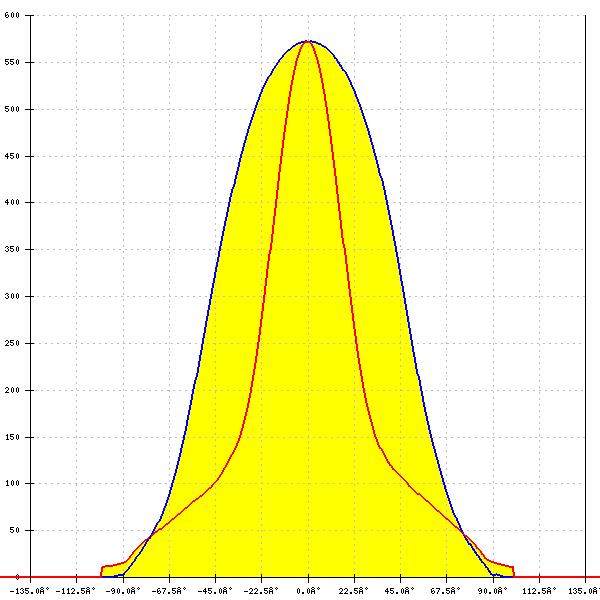

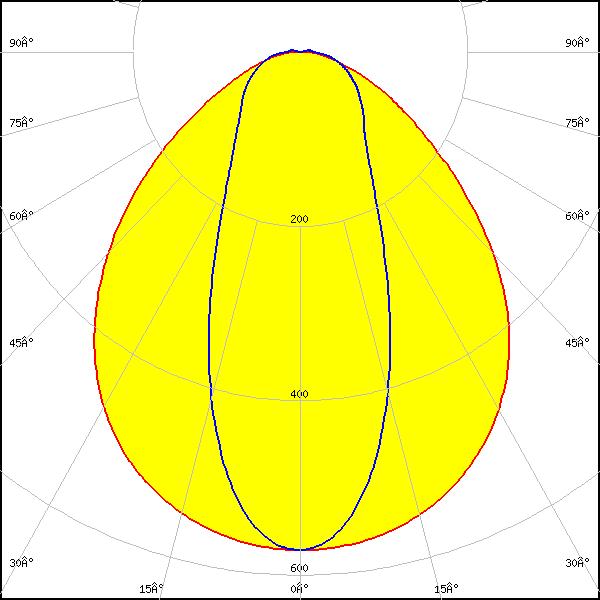

LM301B
FWHM:
96° + 43°
FWTM:
146° + 139°
Peak intensity:
0.572 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

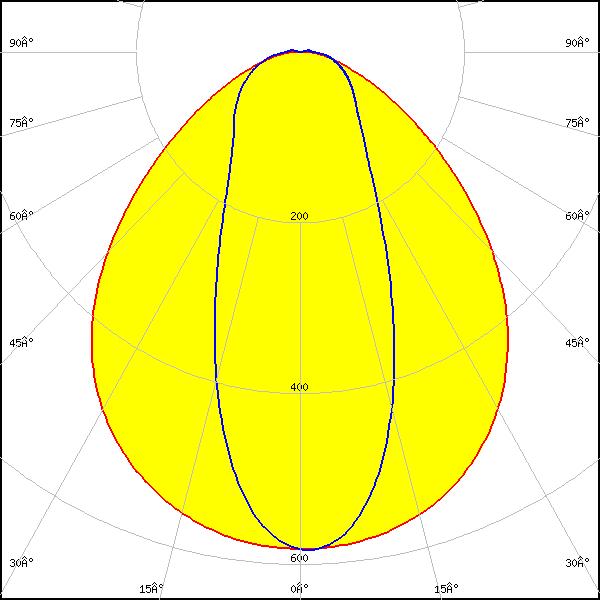

LM561C
FWHM:
96° + 43°
FWTM:
146° + 138°
Peak intensity:
0.580 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

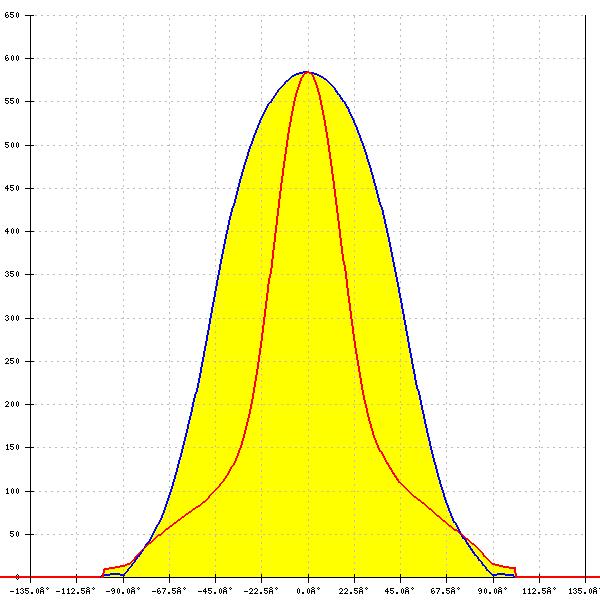

LED:

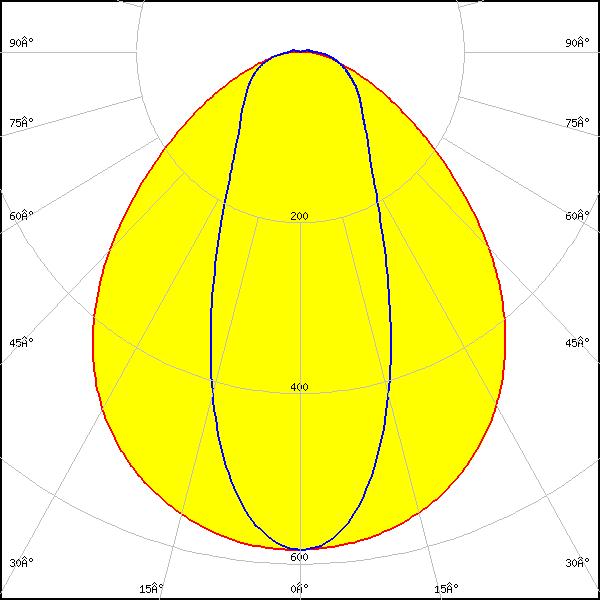

LT-H282C
FWHM:
95° + 42°
FWTM:
145° + 136°
Peak intensity:
0.584 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

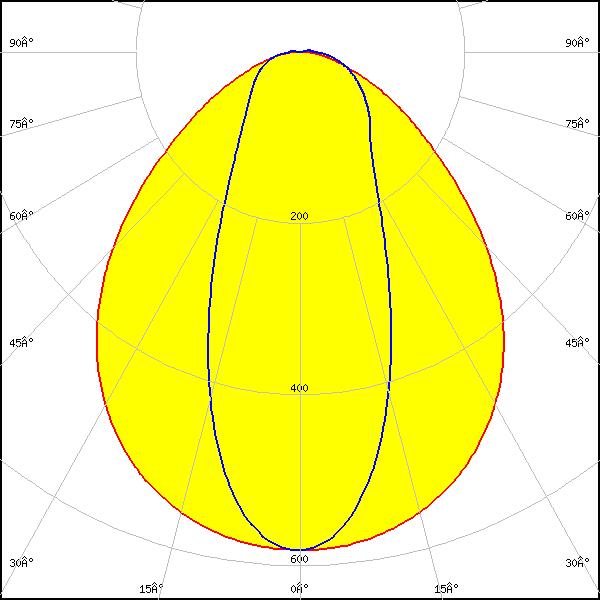

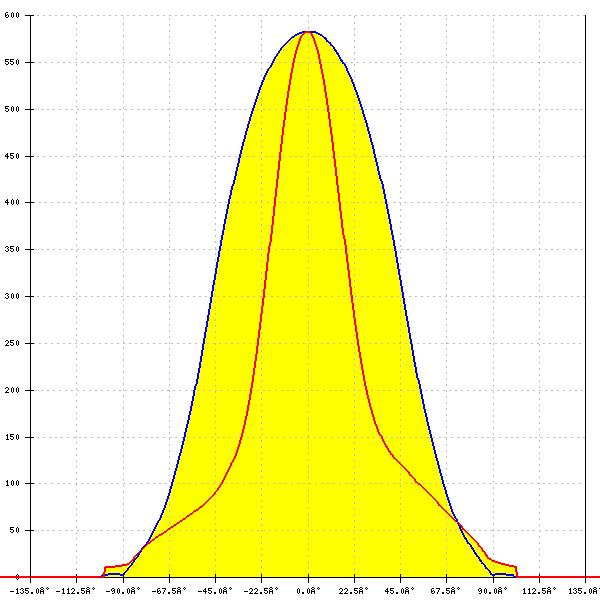

LT-Q282B
FWHM:
95° + 43°
FWTM:
146° + 136°
Peak intensity:
0.582 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LT-S282H
FWHM:
95° + 42°
FWTM:
145° + 135°
Peak intensity:
0.590 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

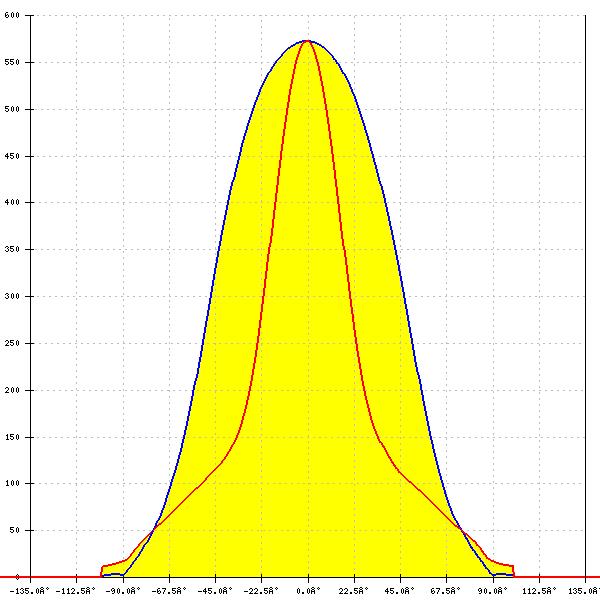

LED:

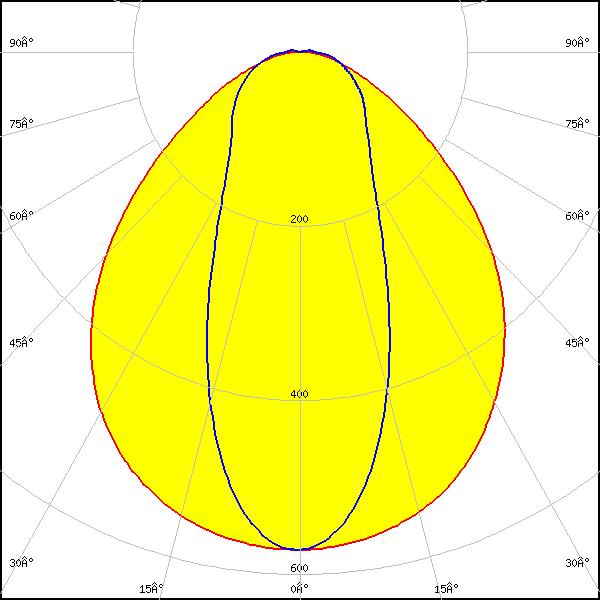

SEOUL DC 3528
FWHM:
96° + 43°
FWTM:
146° + 143°
Peak intensity:
0.570 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

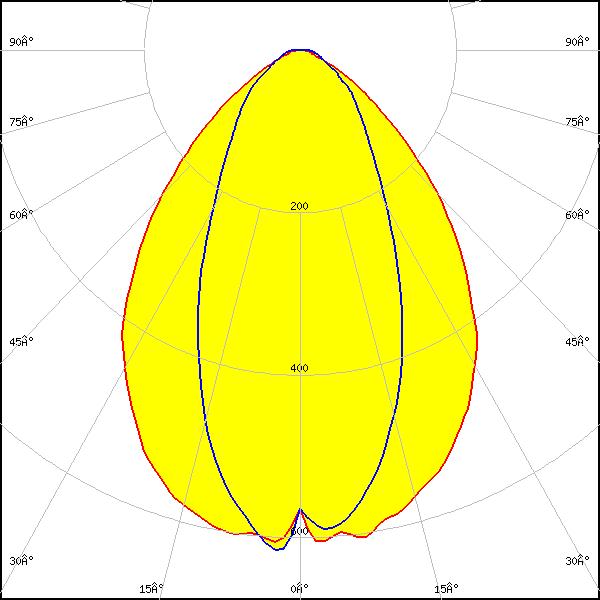

LED:

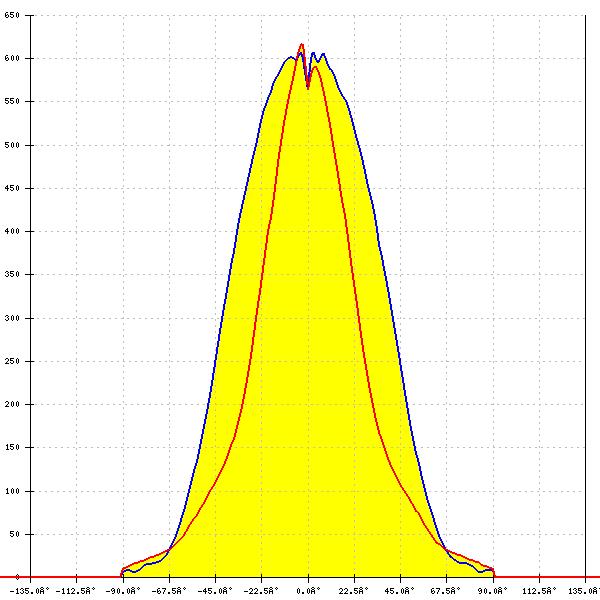

SEOUL DC 5050 6V
FWHM:
82° + 48°
FWTM:
124° + 114°
Peak intensity:
0.630 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

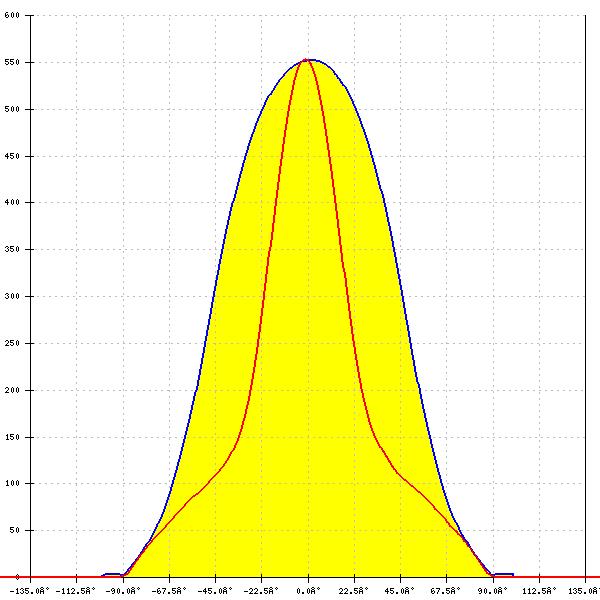

LED:

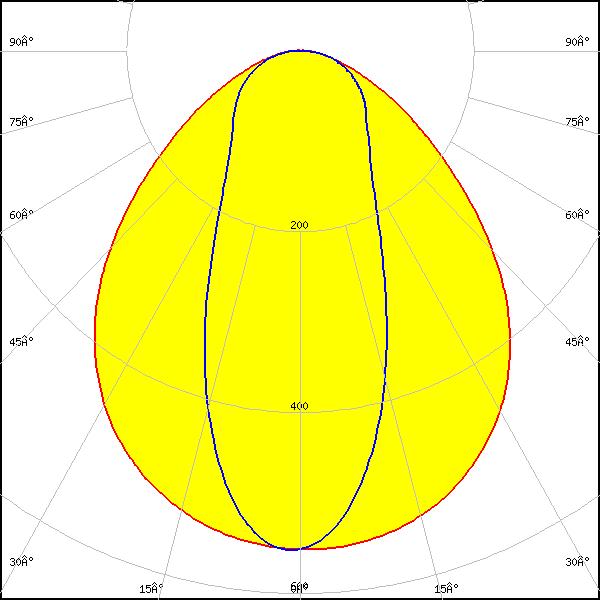

LLE 24x280mm 1250lm HV ADV5
FWHM:
96° + 43°
FWTM:
146° + 139°
Peak intensity:
0.553 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

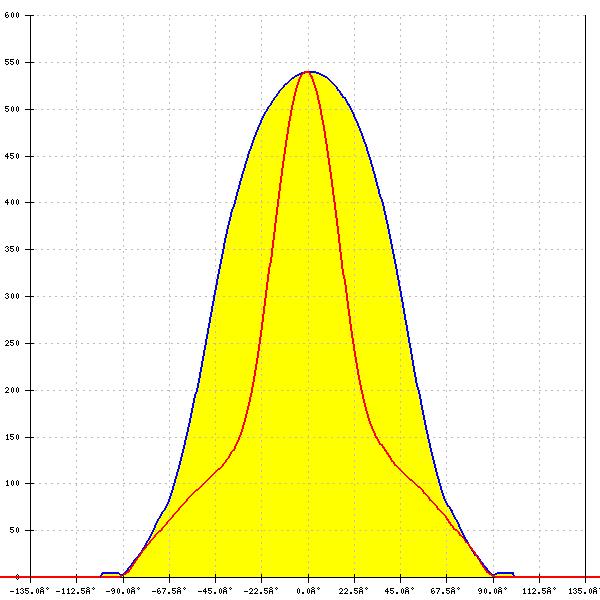

LLE 24x280mm 650lm HV ADV5
FWHM:
96° + 43°
FWTM:
148° + 141°
Peak intensity:
0.541 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LLE FLEX CC 14mm 1250lm ADV1
FWHM:
95° + 43°
FWTM:
145° + 133°
Peak intensity:
0.583 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
