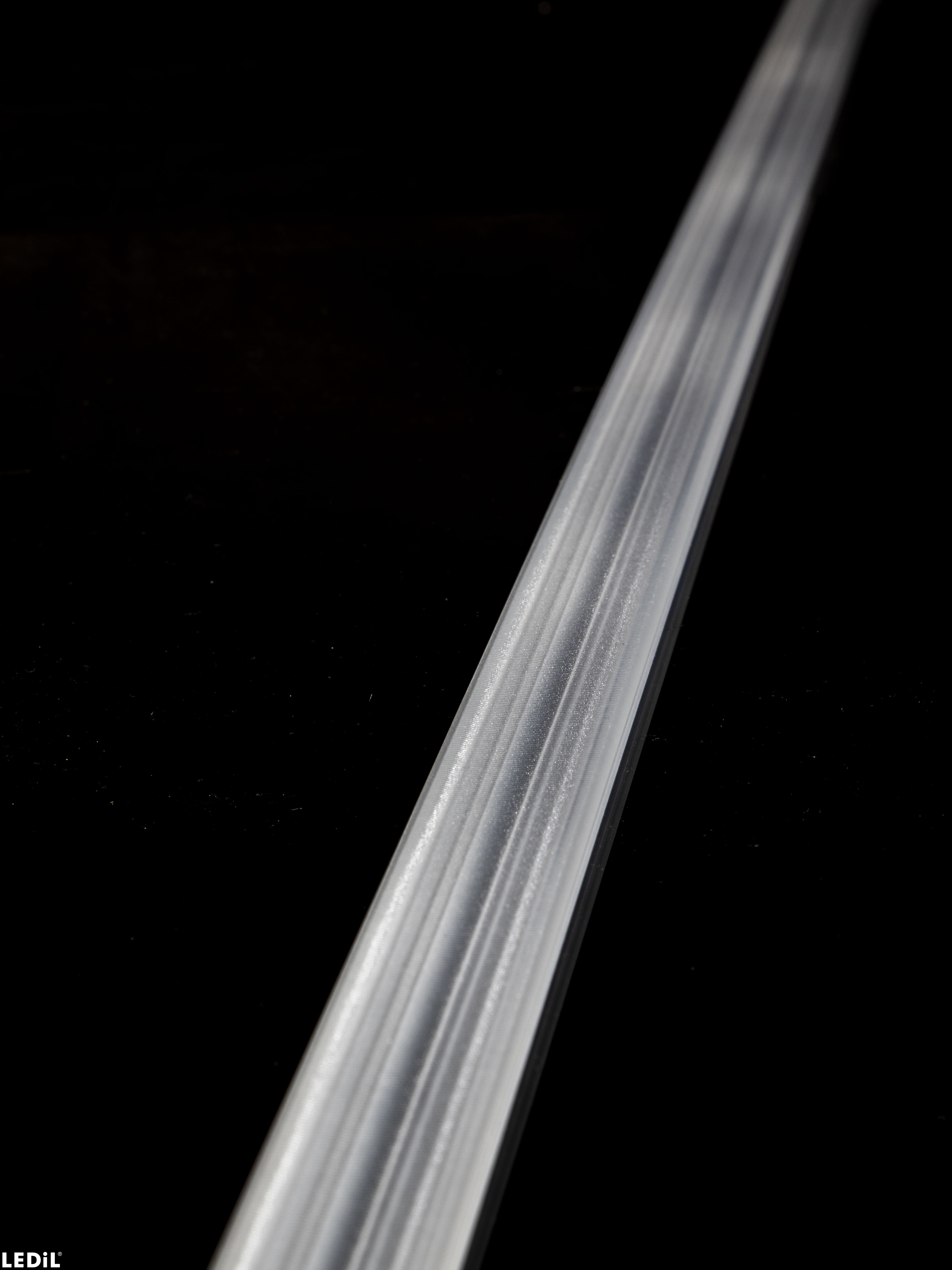

F16636_LINDA-W60
Print
~60° + 90° beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

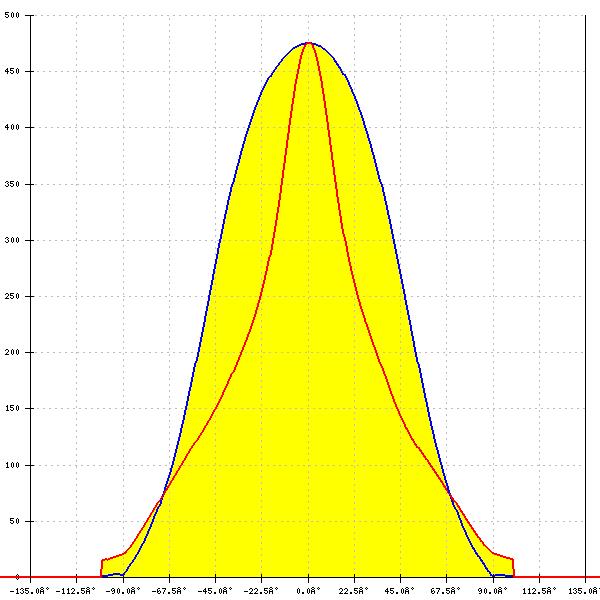

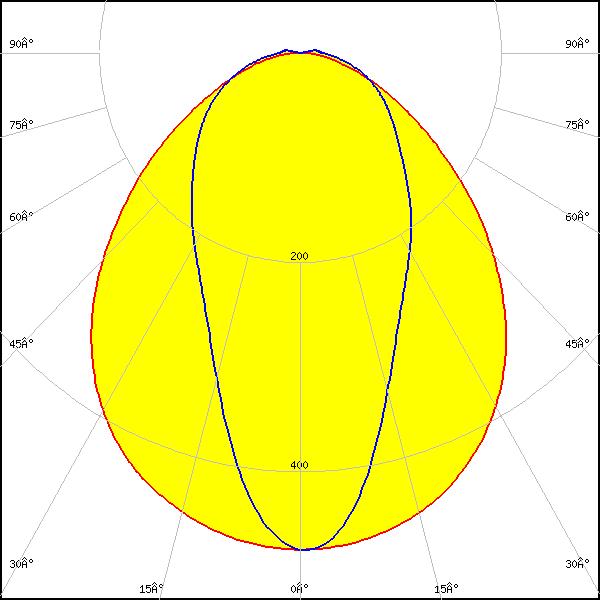

LED:
Bridgelux SMD 3030
FWHM:
98° + 51°
FWTM:
151° + 158°
Peak intensity:
0.476 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White

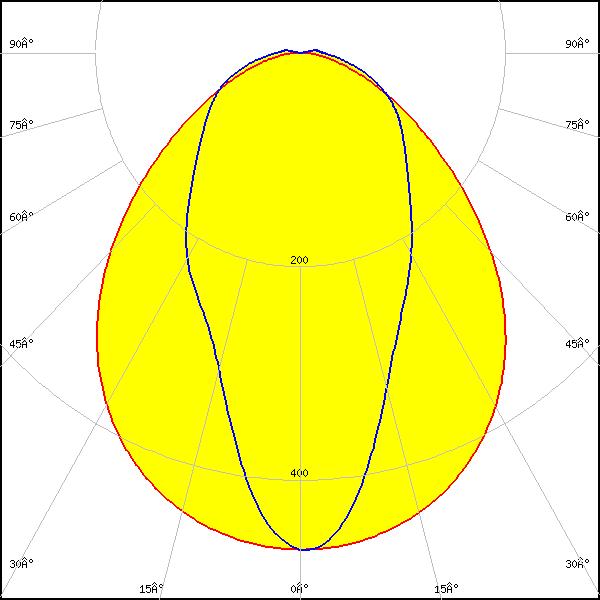

LED:

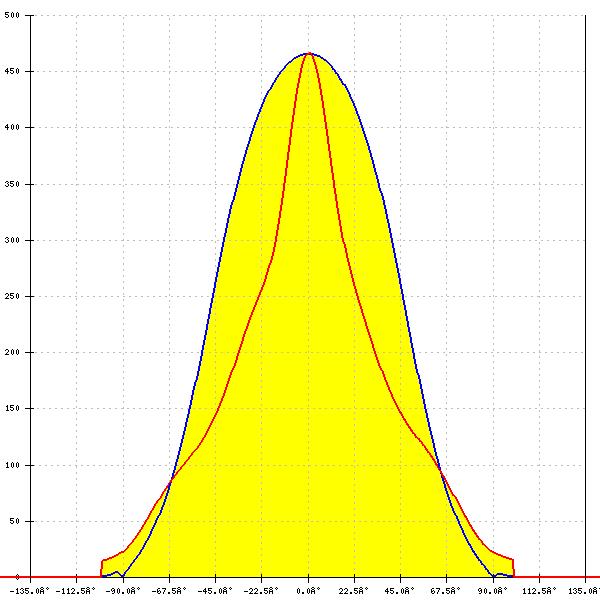

CLUC11
FWHM:
97° + 55°
FWTM:
149° + 159°
Peak intensity:
0.466 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

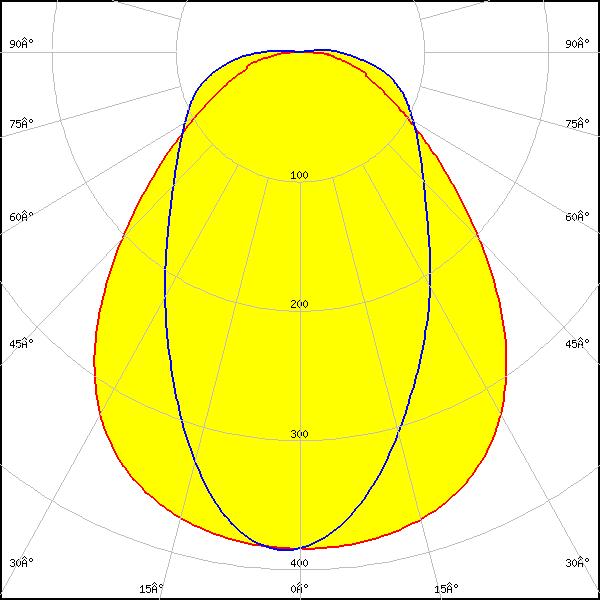

LED:

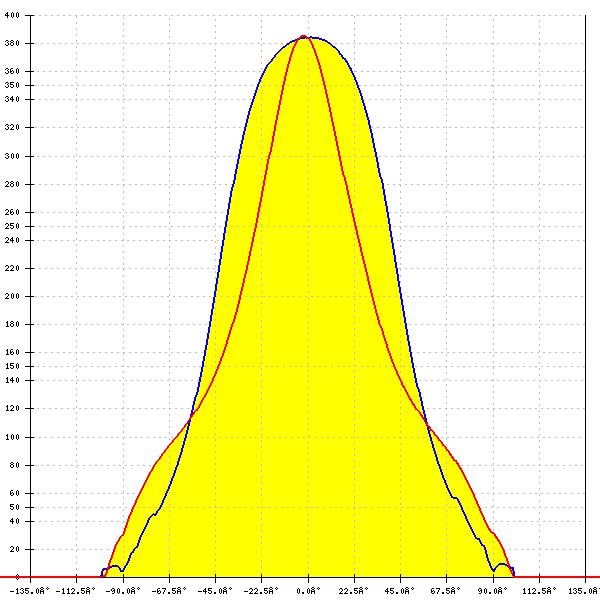

XP-G3
FWHM: asymmetric
Peak intensity:
0.385 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

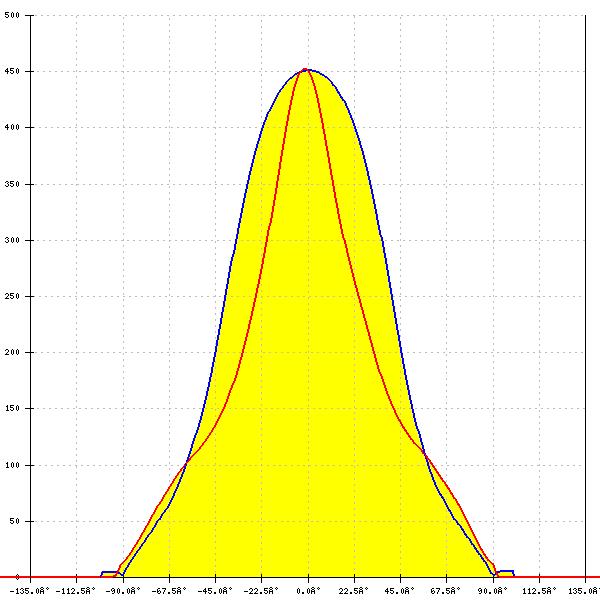

PL-LIN-Z5 1100 280x20
FWHM:
86° + 57°
FWTM:
148° + 157°
Peak intensity:
0.452 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

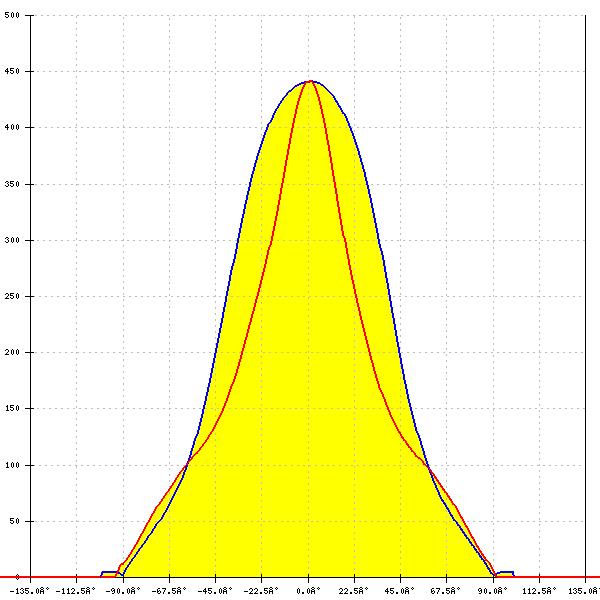

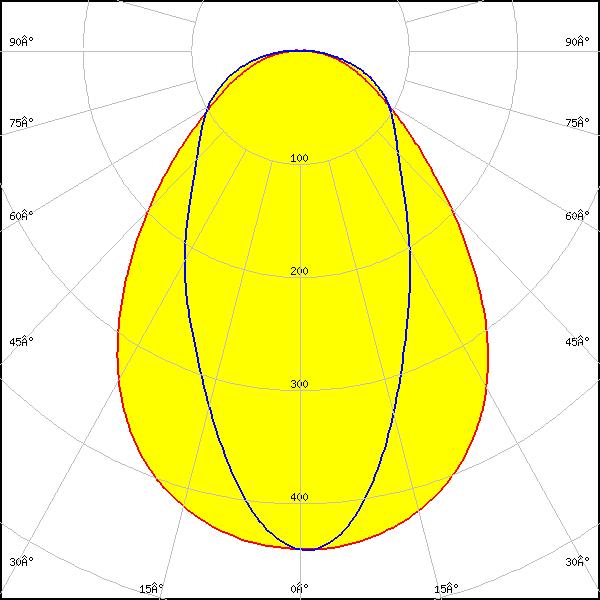

LED:
PL-LIN-Z5 2000 280x20
FWHM:
85° + 56°
FWTM:
149° + 157°
Peak intensity:
0.441 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

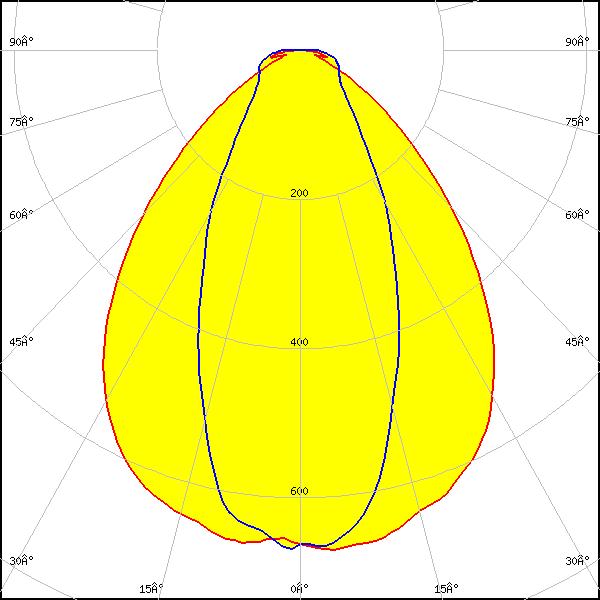

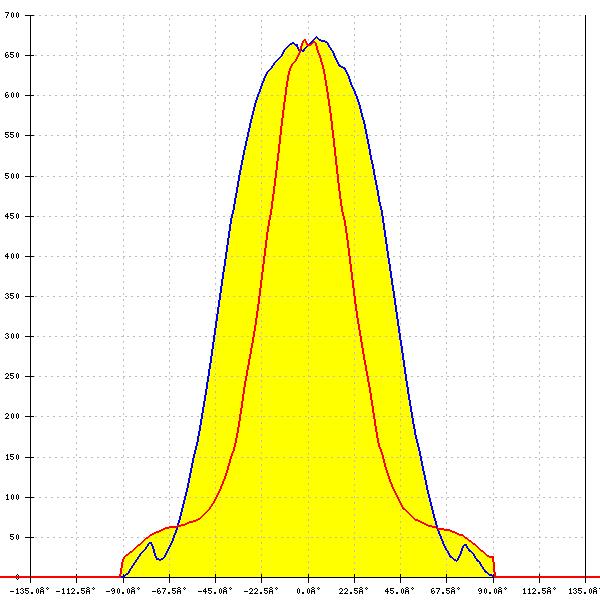

LUXEON CSP HL1
FWHM:
86° + 48°
FWTM:
126° + 114°
Peak intensity:
0.683 cd/lm
Efficiency:
88 %
LEDs/each optic:
5
Light colour/type:
White

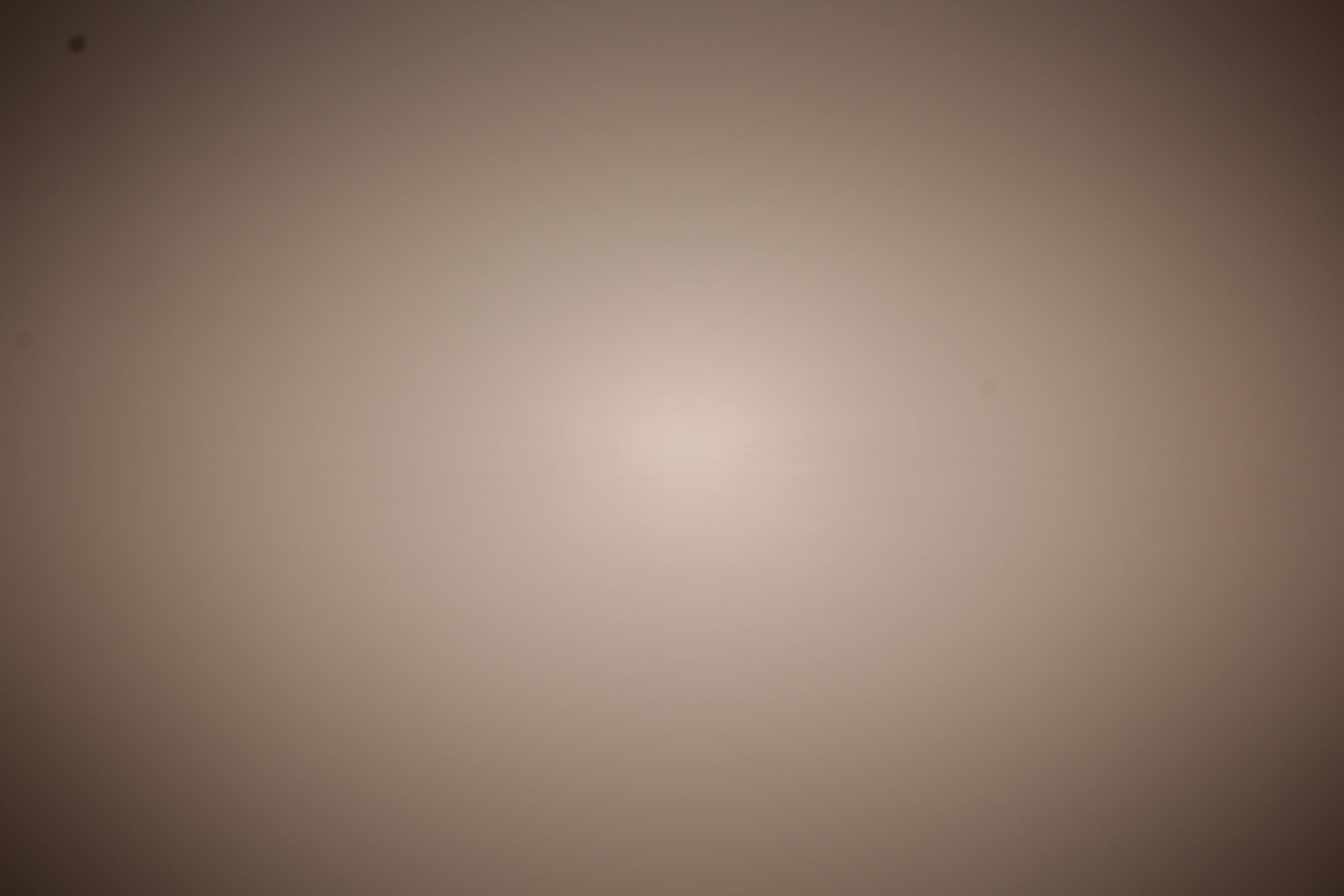

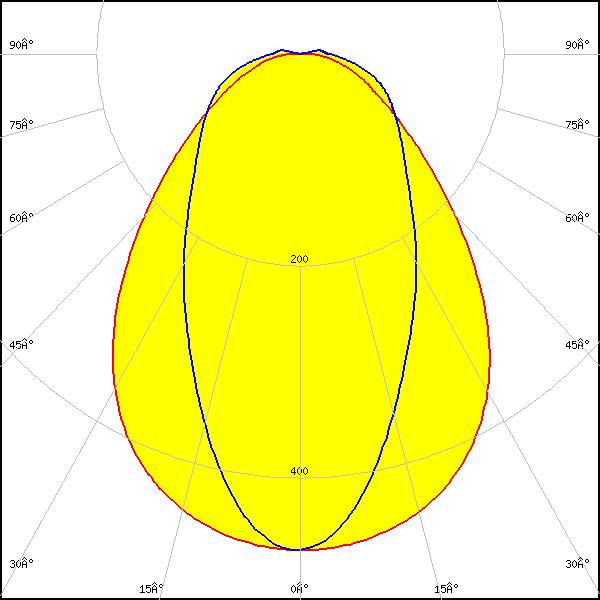

LED:
NF2W757G-MT (Tunable White)
FWHM:
87° + 58°
FWTM:
147° + 164°
Peak intensity:
0.469 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

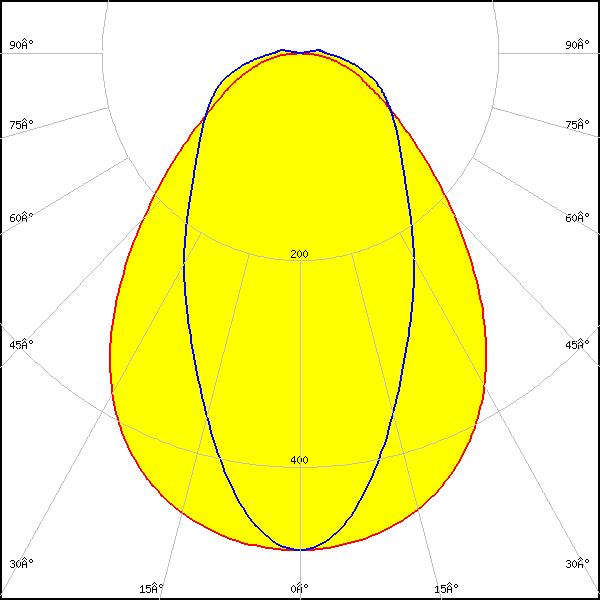

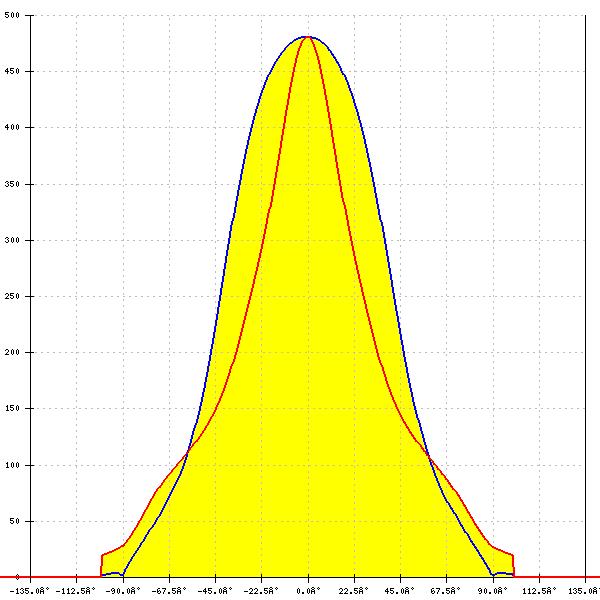

NFSW757H
FWHM:
86° + 57°
FWTM:
148° + 164°
Peak intensity:
0.481 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

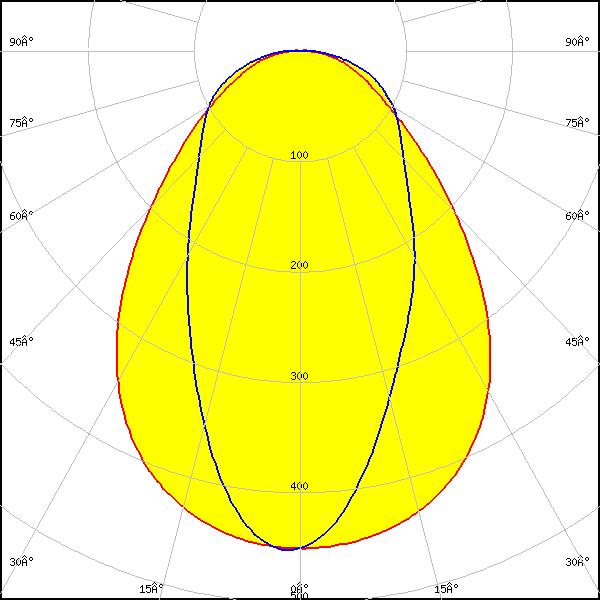

Duris E 2835
FWHM:
85° + 56°
FWTM:
149° + 157°
Peak intensity:
0.441 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris E 2835
FWHM:
86° + 57°
FWTM:
148° + 157°
Peak intensity:
0.452 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris E 2835
FWHM:
87° + 58°
FWTM:
151° + 164°
Peak intensity:
0.476 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

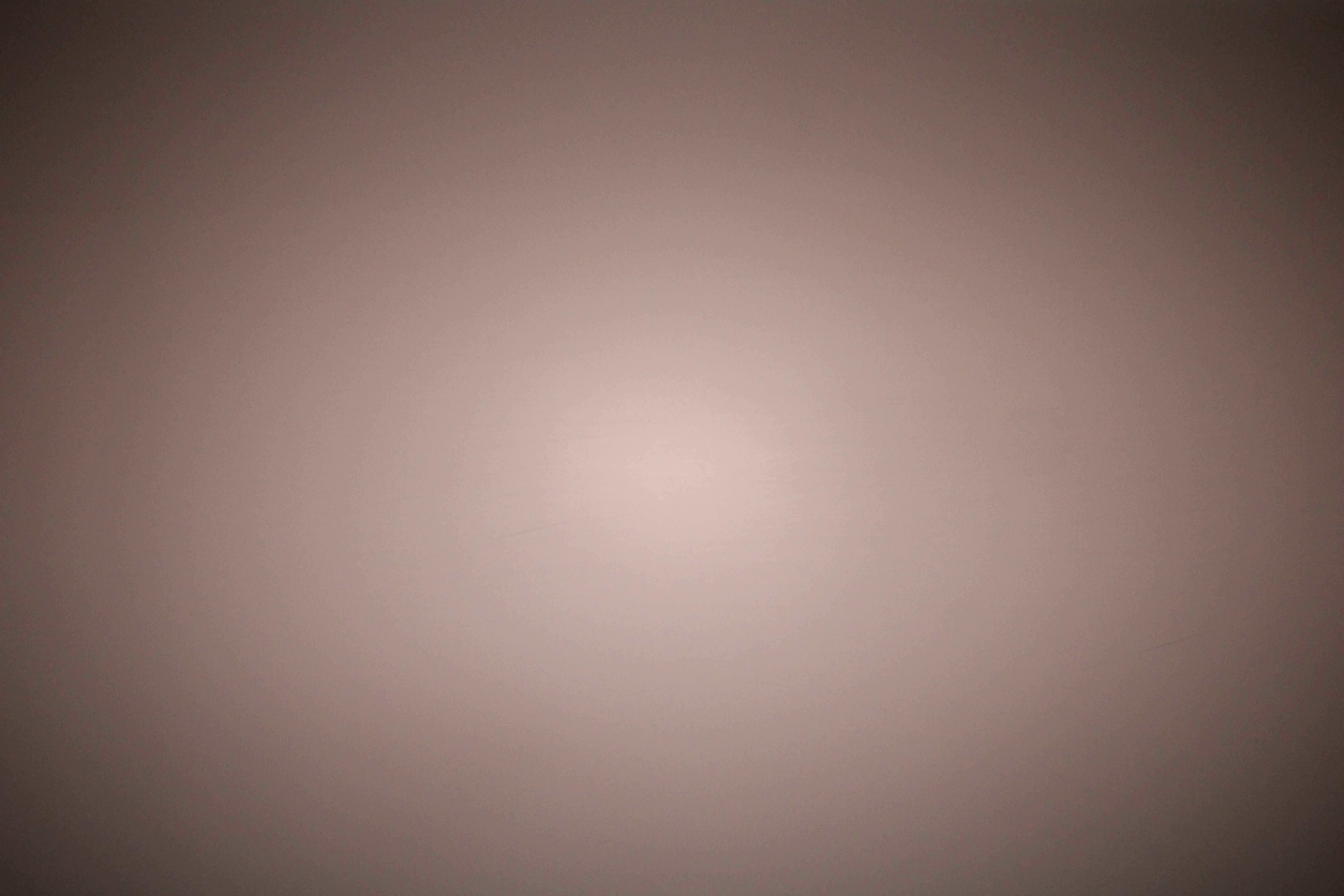

LED:

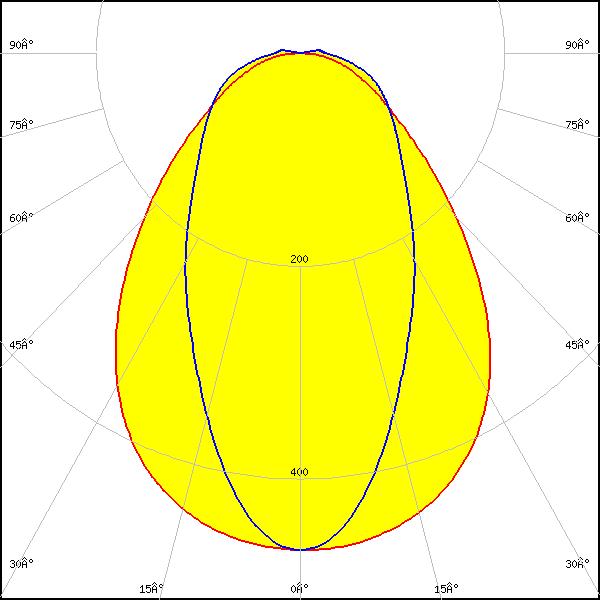

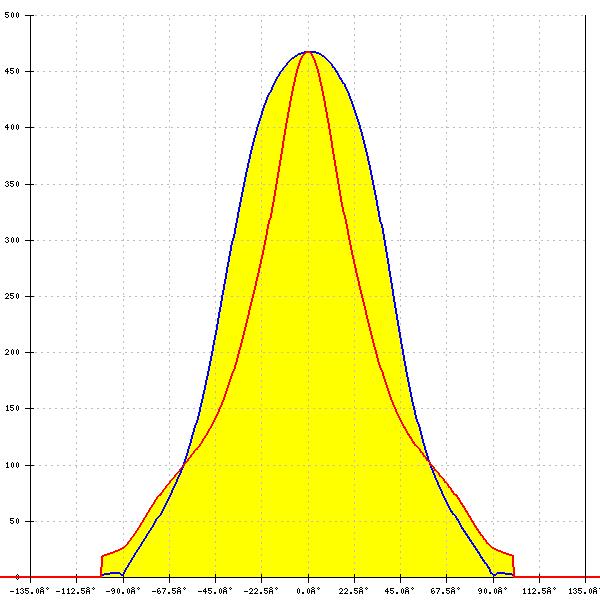

OSCONIQ E 2835
FWHM:
87° + 58°
FWTM:
149° + 163°
Peak intensity:
0.468 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
Tunable White

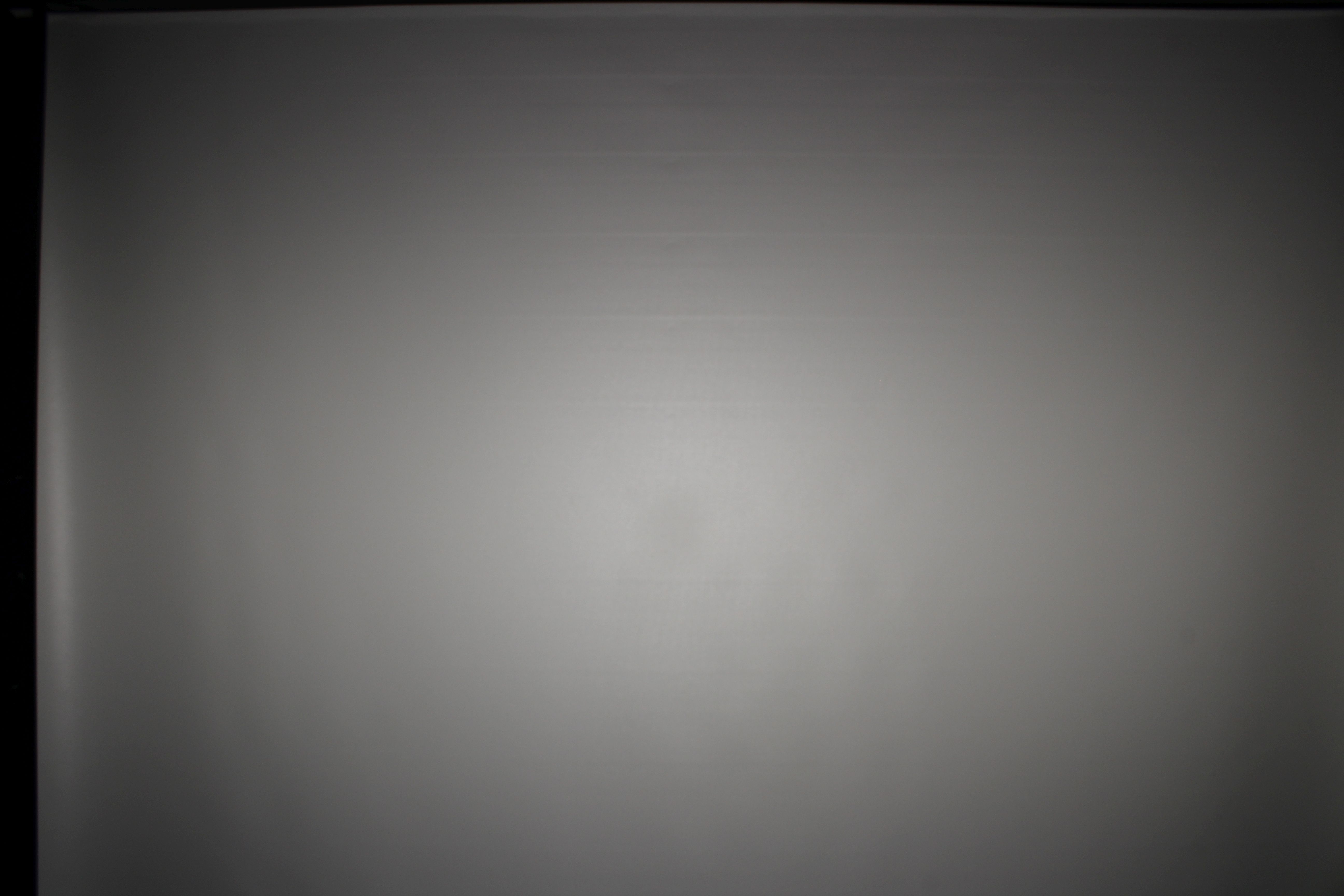

LED:
Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM:
85° + 56°
FWTM:
148° + 157°
Peak intensity:
0.458 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

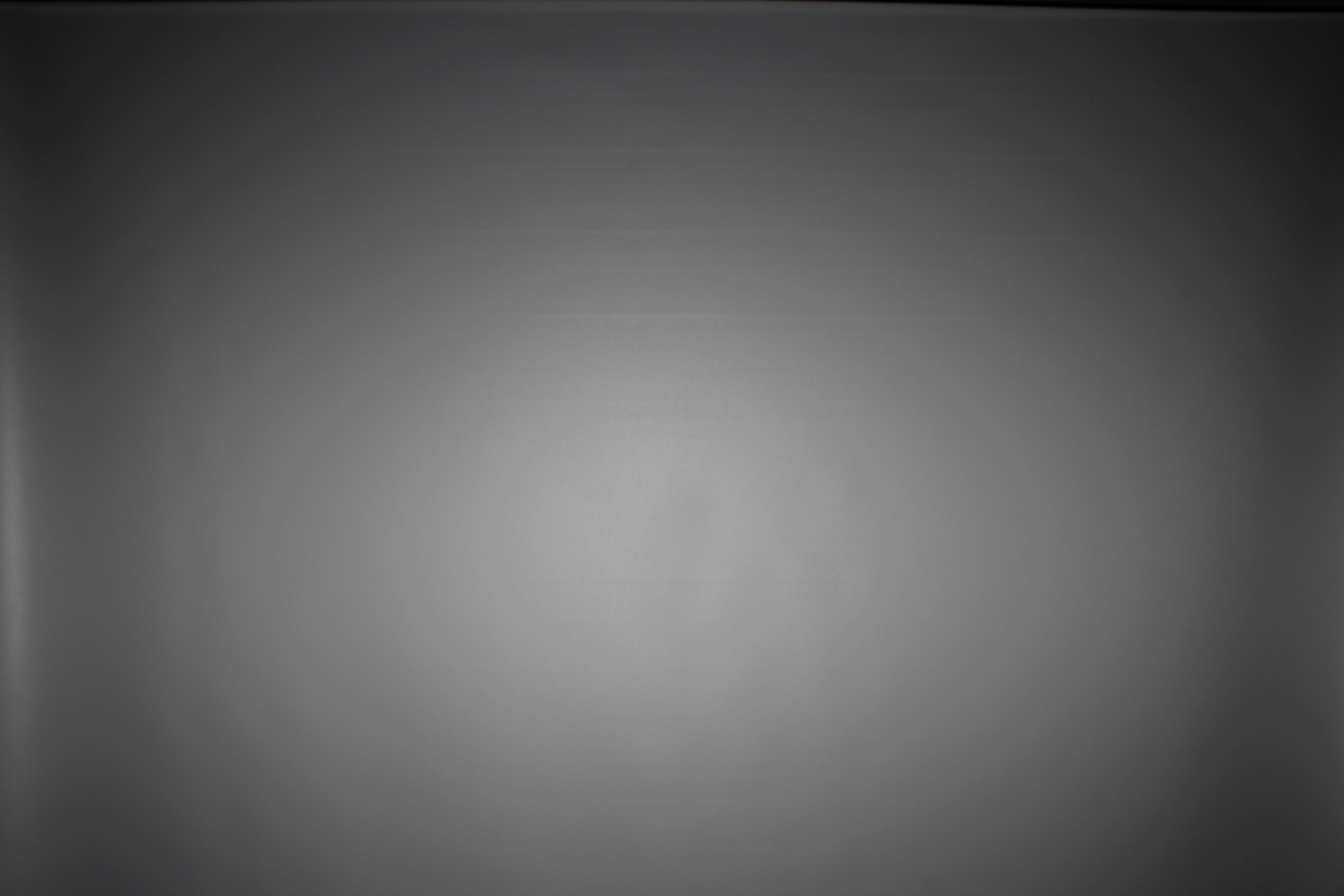

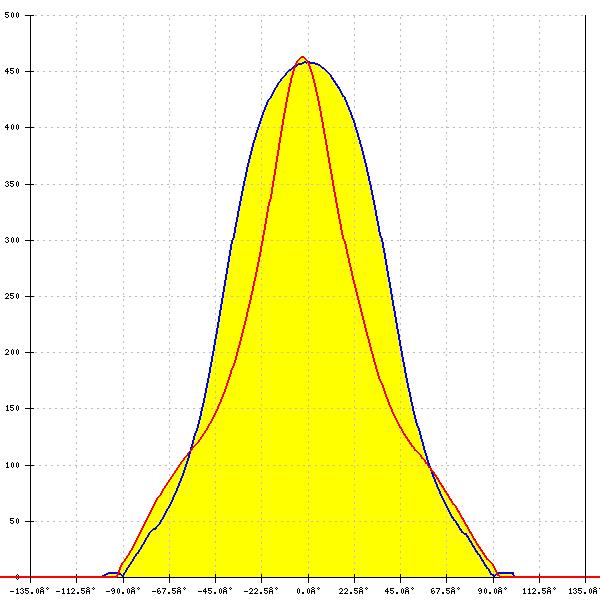

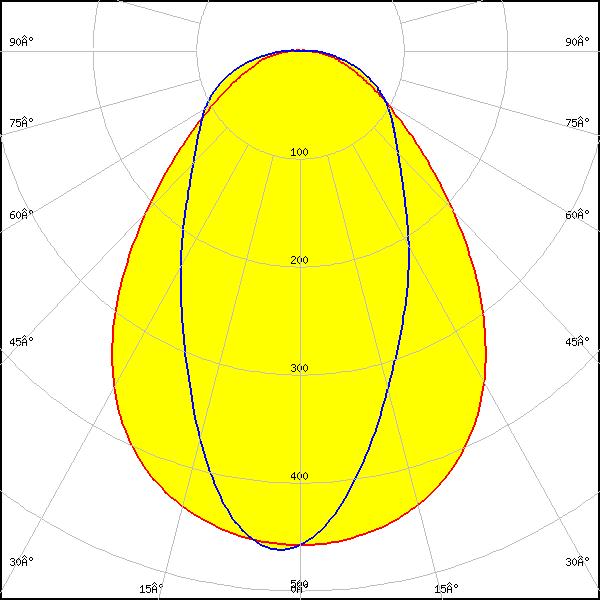

LED:
Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM:
86° + 57°
FWTM:
146° + 157°
Peak intensity:
0.463 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM:
86° + 58°
FWTM:
149° + 164°
Peak intensity:
0.472 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

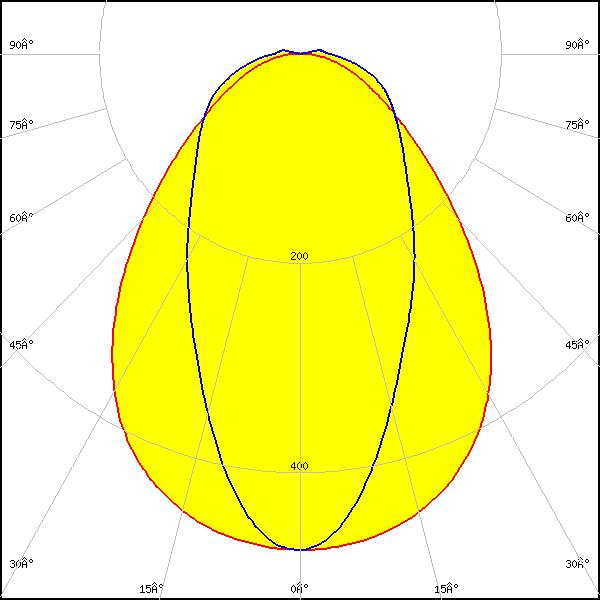

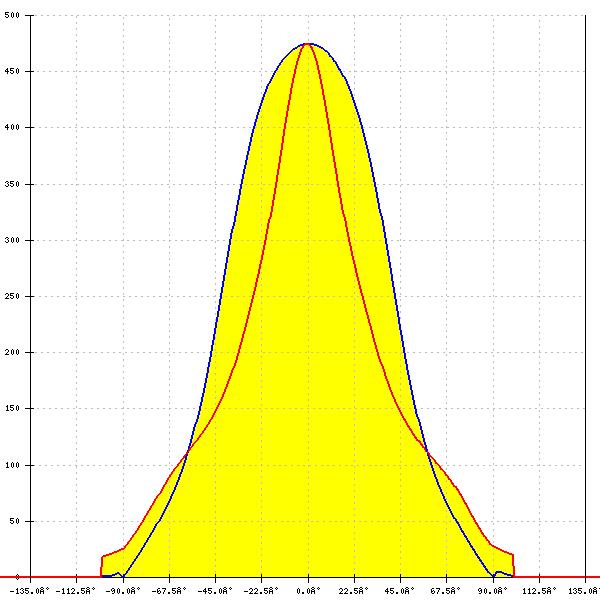

LM28xB Series
FWHM:
87° + 57°
FWTM:
146° + 163°
Peak intensity:
0.470 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

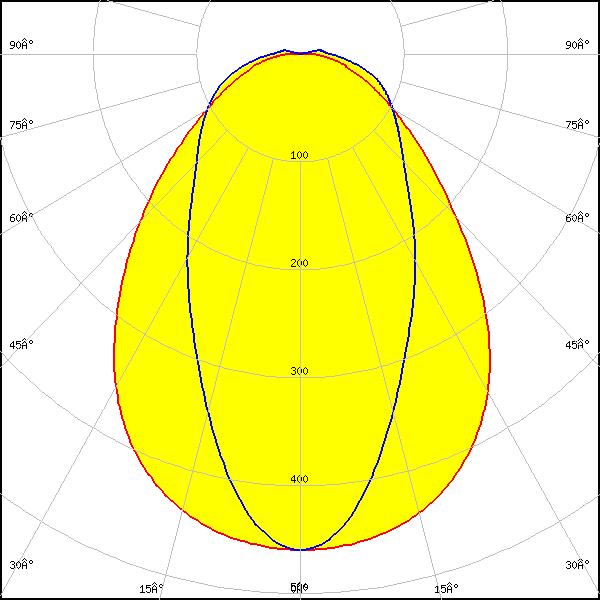

LED:

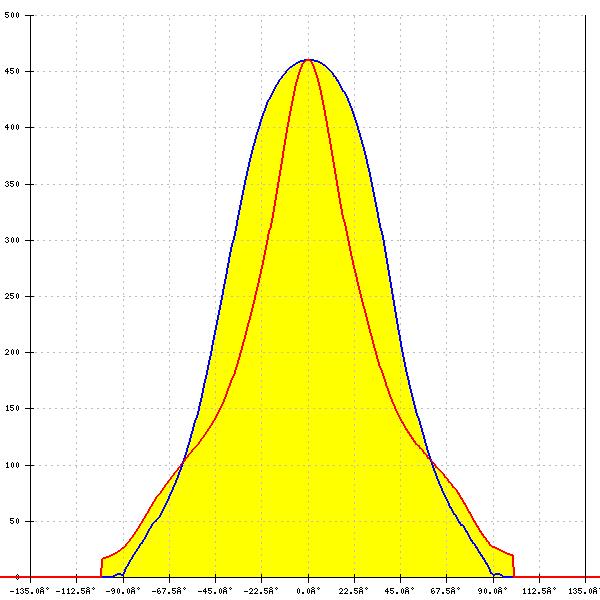

LM301B
FWHM:
87° + 57°
FWTM:
151° + 164°
Peak intensity:
0.460 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

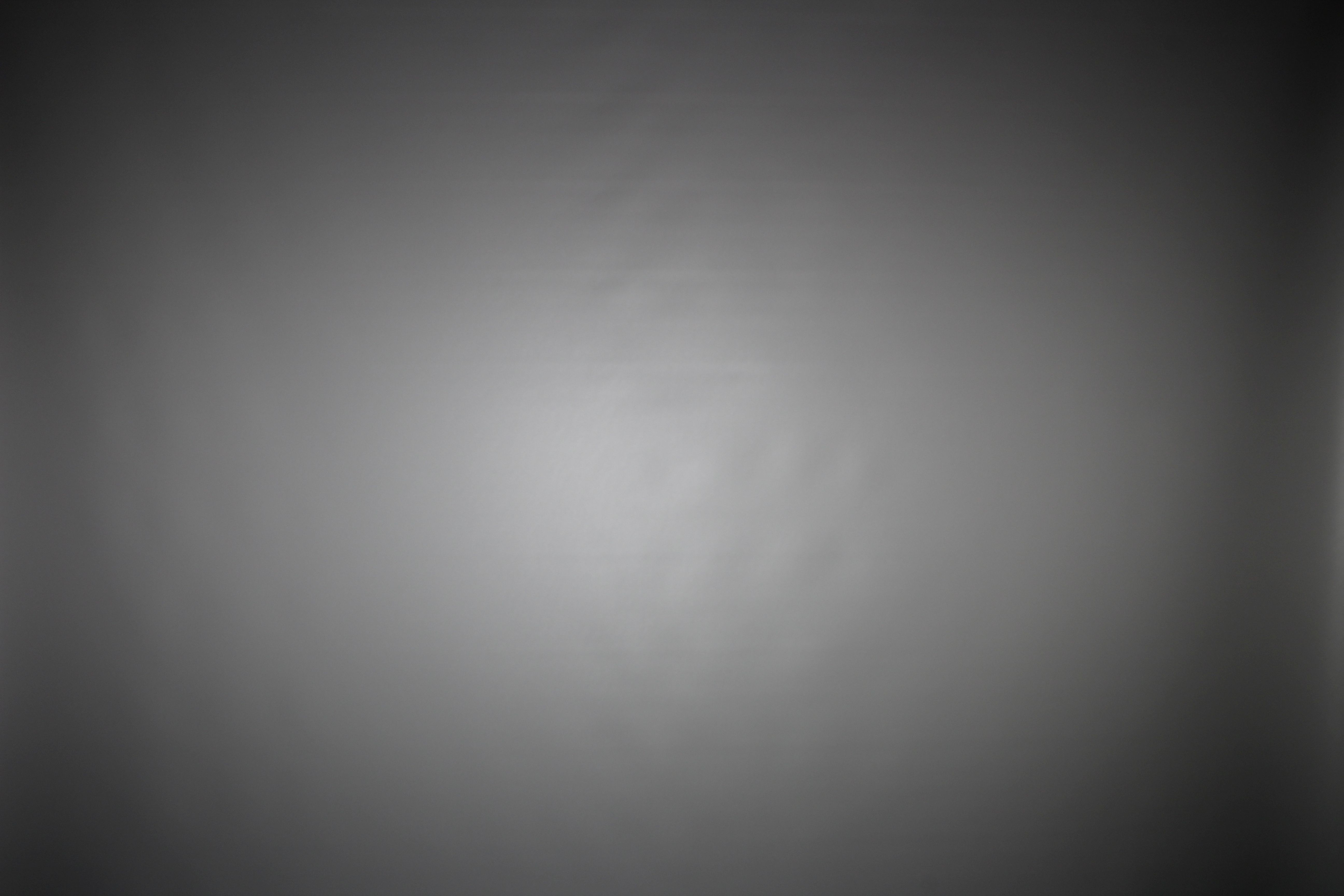

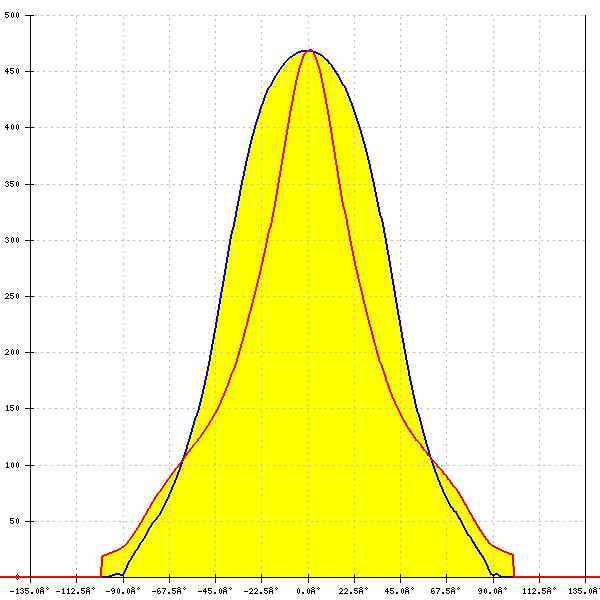

LED:

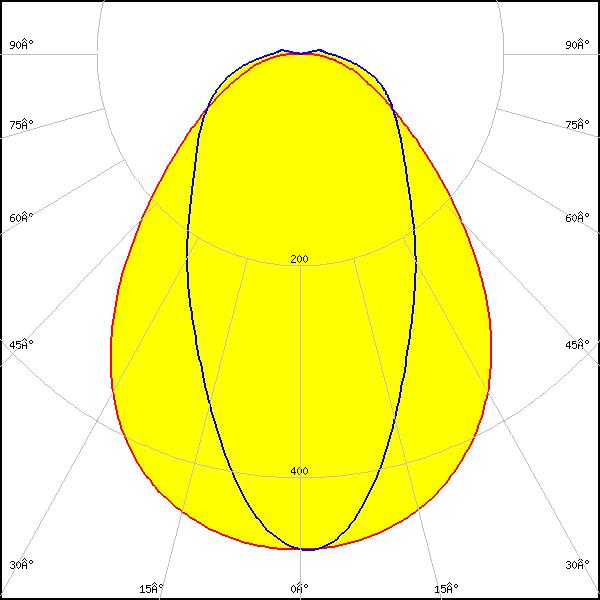

LM561C
FWHM:
96° + 43°
FWTM:
146° + 138°
Peak intensity:
0.580 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

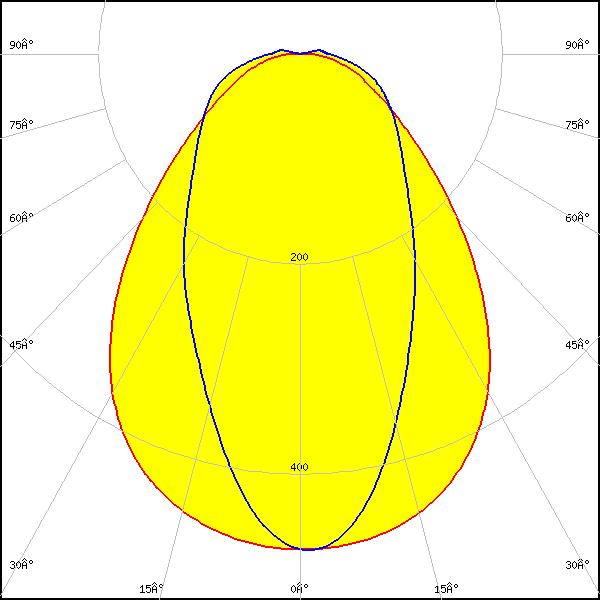

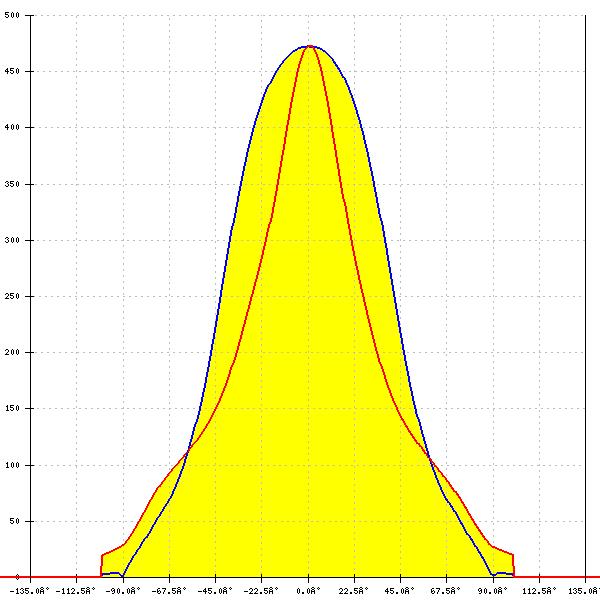

LED:
LT-H282C
FWHM:
87° + 58°
FWTM:
149° + 164°
Peak intensity:
0.473 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

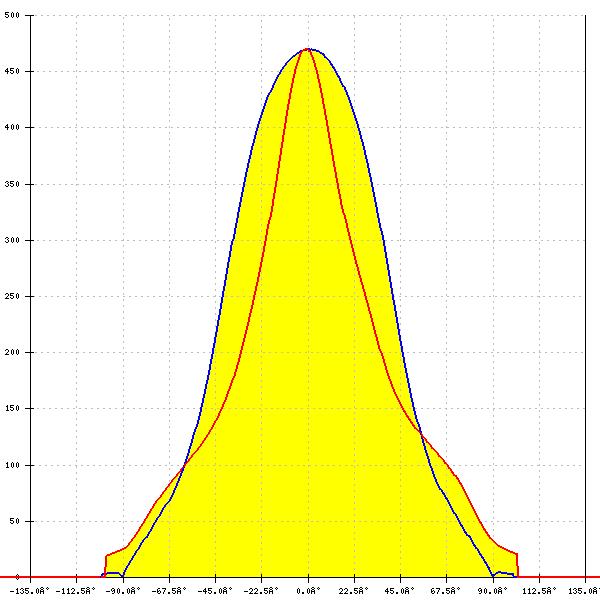

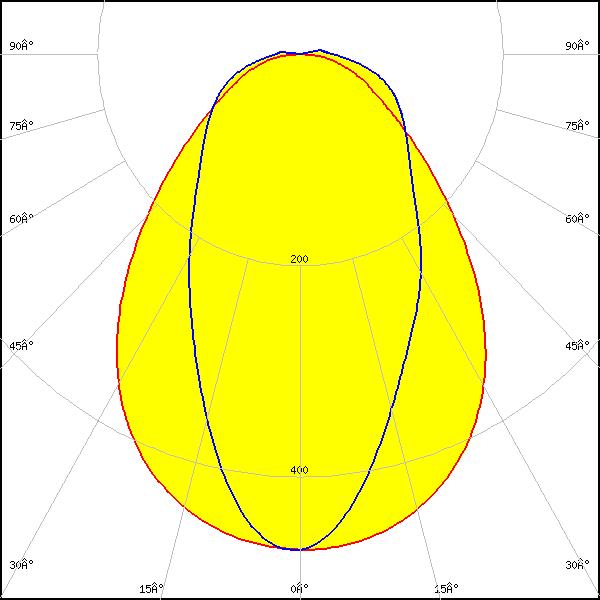

LT-Q282B
FWHM:
85° + 58°
FWTM:
149° + 165°
Peak intensity:
0.470 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

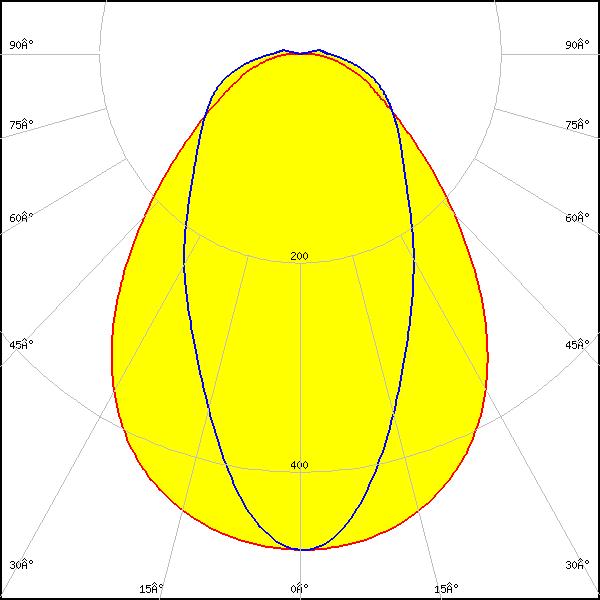

LED:
LT-S282H
FWHM:
86° + 57°
FWTM:
148° + 163°
Peak intensity:
0.475 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

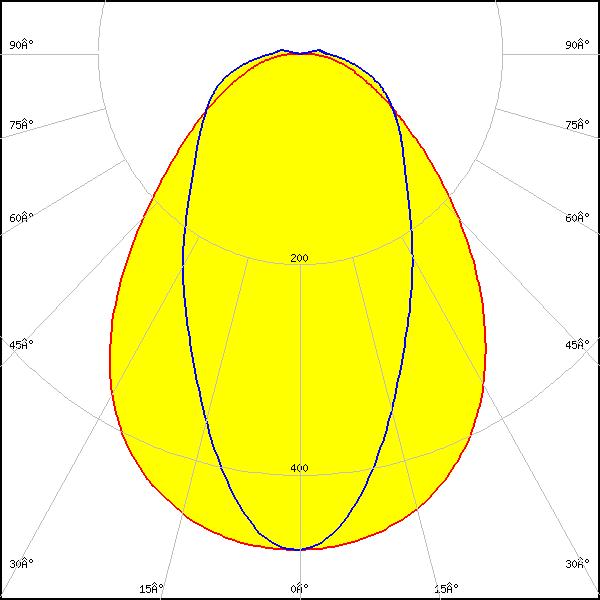

LED:

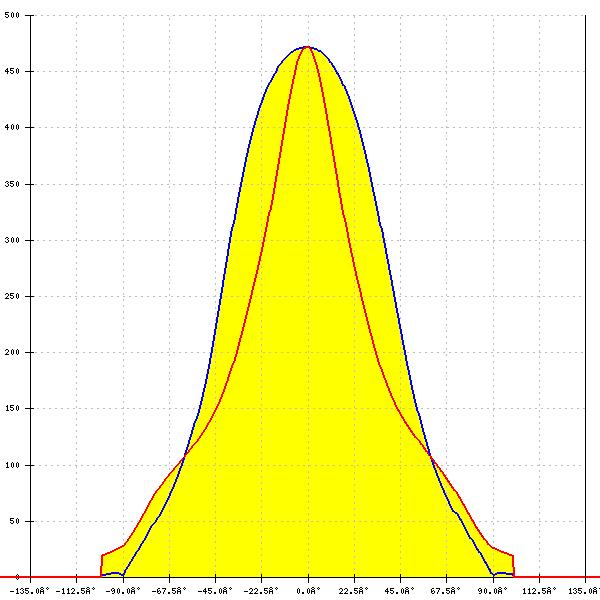

SEOUL DC 3528
FWHM:
87° + 58°
FWTM:
150° + 164°
Peak intensity:
0.470 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

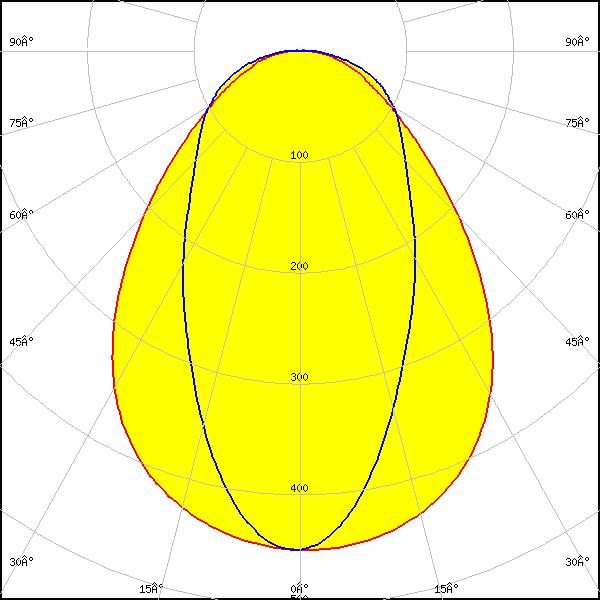

LED:

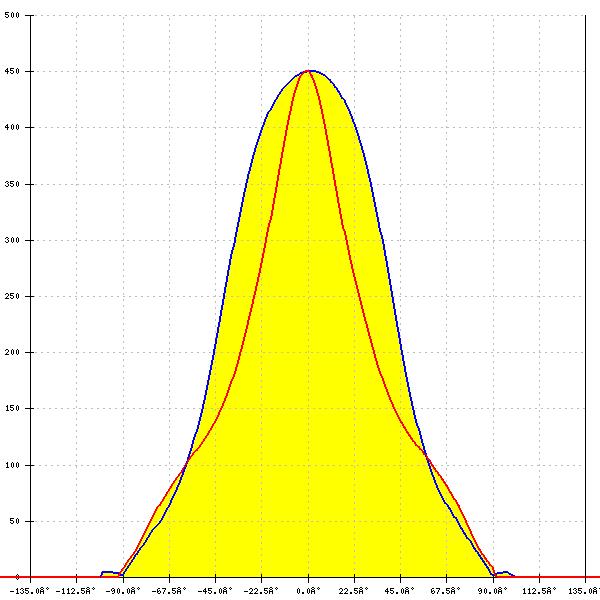

LLE 24x280mm 1250lm HV ADV5
FWHM:
87° + 58°
FWTM:
148° + 156°
Peak intensity:
0.451 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

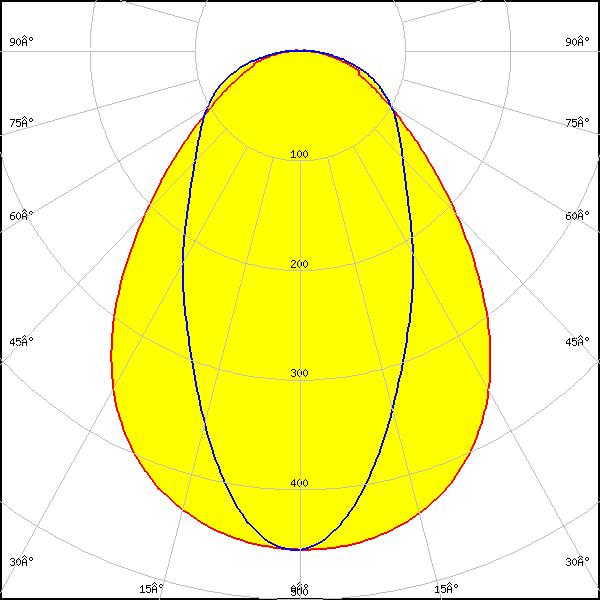

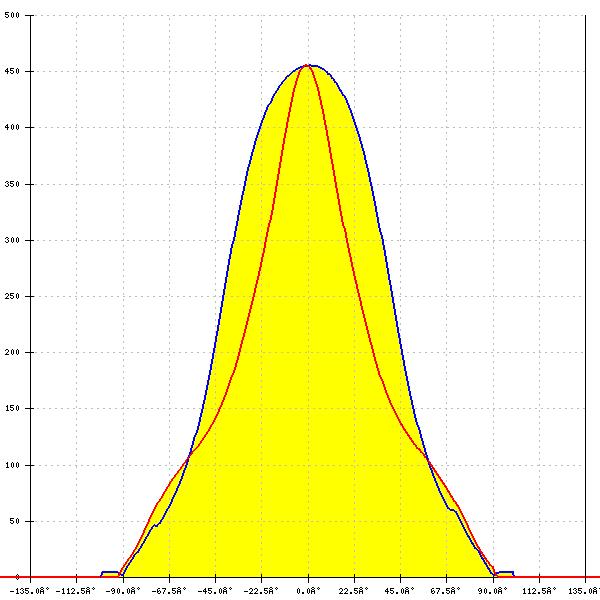

LLE 24x280mm 650lm HV ADV5
FWHM:
87° + 58°
FWTM:
151° + 156°
Peak intensity:
0.456 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LLE FLEX CC 14mm 1250lm ADV1
FWHM:
87° + 57°
FWTM:
150° + 164°
Peak intensity:
0.460 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
