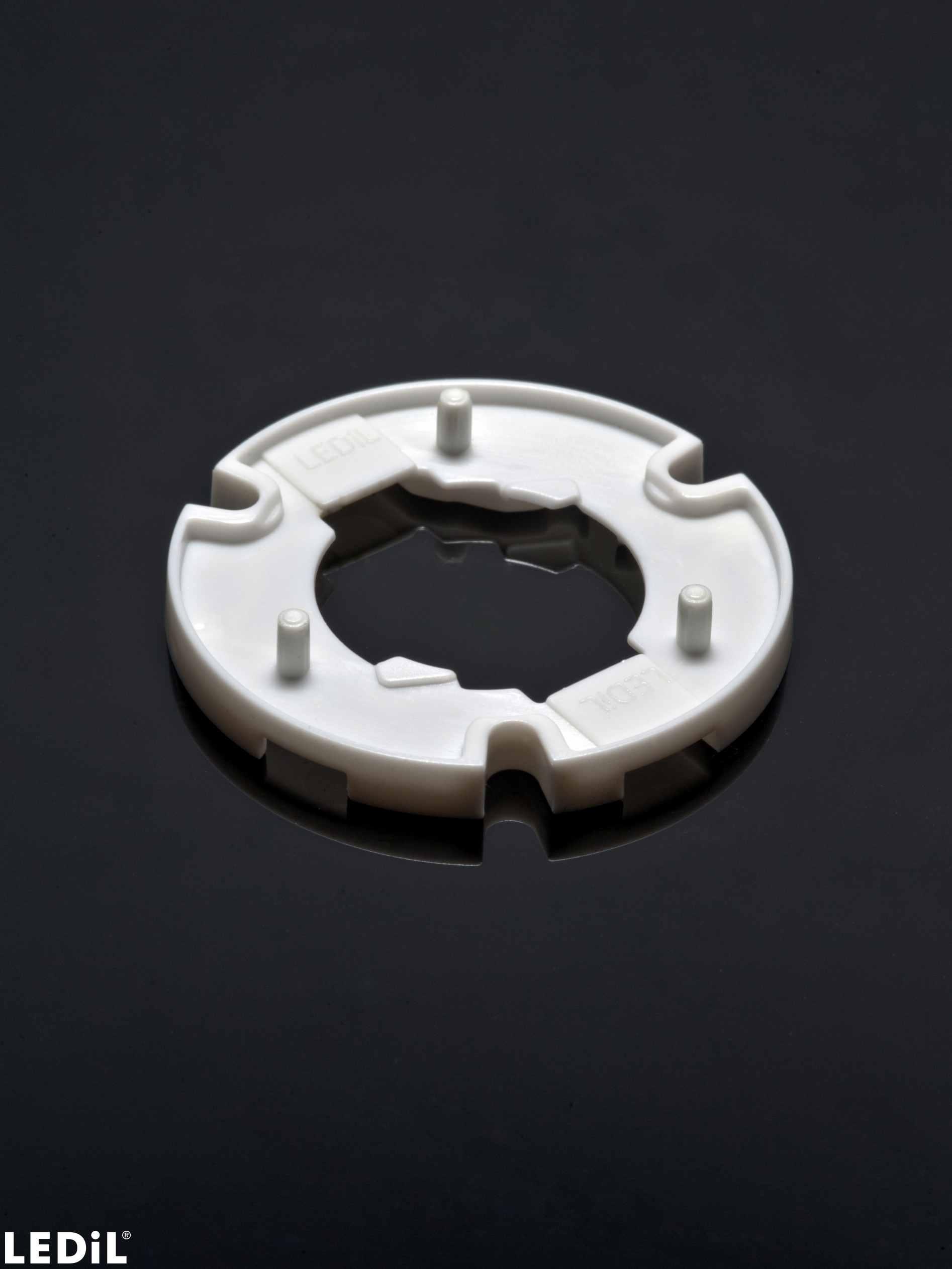

C14037_PF-NSX-SOCKET

Socket with press fit interface. Compatible with MIRELLA-PF and BARBARA-PF for CREE Nichia NSCxL036A, J- and L-Type (LES 9 and 11mm) COBs.

Dimensions:

39 mm
Height:

6.45 mm
Fastening:

screw
Colour:

white
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Quantity in box:

336 pcs
Box size:

273 x 183 x 135 mm
Box weight:

0.6 kg
MPQ:

28 pcs
MOQ:

112 pcs
MOQ weight:

0.0 kg

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

REQUEST SAMPLES

WHERE TO BUY

ORDER ONLINE

MIRELLA-50-S-PF

~15° spot beam

MIRELLA-50-M-PF

~30° medium beam

MIRELLA-50-W-PF

~40° wide beam

MIRELLA-XW-PF

~80° wide beam

BARBARA-S-PF

~15° spot beam

BARBARA-W-PF

~35° wide beam

BARBARA-WW-PF

~60° wide beam

BARBARA-XW-PF

White version with ~75° wide beam

Show less

LED: COB J-Type

LES size: 14.6 mm

LED: COB L-Type (LES 11)

LES size: 11.5 mm

LED: COB L-Type (LES 9)

LES size: 8.7 mm

LED: NSCxL036A

LES size: 7.0 mm
