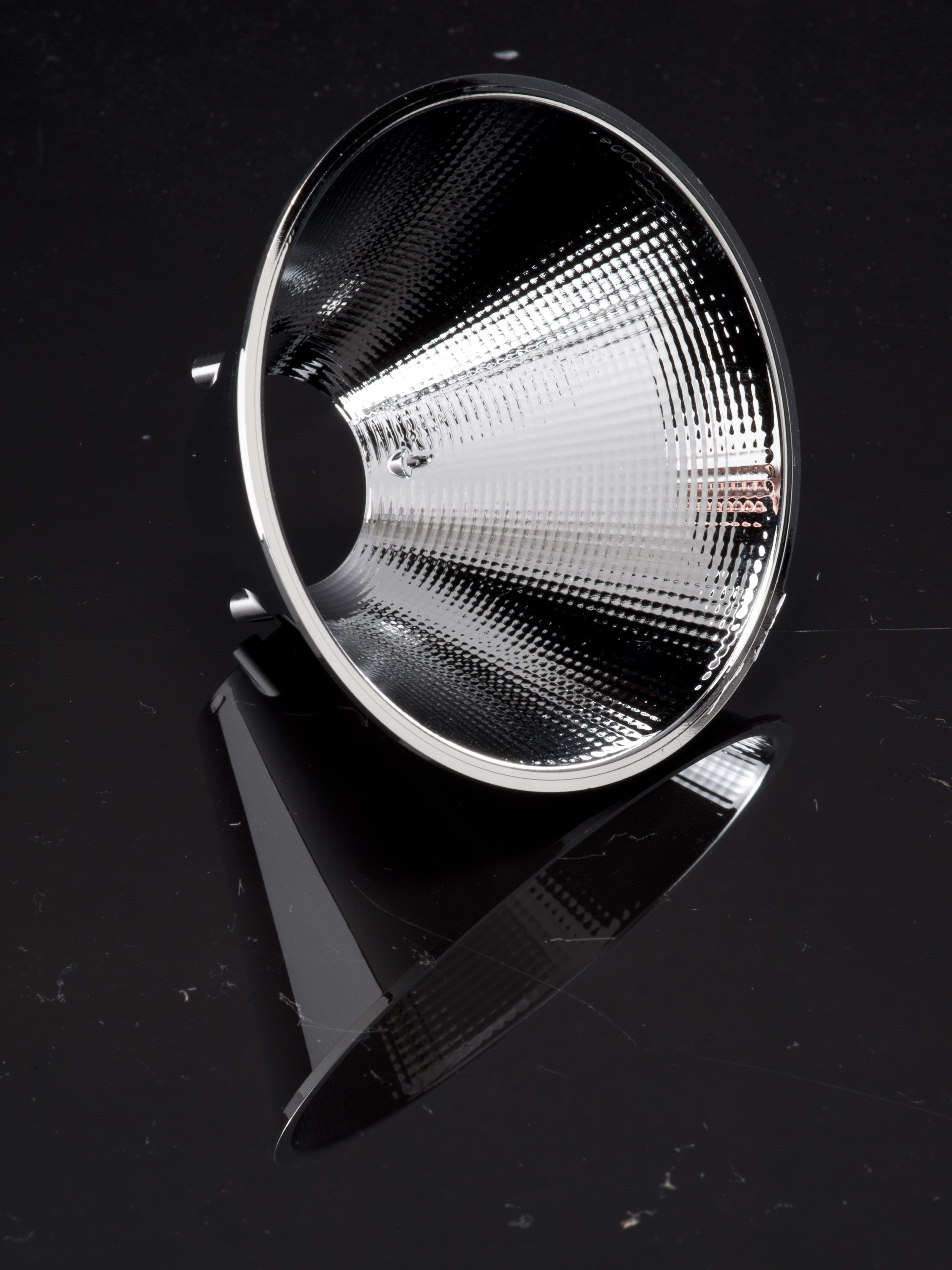

F13701_BARBARA-W-PF
Print
~35° wide beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

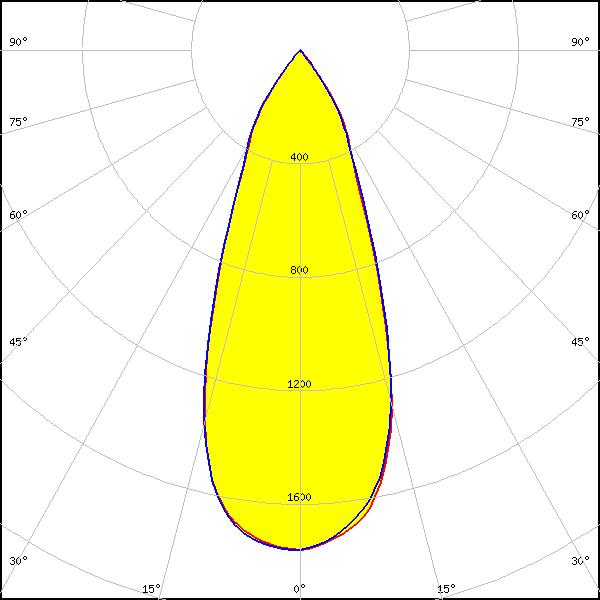

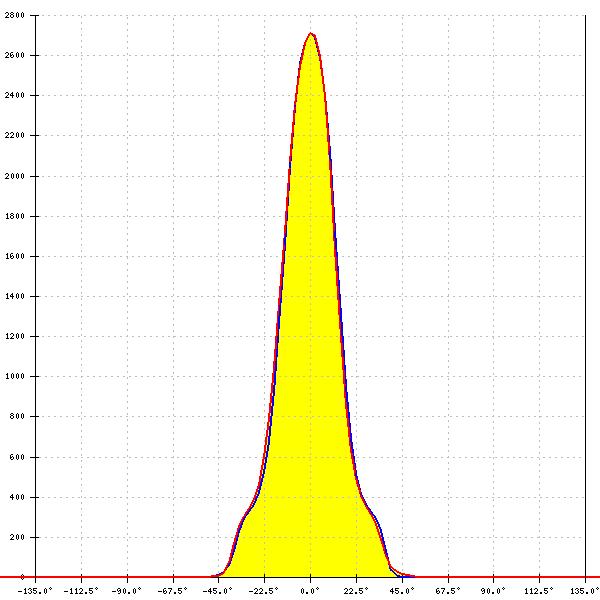

Optical results

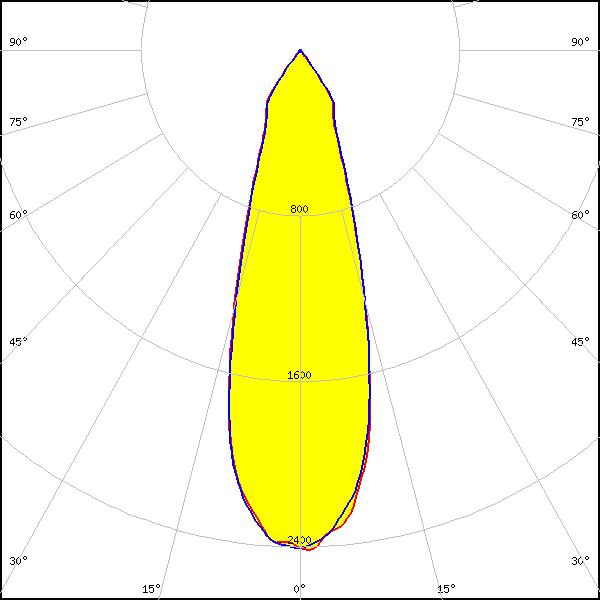

LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
31°
FWTM:
69°
Peak intensity:
2.450 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
31°
FWTM:
70°
Peak intensity:
2.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

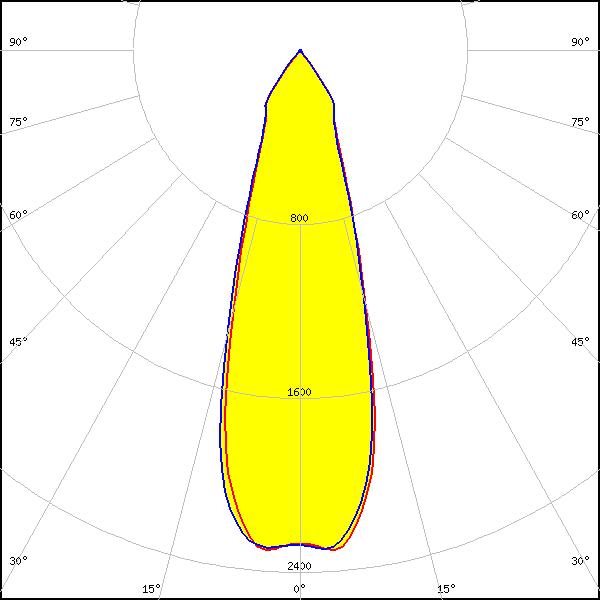

LED:
VERO10
LES size: 9.9 mm
Required components:
FWHM:
31°
FWTM:
71°
Peak intensity:
2.300 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

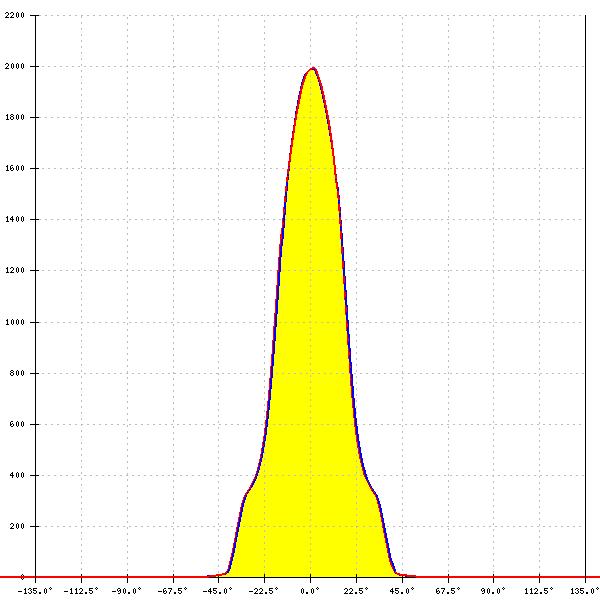

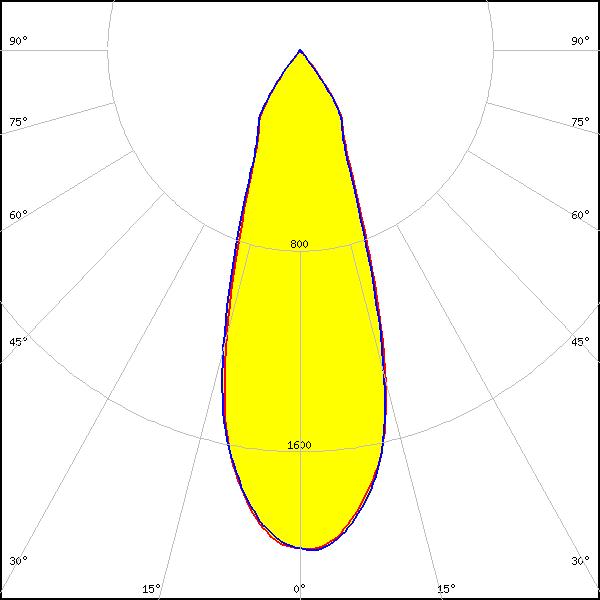

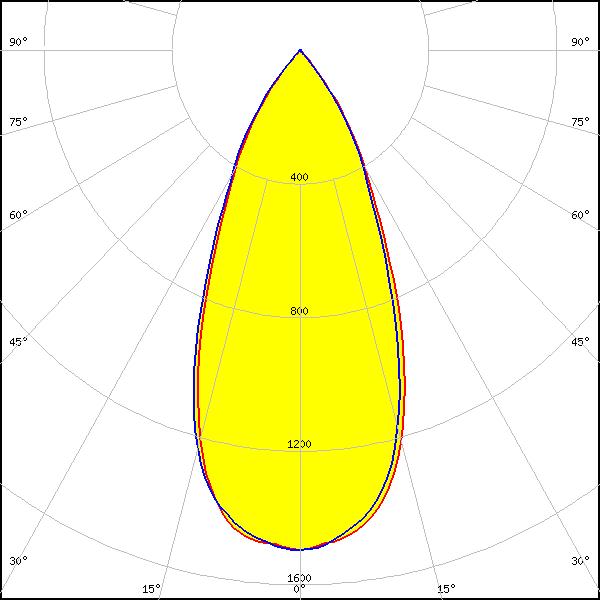

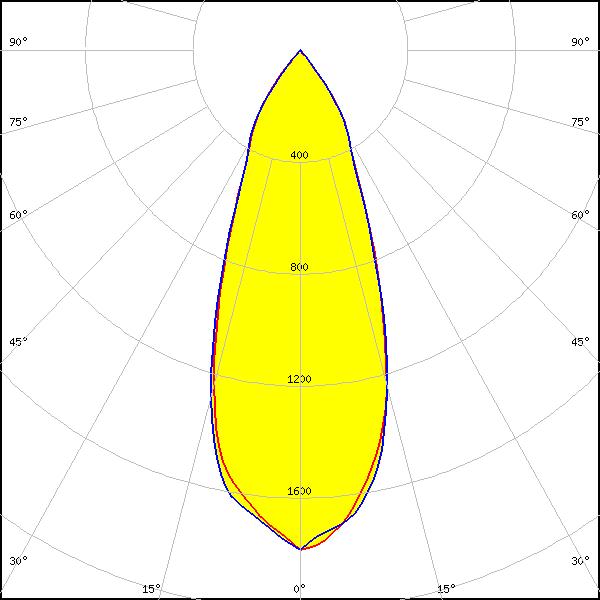

LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
36°
FWTM:
72°
Peak intensity:
2.000 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

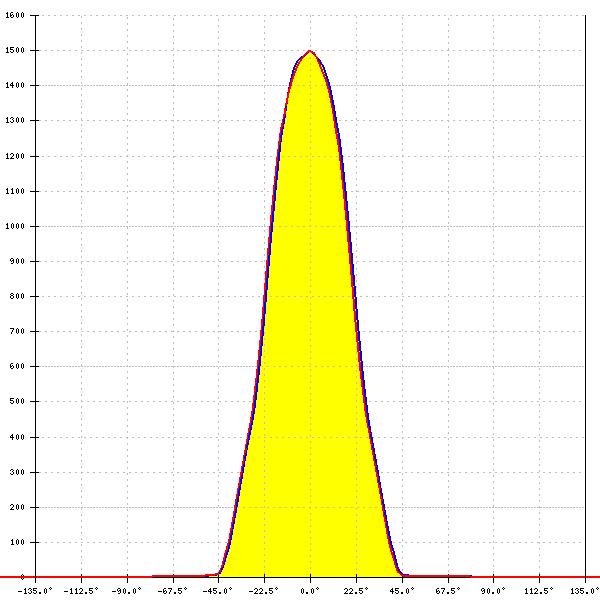

LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
45°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

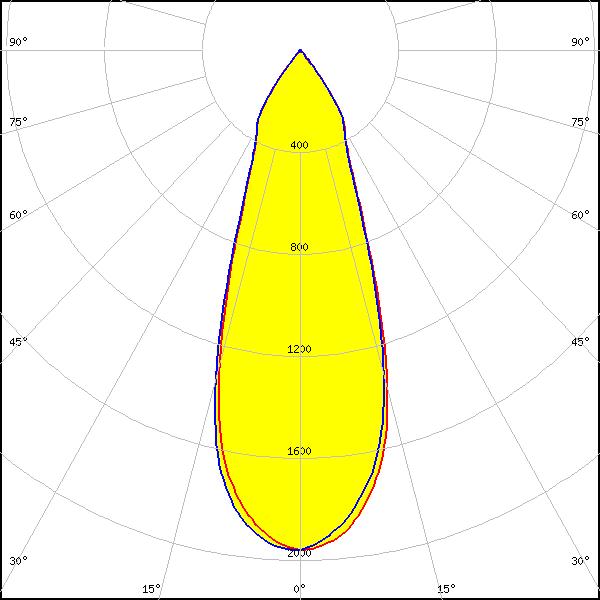

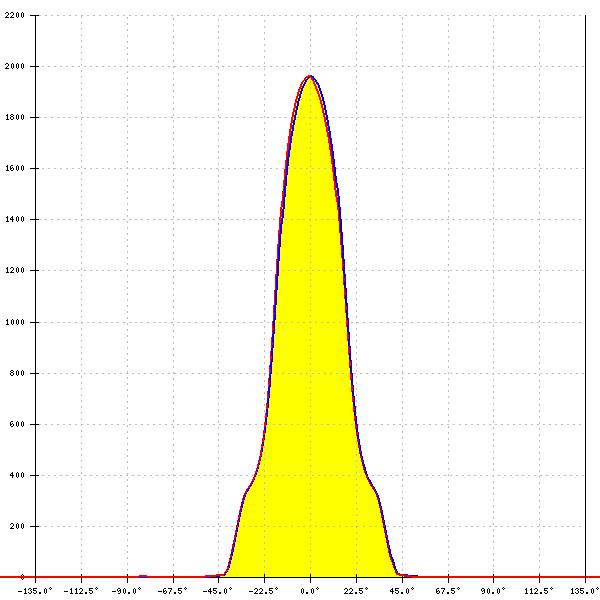

LED:
Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM:
36°
FWTM:
73°
Peak intensity:
1.960 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

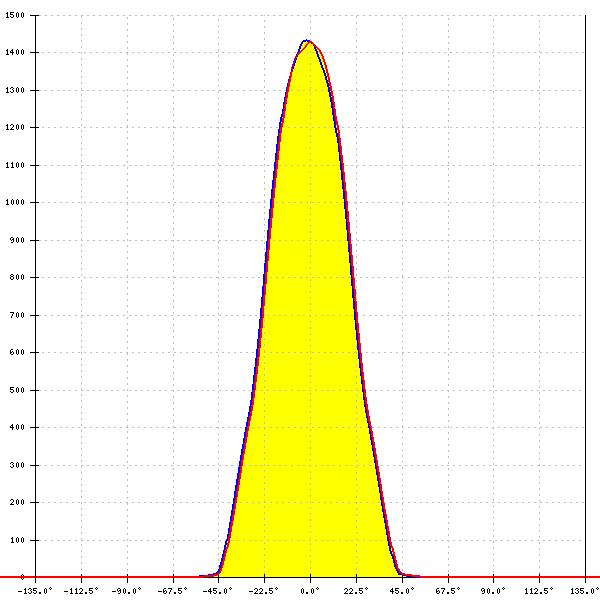

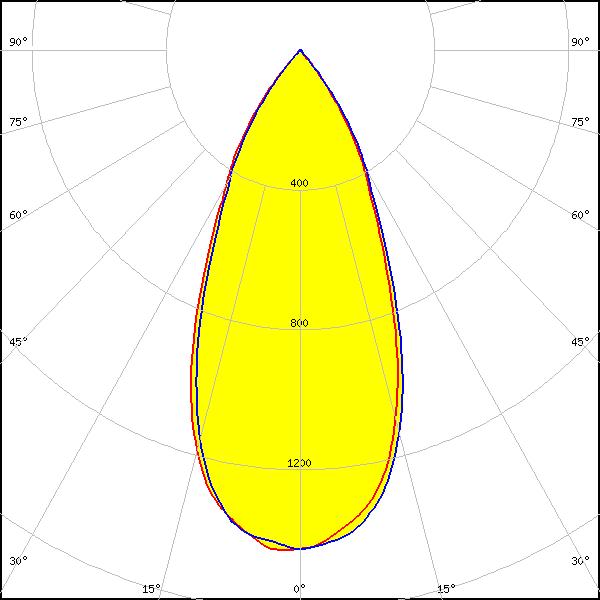

Xenio Point 18mm
LES size: 18.4 mm
Required components:
FWHM:
46°
FWTM:
77°
Peak intensity:
1.430 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

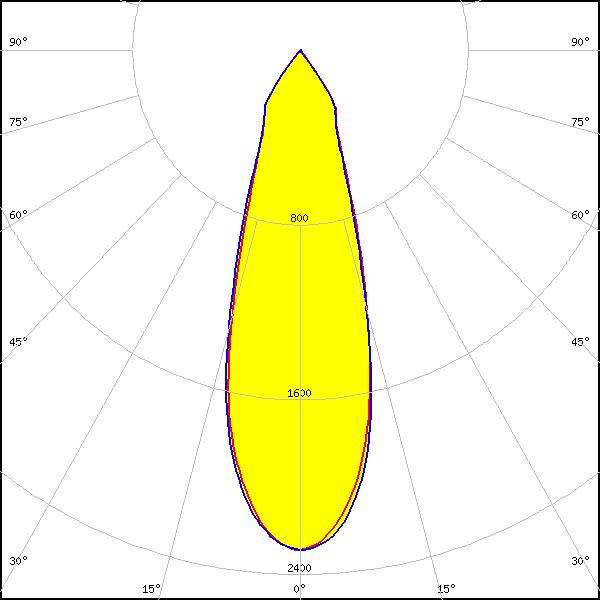

LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
32°
FWTM:
71°
Peak intensity:
2.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

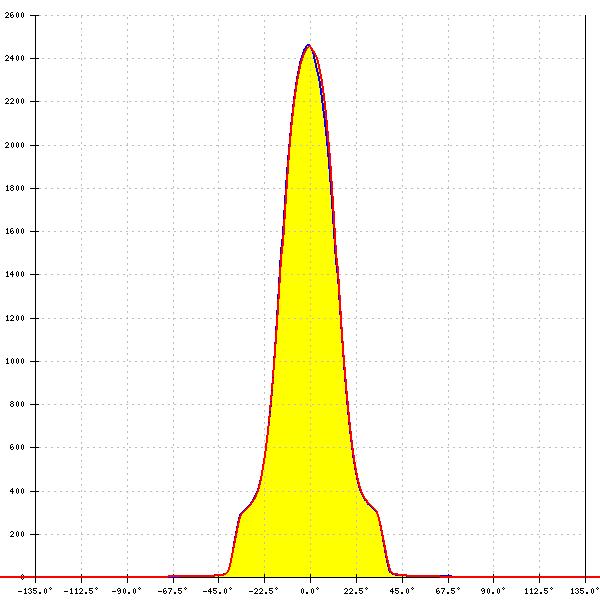

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
41°
FWTM:
73°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

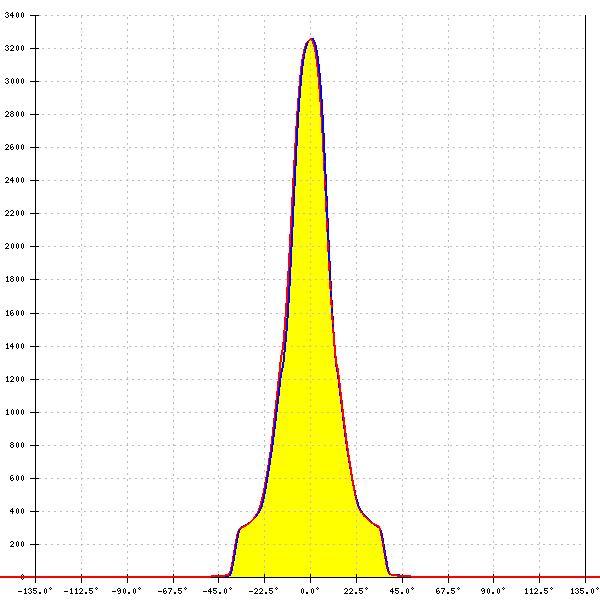

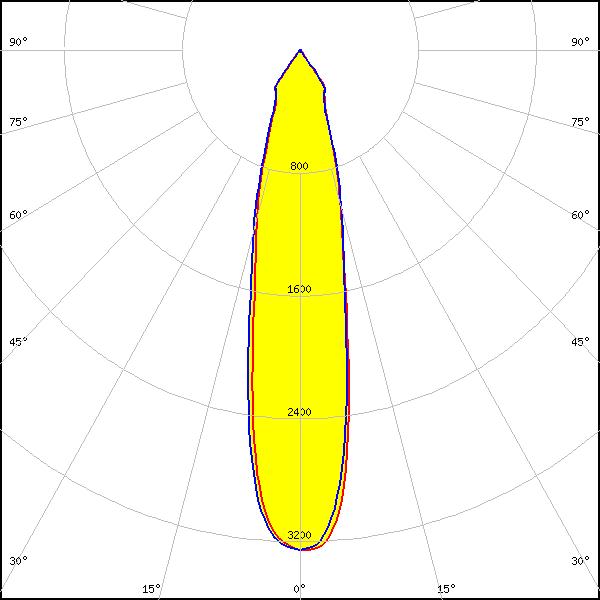

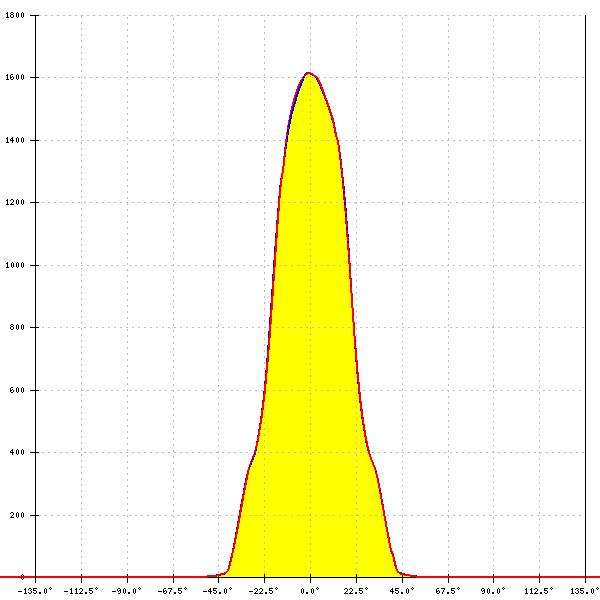

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
22°
FWTM:
61°
Peak intensity:
3.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

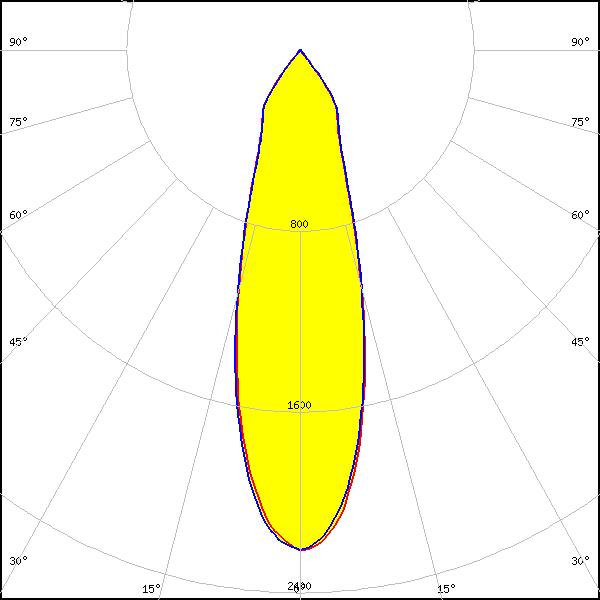

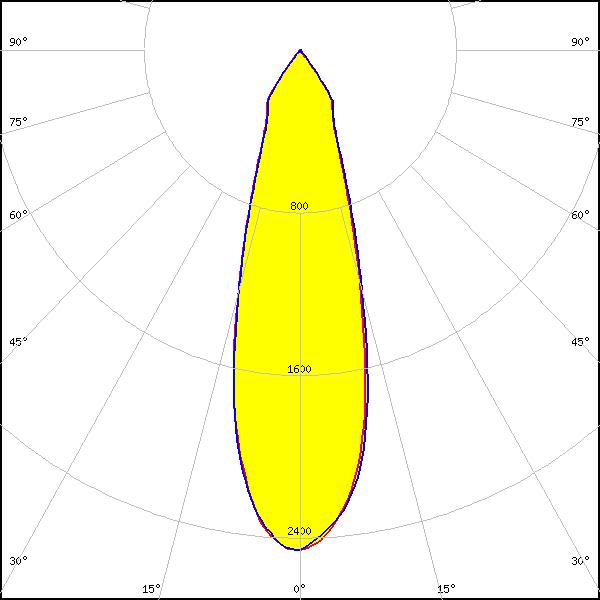

LED:

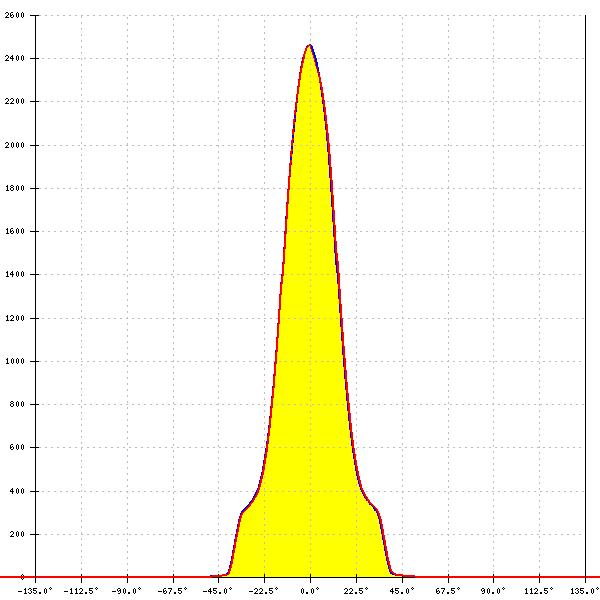

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
30°
FWTM:
70°
Peak intensity:
2.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

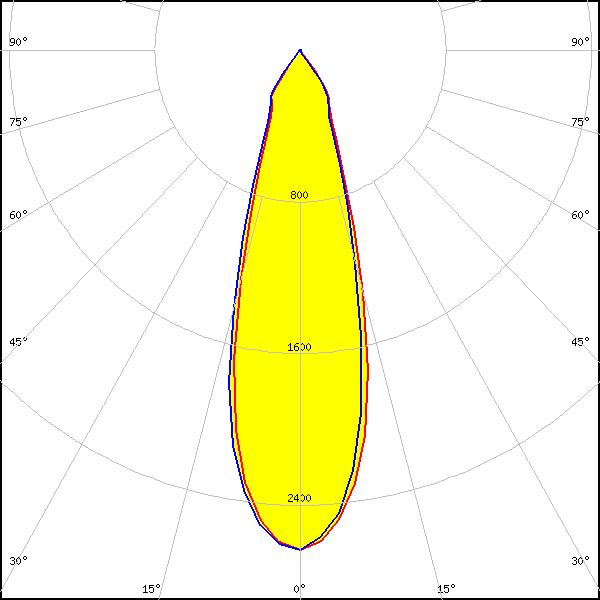

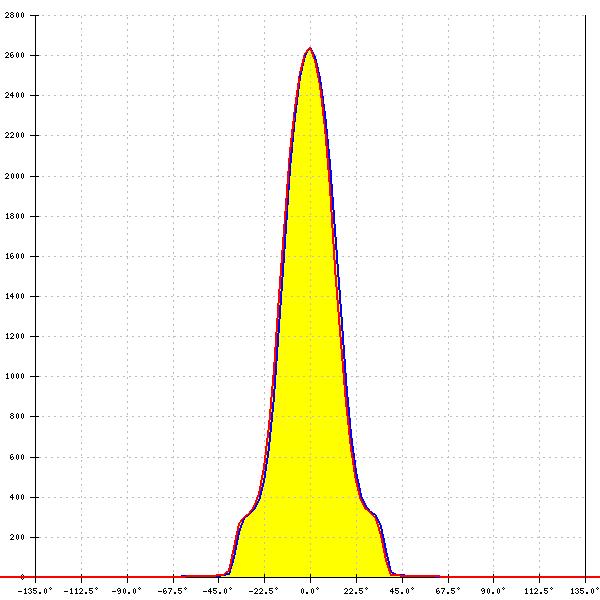

LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
30°
FWTM:
69°
Peak intensity:
2.640 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
30°
FWTM:
73°
Peak intensity:
2.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

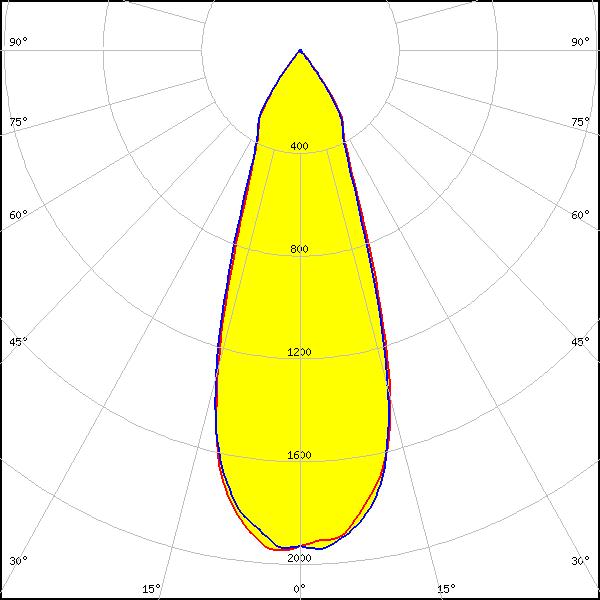

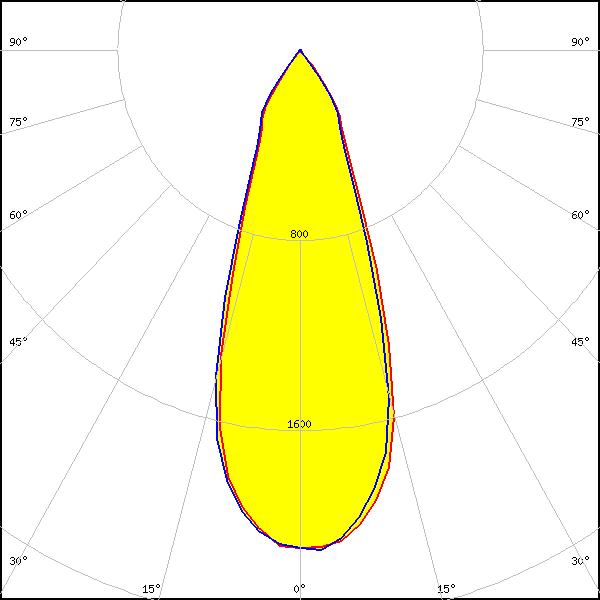

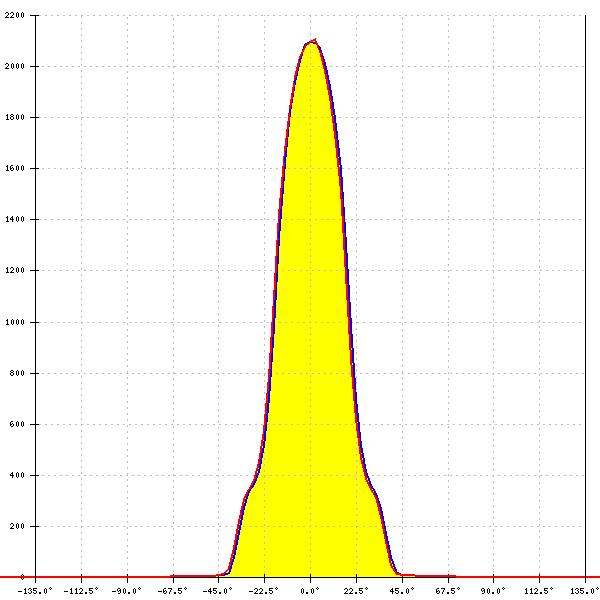

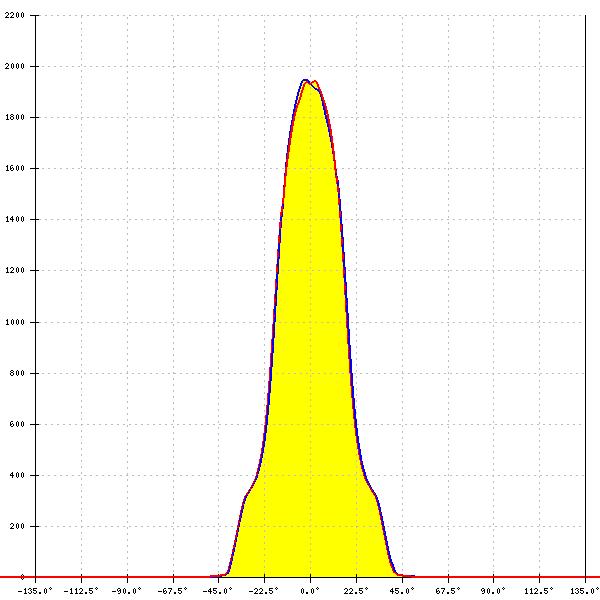

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
36°
FWTM:
72°
Peak intensity:
2.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
36°
FWTM:
71°
Peak intensity:
2.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

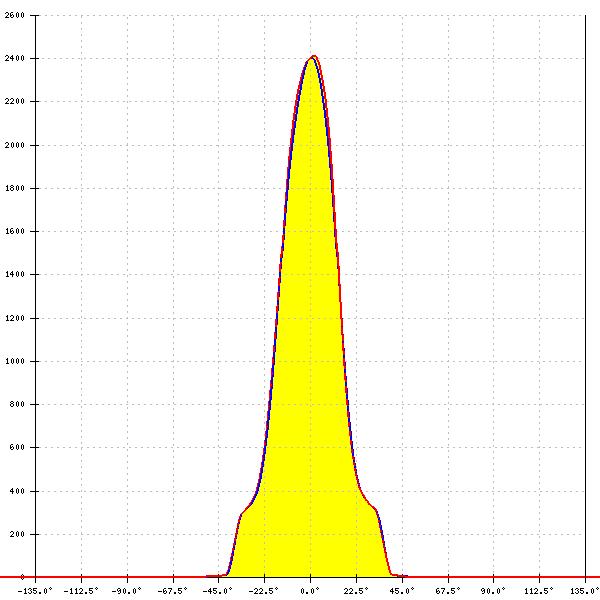

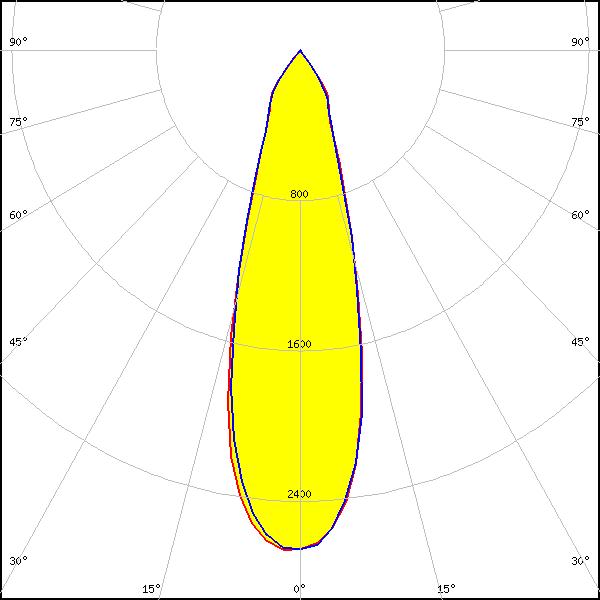

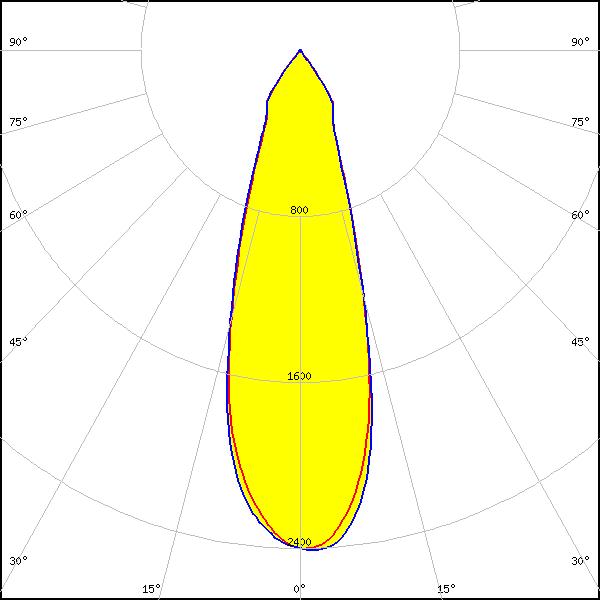

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
31°
FWTM:
70°
Peak intensity:
2.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

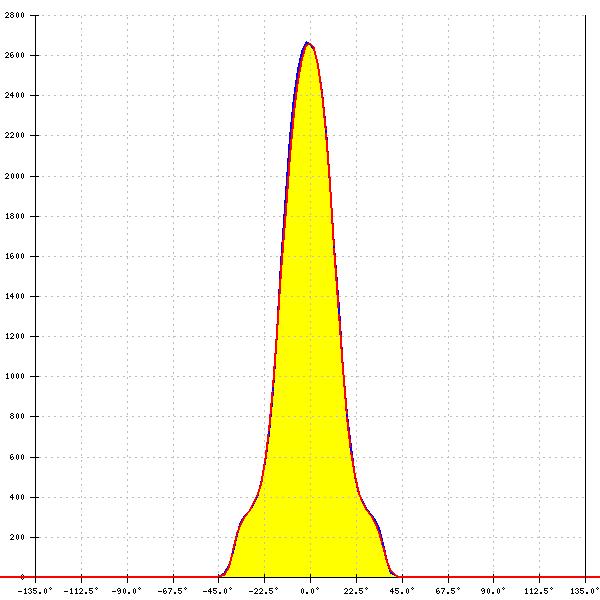

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
30°
FWTM:
68°
Peak intensity:
2.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
20°
FWTM:
52°
Peak intensity:
4.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
20°
FWTM:
52°
Peak intensity:
4.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
41°
FWTM:
73°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
32°
FWTM:
71°
Peak intensity:
2.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
40°
FWTM:
73°
Peak intensity:
1.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

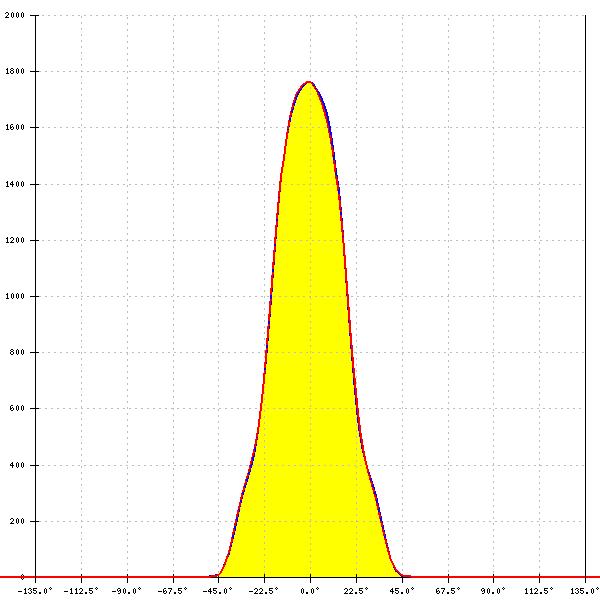

LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
41°
FWTM:
74°
Peak intensity:
1.760 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
35°
FWTM:
72°
Peak intensity:
2.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
35°
FWTM:
71°
Peak intensity:
2.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
30°
FWTM:
70°
Peak intensity:
2.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
30°
FWTM:
68°
Peak intensity:
2.710 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

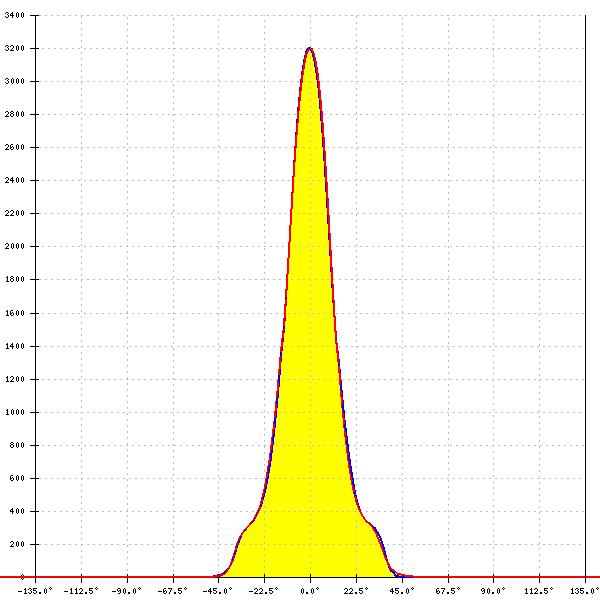

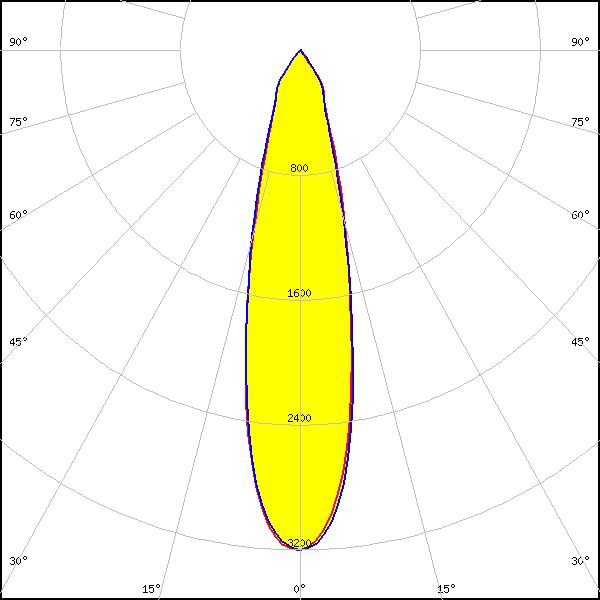

LED:
NSCxL036A
LES size: 7.0 mm
Required components:
FWHM:
25°
FWTM:
60°
Peak intensity:
3.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

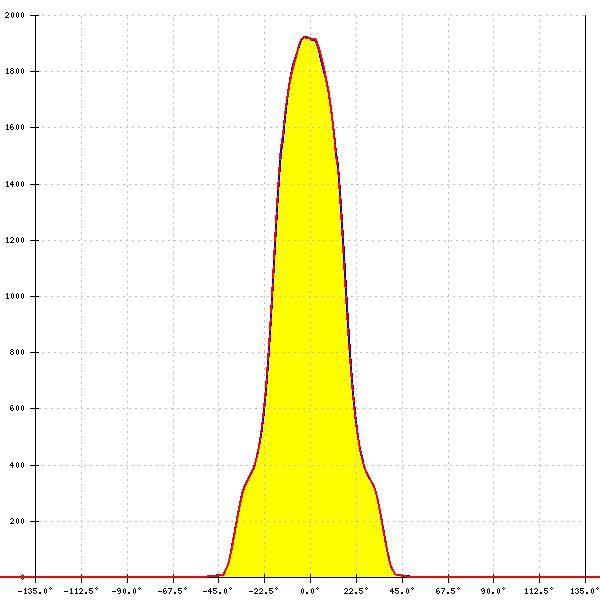

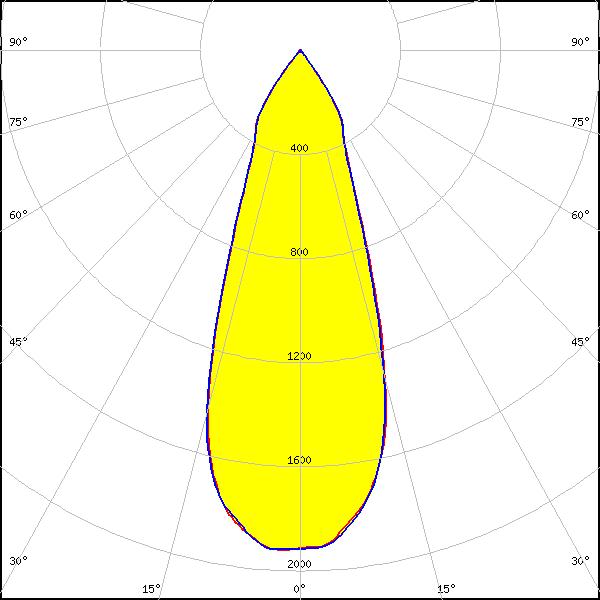

LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
37°
FWTM:
72°
Peak intensity:
1.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

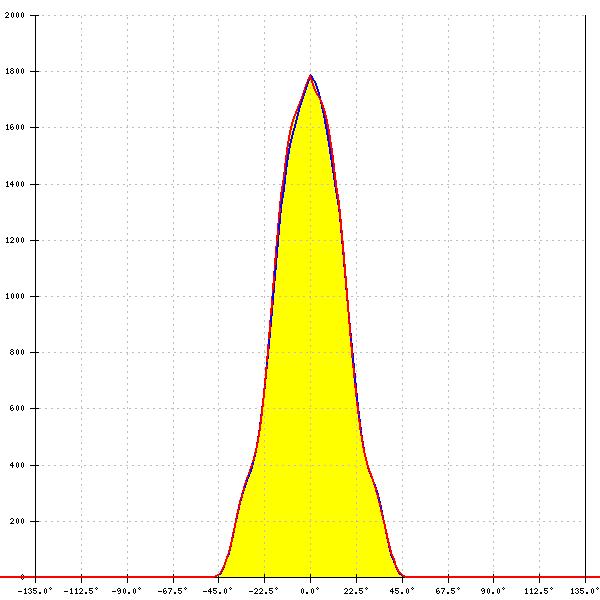

LED:
Soleriq S15
LES size: 14.7 mm
Required components:
FWHM:
39°
FWTM:
74°
Peak intensity:
1.810 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C
LES size: 6.0 mm
Required components:
FWHM:
23°
FWTM:
54°
Peak intensity:
3.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
27°
FWTM:
65°
Peak intensity:
2.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

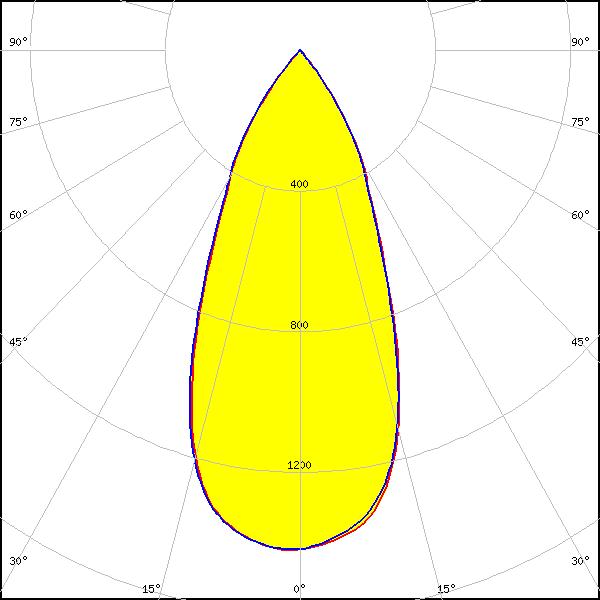

LED:

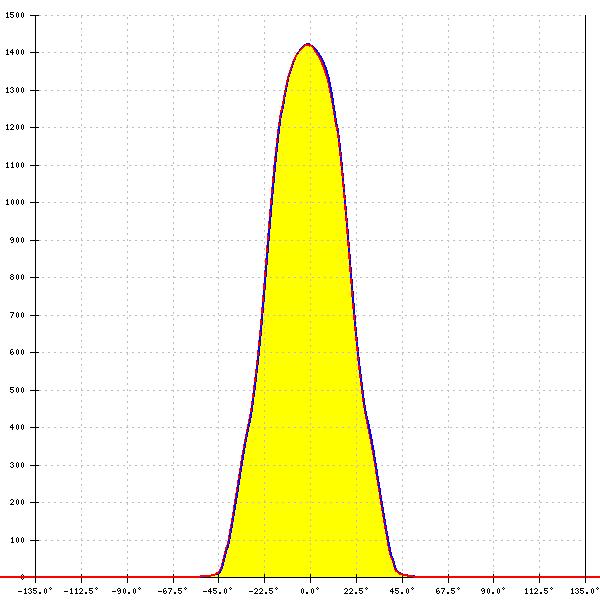

LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
FWHM:
45°
FWTM:
76°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
LES size: 11.0 mm
Required components:
FWHM:
33°
FWTM:
70°
Peak intensity:
2.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
41°
FWTM:
73°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
32°
FWTM:
71°
Peak intensity:
2.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

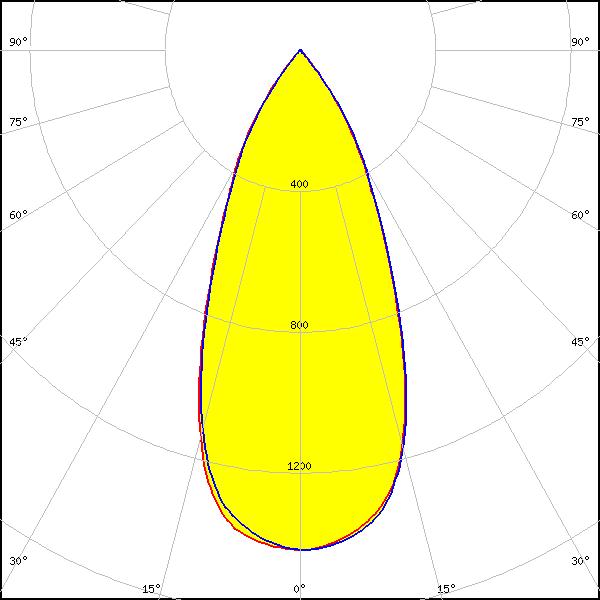

LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
45°
FWTM:
75°
Peak intensity:
1.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

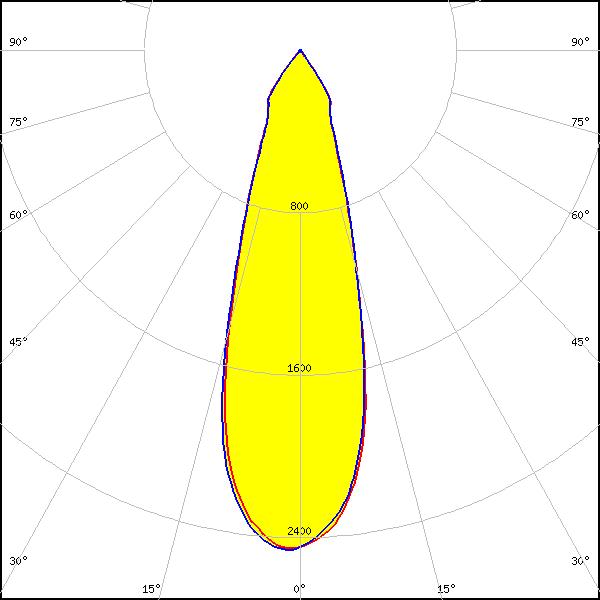

LED:
XTM - 9mm LES
LES size: 9.0 mm
Required components:
FWHM:
30°
FWTM:
70°
Peak intensity:
2.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
