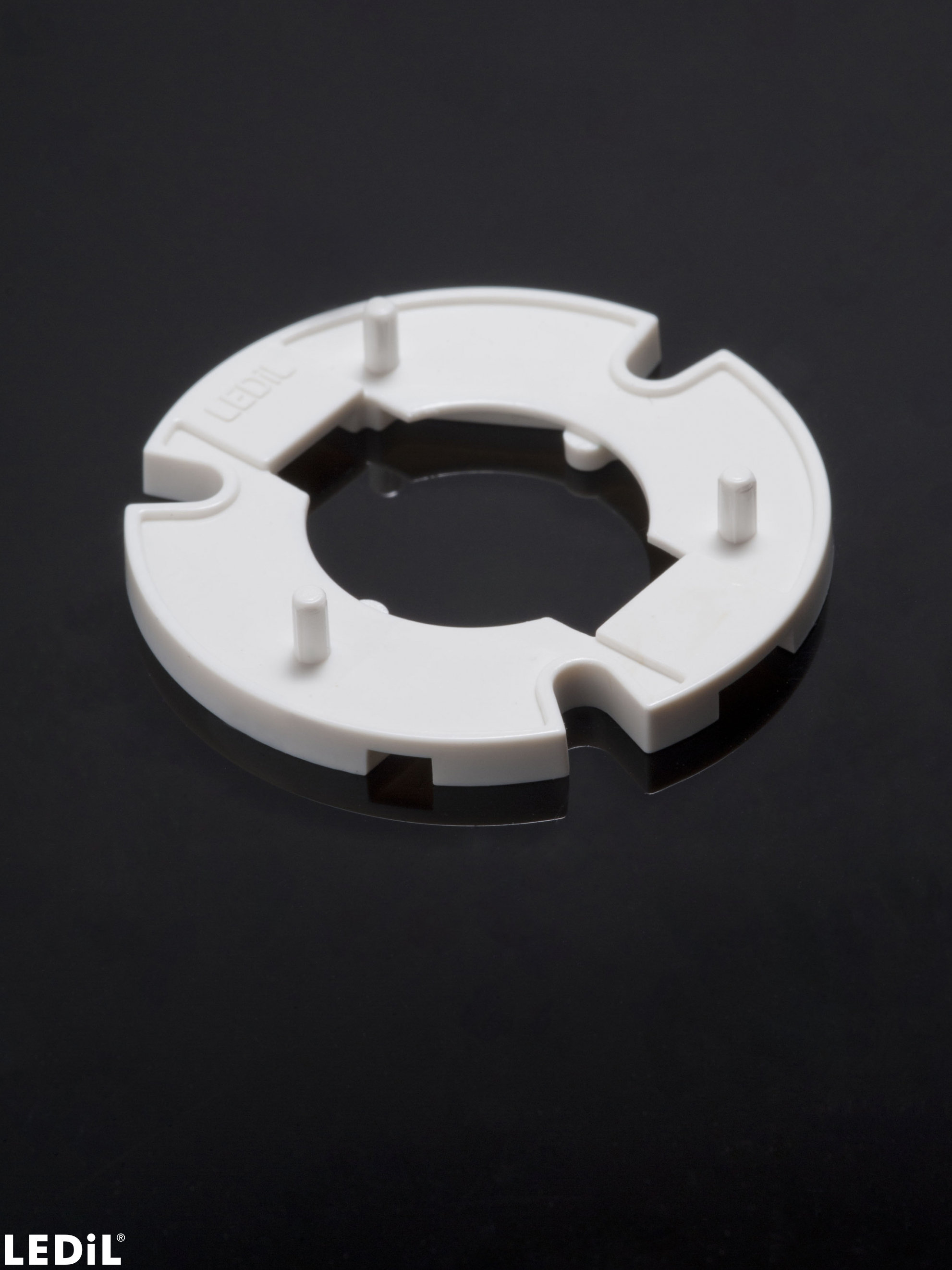

C13708_PF-SOCKET-VERO10

Socket with press fit interface. Compatible with MIRELLA-PF and BARBARA-PF for Bridgelux VERO10.

Dimensions:

38 mm
Height:

3.00 mm
Fastening:

screw
Colour:

white
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Quantity in box:

672 pcs
Box size:

270 x 180 x 115 mm
Box weight:

1.2 kg
MPQ:

112 pcs
MOQ:

112 pcs
MOQ size:

320 x 220 x 30 mm
MOQ weight:

0.3 kg

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

ORDER ONLINE

MIRELLA-50-S-PF

~15° spot beam

MIRELLA-50-M-PF

~30° medium beam

MIRELLA-50-W-PF

~40° wide beam

MIRELLA-XW-PF

~80° wide beam

BARBARA-S-PF

~15° spot beam

BARBARA-W-PF

~35° wide beam

BARBARA-WW-PF

~60° wide beam

LED: VERO10

LES size: 9.9 mm
