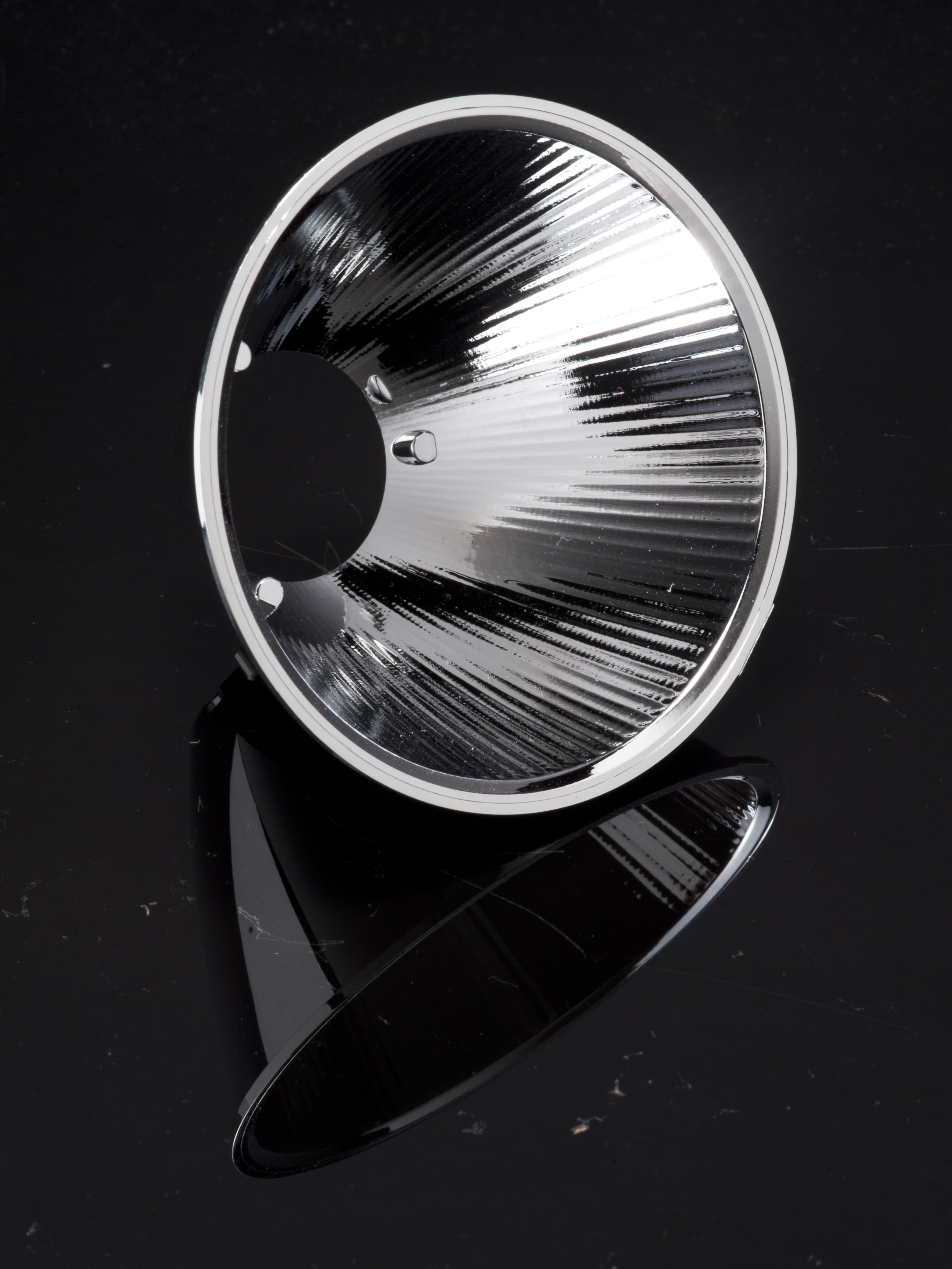

F13700_BARBARA-S-PF
Print
~15° spot beam
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

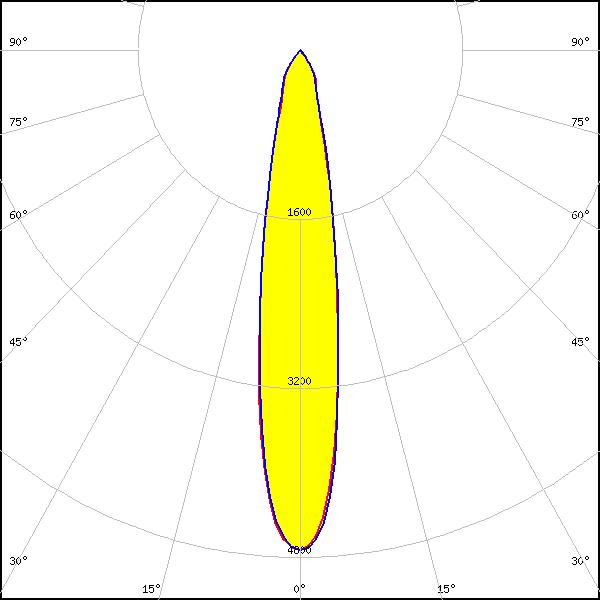

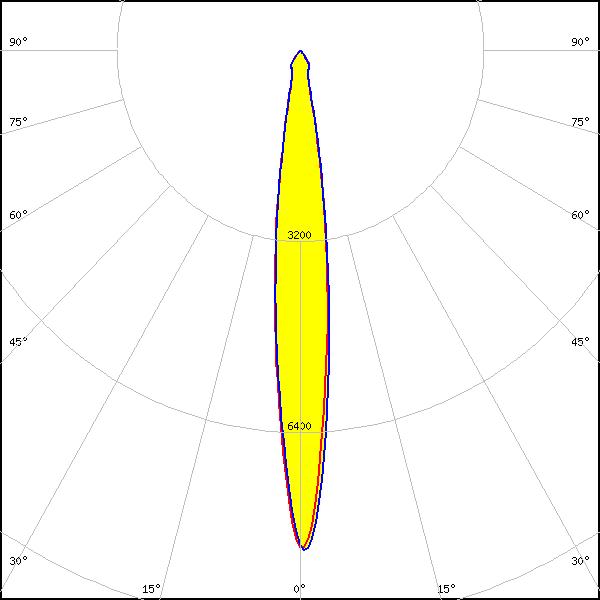

Optical results

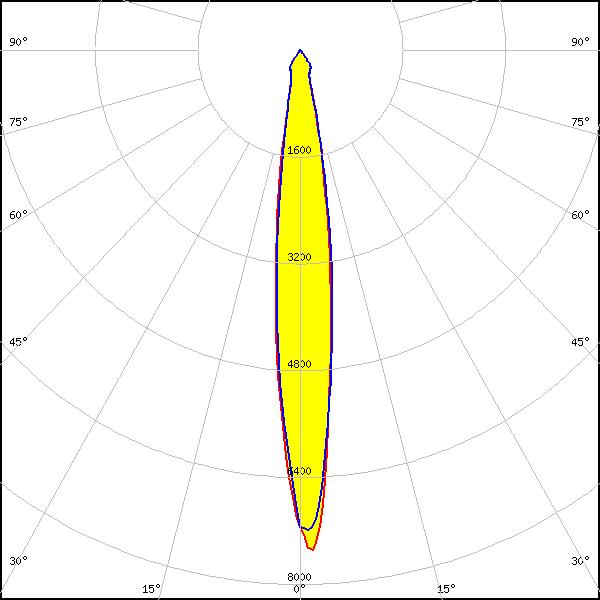

LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
12°
FWTM:
27°
Peak intensity:
9.440 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

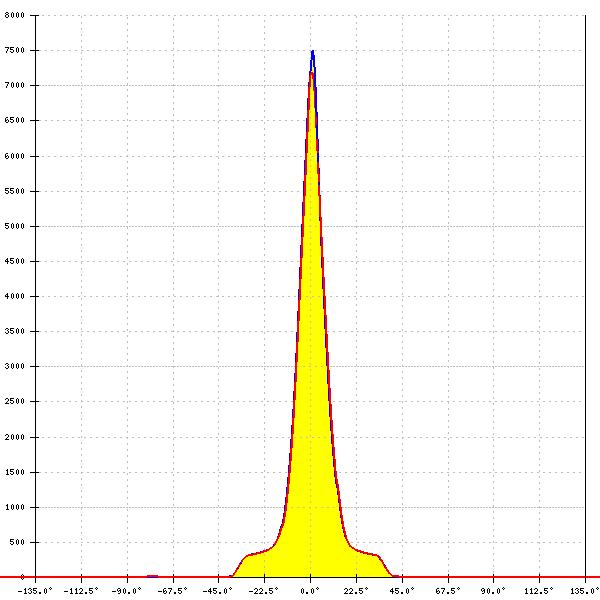

LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
14°
FWTM:
30°
Peak intensity:
7.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V15 Gen6
LES size: 15.2 mm
Required components:
FWHM:
18°
FWTM:
52°
Peak intensity:
4.750 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V8 Gen6
LES size: 8.1 mm
Required components:
FWHM:
13°
FWTM:
28°
Peak intensity:
10.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

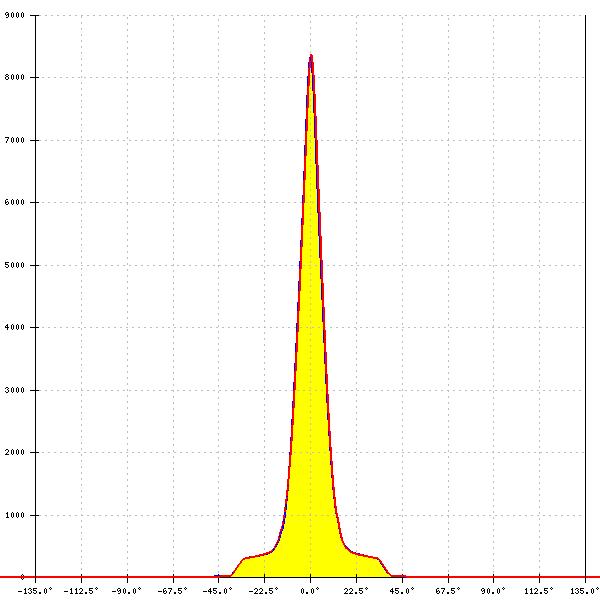

LED:

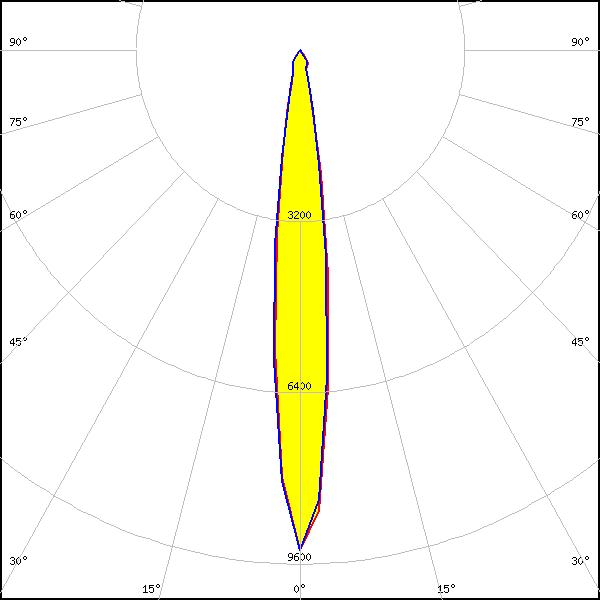

VERO10
LES size: 9.9 mm
Required components:
FWHM:
13°
FWTM:
27°
Peak intensity:
9.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

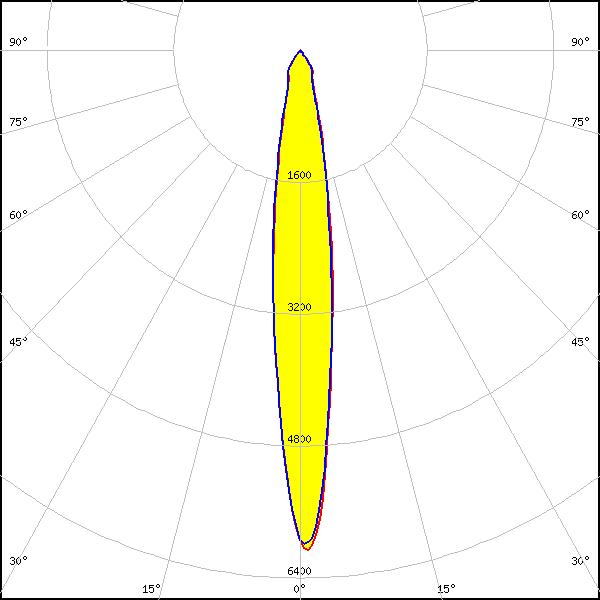

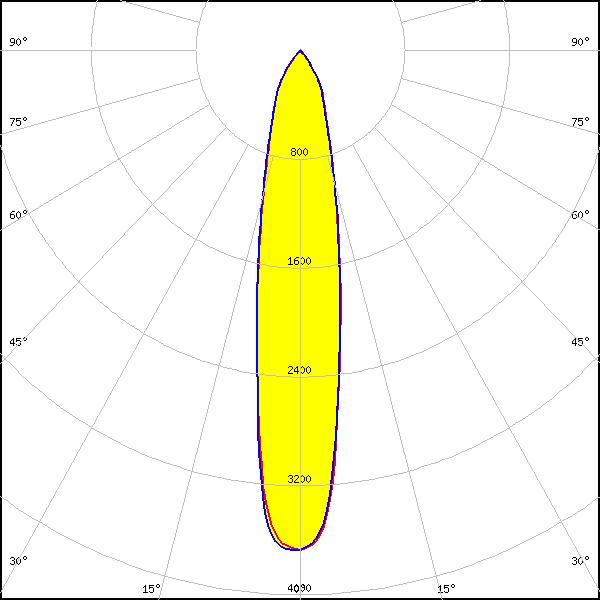

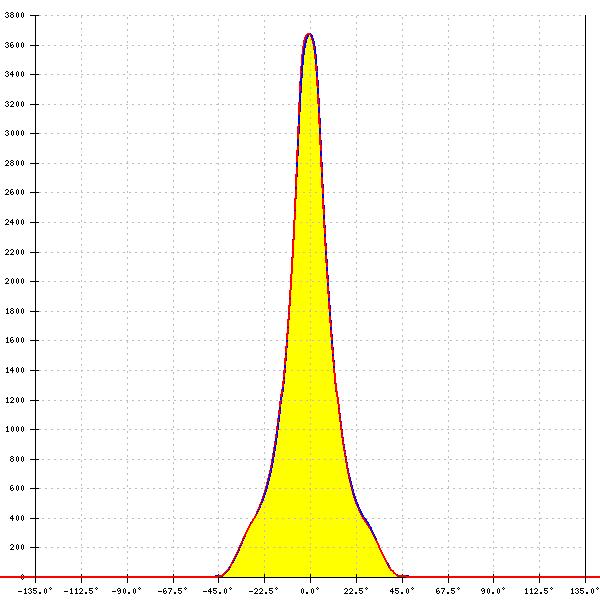

LED:

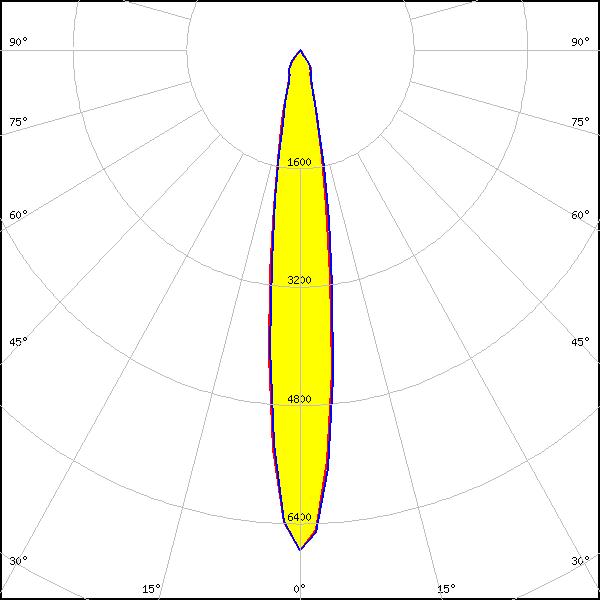

VERO13
LES size: 13.4 mm
Required components:
FWHM:
15°
FWTM:
35°
Peak intensity:
6.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

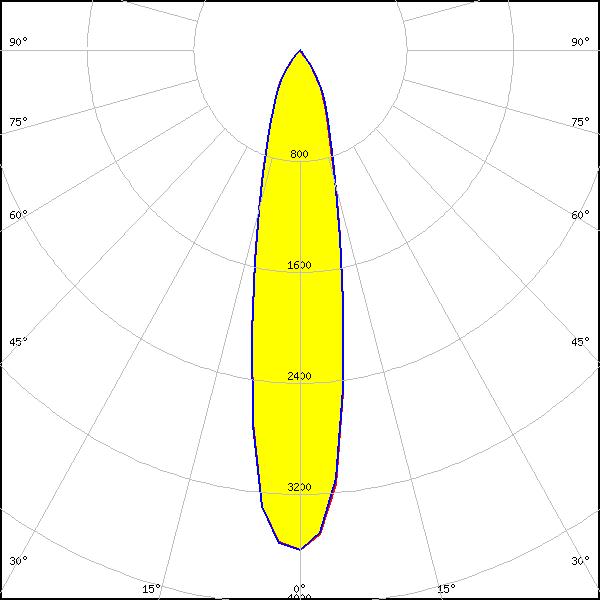

LED:

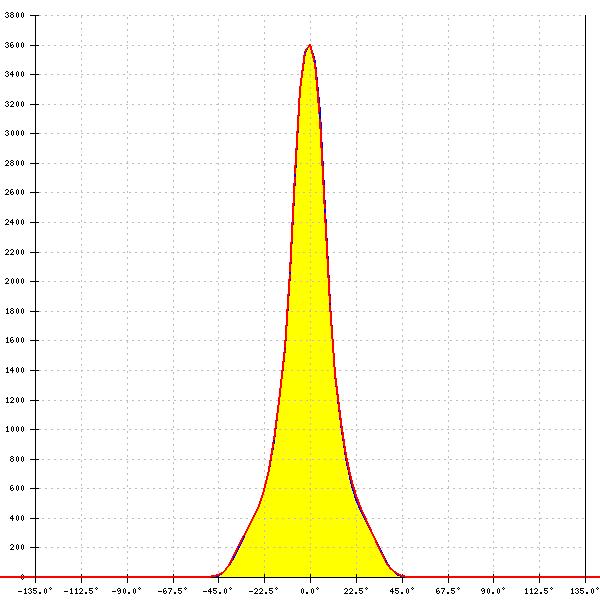

VERO18
LES size: 18.6 mm
Required components:
FWHM:
22°
FWTM:
58°
Peak intensity:
3.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

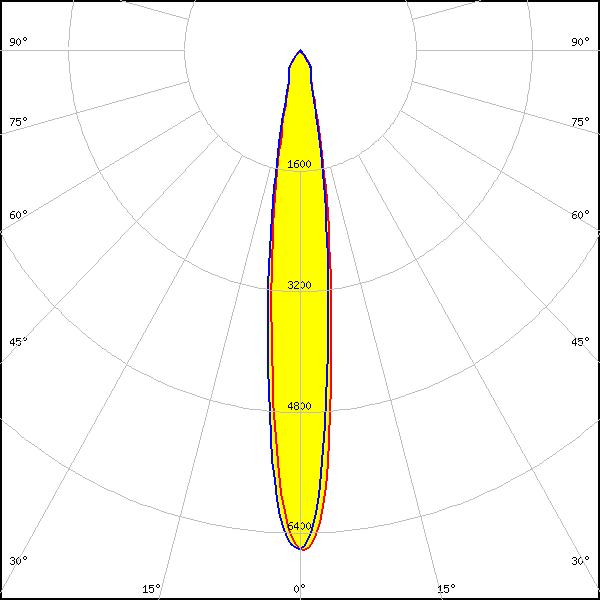

LED:
Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM:
14°
FWTM:
33°
Peak intensity:
6.640 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

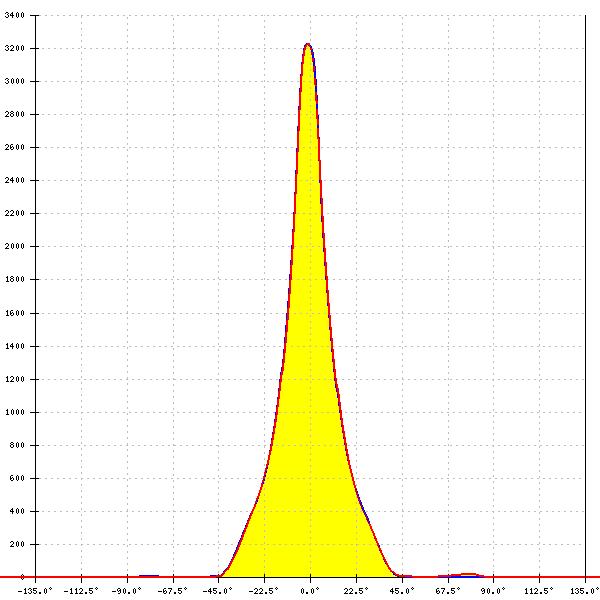

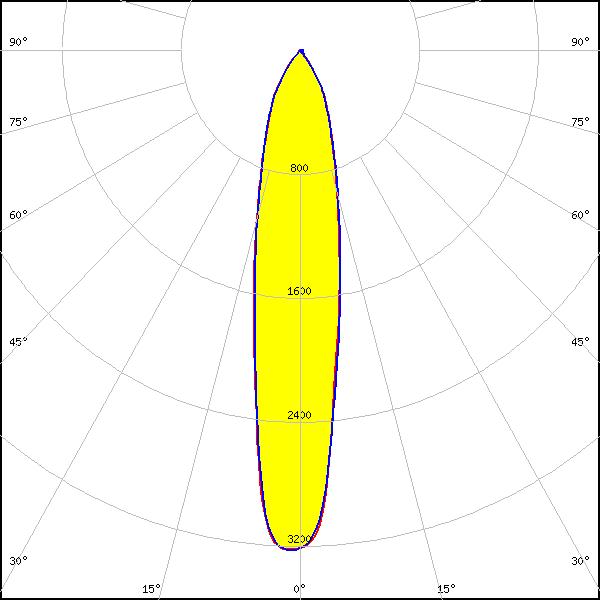

LED:
Xenio Point 18mm
LES size: 18.4 mm
Required components:
FWHM:
21°
FWTM:
60°
Peak intensity:
3.230 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

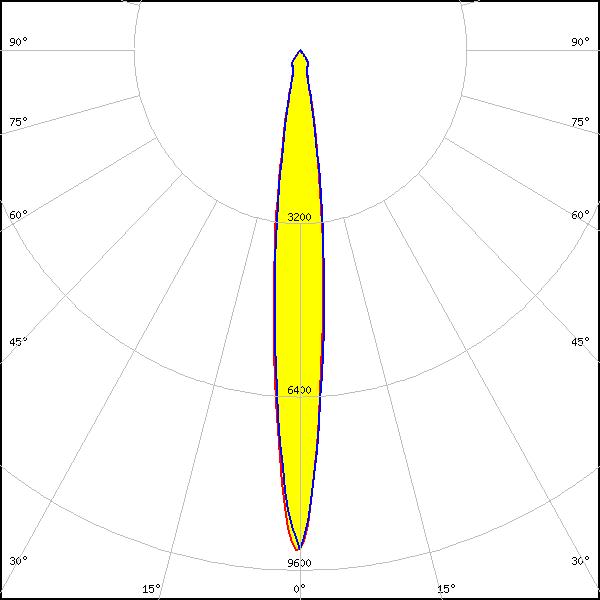

LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
12°
FWTM:
27°
Peak intensity:
9.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

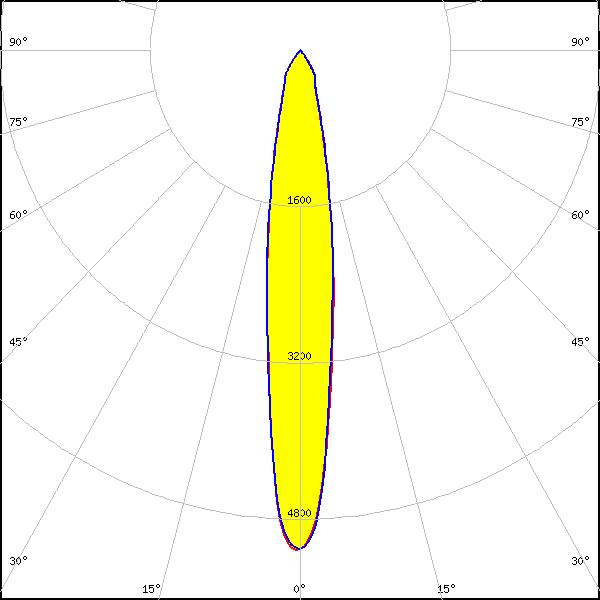

LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM:
16°
FWTM:
42°
Peak intensity:
5.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

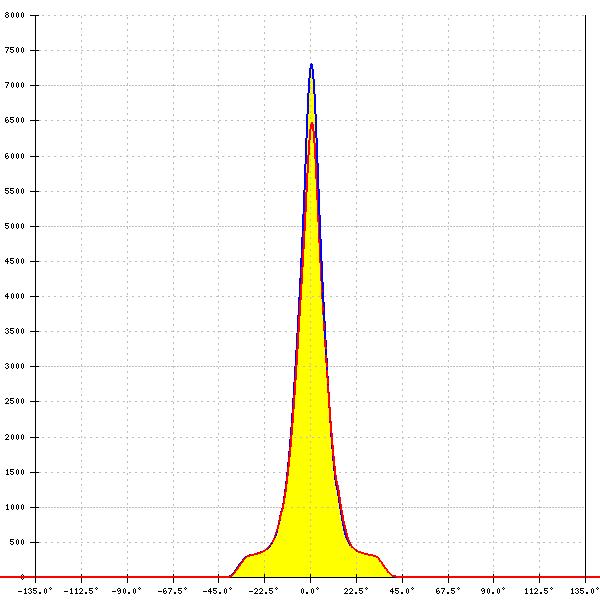

LED:

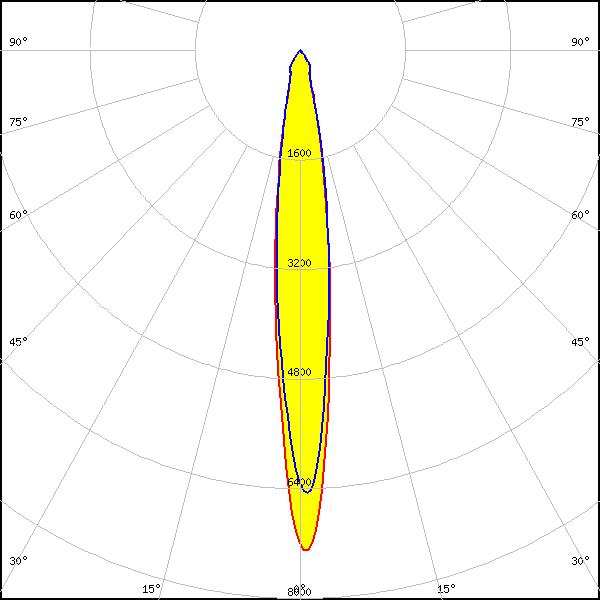

CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
14°
FWTM:
33°
Peak intensity:
7.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

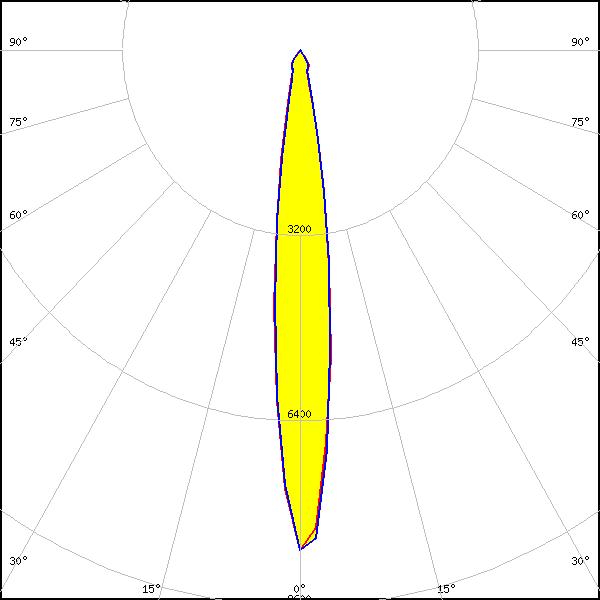

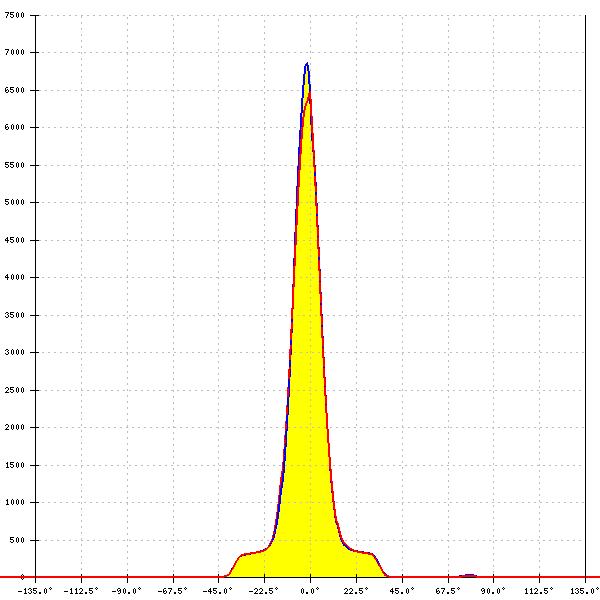

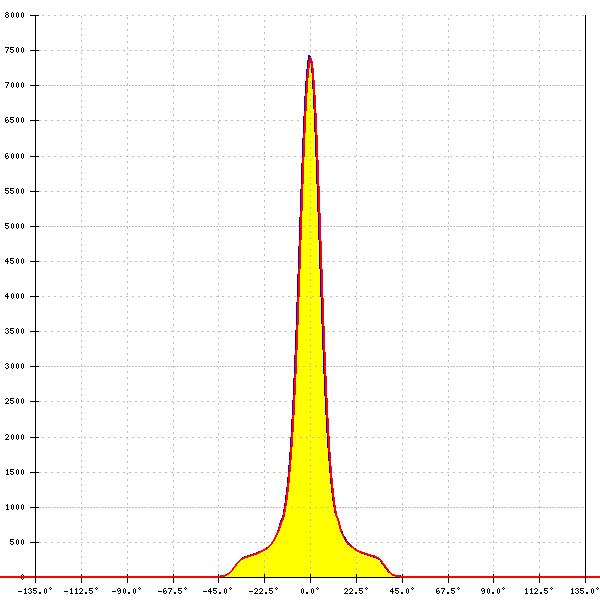

LED:

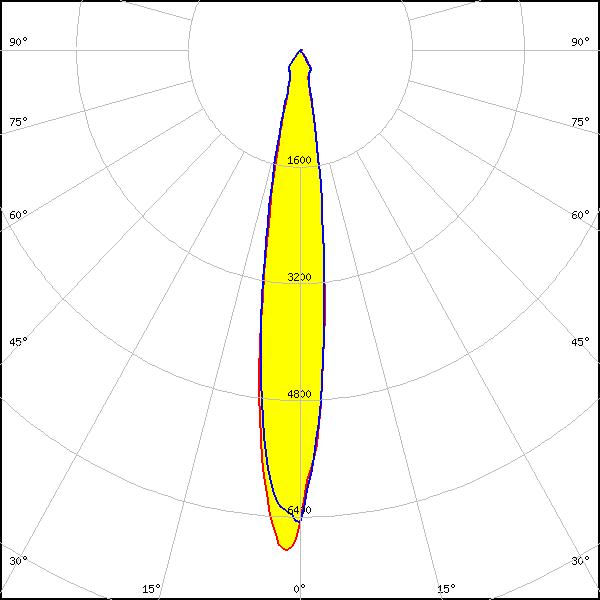

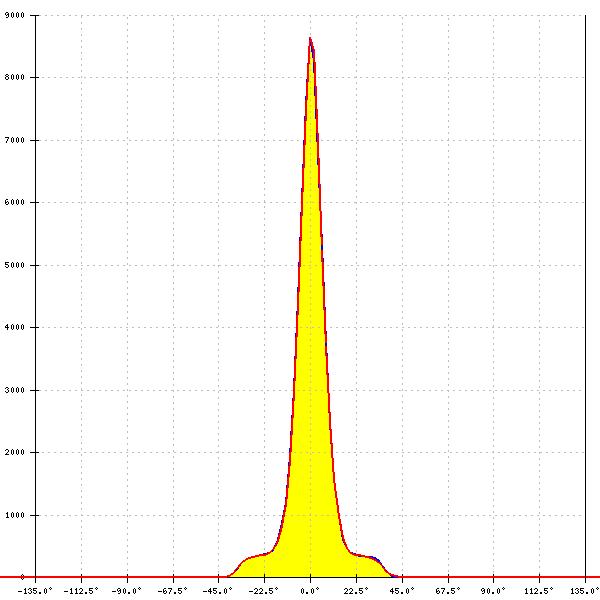

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
15°
FWTM:
30°
Peak intensity:
6.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

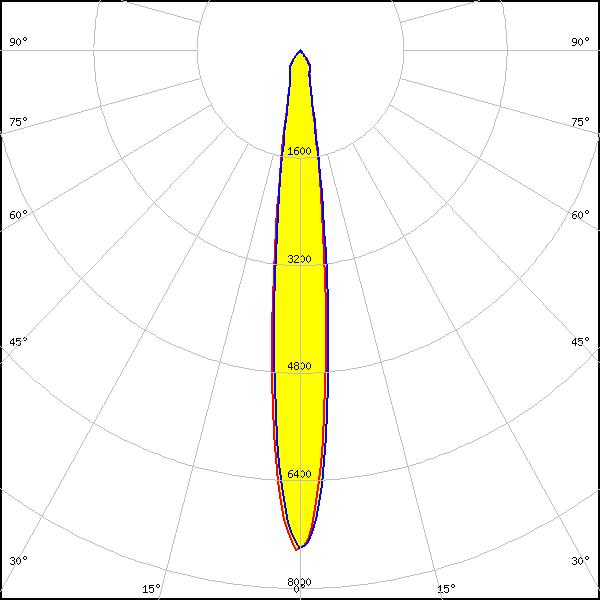

LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
14°
FWTM:
29°
Peak intensity:
8.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
13°
FWTM:
29°
Peak intensity:
7.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

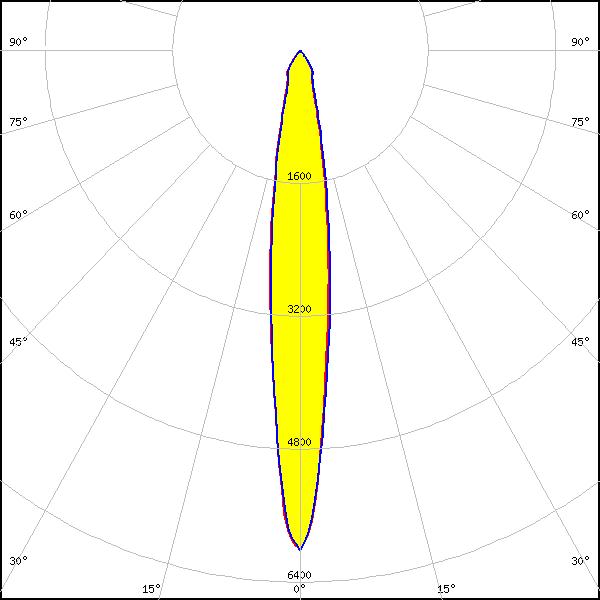

LED:

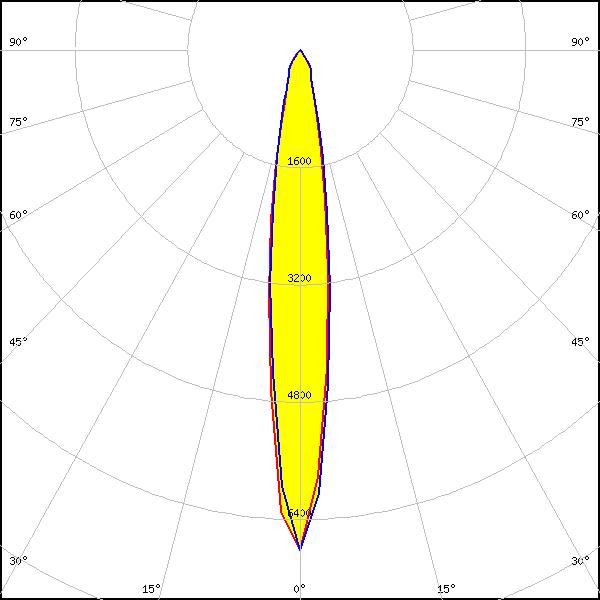

CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
14°
FWTM:
36°
Peak intensity:
6.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

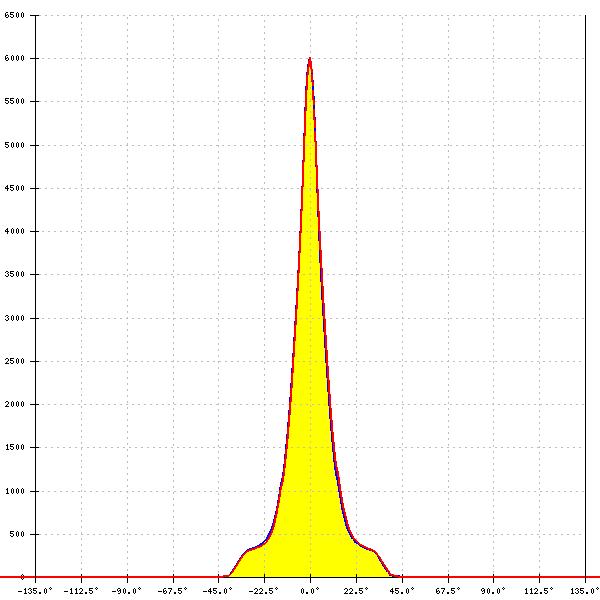

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
15°
FWTM:
36°
Peak intensity:
6.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

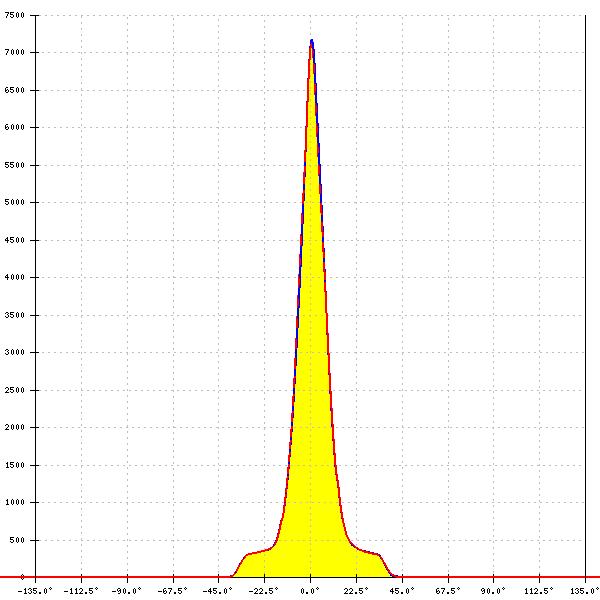

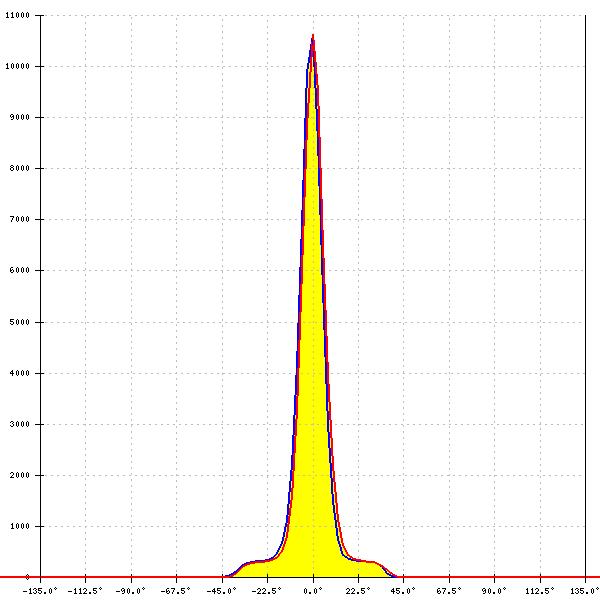

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
30°
Peak intensity:
7.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

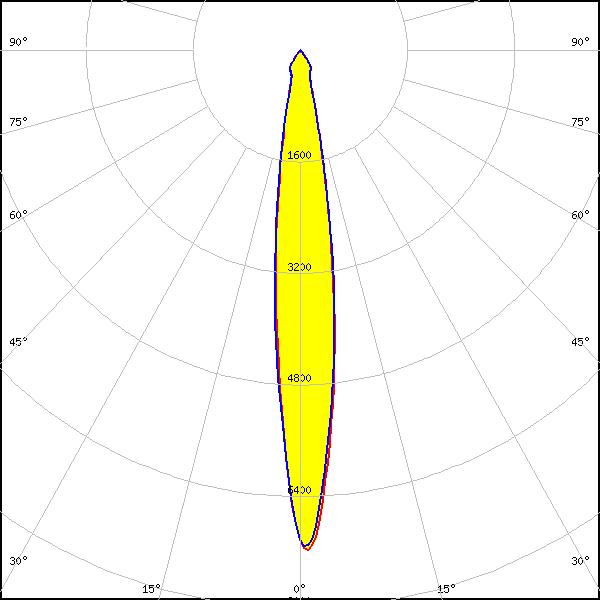

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
12°
FWTM:
25°
Peak intensity:
10.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
9°
FWTM:
18°
Peak intensity:
19.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
9°
FWTM:
18°
Peak intensity:
19.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
16°
FWTM:
42°
Peak intensity:
5.130 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
12°
FWTM:
27°
Peak intensity:
9.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
17°
FWTM:
45°
Peak intensity:
4.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
19°
FWTM:
44°
Peak intensity:
4.730 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
14°
FWTM:
35°
Peak intensity:
6.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
15°
FWTM:
33°
Peak intensity:
6.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
13°
FWTM:
27°
Peak intensity:
8.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
13°
FWTM:
26°
Peak intensity:
10.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

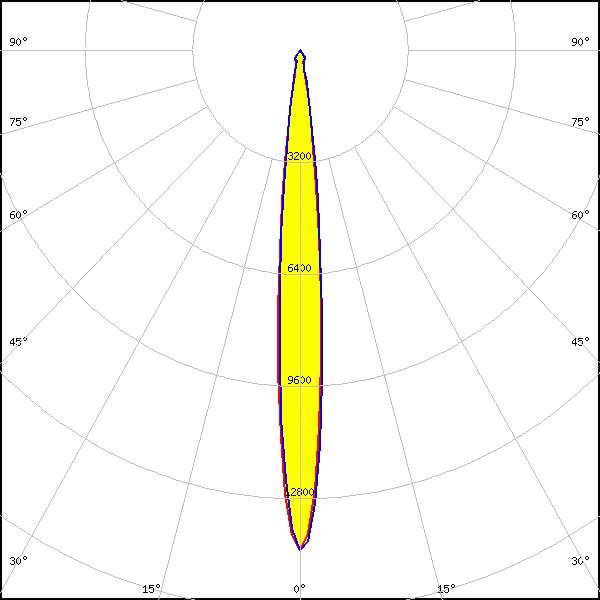

LED:
NSCxL036A
LES size: 7.0 mm
Required components:
FWHM:
11°
FWTM:
21°
Peak intensity:
14.120 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WP)
LES size: 0.0 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White

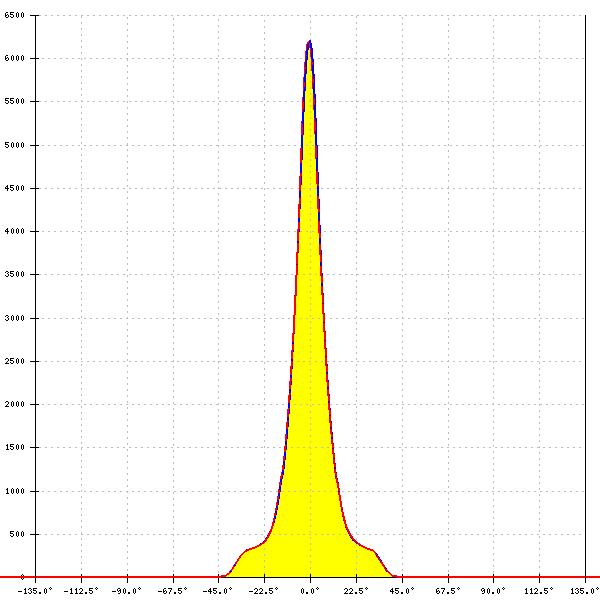

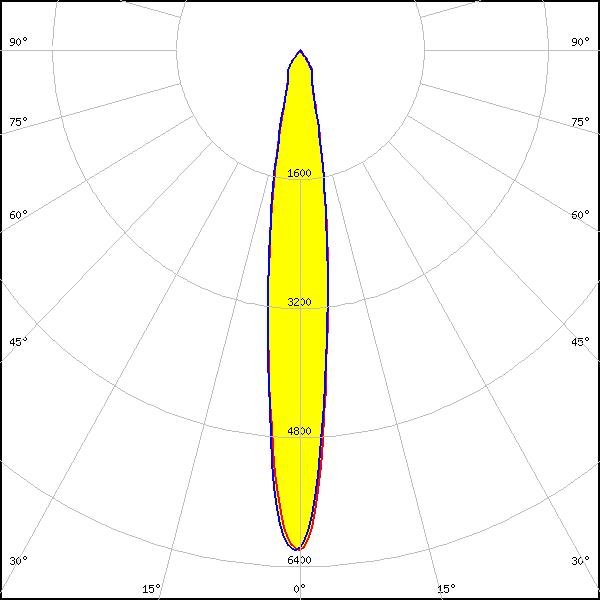

LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
14°
FWTM:
35°
Peak intensity:
6.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

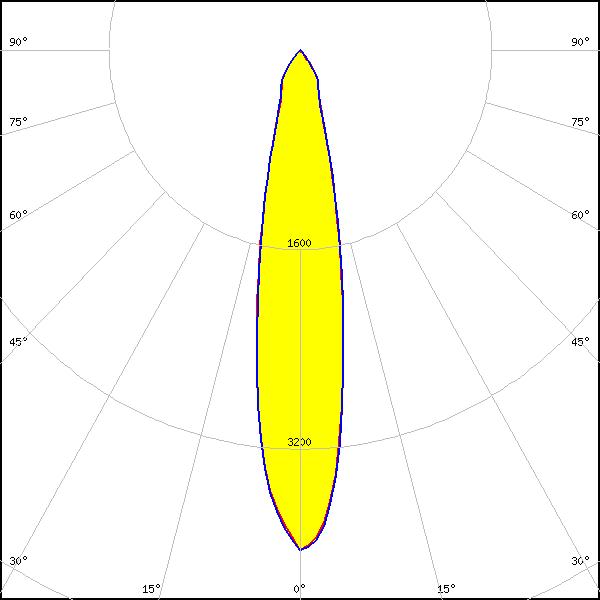

LED:
Soleriq S15
LES size: 14.7 mm
Required components:
FWHM:
20°
FWTM:
47°
Peak intensity:
4.013 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C
LES size: 6.0 mm
Required components:
FWHM:
9°
FWTM:
19°
Peak intensity:
16.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
10°
FWTM:
23°
Peak intensity:
12.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
FWHM:
20°
FWTM:
57°
Peak intensity:
3.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
LES size: 11.0 mm
Required components:
FWHM:
13°
FWTM:
30°
Peak intensity:
7.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
16°
FWTM:
42°
Peak intensity:
5.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
12°
FWTM:
27°
Peak intensity:
9.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

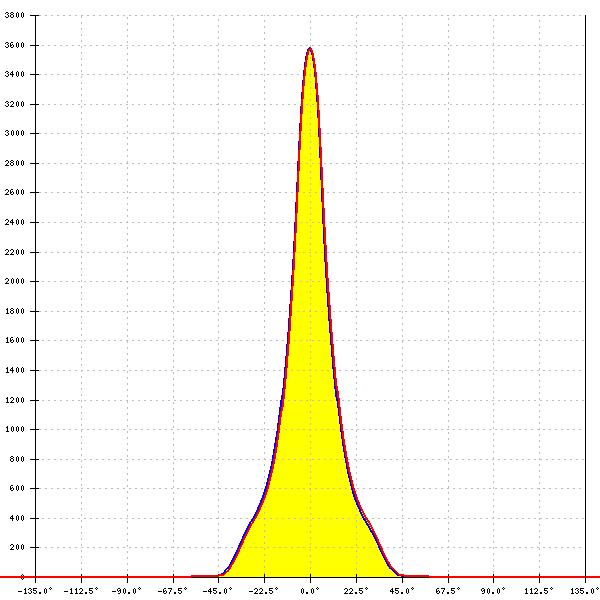

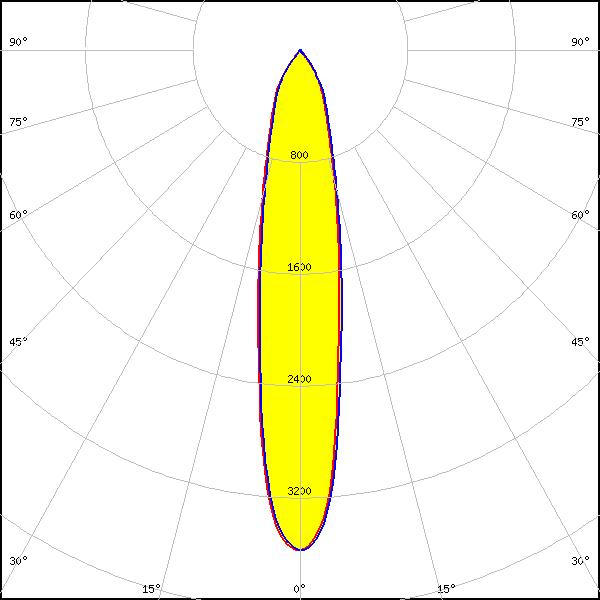

LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
20°
FWTM:
58°
Peak intensity:
3.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

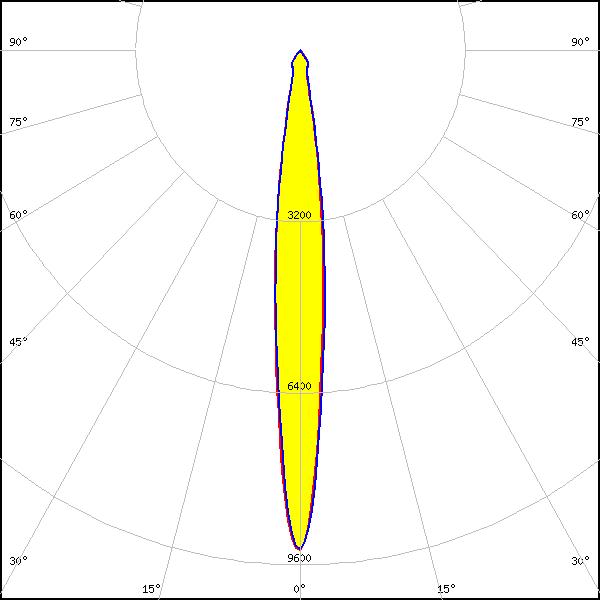

LED:
XTM - 9mm LES
LES size: 9.0 mm
Required components:
FWHM:
12°
FWTM:
26°
Peak intensity:
9.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
