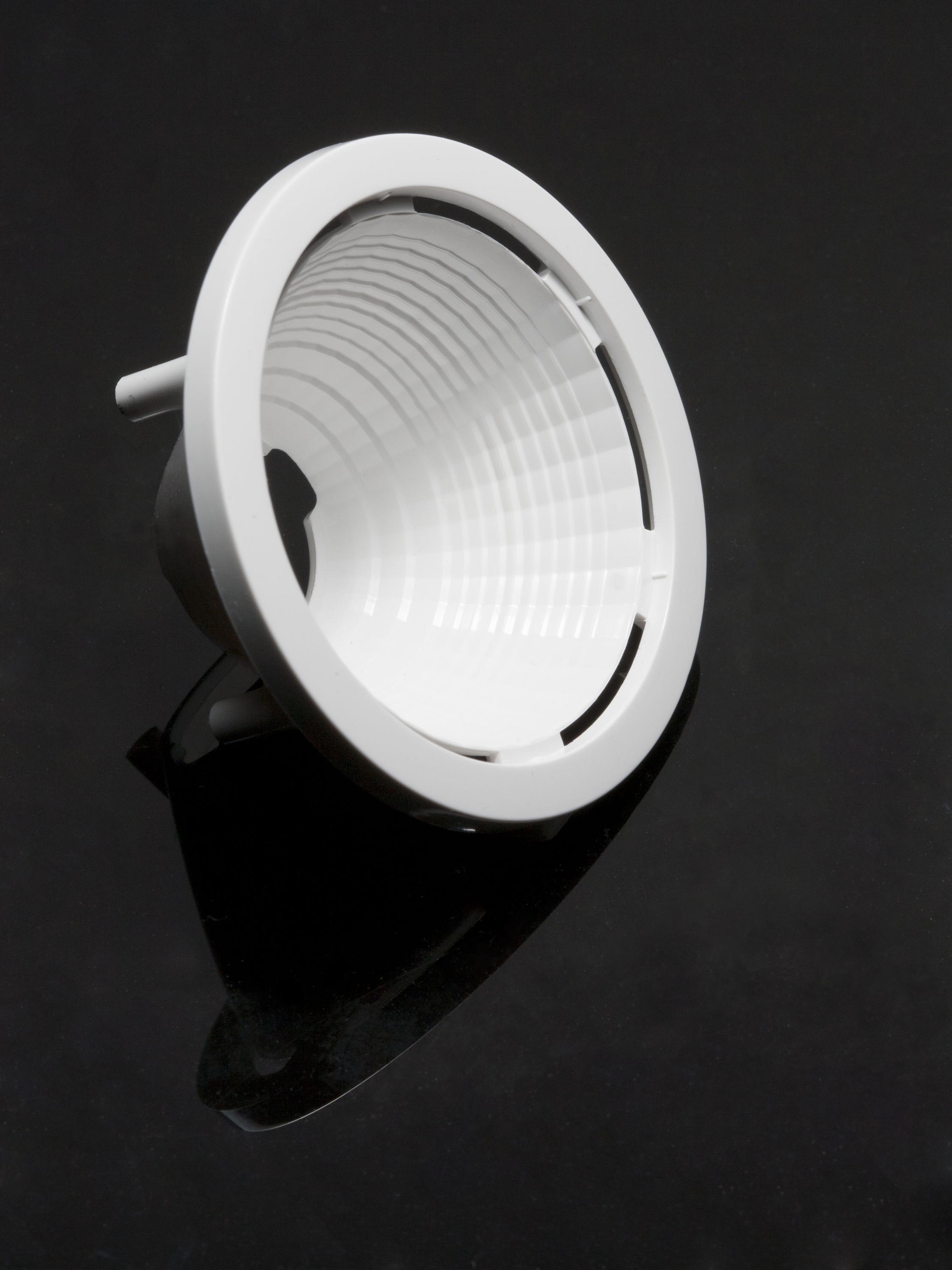

C13806_MIRELLA-XW-PF
Print
~80° wide beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

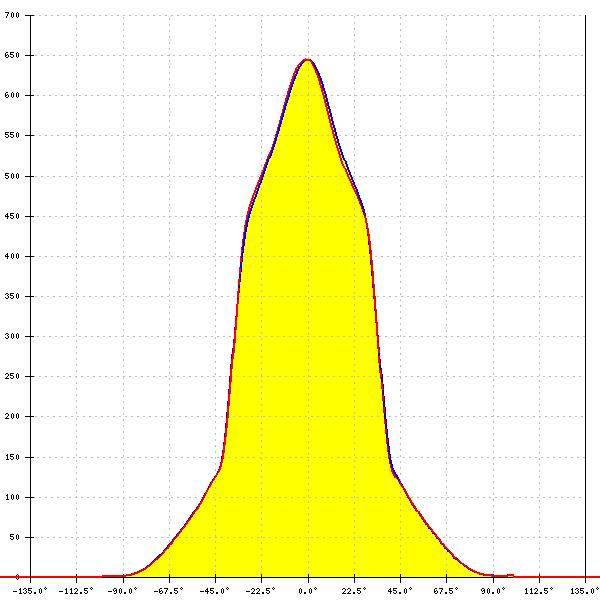

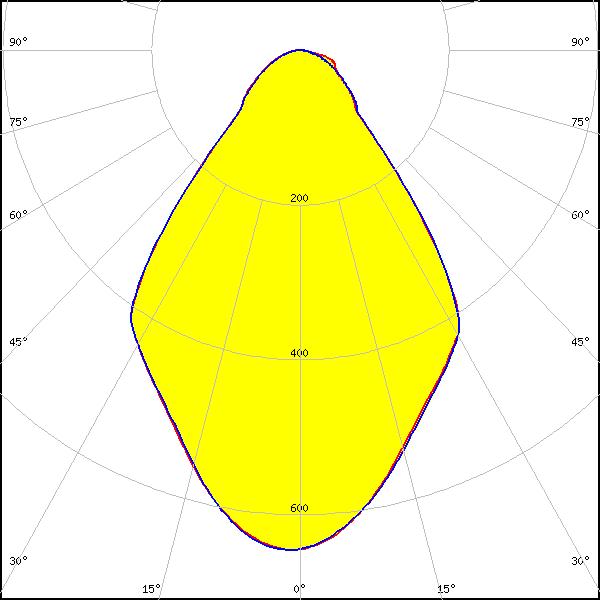

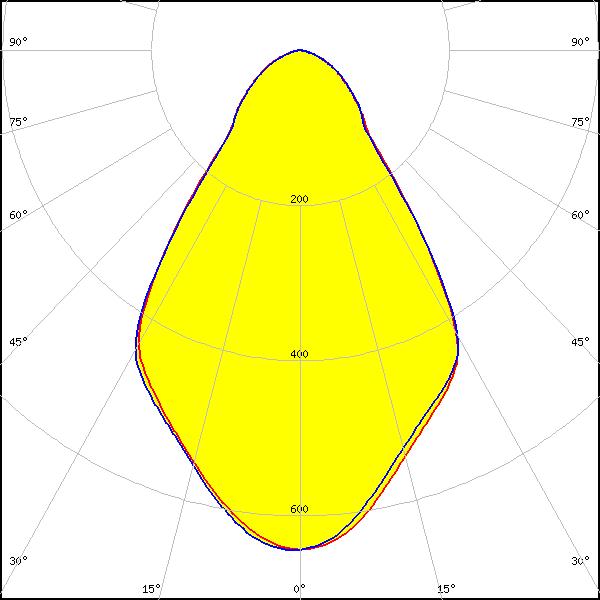

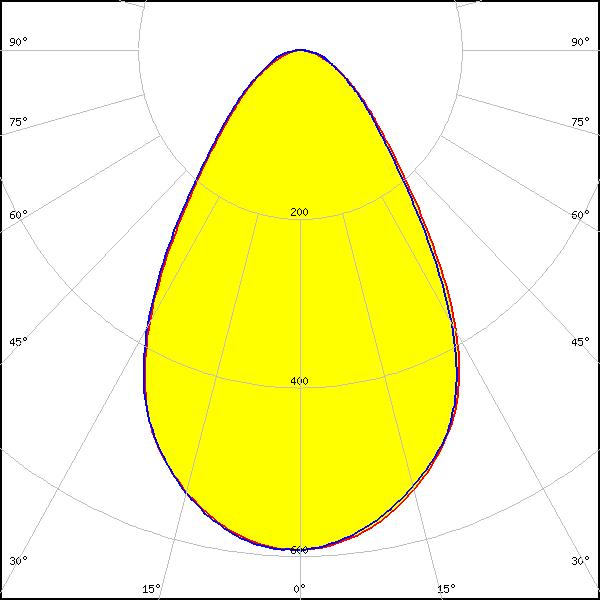

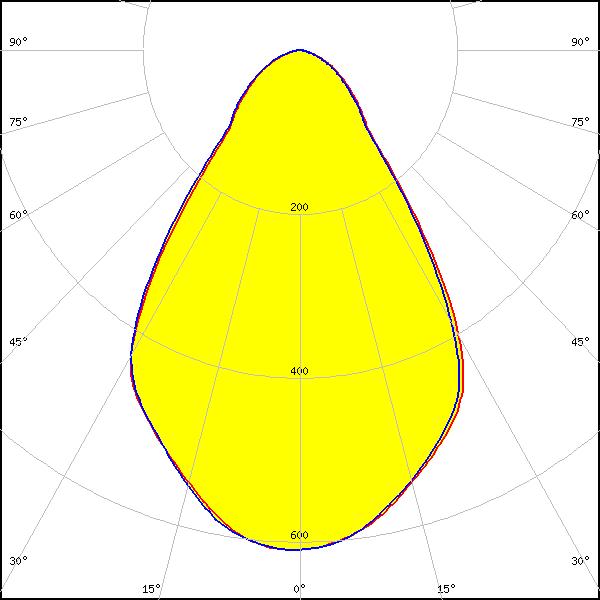

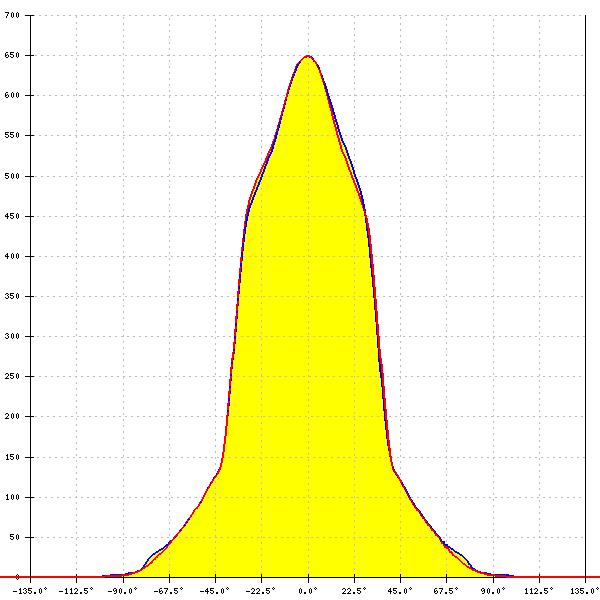

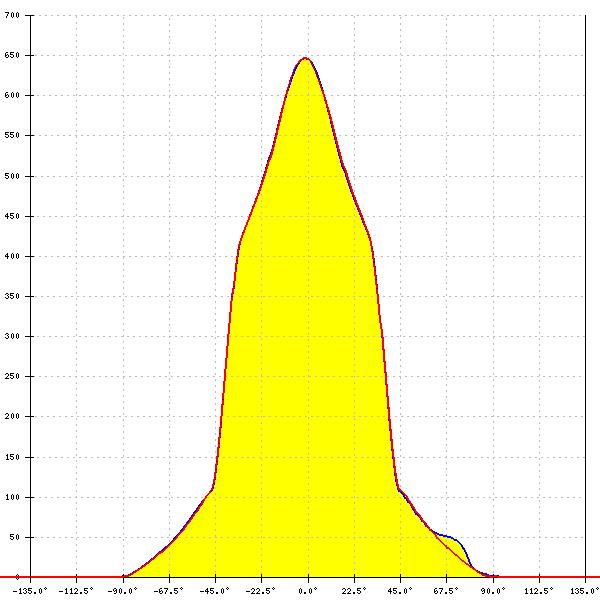

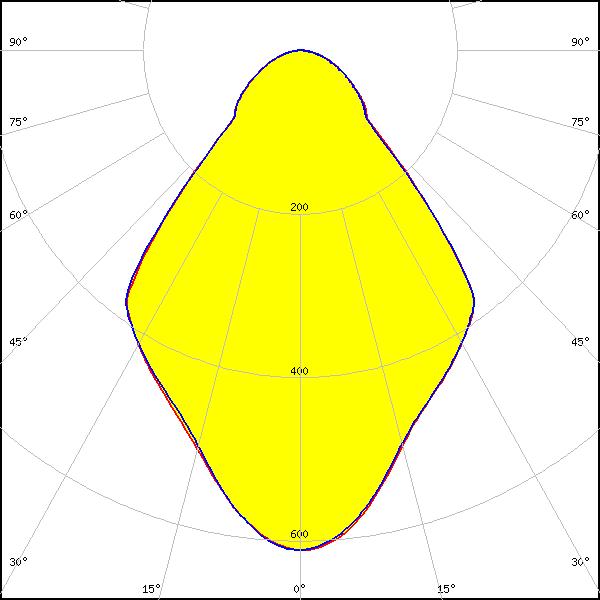

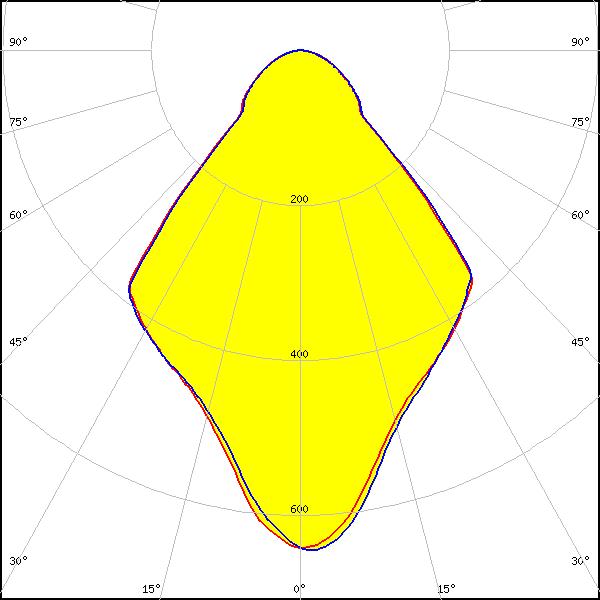

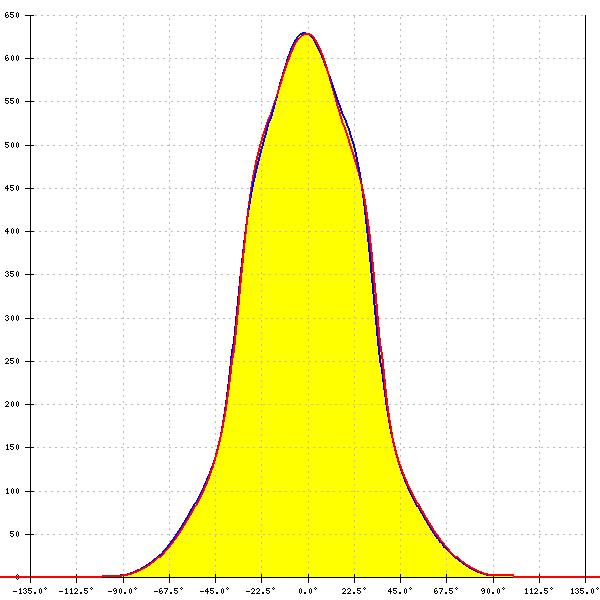

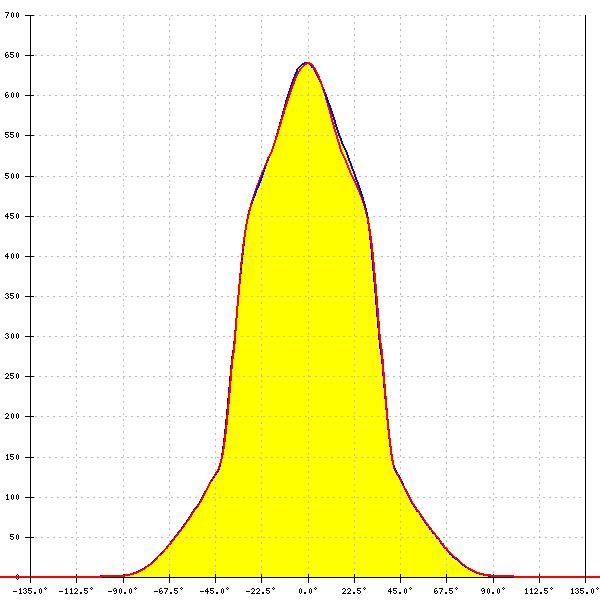

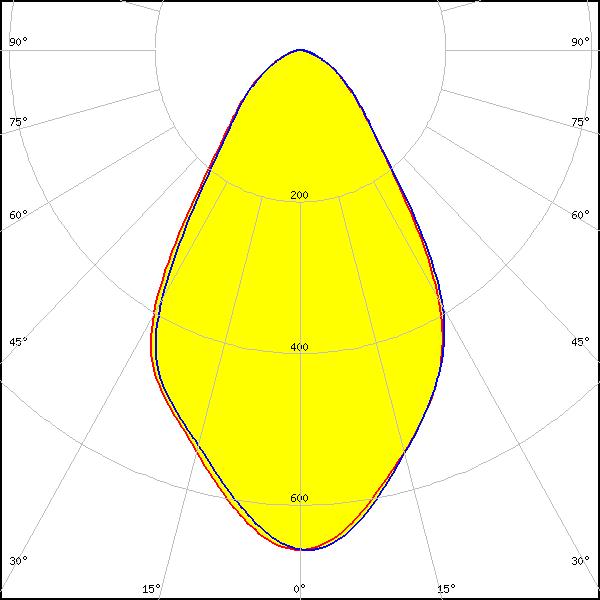

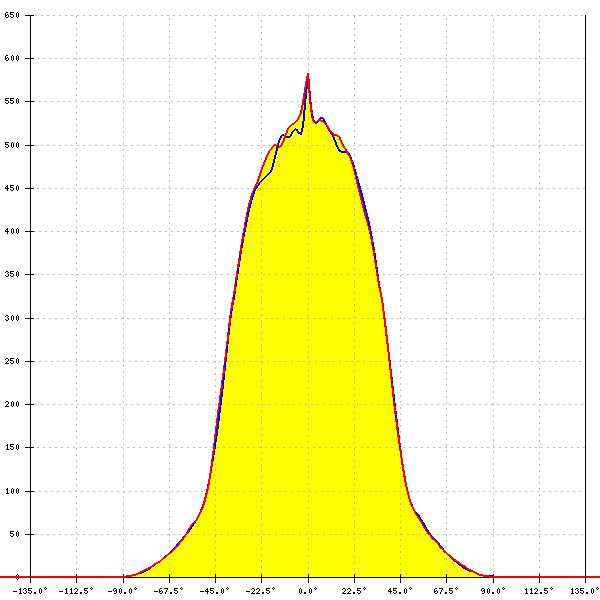

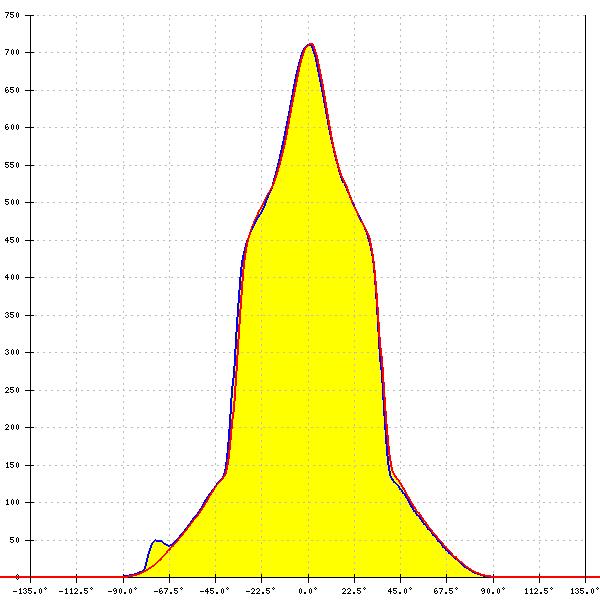

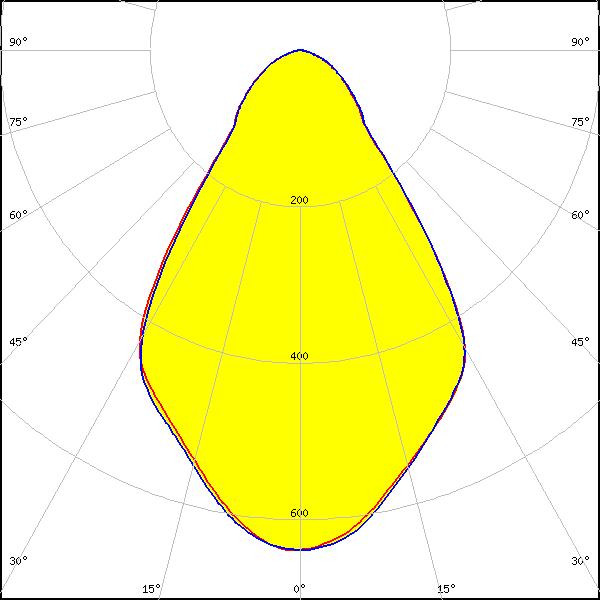

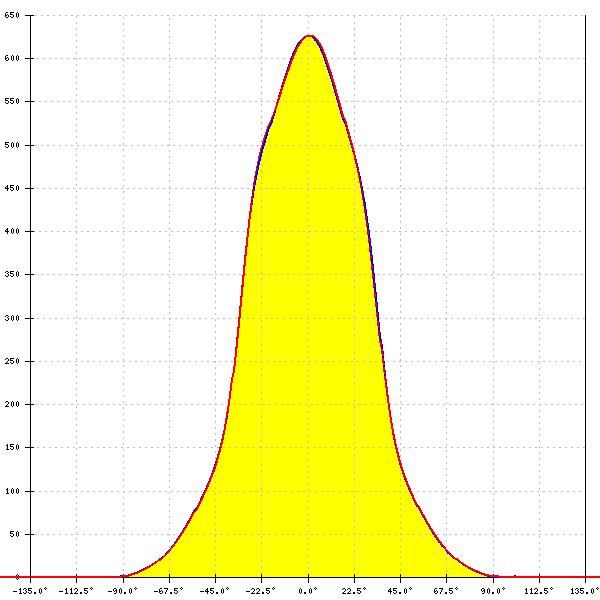

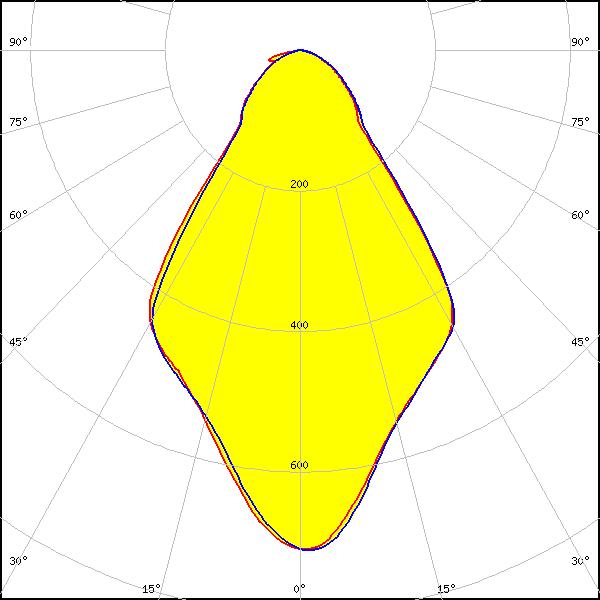

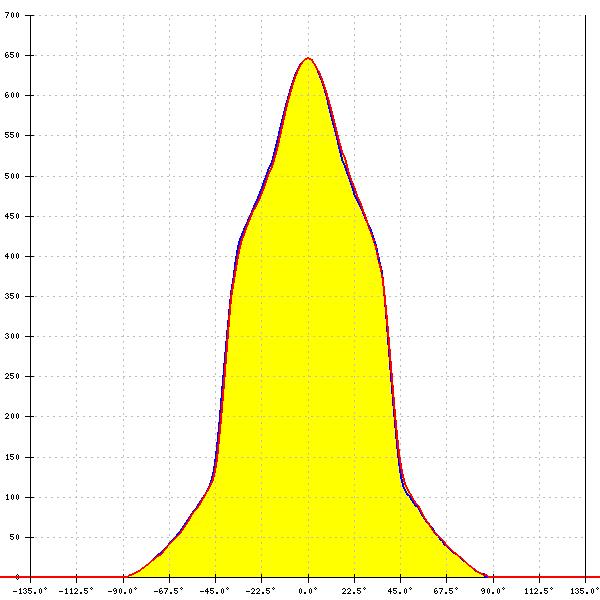

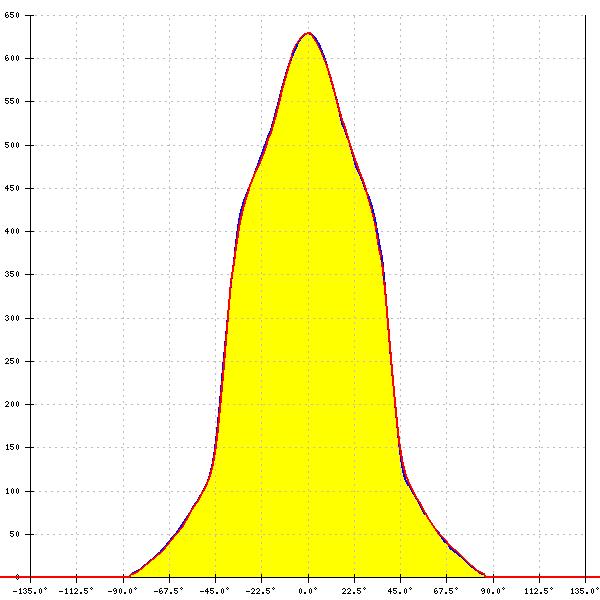

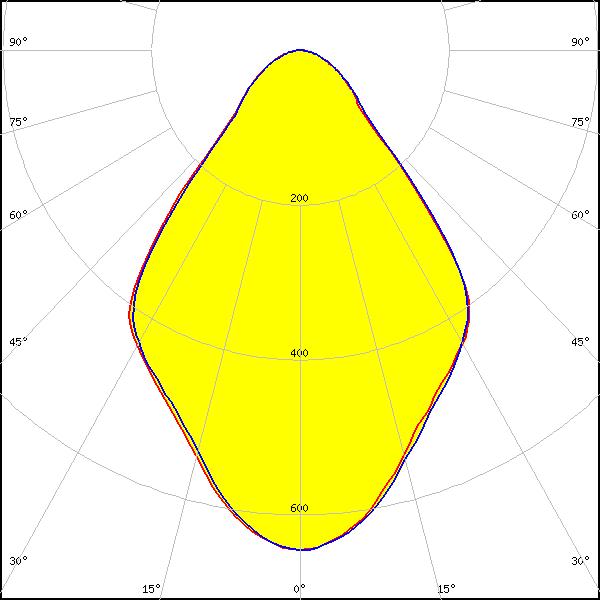

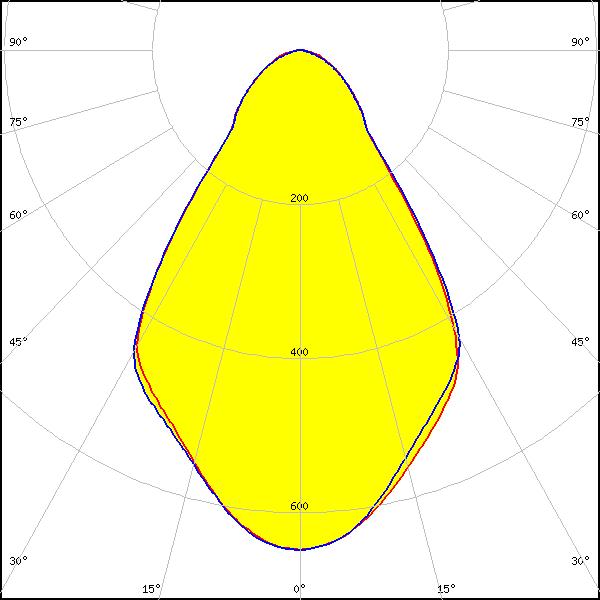

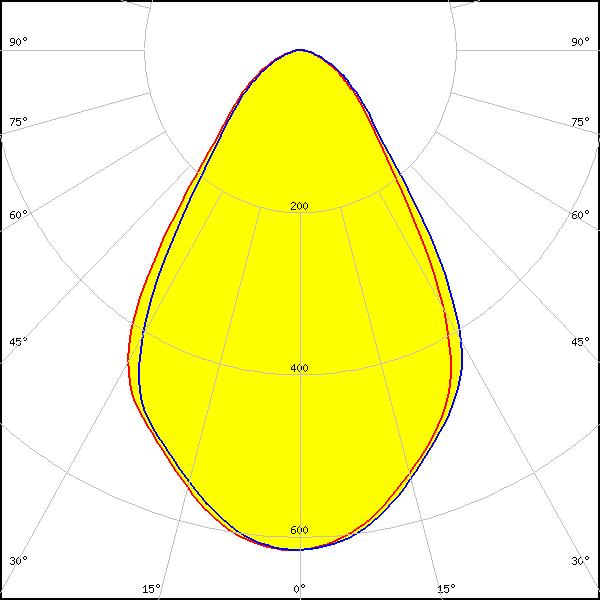

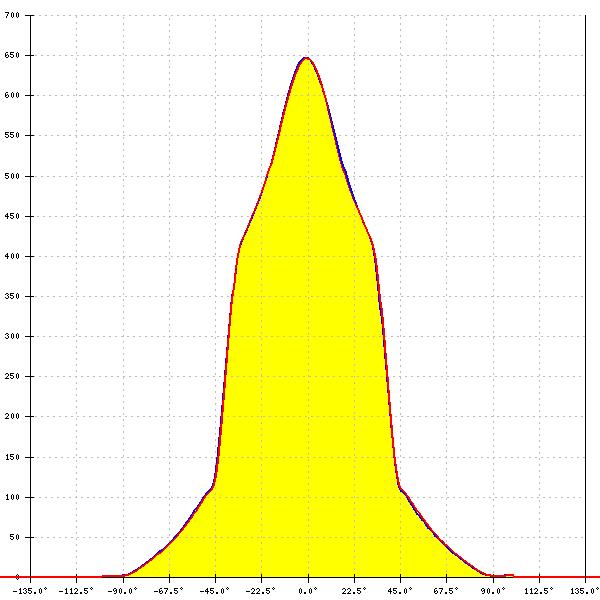

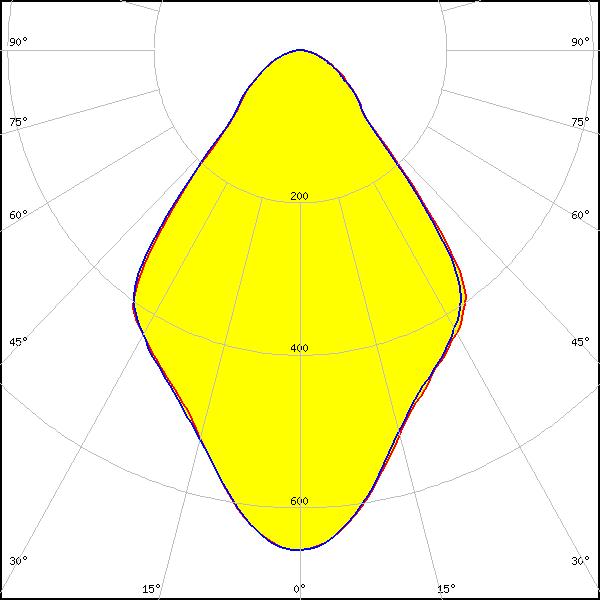

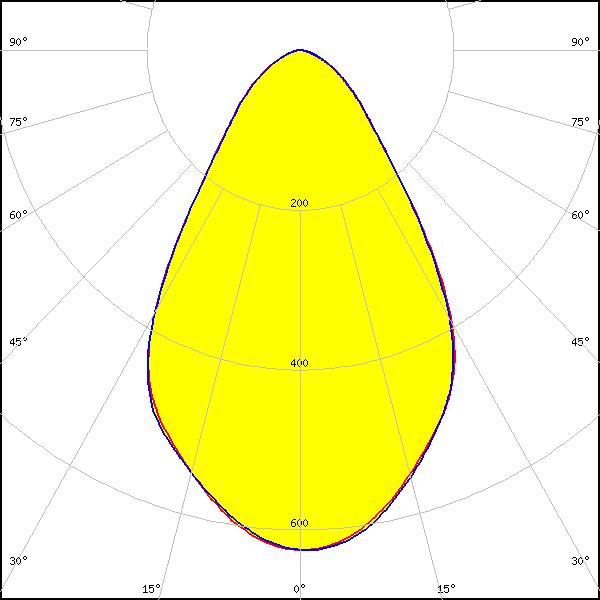

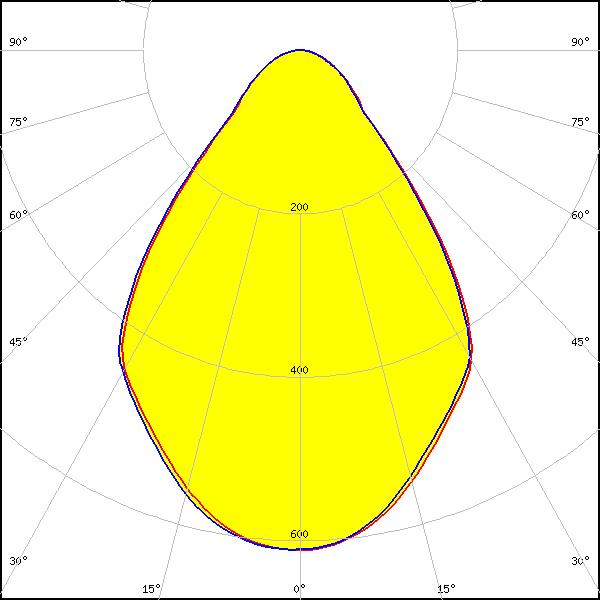

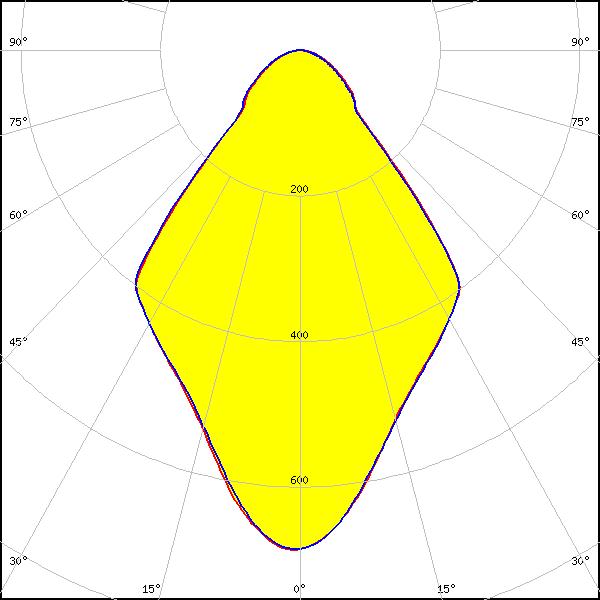

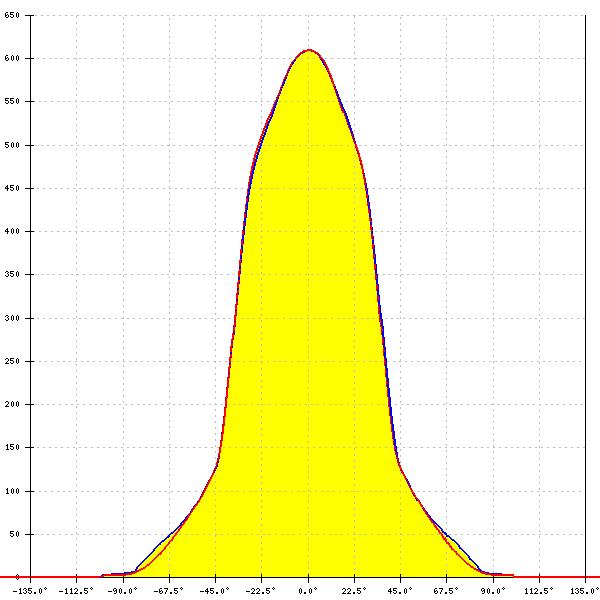

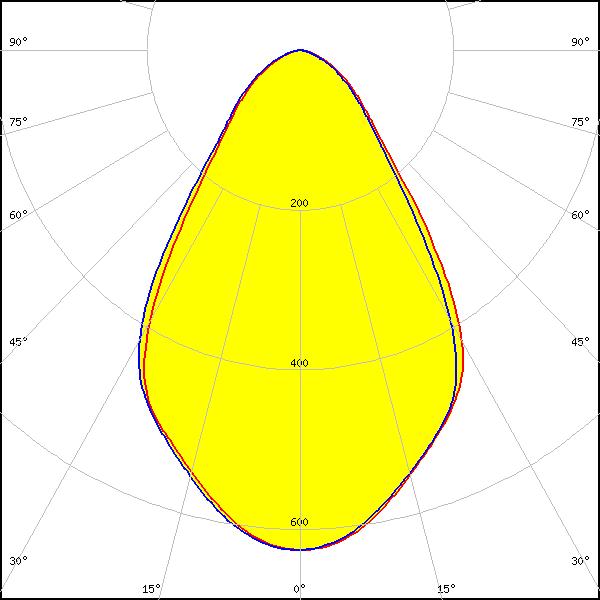

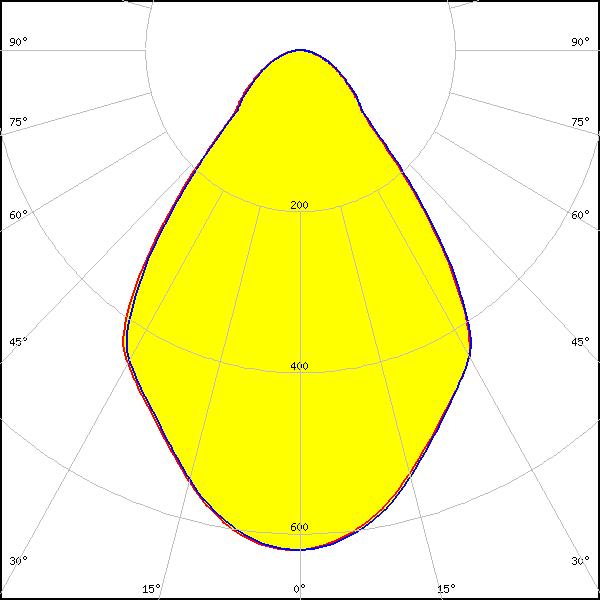

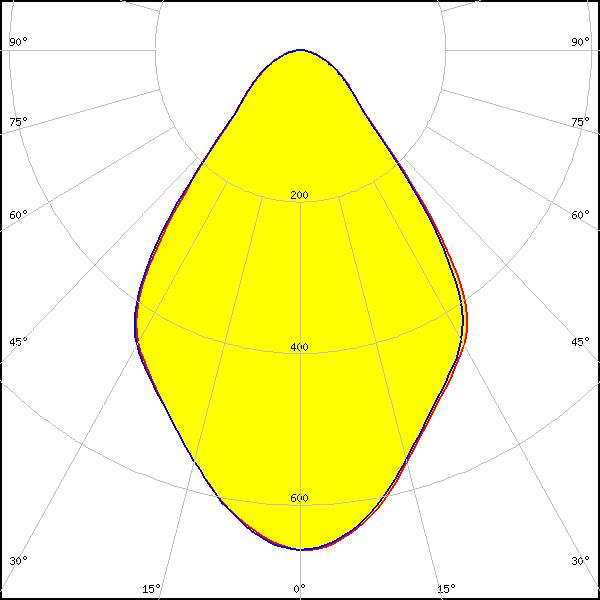

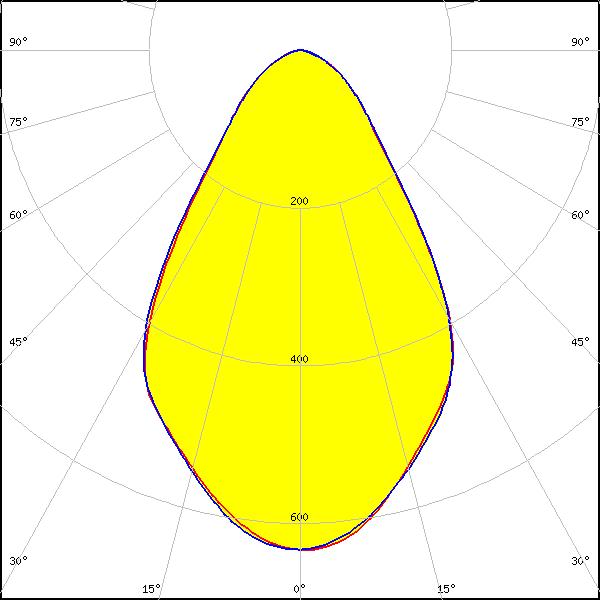

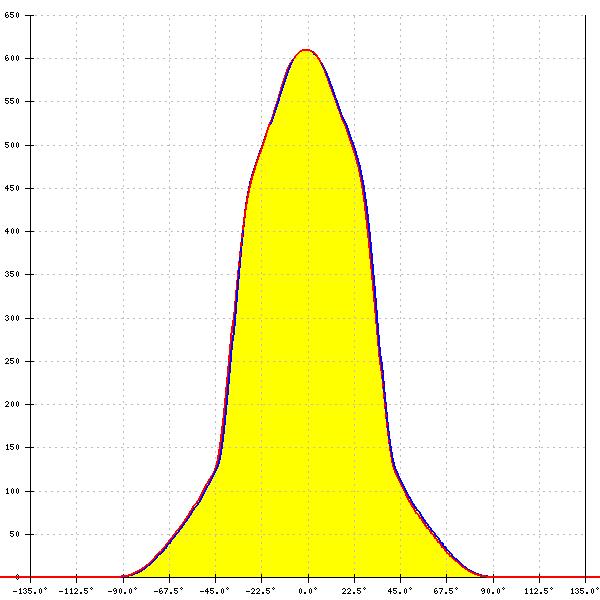

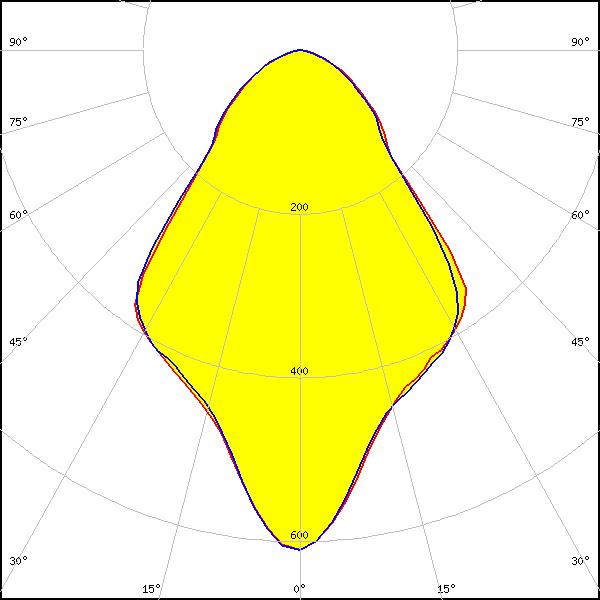

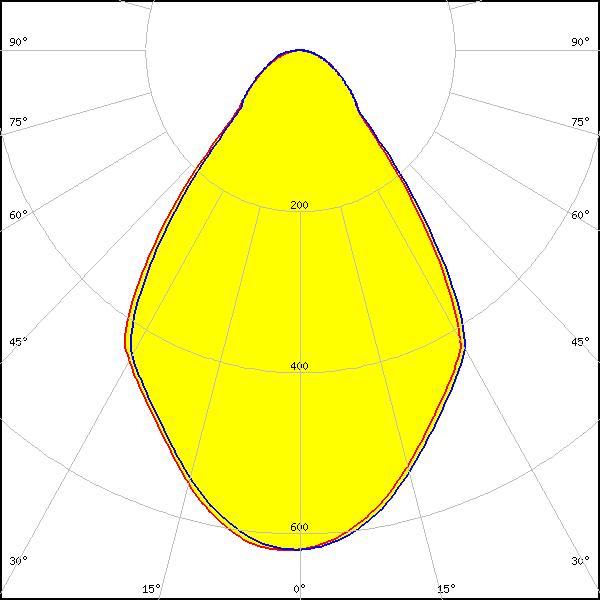

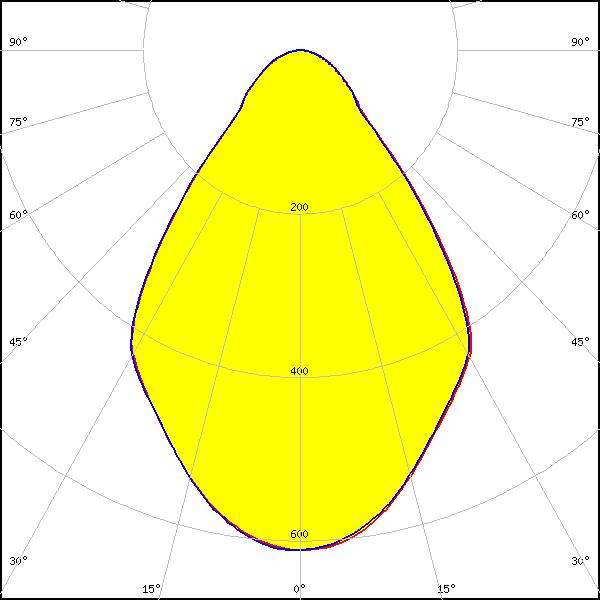

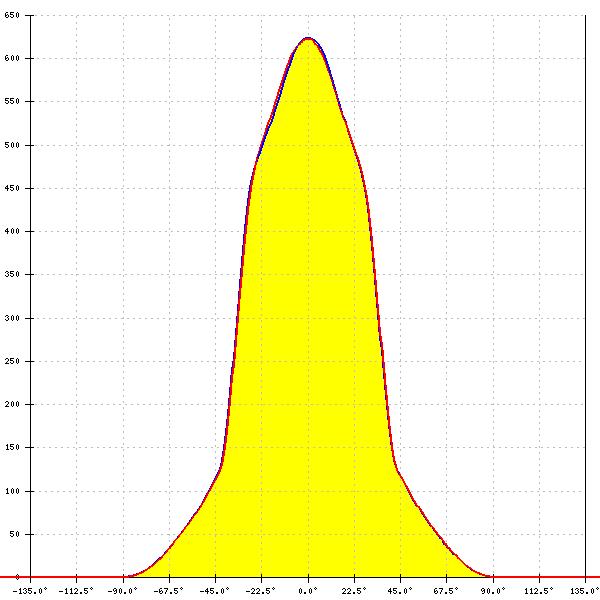

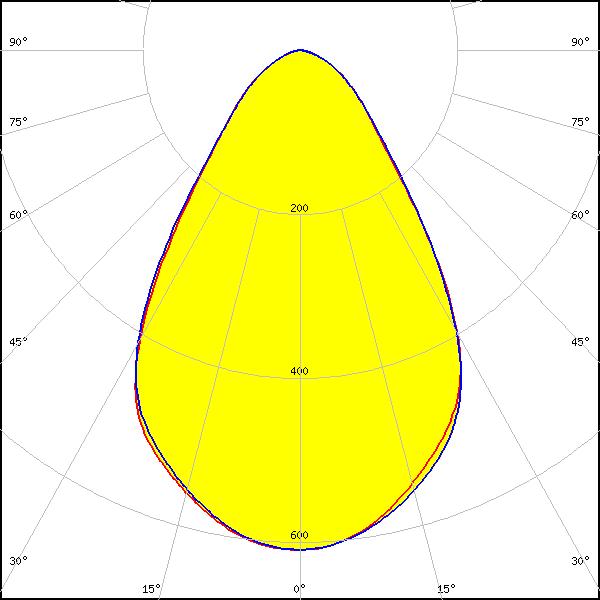

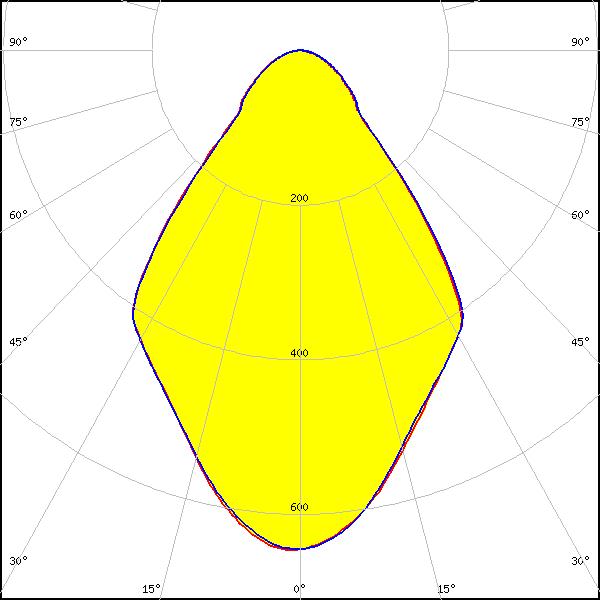

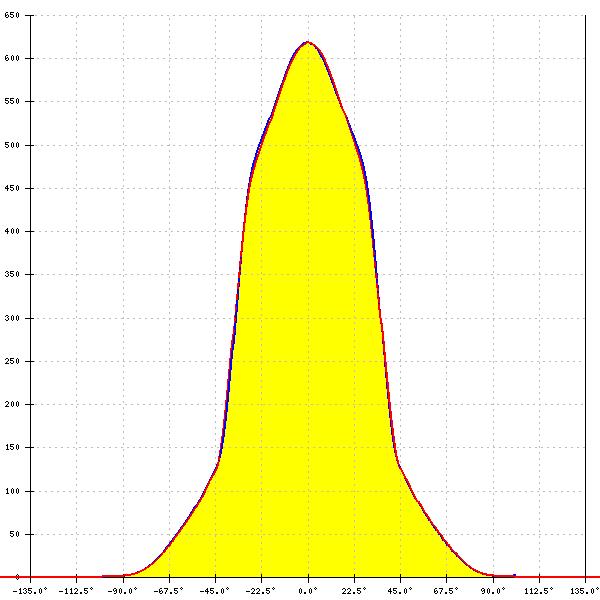

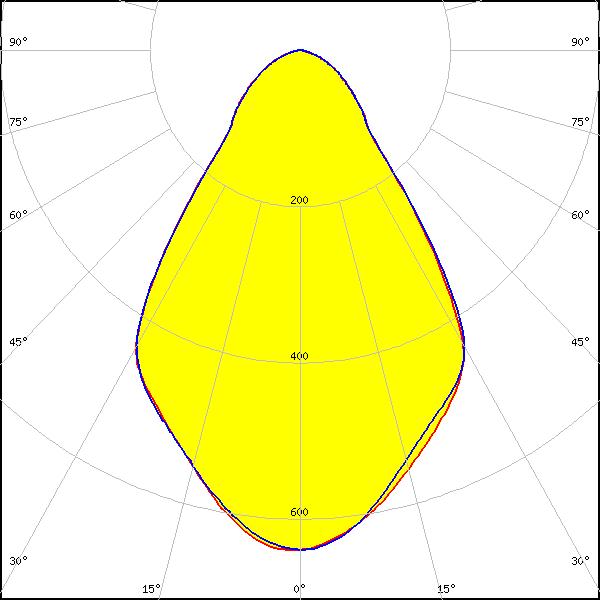

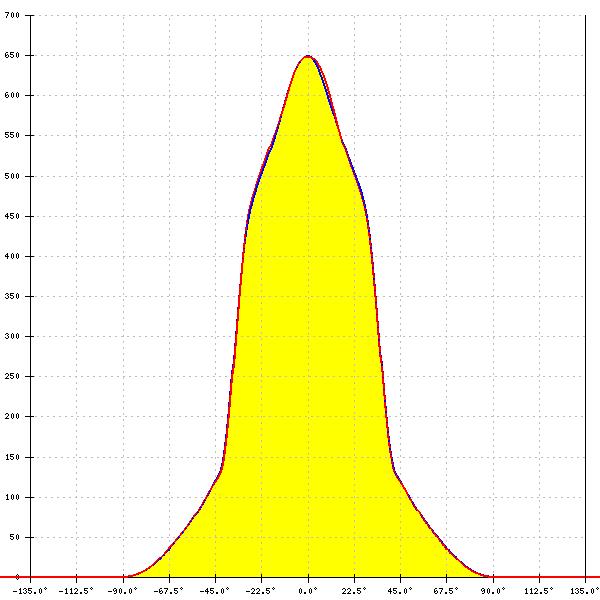

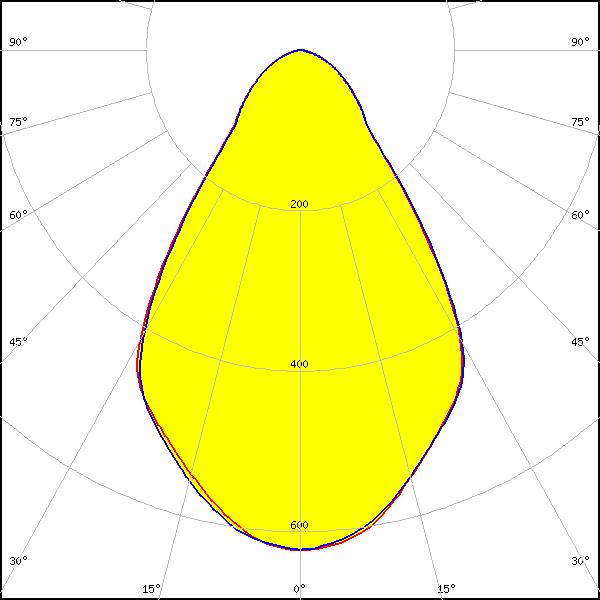

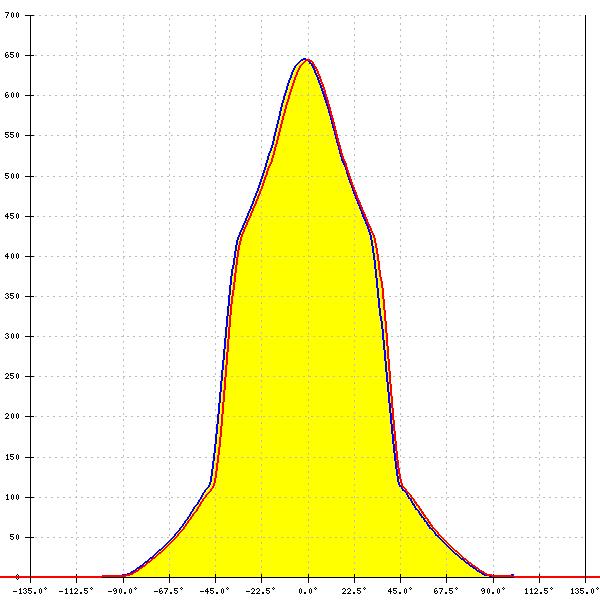

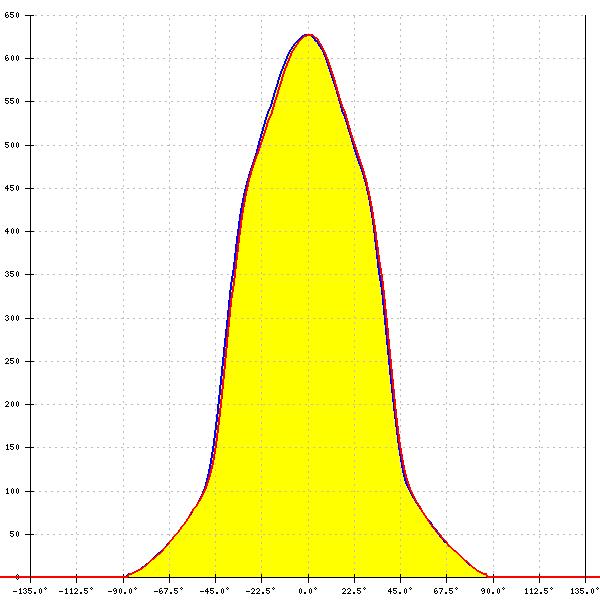

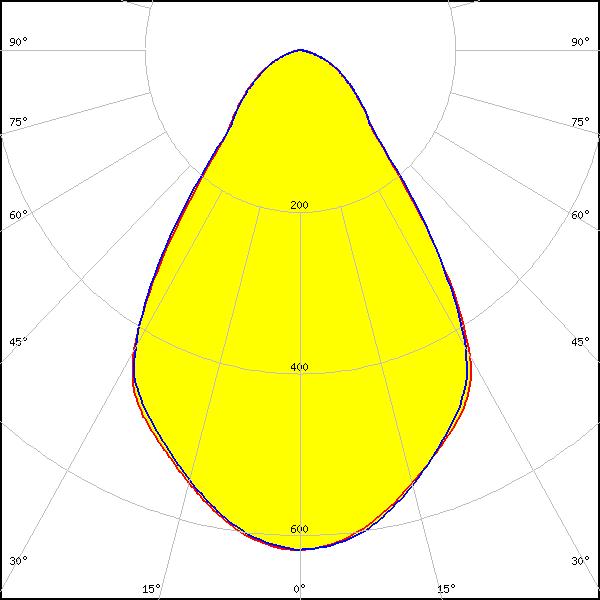

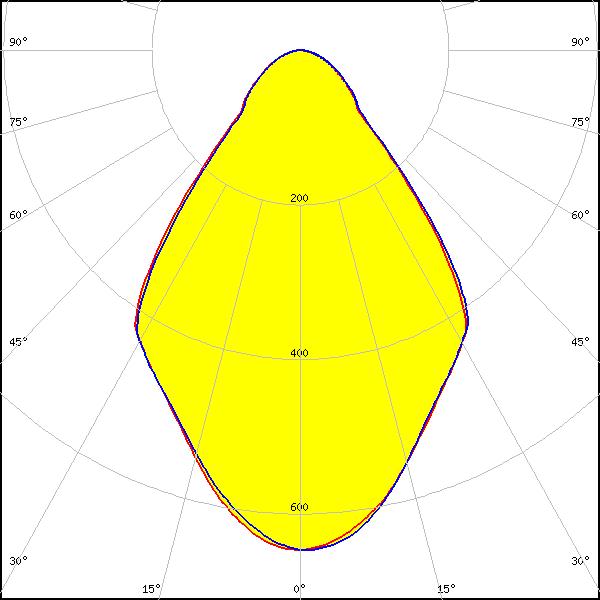

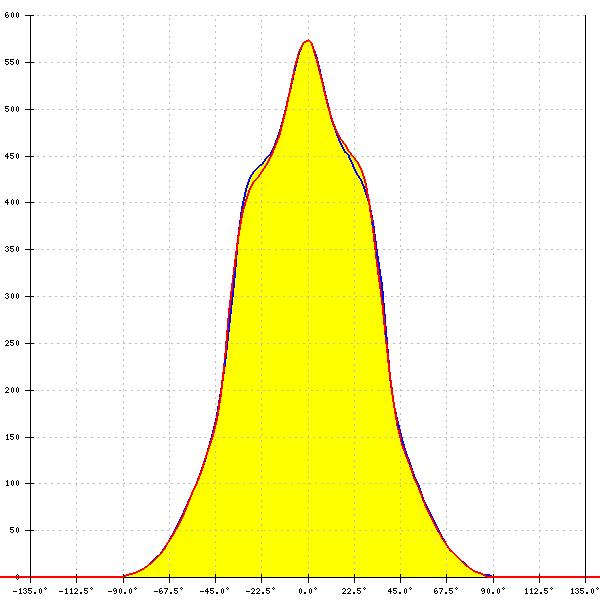

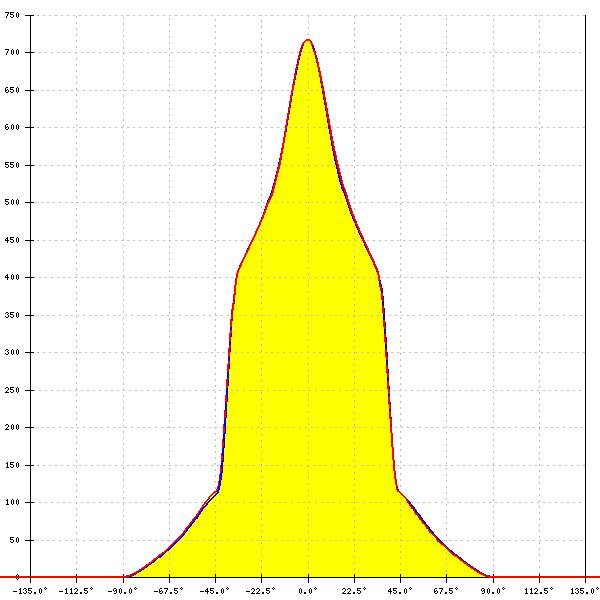

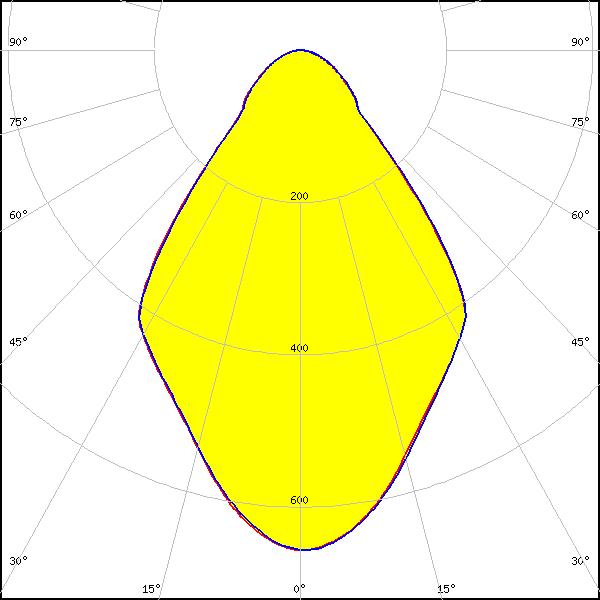

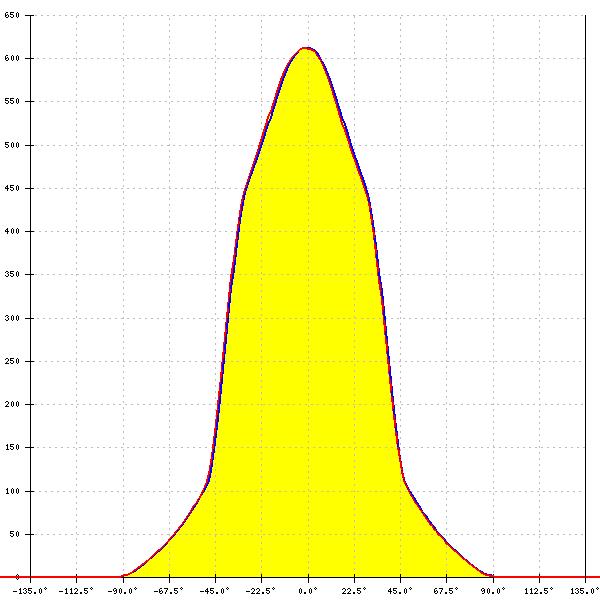

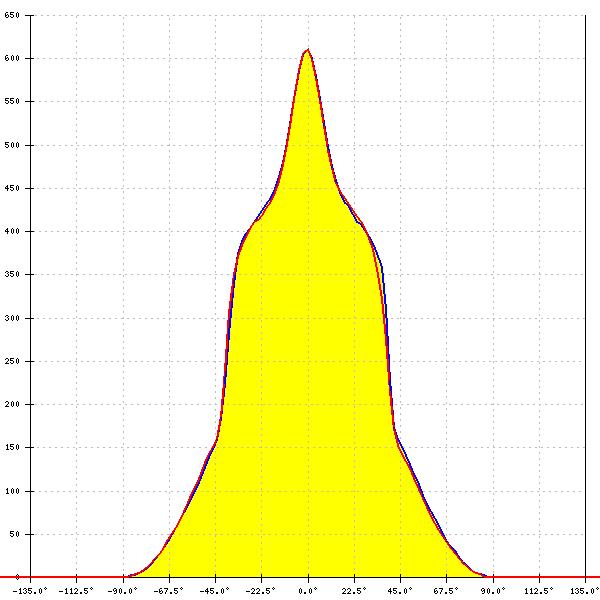

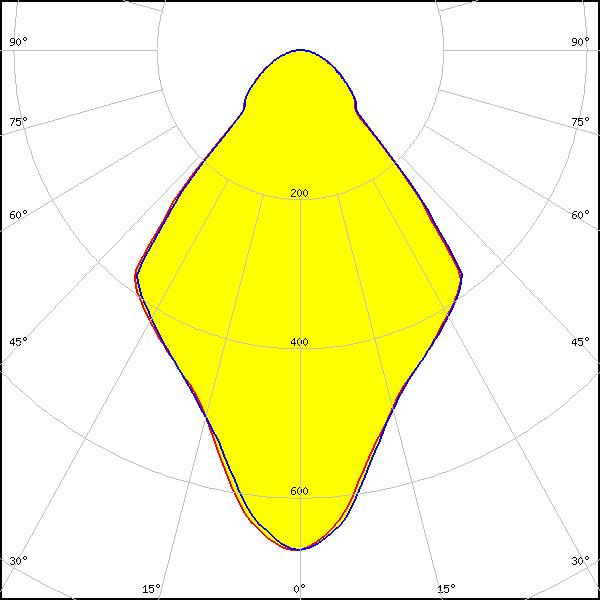

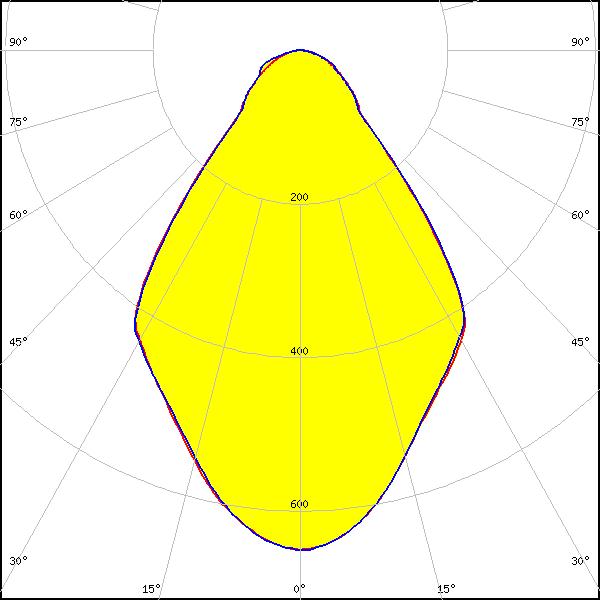

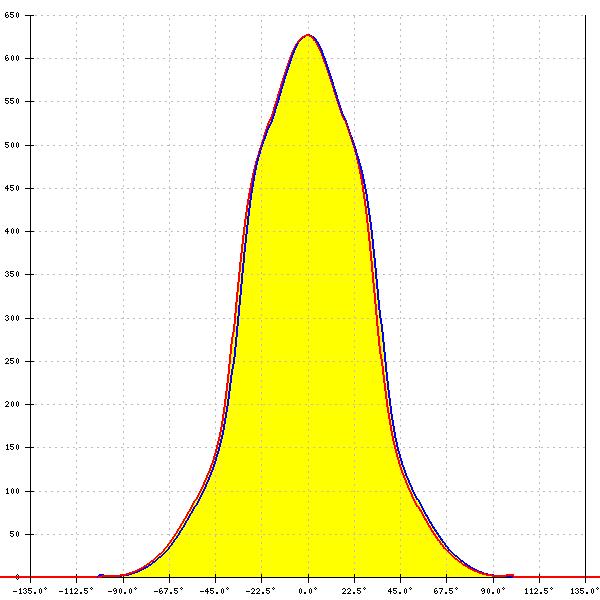

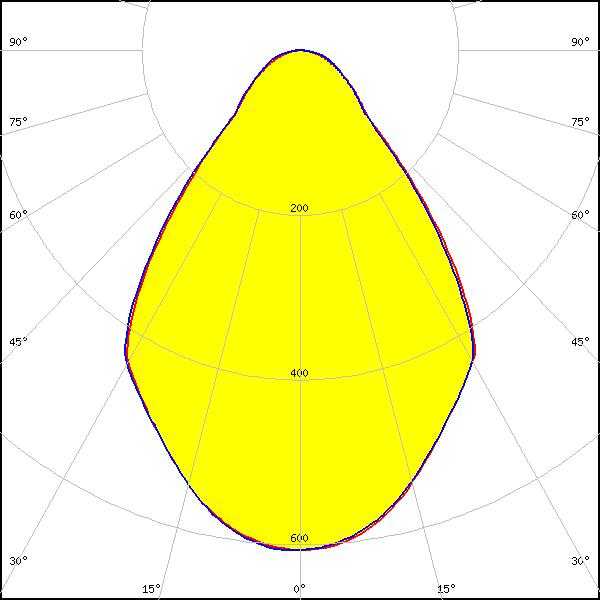

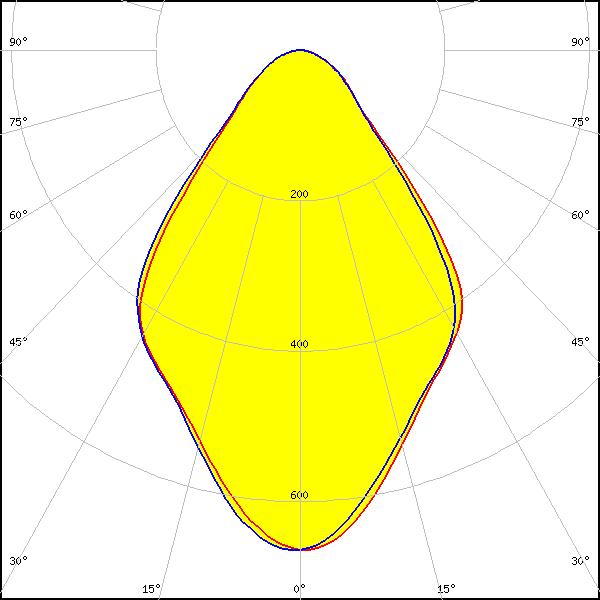

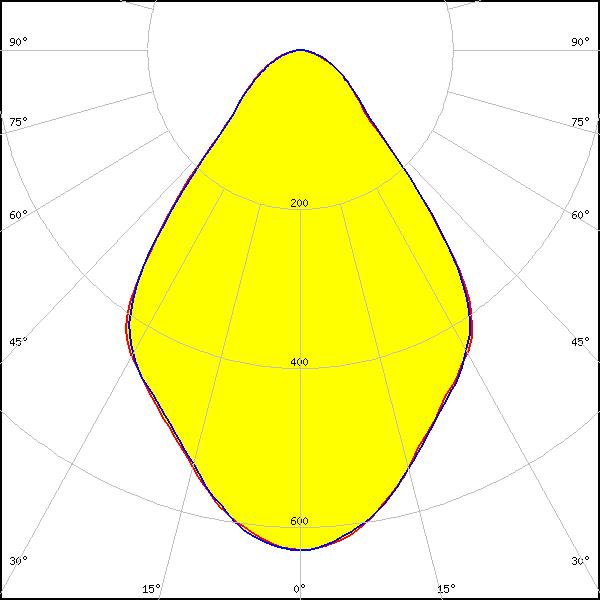

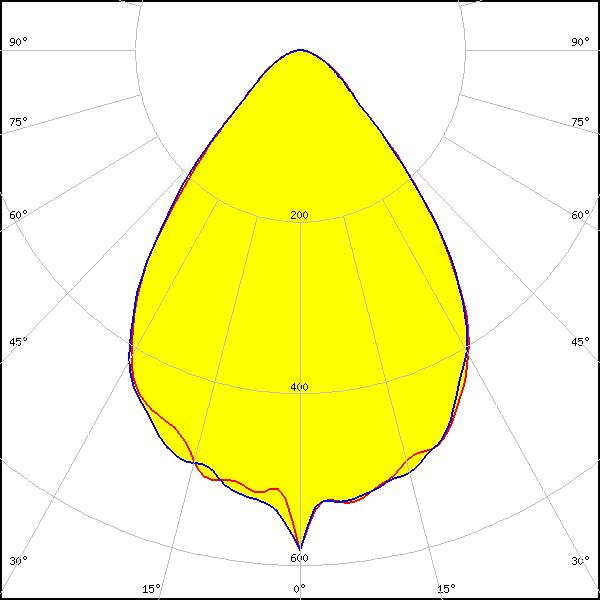

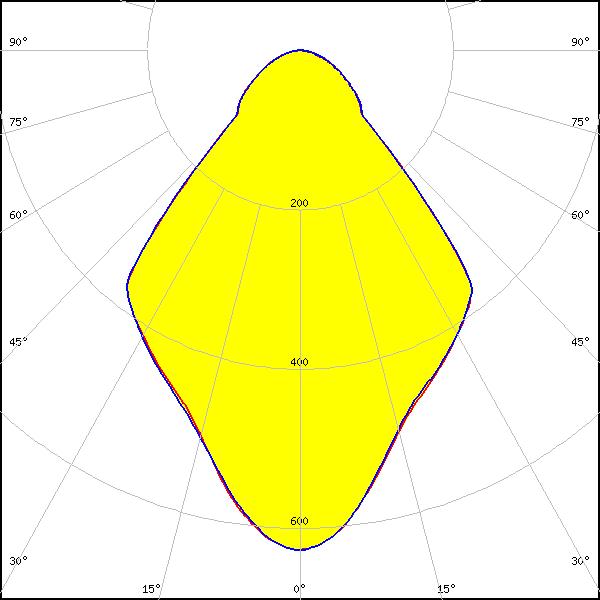

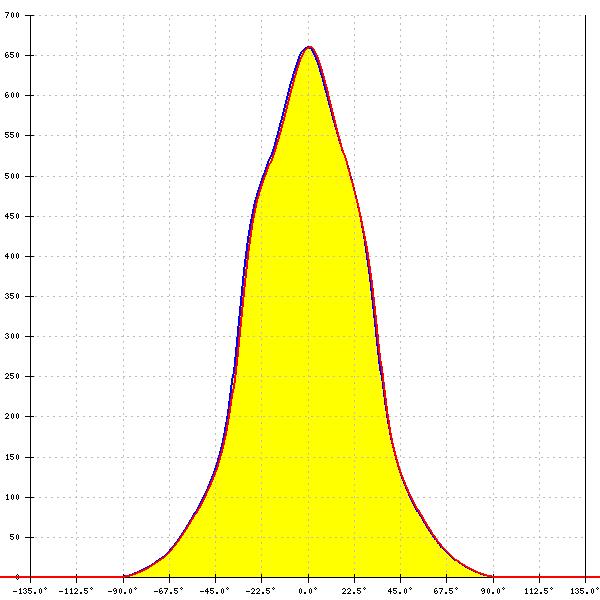

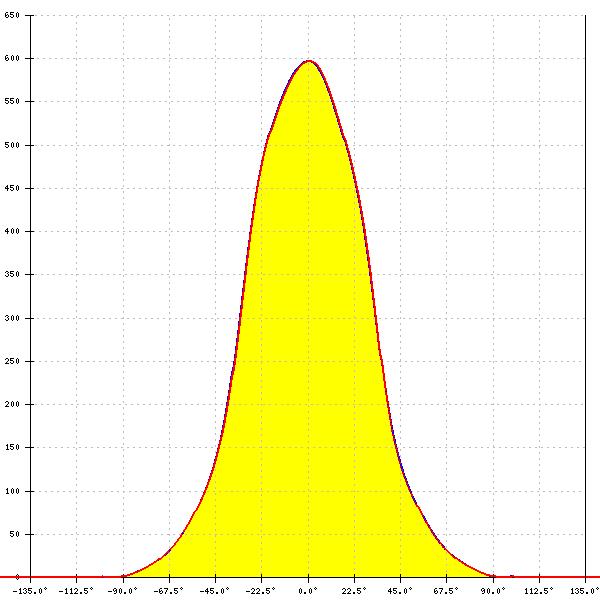

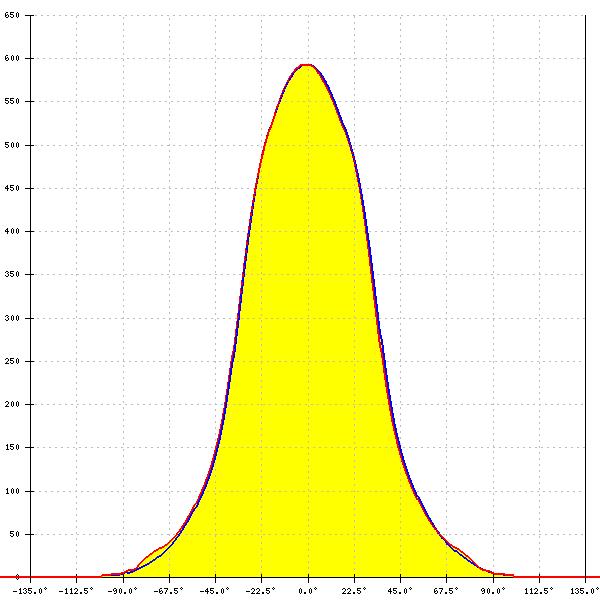

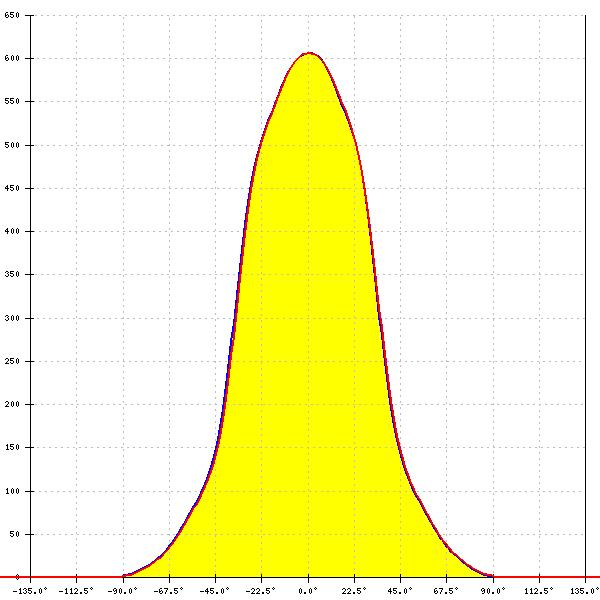

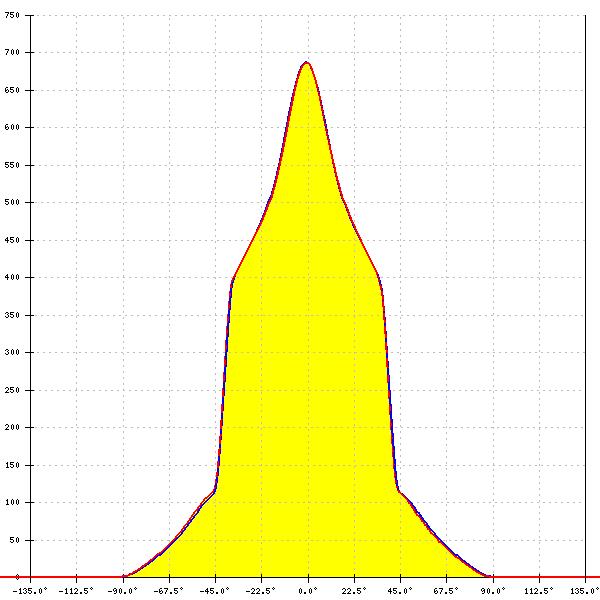

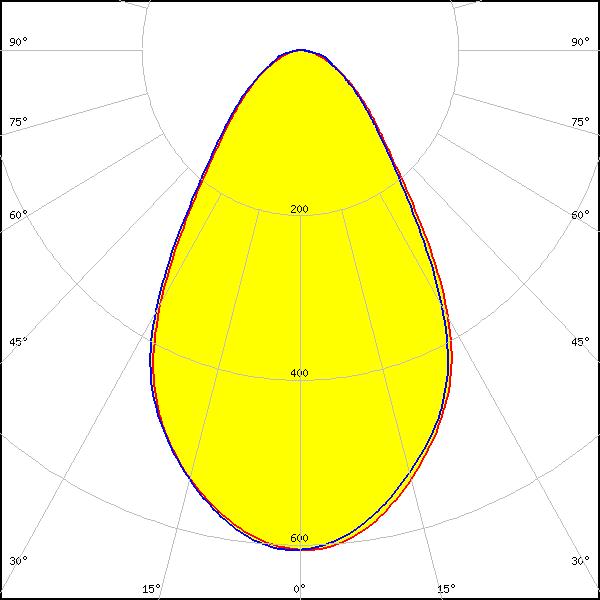

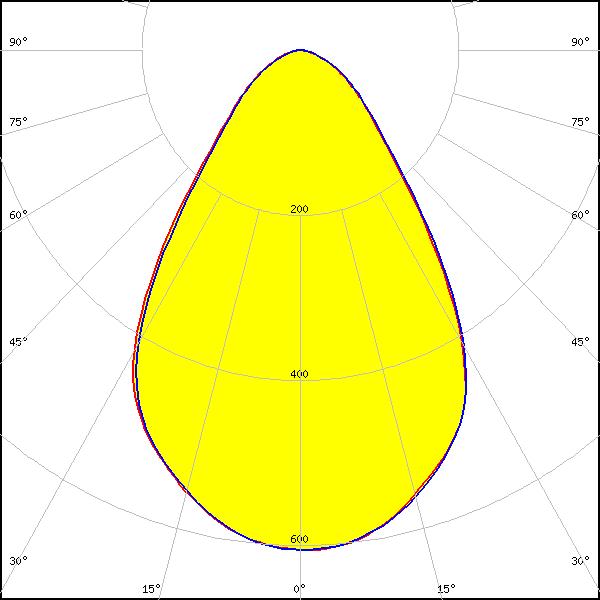

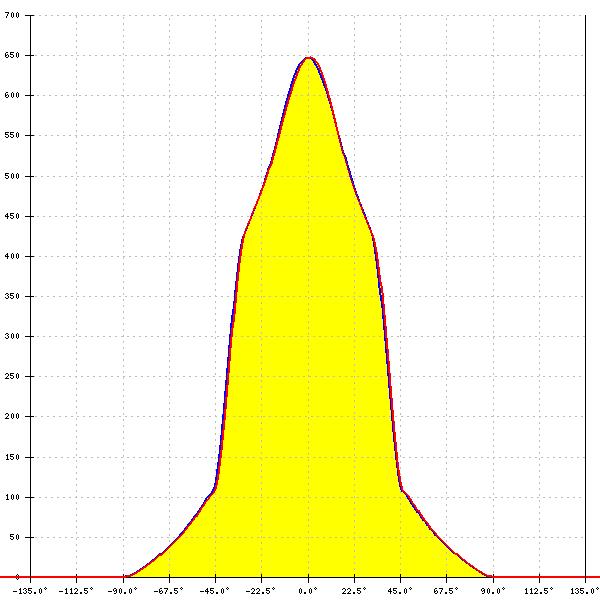

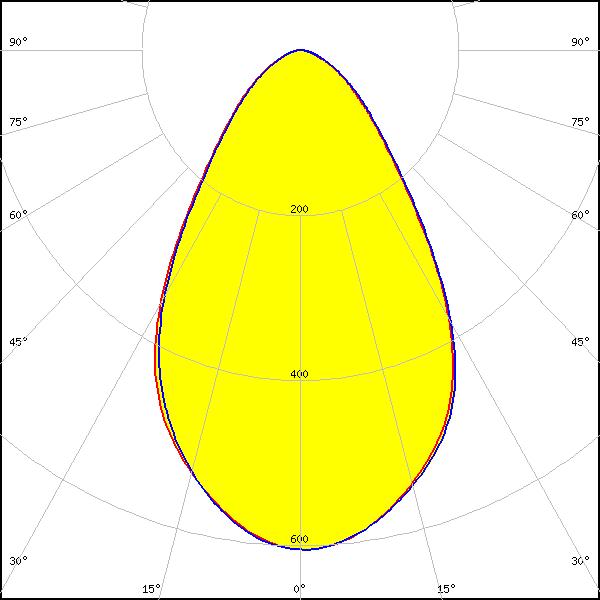

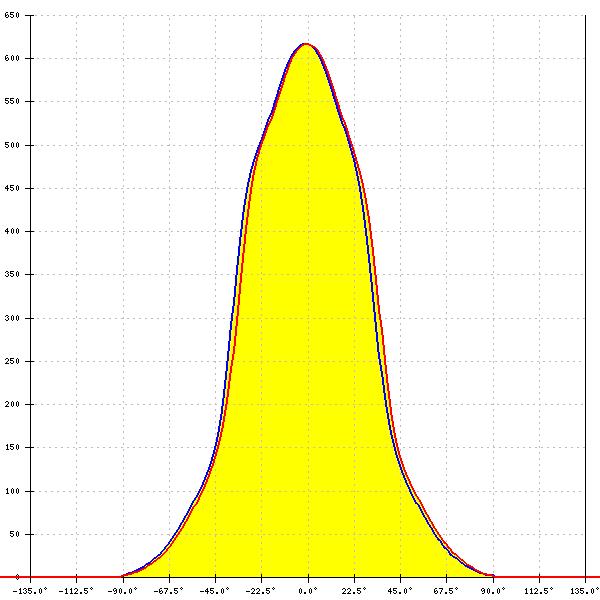

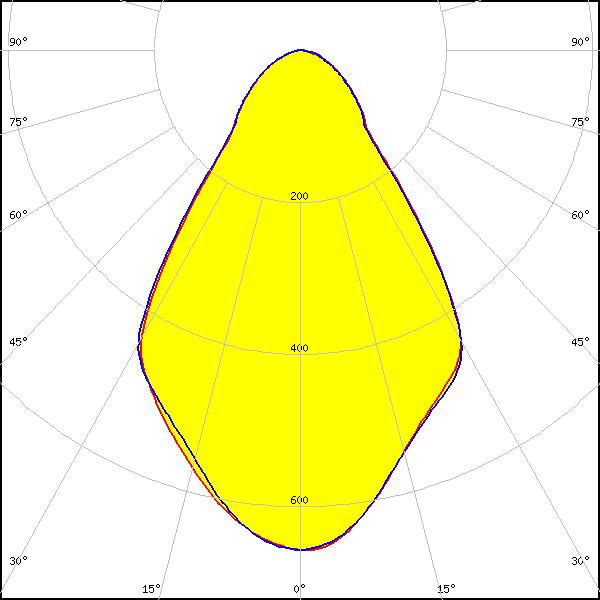

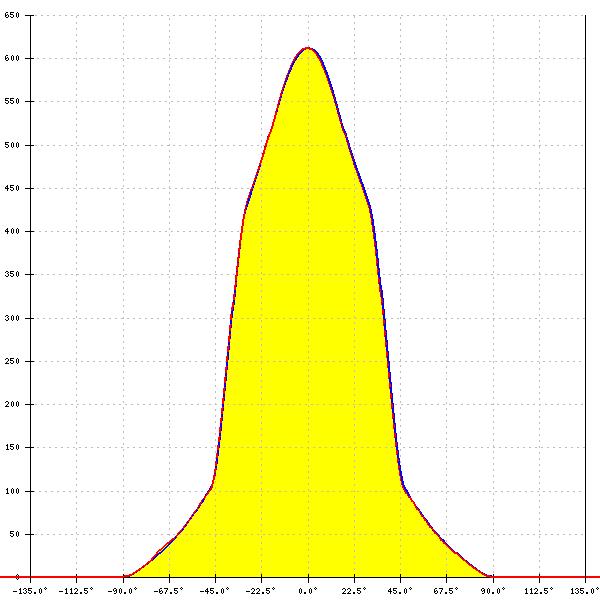

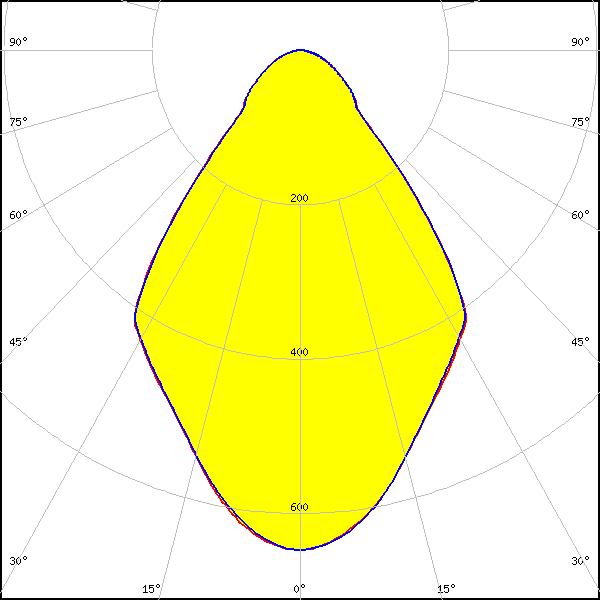

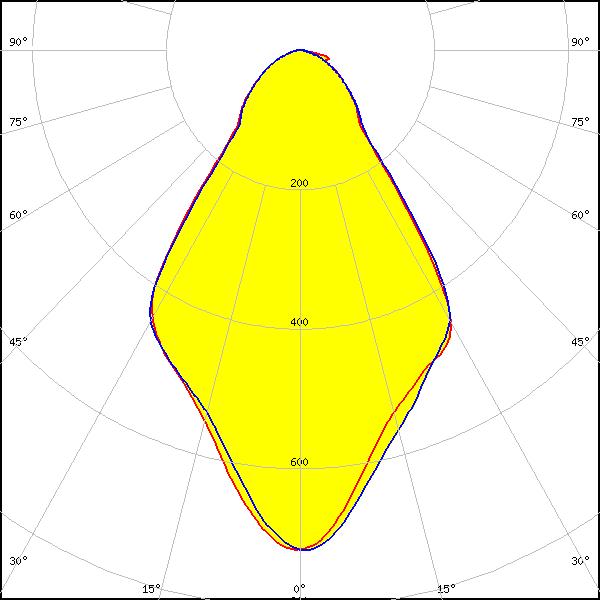

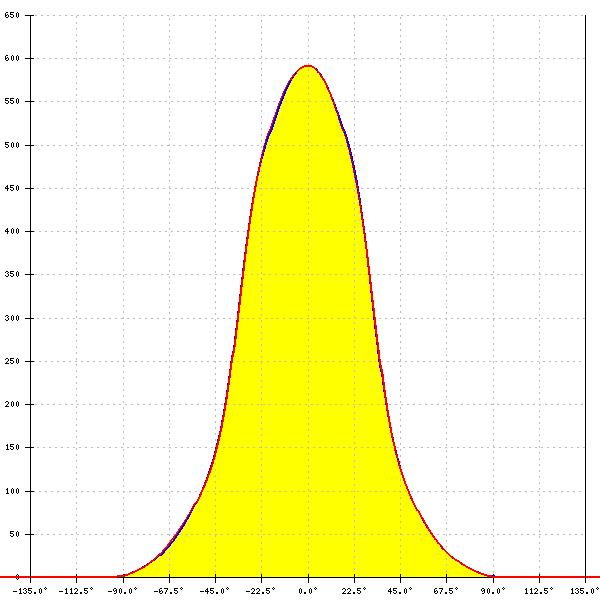

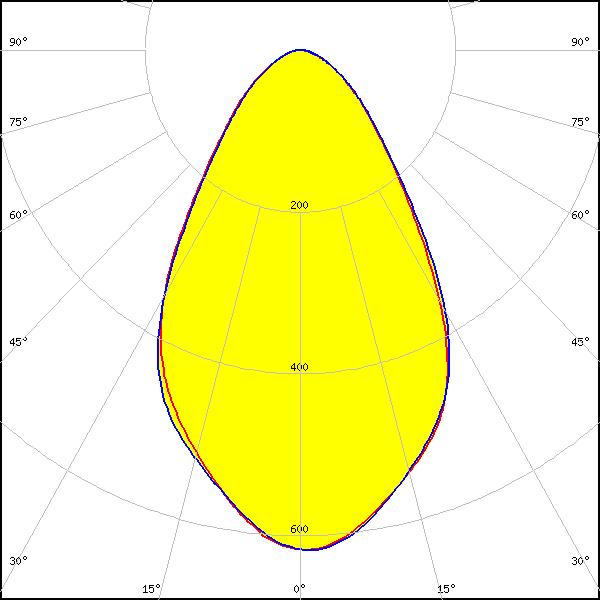

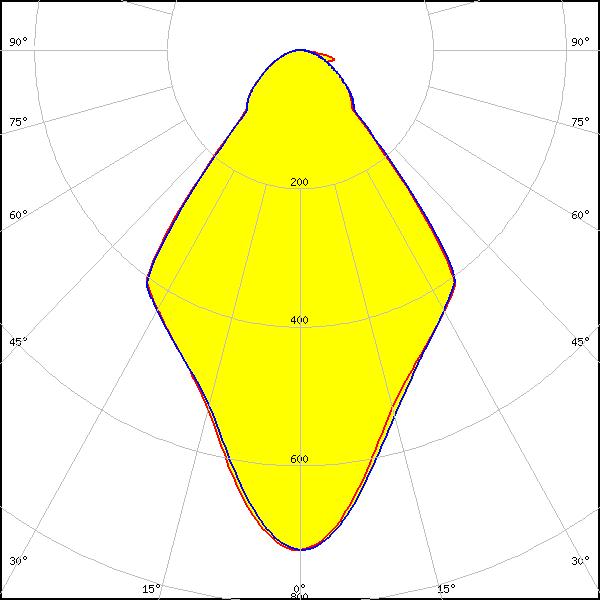

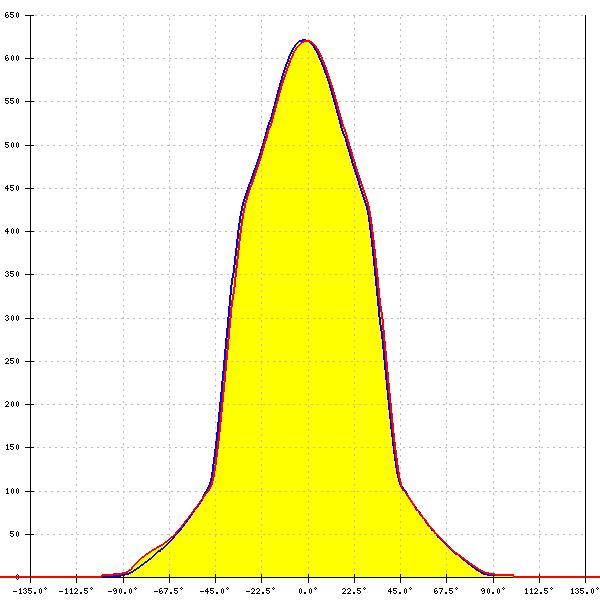

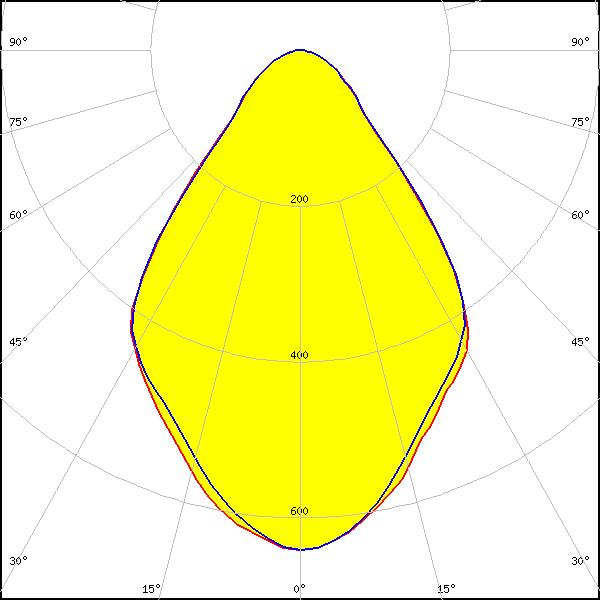

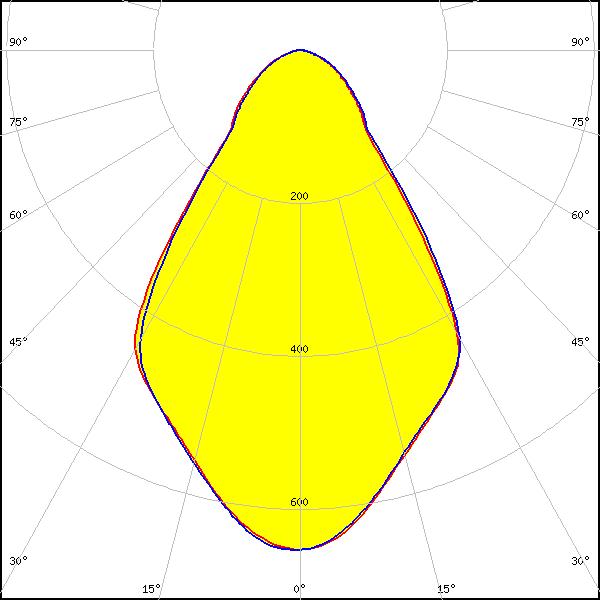

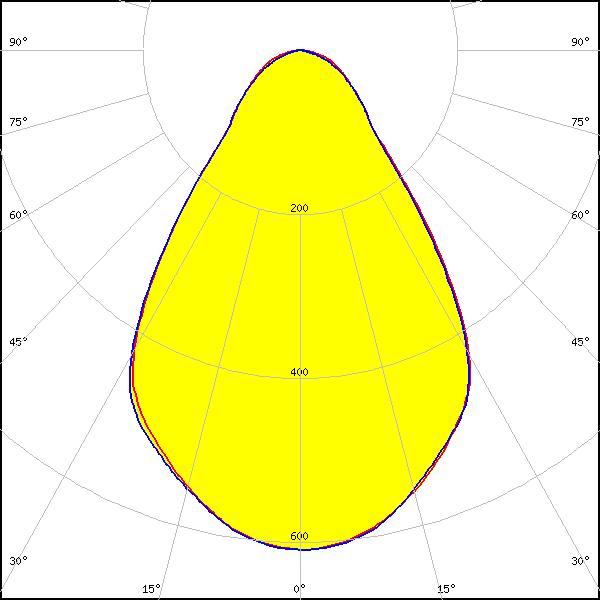

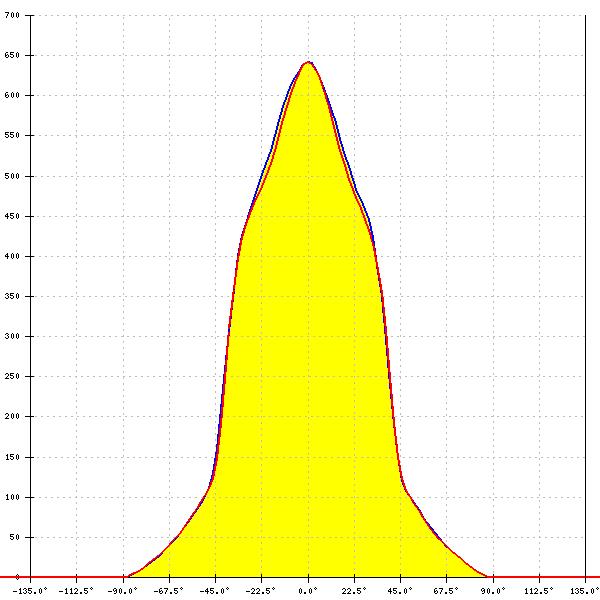

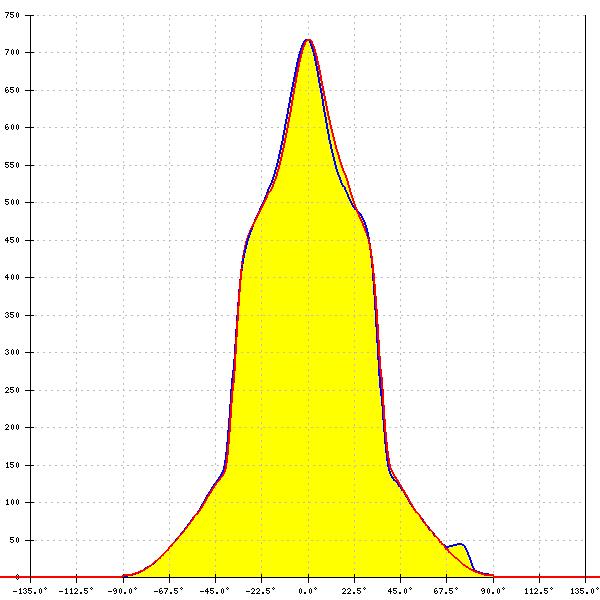

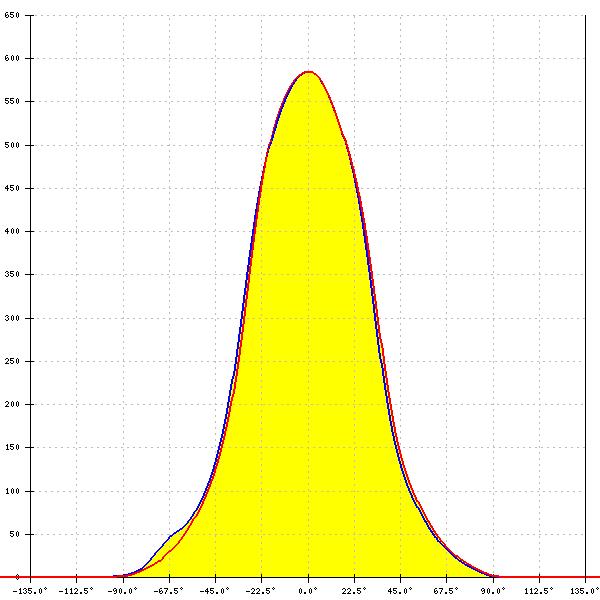

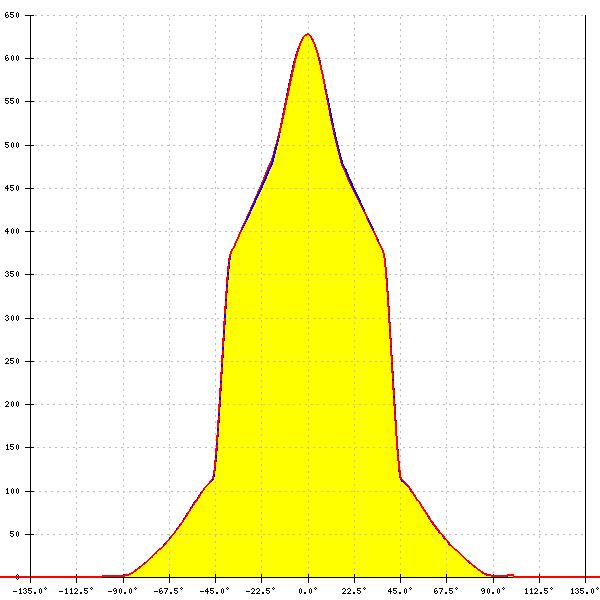

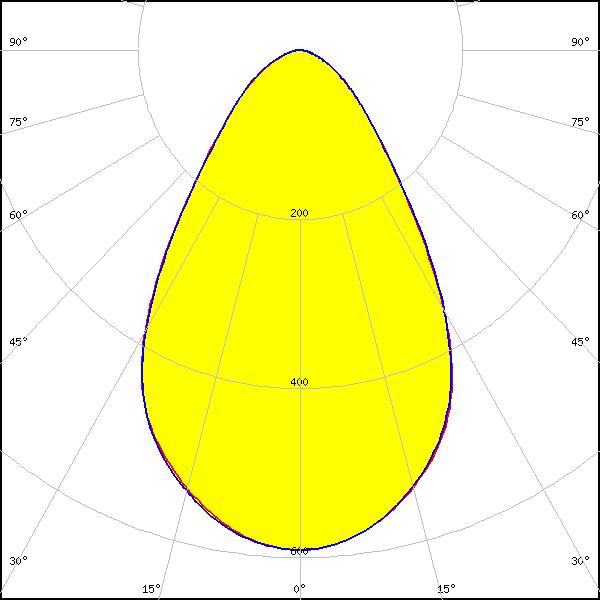

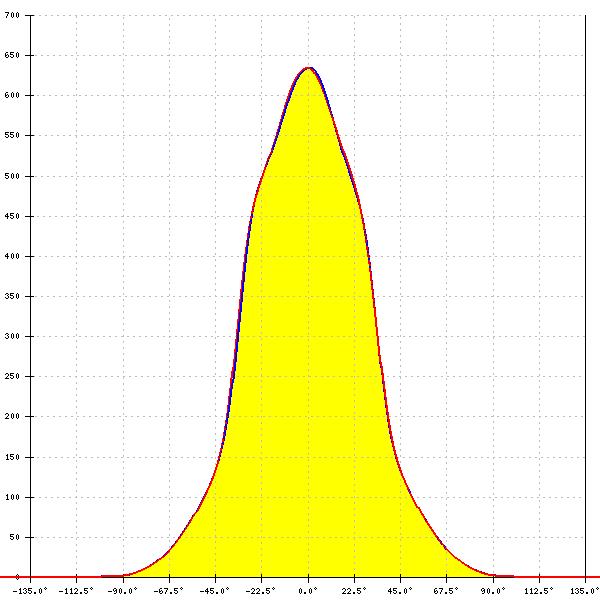

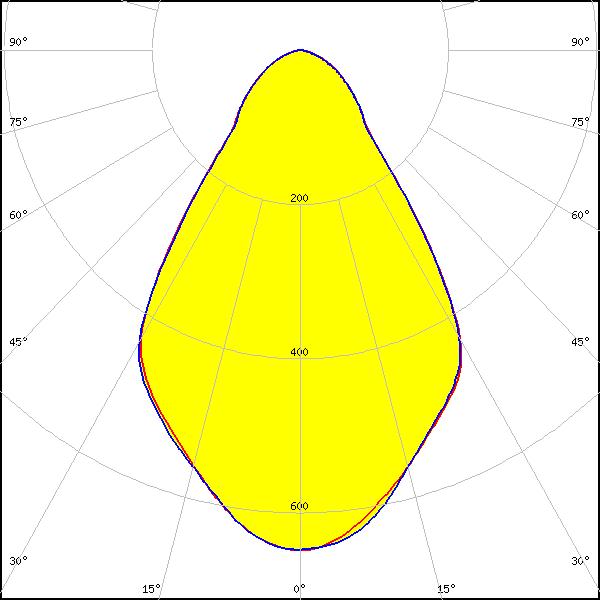

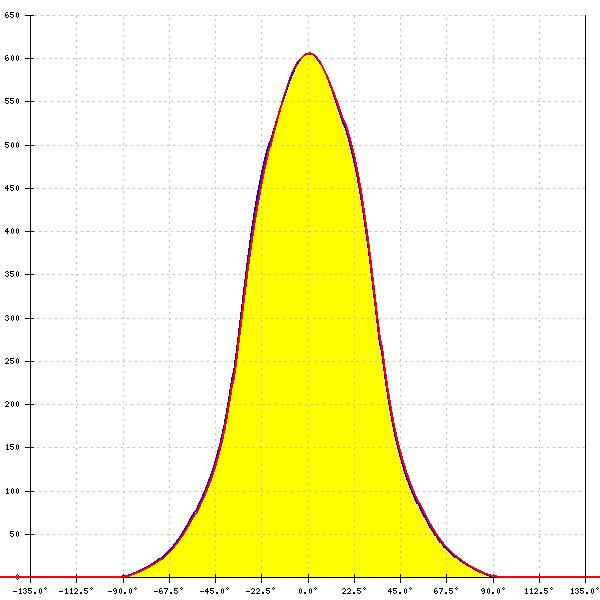

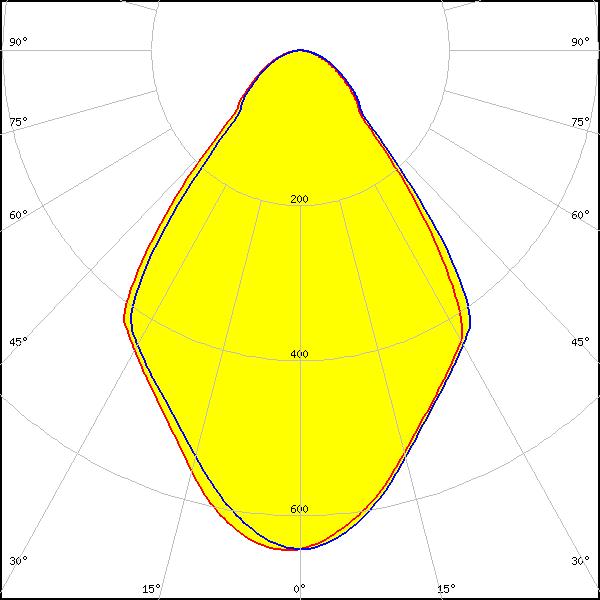

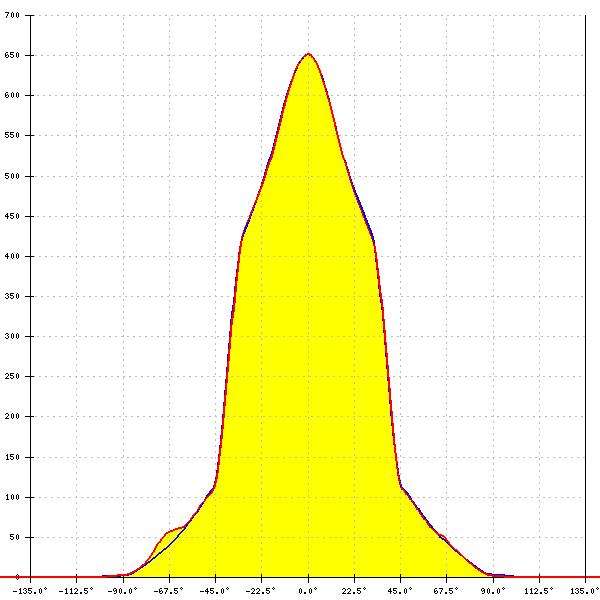

Optical results
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
73°
FWTM:
118°
Peak intensity:
0.650 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
68°
FWTM:
118°
Peak intensity:
0.650 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
66°
FWTM:
120°
Peak intensity:
0.610 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
79°
FWTM:
122°
Peak intensity:
0.630 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

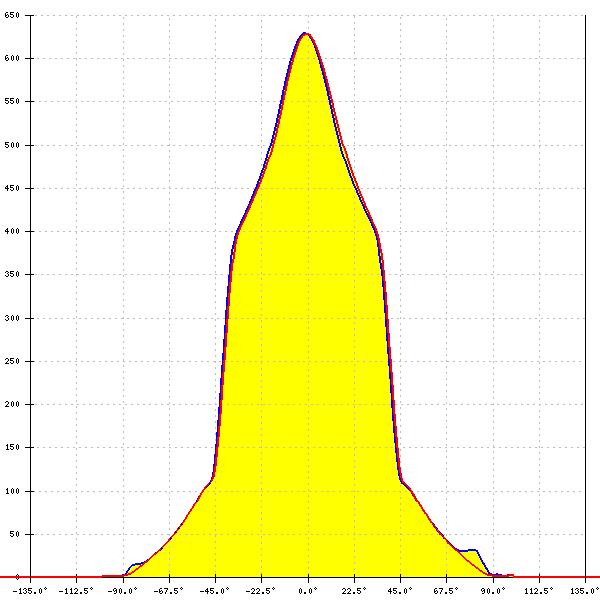

LED:
V8 Gen6
LES size: 8.1 mm
Required components:
FWHM:
77°
FWTM:
121°
Peak intensity:
0.630 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

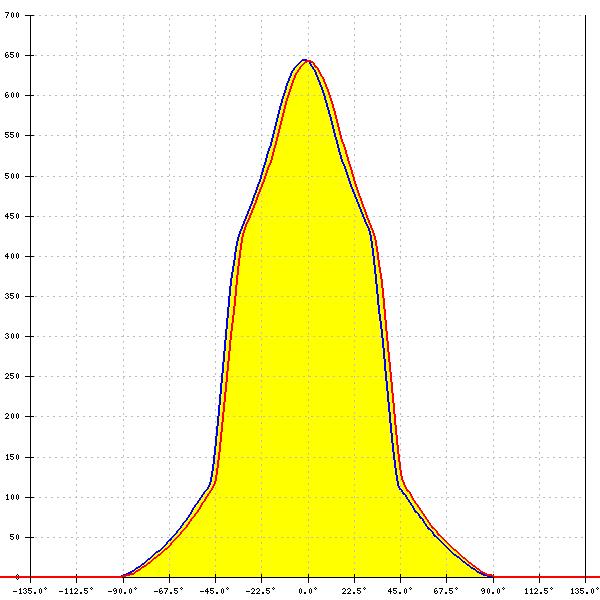

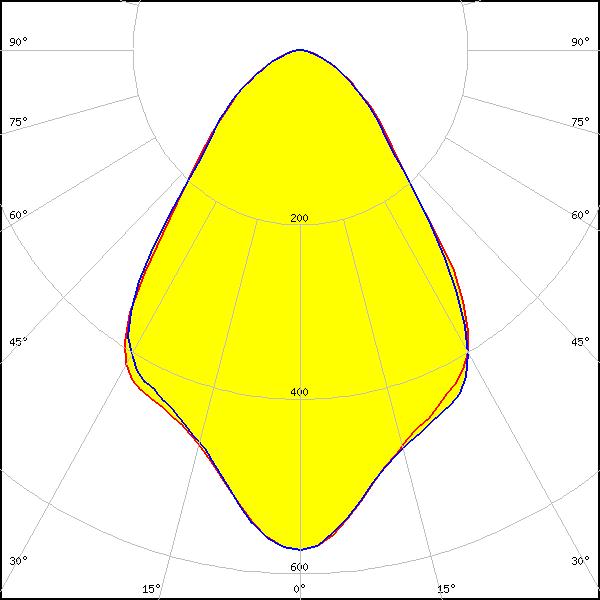

LED:
VERO10
LES size: 9.9 mm
Required components:
FWHM:
74°
FWTM:
119°
Peak intensity:
0.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
LES size: 9.9 mm
Required components:
FWHM:
69°
FWTM:
120°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
LES size: 9.9 mm
Required components:
FWHM:
69°
FWTM:
120°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
75°
FWTM:
121°
Peak intensity:
0.610 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
71°
FWTM:
121°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
70°
FWTM:
121°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM:
75°
FWTM:
122°
Peak intensity:
0.610 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM:
71°
FWTM:
123°
Peak intensity:
0.610 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM:
68°
FWTM:
122°
Peak intensity:
0.590 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL01x
LES size: 6.0 mm
Required components:
FWHM:
78°
FWTM:
124°
Peak intensity:
0.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
73°
FWTM:
116°
Peak intensity:
0.650 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
68°
FWTM:
117°
Peak intensity:
0.650 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
67°
FWTM:
117°
Peak intensity:
0.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
76°
FWTM:
117°
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
73°
FWTM:
113°
Peak intensity:
0.720 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
68°
FWTM:
114°
Peak intensity:
0.710 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
65°
FWTM:
115°
Peak intensity:
0.660 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

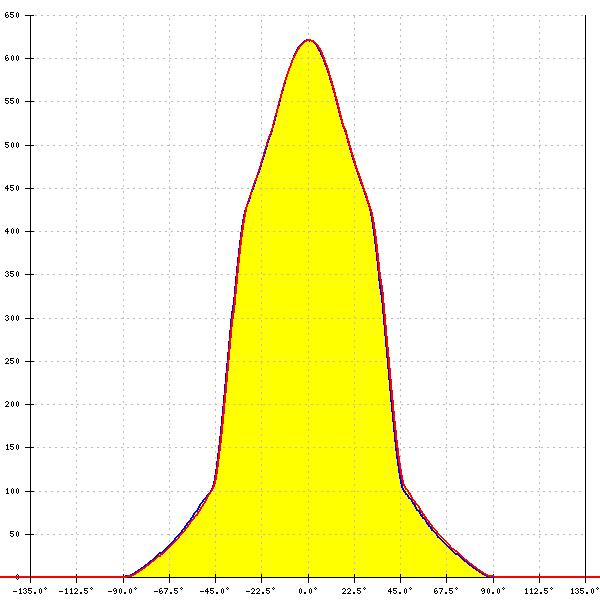

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
73°
FWTM:
117°
Peak intensity:
0.620 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
68°
FWTM:
117°
Peak intensity:
0.620 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
66°
FWTM:
118°
Peak intensity:
0.580 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
73°
FWTM:
116°
Peak intensity:
0.660 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
68°
FWTM:
117°
Peak intensity:
0.660 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
66°
FWTM:
117°
Peak intensity:
0.610 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
IDEAL: 50-2101CR
IDEAL: 50-2100MR
IDEAL: 50-2100MR
FWHM:
73°
FWTM:
118°
Peak intensity:
0.620 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

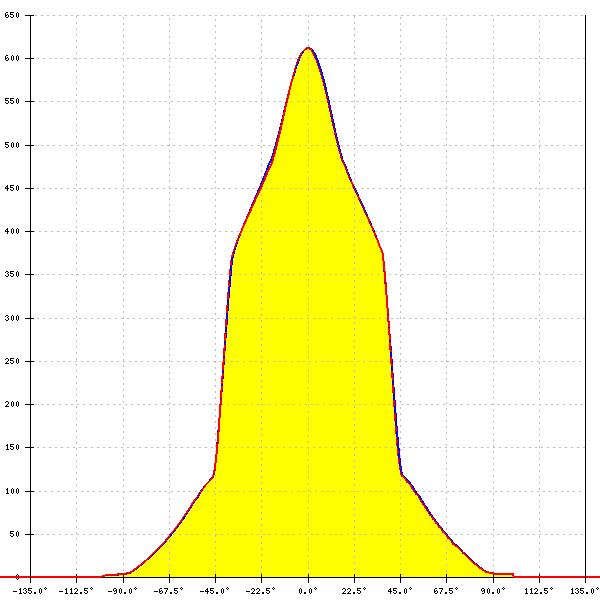

MHD-E/G
LES size: 0.0 mm
Required components:
FWHM:
78°
FWTM:
126°
Peak intensity:
0.610 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

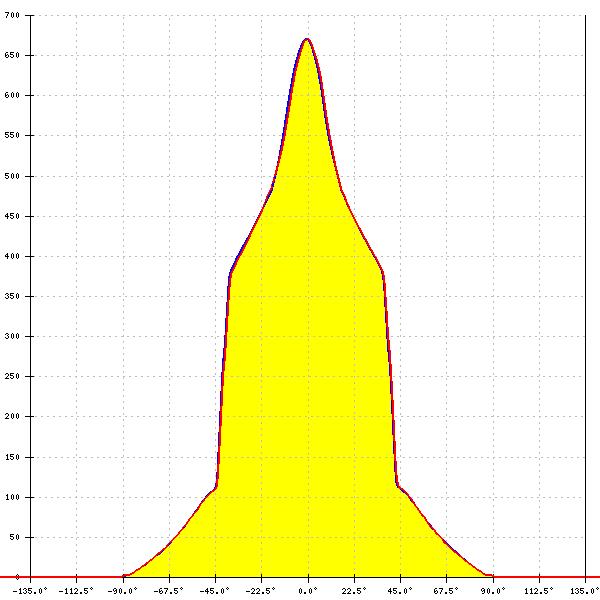

LED:
MK-R
LES size: 0.0 mm
Required components:
FWHM:
77°
FWTM:
118°
Peak intensity:
0.660 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

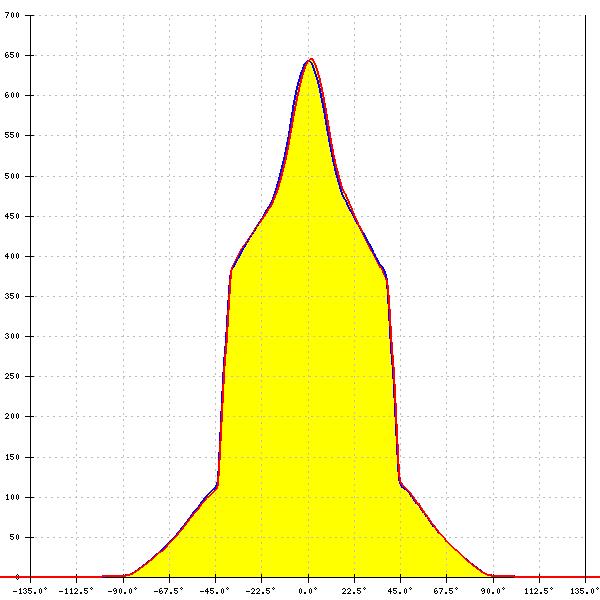

LED:
XHP50
LES size: 0.0 mm
Required components:
FWHM:
79°
FWTM:
121°
Peak intensity:
0.650 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

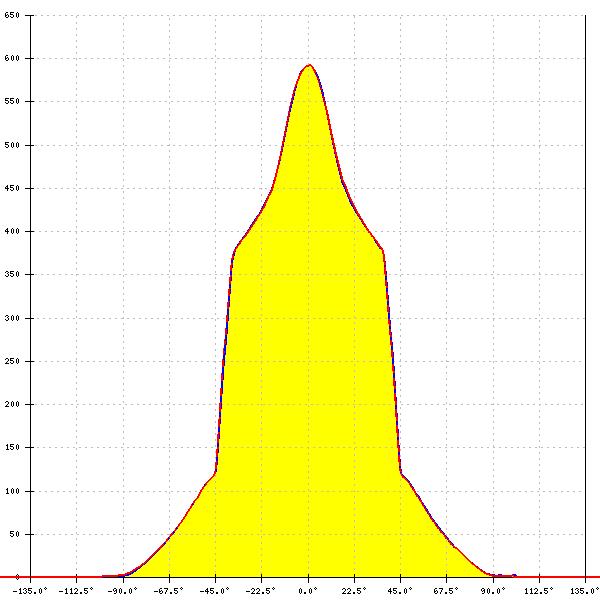

LED:
XHP70
LES size: 0.0 mm
Required components:
FWHM:
79°
FWTM:
126°
Peak intensity:
0.590 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
73°
FWTM:
117°
Peak intensity:
0.650 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
69°
FWTM:
117°
Peak intensity:
0.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
67°
FWTM:
116°
Peak intensity:
0.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
76°
FWTM:
119°
Peak intensity:
0.640 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
68°
FWTM:
119°
Peak intensity:
0.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
69°
FWTM:
119°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
FWHM:
75°
FWTM:
119°
Peak intensity:
0.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
73°
FWTM:
114°
Peak intensity:
0.720 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
67°
FWTM:
114°
Peak intensity:
0.720 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
65°
FWTM:
117°
Peak intensity:
0.620 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
78°
FWTM:
124°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
73°
FWTM:
114°
Peak intensity:
0.720 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
67°
FWTM:
114°
Peak intensity:
0.720 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
65°
FWTM:
117°
Peak intensity:
0.620 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
78°
FWTM:
124°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
74°
FWTM:
117°
Peak intensity:
0.600 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
69°
FWTM:
119°
Peak intensity:
0.600 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
67°
FWTM:
117°
Peak intensity:
0.600 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-6 (12x13)
LES size: 6.3 mm
Required components:
FWHM:
77°
FWTM:
120°
Peak intensity:
0.660 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-7 (13x13)
LES size: 7.5 mm
Required components:
FWHM:
77°
FWTM:
120°
Peak intensity:
0.650 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
73°
FWTM:
116°
Peak intensity:
0.650 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
68°
FWTM:
117°
Peak intensity:
0.650 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
67°
FWTM:
117°
Peak intensity:
0.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
77°
FWTM:
121°
Peak intensity:
0.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
73°
FWTM:
118°
Peak intensity:
0.610 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
69°
FWTM:
118°
Peak intensity:
0.610 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
67°
FWTM:
119°
Peak intensity:
0.590 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
75°
FWTM:
120°
Peak intensity:
0.630 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
69°
FWTM:
120°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
70°
FWTM:
120°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
FWHM:
75°
FWTM:
120°
Peak intensity:
0.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
74°
FWTM:
118°
Peak intensity:
0.650 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
68°
FWTM:
118°
Peak intensity:
0.640 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
67°
FWTM:
118°
Peak intensity:
0.630 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
75°
FWTM:
119°
Peak intensity:
0.660 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
67°
FWTM:
118°
Peak intensity:
0.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
69°
FWTM:
118°
Peak intensity:
0.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
FWHM:
75°
FWTM:
119°
Peak intensity:
0.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
73°
FWTM:
114°
Peak intensity:
0.720 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
67°
FWTM:
114°
Peak intensity:
0.720 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
65°
FWTM:
117°
Peak intensity:
0.620 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NSCxL036A
LES size: 7.0 mm
Required components:
FWHM:
75°
FWTM:
118°
Peak intensity:
0.650 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
Required components:
FWHM:
79°
FWTM:
90°
Peak intensity:
0.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
LES size: 0.0 mm
Required components:
FWHM:
75°
FWTM:
126°
Peak intensity:
0.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
LES size: 0.0 mm
Required components:
FWHM:
76°
FWTM:
128°
Peak intensity:
0.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S15
LES size: 14.7 mm
Required components:
FWHM:
76°
FWTM:
114°
Peak intensity:
0.580 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C
LES size: 6.0 mm
Required components:
FWHM:
72°
FWTM:
110°
Peak intensity:
0.580 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
71°
FWTM:
107°
Peak intensity:
0.610 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
LES size: 11.0 mm
Required components:
FWHM:
73°
FWTM:
113°
Peak intensity:
0.520 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
73°
FWTM:
116°
Peak intensity:
0.650 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
68°
FWTM:
117°
Peak intensity:
0.650 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
67°
FWTM:
117°
Peak intensity:
0.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XTM - 9mm LES
LES size: 9.0 mm
Required components:
FWHM:
73°
FWTM:
116°
Peak intensity:
0.650 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
