F13703_BARBARA-XW-PF
Print

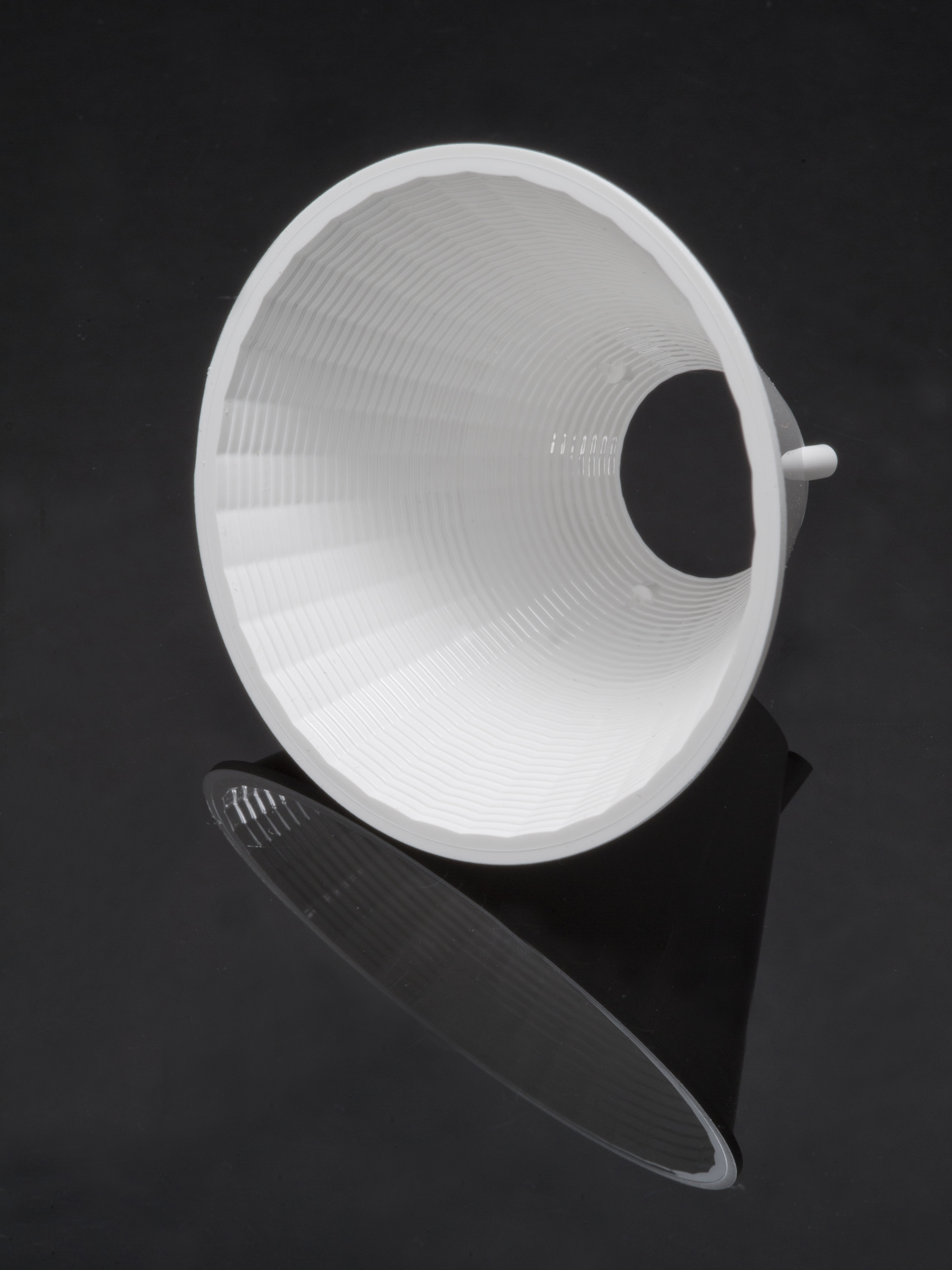

White version with ~75° wide beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

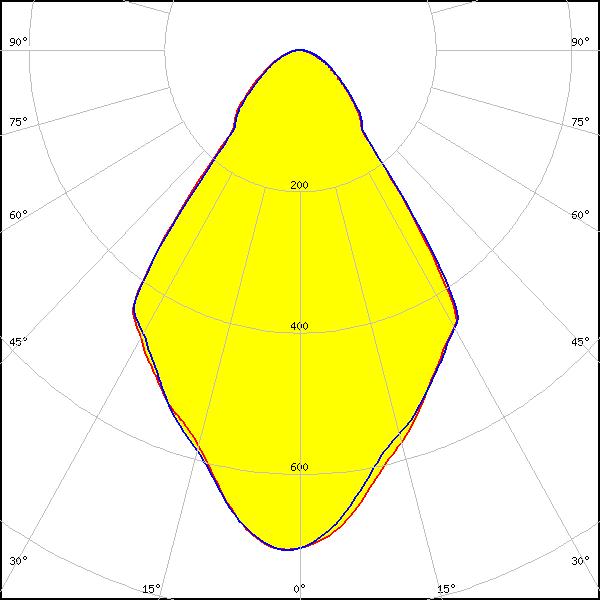

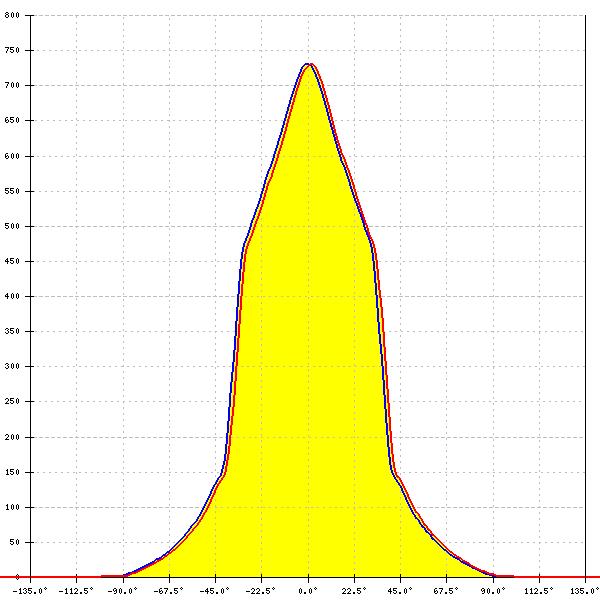

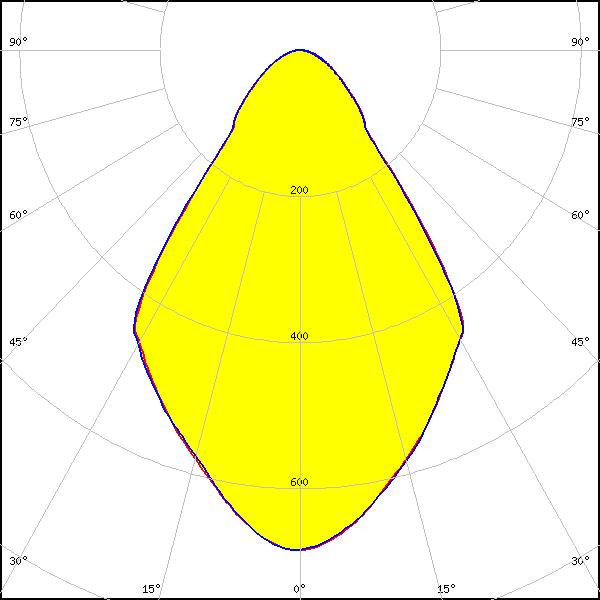

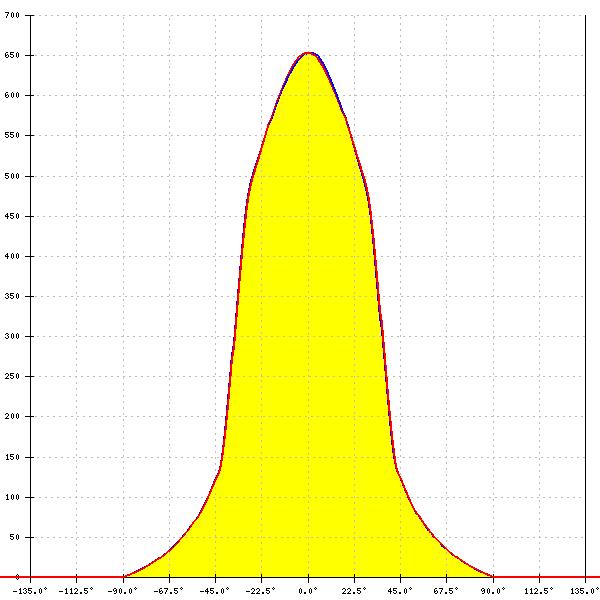

Optical results

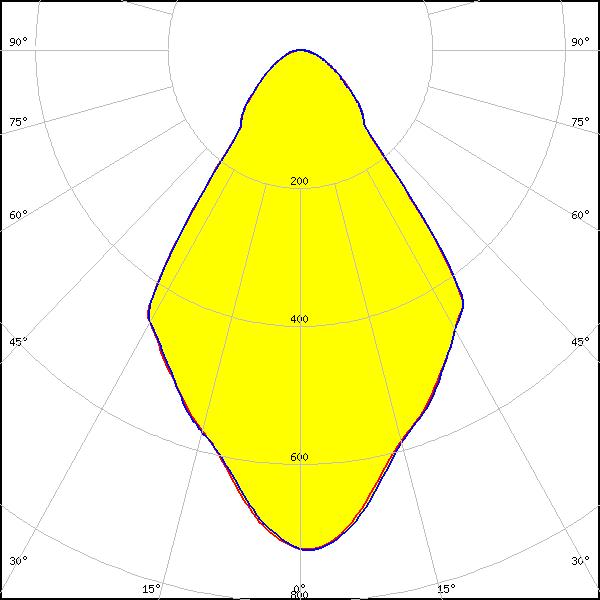

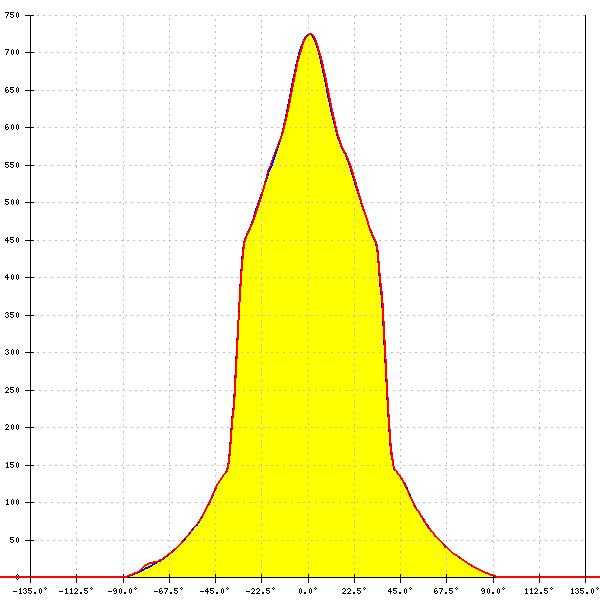

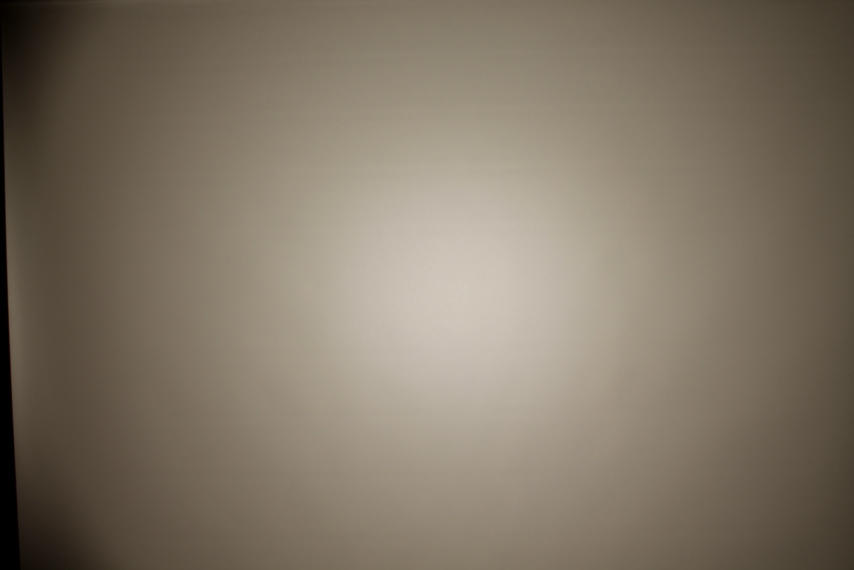

LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
66°
FWTM:
93°
Peak intensity:
0.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
70°
FWTM:
111°
Peak intensity:
0.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V15 Gen6
LES size: 15.2 mm
Required components:
FWHM:
71°
FWTM:
116°
Peak intensity:
0.720 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

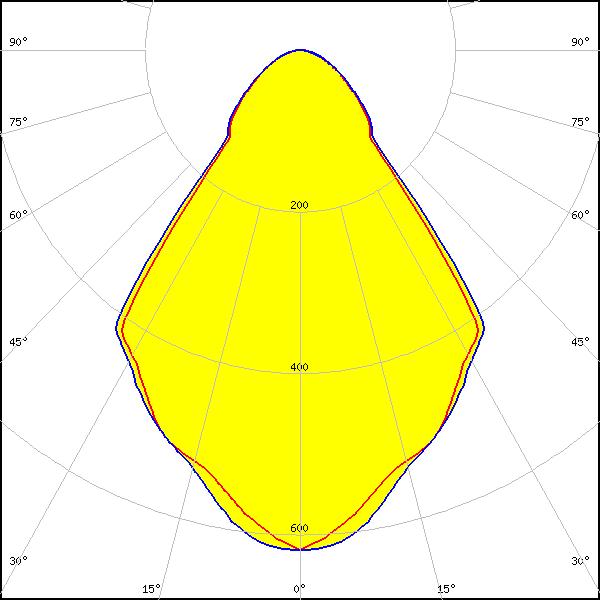

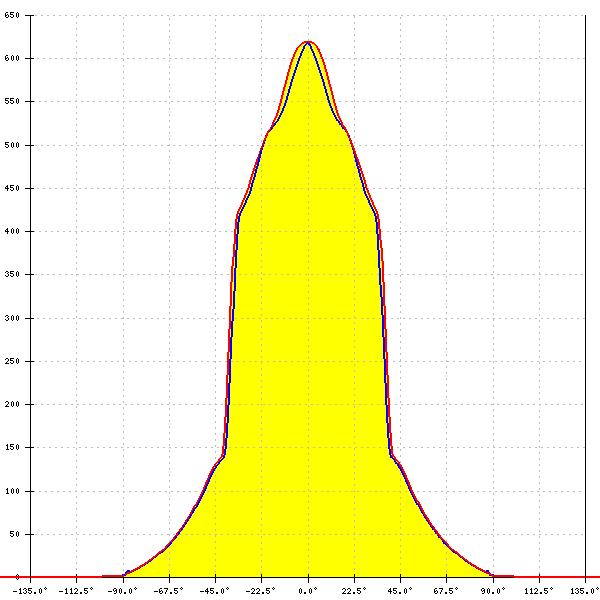

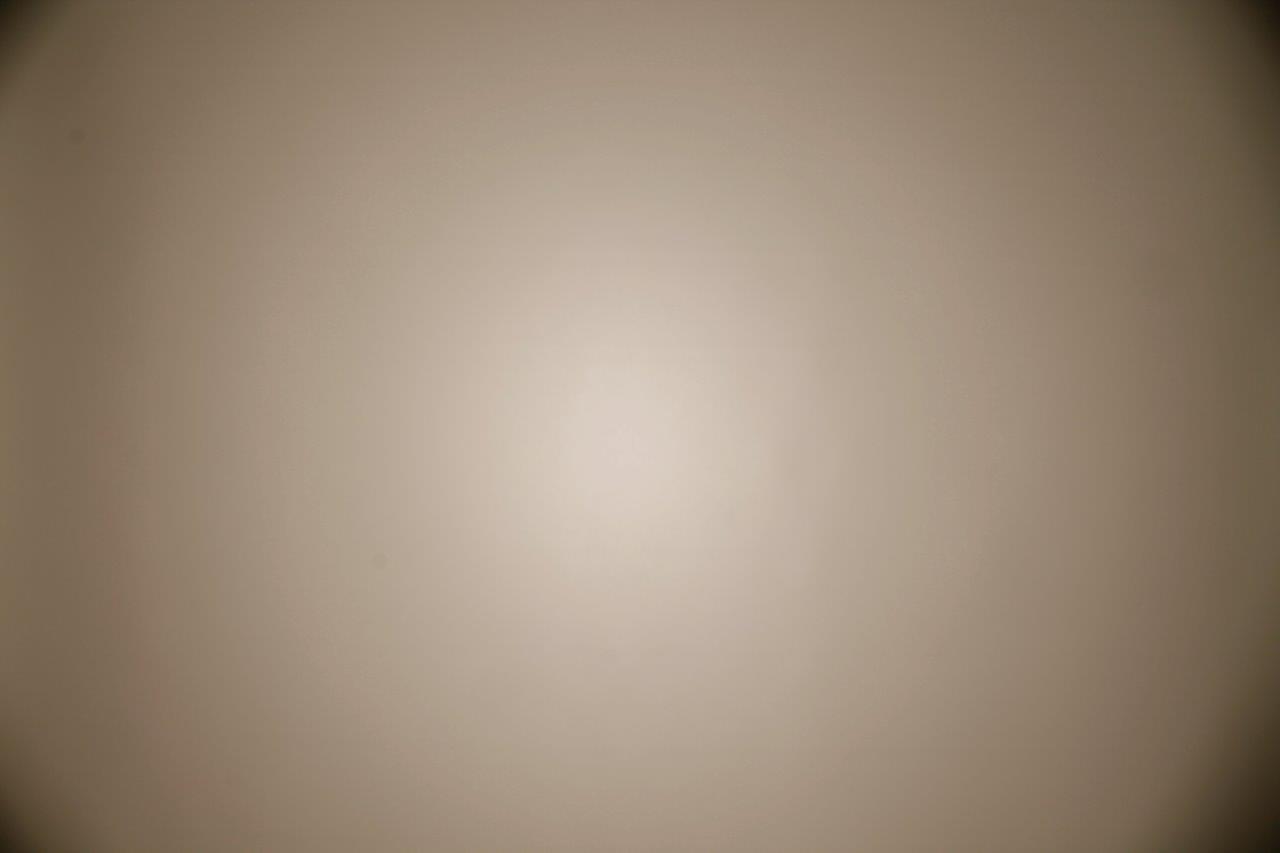

LED:
V8 Gen6
LES size: 8.1 mm
Required components:
FWHM:
74°
FWTM:
119°
Peak intensity:
0.630 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
LES size: 9.9 mm
LEDs/each optic:
1
Light colour/type:
White

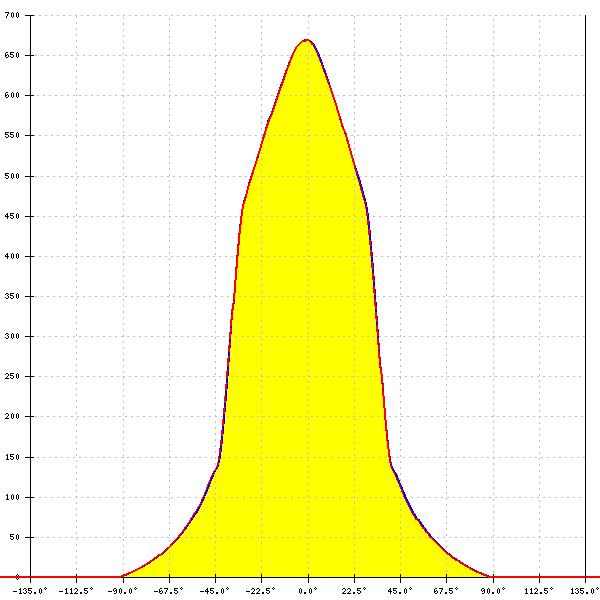

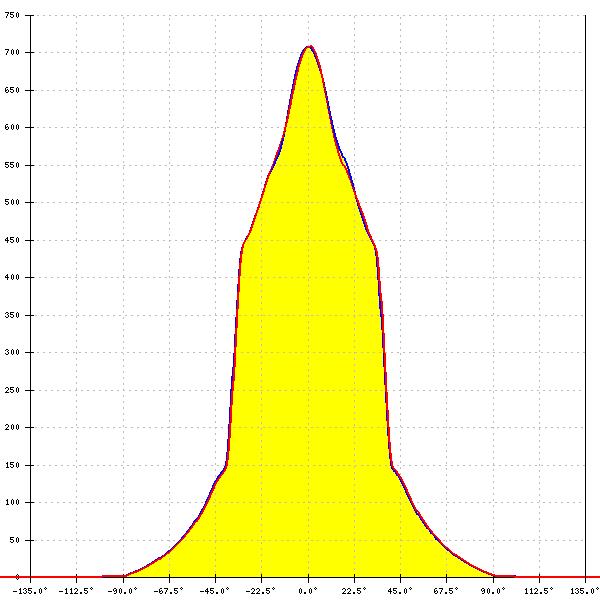

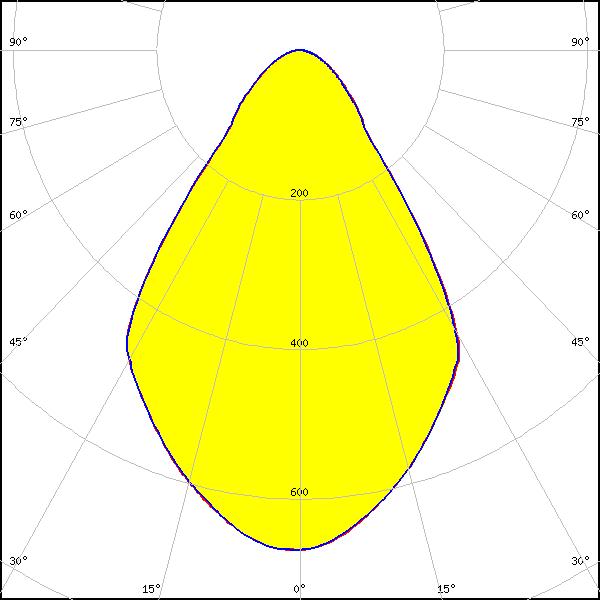

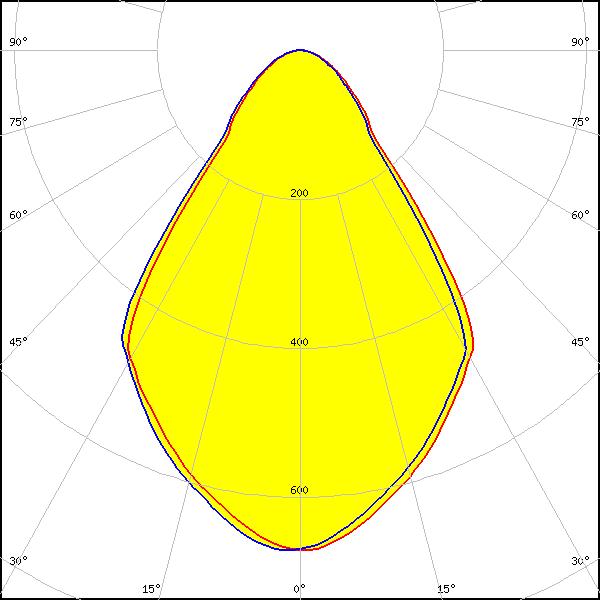

LED:

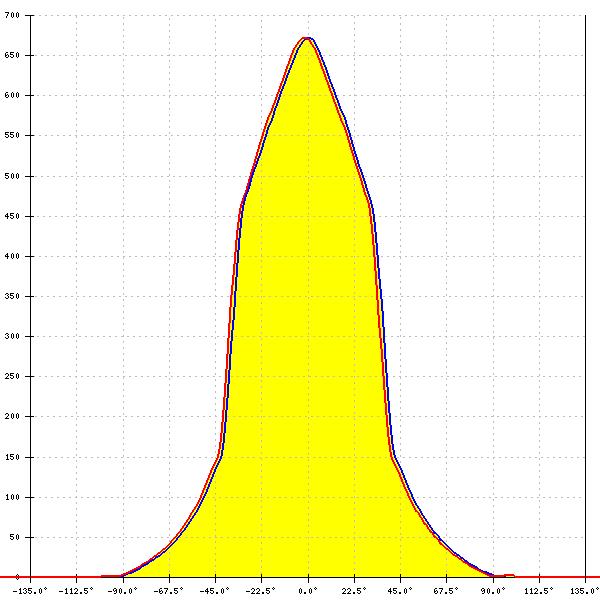

VERO13
LES size: 13.4 mm
Required components:
FWHM:
72°
FWTM:
116°
Peak intensity:
0.670 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

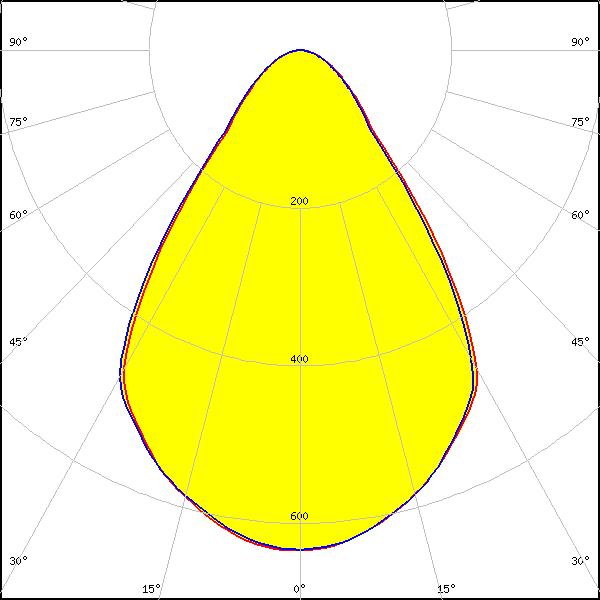

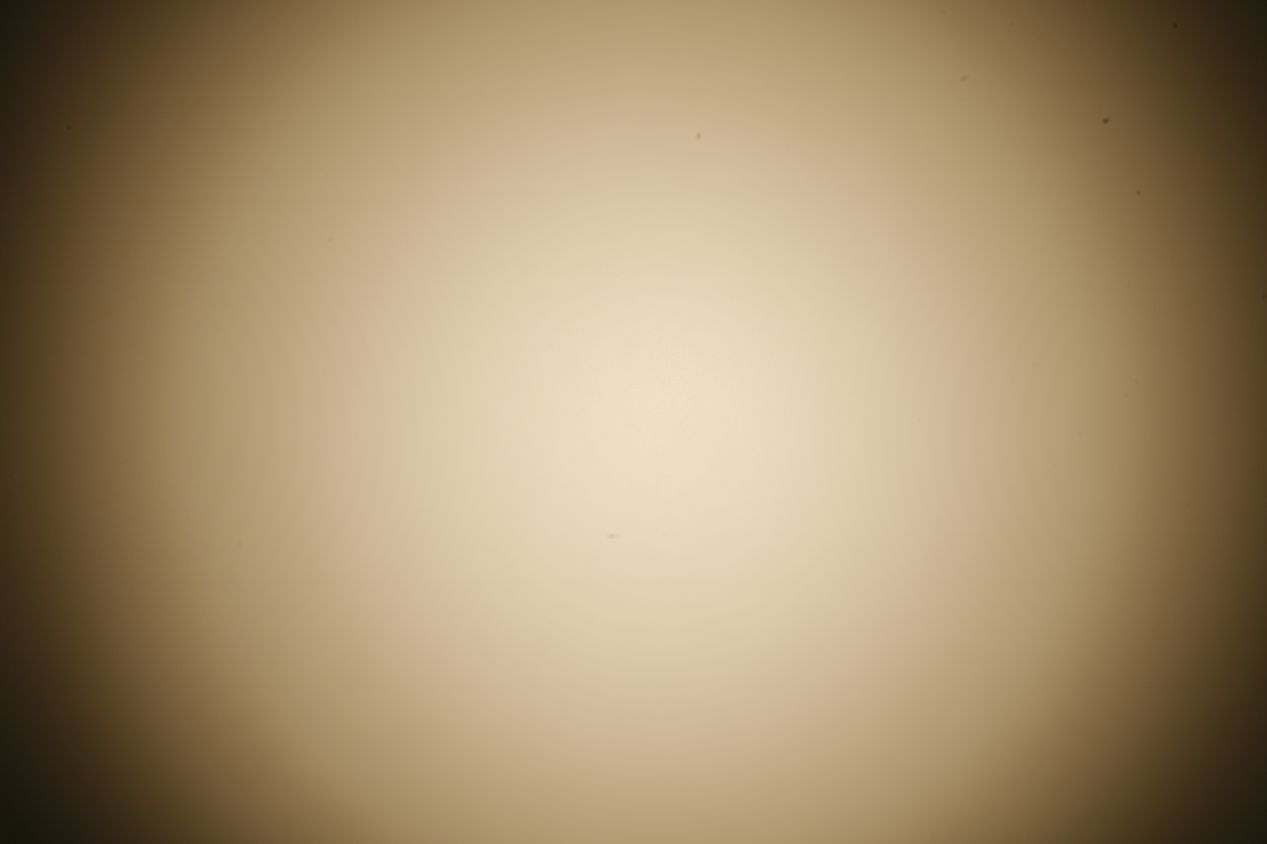

LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
72°
FWTM:
116°
Peak intensity:
0.630 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

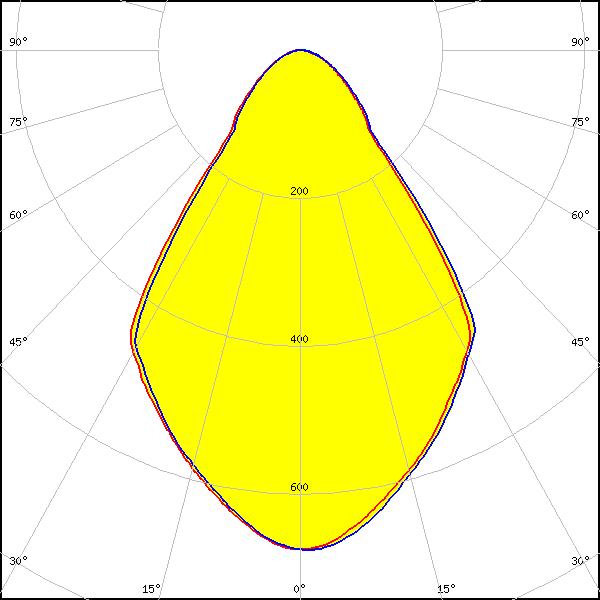

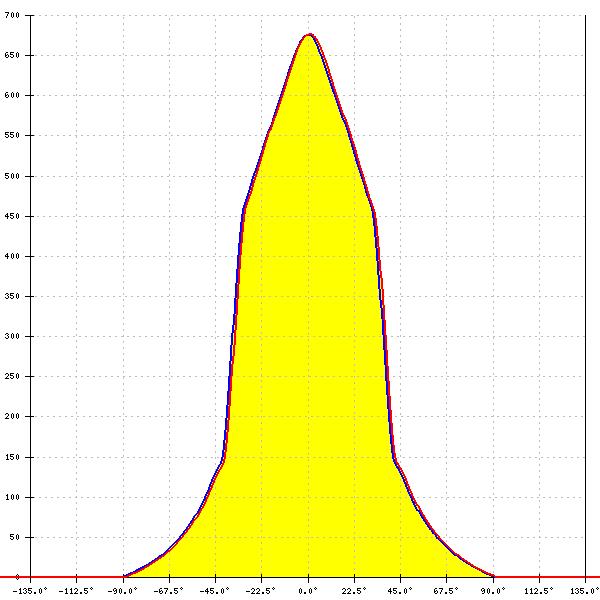

Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM:
71°
FWTM:
114°
Peak intensity:
0.680 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

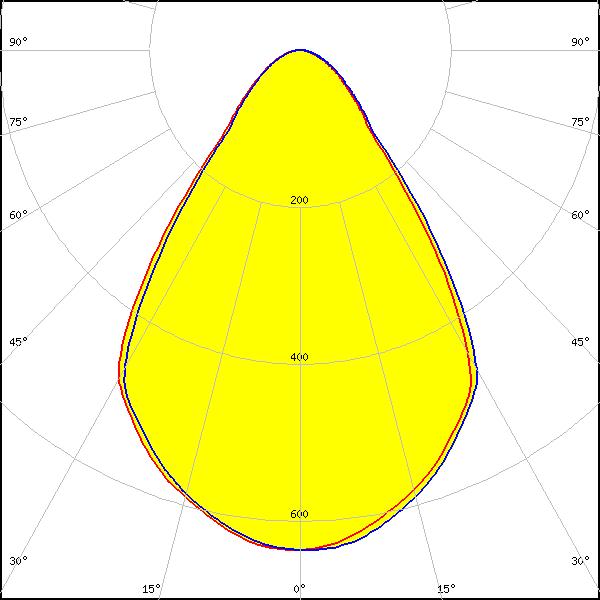

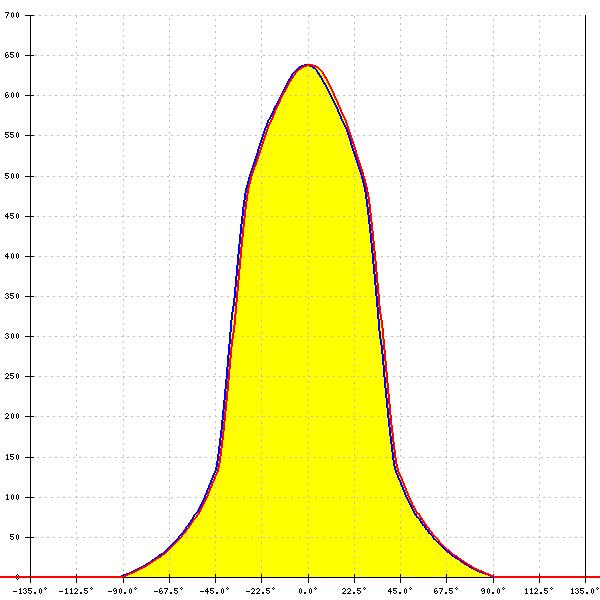

LED:
Xenio Point 18mm
LES size: 18.4 mm
Required components:
FWHM:
72°
FWTM:
115°
Peak intensity:
0.640 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

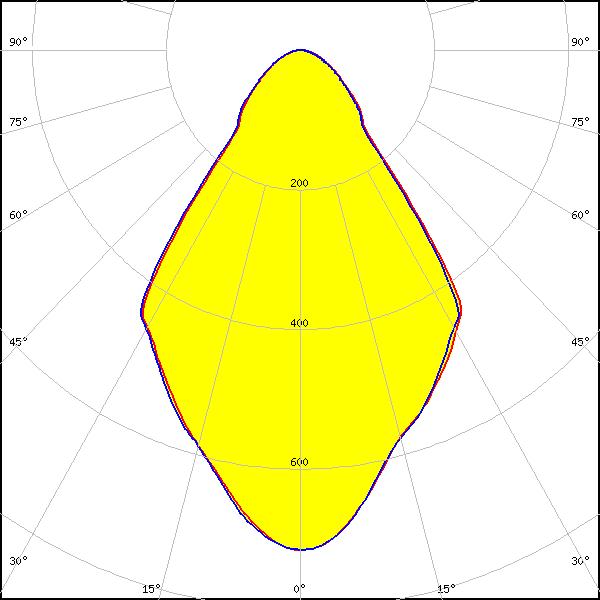

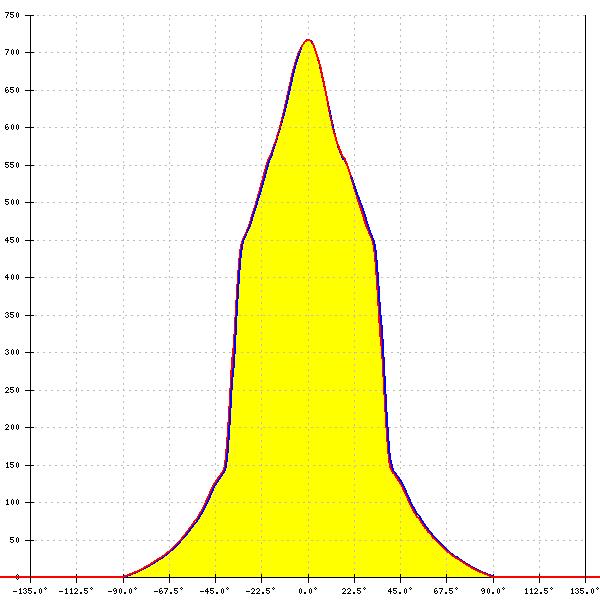

LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
70°
FWTM:
111°
Peak intensity:
0.720 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

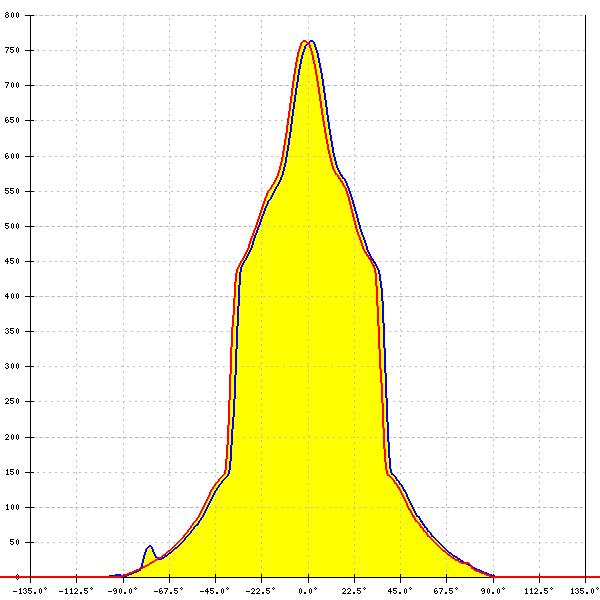

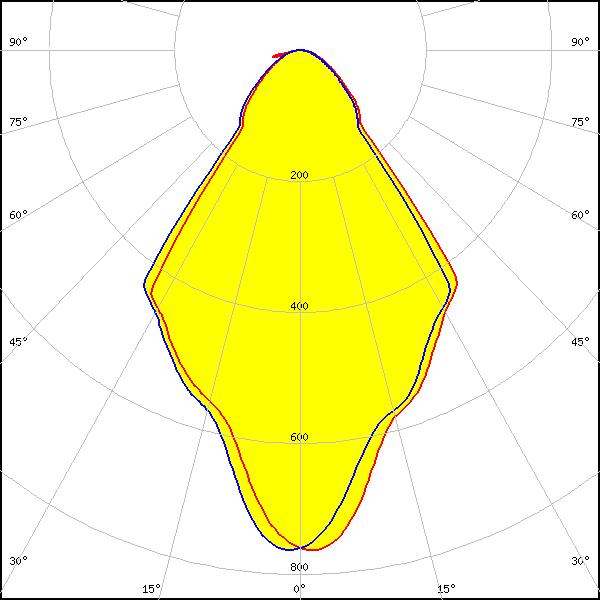

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
70°
FWTM:
109°
Peak intensity:
0.770 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

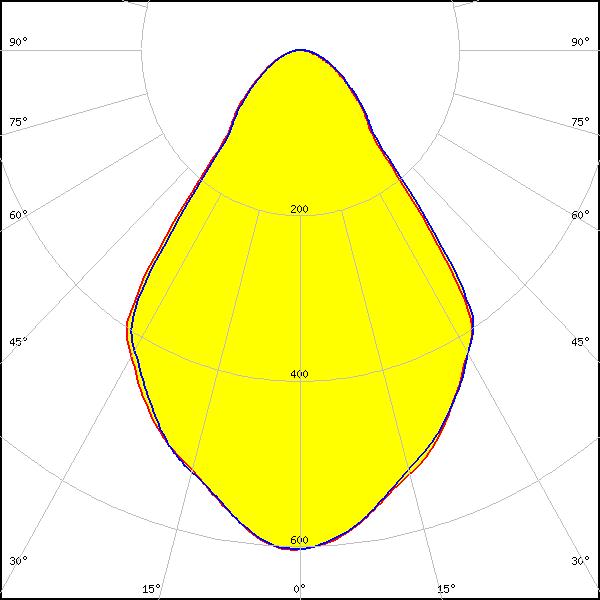

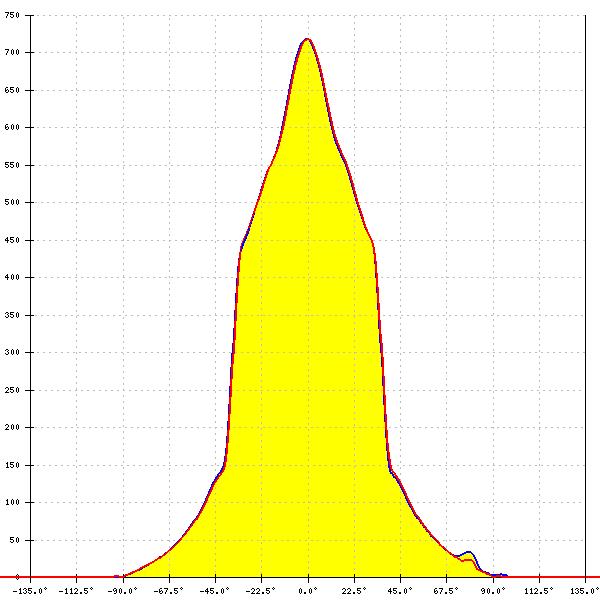

LED:

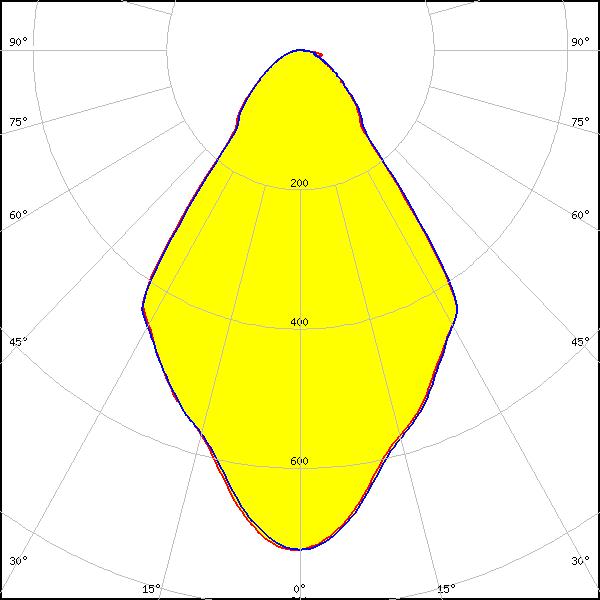

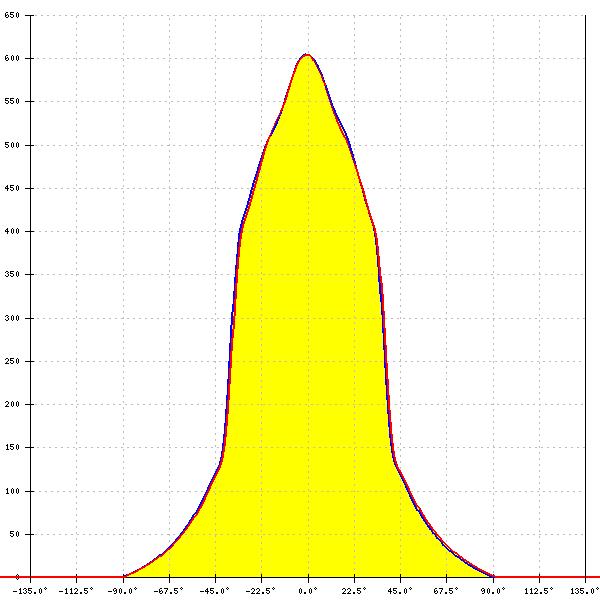

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
70°
FWTM:
110°
Peak intensity:
0.760 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
70°
FWTM:
111°
Peak intensity:
0.720 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
73°
FWTM:
117°
Peak intensity:
0.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

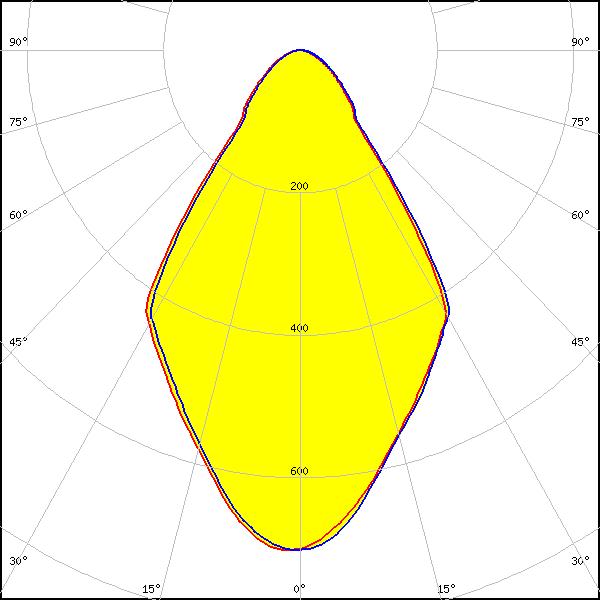

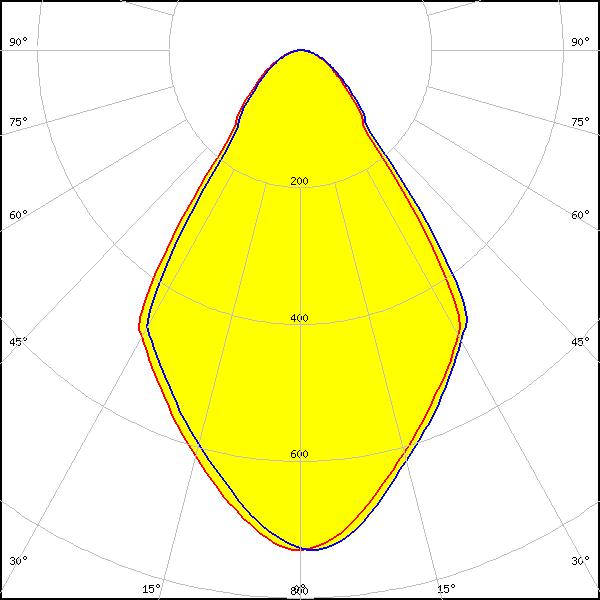

CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
70°
FWTM:
112°
Peak intensity:
0.730 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

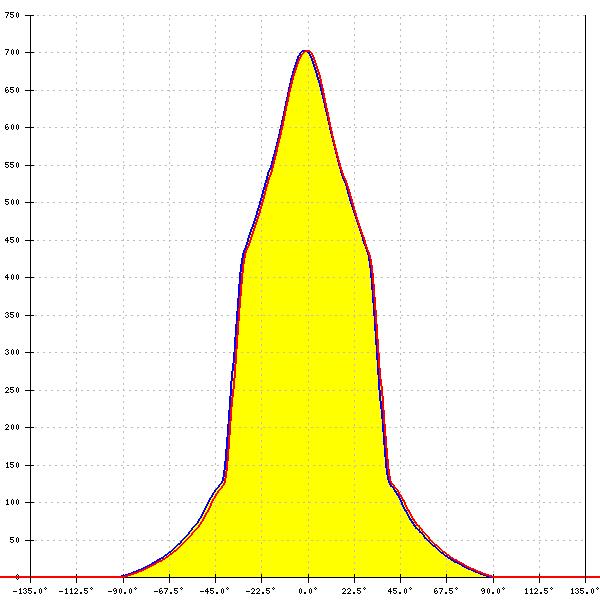

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
67°
FWTM:
106°
Peak intensity:
0.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

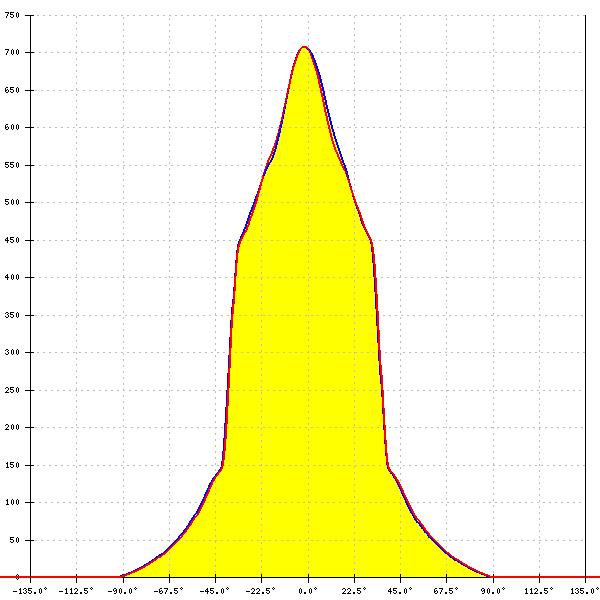

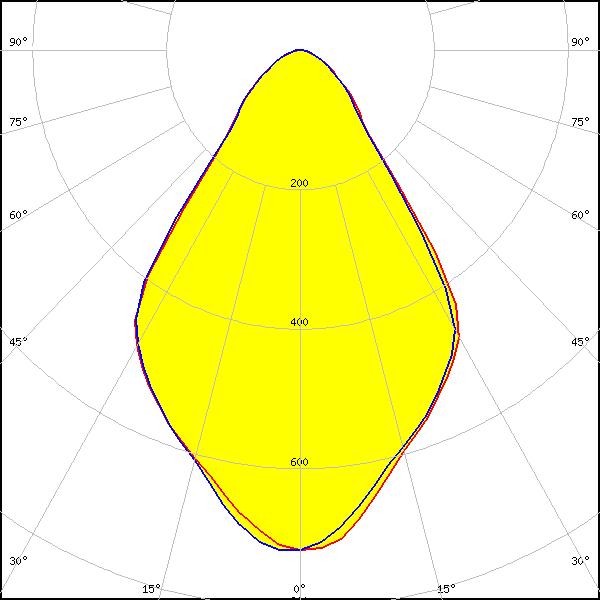

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
71°
FWTM:
112°
Peak intensity:
0.710 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

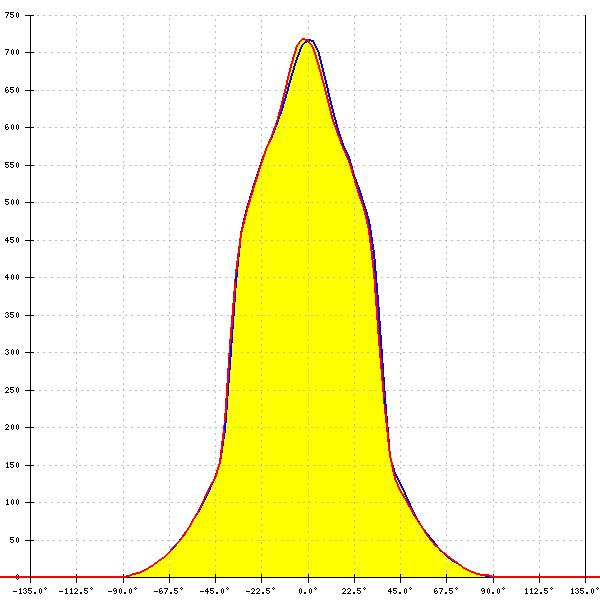

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
71°
FWTM:
112°
Peak intensity:
0.720 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
75°
FWTM:
120°
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
75°
FWTM:
120°
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
70°
FWTM:
113°
Peak intensity:
0.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
70°
FWTM:
111°
Peak intensity:
0.720 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
70°
FWTM:
112°
Peak intensity:
0.670 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
72°
FWTM:
116°
Peak intensity:
0.660 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
70°
FWTM:
113°
Peak intensity:
0.680 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
72°
FWTM:
115°
Peak intensity:
0.680 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
70°
FWTM:
112°
Peak intensity:
0.710 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
72°
FWTM:
112°
Peak intensity:
0.720 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

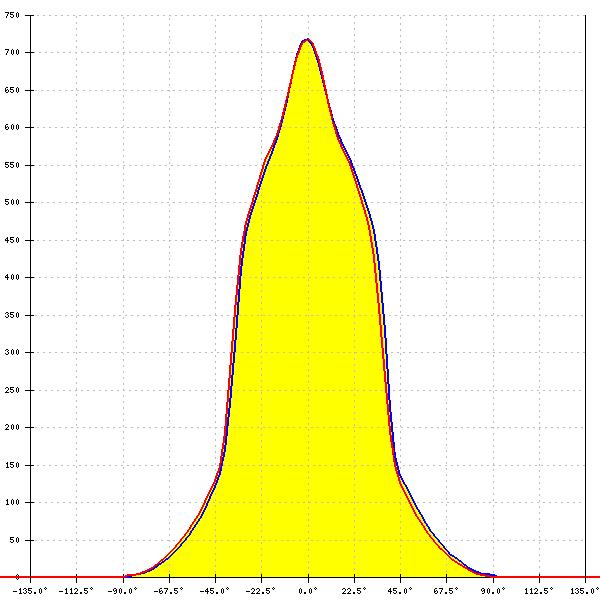

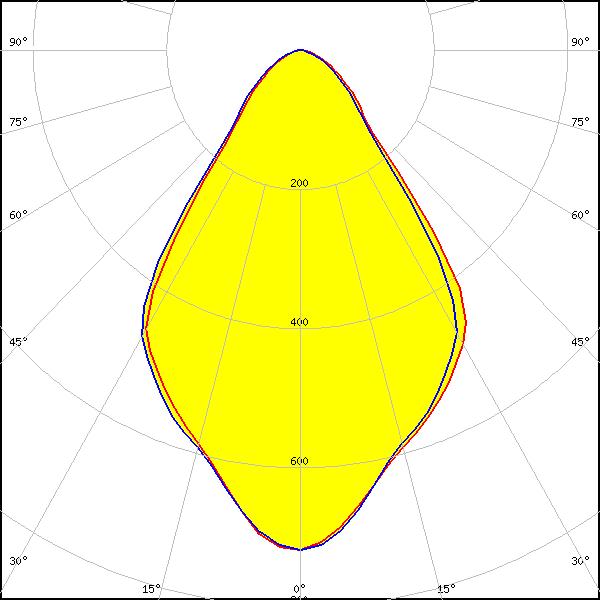

LED:
NSCxL036A
LES size: 7.0 mm
Required components:
FWHM:
71°
FWTM:
112°
Peak intensity:
0.690 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WP)
LES size: 0.0 mm
Required components:
FWHM:
74°
FWTM:
120°
Peak intensity:
0.630 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

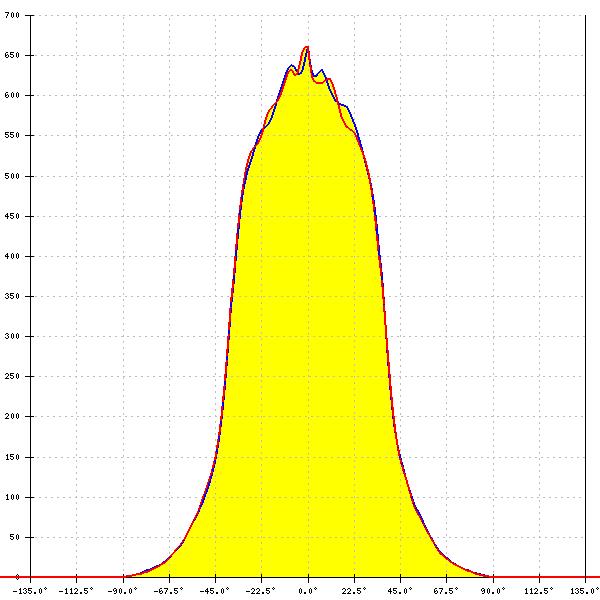

LED:

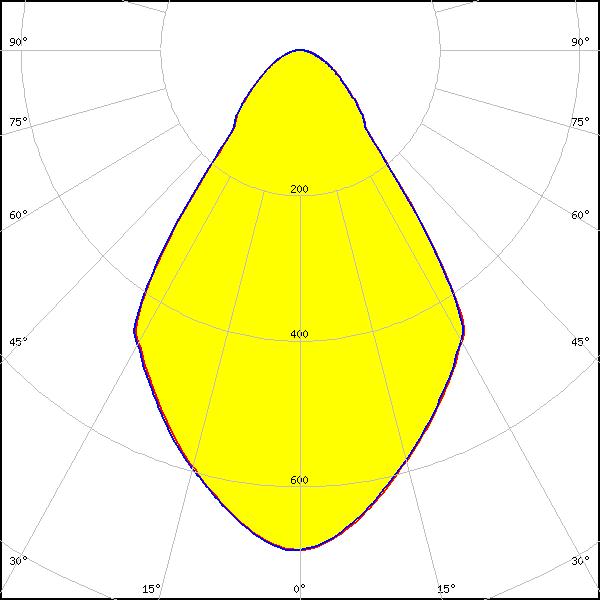

Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
70°
FWTM:
113°
Peak intensity:
0.690 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

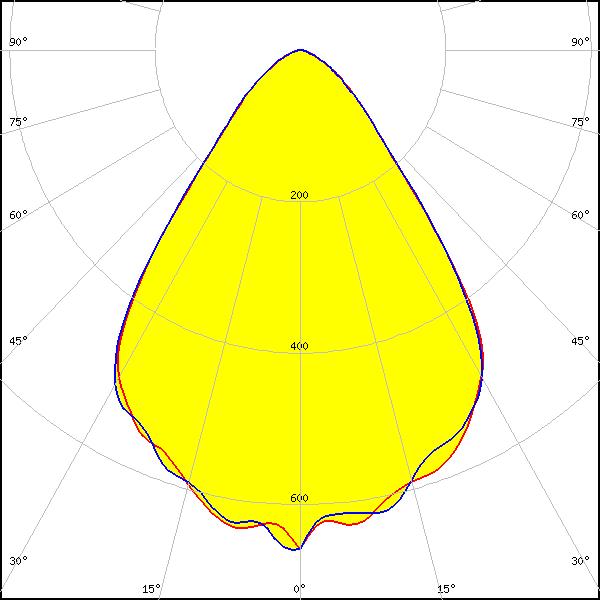

LED:
Soleriq S15
LES size: 14.7 mm
Required components:
FWHM:
74°
FWTM:
112°
Peak intensity:
0.680 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C
LES size: 6.0 mm
Required components:
FWHM:
66°
FWTM:
91°
Peak intensity:
0.910 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
70°
FWTM:
95°
Peak intensity:
0.810 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

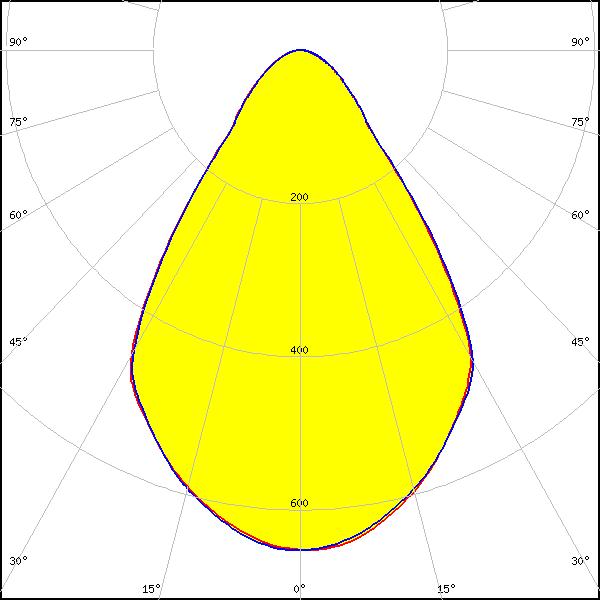

LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
FWHM:
70°
FWTM:
113°
Peak intensity:
0.560 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
LES size: 11.0 mm
Required components:
FWHM:
70°
FWTM:
96°
Peak intensity:
0.730 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
70°
FWTM:
113°
Peak intensity:
0.680 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
70°
FWTM:
111°
Peak intensity:
0.720 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

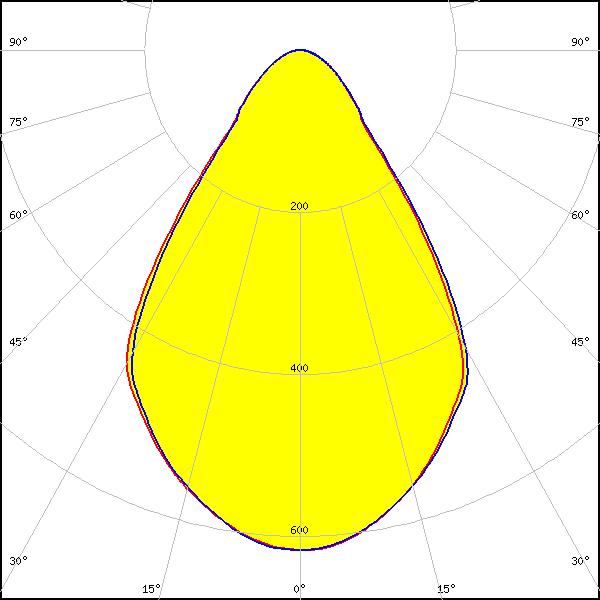

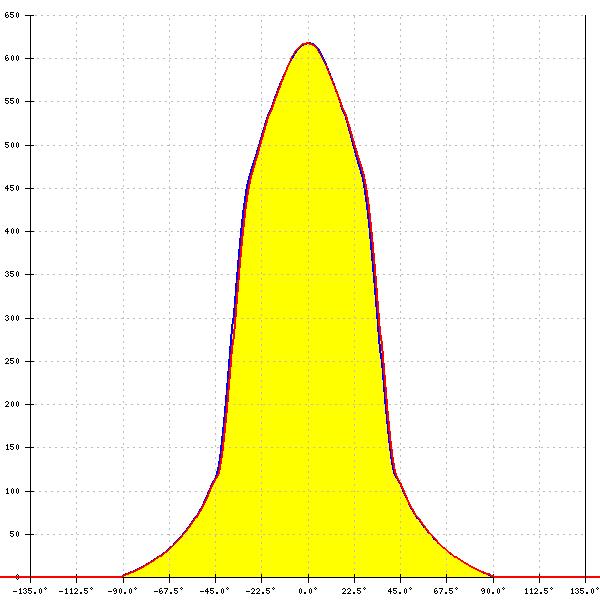

LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
70°
FWTM:
112°
Peak intensity:
0.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

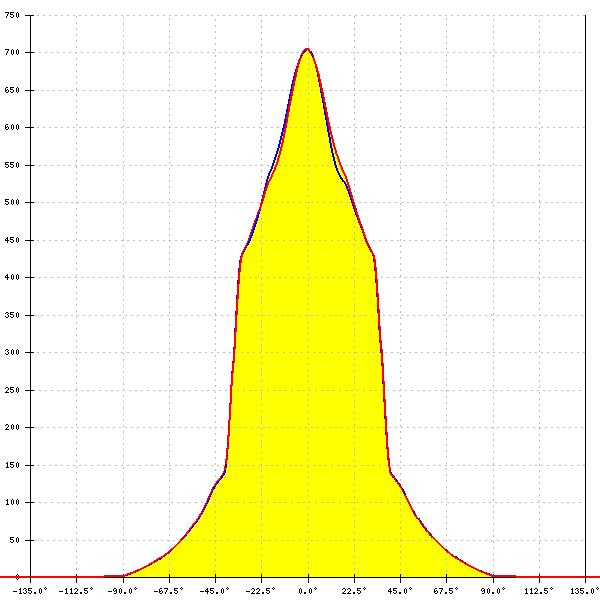

LED:

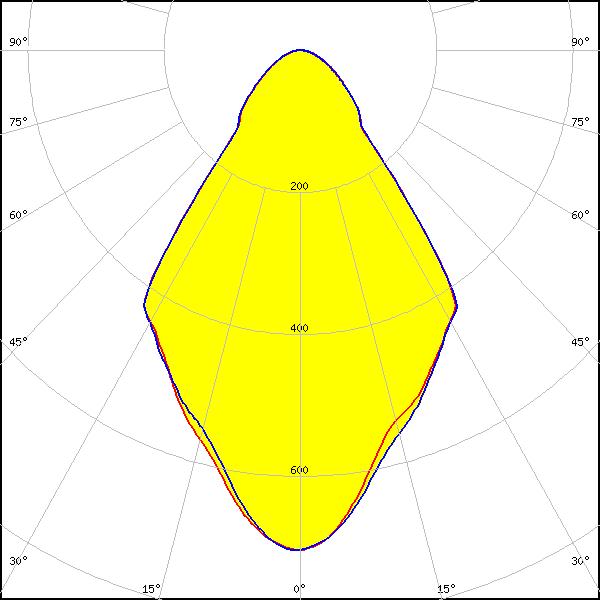

XTM - 9mm LES
LES size: 9.0 mm
Required components:
FWHM:
70°
FWTM:
111°
Peak intensity:
0.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
