An ever-expanding downlight portfolio that now includes wall-washing

Wall-washing is a popular technique in architectural and retail lighting used to create visual hierarchy, contrast, and enhance storytelling in a space. While achieving uniform illumination on vertical surfaces with downlights can be challenging, dedicated wall-washer optics can do this with outstanding results. However, the limited availability of such optics on the market often leads to a lack of wall-washer downlights in standard portfolios. Fortunately, this is not the case with LEDiL AMY.

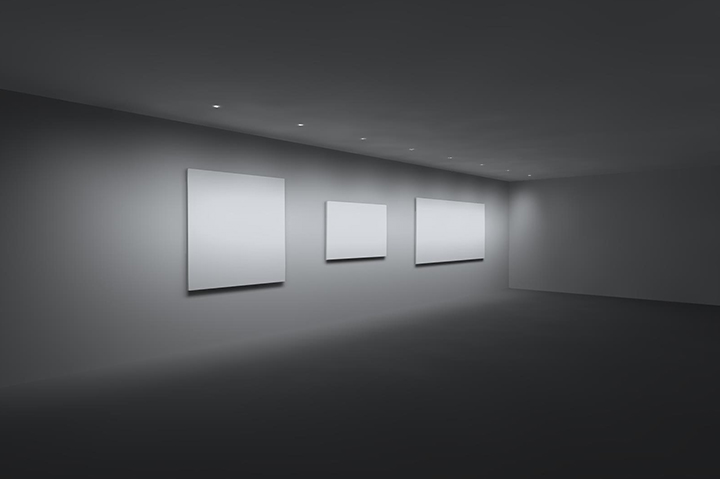

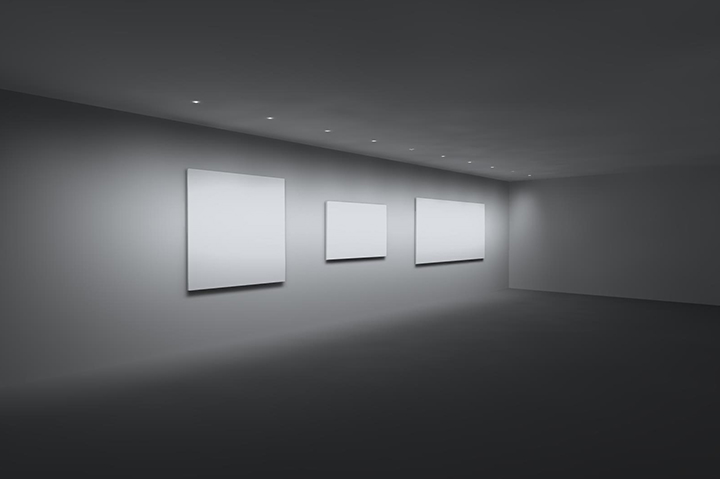

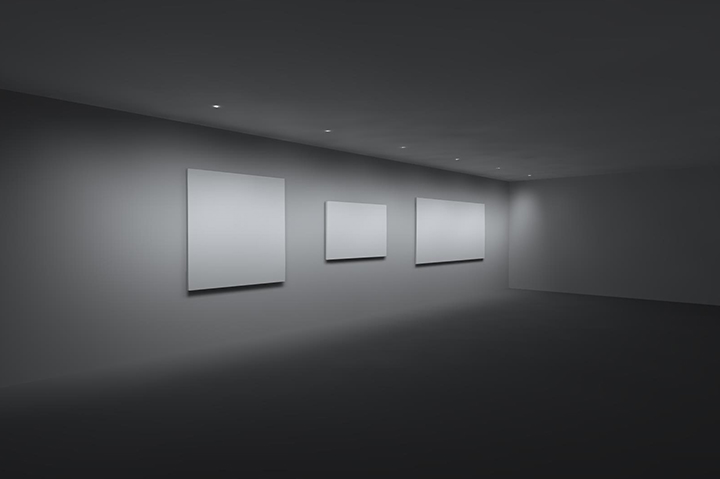

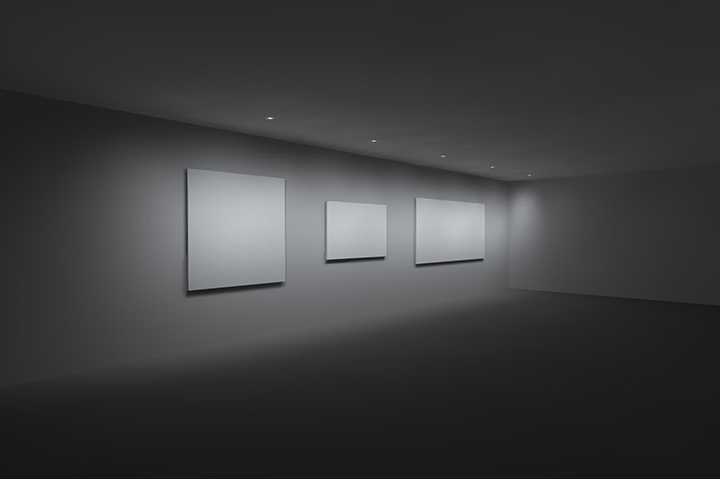

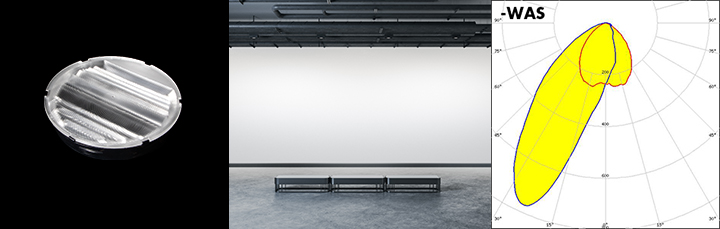

We are thrilled to introduce the new AMY WAS beams to our versatile, low-profile COB lens family, offering a total of ten stunning beams to choose from. AMY-35-, -50-, -70- and -110-WAS stand out as the best wall washer optics currently available in the market. Specifically designed for downlights with a 1/3 installation ratio, these lenses ensure uniform wall-washing across the entire surface, enabling flexible luminaire spacing of up to 2-metres. Explore the captivating beauty of the beam in the application pictures below, showcasing five different luminaire spacings ranging from 1- to 2-metres. With a 2-metre luminaire spacing, only five luminaires are required on a 12-metre-long wall to achieve excellent, uniform wall-washing.

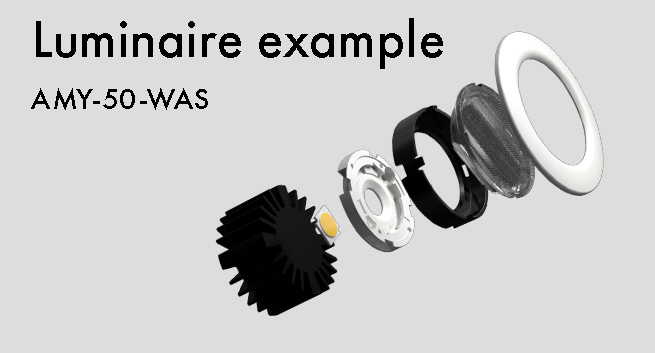

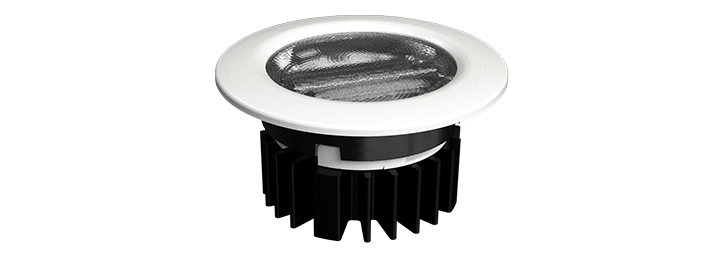

AMY WAS lenses are versatile options suitable for both ceiling and floor installations, thanks to their flat optical surface. These lenses come with black and white holders, as well as the option of a standalone lens. With their slim profile AMY lenses effortlessly create stylish and compact downlights that seamlessly blend into any environment.

Like other beams in the AMY-50, AMY-70, and AMY-110 families, the wall-washer beams are also compatible with LEDiL HEKLA, BJB, and B+W connectors. AMY-35-WAS is compatible with Ø35 mm B+W and BJB connectors, as well as the SOCKET-B-35.

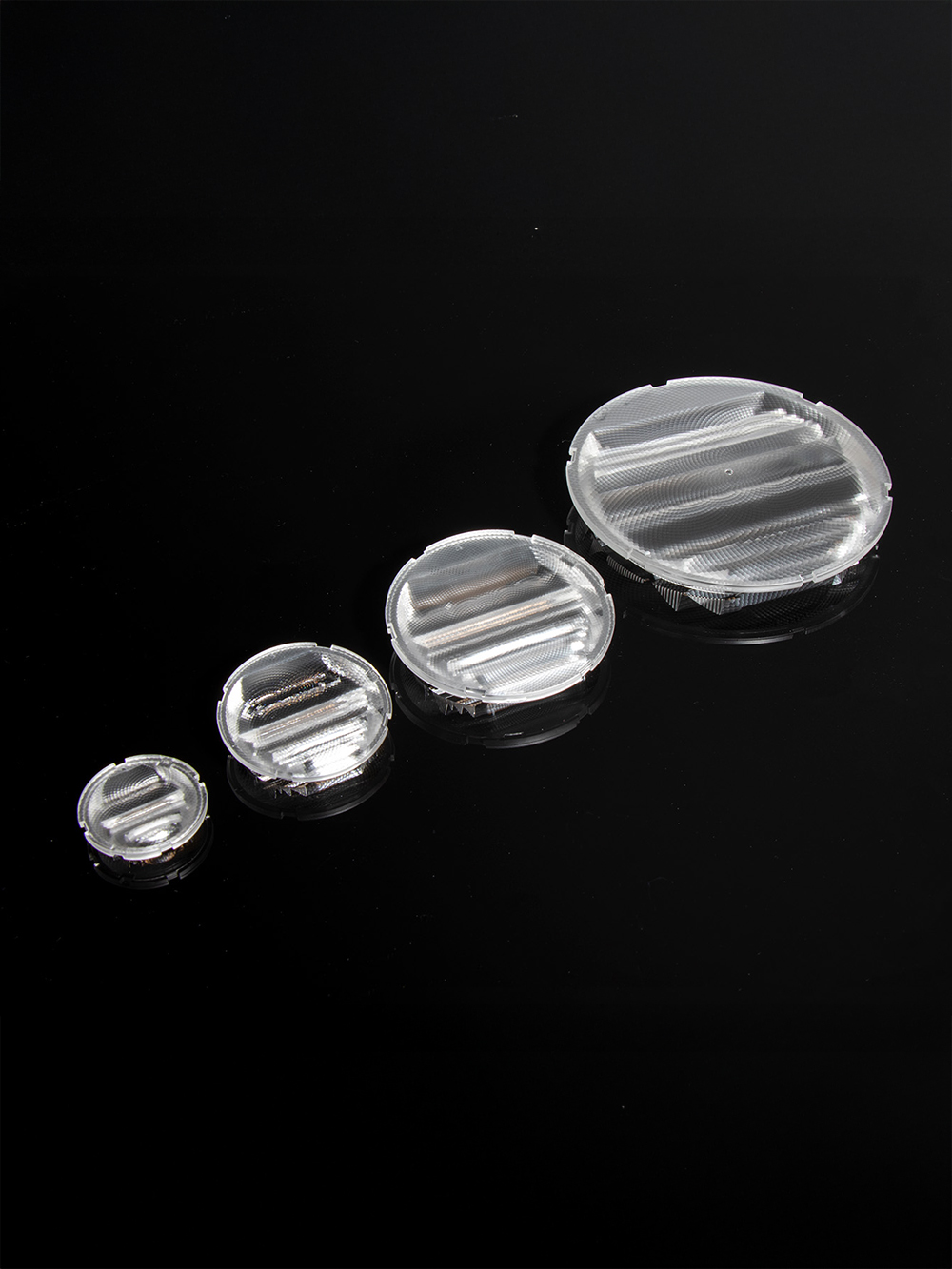

AMY WAS variants are compatible with COBs of the following LES sizes:

AMY-35-WAS – LES up to 6 mm
AMY-50-WAS – LES up to 10 mm
AMY-70-WAS – LES up to 14.5 mm
AMY-110-WAS – LES up to 22 mm

With AMY WAS, wall-washing is no longer a luxury but a seamlessly integrated part of your downlight portfolio. Combining the precision of dedicated wall-washer optics with the versatility of LEDiL’s trusted AMY family, these lenses add striking dimension and subtle drama to any space. Offering outstanding performance, design freedom, and installation flexibility, AMY transforms galleries, retail displays, and architectural features into captivating visual experiences ‒ efficiently, beautifully, and effortlessly.
