APPLICATION EXAMPLE

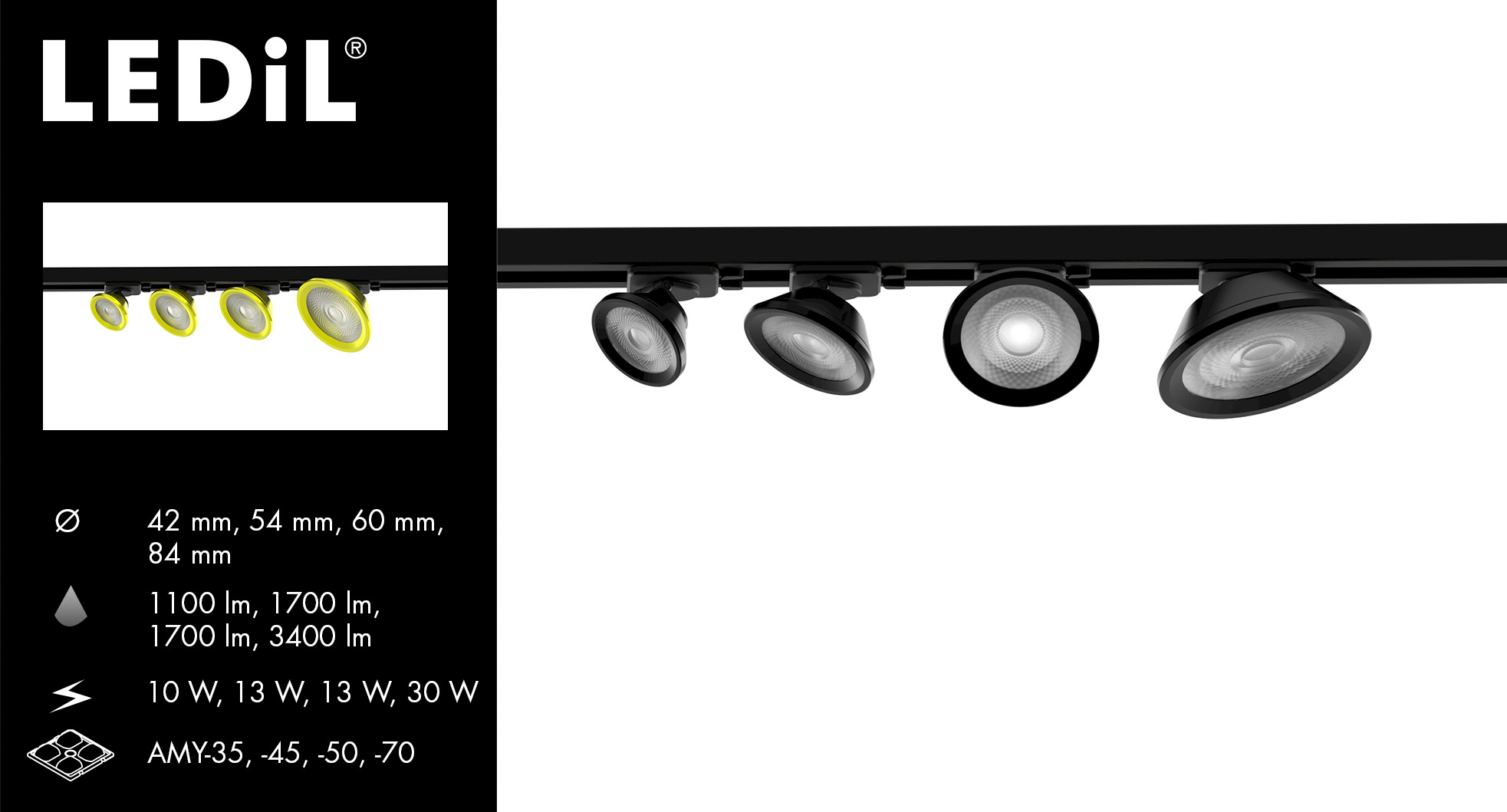

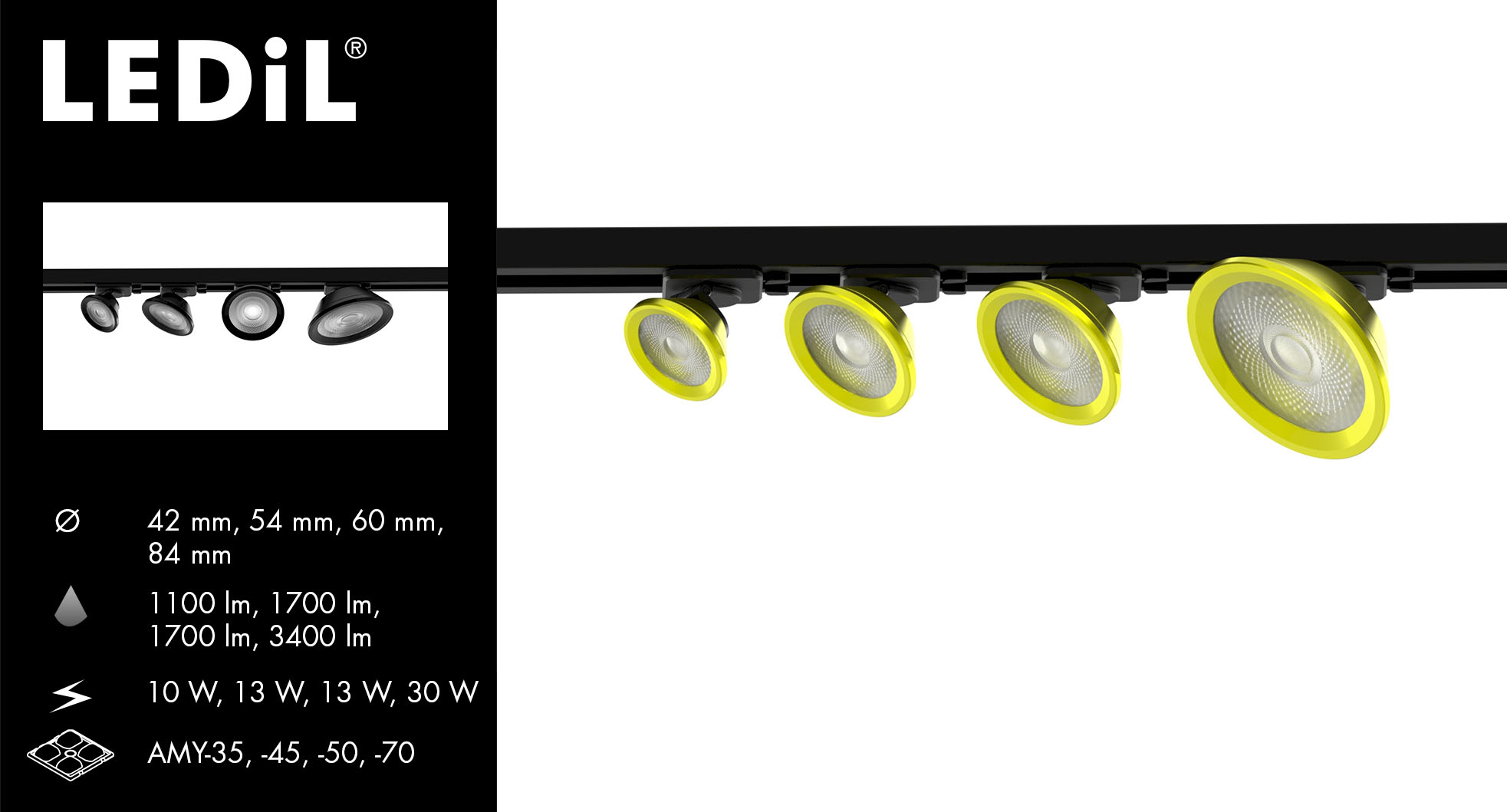

Track light luminaire with AMY


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

Track light luminaire with AMY-35

Optics:AMY-35
Optics size:35 mm
Luminaire size:Ø42 mm, H 18 mm
LED:CoB LES 6 mm
Connector:B+W Bayonet35L
Luminous flux (Luminaire):1100 lm
Power (Luminaire):10 W

Track light luminaire with AMY-45

Optics:AMY-45
Optics size:45 mm
Luminaire size:Ø54 mm, H 20 mm
LED:CoB LES 9.8 mm
Connector:HEKLA-SOCKET-C
Luminous flux (Luminaire):1700 lm
Power (Luminaire):13 W

Track light luminaire with AMY-50

Optics:AMY-50
Optics size:50 mm
Luminaire size:Ø60 mm, H 22 mm
LED:CoB LES 9.8 mm
Connector:HEKLA-G2-C
Luminous flux (Luminaire):1700 lm
Power (Luminaire):13 W

Track light luminaire with AMY-70

Optics:AMY-70
Optics size:70 mm
Luminaire size:Ø84 mm, H 25 mm
LED:CoB LES 14.5 mm
Connector:HEKLA-G2-C
Luminous flux (Luminaire):4200 lm
Power (Luminaire):30 W

Track light luminaire with AMY


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
