APPLICATION EXAMPLE
Reception lighting with FLORENTINA, MOLLY and VANESSA
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

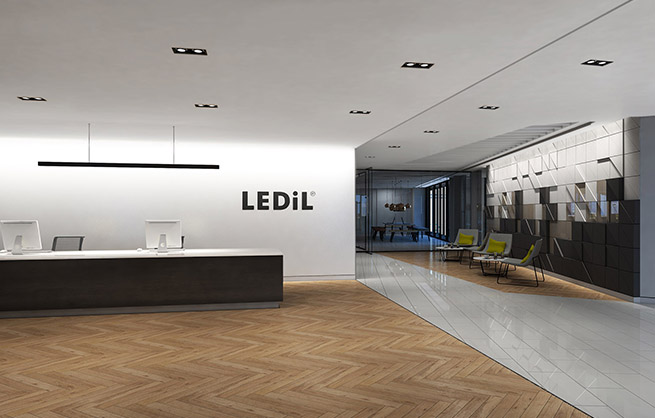

RECEPTION LIGHTING
FIRST IMPRESSION MATTERS
Reception area and lounge should make an impression to the visitor, and therefore theatretical contrasts are welcome.The area is quite dim while the lighting guides the visitor to the highlighted reception desk.
Wall surfaces are brightly and discreetly illuminated from the top to increase brightness of the space without ruining the ambience.
SETUP:
| Application: | Office lighting |
| Downlights | |
| Optics: | MOLLY-W |
| Installation method: | Recessed |
| Installation height: | 2.6 m |
| Luminous flux (luminaire): | 600 lm |
| Pendant luminaire over the desk | |
| Optics: | FLORENTINA-HLD-O |
| Installation method: | Suspended |
| Installation height: | 1.9 m |
| Luminaire lenght: | 2.4 m |
| No. of optics: | 8 pcs |
| Luminous flux (luminaire): | 3000 lm |
| Wall-grazer | |
| Optics: | VANESSA-O |
| Installation method: | Cove lighting |
| Installation height: | 2.6 m |
| Luminous flux/meter: | ~2000 lm |
| C15802_MOLLY-W | ||
| C16265_MOLLY-W-B | ||
| CP14995_FLORENTINA-HLD-O | ||
| C13460_VANESSA-O |
