CP14995_FLORENTINA-HLD-O
Print
~35° + 12° oval beam
Component Materials
- TINA2-XP-OSingle lensPMMA
- FLORENTINA-HLDHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
QUICK FLUX LED FL-XG 1x12 xxx
Required components:
FWHM:
34° + 18°
FWTM:
59° + 41°
Peak intensity:
3.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
JB3030 HE B Class
FWHM:
40° + 18°
FWTM:
68° + 40°
Peak intensity:
3.080 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
JB3030 HE B Class
Required components:
FWHM:
40° + 18°
FWTM:
64° + 38°
Peak intensity:
3.097 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

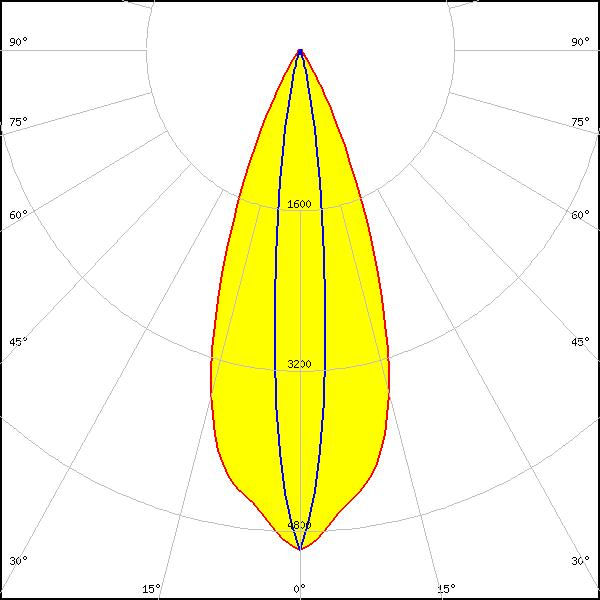

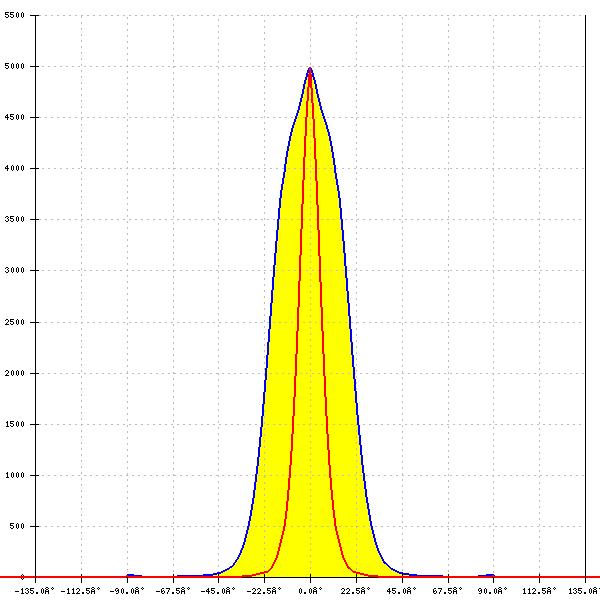

LED:
XD16 Premium
FWHM:
39° + 12°
FWTM:
60° + 26°
Peak intensity:
4.987 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E2
Required components:
FWHM:
35° + 12°
FWTM:
54° + 29°
Peak intensity:
5.050 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
Required components:
FWHM:
34° + 15°
FWTM:
56° + 35°
Peak intensity:
4.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XQ-A
FWHM:
38° + 10°
FWTM:
59° + 22°
Peak intensity:
5.841 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
Required components:
FWHM:
33° + 17°
FWTM:
56° + 38°
Peak intensity:
3.600 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel Plus
Required components:
FWHM:
33° + 15°
FWTM:
55° + 33°
Peak intensity:
4.300 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
Required components:
FWHM:
34° + 16°
FWTM:
57° + 36°
Peak intensity:
3.800 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Z ES
Required components:
FWHM:
34° + 13°
FWTM:
54° + 27°
Peak intensity:
5.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxE17A
FWHM:
40° + 13°
FWTM:
62° + 27°
Peak intensity:
5.150 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxE17A
Required components:
FWHM:
40° + 13°
FWTM:
61° + 27°
Peak intensity:
5.260 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxx19B
Required components:
FWHM:
34° + 14°
FWTM:
55° + 33°
Peak intensity:
4.200 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
38° + 14°
FWTM:
64° + 31°
Peak intensity:
4.760 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
Required components:
FWHM:
40° + 15°
FWTM:
61° + 31°
Peak intensity:
5.260 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
Required components:
FWHM:
39° + 18°
FWTM:
66° + 38°
Peak intensity:
3.230 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
Required components:
FWHM:
34° + 17°
FWTM:
58° + 39°
Peak intensity:
3.430 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NWSx229A
Required components:
FWHM:
38° + 23°
FWTM:
69° + 47°
Peak intensity:
2.350 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
Required components:
FWHM:
38° + 16°
FWTM:
64° + 34°
Peak intensity:
3.871 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
Required components:
FWHM:
34° + 15°
FWTM:
57° + 35°
Peak intensity:
3.870 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
Required components:
FWHM:
34° + 12°
FWTM:
54° + 27°
Peak intensity:
5.000 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
34° + 12°
FWTM:
54° + 27°
Peak intensity:
4.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
Required components:
FWHM:
33° + 15°
FWTM:
56° + 35°
Peak intensity:
4.080 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
Required components:
FWHM:
34° + 18°
FWTM:
60° + 40°
Peak intensity:
3.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
TL1L4
Required components:
FWHM:
34° + 17°
FWTM:
57° + 38°
Peak intensity:
3.590 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
