C16265_MOLLY-W-B
Print
~60° wide beam compatible with 3rd party connectors from BJB, Stucchi and Tridonic
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

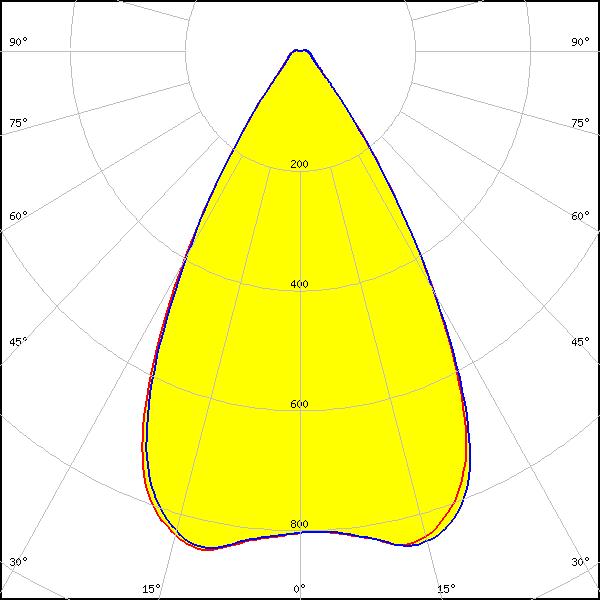

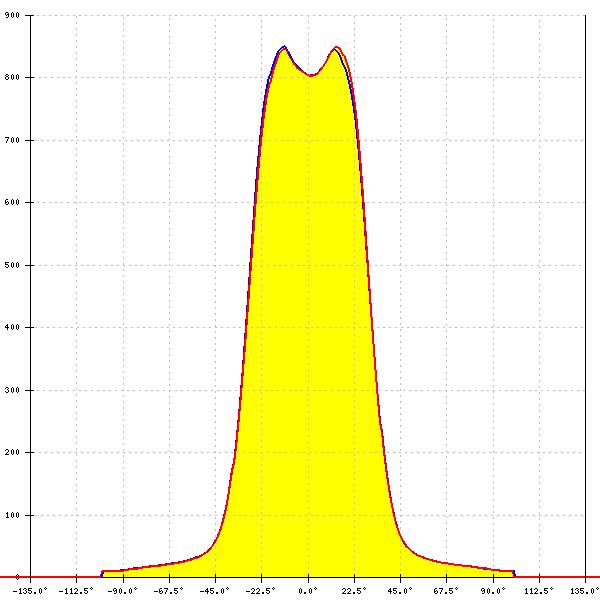

CLL03x/CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
62°
FWTM:
86°
Peak intensity:
0.850 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

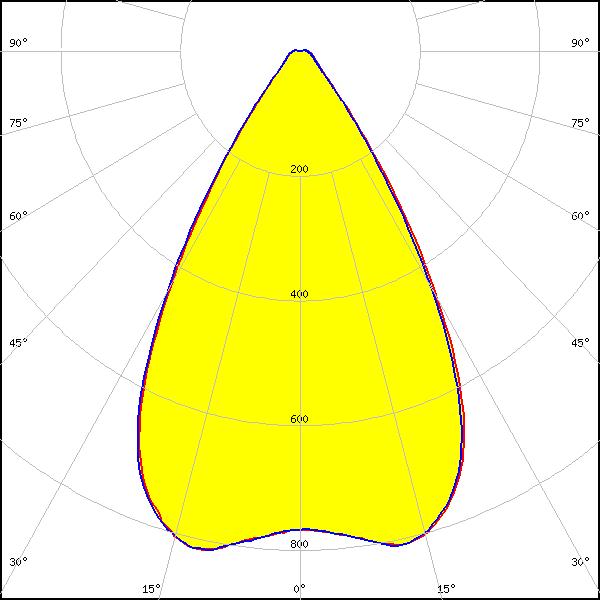

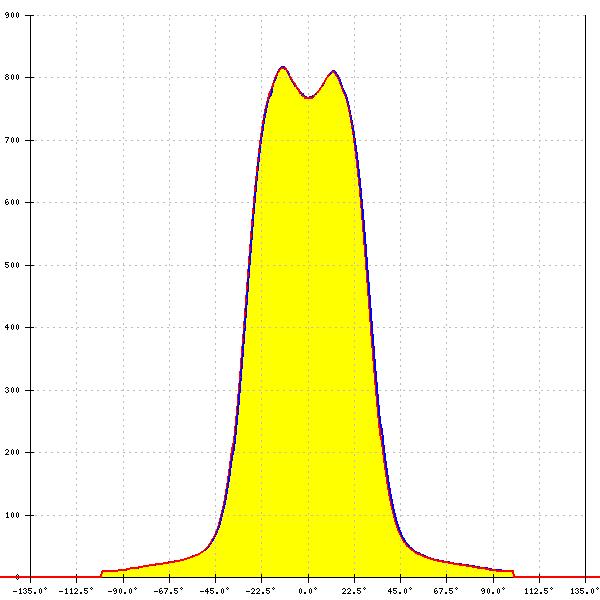

LUXEON CoB 1208
LES size: 15.0 mm
Required components:
BJB: 47.319.2011
FWHM:
62°
FWTM:
87°
Peak intensity:
0.817 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

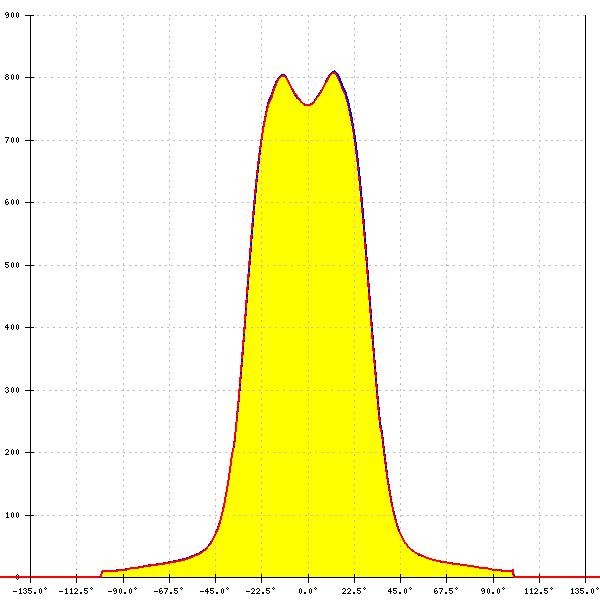

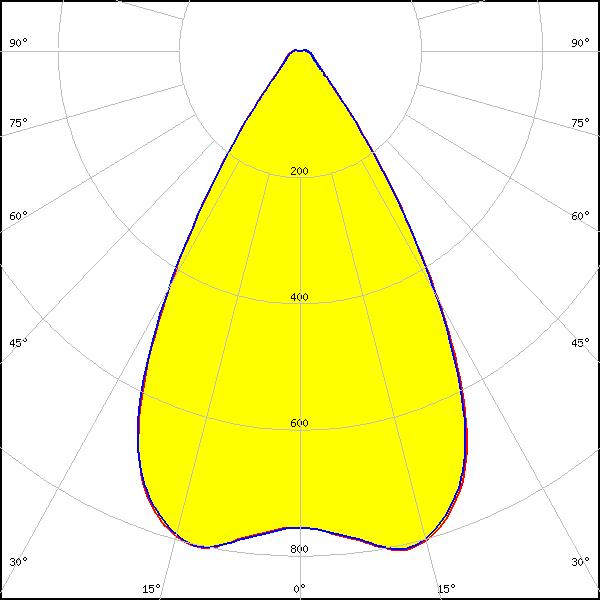

SLE G7 LES15
LES size: 15.0 mm
Required components:
BJB: 47.319.2021
FWHM:
63°
FWTM:
88°
Peak intensity:
0.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

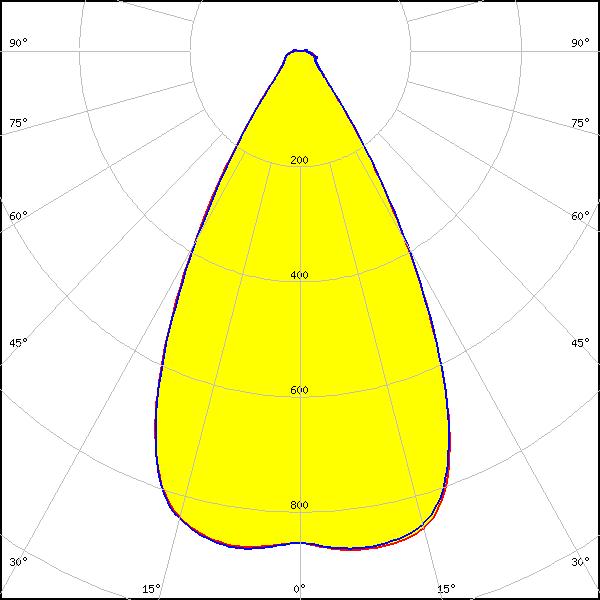

SLE G7 LES17 H
FWHM:
57°
FWTM:
83°
Peak intensity:
0.870 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

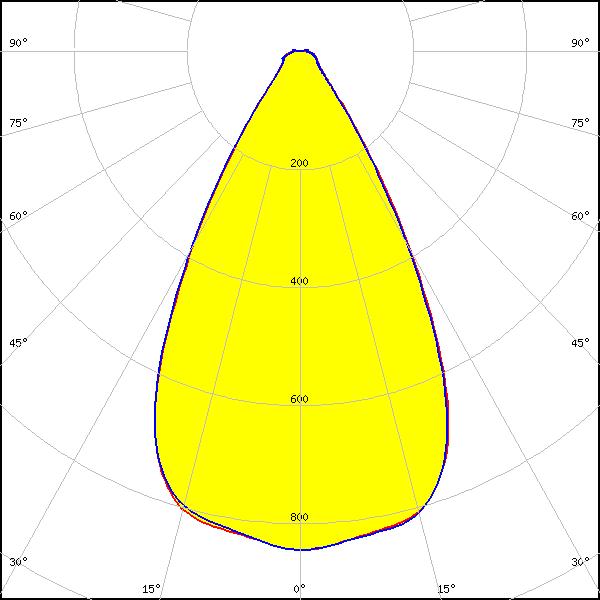

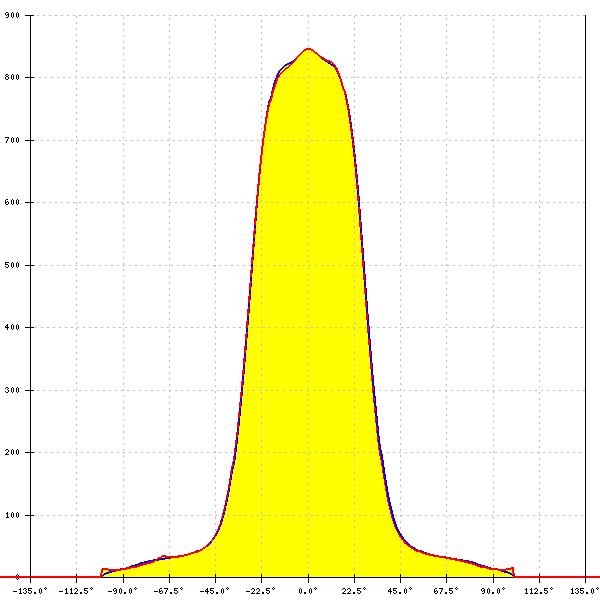

SLE G7 LES21 H
FWHM:
58°
FWTM:
85°
Peak intensity:
0.850 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

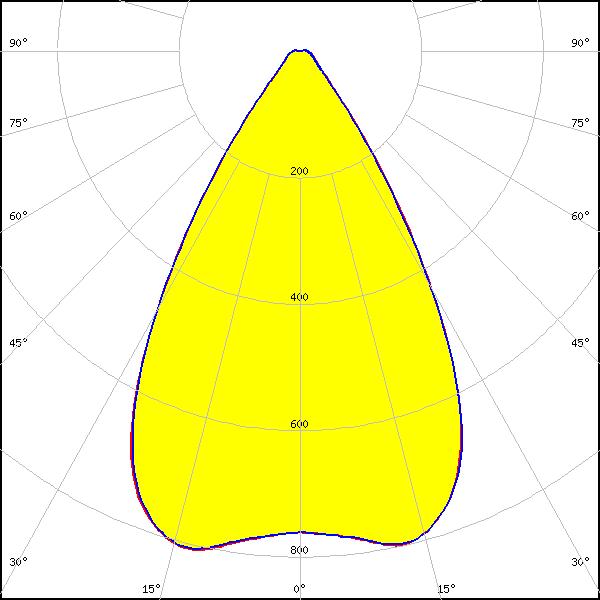

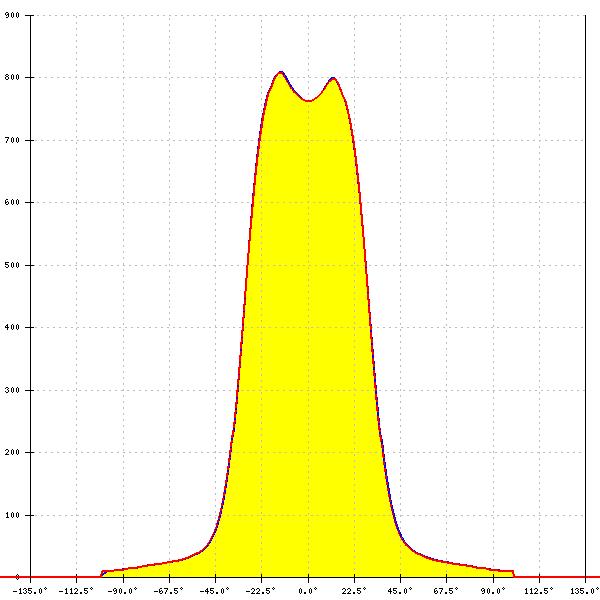

XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
62°
FWTM:
88°
Peak intensity:
0.813 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
