LUMINAIRE EXAMPLE
Track module luminaire with FLORENCE-3R
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

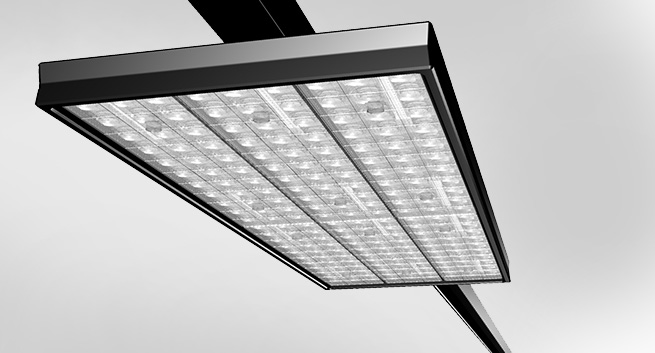

Track module luminaire with FLORENCE-3R
SETUP
| Luminaire length: | 580x260 mm (4 lenses) |
| Beams: | Z90, Z60, Z30, O, ZT25, ZT25-S |
| LEDs: | 2835 Mid-power |
| Number of LEDs: | 198 pcs (33 pcs/lens) |
| Output: | 6350 lm (after optic) |
| Luminaire power: | 40 W |
| Luminaire efficiency: | 175 lm/W |

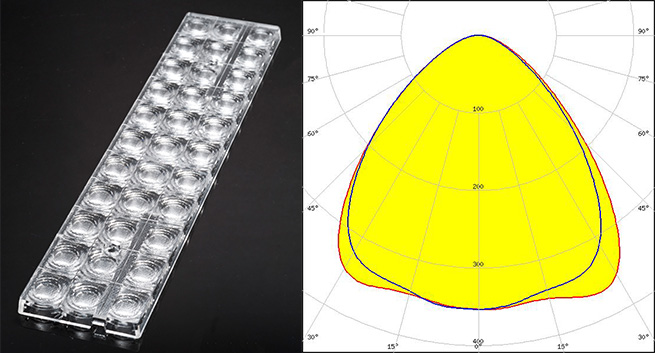

| F13853_FLORENCE-Z90 | ||

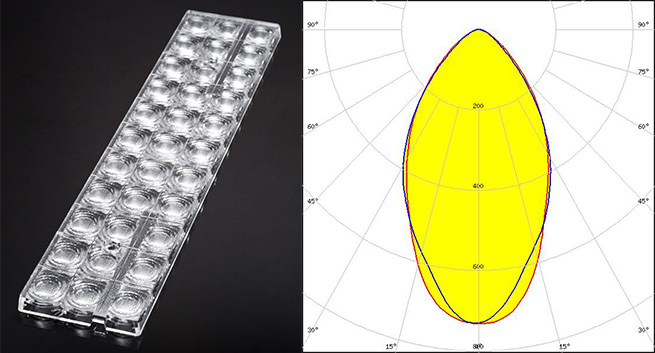

| F14112_FLORENCE-Z60 | ||

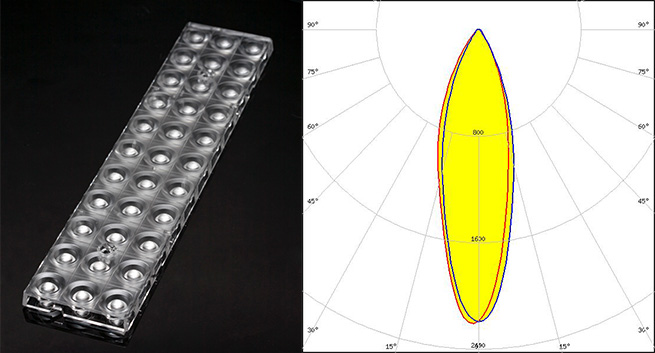

| F14486_FLORENCE-Z30 | ||

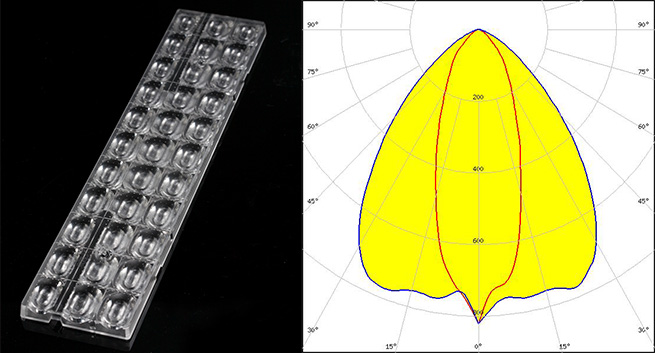

| F15069_FLORENCE-O | ||

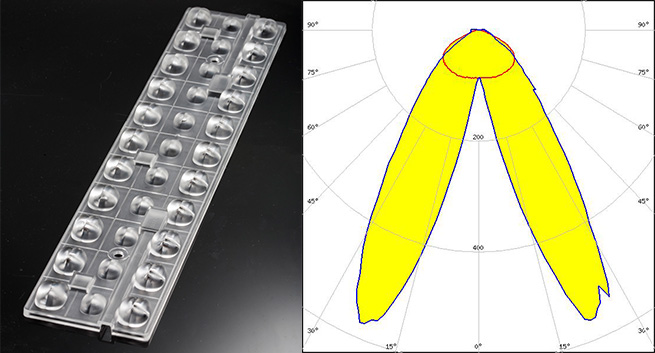

| F14170_FLORENCE-ZT25 | ||

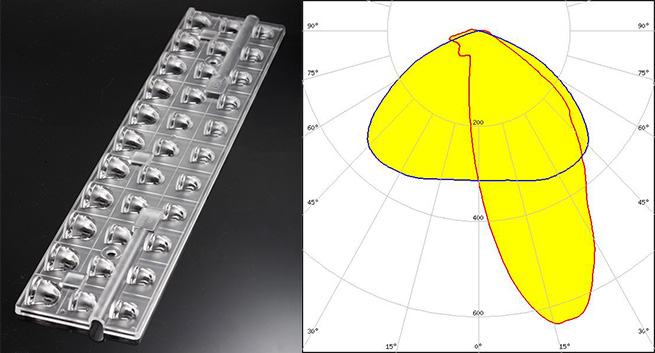

| F15244_FLORENCE-ZT25-S |
Track module luminaire with FLORENCE-3R
