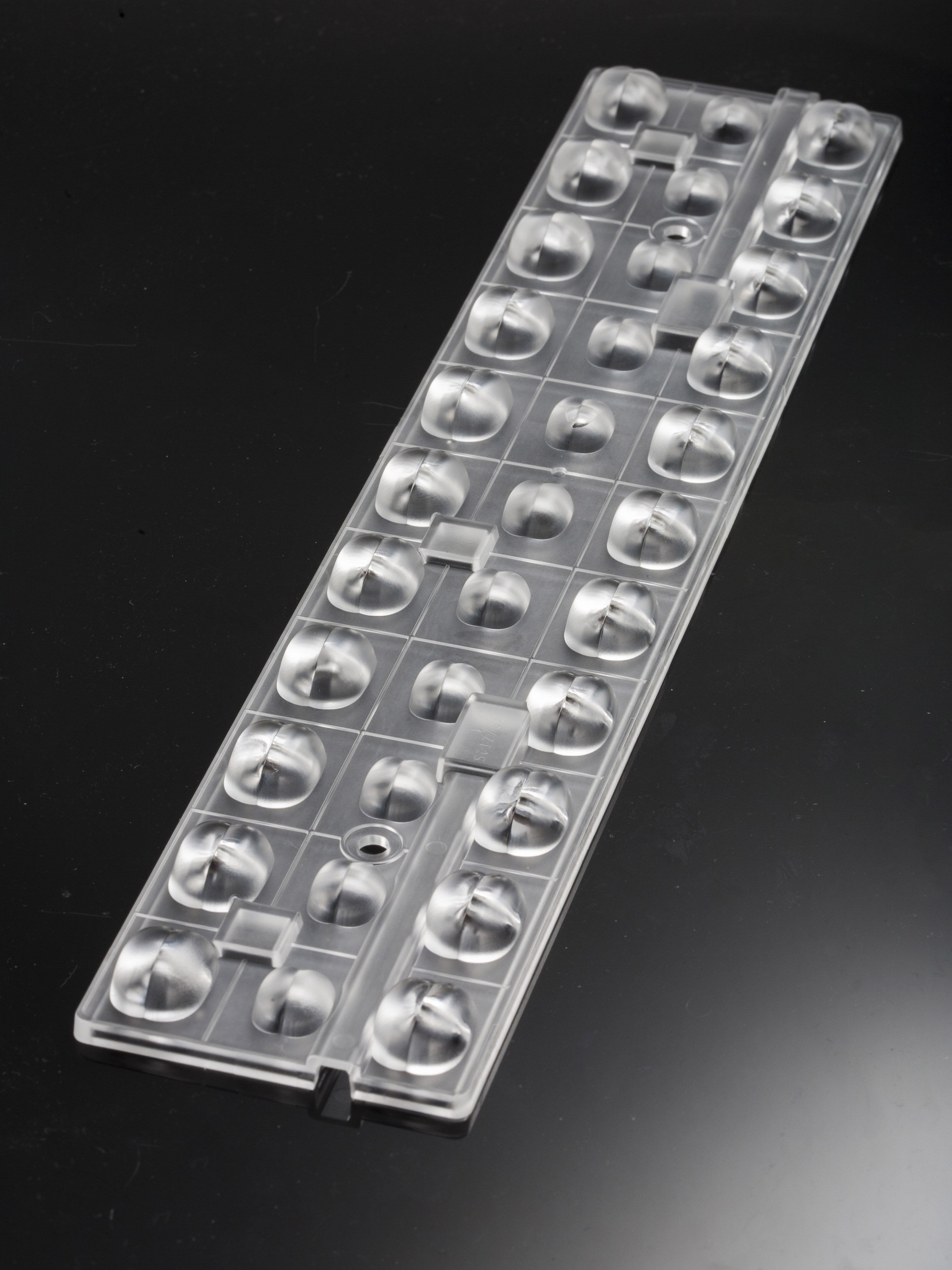

    F14170_FLORENCE-ZT25

    Print

    Double asymmetric beam for aisle and shelf lighting

    Specification
    • Dimensions:
      286 x  61 mm
    • Height:
      11.00 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      60 pcs
    • Box size:
      398 x 298 x 140 mm
    • Box weight:
      5.8 kg
    • MPQ:
      6 pcs
    • MOQ:
      18 pcs
    • MOQ size:
      390 x 300 x 60 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F14170_FLORENCE-ZT25
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    FLORENCE-3R presented by Olga Cherepenina

    Luminaire, example

    Track module luminaire with FLORENCE-3R

    Luminaire, example

    Linear luminaire with FLORENCE-3R

    PCN

    Product change notification NR135 - Florence pocket change 070717

    PCN

    Product change notification NR128.e - Change of packaging quantities 241016

    PCN

    Product change notification NR109.c - Change of product compatibility 180915

    Application example

    Store aisle lighting with FLORENCE-ZT25

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    PRODUCT NEWS - FLORENCE

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    FLORENCE-PF-3R

    Press fit plug for appliances where accessing and opening the product needs to be restricted. Compatible with FLORENCE 3-row optics.

    Optical results

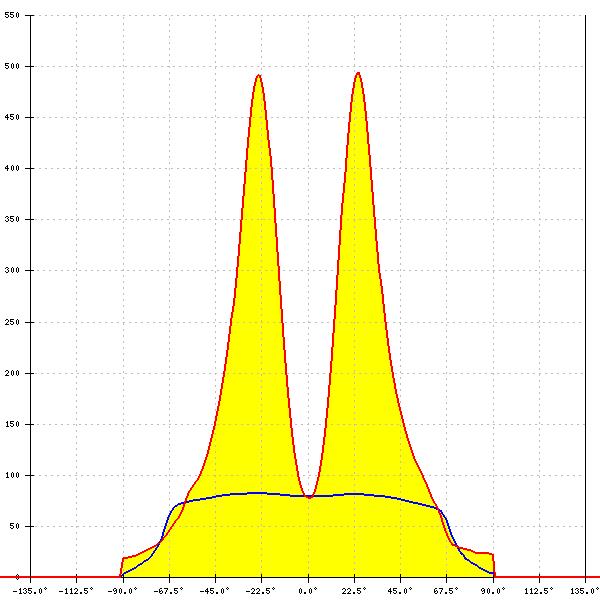

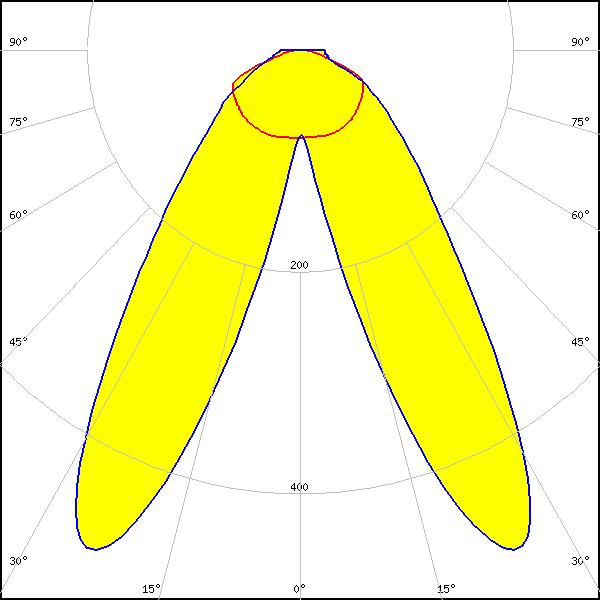

    LED: XH-B/G
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

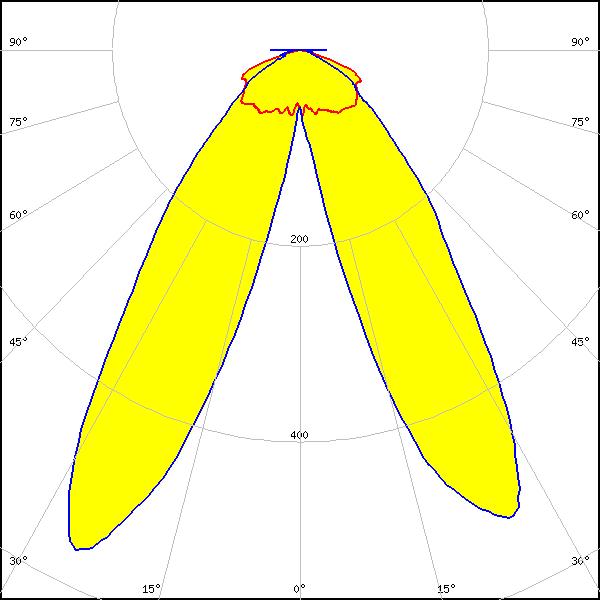

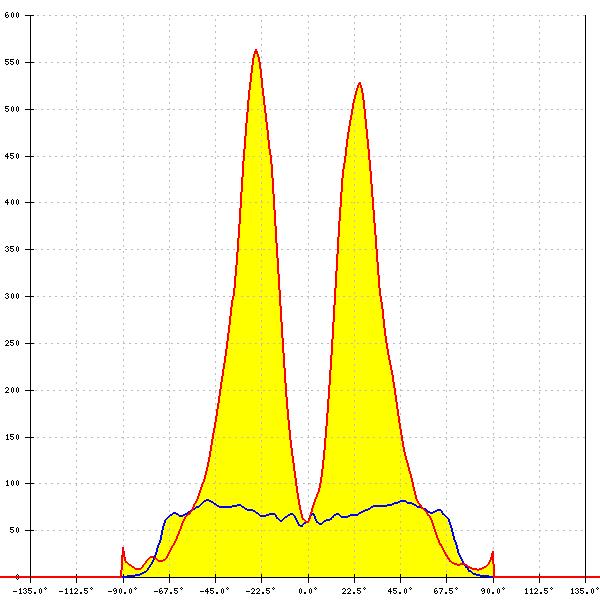

    LED: XP-G
    FWHM: asymmetric
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

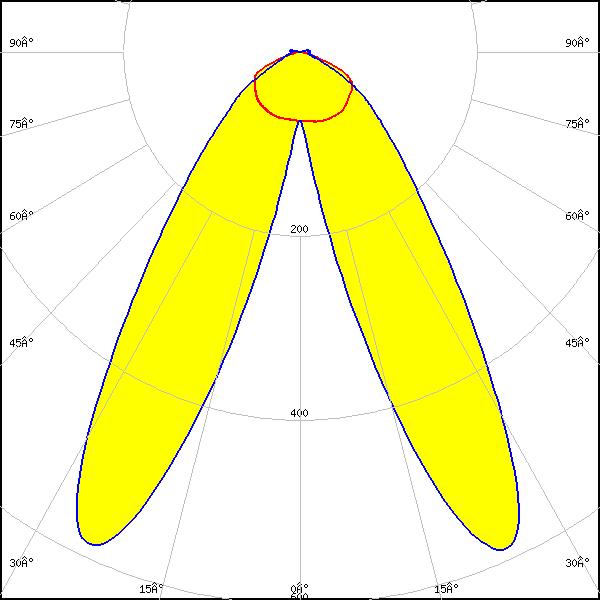

    LED: PL-BAR-G3 1100 280x55
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

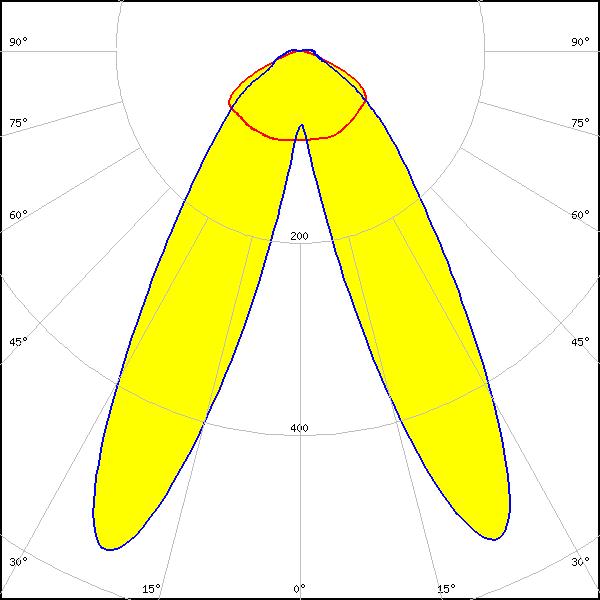

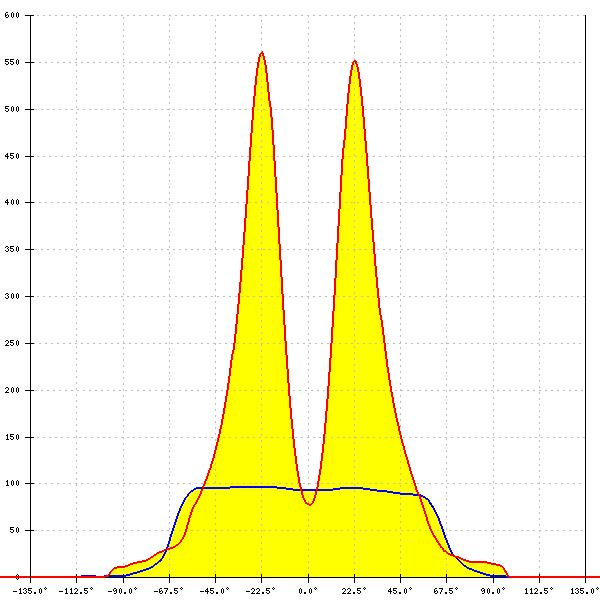

    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.560 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

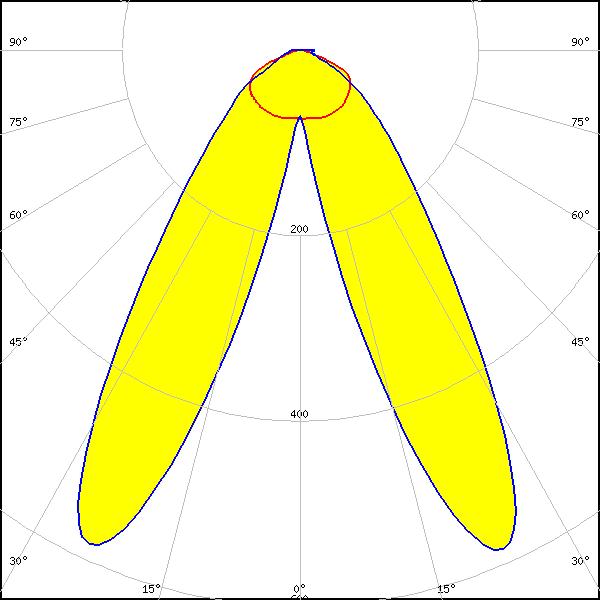

    LED: LUXEON 3535 2D
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

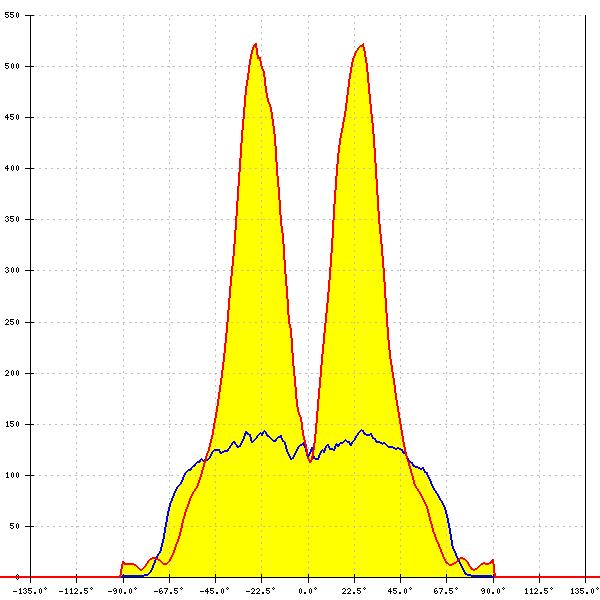

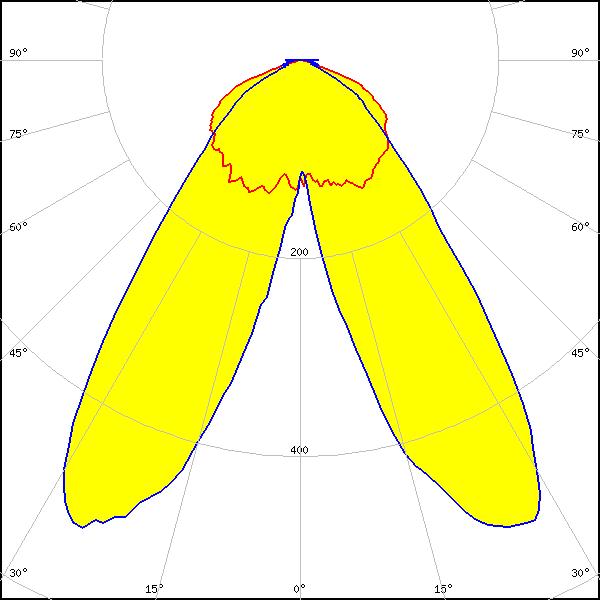

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.540 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

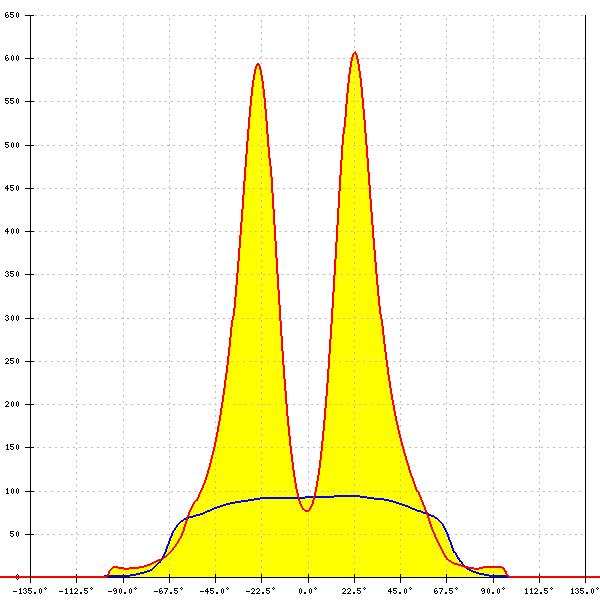

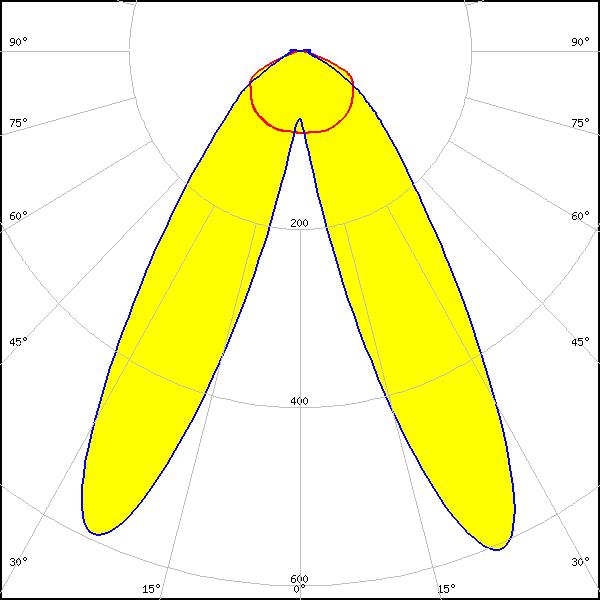

    LED: LUXEON XR-3535L (L202 - xxxx033C30001)
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

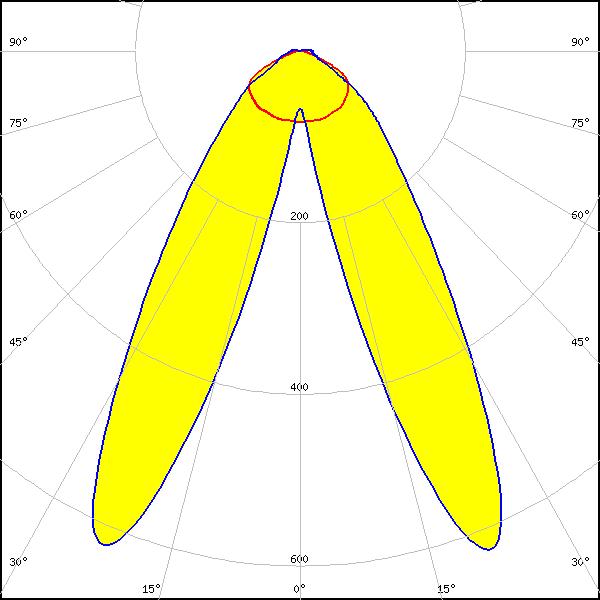

    LED: MP-2016
    FWHM: asymmetric
    Peak intensity: 0.630 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

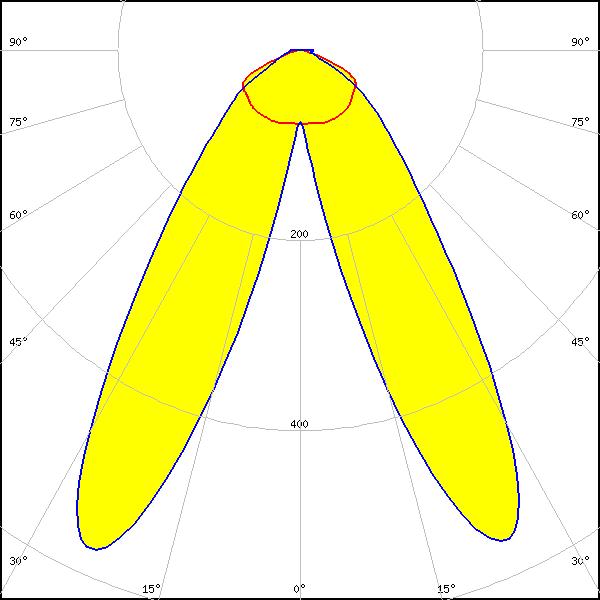

    LED: NF2x757D
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

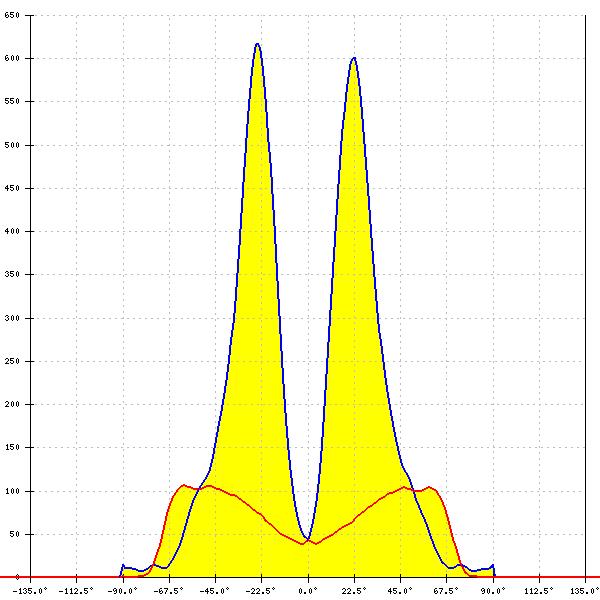

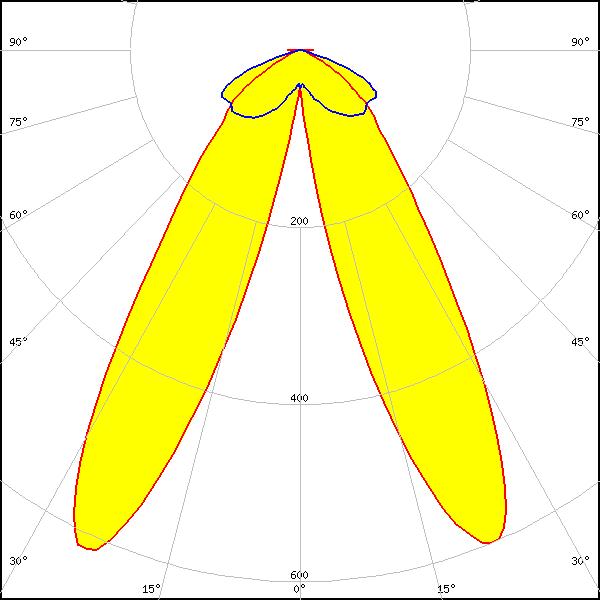

    LED: NF2x757G
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White

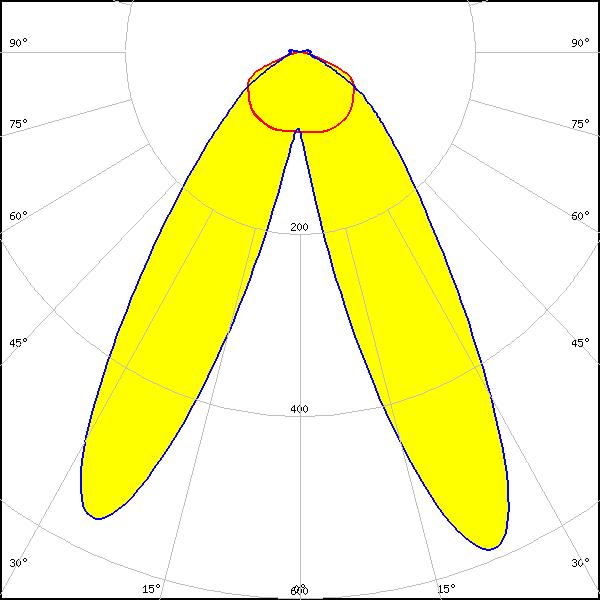

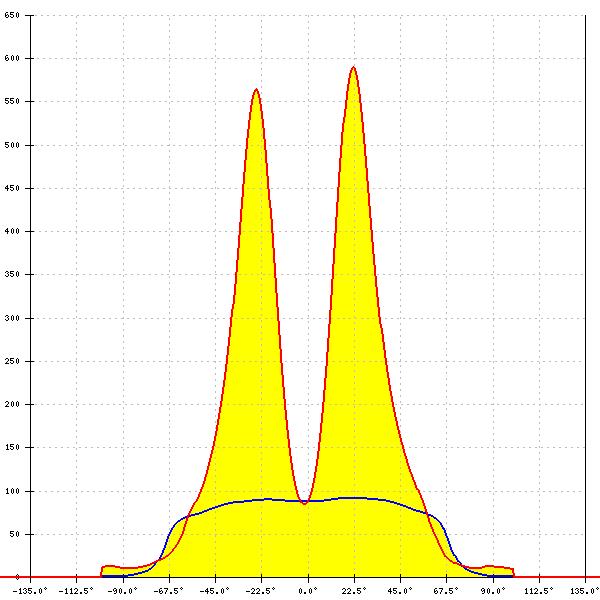

    LED: NFSW757H
    FWHM: asymmetric
    Peak intensity: 0.591 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

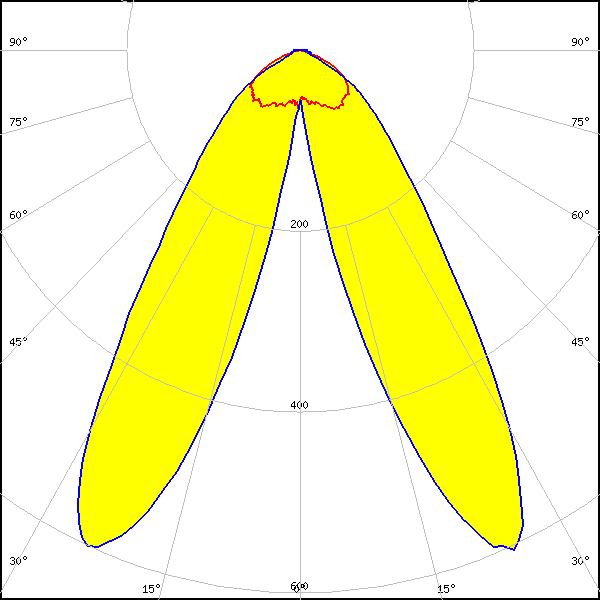

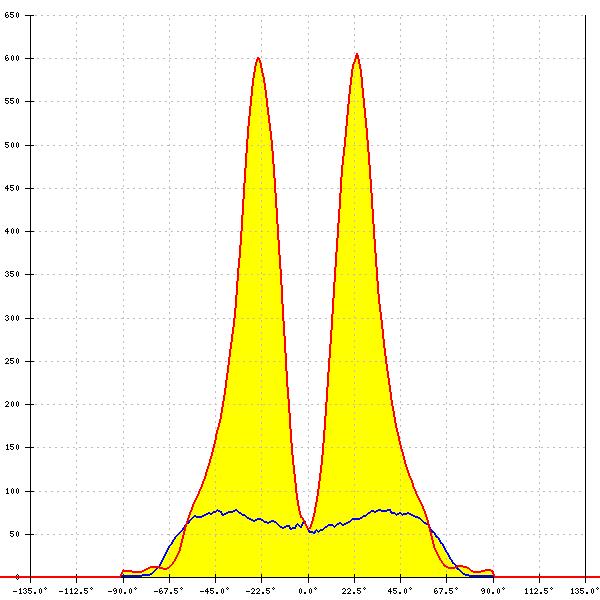

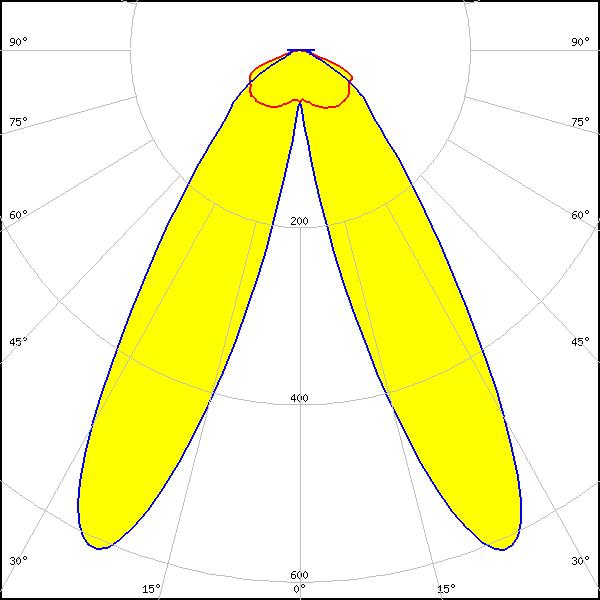

    LED: NFSx757G
    FWHM: asymmetric
    Peak intensity: 0.606 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NFSx757G
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

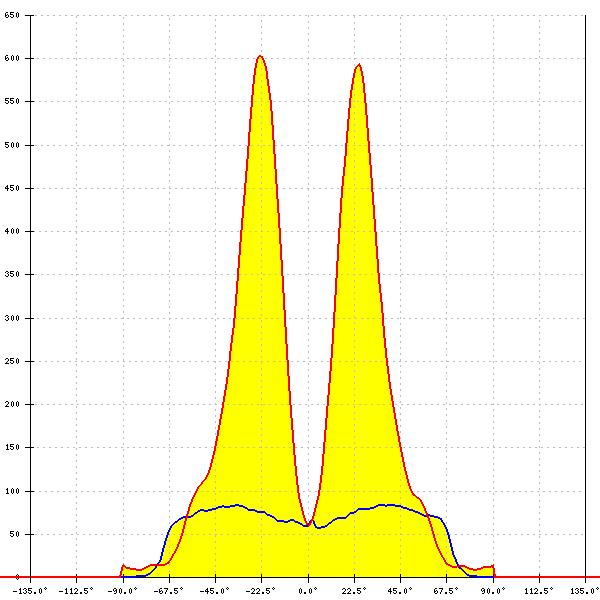

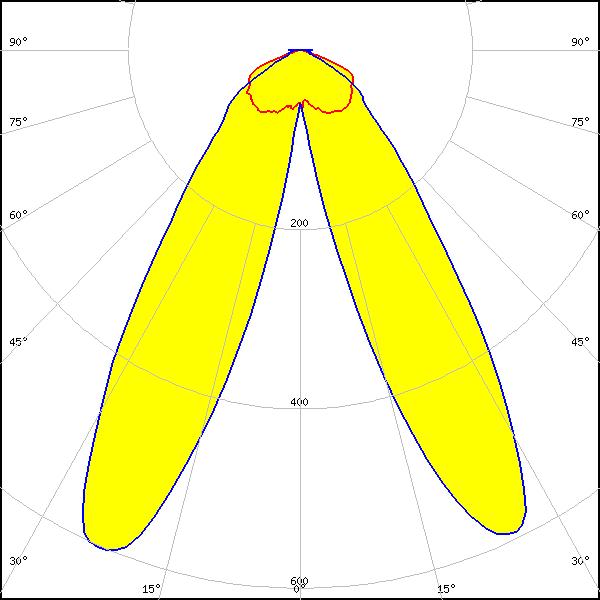

    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

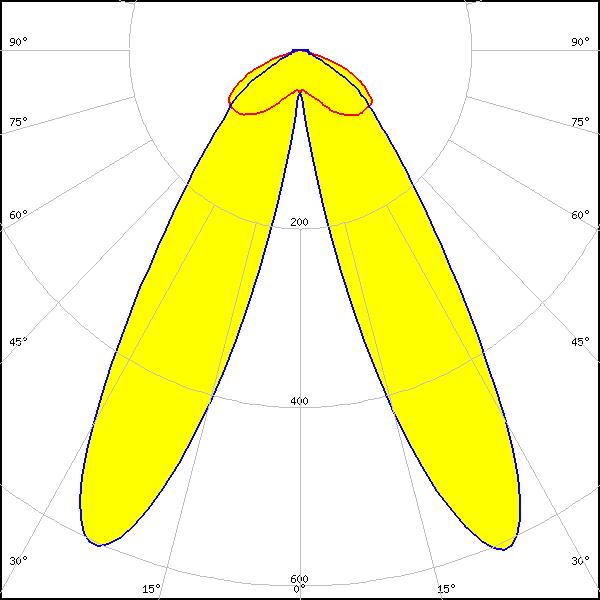

    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.609 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 2
    Light colour/type: White

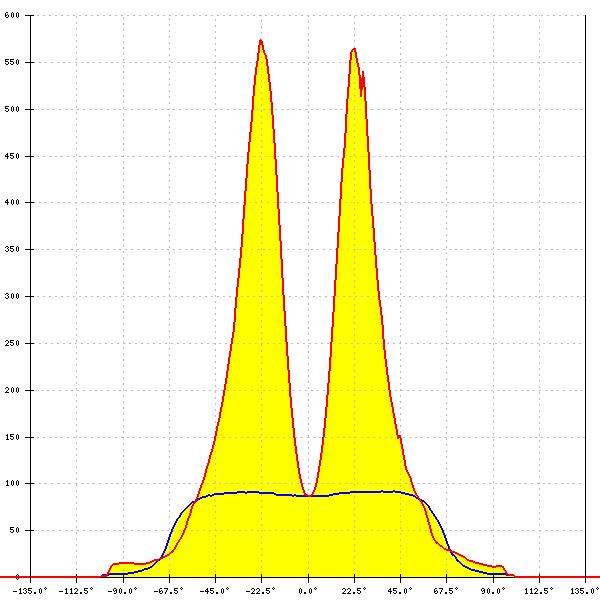

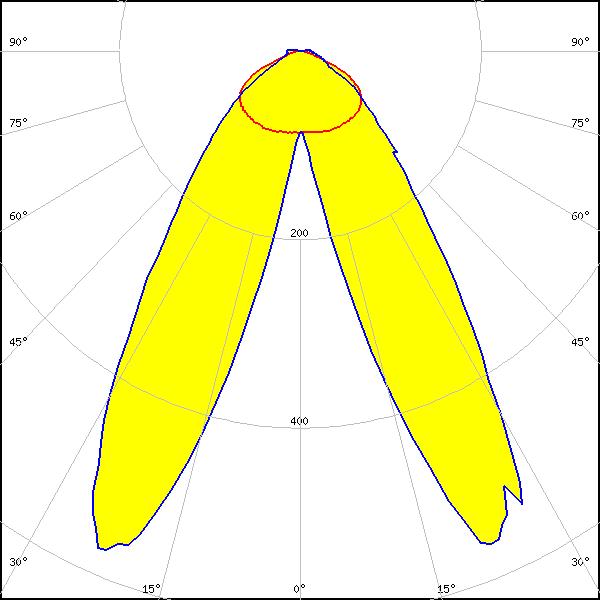

    LED: Duris E5
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

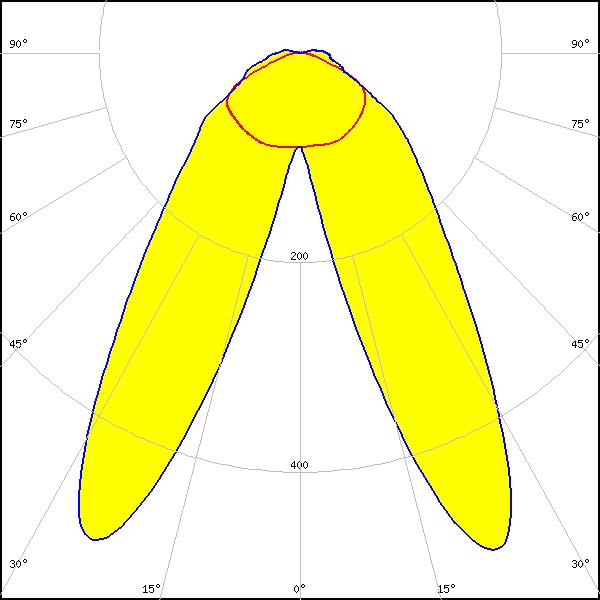

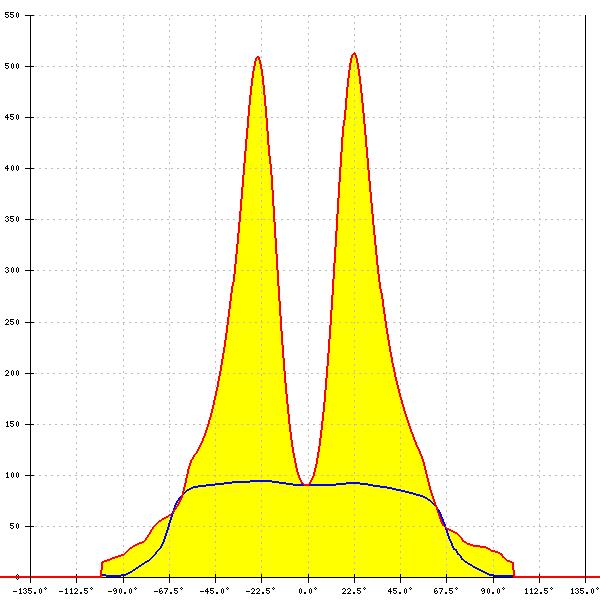

    LED: Duris S2
    FWHM: asymmetric
    Peak intensity: 0.510 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

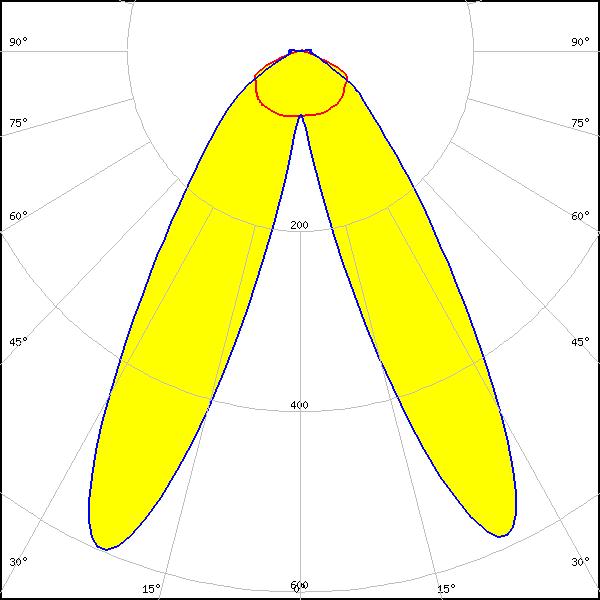

    LED: DURIS S5 (Single chip)
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

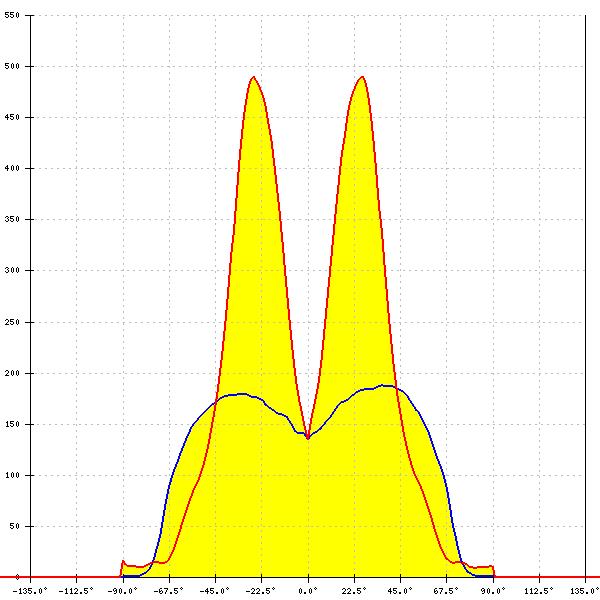

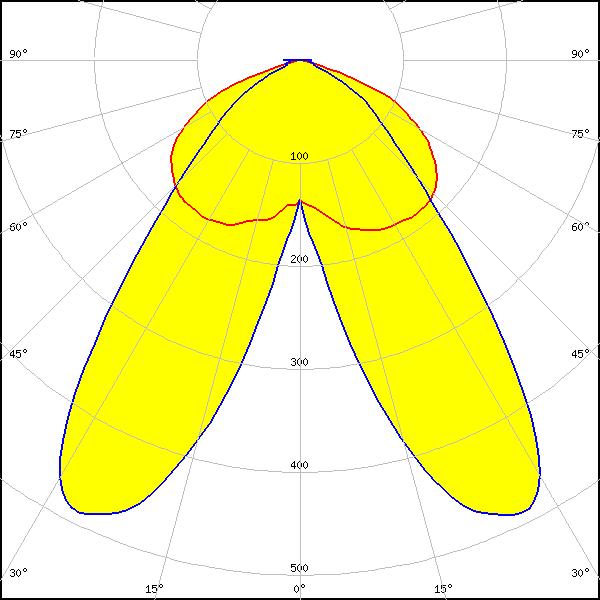

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.491 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 2226
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

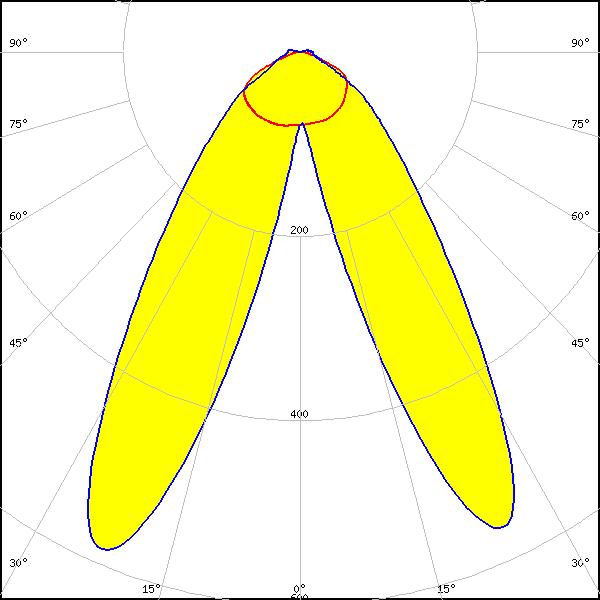

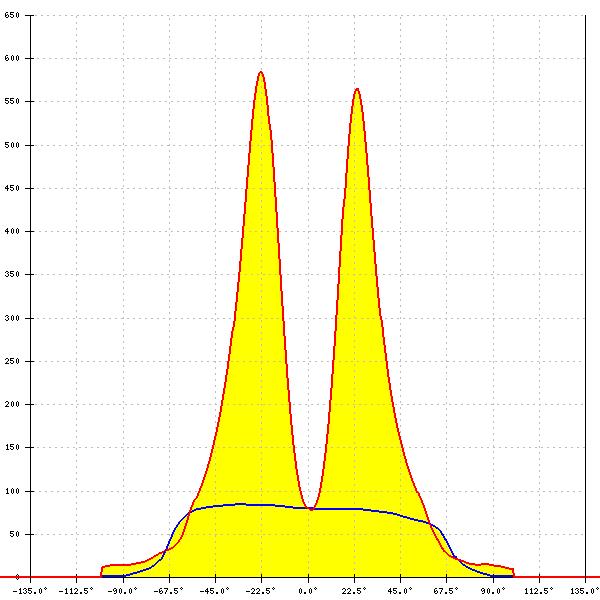

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.580 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line VO 1ft MF 3R HV5
    FWHM: asymmetric
    Peak intensity: 0.825 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft 650lm 3R HV4 & LV4
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft HF 3R HV5
    FWHM: asymmetric
    Peak intensity: 0.725 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft LF 3R HV5 & LV5
    FWHM: asymmetric
    Peak intensity: 0.774 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft MF 3R HV5 & LV5
    FWHM: asymmetric
    Peak intensity: 0.738 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

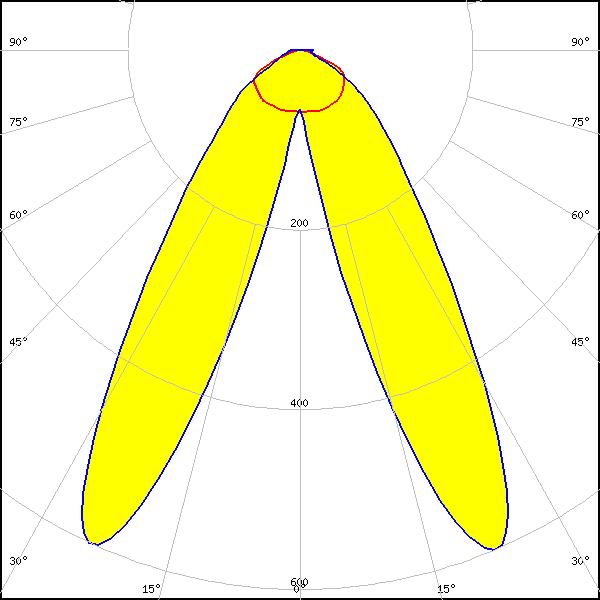

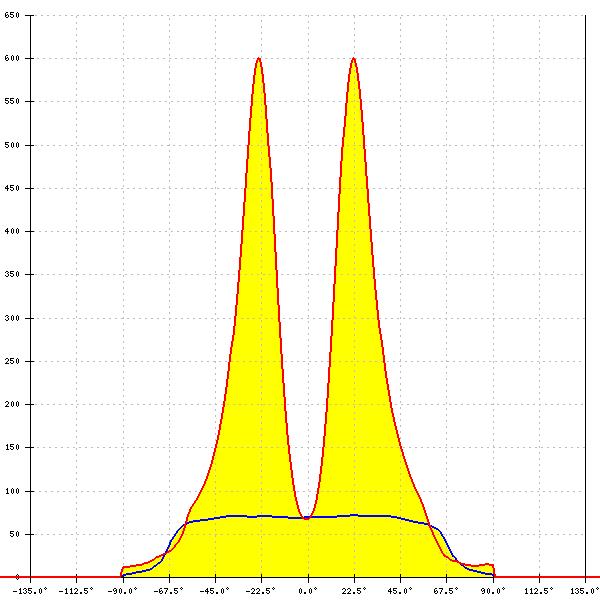

    LED: LM231 A/B
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

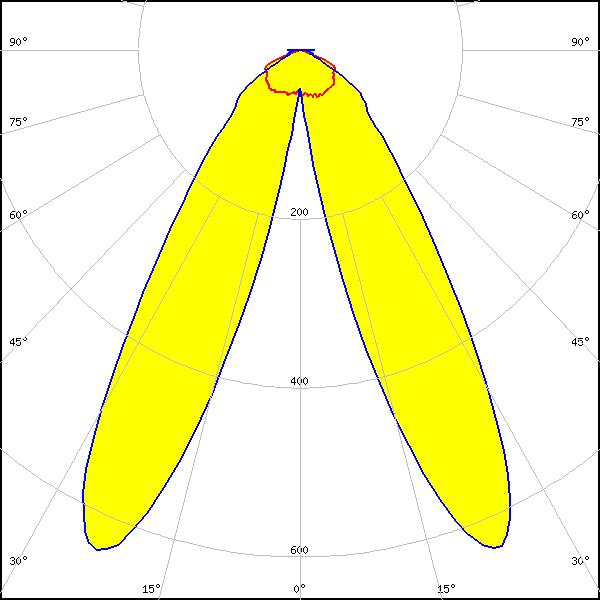

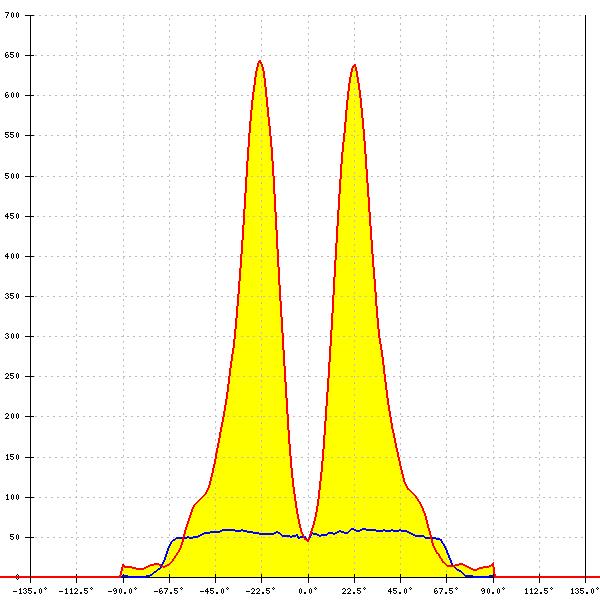

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.640 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

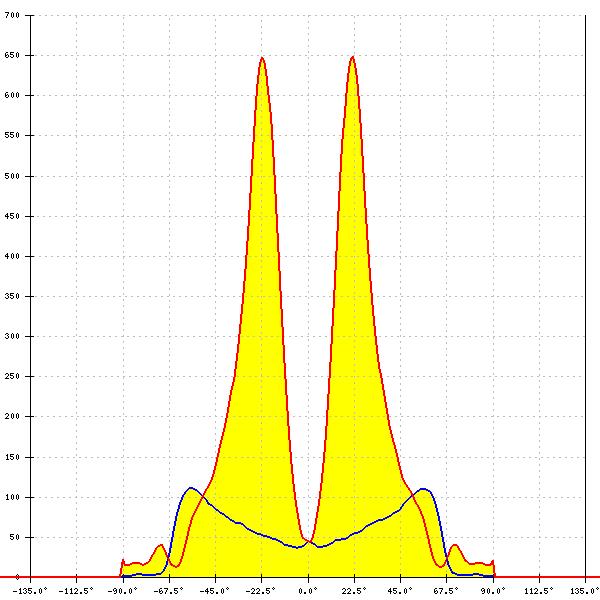

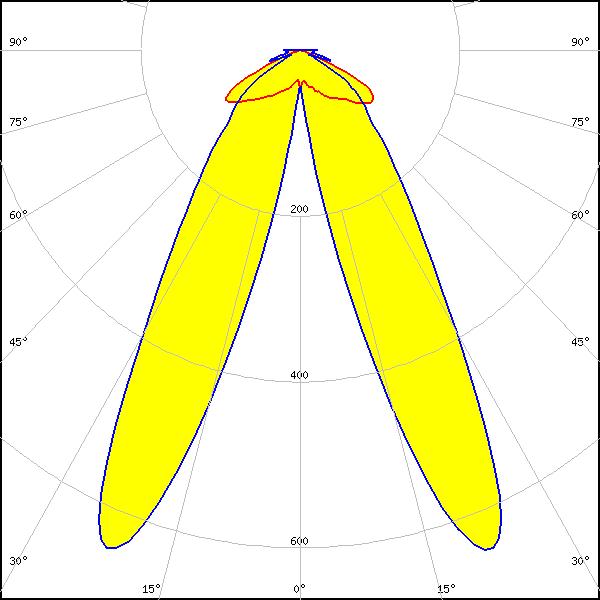

    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 0.649 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

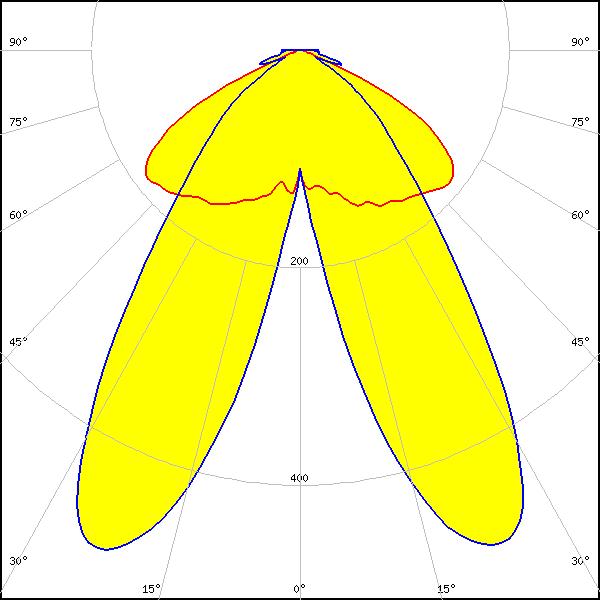

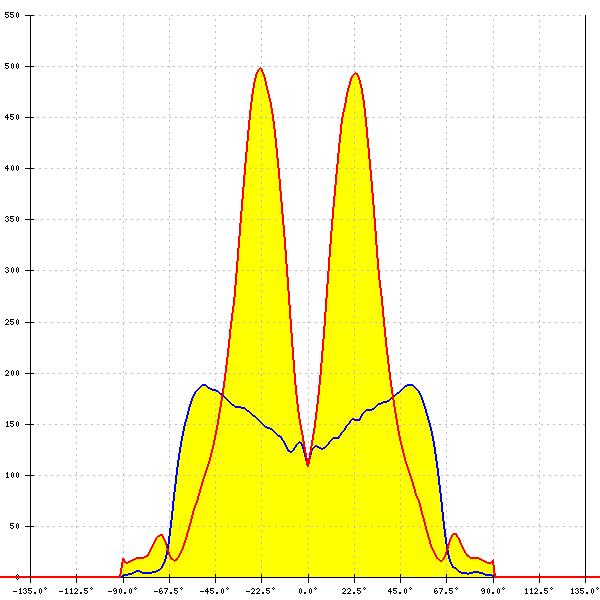

    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 0.499 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 2
    Light colour/type: White

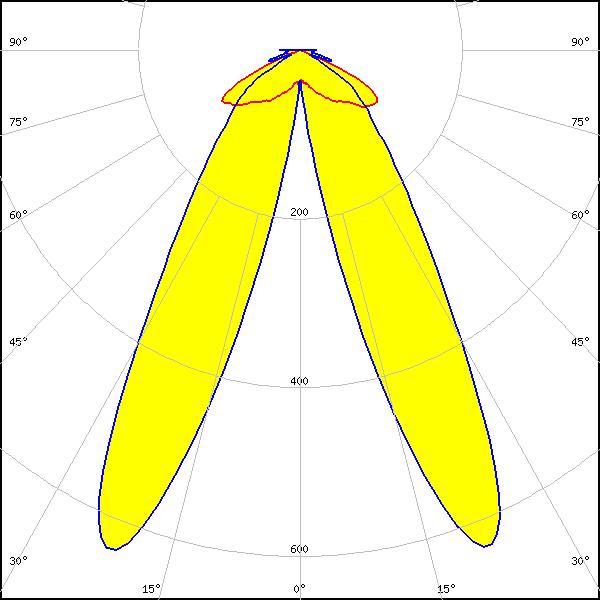

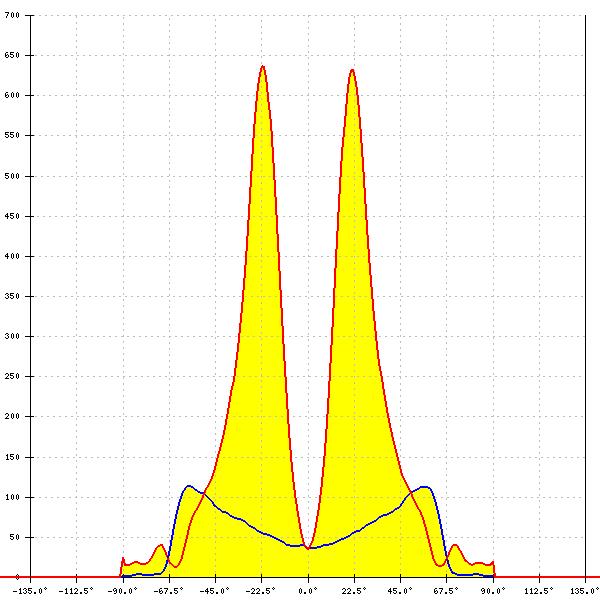

    LED: LM302Z plus
    FWHM: asymmetric
    Peak intensity: 0.637 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

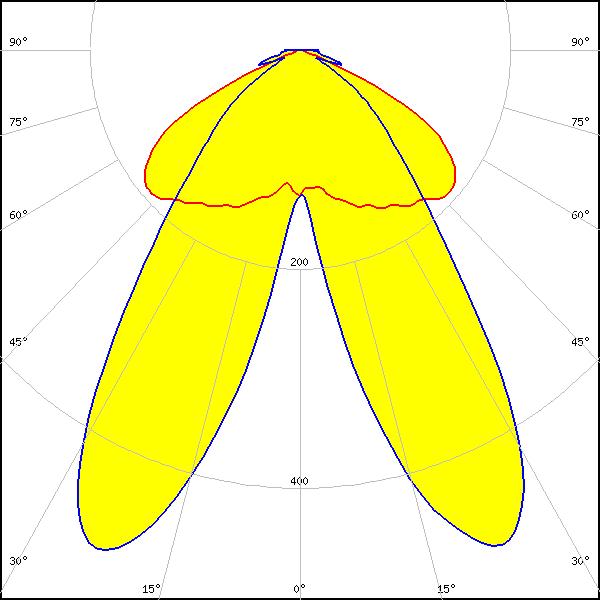

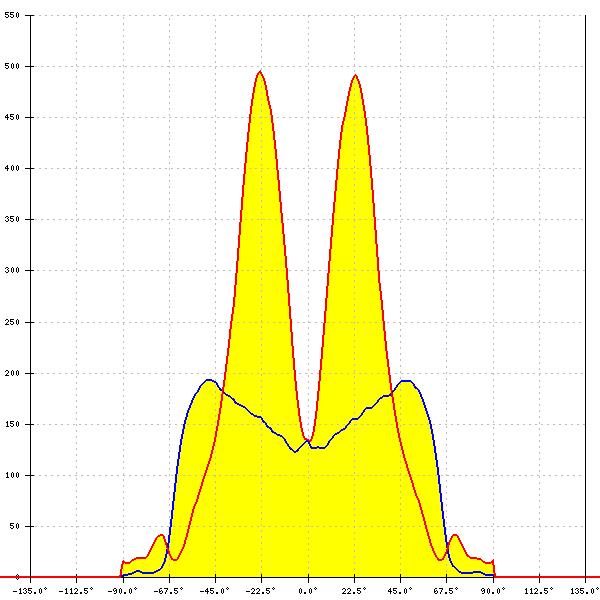

    LED: LM302Z plus
    FWHM: asymmetric
    Peak intensity: 0.495 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 2
    Light colour/type: White

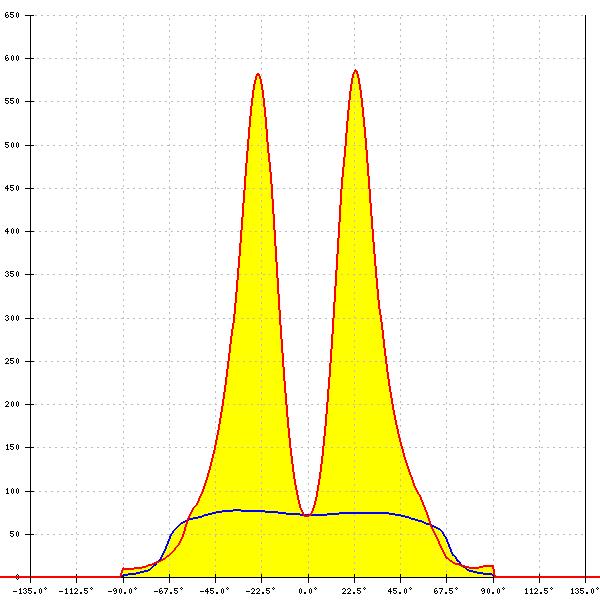

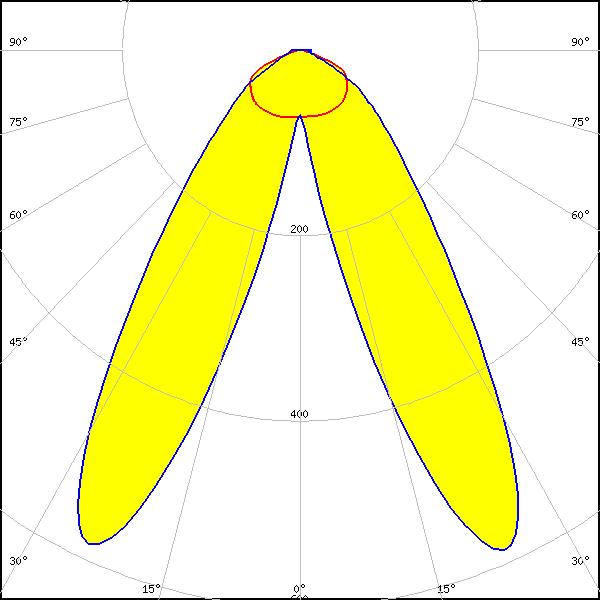

    LED: LM561B
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

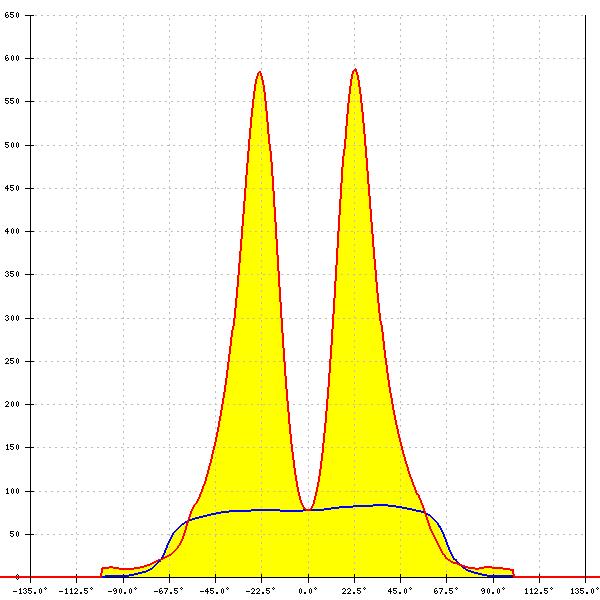

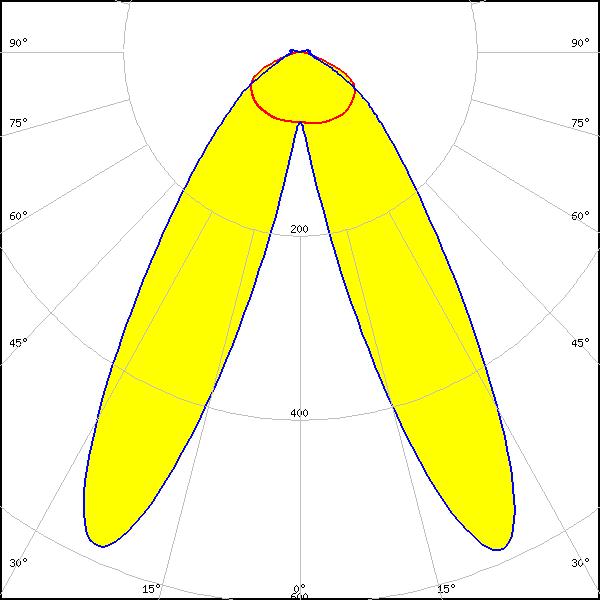

    LED: LM561B Plus
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-R286A
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

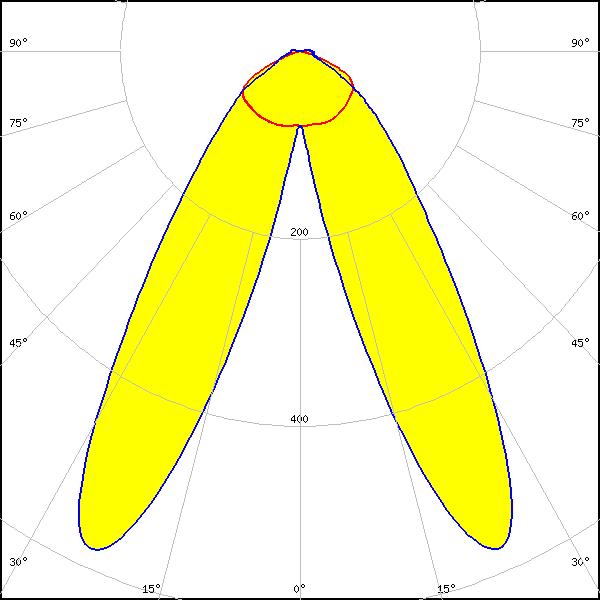

    LED: SEOUL 3030
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

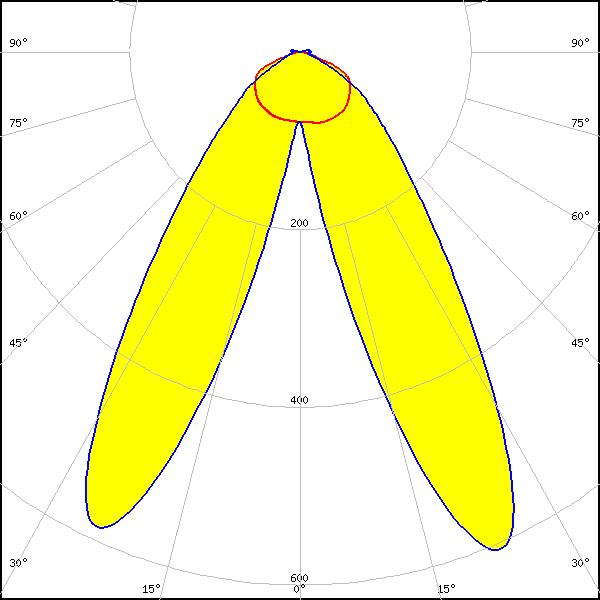

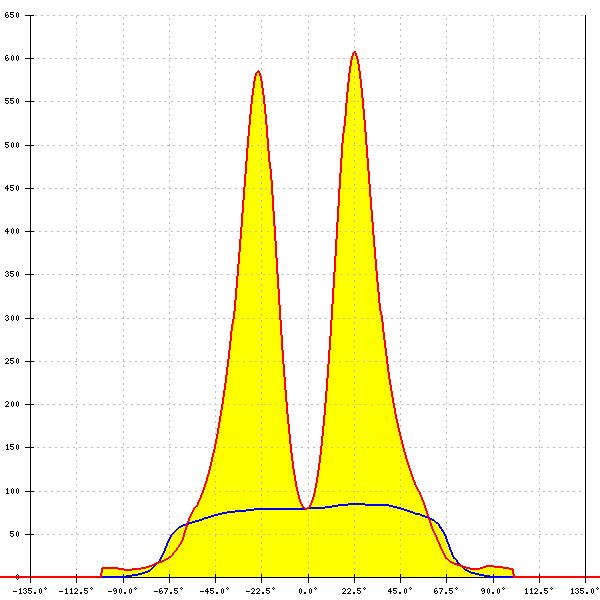

    LED: SEOUL 5630C
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

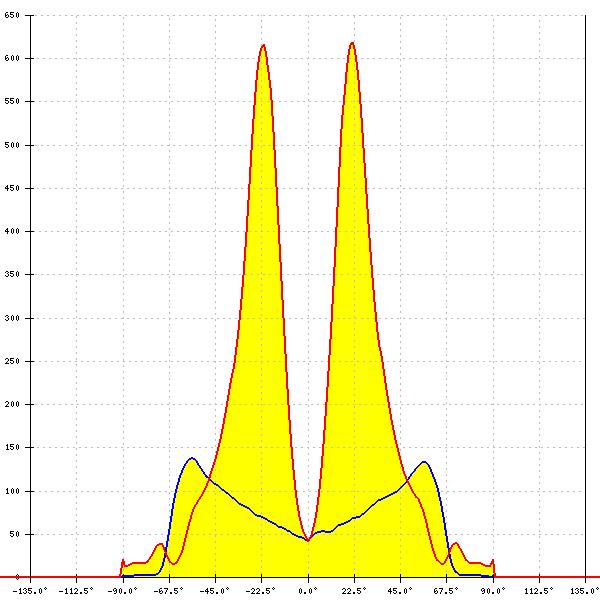

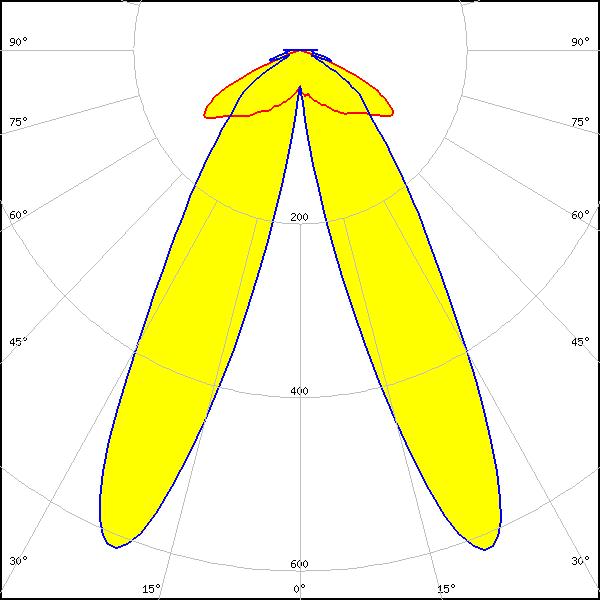

    LED: SEOUL 5630D
    FWHM: asymmetric
    Peak intensity: 0.620 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

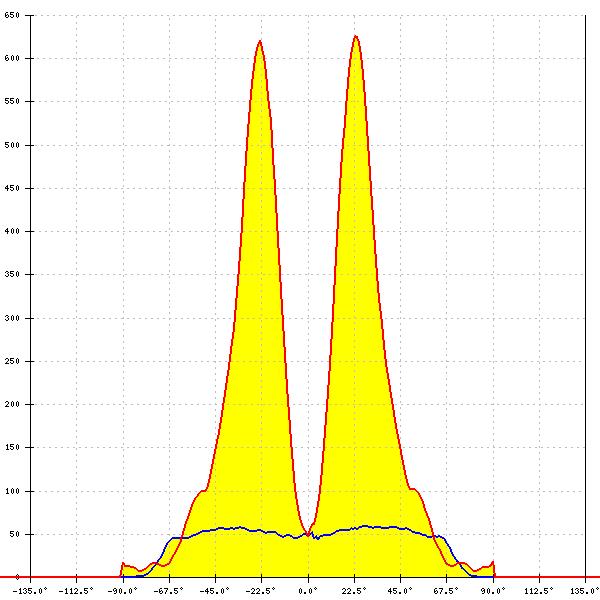

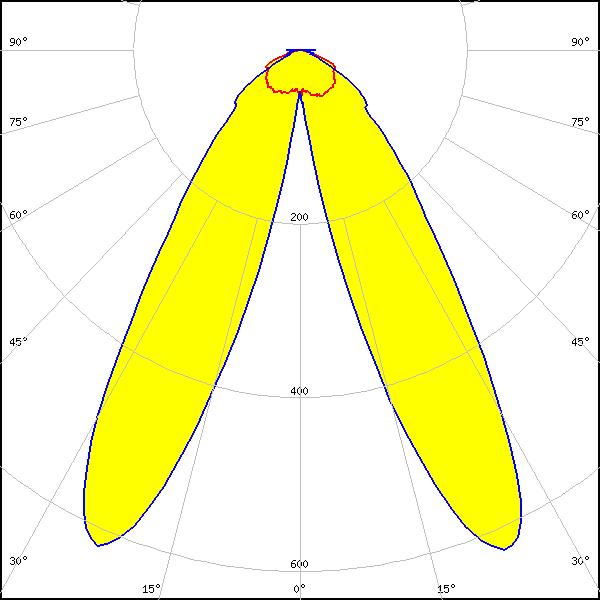

    LED: SEOUL DC 3030C
    FWHM: asymmetric
    Peak intensity: 0.626 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

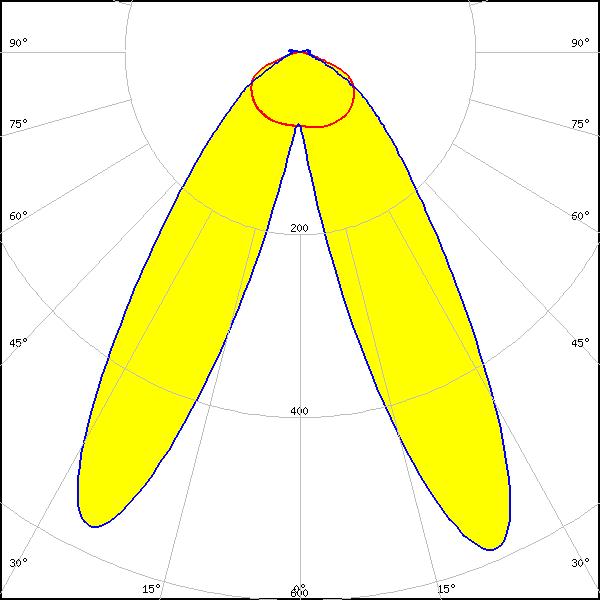

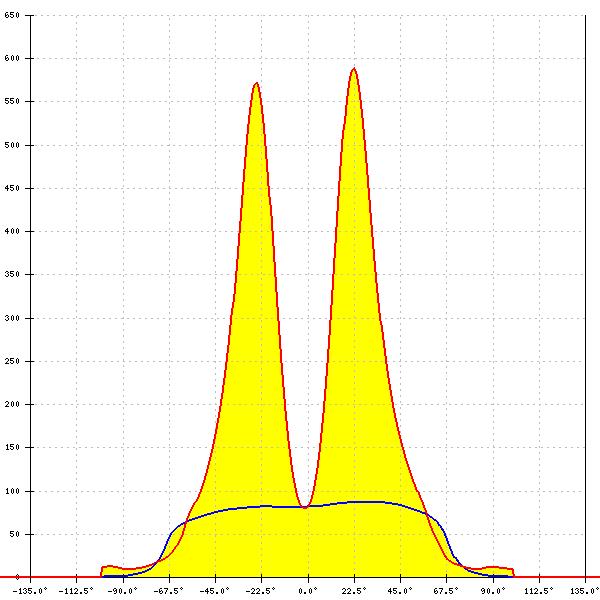

    LED: LLE G2 55x280mm 2000lm
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
