    F15244_FLORENCE-ZT25-S

    Print

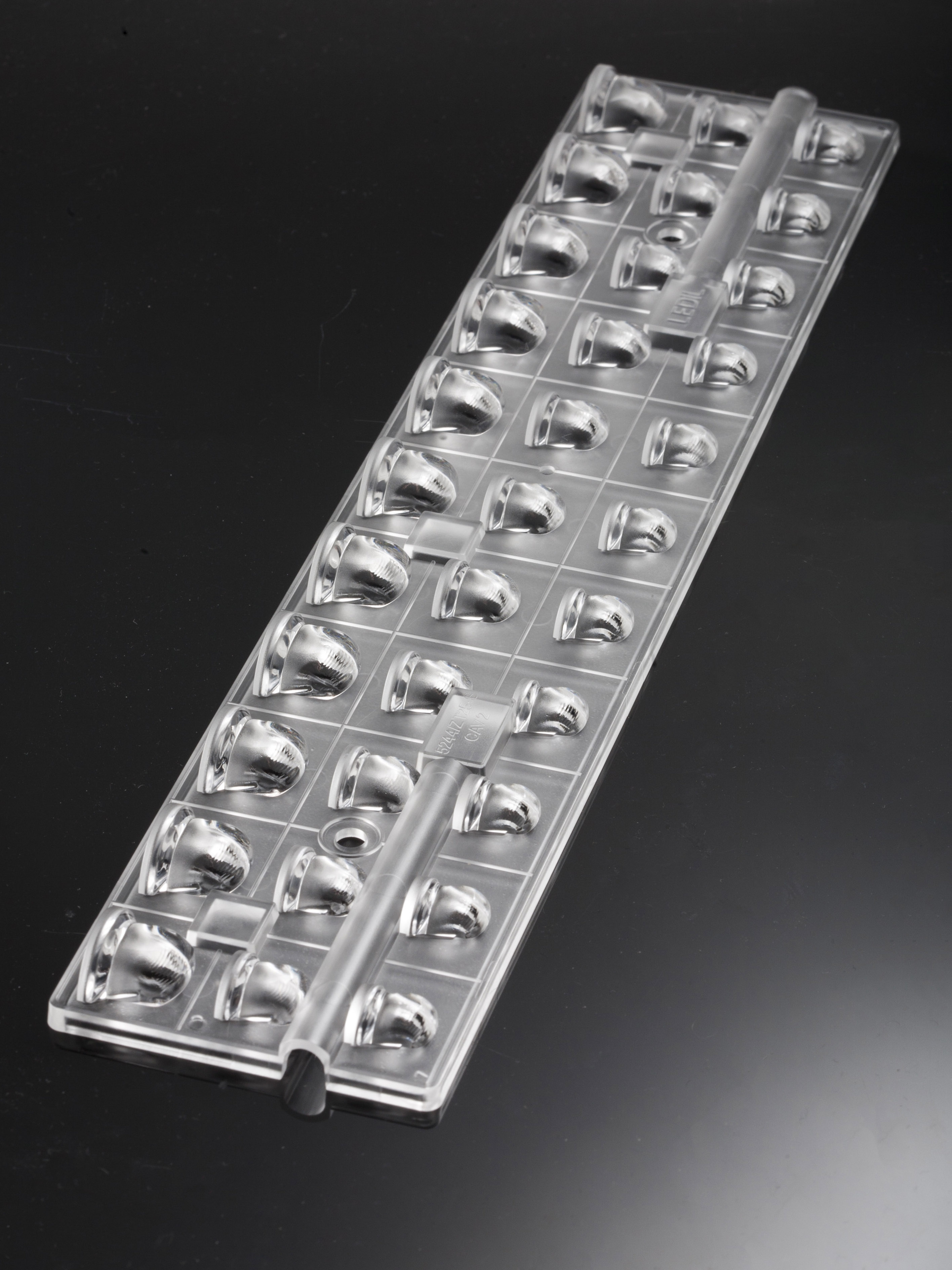

    Single-sided asymmetric oval beam for aisle lighting

    Specification
    • Dimensions:
      286 x  61 mm
    • Height:
      11.38 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      60 pcs
    • Box size:
      398 x 298 x 140 mm
    • Box weight:
      5.0 kg
    • MPQ:
      6 pcs
    • MOQ:
      18 pcs
    • MOQ size:
      400 x 300 x 50 mm
    • MOQ weight:
      1.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15244_FLORENCE-ZT25-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    FLORENCE-3R presented by Olga Cherepenina

    Luminaire, example

    Track module luminaire with FLORENCE-3R

    Luminaire, example

    Linear luminaire with FLORENCE-3R

    News

    PRODUCT NEWS - FLORENCE-ZT25-S

    Application example

    Wall-washing with FLORENCE-ZT25-S

    PCN

    Product change notification NR135 - Florence pocket change 070717

    PCN

    Product change notification NR128.e - Change of packaging quantities 241016

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    PRODUCT NEWS - FLORENCE

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    FLORENCE-PF-3R

    Press fit plug for appliances where accessing and opening the product needs to be restricted. Compatible with FLORENCE 3-row optics.

    Optical results

    LED: PL-BAR-G3 1100 280x55
    FWHM: asymmetric
    Peak intensity: 0.670 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

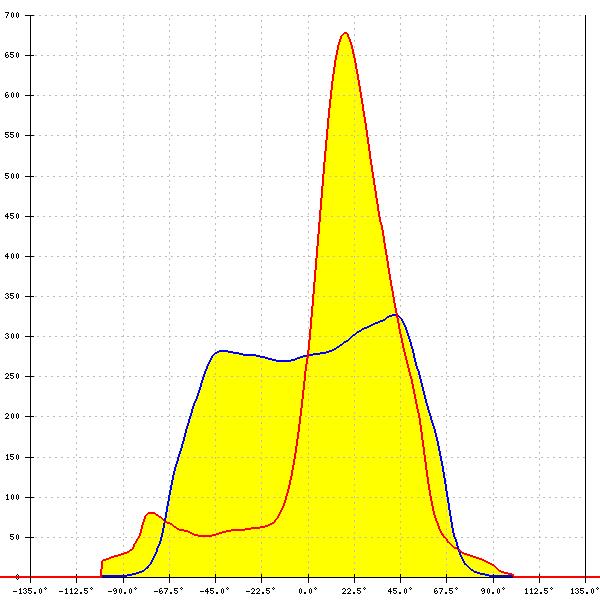

    LED: LUXEON XR-3535L (L202 - xxxx033C30001)
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

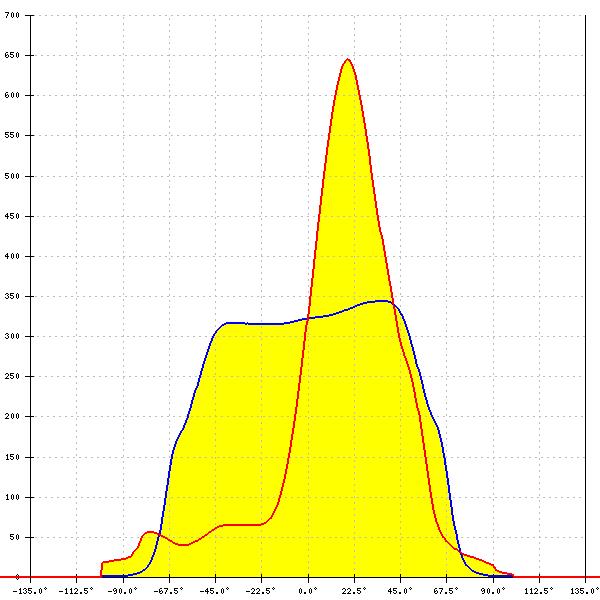

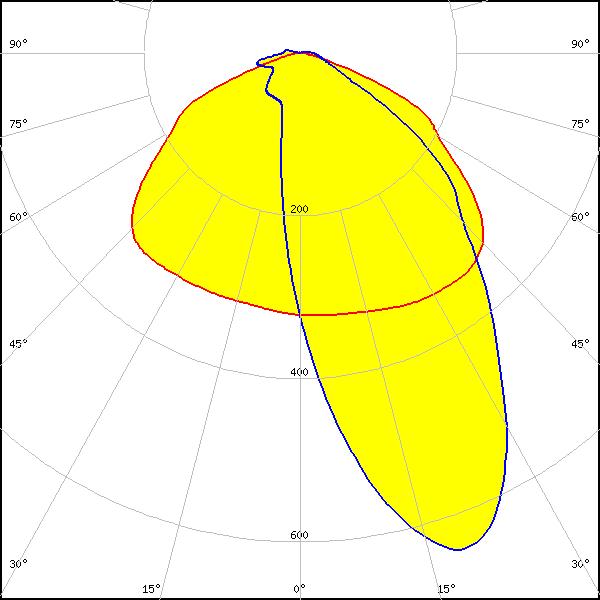

    LED: NFSW757H
    FWHM: asymmetric
    Peak intensity: 0.648 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

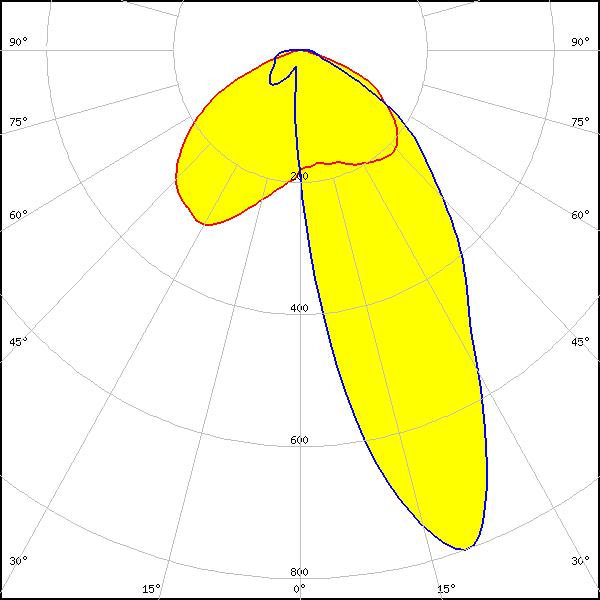

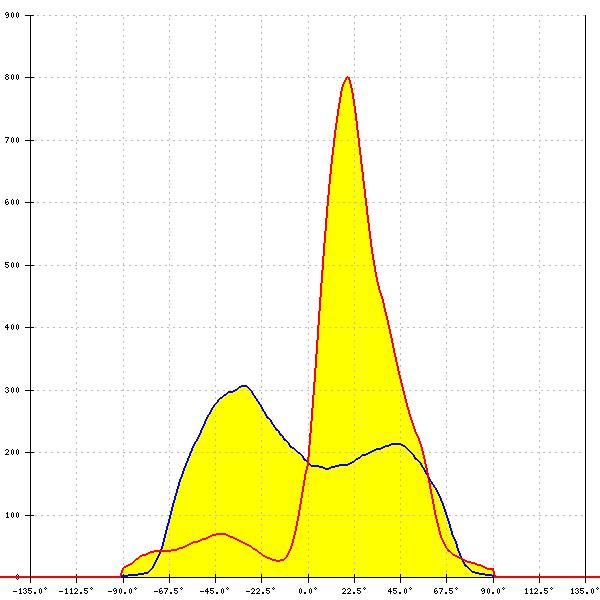

    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.803 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 2
    Light colour/type: White

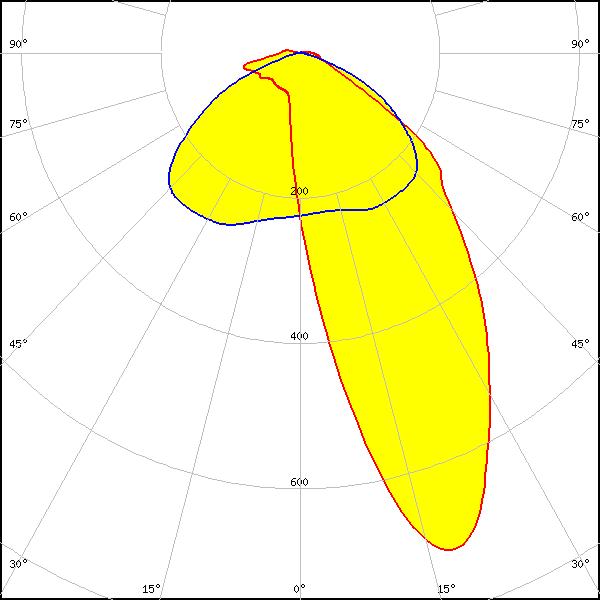

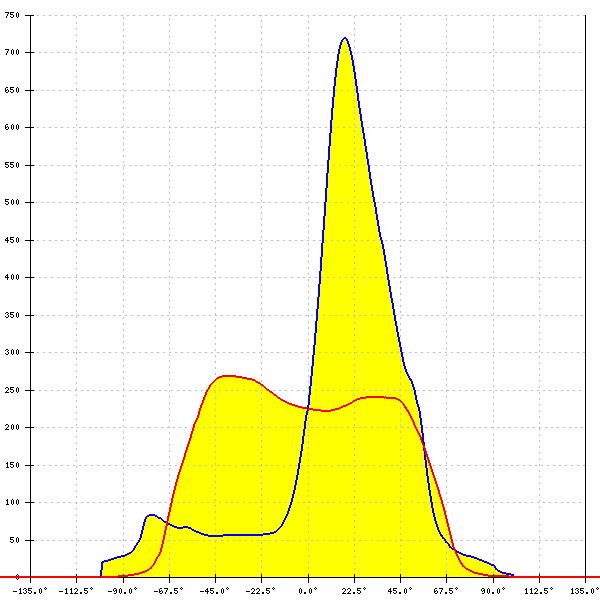

    LED: Duris E5
    FWHM: asymmetric
    Peak intensity: 0.730 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

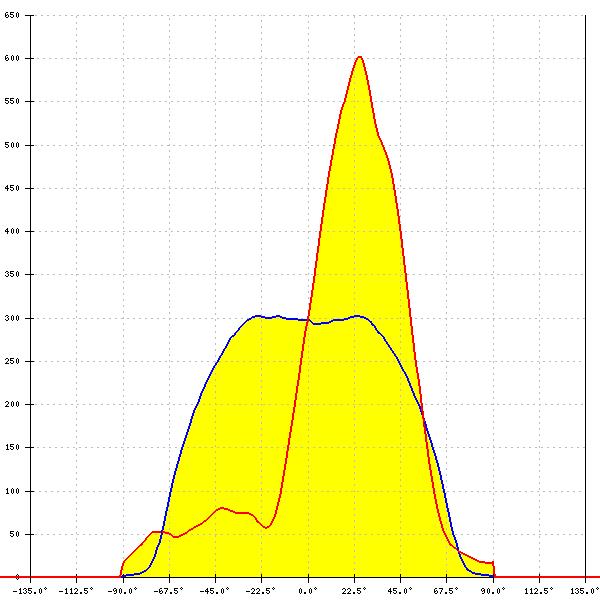

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.602 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line VO 1ft MF 3R HV5
    FWHM: asymmetric
    Peak intensity: 0.723 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft 1100lm 3R HV4
    FWHM: asymmetric
    Peak intensity: 0.670 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

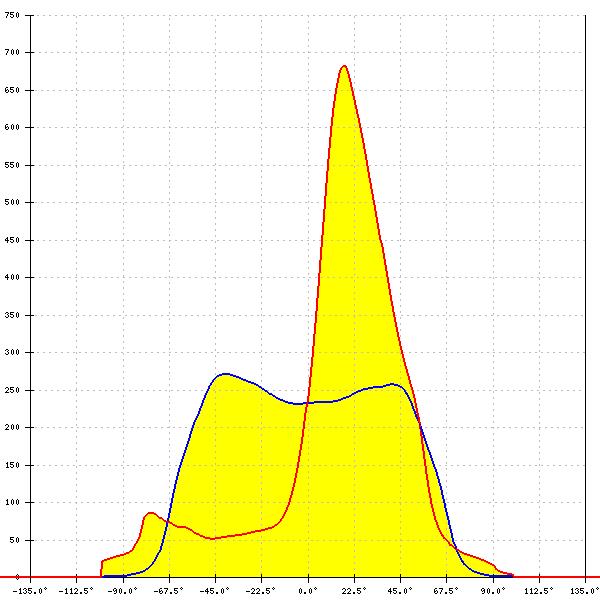

    LED: Fortimo LED Line 1ft 650lm 3R HV4 & LV4
    FWHM: asymmetric
    Peak intensity: 0.680 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft HF 3R HV5
    FWHM: asymmetric
    Peak intensity: 0.656 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft LF 3R HV5 & LV5
    FWHM: asymmetric
    Peak intensity: 0.685 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft MF 3R HV5 & LV5
    FWHM: asymmetric
    Peak intensity: 0.668 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

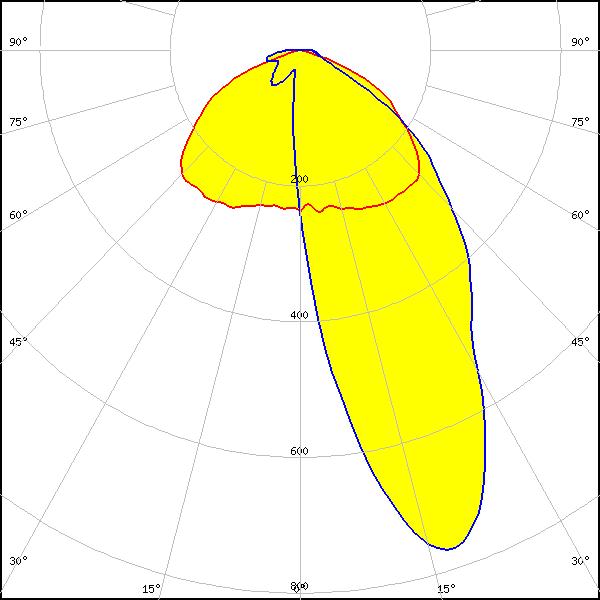

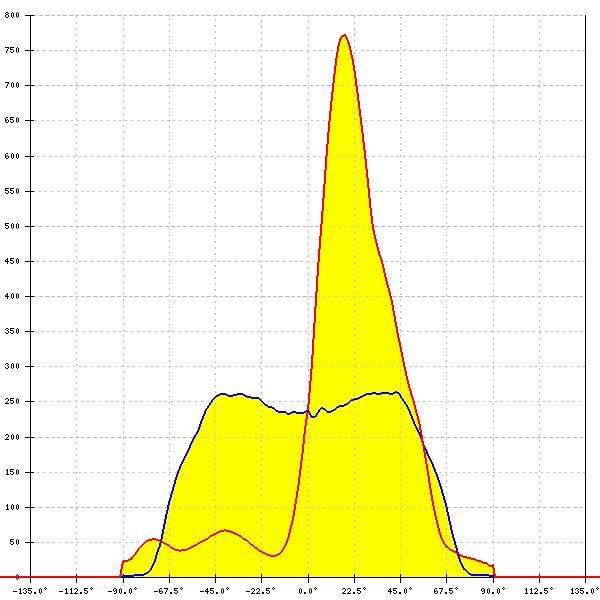

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.770 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

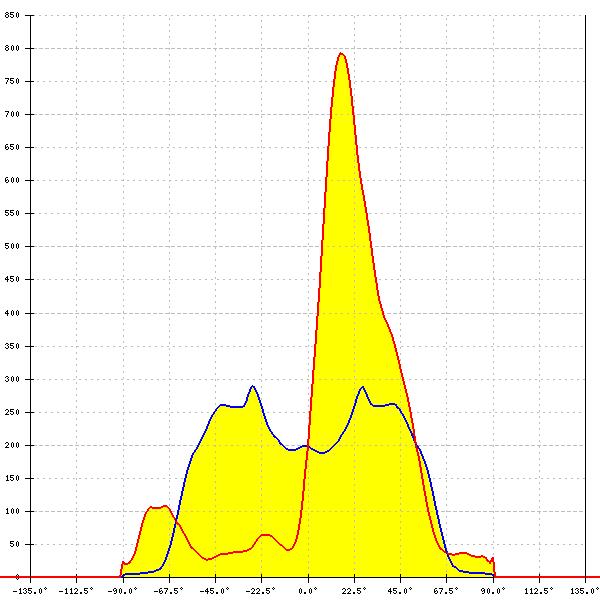

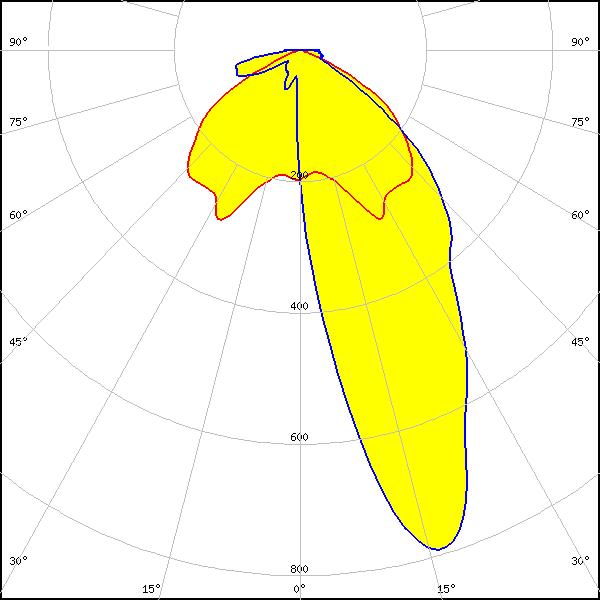

    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 0.795 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

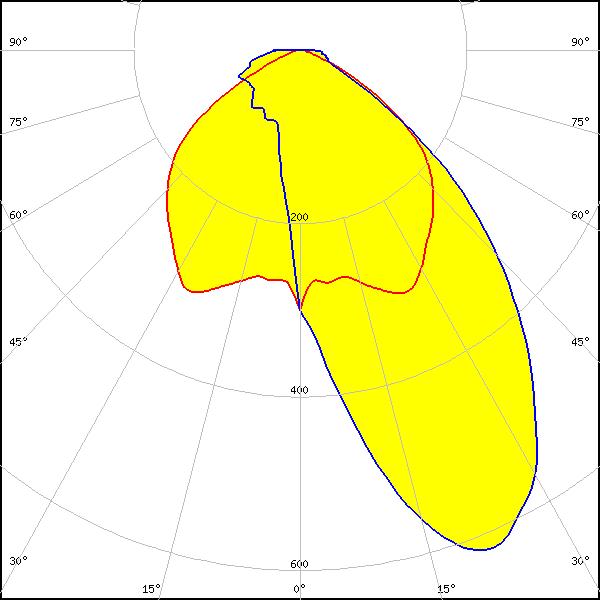

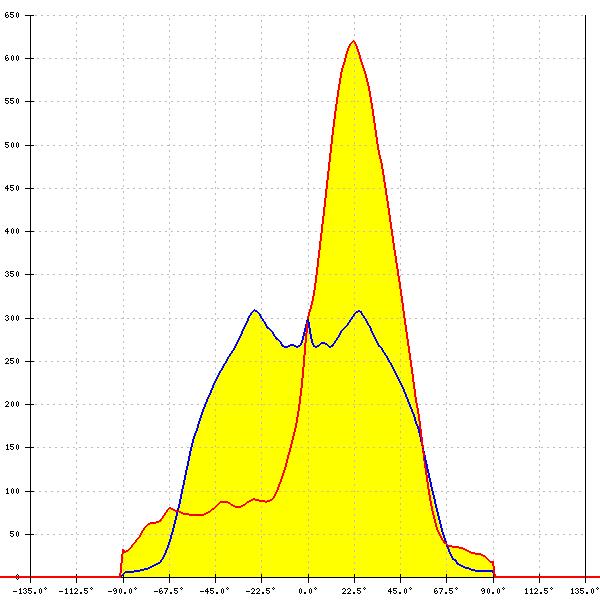

    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 0.623 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

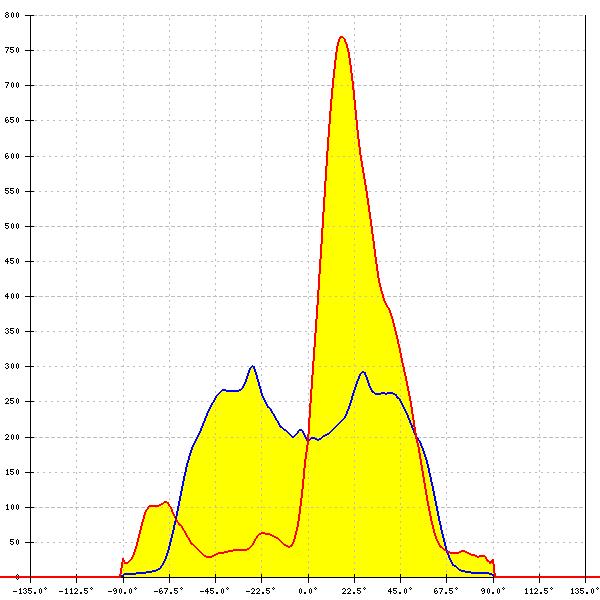

    LED: LM302Z plus
    FWHM: asymmetric
    Peak intensity: 0.771 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

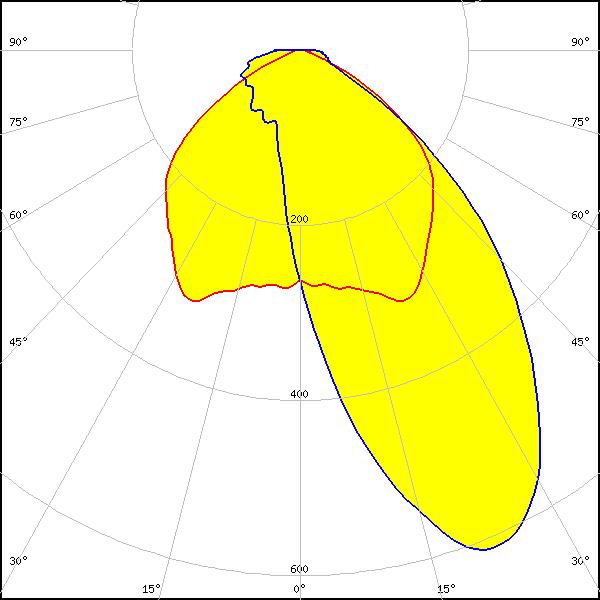

    LED: LM302Z plus
    FWHM: asymmetric
    Peak intensity: 0.619 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

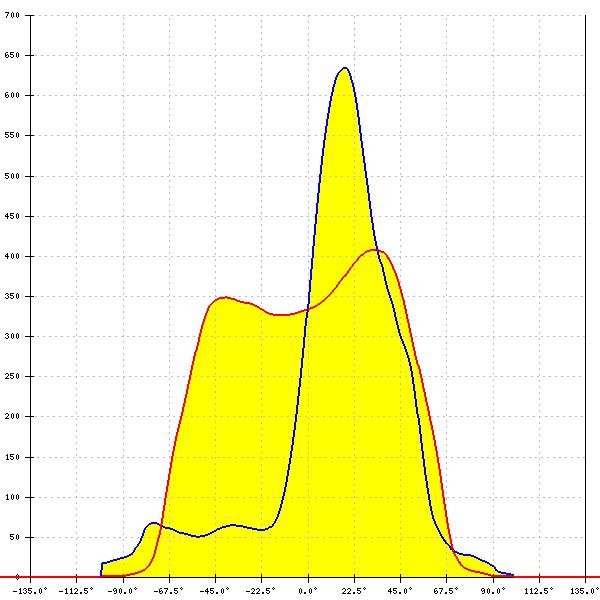

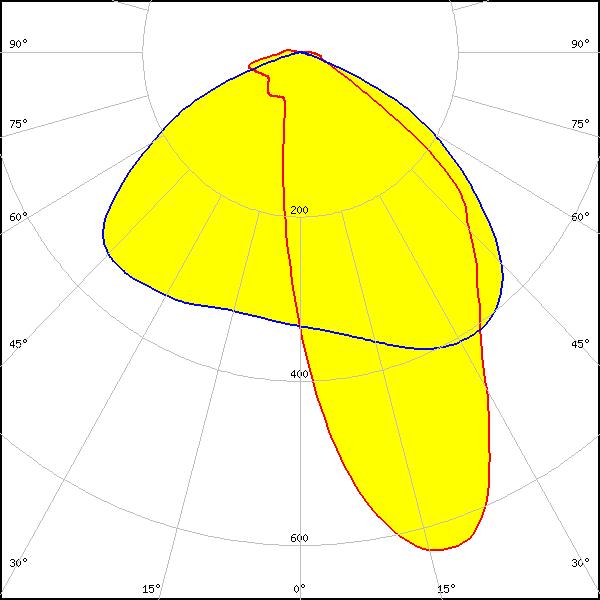

    LED: LM561B Plus
    FWHM: asymmetric
    Peak intensity: 0.650 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

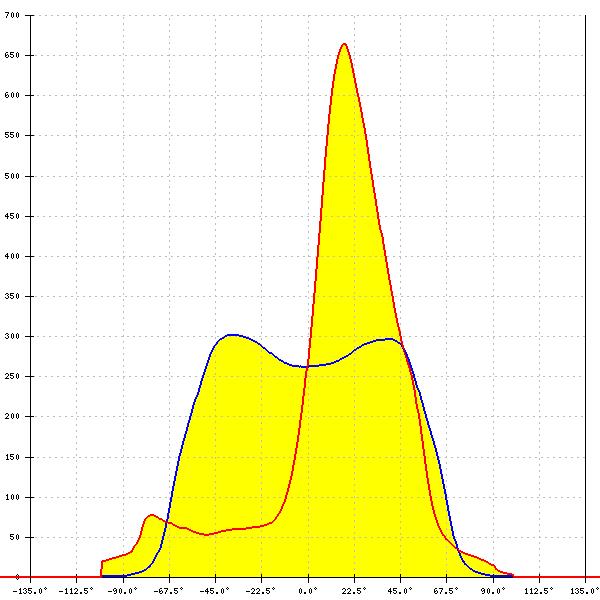

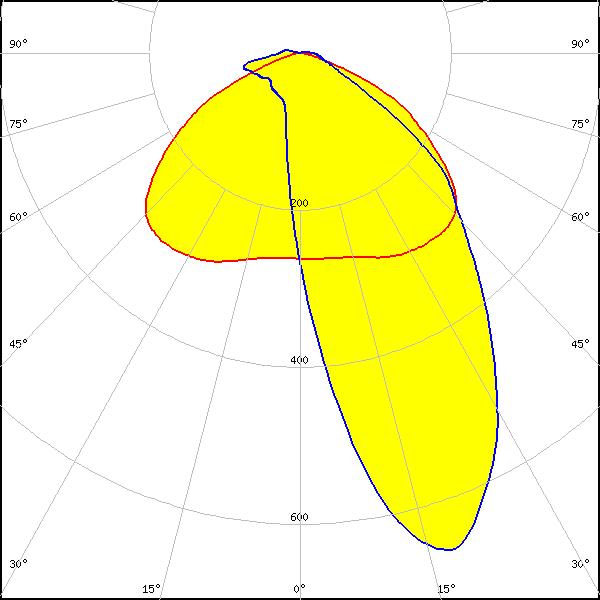

    LED: LT-R286A
    FWHM: asymmetric
    Peak intensity: 0.670 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

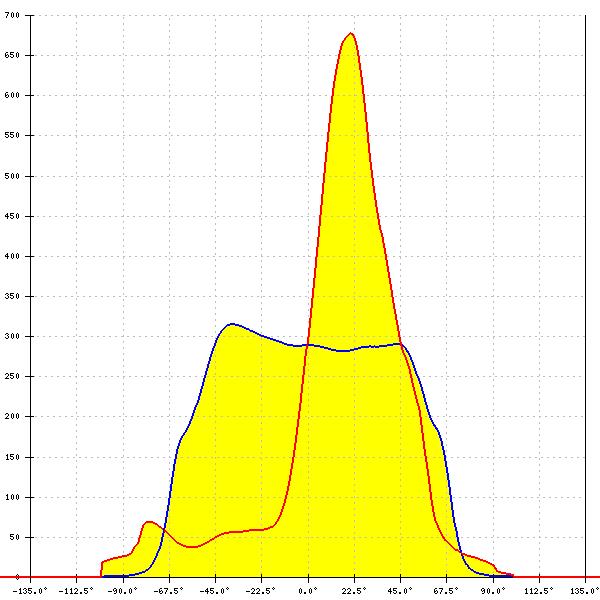

    LED: SEOUL 3030
    FWHM: asymmetric
    Peak intensity: 0.680 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

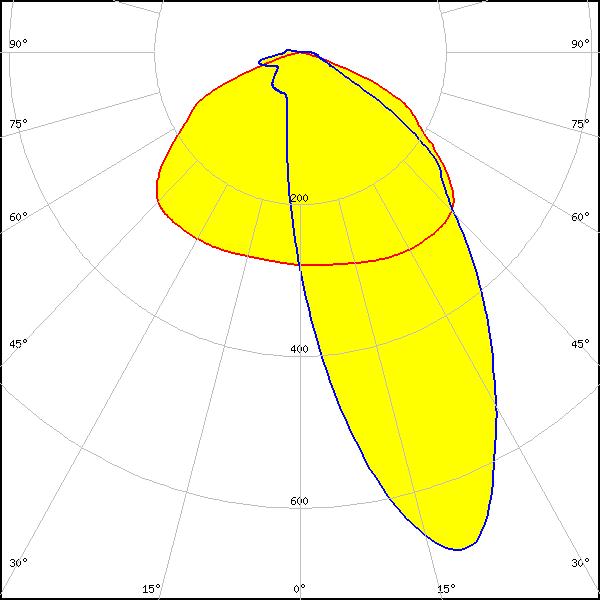

    LED: SEOUL 5630
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

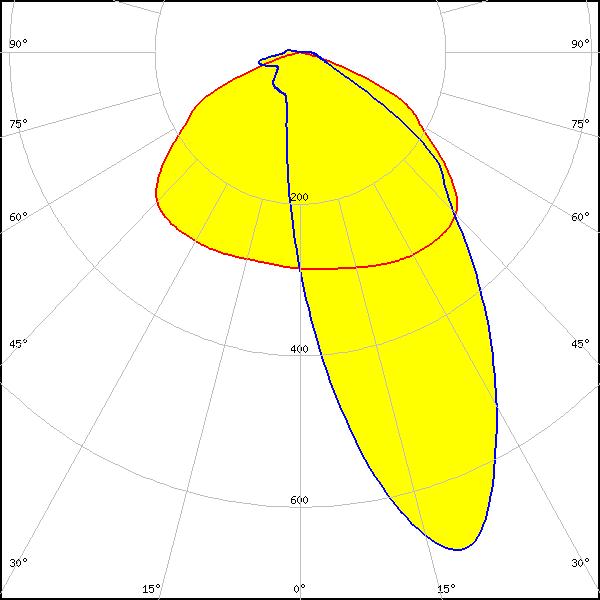

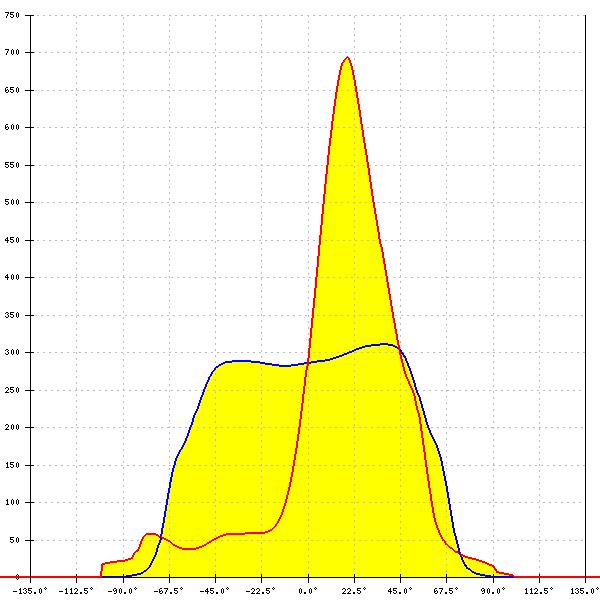

    LED: SEOUL 5630C
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030
    FWHM: asymmetric
    Peak intensity: 0.710 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

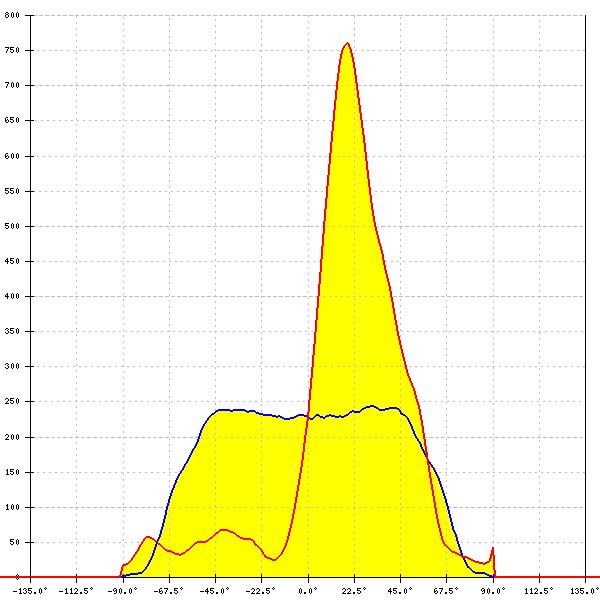

    LED: SEOUL DC 3030C
    FWHM: asymmetric
    Peak intensity: 0.760 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

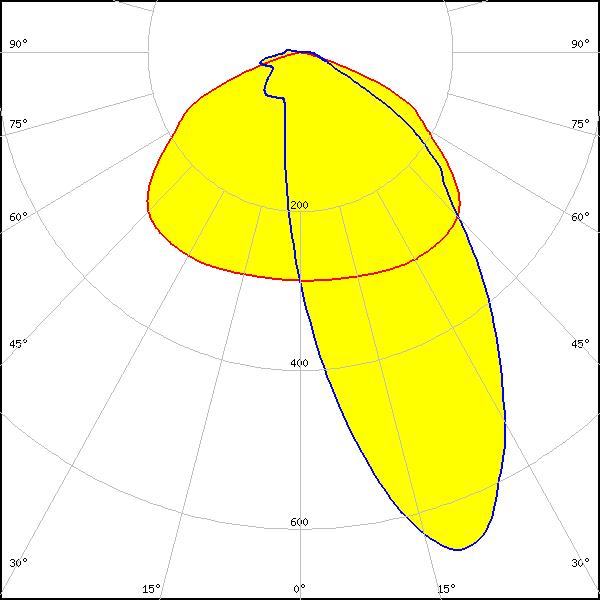

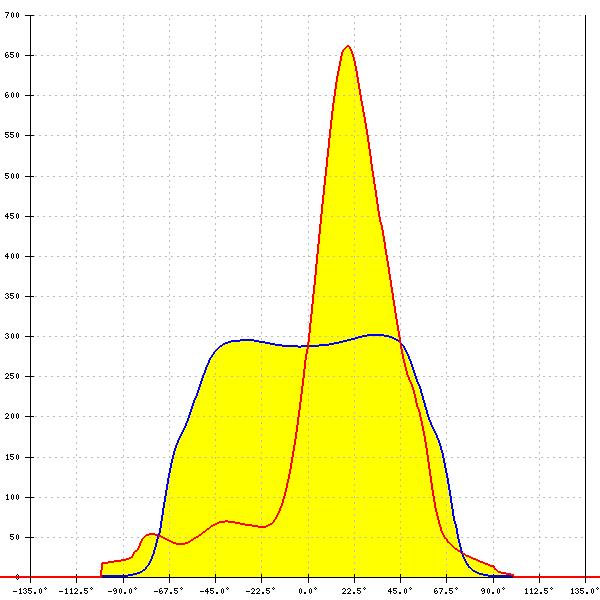

    LED: LLE G2 55x280mm 2000lm
    FWHM: asymmetric
    Peak intensity: 0.670 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
