F14486_FLORENCE-Z30
Print
~30° medium beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

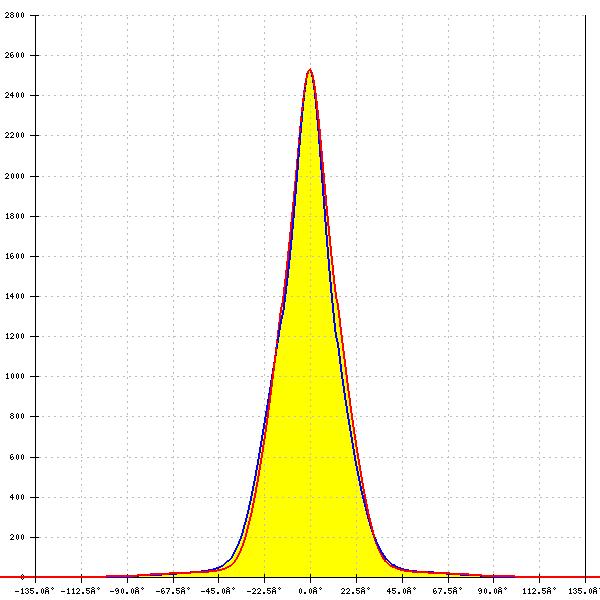

LED:

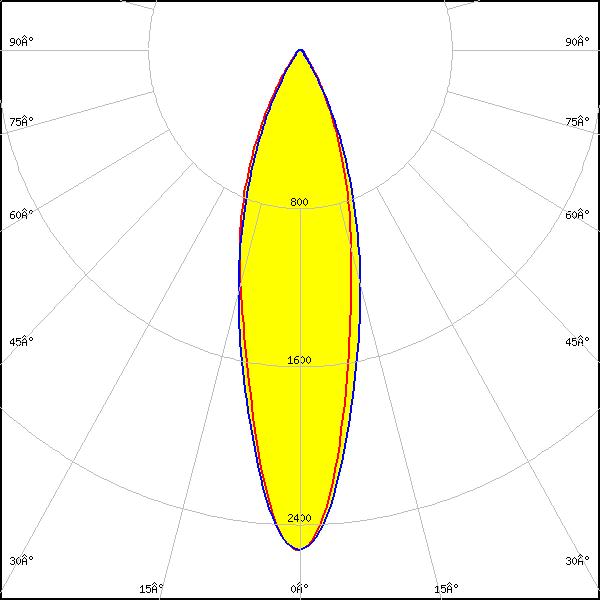

PL-BAR-G3 1100 280x55
FWHM:
28°
FWTM:
61°
Peak intensity:
2.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

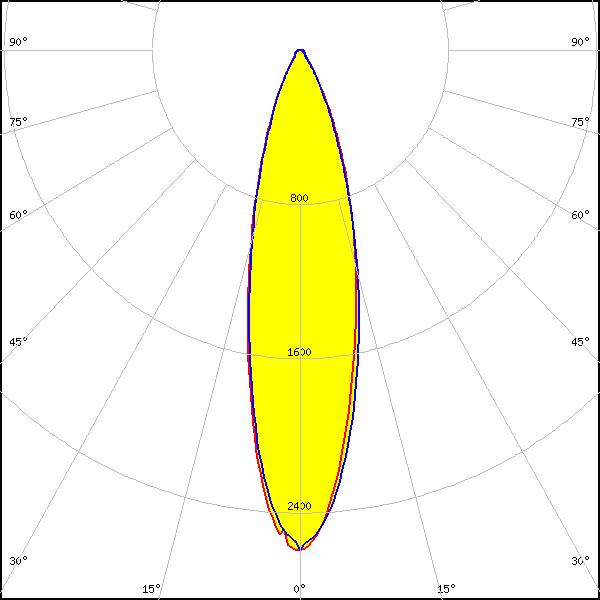

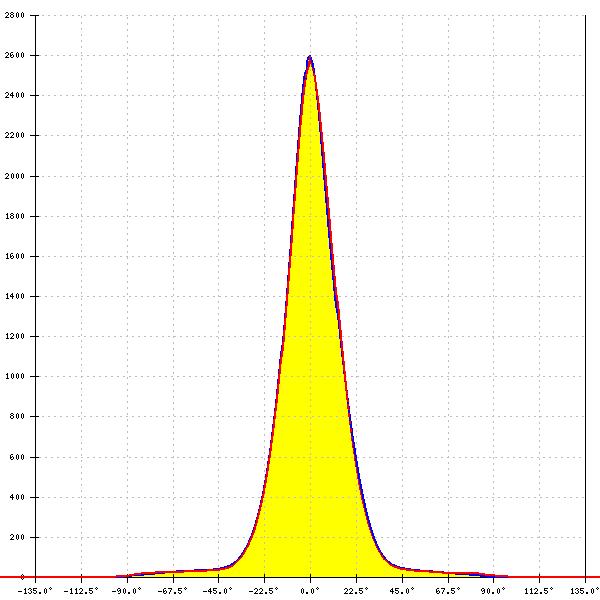

LED:
LUXEON 3030 2D (Round LES)
FWHM:
26°
FWTM:
56°
Peak intensity:
2.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

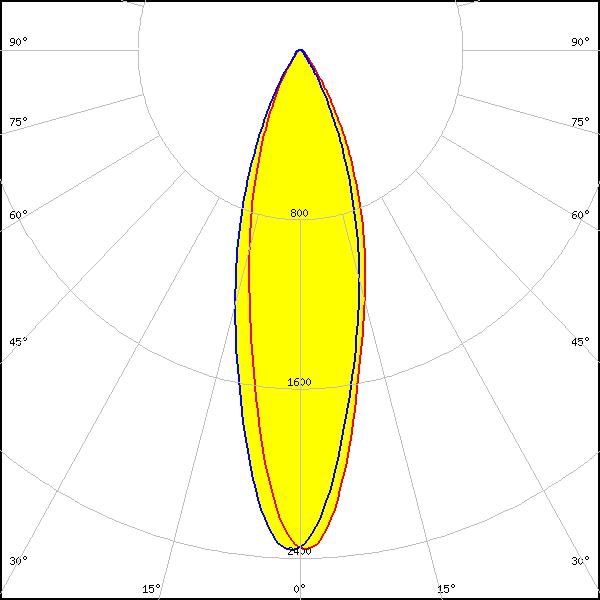

LED:

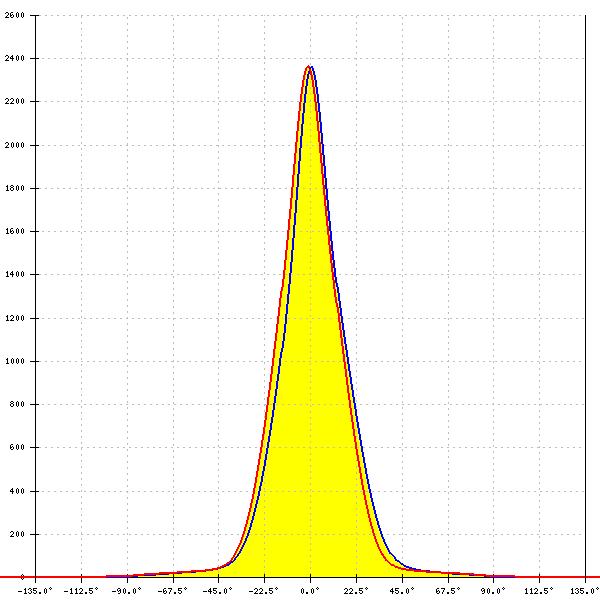

LUXEON 3535L HE
FWHM:
29°
FWTM:
63°
Peak intensity:
2.370 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

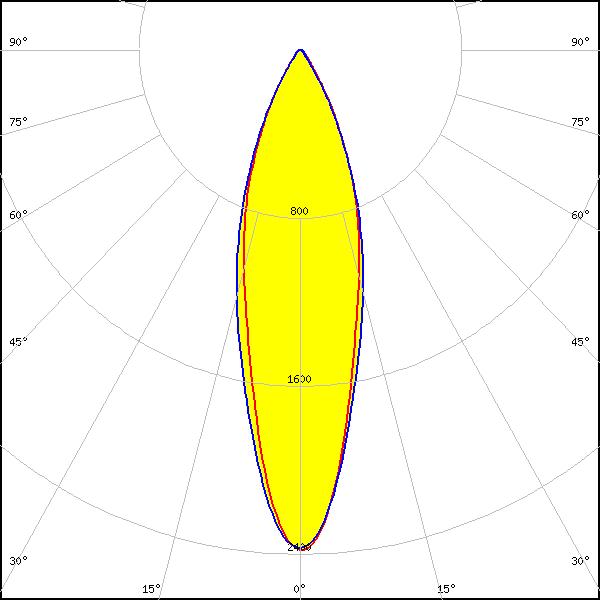

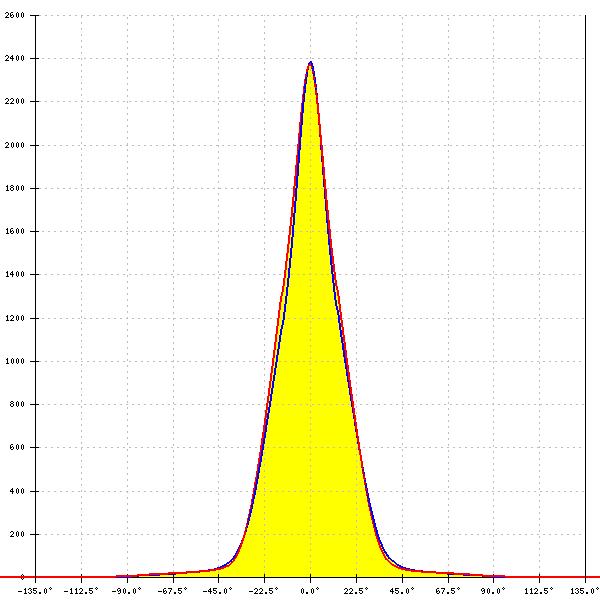

LED:
LUXEON XR-3535L (L202 - xxxx033C30001)
FWHM:
27°
FWTM:
63°
Peak intensity:
2.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

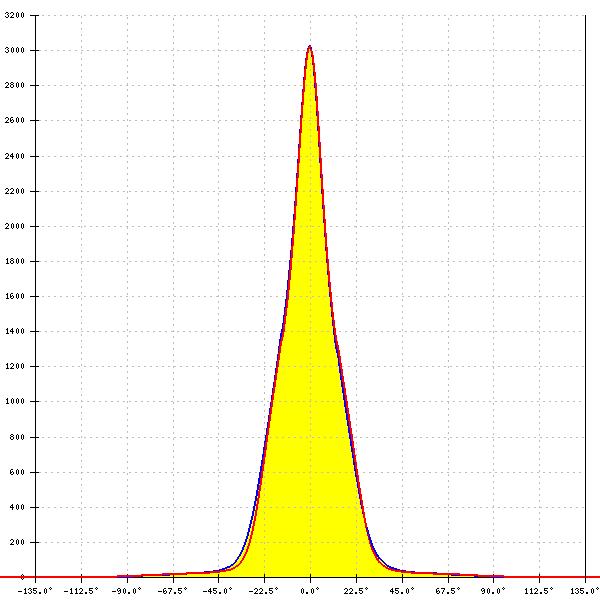

LED:

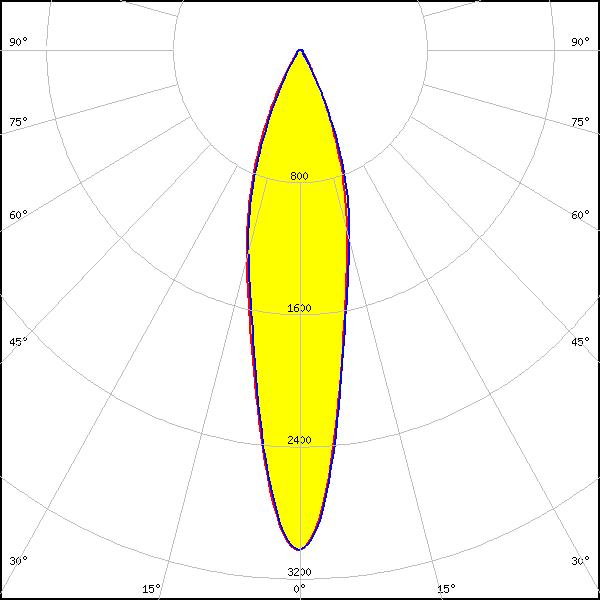

MP-2016
FWHM:
24°
FWTM:
56°
Peak intensity:
3.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

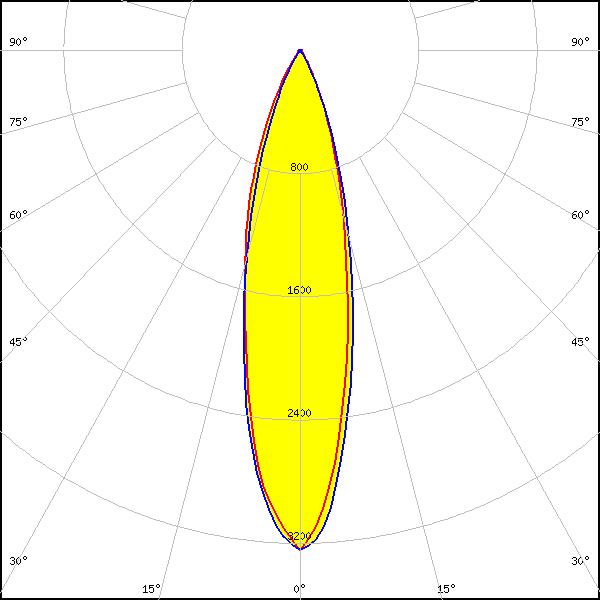

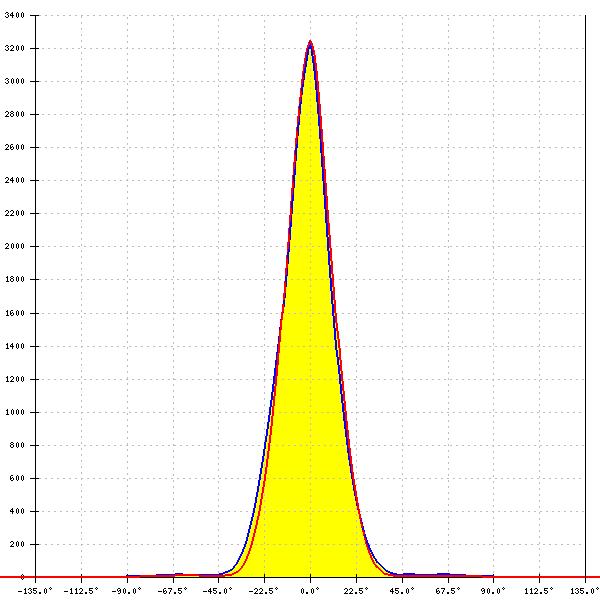

LED:
NF2x757G
FWHM:
25°
FWTM:
53°
Peak intensity:
3.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

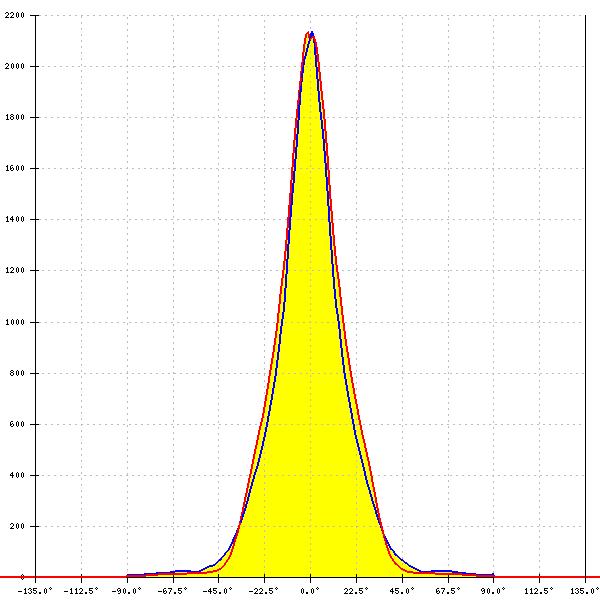

LED:
NFMW48xA
FWHM:
27°
FWTM:
69°
Peak intensity:
2.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

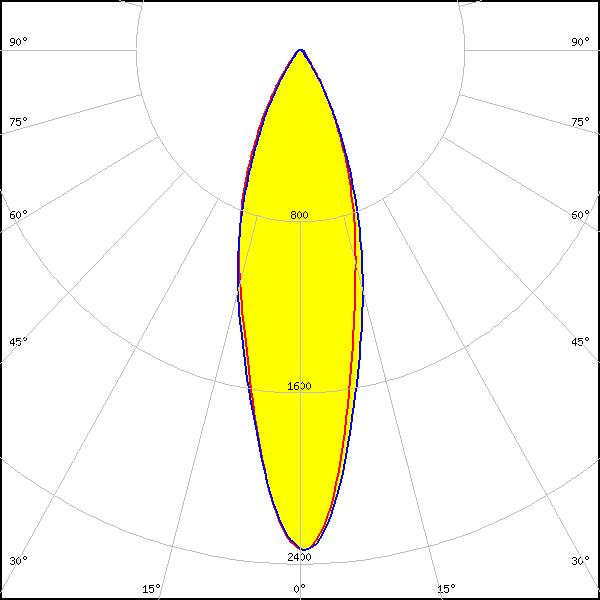

LED:

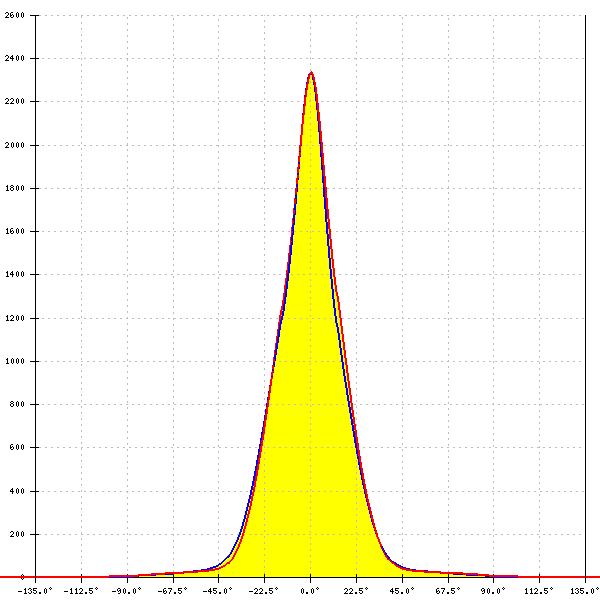

NFSW757H
FWHM:
29°
FWTM:
64°
Peak intensity:
2.339 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

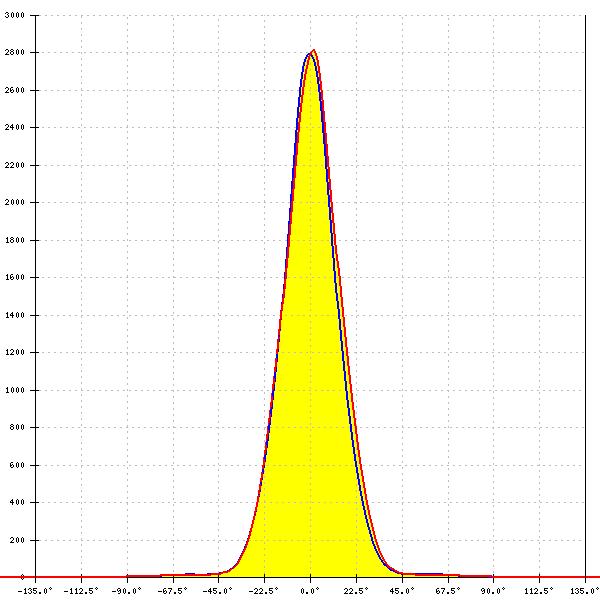

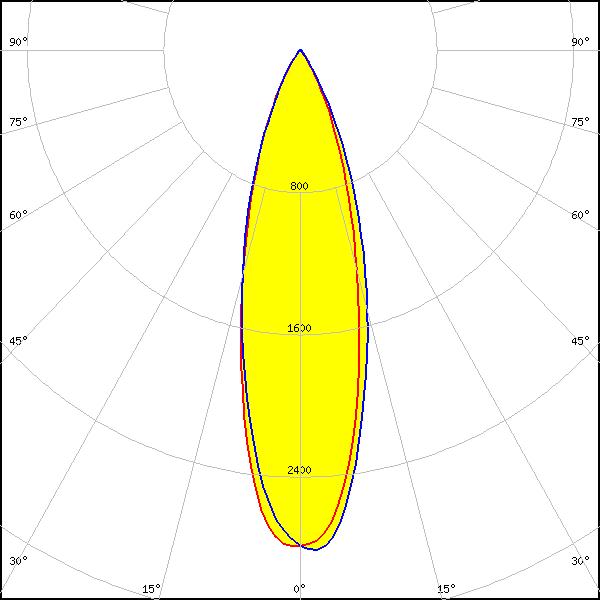

LED:
Duris E 2835
FWHM:
29°
FWTM:
58°
Peak intensity:
2.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

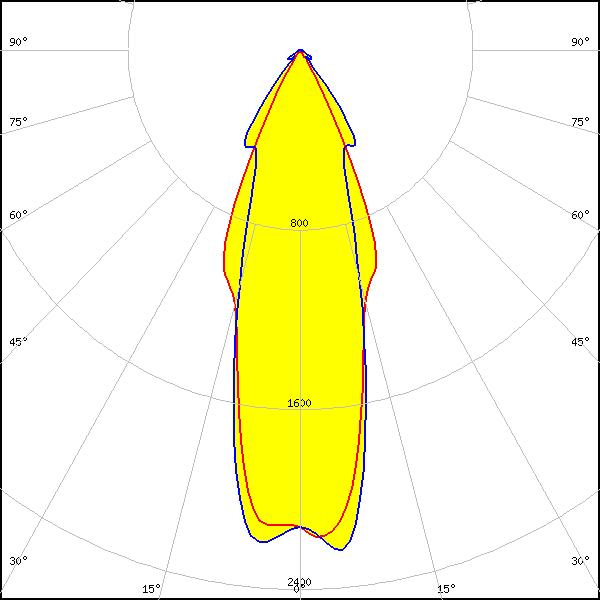

LED:

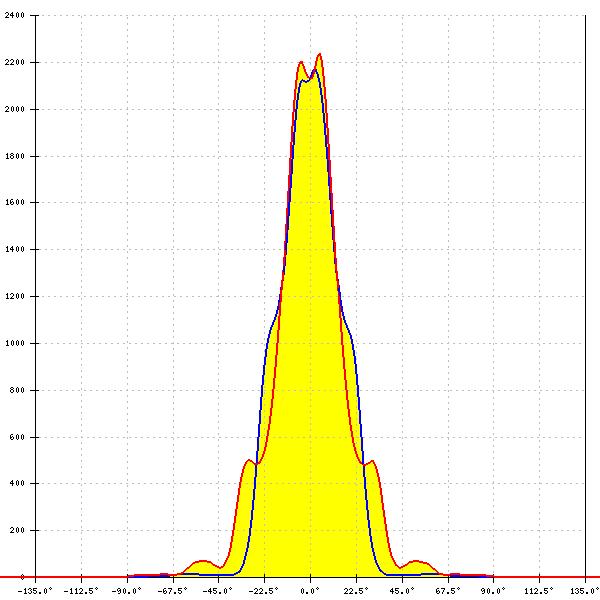

Duris E 2835
FWHM:
30°
FWTM:
75°
Peak intensity:
2.220 cd/lm
Efficiency:
96 %
LEDs/each optic:
2
Light colour/type:
White

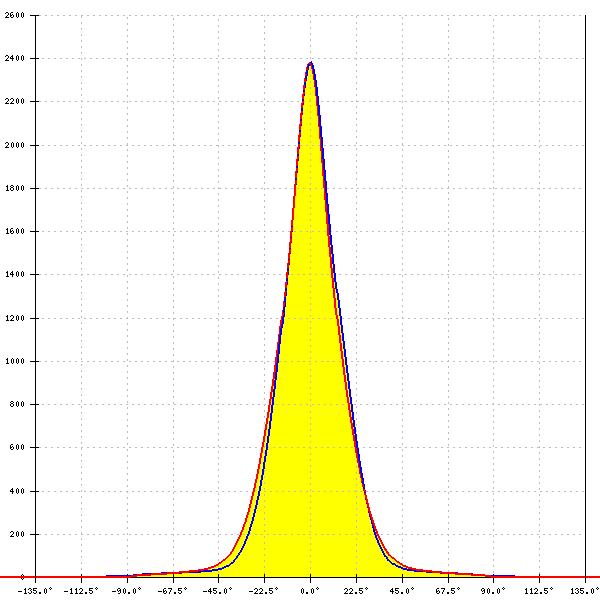

LED:

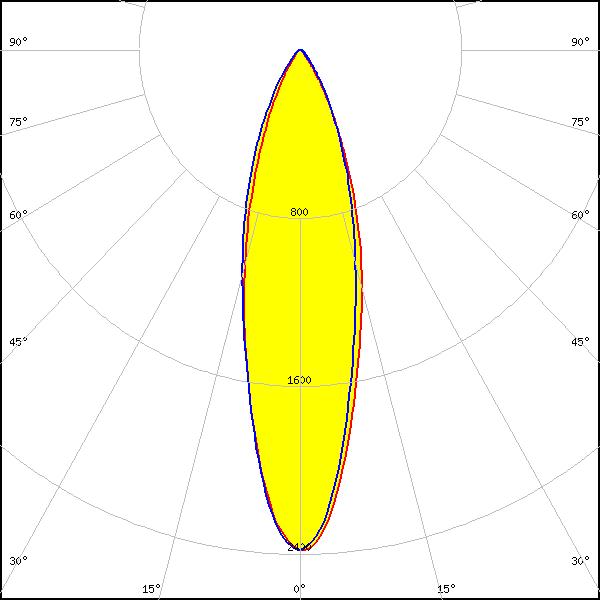

Duris E5
FWHM:
28°
FWTM:
62°
Peak intensity:
2.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

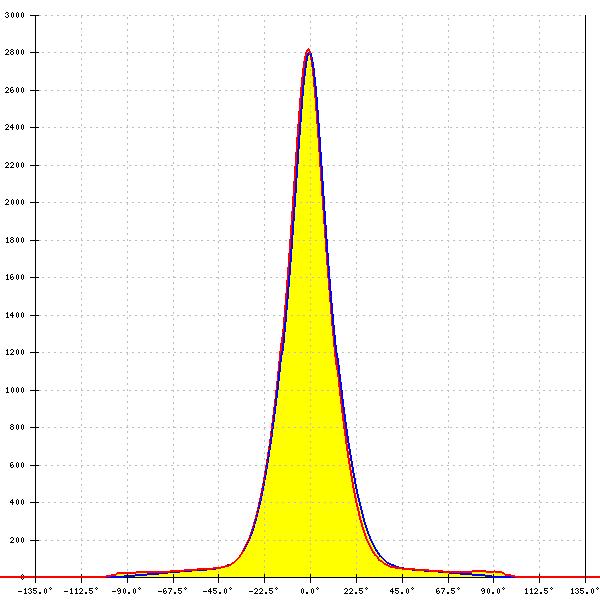

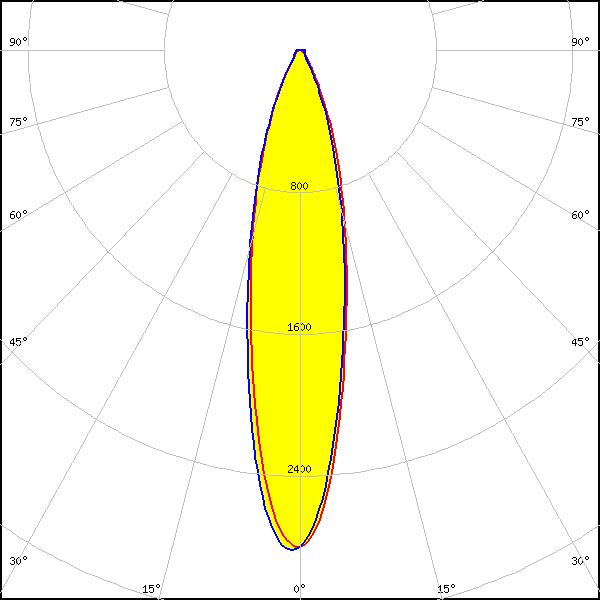

LED:
Duris S2
FWHM:
23°
FWTM:
54°
Peak intensity:
2.820 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

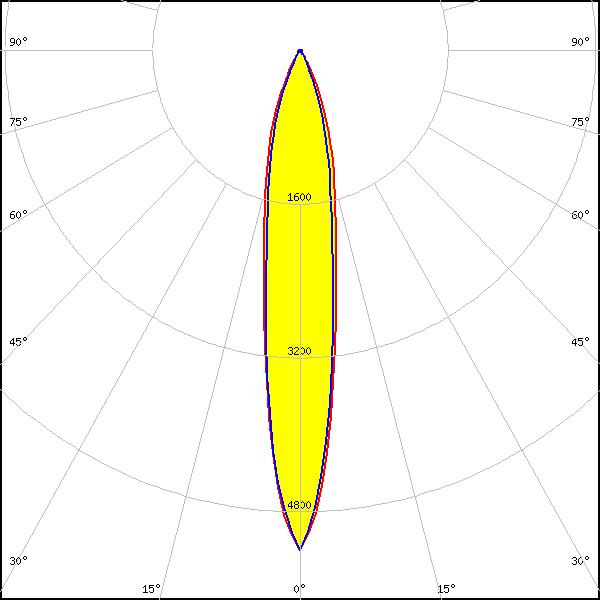

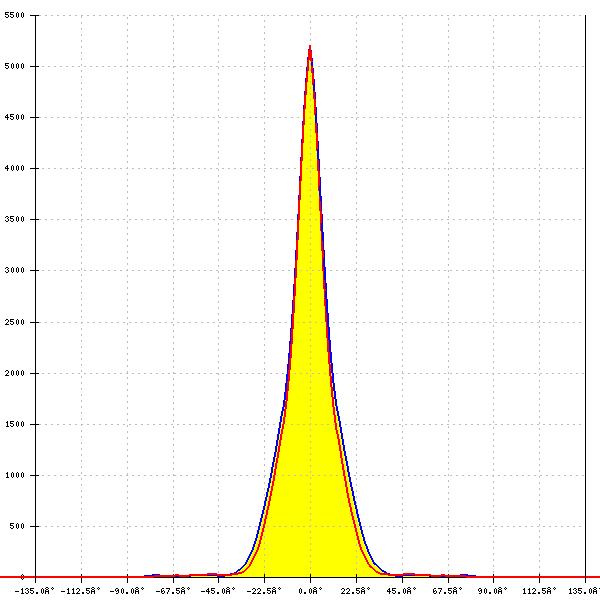

DURIS S5 (Single chip)
FWHM:
17°
FWTM:
47°
Peak intensity:
5.202 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

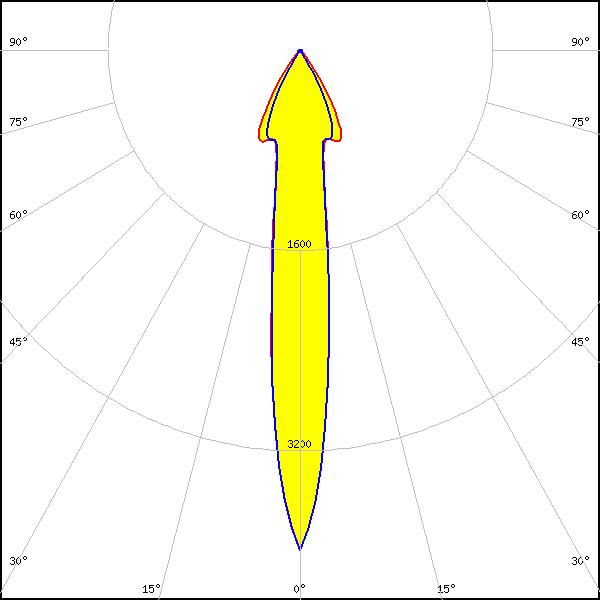

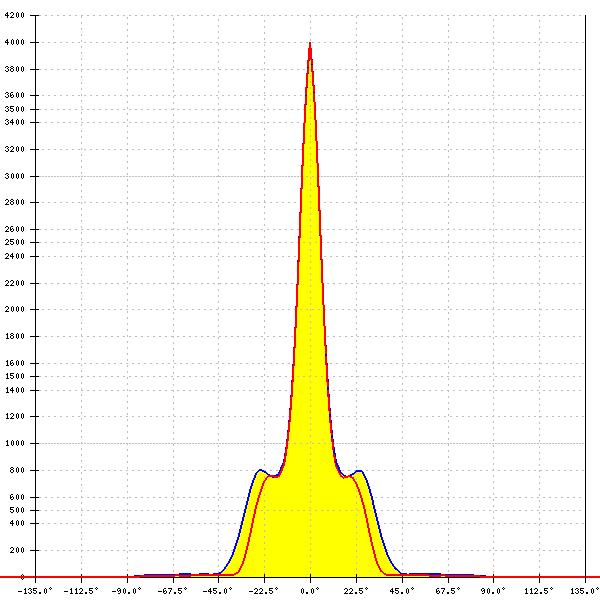

LED:
OSCONIQ C 2424
FWHM:
14°
FWTM:
68°
Peak intensity:
3.995 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line VO 1ft MF 3R HV5
FWHM:
23°
FWTM:
58°
Peak intensity:
3.125 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft 650lm 3R HV4 & LV4
FWHM:
26°
FWTM:
60°
Peak intensity:
2.718 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft HF 3R HV5
FWHM:
25°
FWTM:
57°
Peak intensity:
2.948 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft LF 3R HV5 & LV5
FWHM:
24°
FWTM:
57°
Peak intensity:
3.068 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft MF 3R HV5 & LV5
FWHM:
26°
FWTM:
59°
Peak intensity:
2.857 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

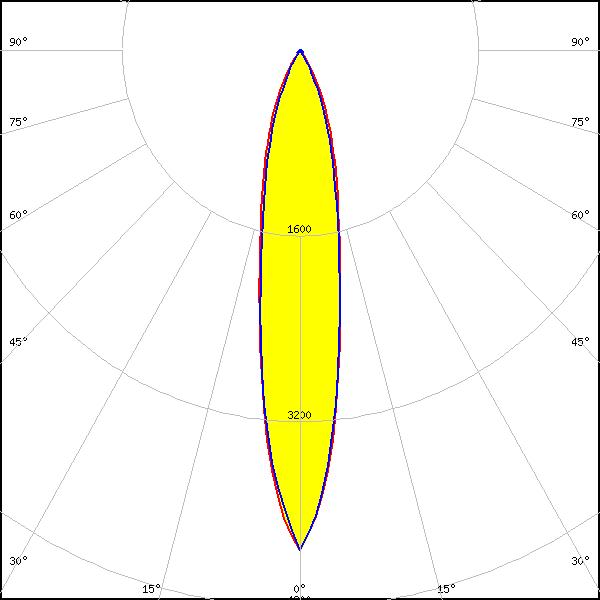

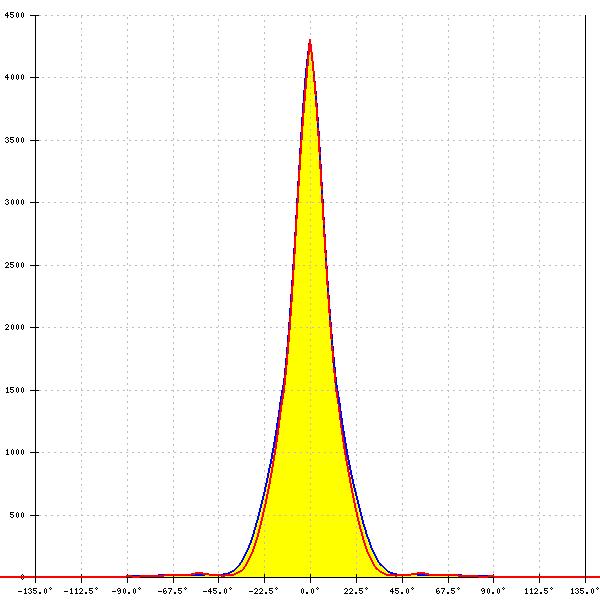

LED:
LM28xB Series
FWHM:
20°
FWTM:
52°
Peak intensity:
4.311 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

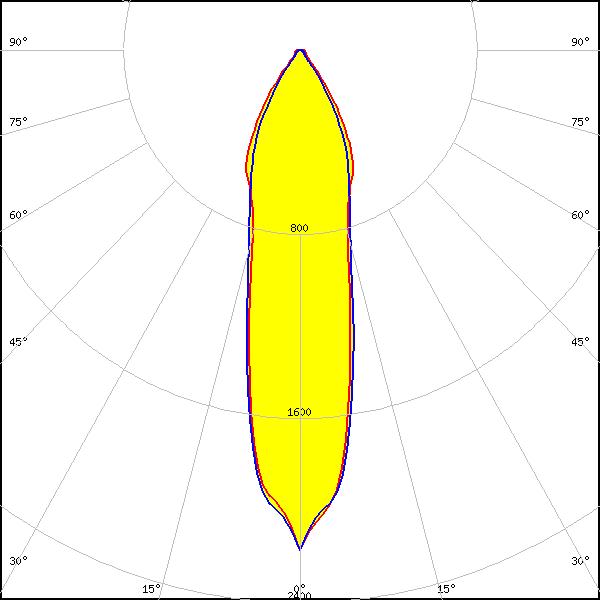

LED:
LM301B
FWHM:
24° + 26°
FWTM:
74° + 66°
Peak intensity:
2.174 cd/lm
Efficiency:
89 %
LEDs/each optic:
2
Light colour/type:
White

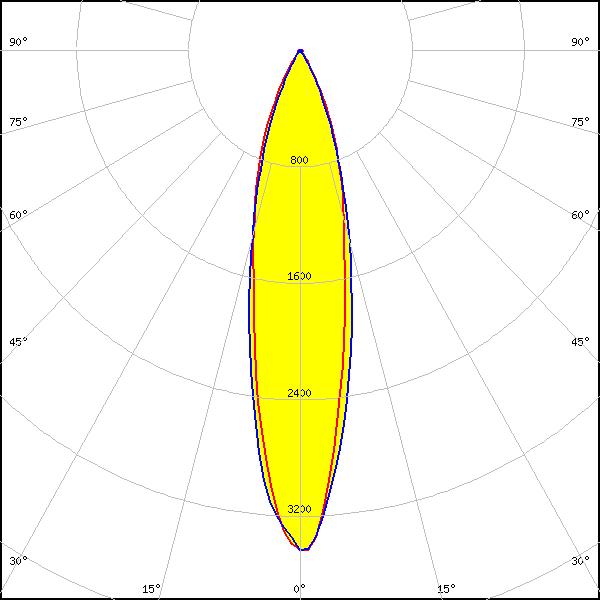

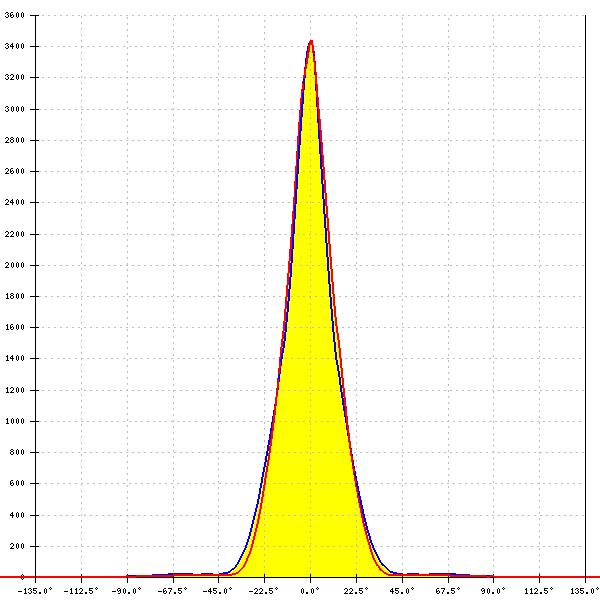

LED:
LM302Z plus
FWHM:
23°
FWTM:
54°
Peak intensity:
3.446 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

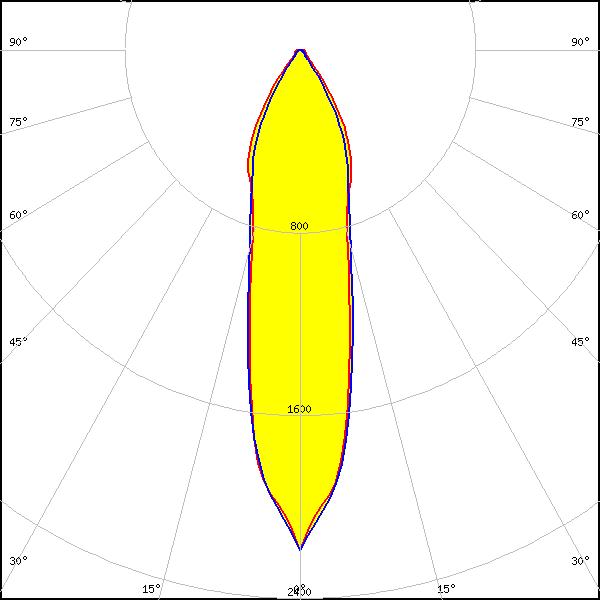

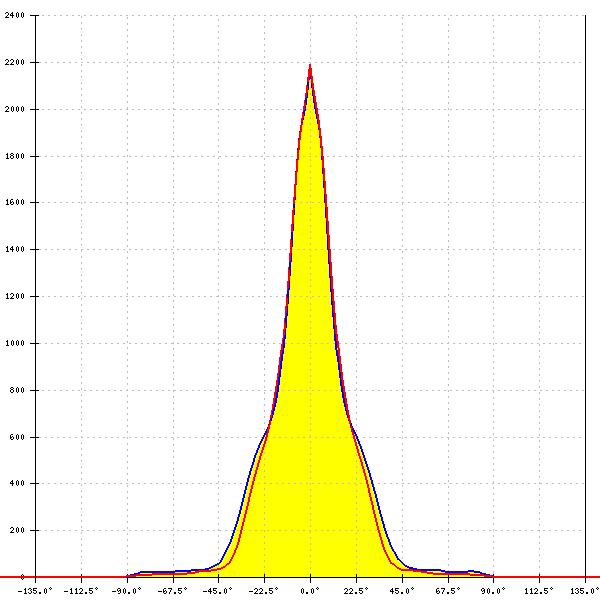

LED:
LM302Z plus
FWHM:
25°
FWTM:
70°
Peak intensity:
2.190 cd/lm
Efficiency:
89 %
LEDs/each optic:
2
Light colour/type:
White

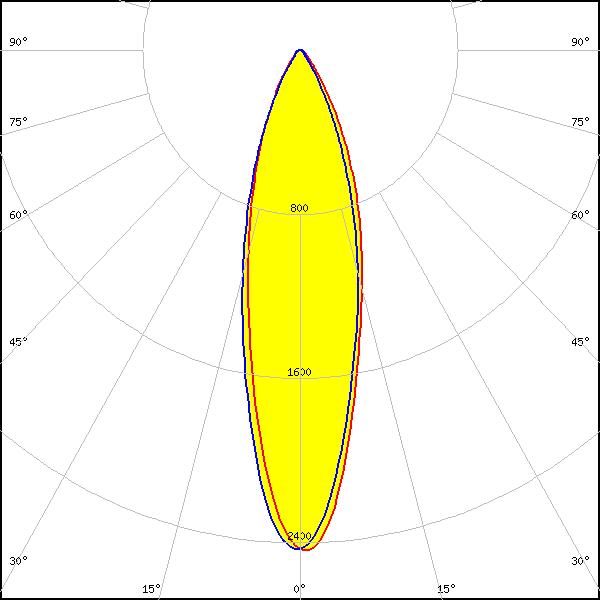

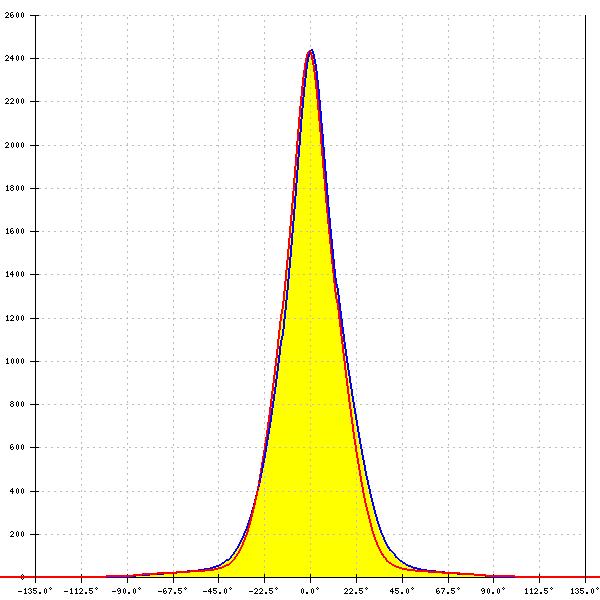

LED:
LM561B
FWHM:
28°
FWTM:
62°
Peak intensity:
2.440 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

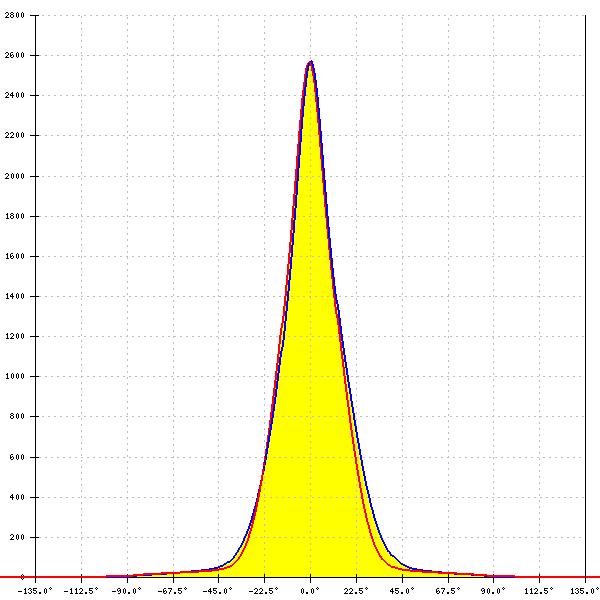

LED:
LM561B Plus
FWHM:
27°
FWTM:
60°
Peak intensity:
2.570 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

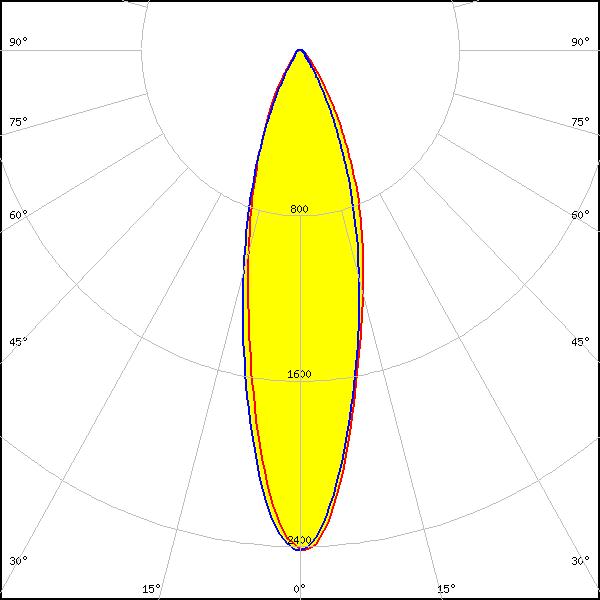

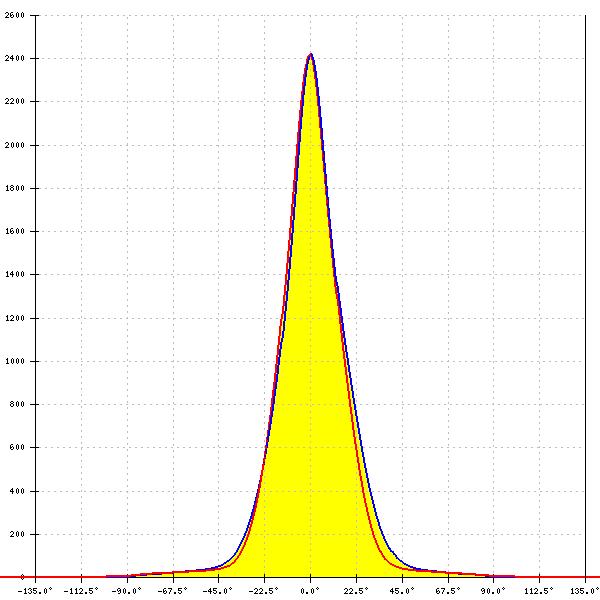

LED:
LM561C
FWHM:
28°
FWTM:
62°
Peak intensity:
2.420 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

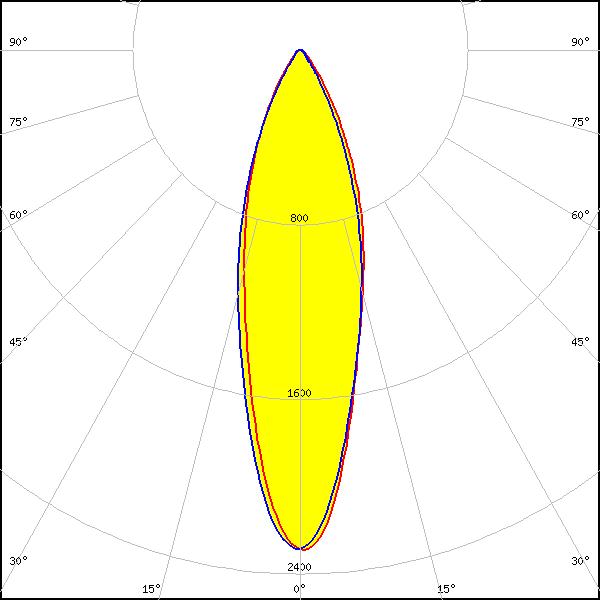

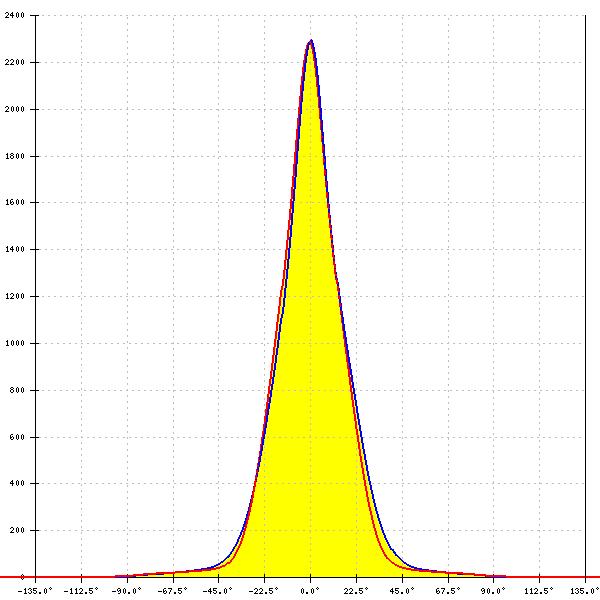

LED:
LT-R286A
FWHM:
29°
FWTM:
65°
Peak intensity:
2.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

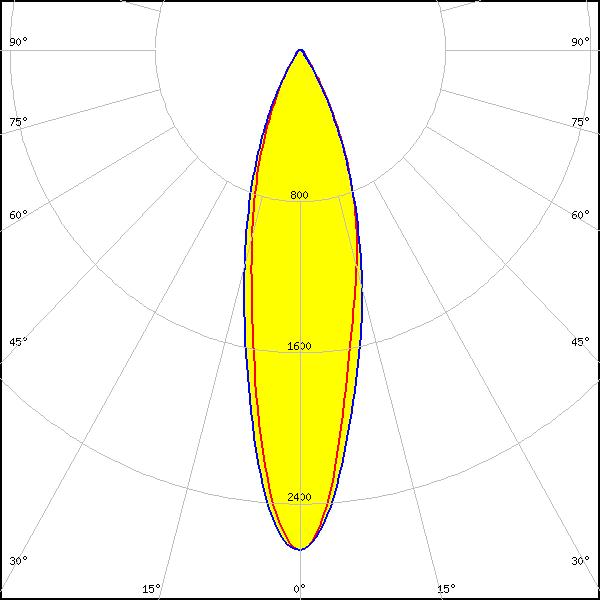

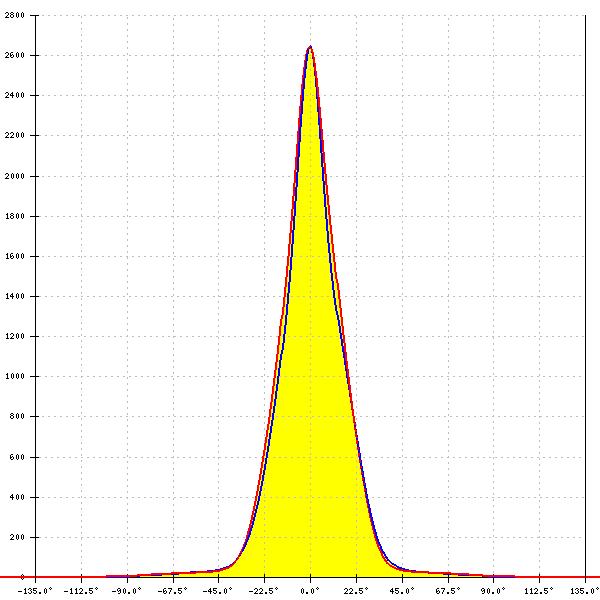

LED:
SEOUL 3030
FWHM:
27°
FWTM:
60°
Peak intensity:
2.645 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

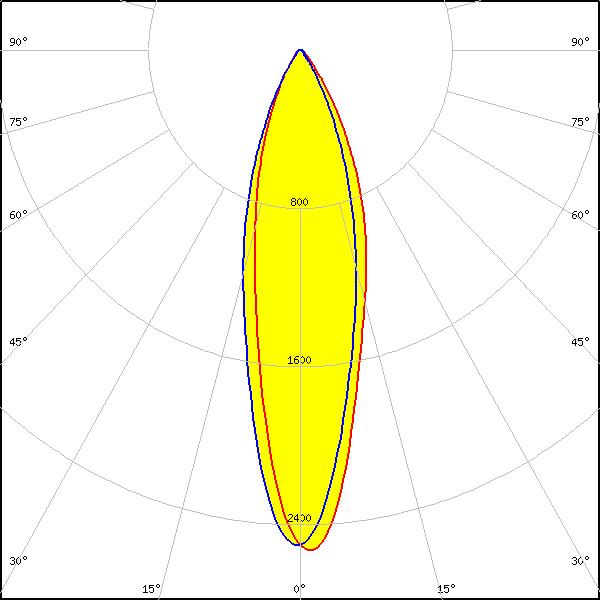

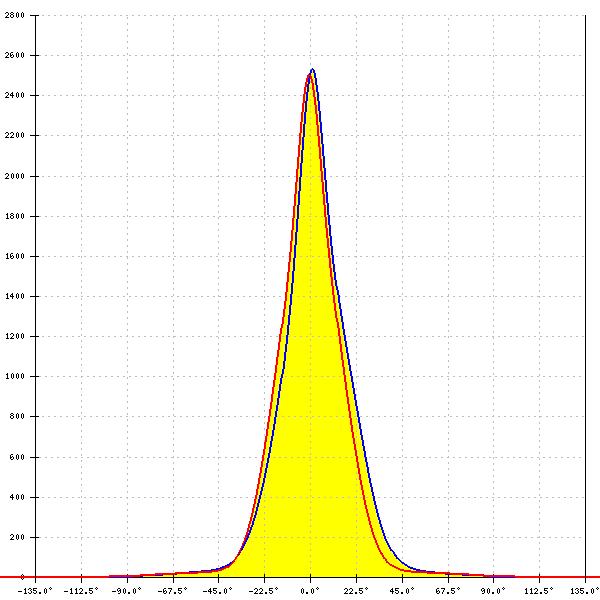

SEOUL 5630C
FWHM:
27°
FWTM:
62°
Peak intensity:
2.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

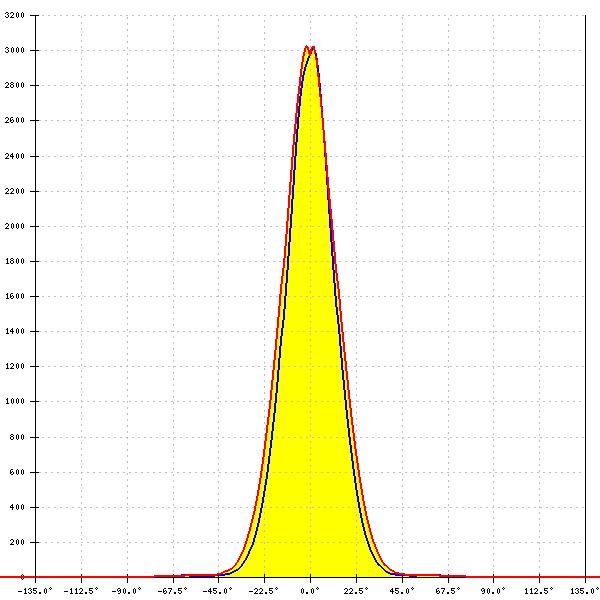

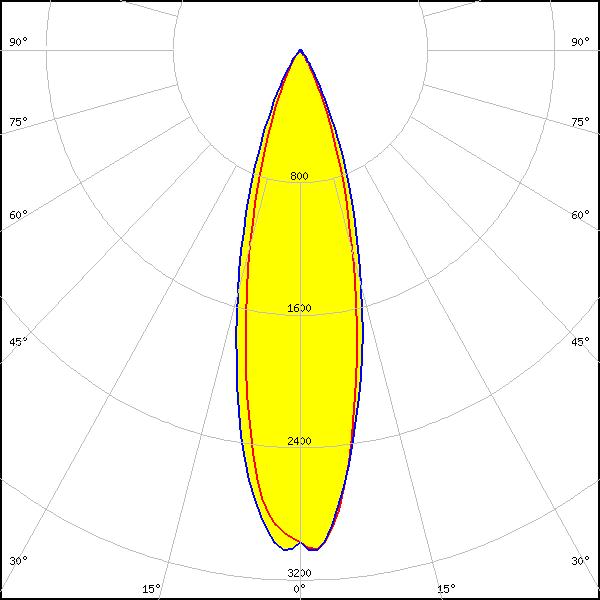

SEOUL 5630D
FWHM:
29°
FWTM:
58°
Peak intensity:
3.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
FWHM:
23°
FWTM:
57°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

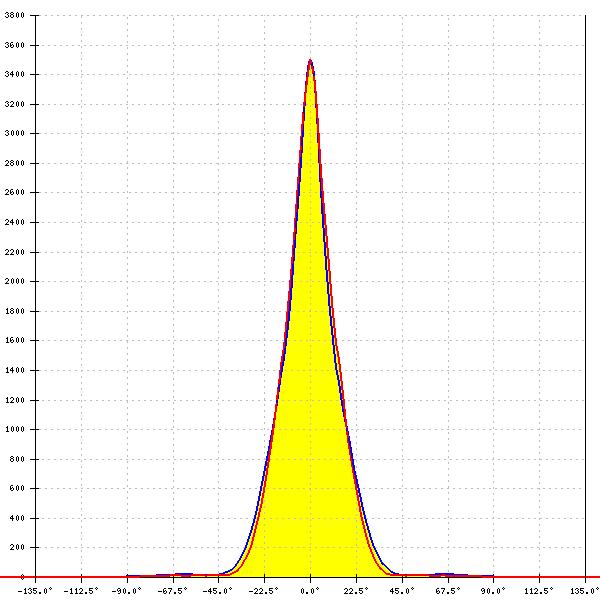

LED:
SEOUL DC 3030C
FWHM:
23°
FWTM:
54°
Peak intensity:
3.506 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

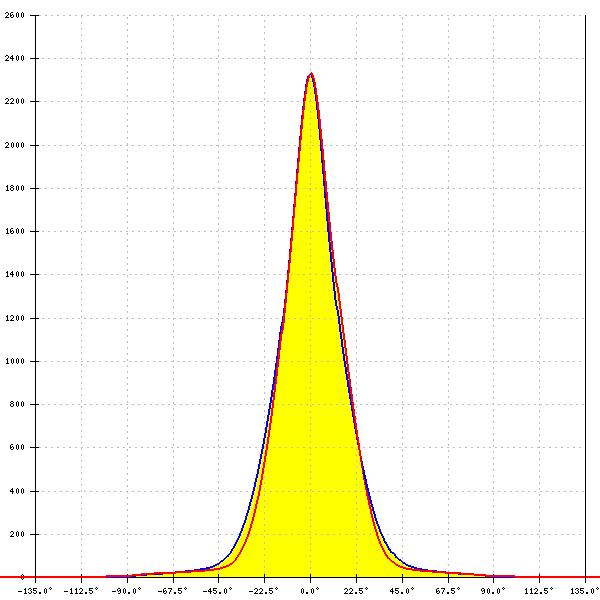

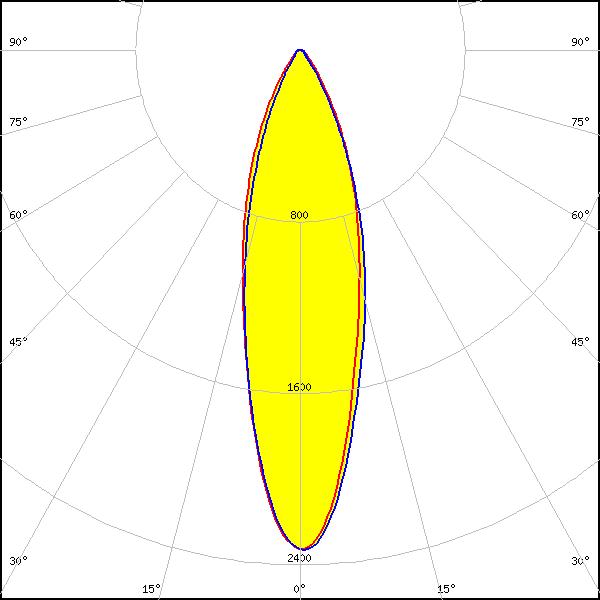

LED:
LLE G2 55x280mm 2000lm
FWHM:
29°
FWTM:
64°
Peak intensity:
2.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
