LUMINAIRE EXAMPLE

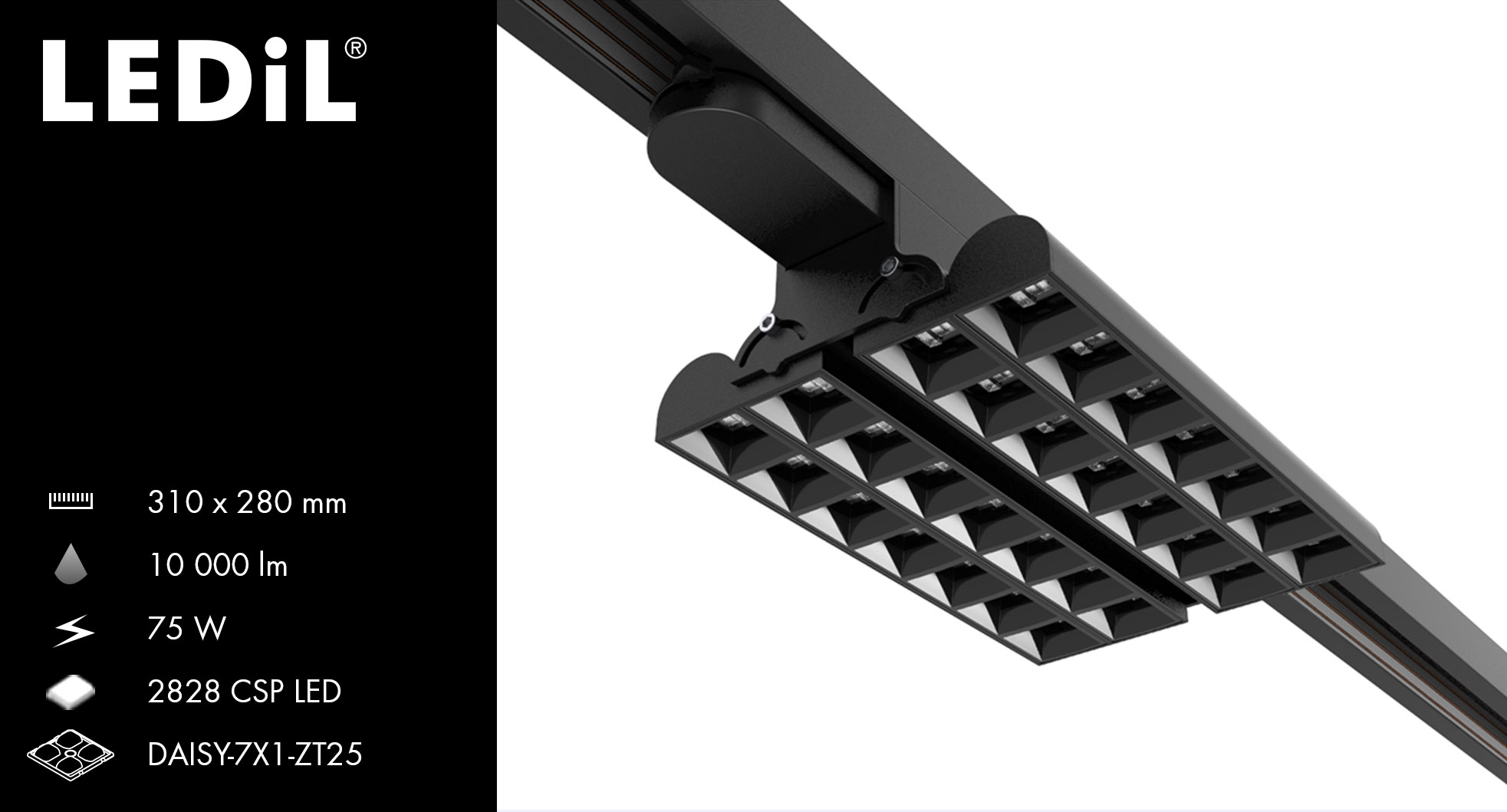

Track luminaire with DAISY-7X1-ZT25


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

SPECIFICATIONS:

Luminaire size:310 x 280 mm (optic 280 x 40 mm)
Optics:DAISY-7X1-ZT25
Number of optics:4 pcs
LED:2828 CSP LED
Number of LEDs:56 pcs (2 pcs under each lens)
Output:10 000 lm after optic @500 mA driving current
Power (Luminaire):75 W
Luminaire efficiency:133 lm/W
