    DAISY-7X1-ZT25

    Print

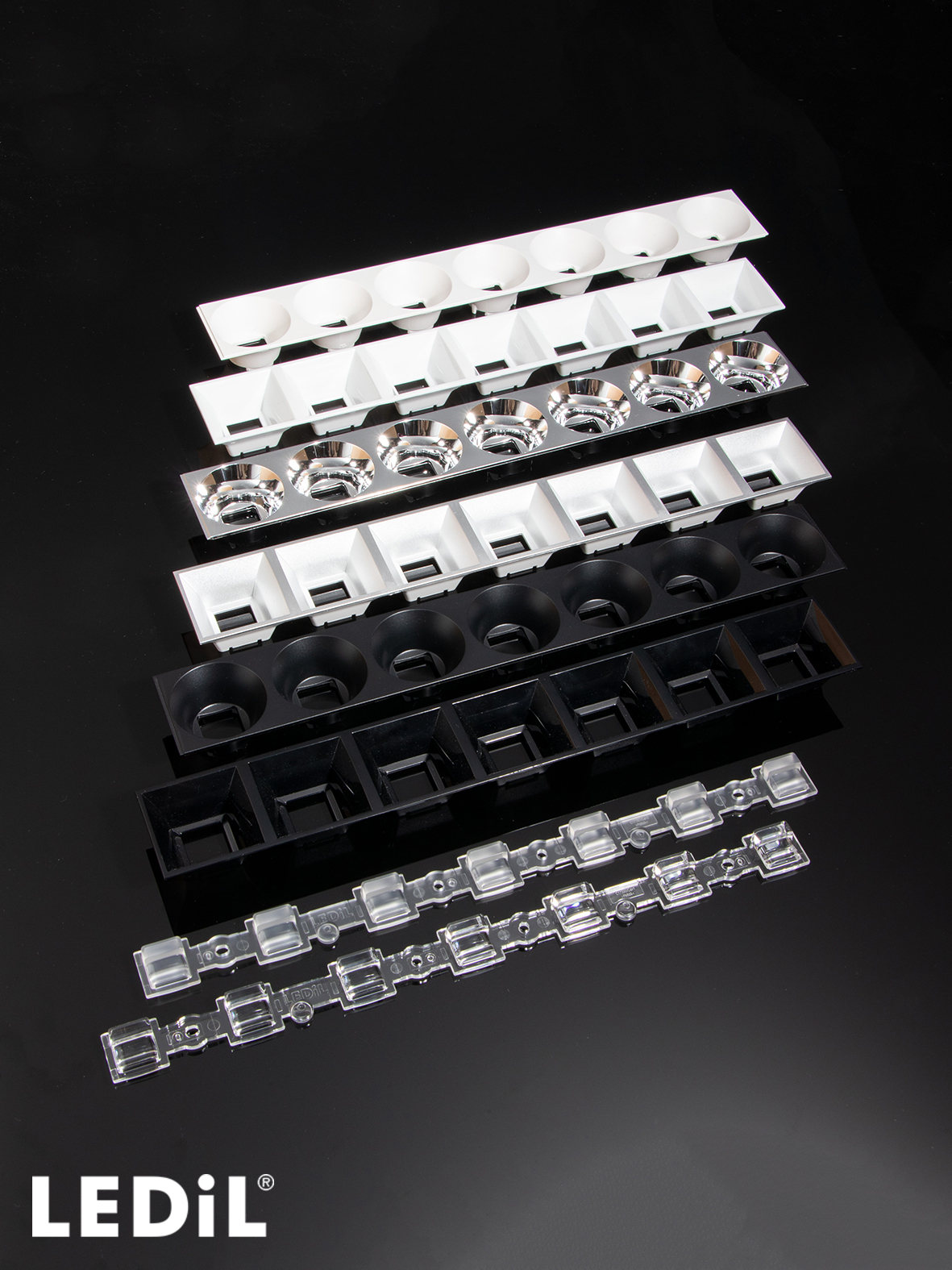

    Asymmetric beam for aisle lighting. Clear version for high contrast lighting.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      280 x  40 mm
    • Height:
      20.30 mm
    • Fastening:
      pin, screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • Linear lens
    • C17390_DAISY-7X1-ZT25
      PMMA
    • Request material files from Tech Support

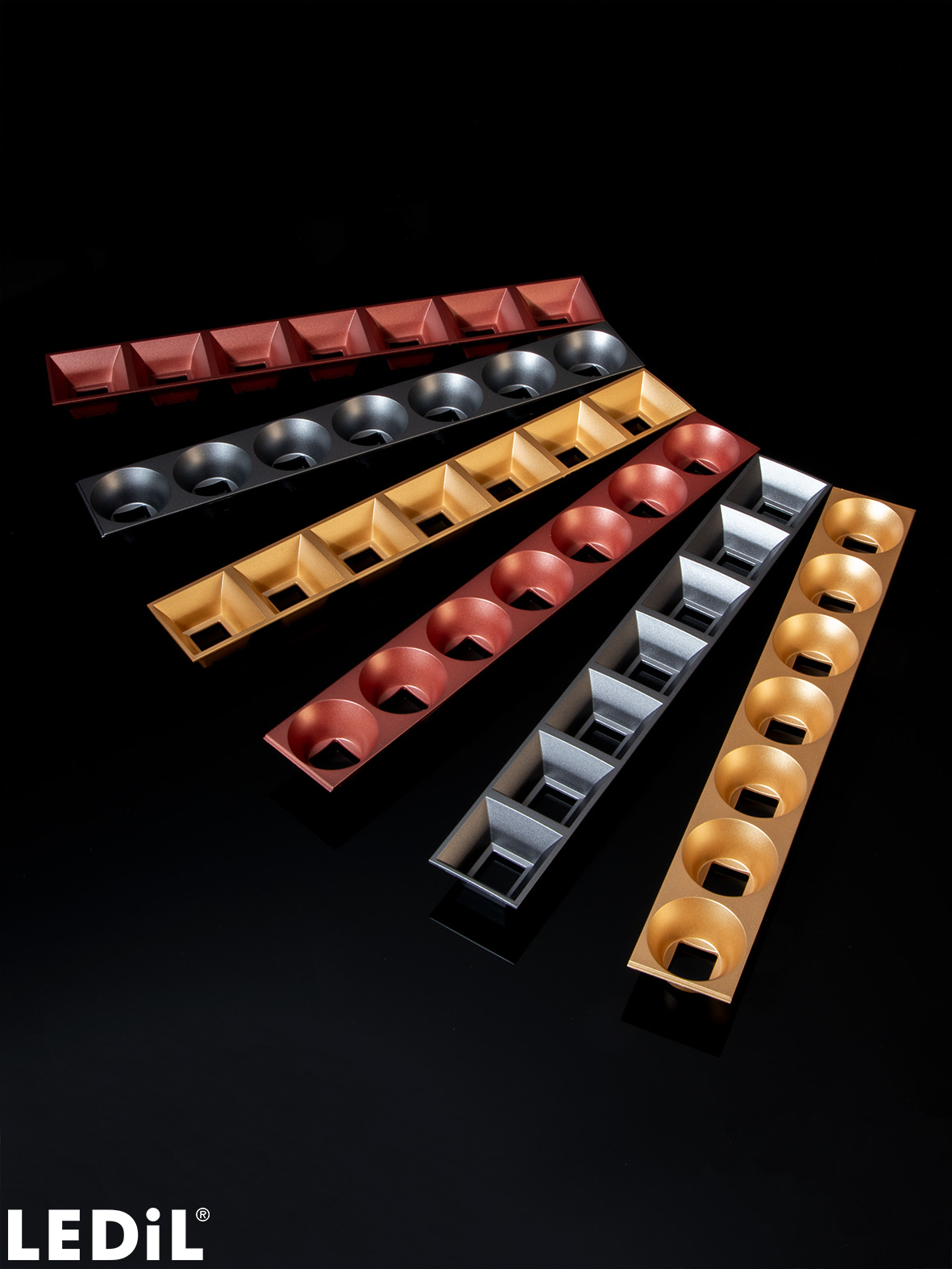

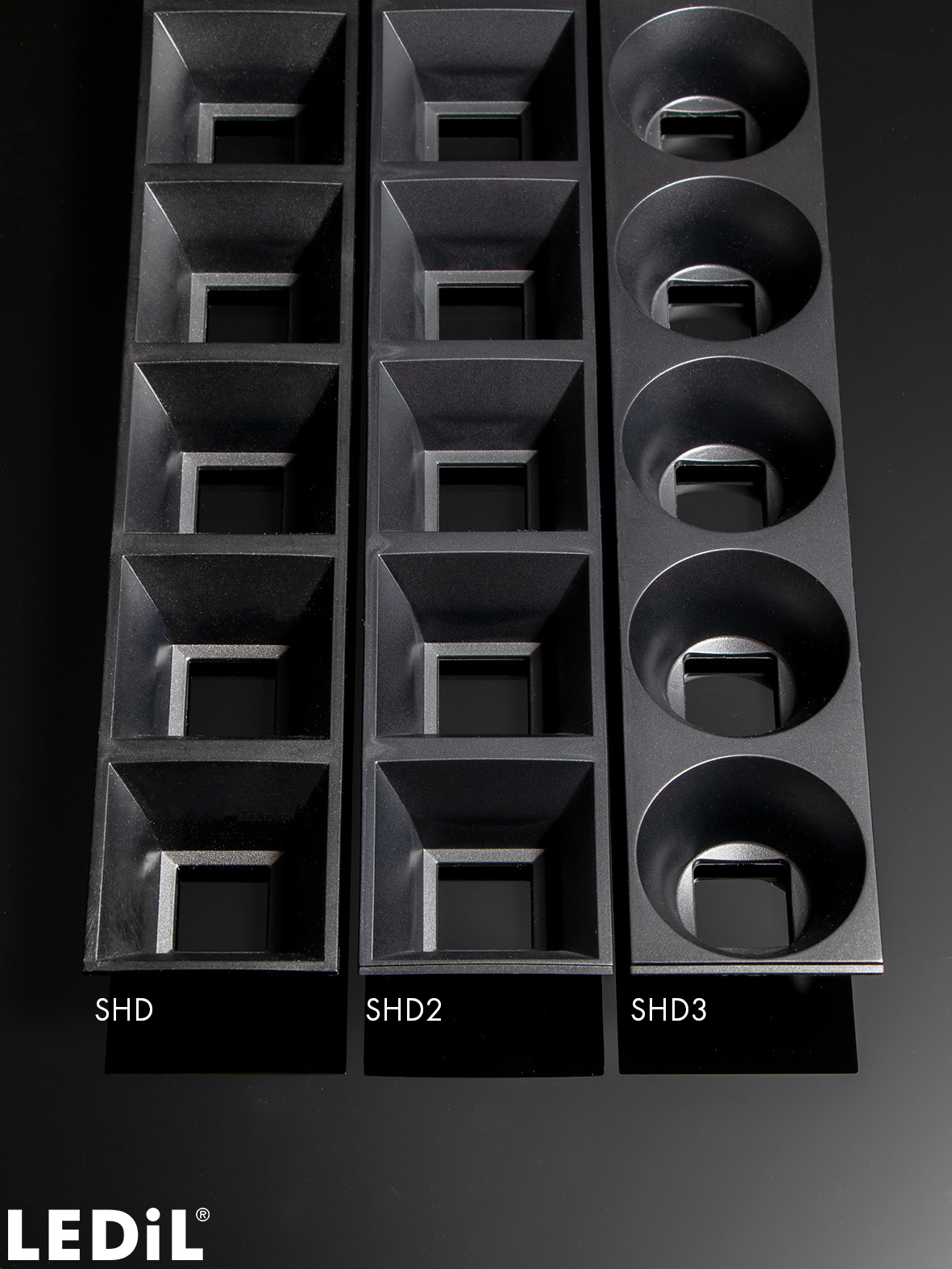

    • Shade
    • C16872_DAISY-7X1-SHD
      PC
    • C16876_DAISY-7X1-SHD-WHT
      PC
    • C17051_DAISY-7X1-SHD-MATT
      PC
    • C17225_DAISY-7X1-SHD-WHT-MATT
      PC
    • C18167_DAISY-7X1-SHD-MET
      PC
    • C18409_DAISY-7X1-SHD-MET-MATT
      PC
    • C19312_DAISY-7X1-SHD3
      PC
    • C19313_DAISY-7X1-SHD3-MATT
      PC
    • C19314_DAISY-7X1-SHD3-WHT
      PC
    • C19315_DAISY-7X1-SHD3-WHT-MATT
      PC
    • C19641_DAISY-7X1-SHD3-MET
      PC
    • C19642_DAISY-7X1-SHD3-MET-MATT
      PC
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • C17390_DAISY-7X1-ZT25
    • Quantity in box:
      312 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      5.90 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      400 x 300 x 300 mm
    • MOQ Weight:
      5.90 kg
    • Shade
    • C16872_DAISY-7X1-SHD
      black,gloss
    • C16876_DAISY-7X1-SHD-WHT
      white,gloss
    • C17051_DAISY-7X1-SHD-MATT
      black,matt
    • C17225_DAISY-7X1-SHD-WHT-MATT
      white,matt
    • C18167_DAISY-7X1-SHD-MET
      metal,gloss
    • C18409_DAISY-7X1-SHD-MET-MATT
      metal,matt
    • C19312_DAISY-7X1-SHD3
      black,gloss
    • C19313_DAISY-7X1-SHD3-MATT
      black,matt
    • C19314_DAISY-7X1-SHD3-WHT
      white,gloss
    • C19315_DAISY-7X1-SHD3-WHT-MATT
      white,matt
    • C19641_DAISY-7X1-SHD3-MET
      metal,gloss
    • C19642_DAISY-7X1-SHD3-MET-MATT
      metal,matt
    • Quantity in box:
      156 pcs
    • Box size:
      595 x 360 x 230 mm
    • Box weight:
      7.10 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      595 x 360 x 230 mm
    • MOQ Weight:
      7.10 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C17390_DAISY-7X1-ZT25
      C16872_DAISY-7X1-SHD

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    News

    New products – August 12, 2021

    PCN

    Product change notification NR173 - Change of product coating method and ordering code

    Application example

    Dark Light for bright sales

    Application example

    Aisle lighting with DAISY-7X1-ZT25

    Luminaire, example

    Track luminaire with DAISY-7X1-ZT25

    News

    DAISY-7X1-ZT25 for stylish, compact aisle track fixtures

    Reference product

    Triton track fixture

    News

    New beams and products – May 2024

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR 195 - Change of Minimum order quantity in DAISY-7X1 family

    PCN

    Product change notification NR191 - Additional PC material approved

    News

    New products – January, 2023

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Wall-washing with DAISY-7X1-WAS

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    News

    New Products 2019-11-07

    News

    New Products - 2019-08-27

    News

    New Products 2019-06-13

    News

    DAISY the linear solution for premium class office lighting

    Luminaire, example

    Troffer luminaires with DAISY-7X1

    Application guide

    LEDiL guide for retail lighting optics

    Application guide

    LEDiL guide for office lighting optics

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    Optical results

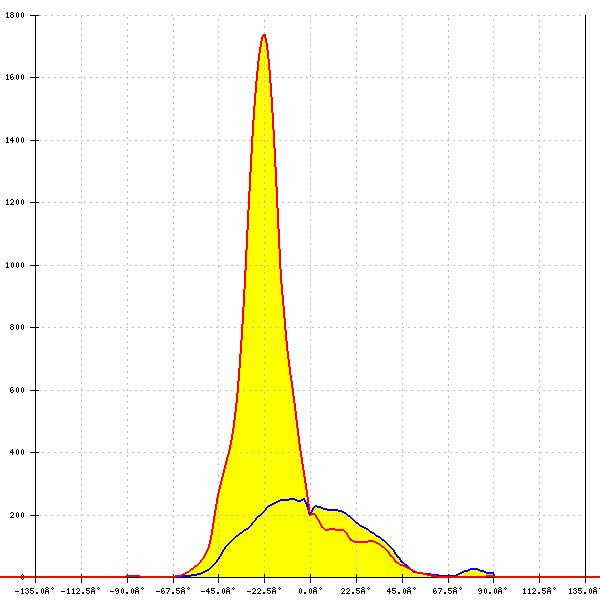

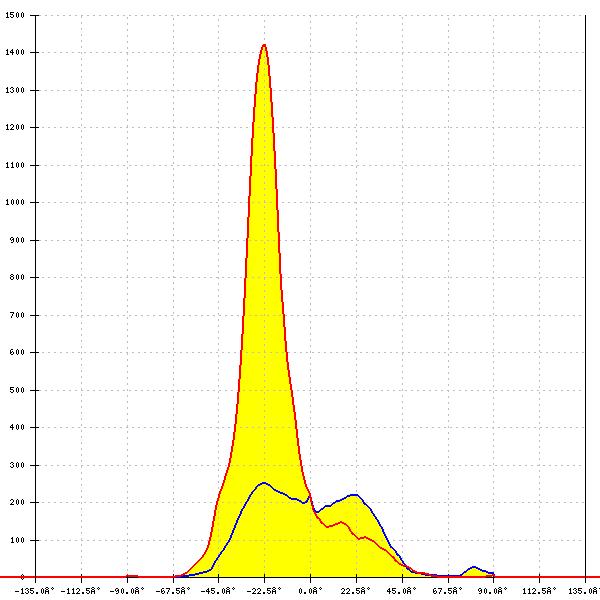

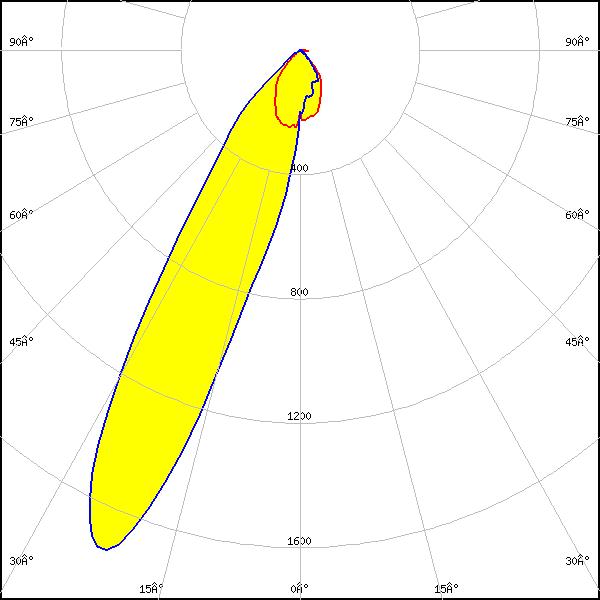

    LED: CSP 2727 (BXCP)
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: asymmetric
    Peak intensity: 1.744 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 3
    Light colour/type: White

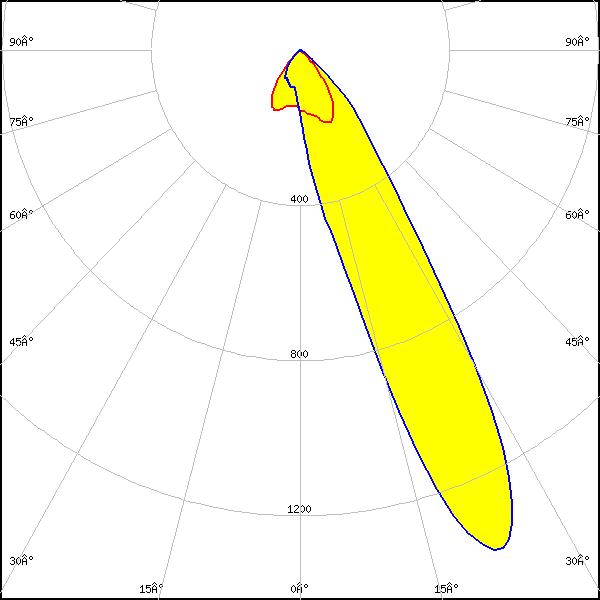

    LED: CSP 2727 (BXCP)
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: asymmetric
    Peak intensity: 1.717 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White

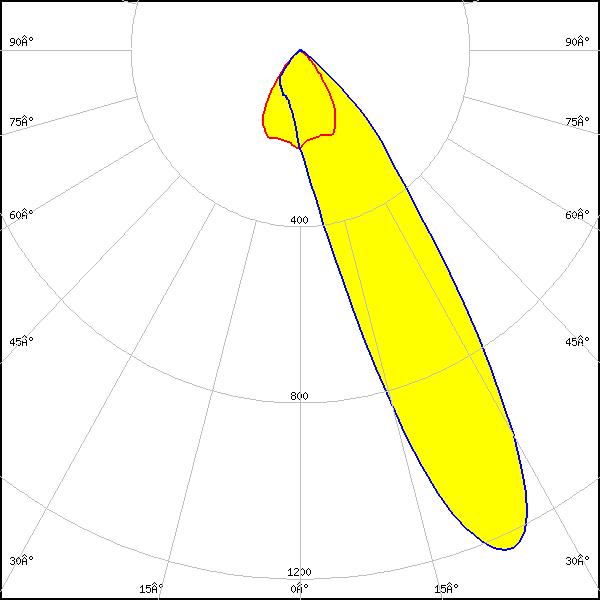

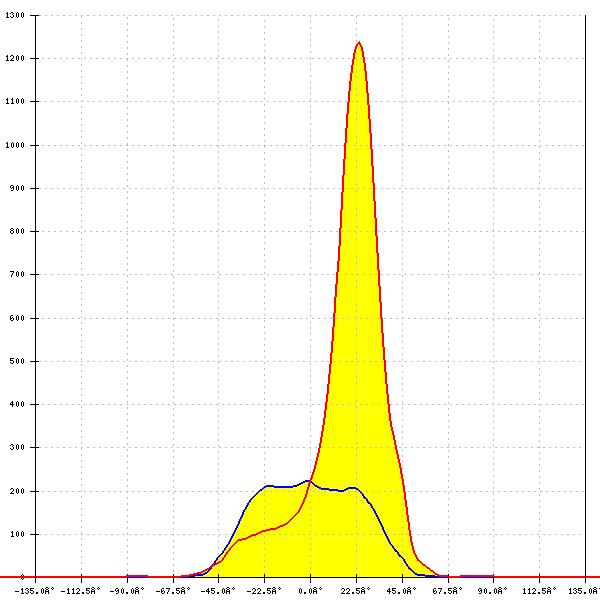

    LED: J Series 2835
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.378 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White

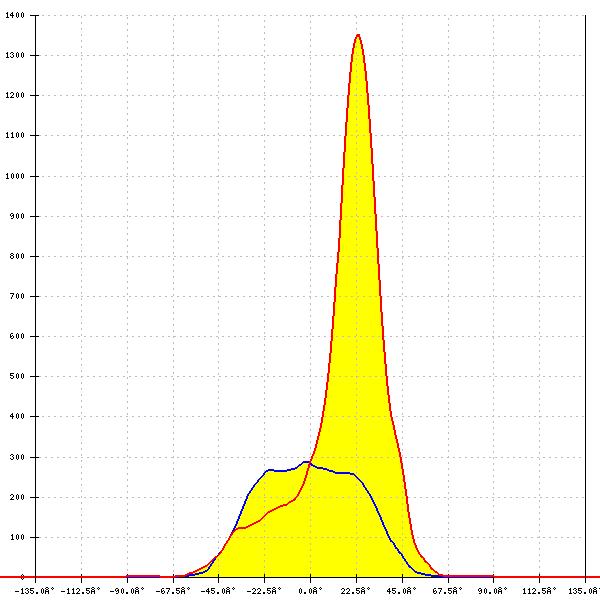

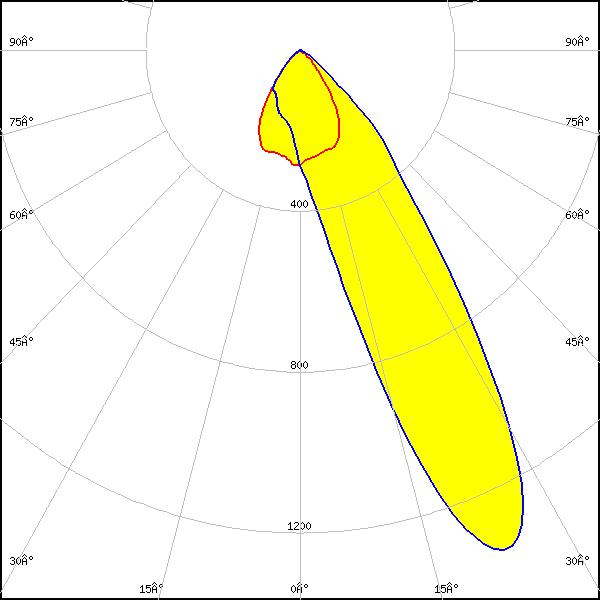

    LED: J Series 2835
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.496 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White

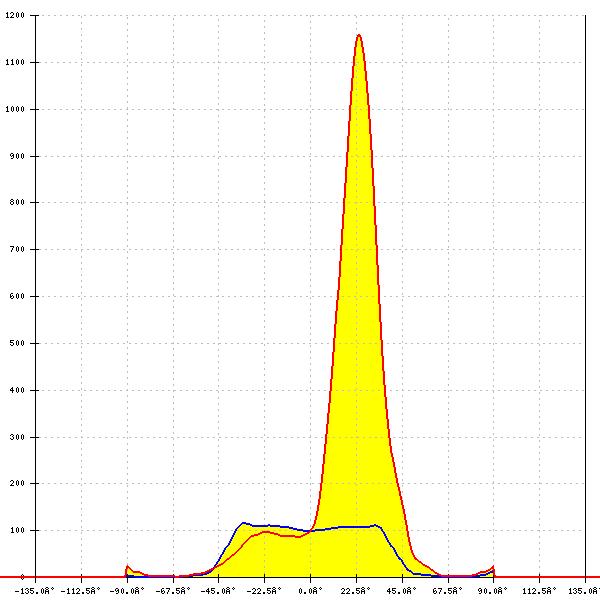

    LED: XD16
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.309 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 2
    Light colour/type: White

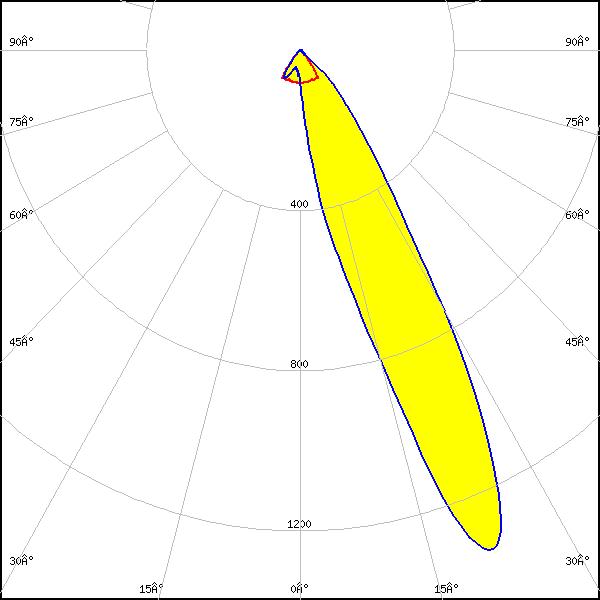

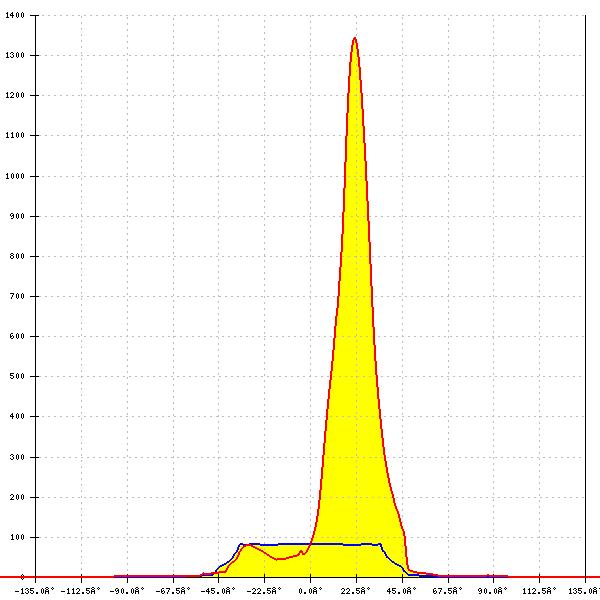

    LED: LED Line SMD L28W2 TW Module 20mm 2800Lm Daisy 7x1 (E21A)
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 1.710 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

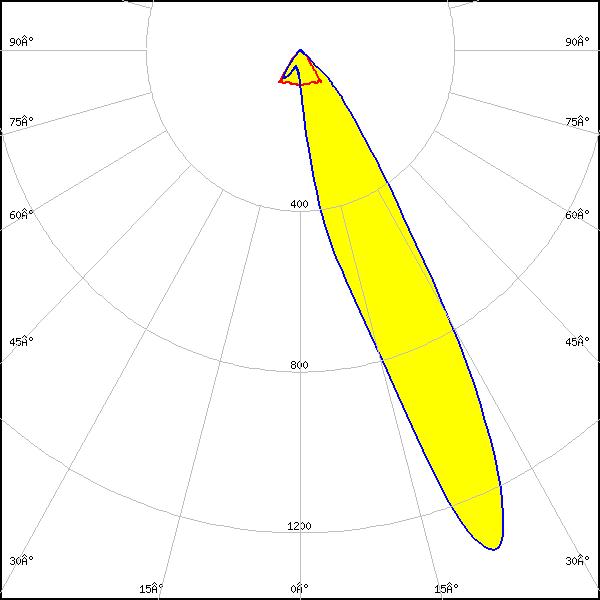

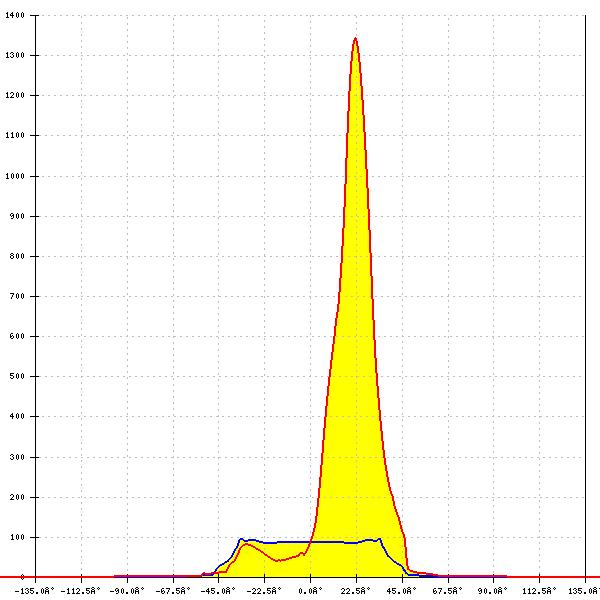

    LED: LED Line SMD L28W2 White Module 20mm 2800Lm Daisy 7x1 (E21A)
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 1.721 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 2
    Light colour/type: White

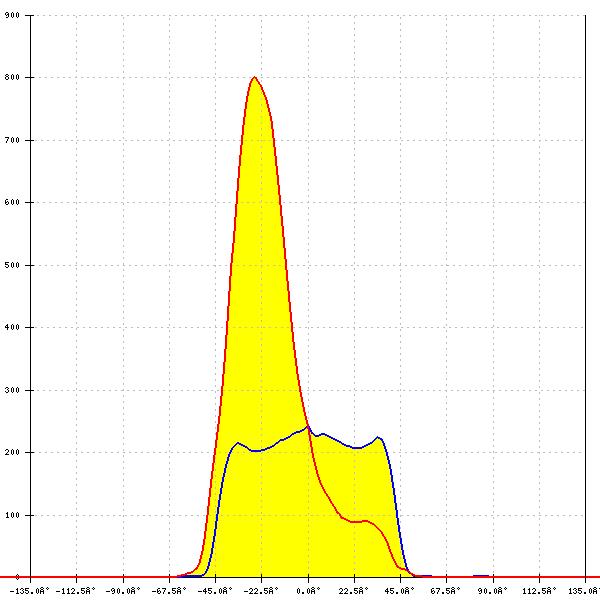

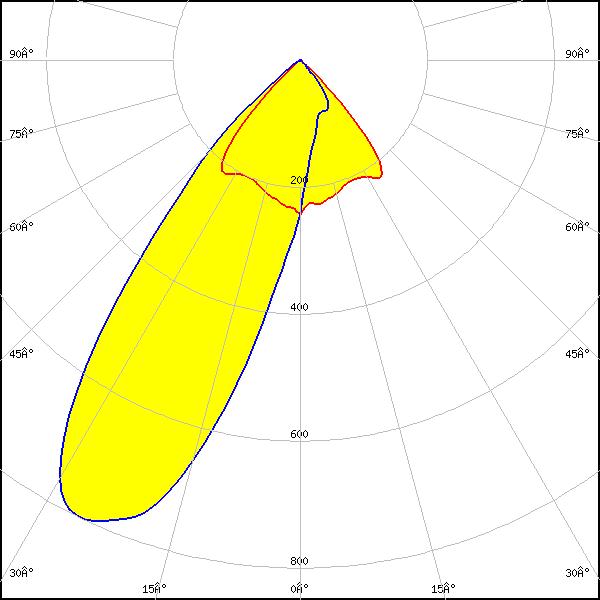

    LED: LUXEON 2835 Line
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.951 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 2
    Light colour/type: White

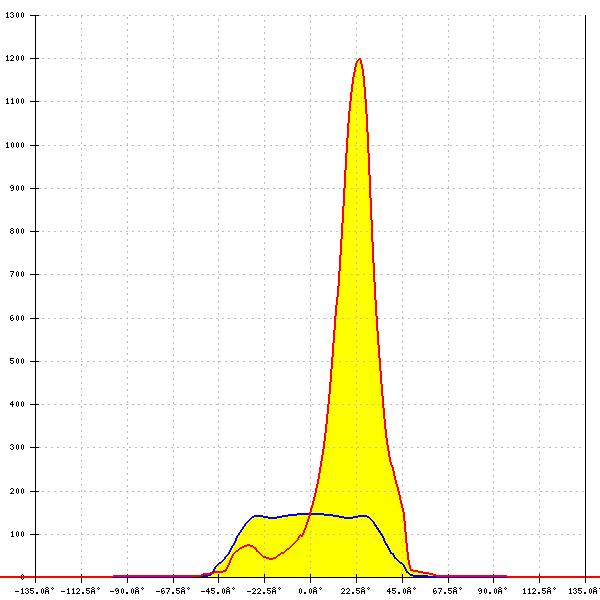

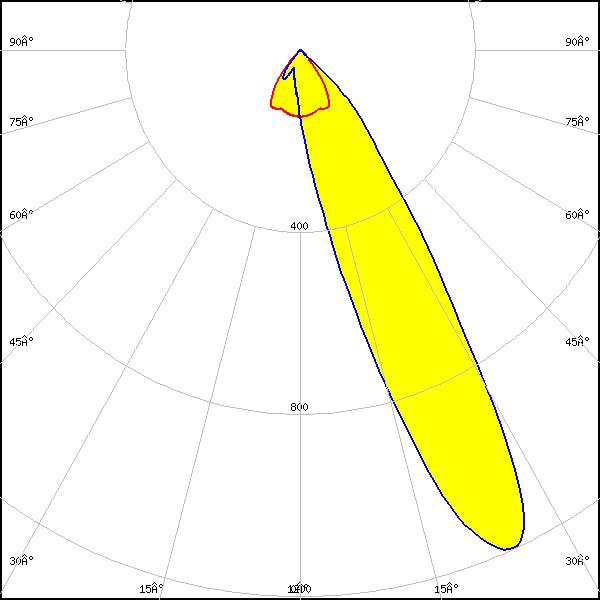

    LED: LUXEON 2835 Line
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.477 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

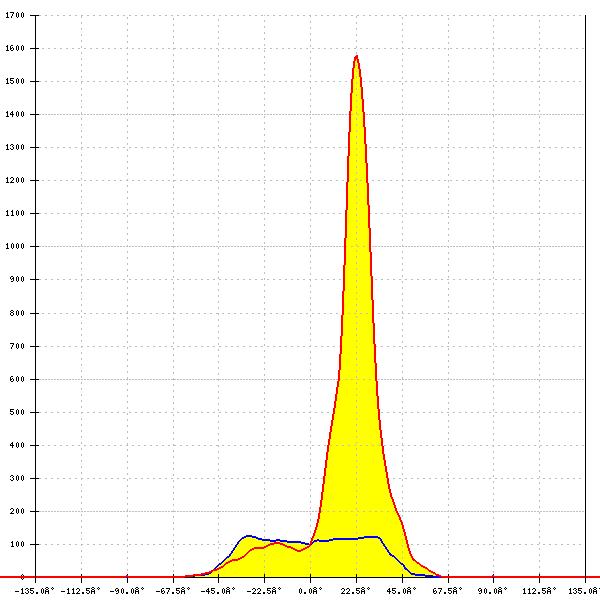

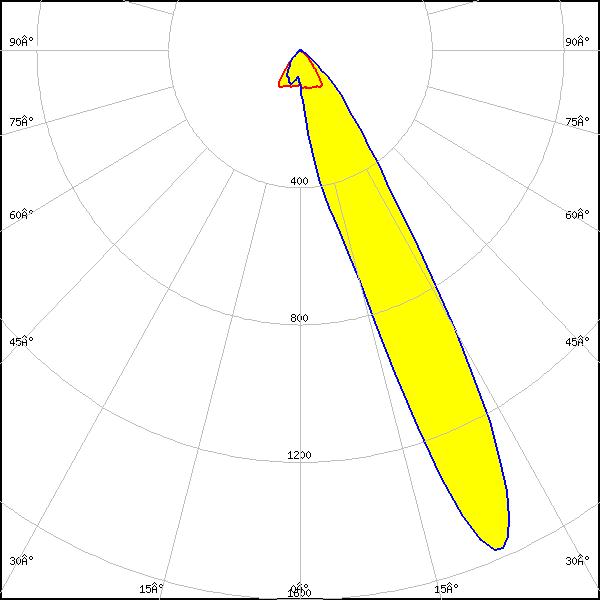

    LED: LUXEON HL2Z
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 1.786 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 2
    Light colour/type: White

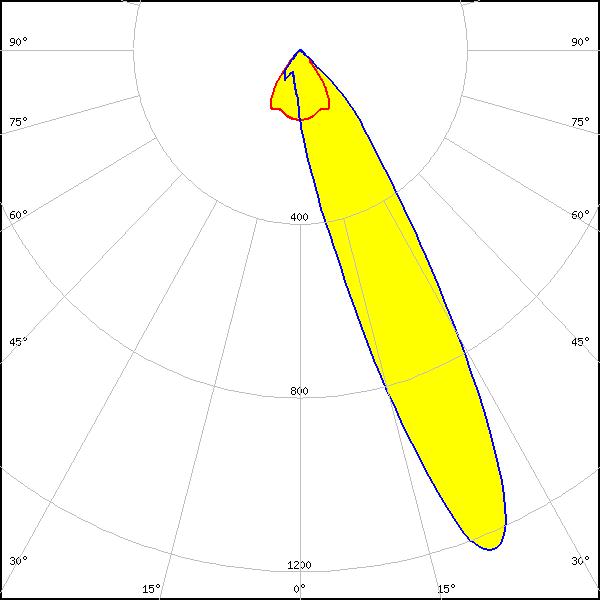

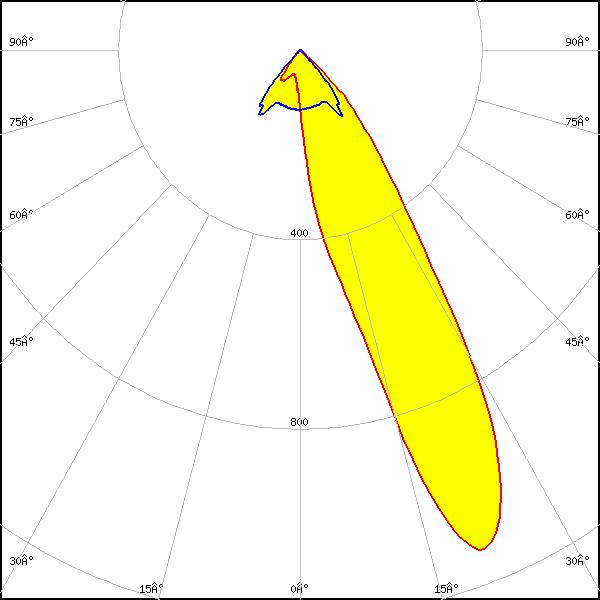

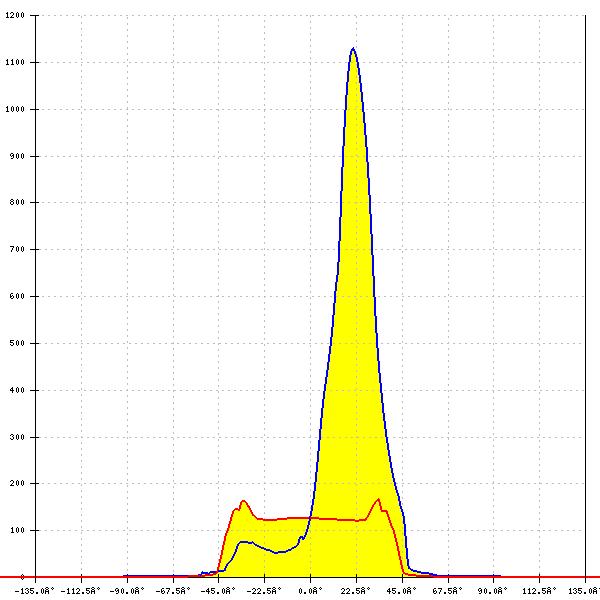

    LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.569 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

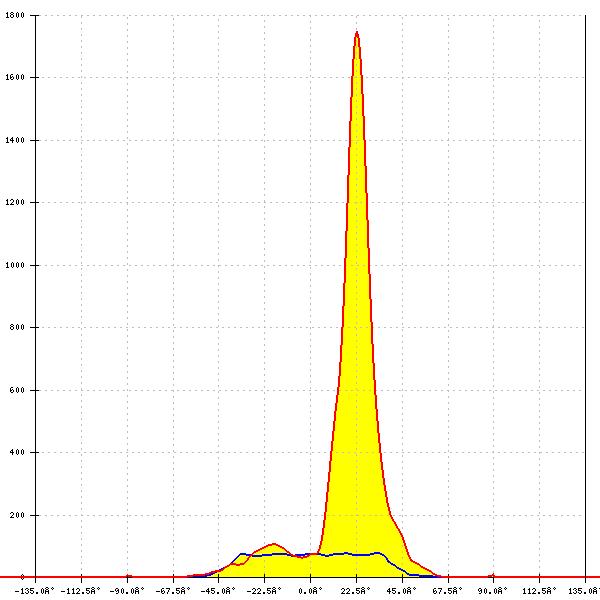

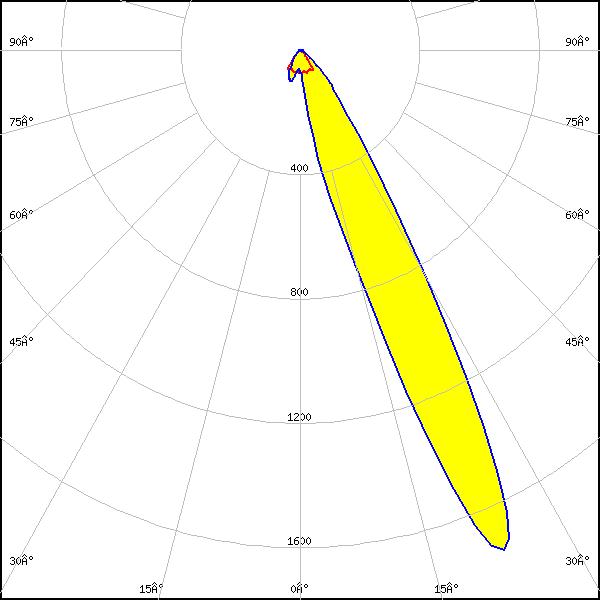

    LED: NCSxE17A
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.965 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White

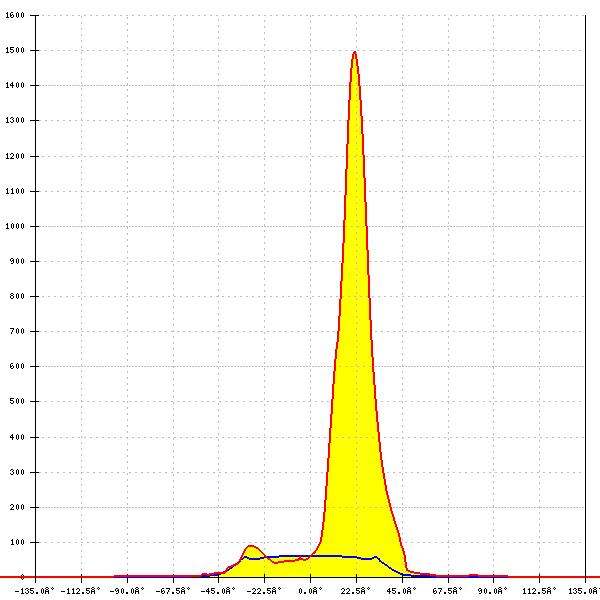

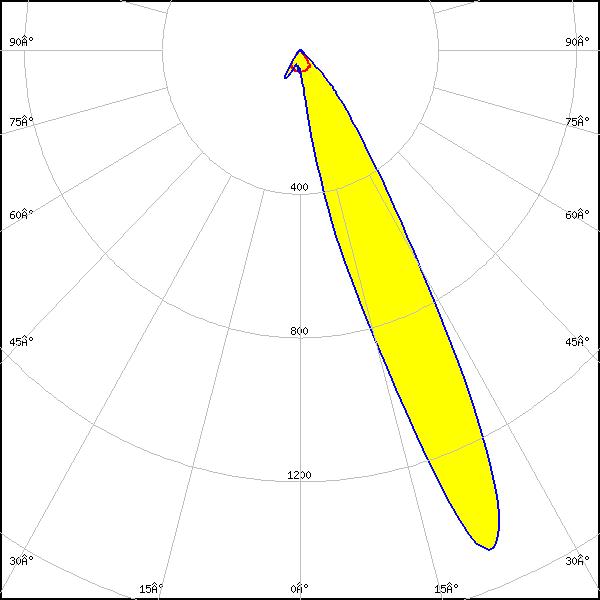

    LED: NCSxE17A
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 2.293 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

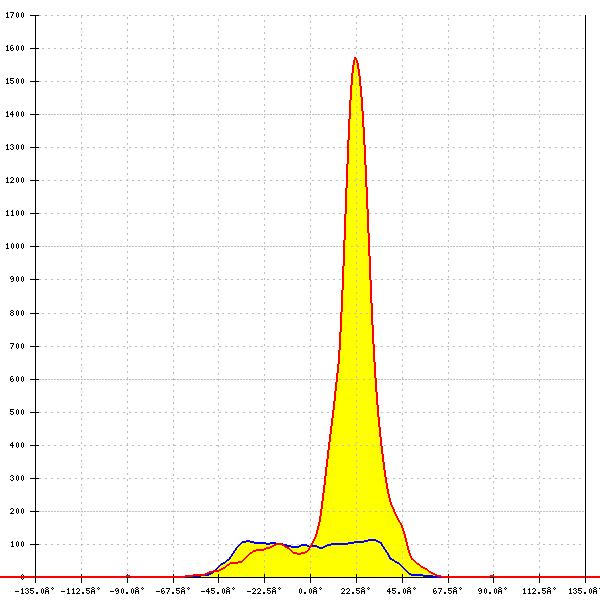

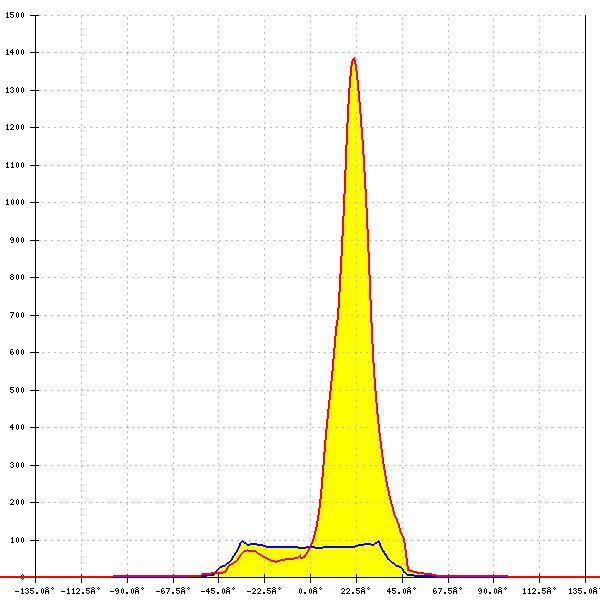

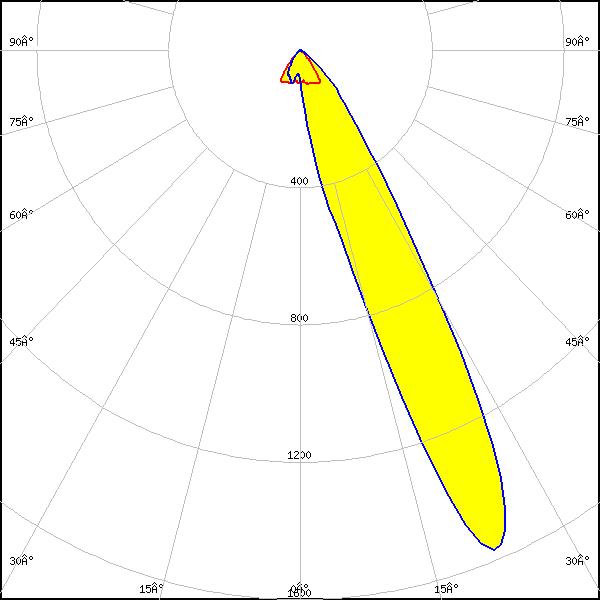

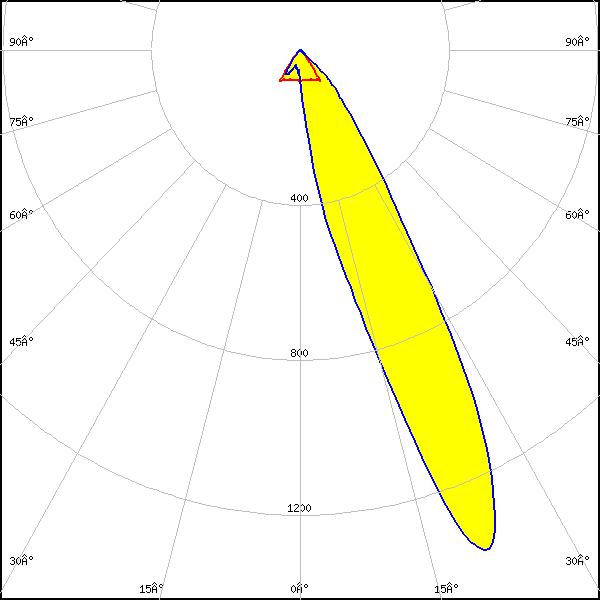

    LED: NVSxE21A
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.665 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NVSxE21A
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.843 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NVSxE21A
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.836 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

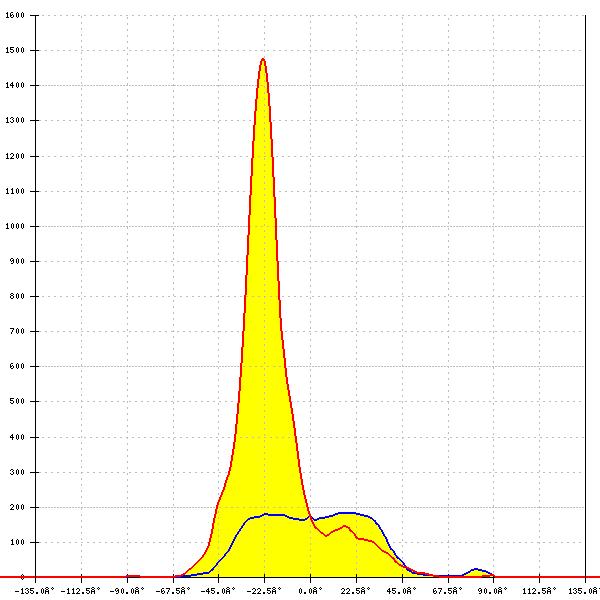

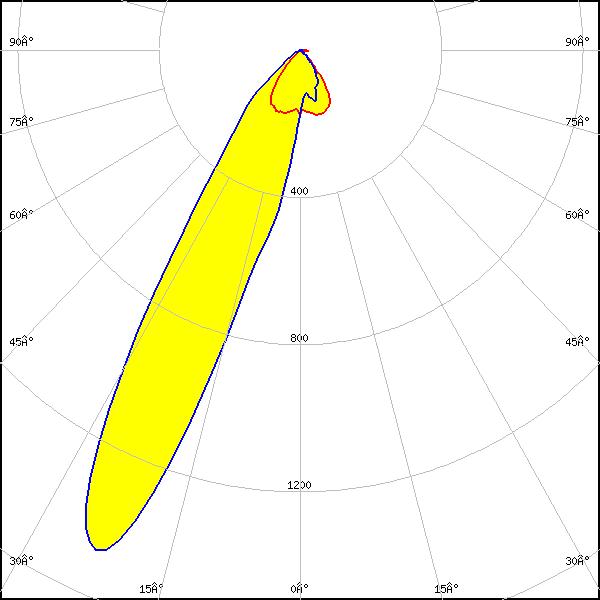

    LED: LH181B
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: asymmetric
    Peak intensity: 1.699 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: White

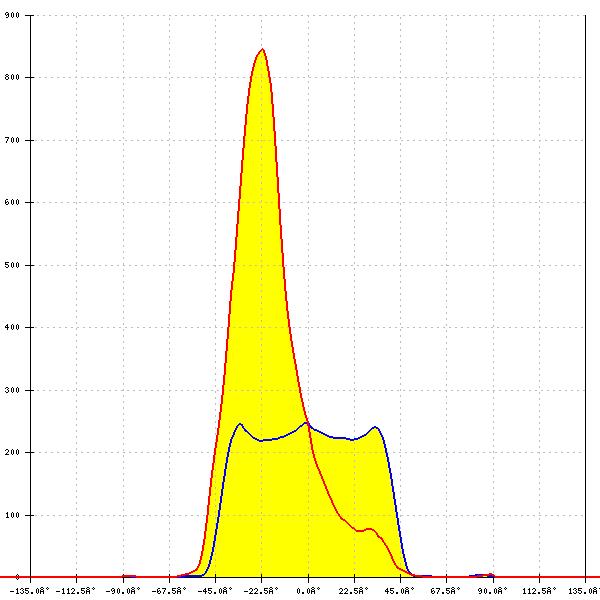

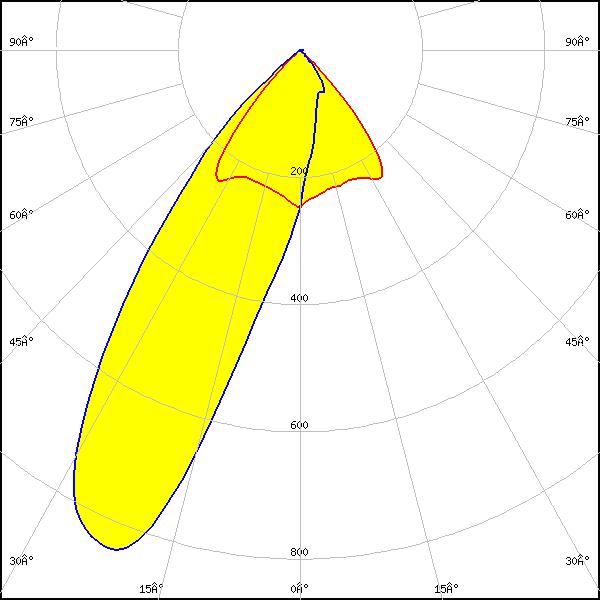

    LED: LH231B
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.975 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 2
    Light colour/type: White

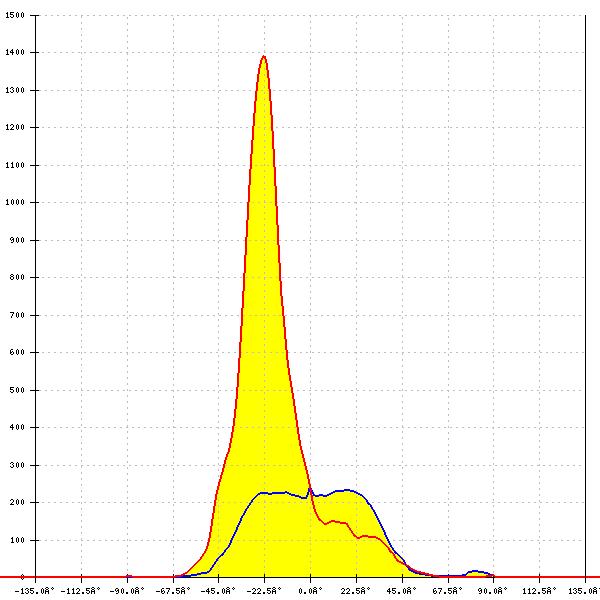

    LED: LH231B
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: asymmetric
    Peak intensity: 1.622 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 2
    Light colour/type: White

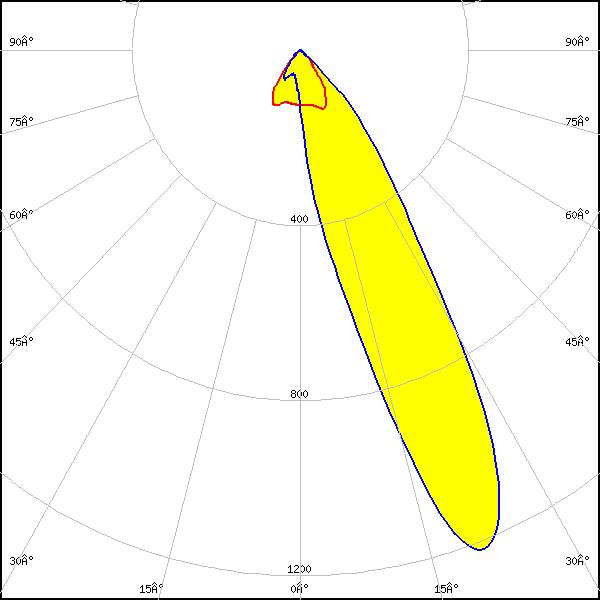

    LED: LH231B
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.490 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White

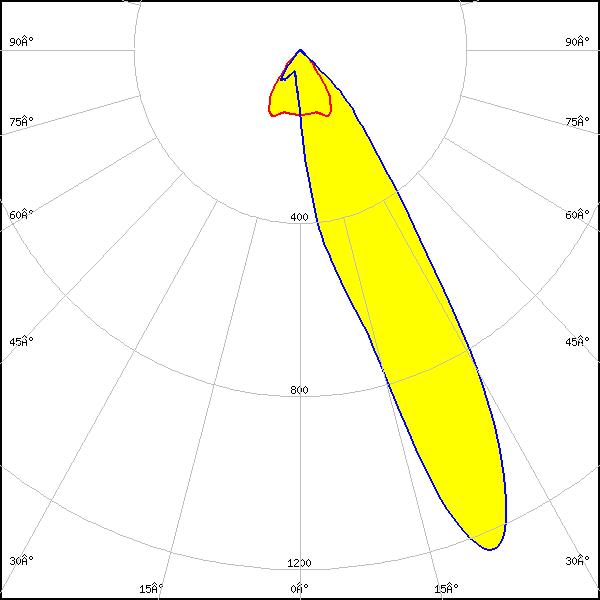

    LED: LED-St-LxxW2c4-50 (Daisy-7x1)
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.539 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 2
    Light colour/type: White

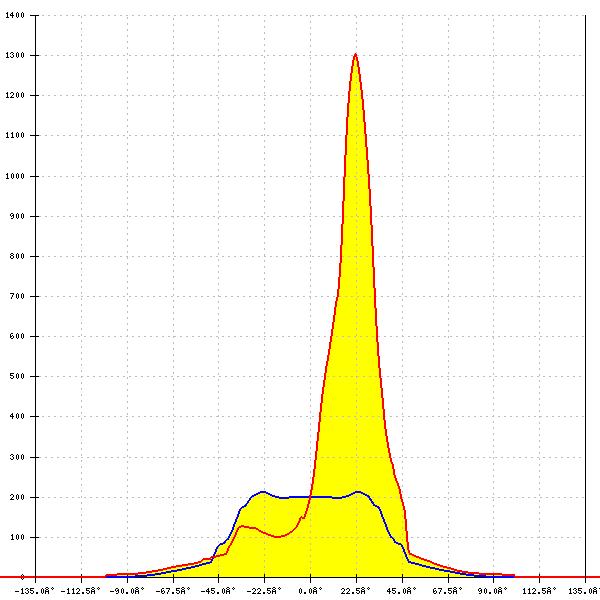

    LED: LED-St-LxxW2c4-50 (Daisy-7x1)
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.591 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

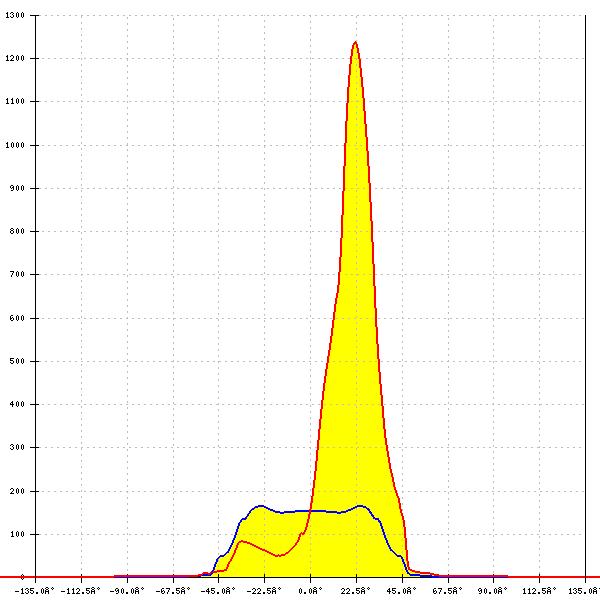

    LED: LED-St-LxxW2c4-50 (Daisy-7x1)
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 1.496 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 2
    Light colour/type: White

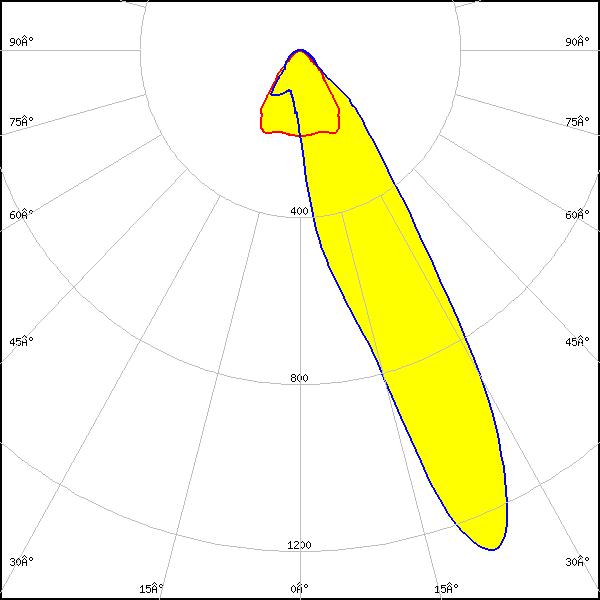

    LED: LED-St-LxxW2c4-50 (Daisy-7x1)
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: asymmetric
    Peak intensity: 1.568 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

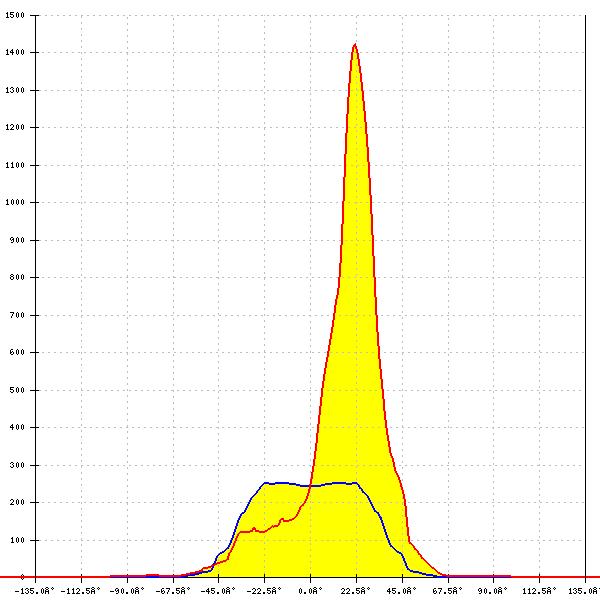

    LED: LED-St-LxxW2c4-50 (Daisy-7x1)
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: asymmetric
    Peak intensity: 1.746 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

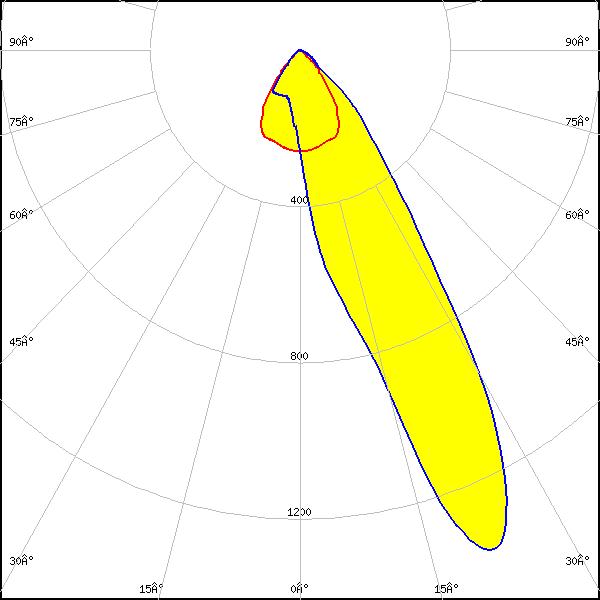

    LED: LED-St-LxxW2c4-50 (Daisy-7x1)
    Required components:
    C18409_DAISY-7X1-SHD-MET-MATT
    FWHM: asymmetric
    Peak intensity: 1.605 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White

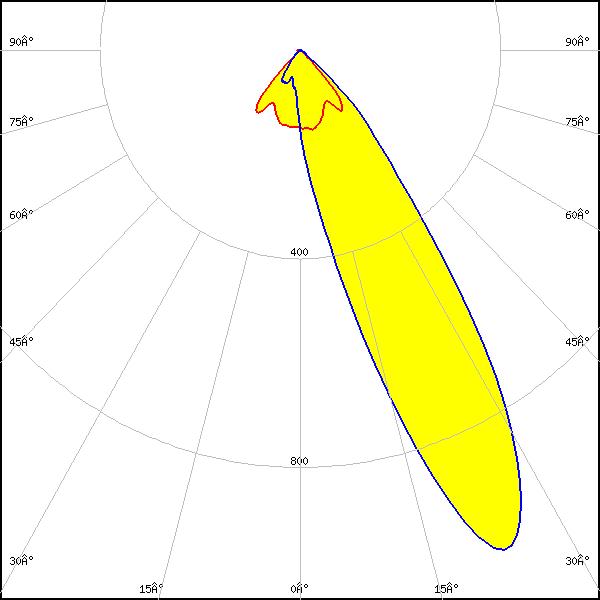

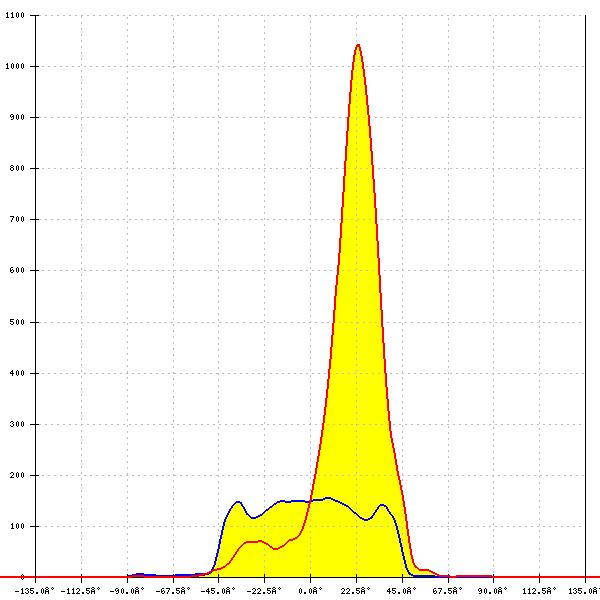

    LED: SEOUL DC 3030
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.042 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: White

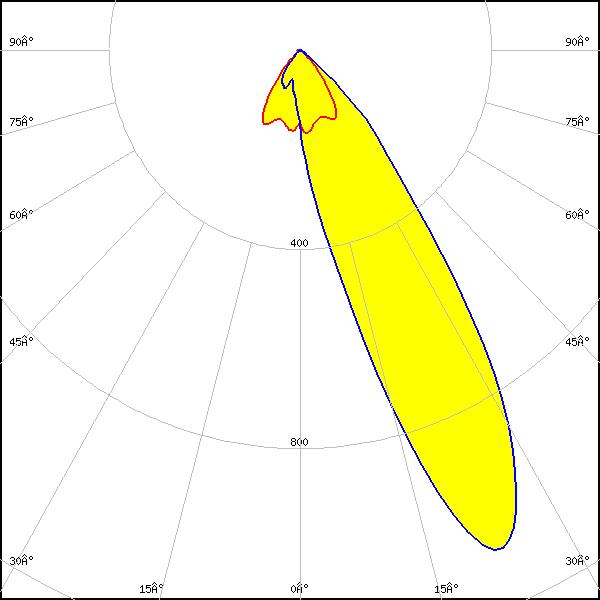

    LED: SEOUL DC 3030
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.187 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: SEOUL DC 3030C
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.186 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White

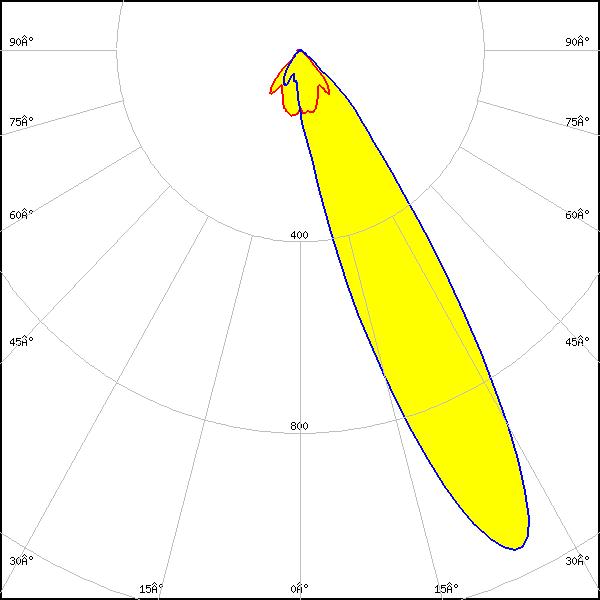

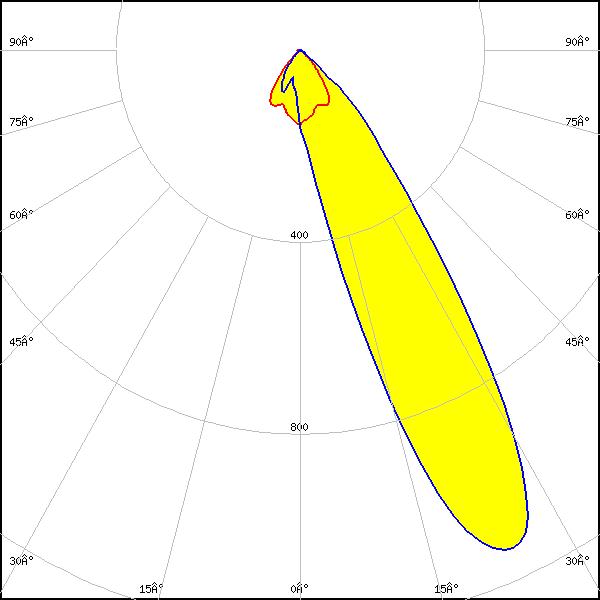

    LED: SEOUL DC 3030C
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.265 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 2
    Light colour/type: White

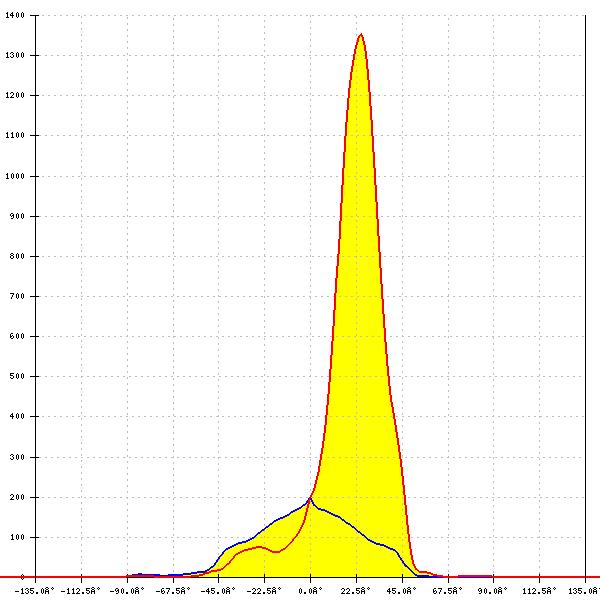

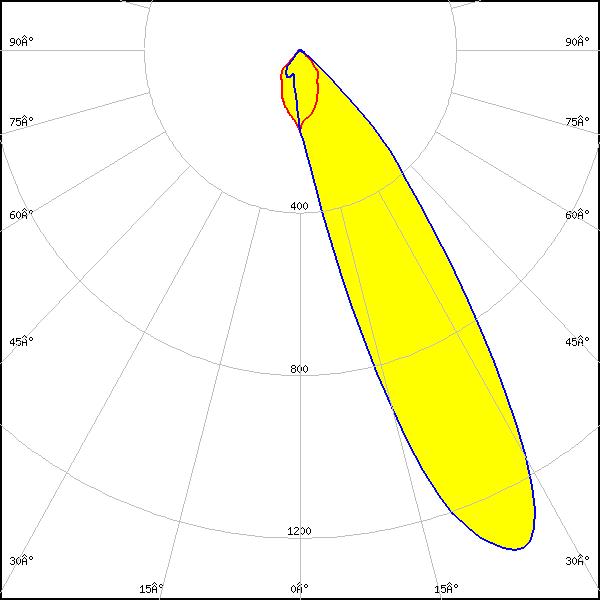

    LED: SEOUL DC 3528
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.352 cd/lm
    Efficiency: 66 %
    LEDs/each optic: 3
    Light colour/type: White

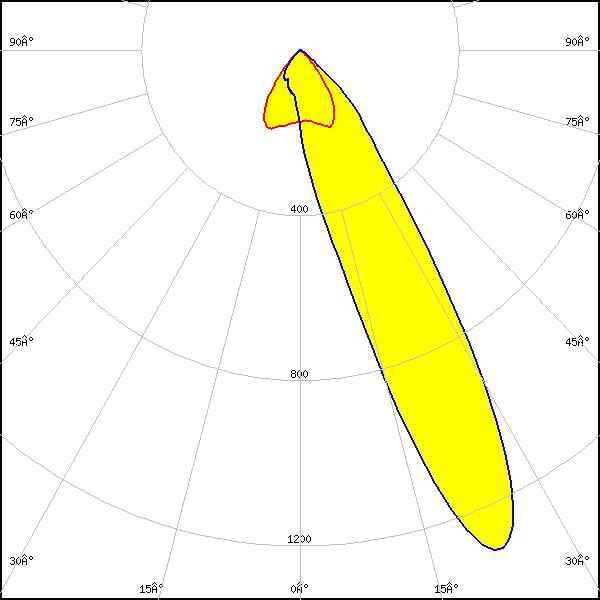

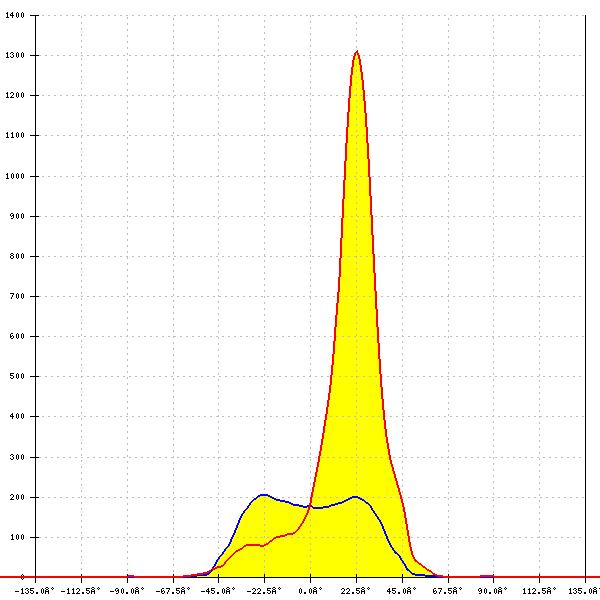

    LED: LLE 24mm 2000lm LVD HP ADV2
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 1.518 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
