    DAISY-7X1-ZT25-D

    Print

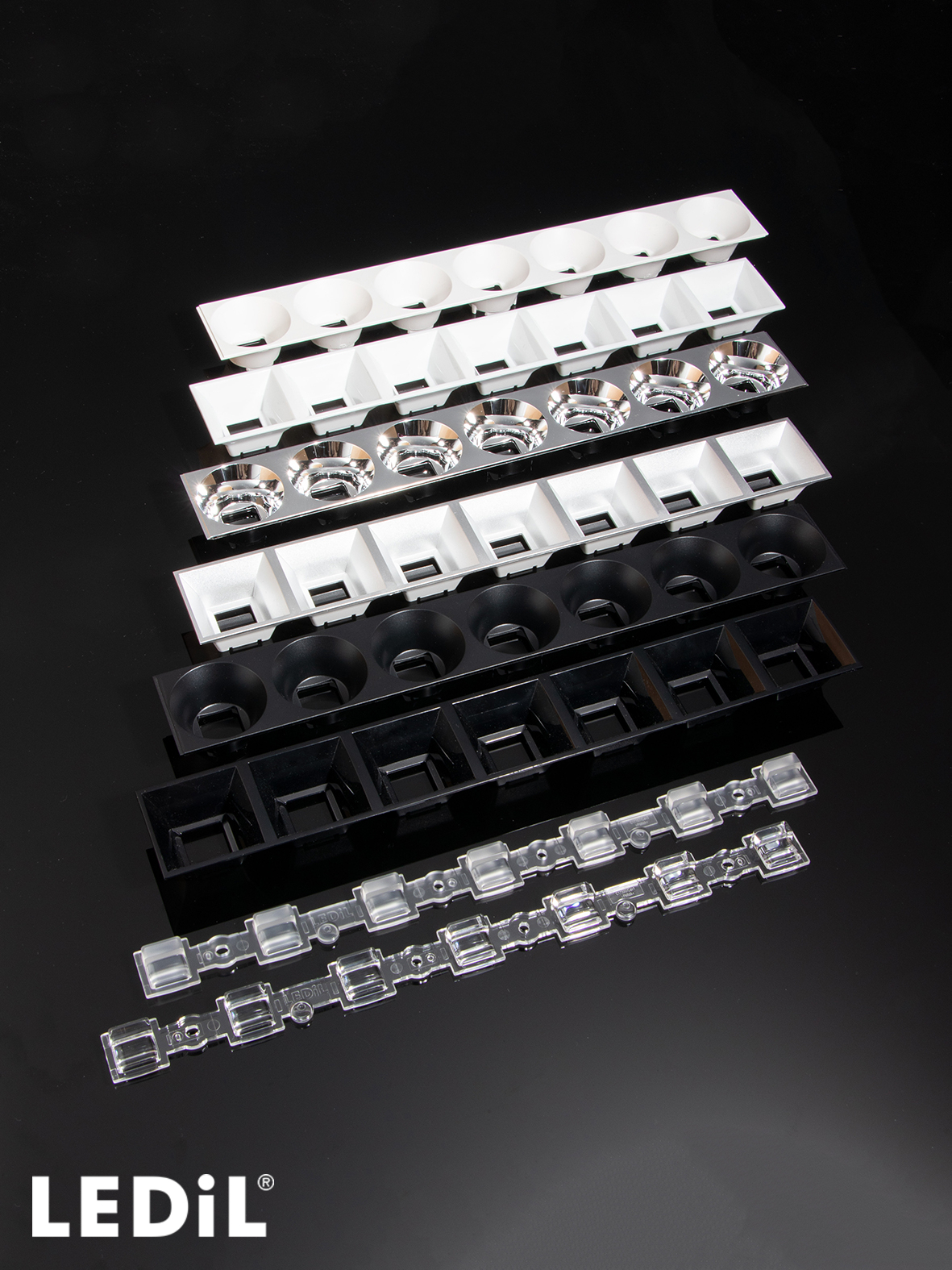

    Asymmetric beam for aisle lighting. Diffused version for perfect colour mixing.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      280 x  40 mm
    • Height:
      20.30 mm
    • Fastening:
      pin, screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • C17767_DAISY-7X1-ZT25-D
      milky
    • Quantity in box:
      312 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      5.90 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      400 x 300 x 300 mm
    • MOQ Weight:
      5.90 kg

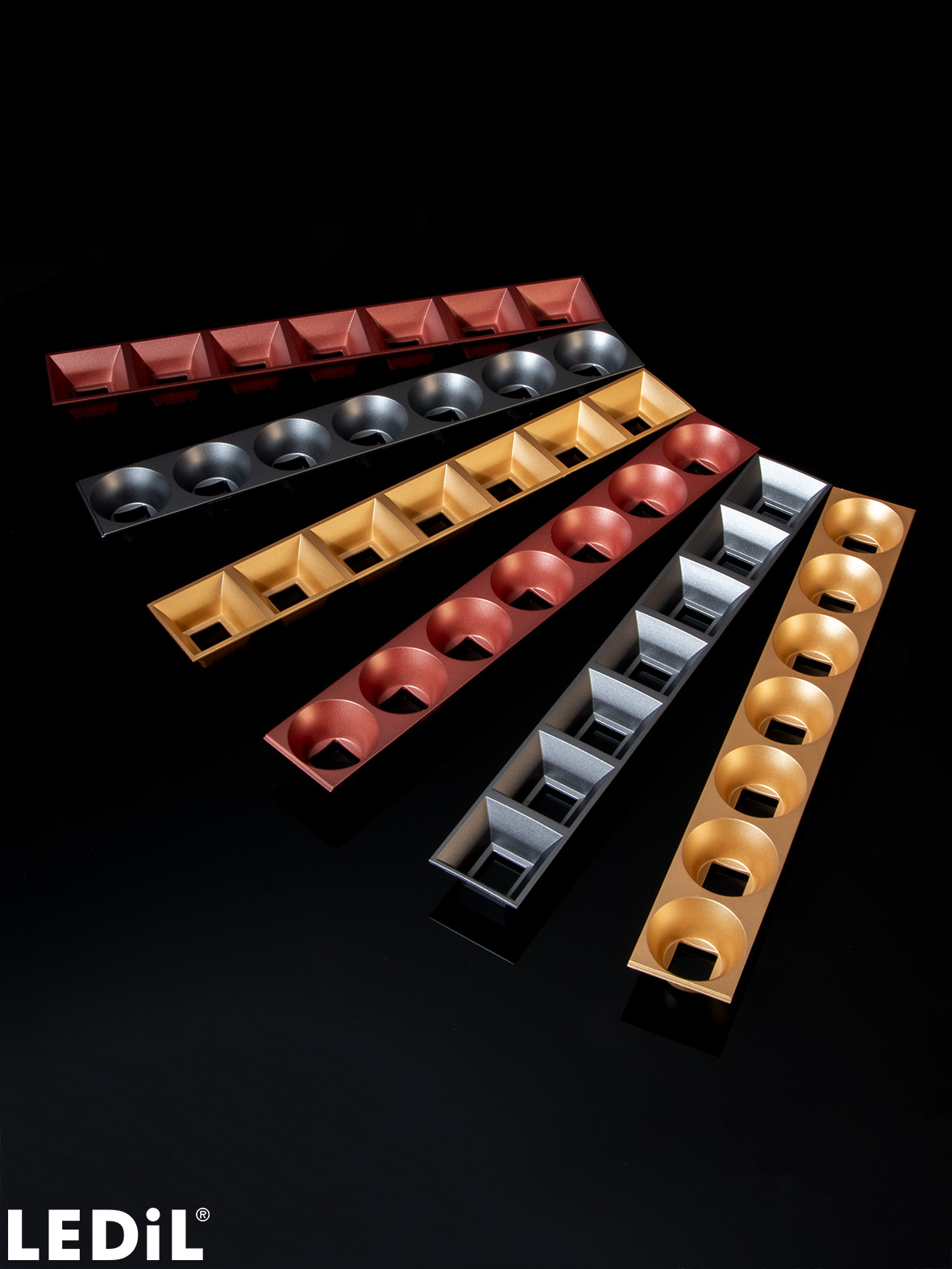

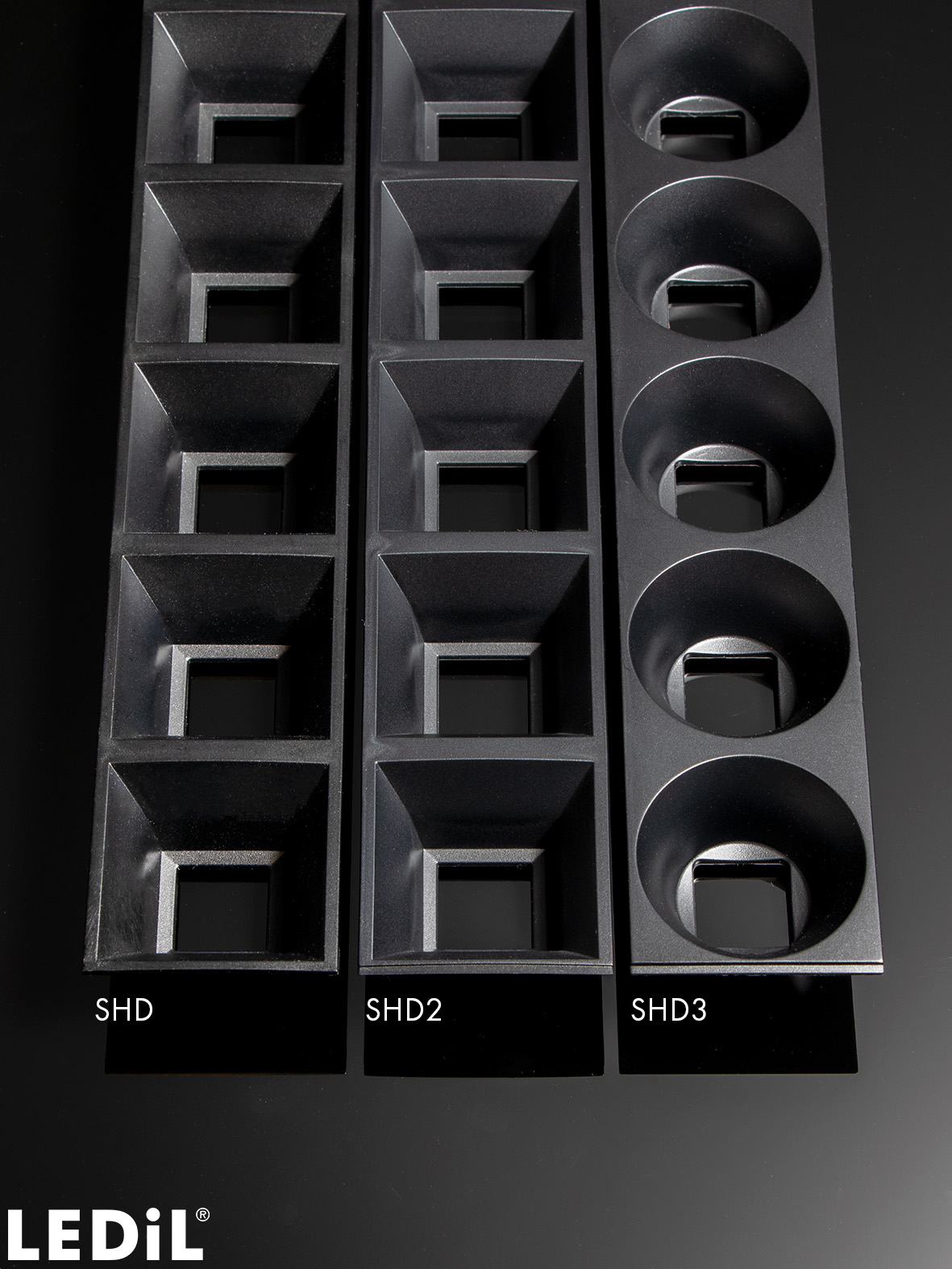

    • Shade
    • C16872_DAISY-7X1-SHD
      black,gloss
    • C16876_DAISY-7X1-SHD-WHT
      white,gloss
    • C17051_DAISY-7X1-SHD-MATT
      black,matt
    • C17225_DAISY-7X1-SHD-WHT-MATT
      white,matt
    • C18167_DAISY-7X1-SHD-MET
      metal,gloss
    • C18409_DAISY-7X1-SHD-MET-MATT
      metal,matt
    • Quantity in box:
      156 pcs
    • Box size:
      595 x 360 x 230 mm
    • Box weight:
      7.10 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      595 x 360 x 230 mm
    • MOQ Weight:
      7.10 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C17767_DAISY-7X1-ZT25-D
      C16872_DAISY-7X1-SHD

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    Application example

    Dark Light for bright sales

    Application example

    Aisle lighting with DAISY-7X1-ZT25

    Luminaire, example

    Track luminaire with DAISY-7X1-ZT25

    News

    DAISY-7X1-ZT25 for stylish, compact aisle track fixtures

    News

    New beams and products – May 2024

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR 195 - Change of Minimum order quantity in DAISY-7X1 family

    PCN

    Product change notification NR191 - Additional PC material approved

    News

    New products – January, 2023

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Wall-washing with DAISY-7X1-WAS

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    News

    New Products 2019-11-07

    News

    New Products - 2019-08-27

    News

    New Products 2019-06-13

    News

    DAISY the linear solution for premium class office lighting

    Luminaire, example

    Troffer luminaires with DAISY-7X1

    Application guide

    LEDiL guide for retail lighting optics

    Application guide

    LEDiL guide for office lighting optics

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

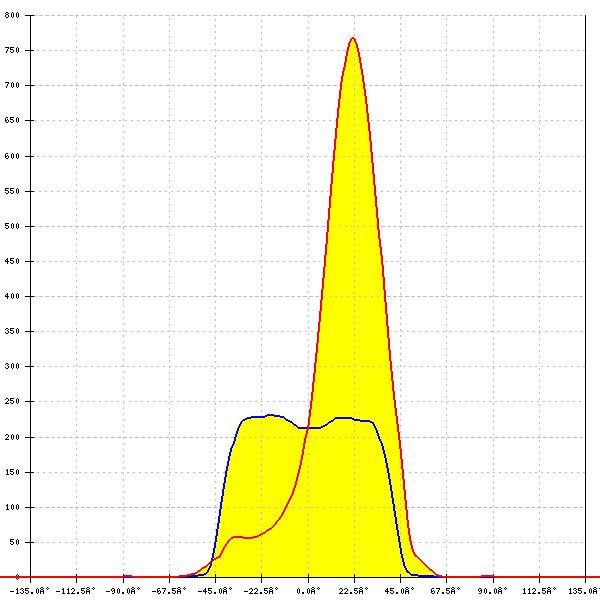

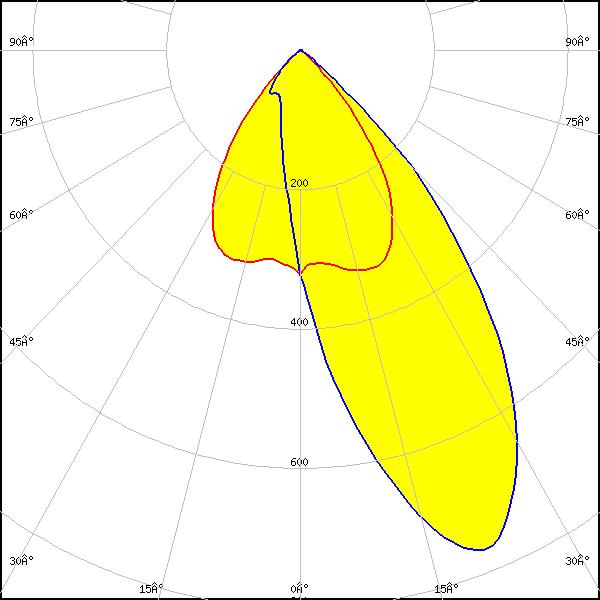

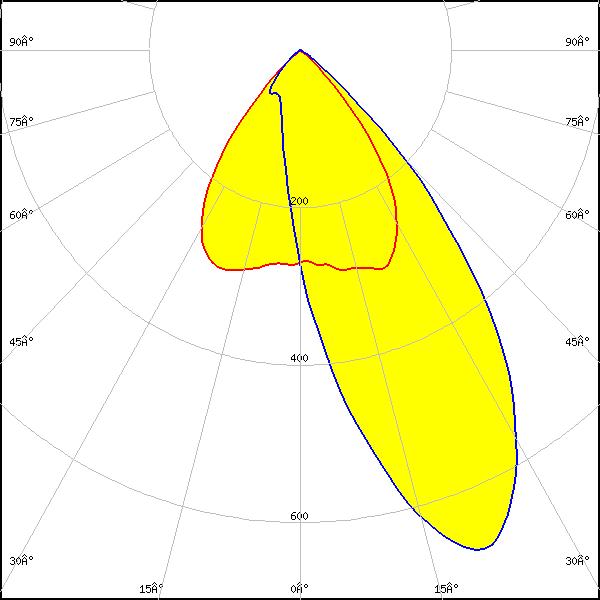

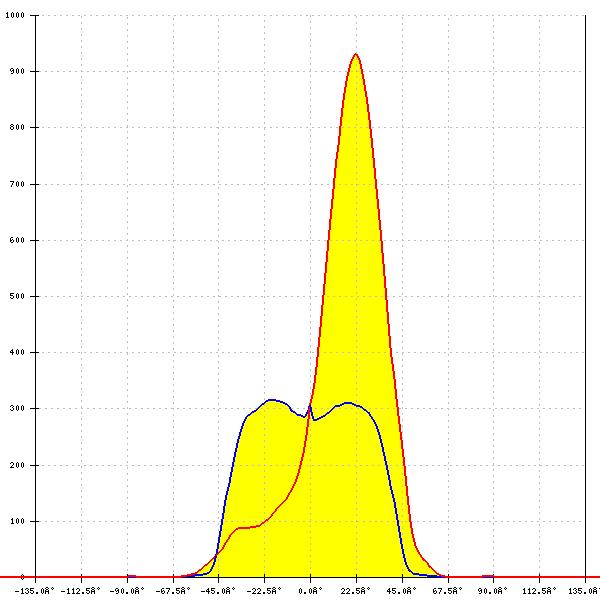

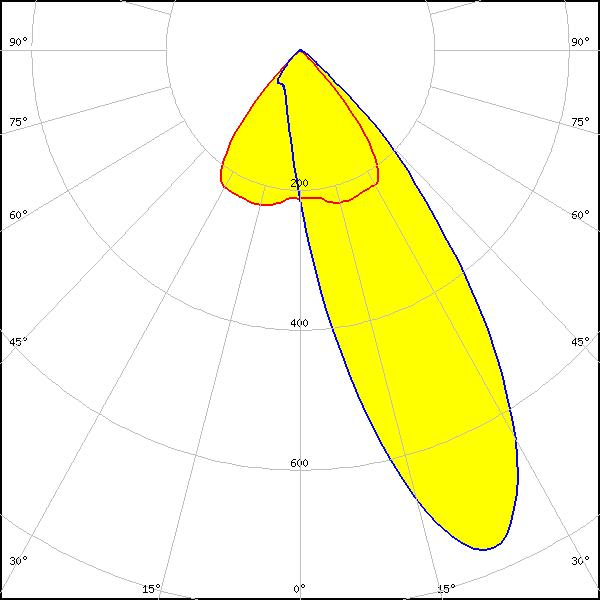

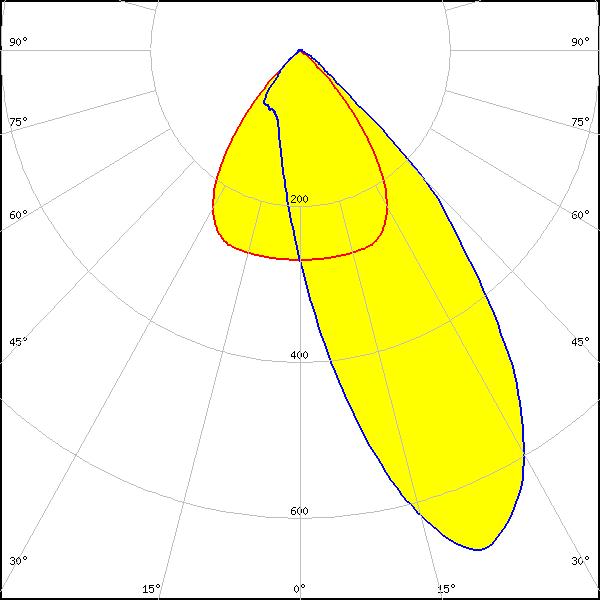

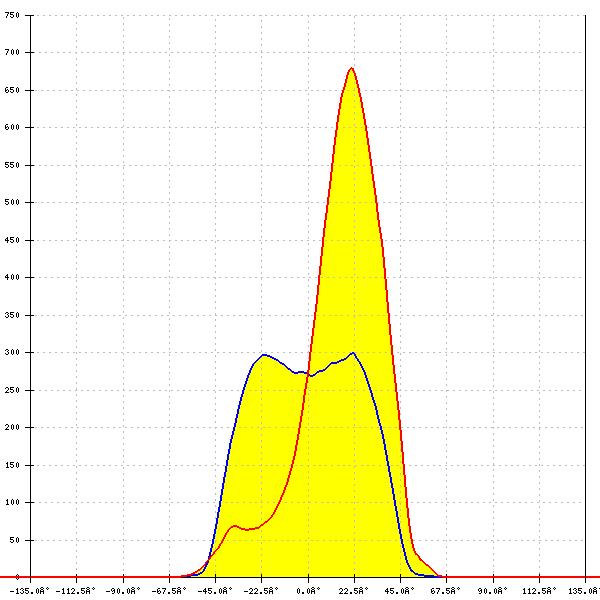

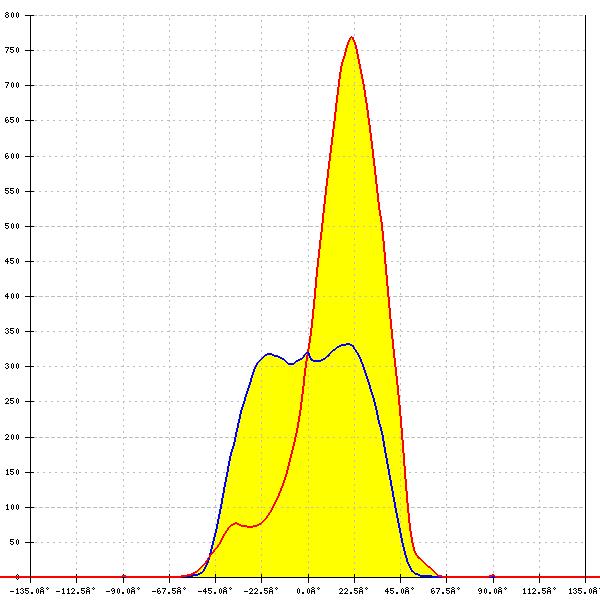

    Optical results

    LED: J Series 2835
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.898 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: J Series 2835
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.028 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 2
    Light colour/type: White

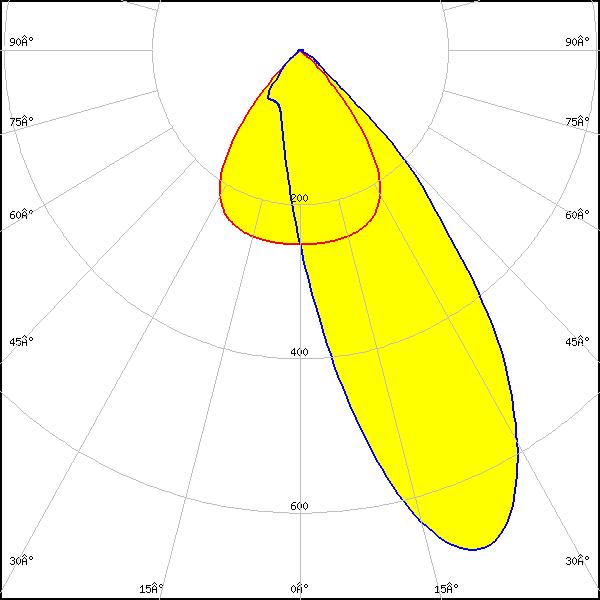

    LED: LED Line SMD L28W2 TW Module 20mm 2800Lm Daisy 7x1 (E21A)
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.726 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

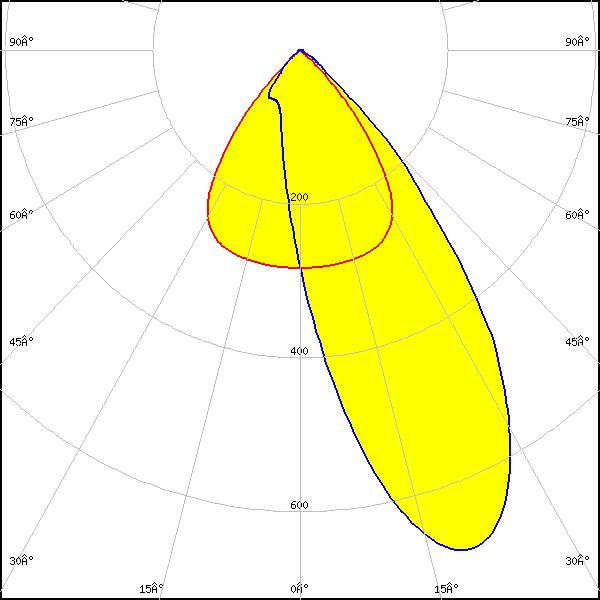

    LED: LED Line SMD L28W2 White Module 20mm 2800Lm Daisy 7x1 (E21A)
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.743 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 2
    Light colour/type: White

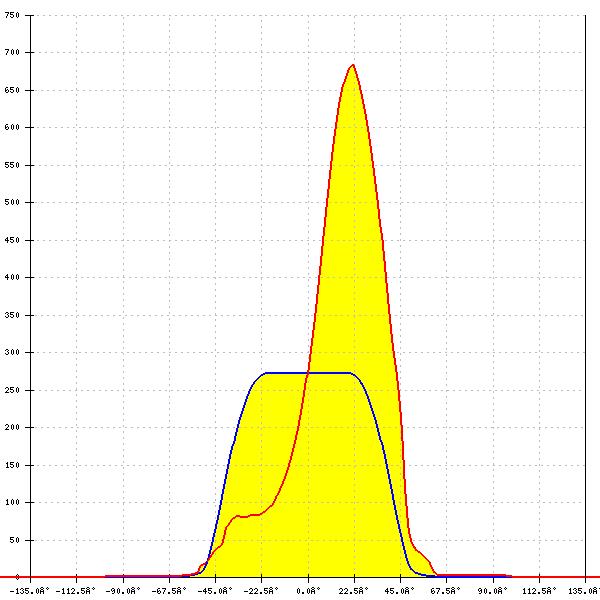

    LED: LUXEON 2835 Line
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.886 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LUXEON 2835 Line
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.745 cd/lm
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: White

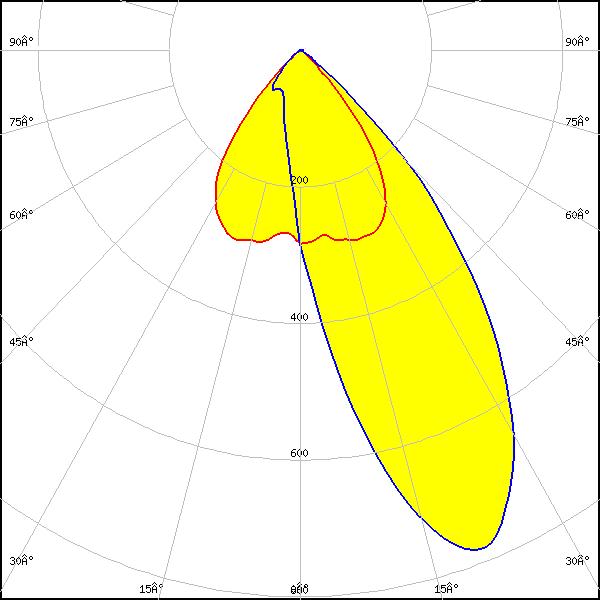

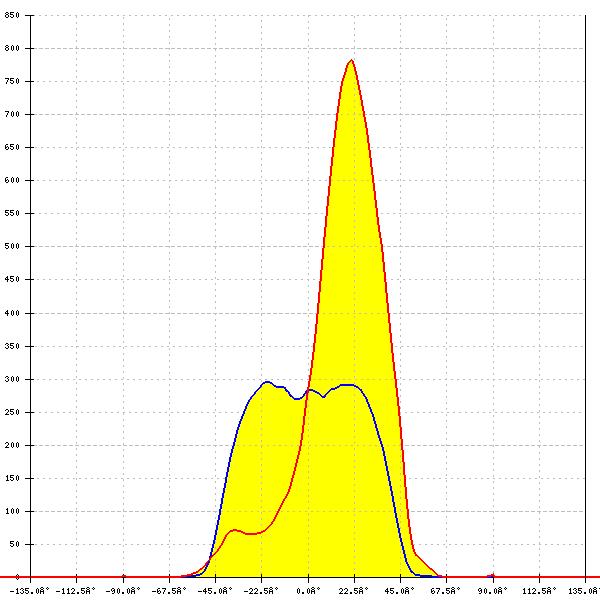

    LED: LUXEON HL2Z
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.759 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 2
    Light colour/type: White

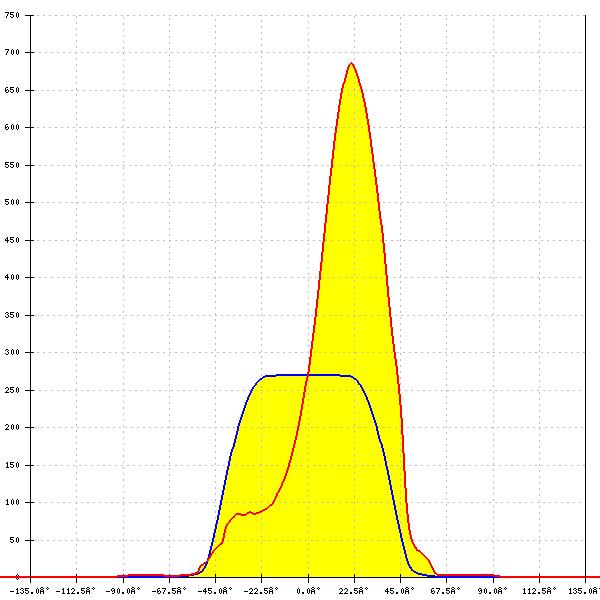

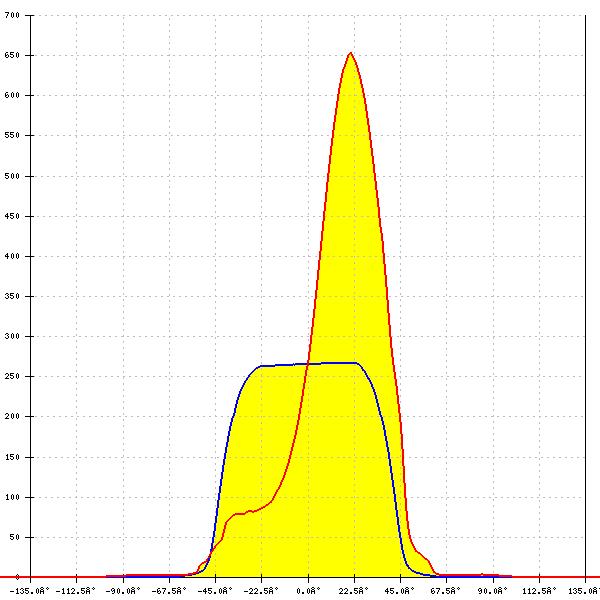

    LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.695 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: White

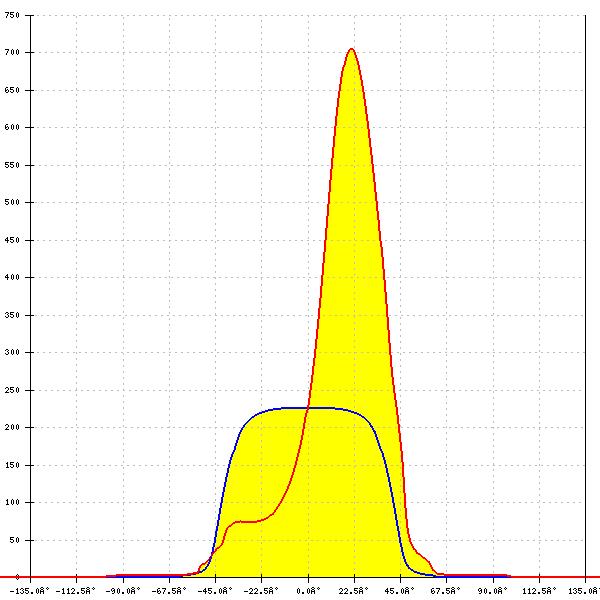

    LED: NCSxE17A
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.727 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White

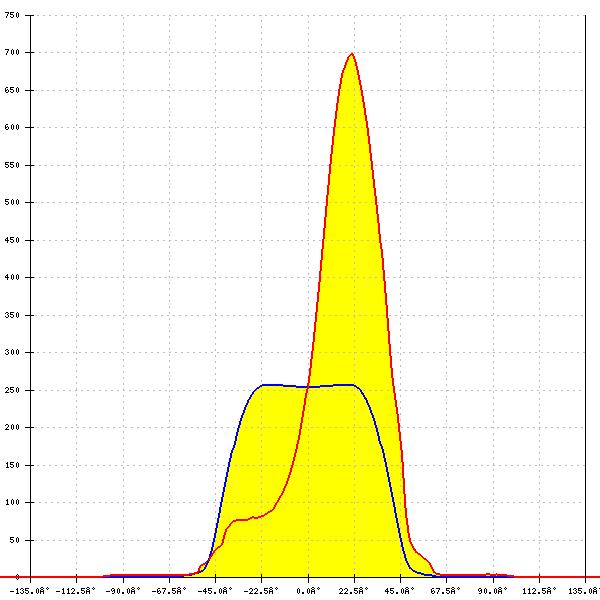

    LED: NVSxE21A
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.825 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NVSxE21A
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.782 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON PURE 1010
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: asymmetric
    Peak intensity: 1.091 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White

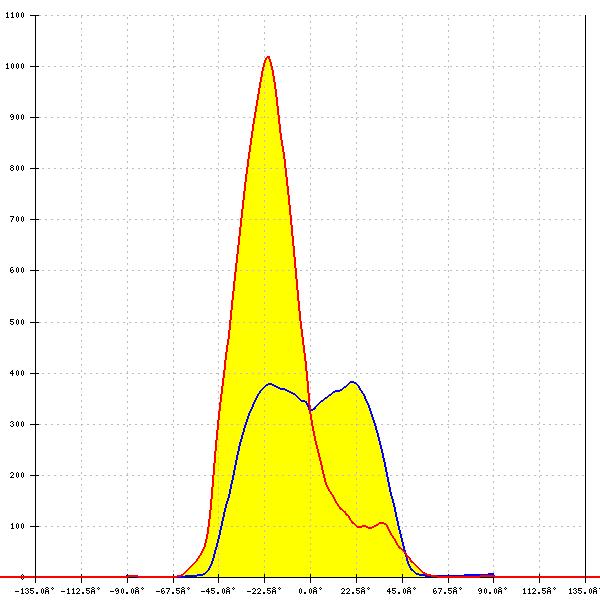

    LED: LH181B
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: asymmetric
    Peak intensity: 1.101 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LH231B
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.770 cd/lm
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM101B
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.784 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LM101B
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: asymmetric
    Peak intensity: 0.891 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LM101B
    Required components:
    C17532_DAISY-7X1-SHD-MET
    FWHM: asymmetric
    Peak intensity: 0.956 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White
