Application example

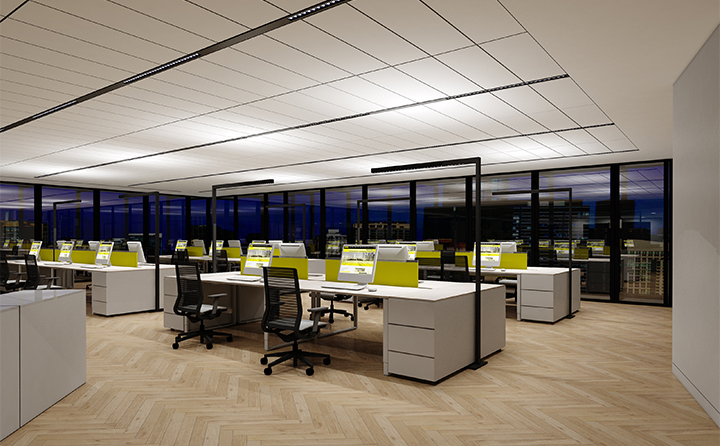

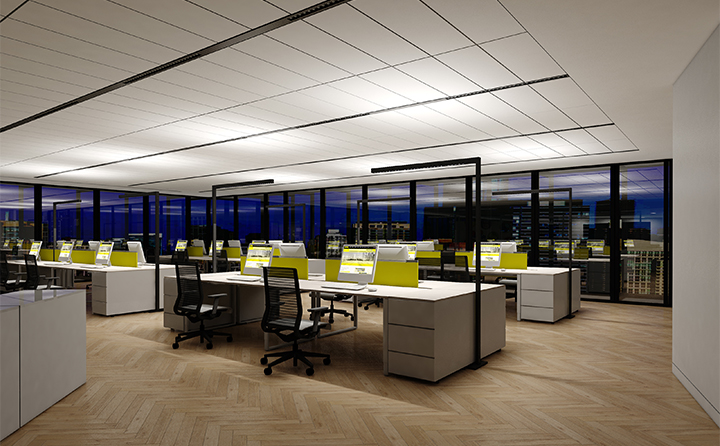

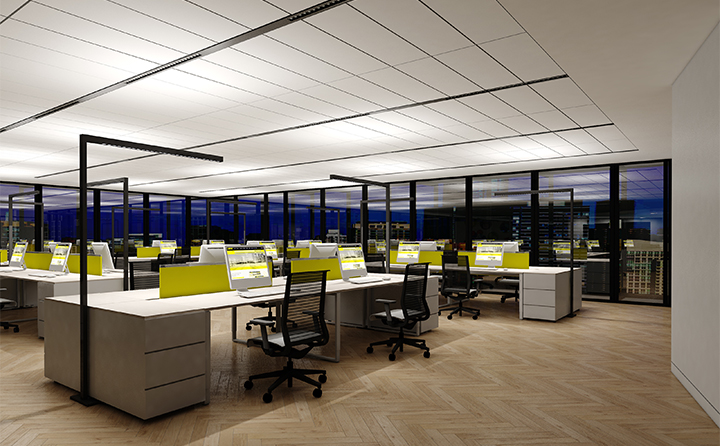

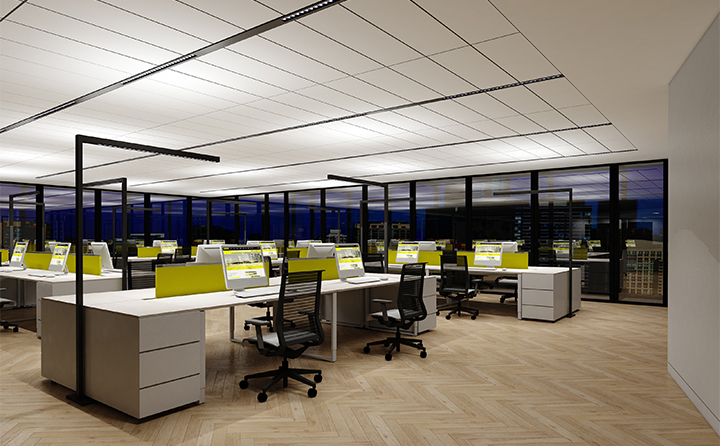

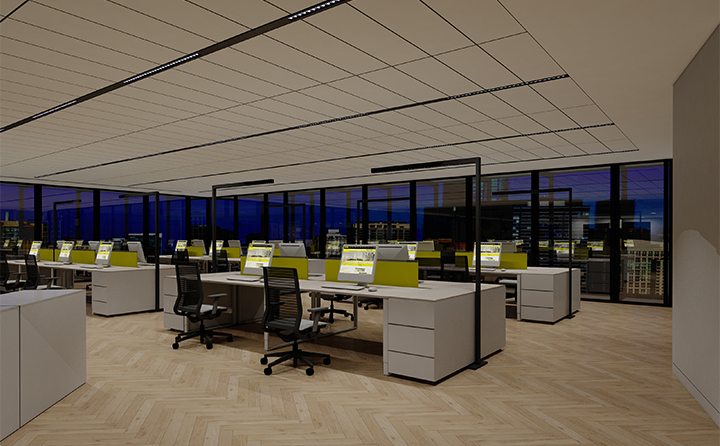

Office lighting with DAISY and LINDA
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
1 - Office Lighting: Downlights only
Setup:
| Application: | Office lighting with freestanding luminaire |
| Optics | |
| Freestanding luminaire (downwards): | DAISY-7X1-FT-D |
| Freestanding luminaire (upwards): | LINDA-UP |
| Recessed luminaire: | DAISY-28X1-WW |
| Wall washer: | DAISY-7X1-WAS |
| LEDs: | 2835 LED packages |
| Movable luminaire | |
| Movable luminaires: | Freestanding luminaire |
| Luminaire height: | 2 m |
| Number of optics in the luminaire: | 4 x DAISY-7X1-FT-D |
| Freestanding luminaire output (downwards): | 3 000 lm |
| Freestanding luminaire output (upwards): | 10 000 lm |
| Fixed luminaires | |
| Recessed luminaire: | In the office |

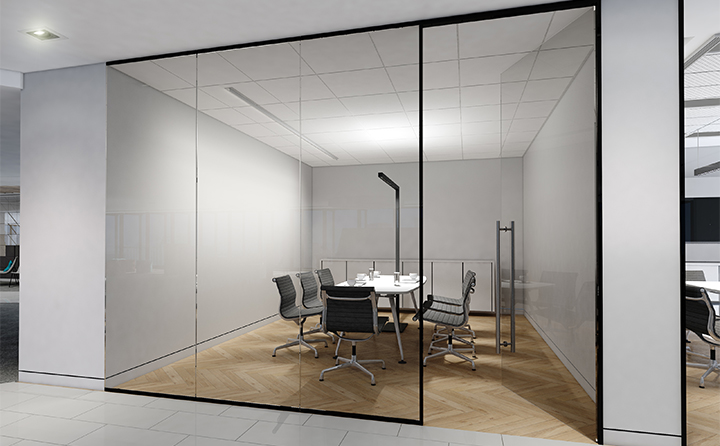

| Wall washer: | In the meeting room |
| Installation height: | 2.7 m |
| Results | |
| Luminous flux (table surface): | 1 000 lx |
| UGR: | < 19 |
Office lighting with DAISY and LINDA
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
