    DAISY-7X1-WAS

    Print

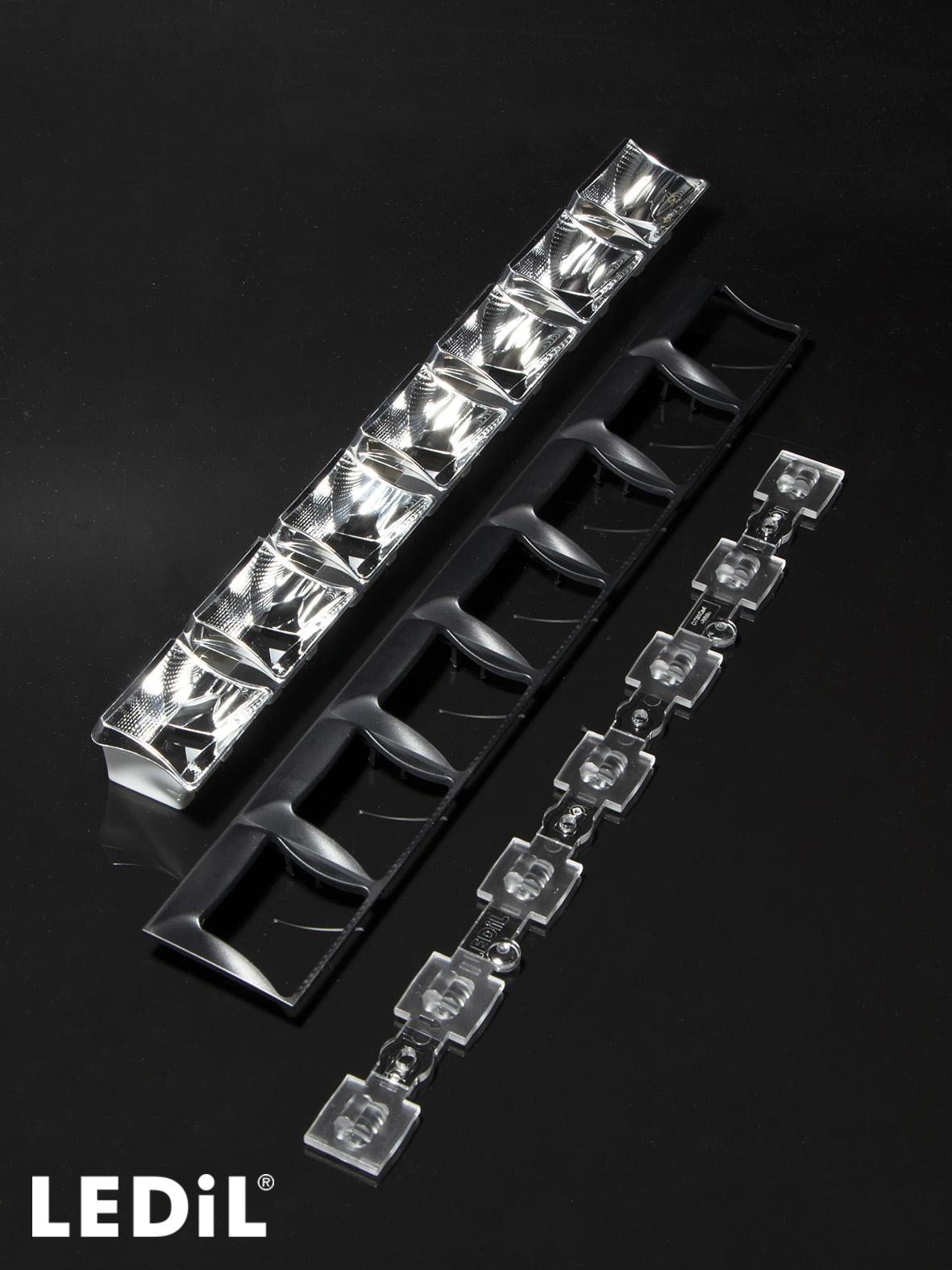

    Asymmetric beam for wall-washing

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      279 x  40 mm
    • Height:
      27.00 mm
    • Fastening:
      clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Accessory
      1 pcs
    • Linear lens
    • C17391_DAISY-7X1-WAS
      clear
    • Quantity in box:
      312 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      5.40 kg
    • MPQ:
      156 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      400 x 300 x 300 mm
    • MOQ Weight:
      5.40 kg
    • Shade
    • C18281_DAISY-7X1-WAS-SHD
      metal,gloss
    • Quantity in box:
      156 pcs
    • Box size:
      595 x 360 x 250 mm
    • Box weight:
      8.40 kg
    • MPQ:
      156 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      595 x 360 x 250 mm
    • MOQ Weight:
      8.40 kg
    • Accessory
    • C17393_DAISY-7X1-WAS-COVER
      black,matt
    • C17727_DAISY-7X1-WAS-COVER-WHT
      white
    • Quantity in box:
      156 pcs
    • Box size:
      595 x 360 x 230 mm
    • Box weight:
      4.90 kg
    • MPQ:
      156 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      595 x 360 x 230 mm
    • MOQ Weight:
      4.90 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C17391_DAISY-7X1-WAS
      C18281_DAISY-7X1-WAS-SHD
      C17393_DAISY-7X1-WAS-COVER
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    News

    The future of light is dark – LEDiL DAISY

    News

    New products – November 2, 2021

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    New beams and products – April 2025

    News

    New beams and products – August 2024

    News

    New beams and products – May 2024

    News

    Square or round, it’s all about your preference

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR 195 - Change of Minimum order quantity in DAISY-7X1 family

    PCN

    Product change notification NR191 - Additional PC material approved

    News

    New products – January, 2023

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    News

    New Products 2019-11-07

    News

    New Products - 2019-08-27

    News

    New Products 2019-06-13

    News

    DAISY the linear solution for premium class office lighting

    Luminaire, example

    Troffer luminaires with DAISY-7X1

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Office Lighting Optics

    News

    Transforming workspaces with DAISY

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    Optical results

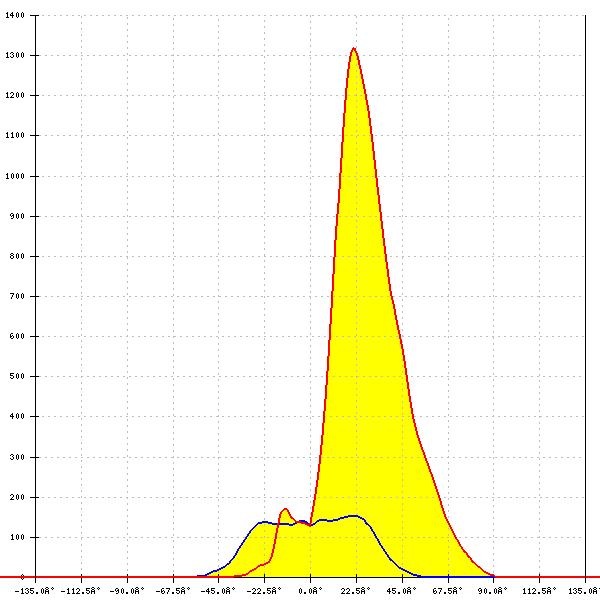

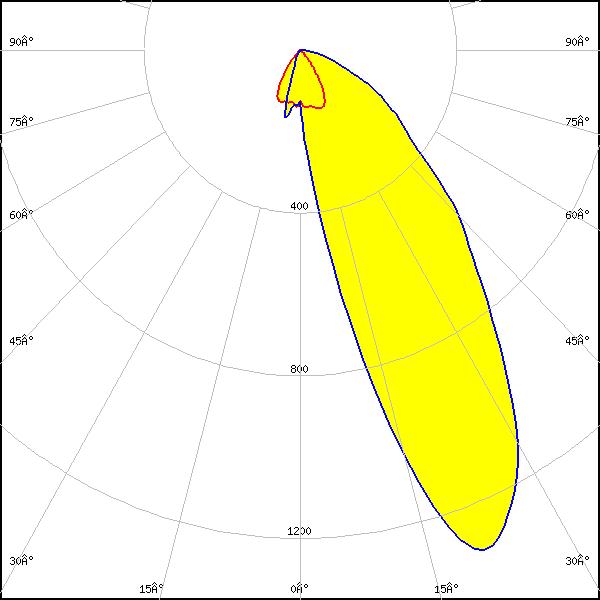

    LED: CSP 2727 (BXCP)
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.317 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 2
    Light colour/type: White

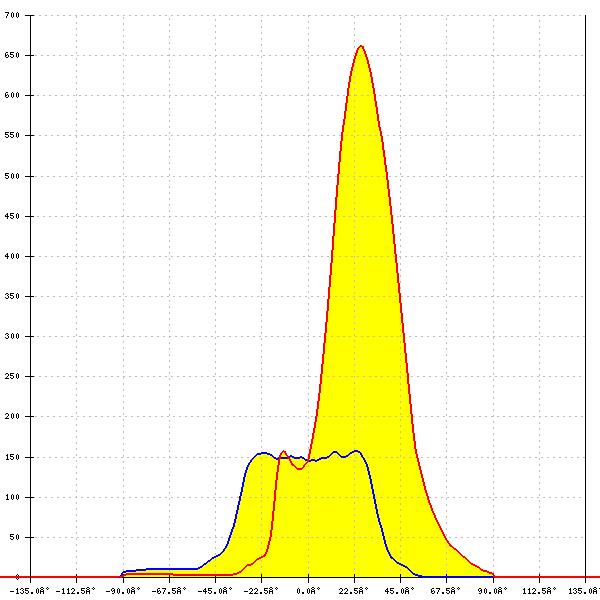

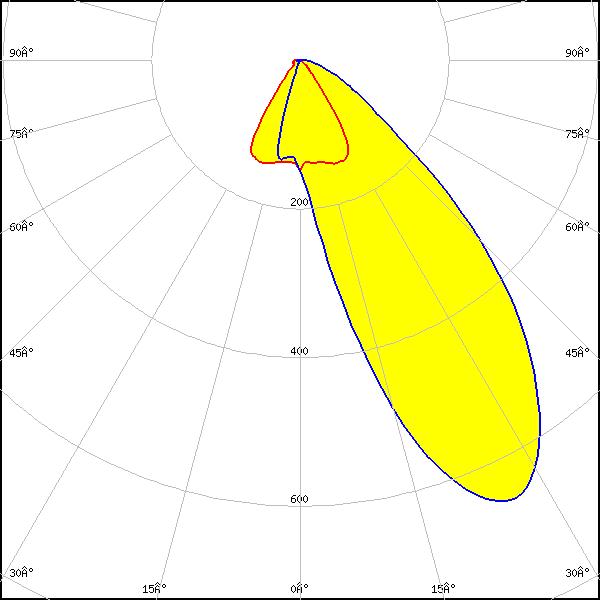

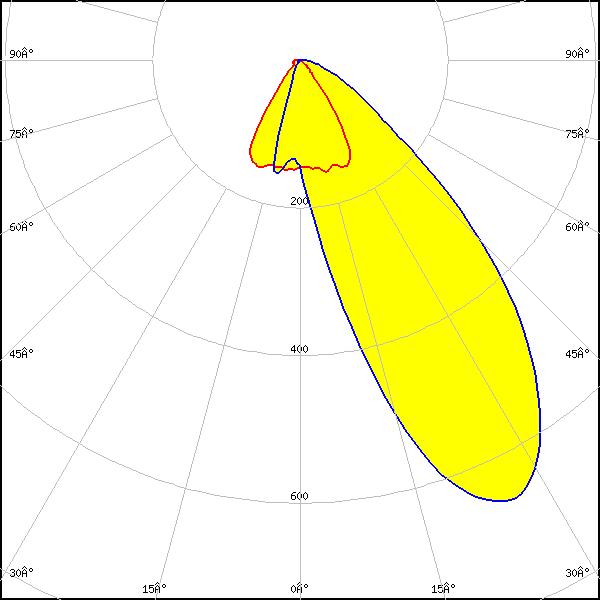

    LED: J Series 2835
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 0.693 cd/lm
    Efficiency: 54 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 2835
    Required components:
    C17727_DAISY-7X1-WAS-COVER-WHT
    FWHM: asymmetric
    Peak intensity: 0.708 cd/lm
    Efficiency: 55 %
    LEDs/each optic: 1
    Light colour/type: White

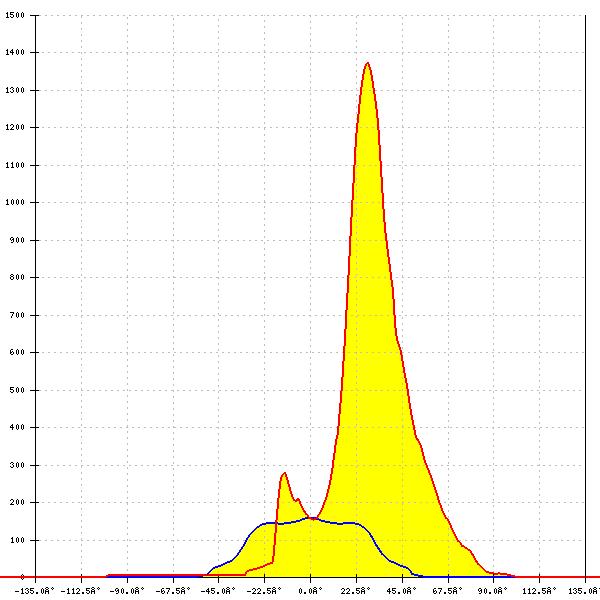

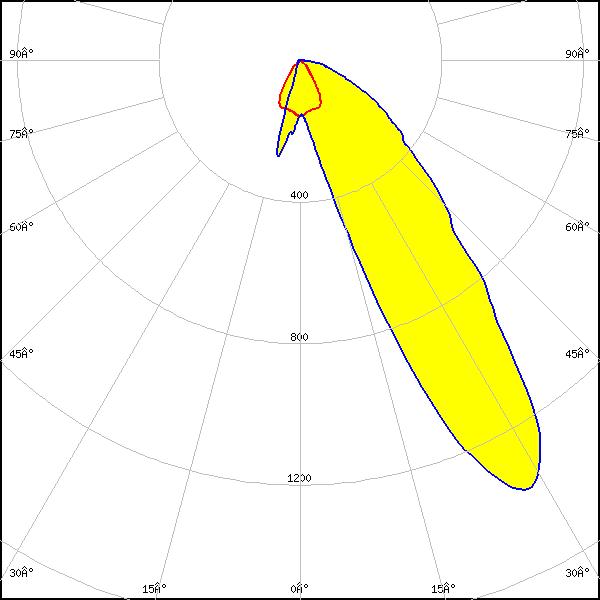

    LED: LED Line SMD L28W2 TW Module 20mm 2800Lm Daisy 7x1 (E21A)
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.384 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

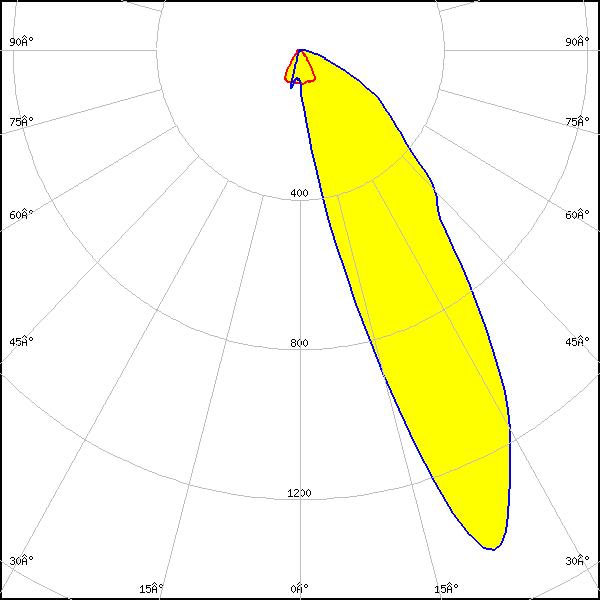

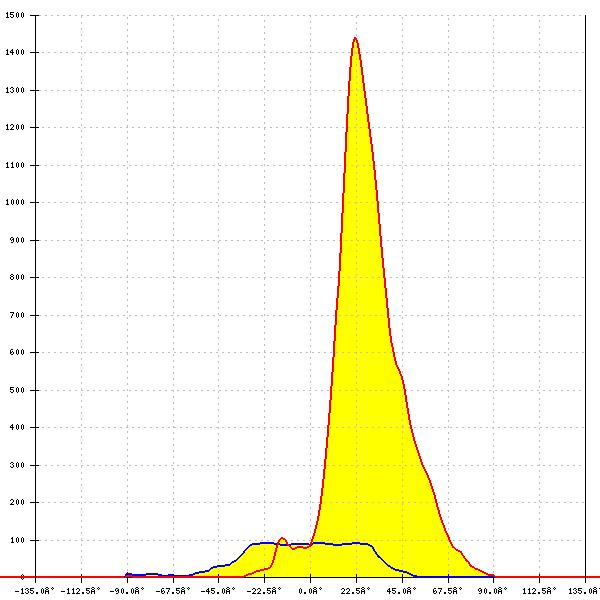

    LED: LED Line SMD L28W2 White Module 20mm 2800Lm Daisy 7x1 (E21A)
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.401 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 2
    Light colour/type: White

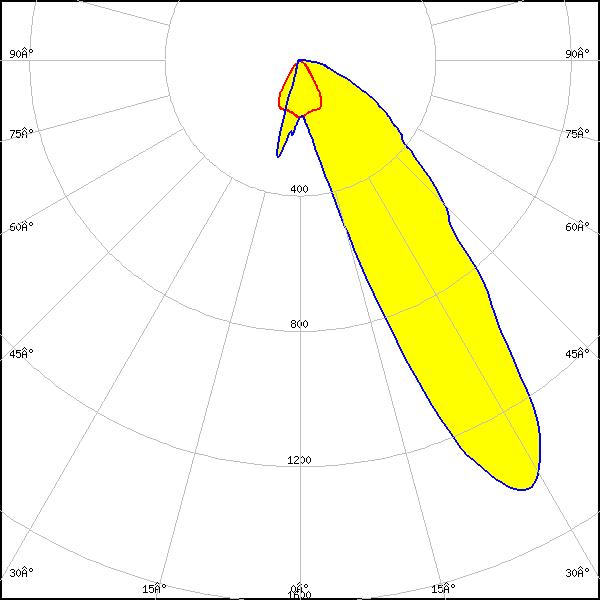

    LED: LUXEON HL2Z
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.440 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 2
    Light colour/type: White

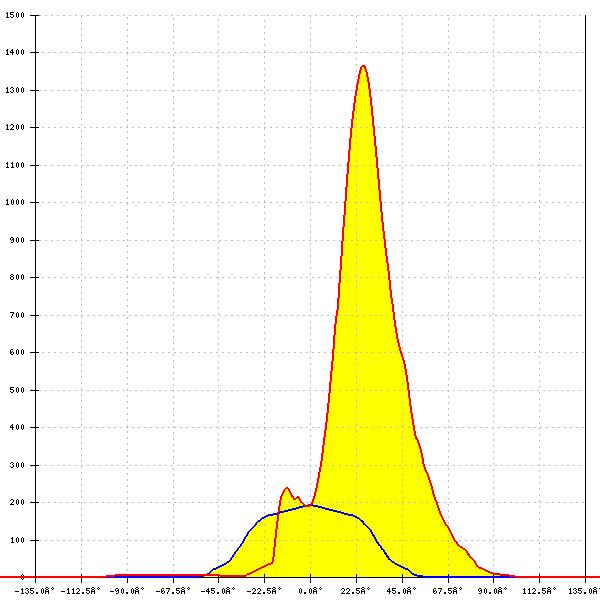

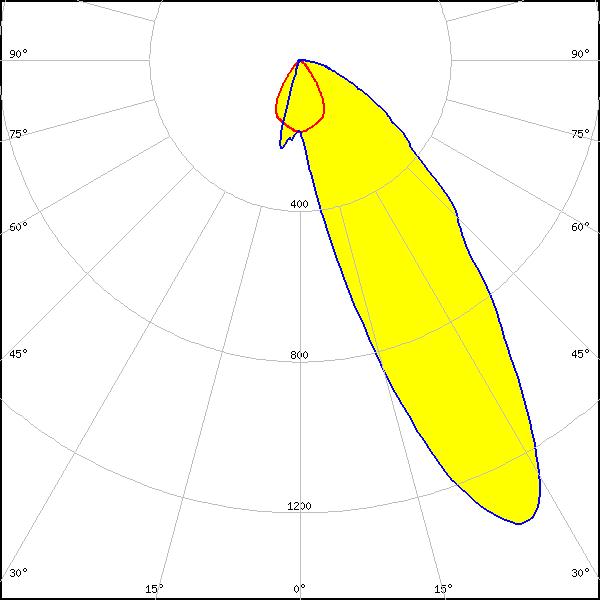

    LED: LinLED 274x24mm 1100lm 840 4C 42V DAISY-7X1 (ZT25) G4
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.372 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

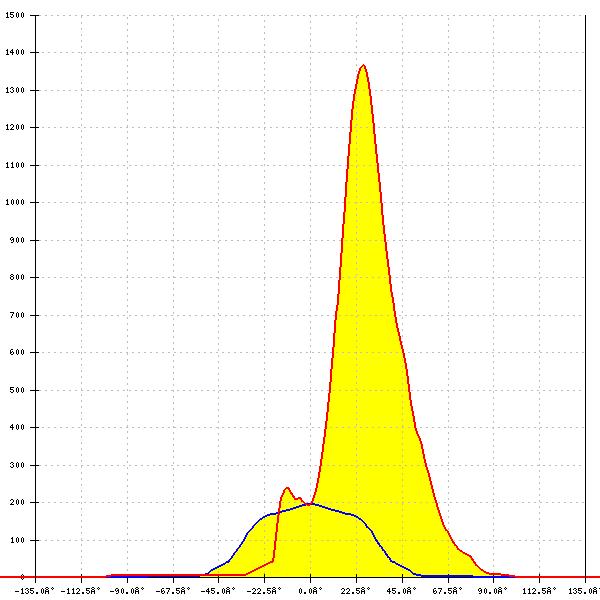

    LED: LinLED 274x24mm 1100lm 840 4C 42V DAISY-7X1 (ZT25) G4
    Required components:
    C17727_DAISY-7X1-WAS-COVER-WHT
    FWHM: asymmetric
    Peak intensity: 1.367 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

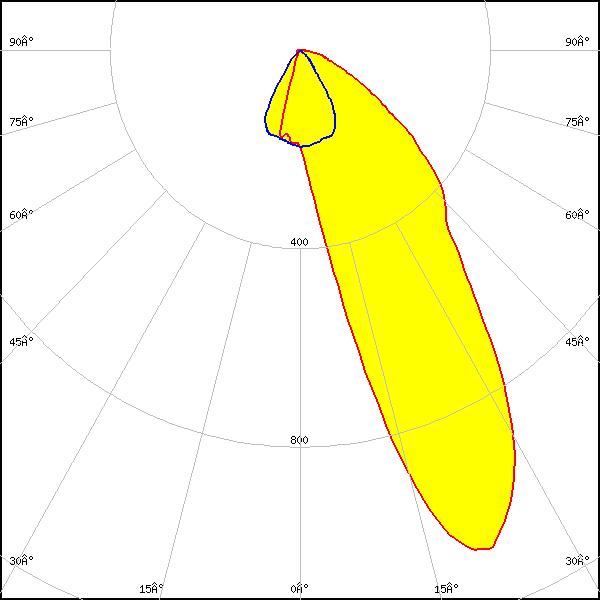

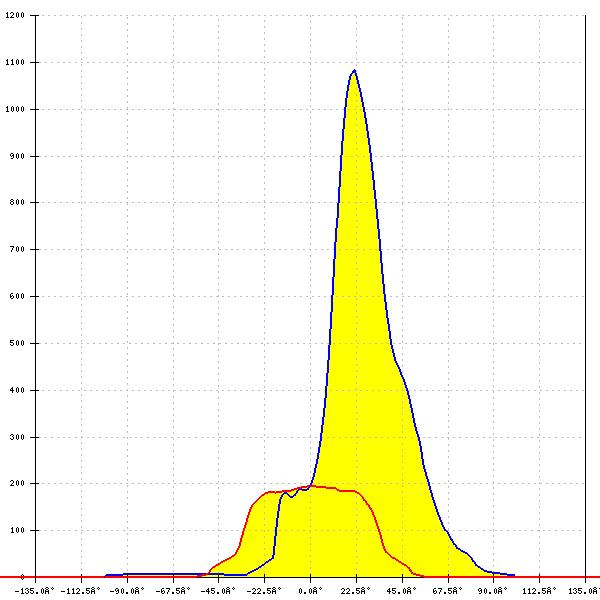

    LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.126 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

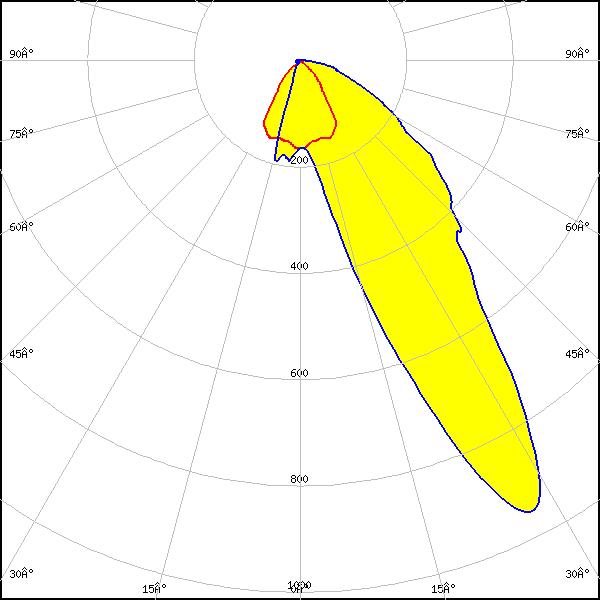

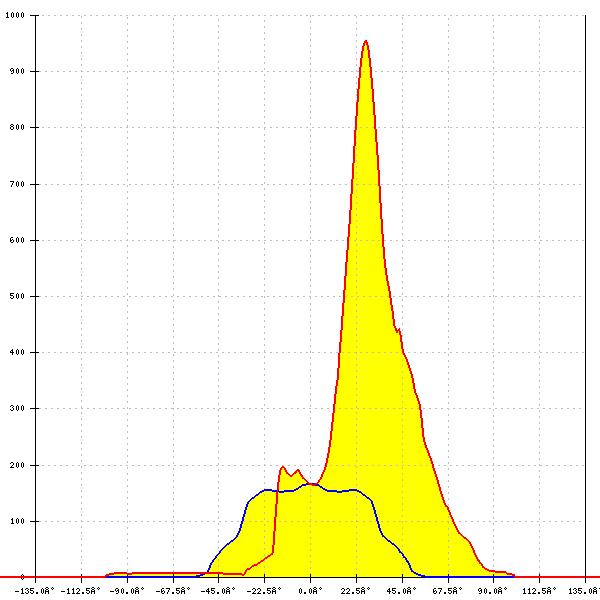

    LED: NCSxE17A
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.492 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 2
    Light colour/type: White

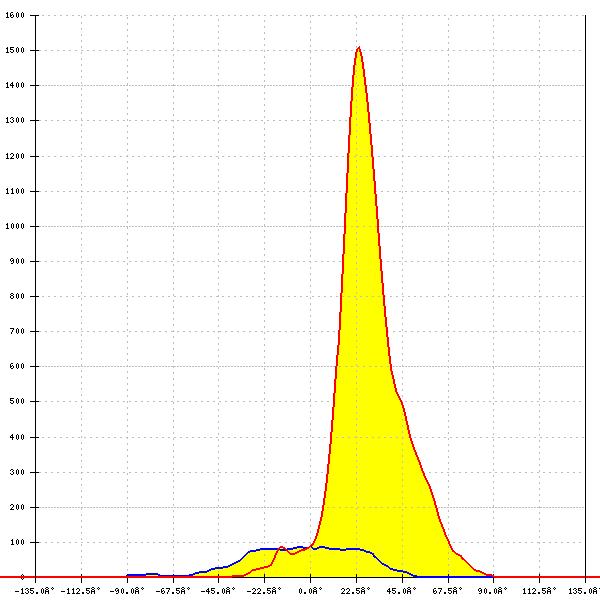

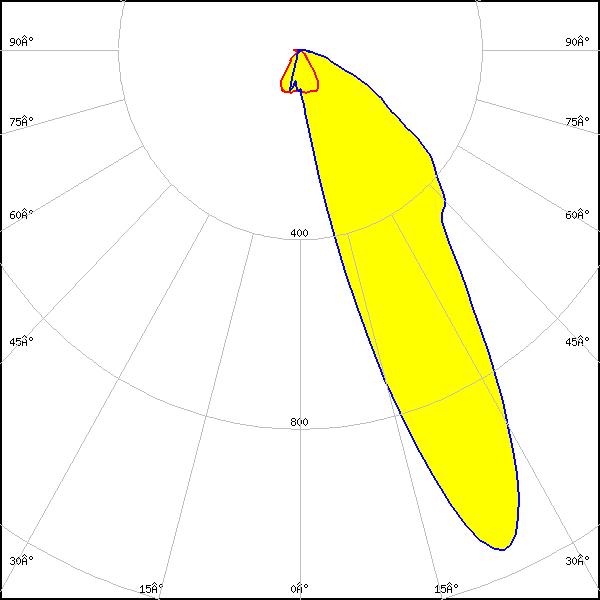

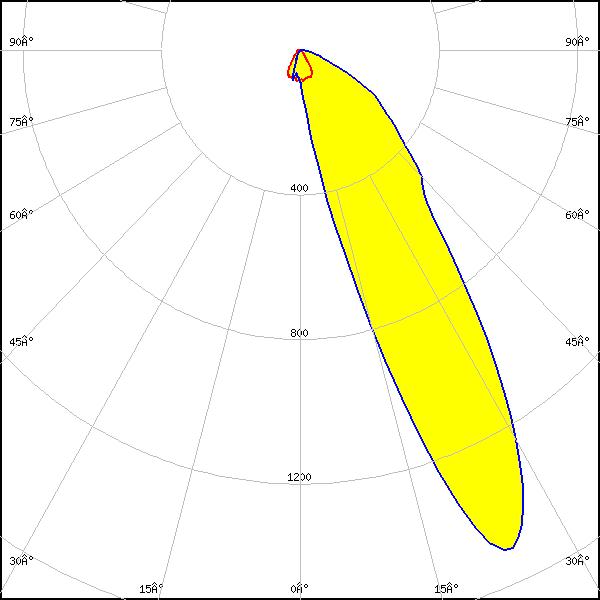

    LED: NCSxE17A
    Required components:
    C17727_DAISY-7X1-WAS-COVER-WHT
    FWHM: asymmetric
    Peak intensity: 1.508 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NCSxE17A
    Required components:
    C17727_DAISY-7X1-WAS-COVER-WHT
    FWHM: asymmetric
    Peak intensity: 1.198 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxE17A
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.472 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: NCSxE17A
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.198 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

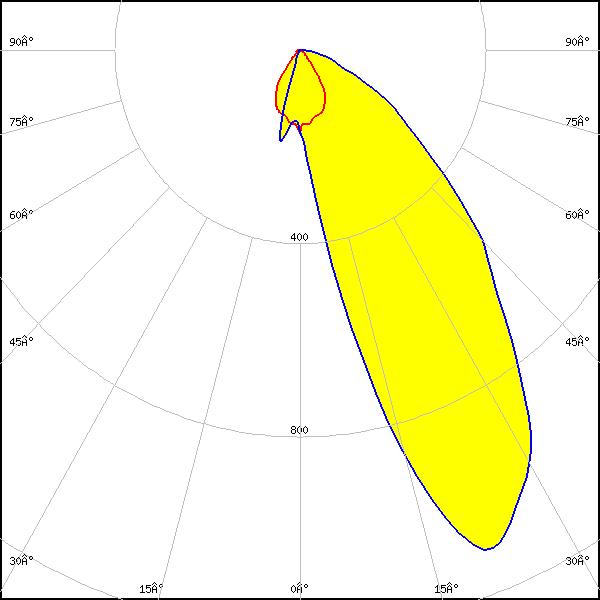

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.113 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

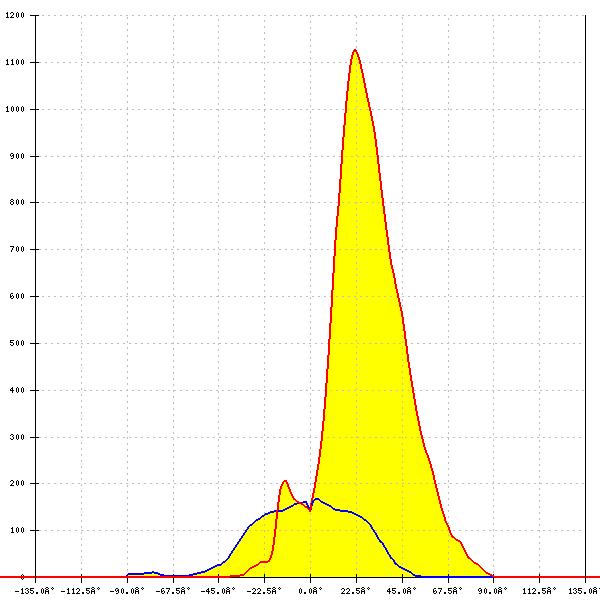

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C17727_DAISY-7X1-WAS-COVER-WHT
    FWHM: asymmetric
    Peak intensity: 1.127 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 2
    Light colour/type: Tunable White
    LED: NF2x757G
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.091 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NF2x757G
    Required components:
    C17727_DAISY-7X1-WAS-COVER-WHT
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.441 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LH231B
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.320 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

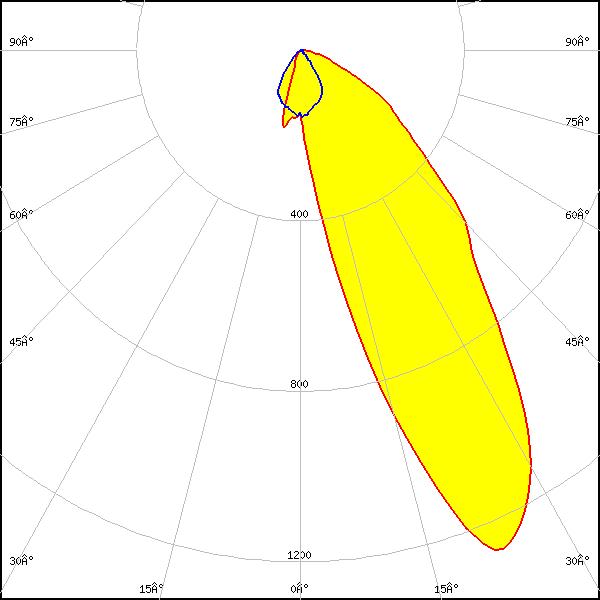

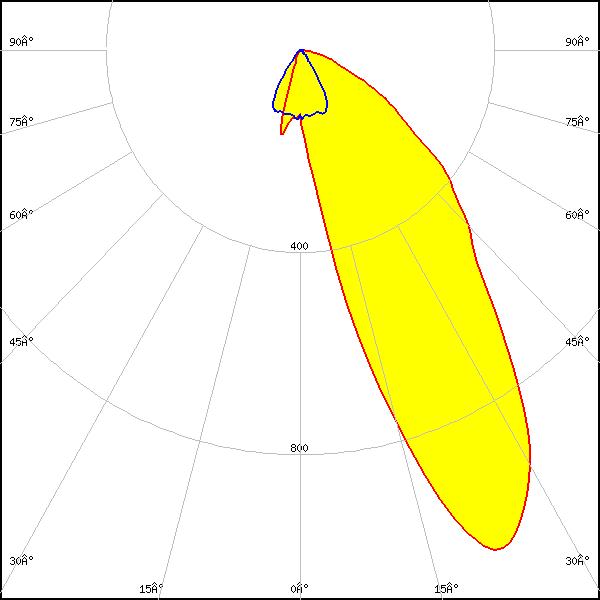

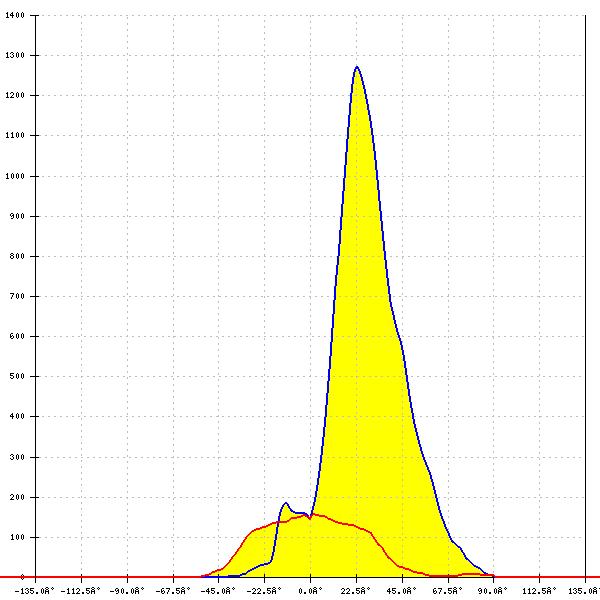

    LED: LM28xB Series
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.107 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.272 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 2
    Light colour/type: White

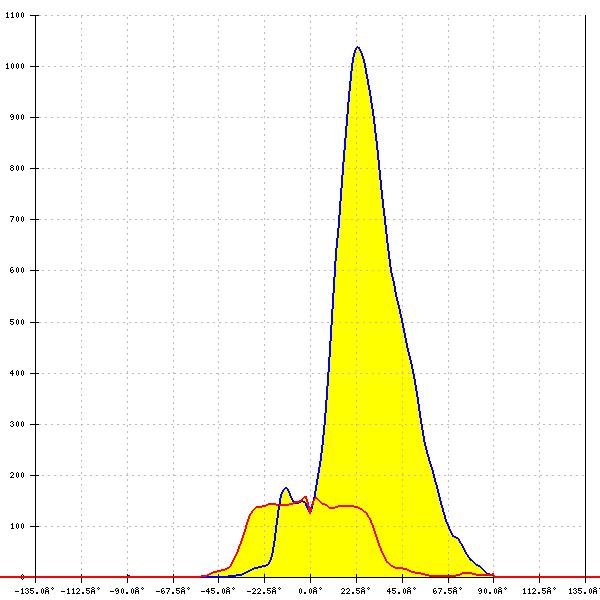

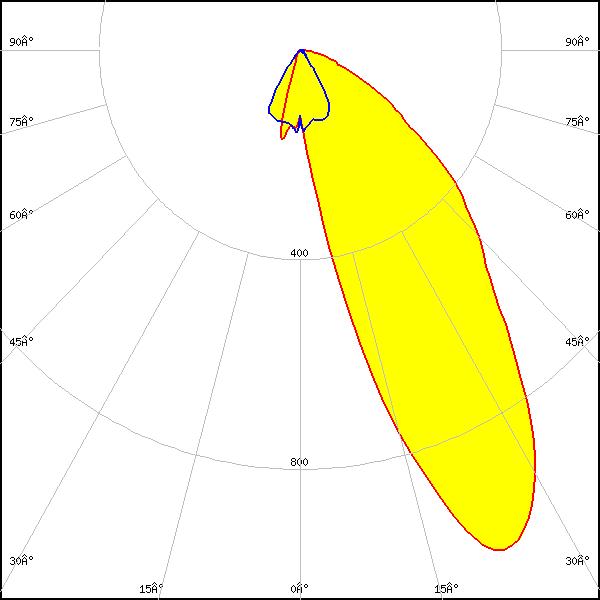

    LED: LM301B
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.099 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301B
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.245 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

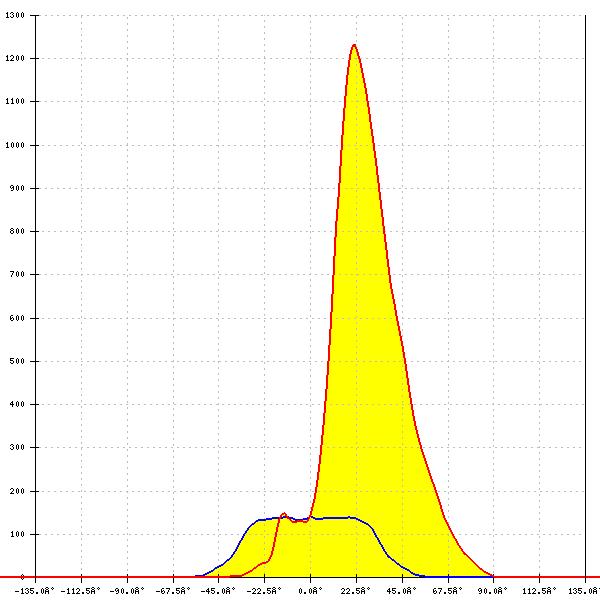

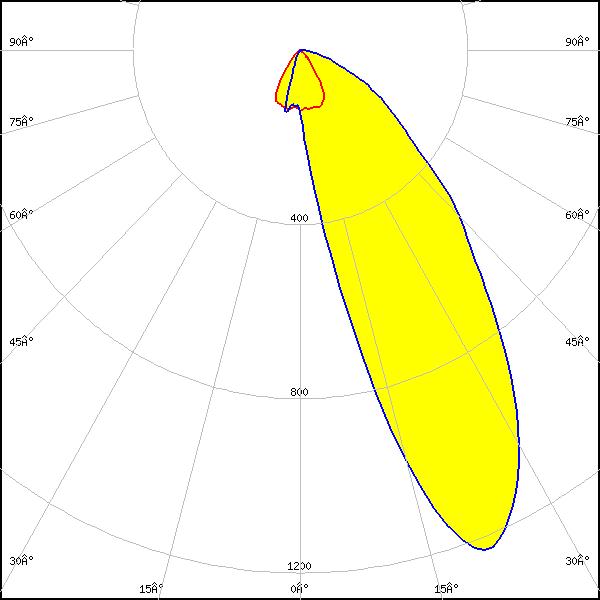

    LED: Z8Y22
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.230 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 2
    Light colour/type: White

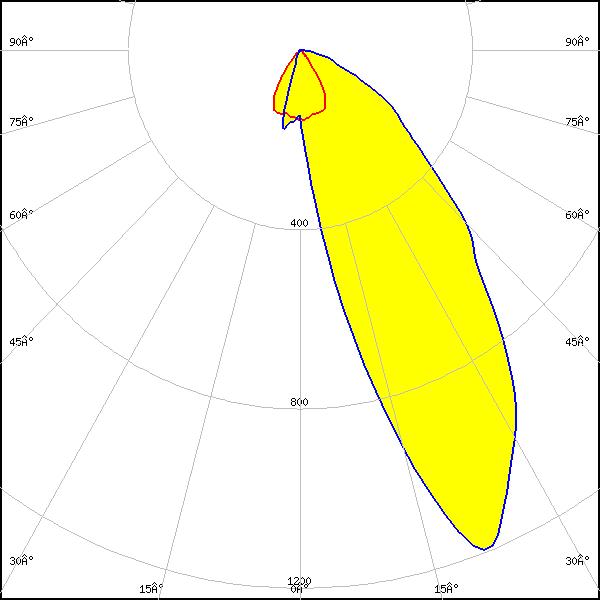

    LED: LLE 24mm 2000lm LVD HP ADV2
    Required components:
    C17393_DAISY-7X1-WAS-COVER
    FWHM: asymmetric
    Peak intensity: 1.195 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 2
    Light colour/type: White
