    DAISY-7X1-FT-D

    Print

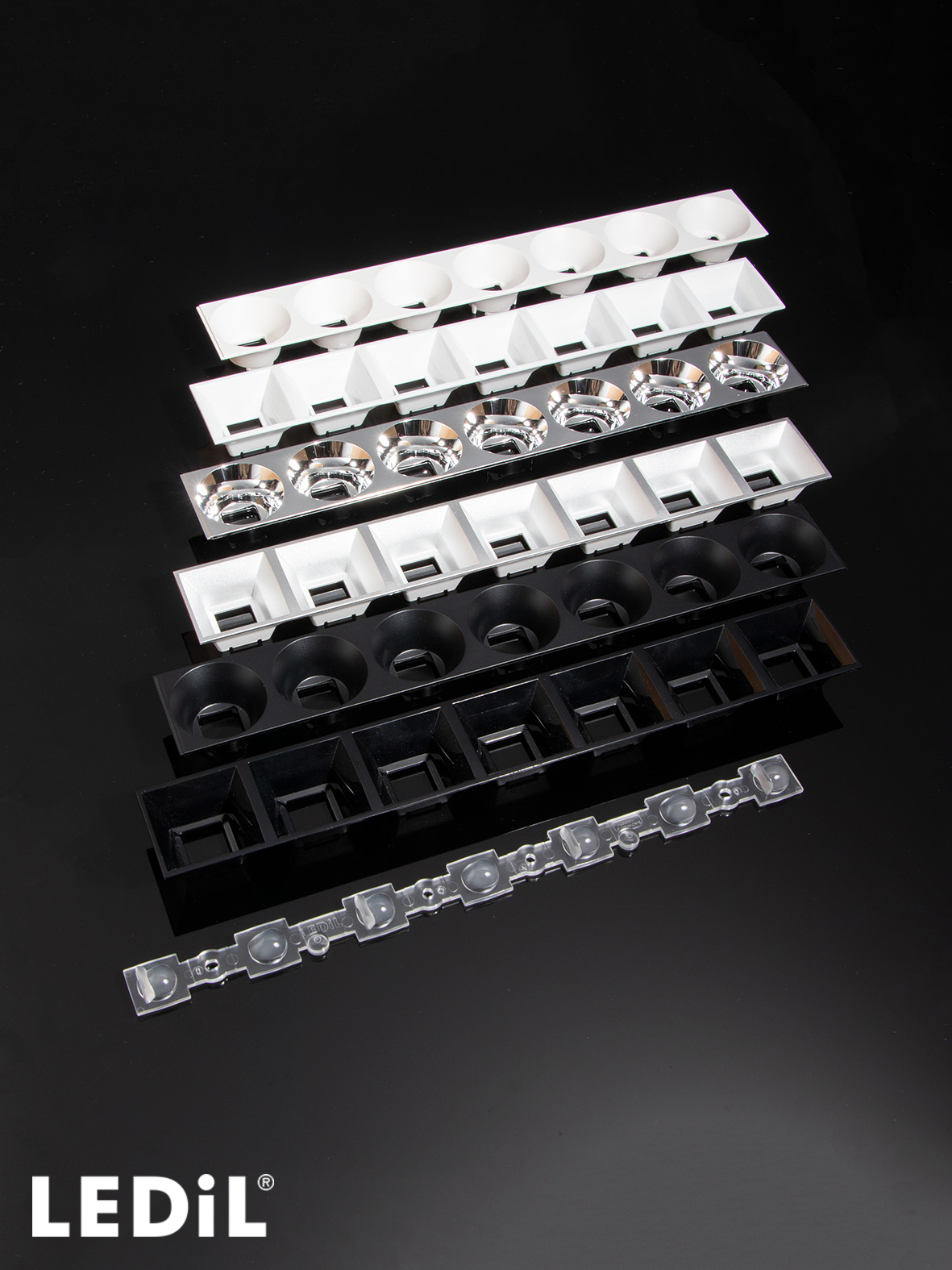

    Forward throwing beam for freestanding office luminaires. Choose SHD with no lips or SHD2 with narrow lips and square openings. SHD3 with narrow lips and round openings.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      40 x  259 mm
    • Height:
      20.30 mm
    • Fastening:
      pin, screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

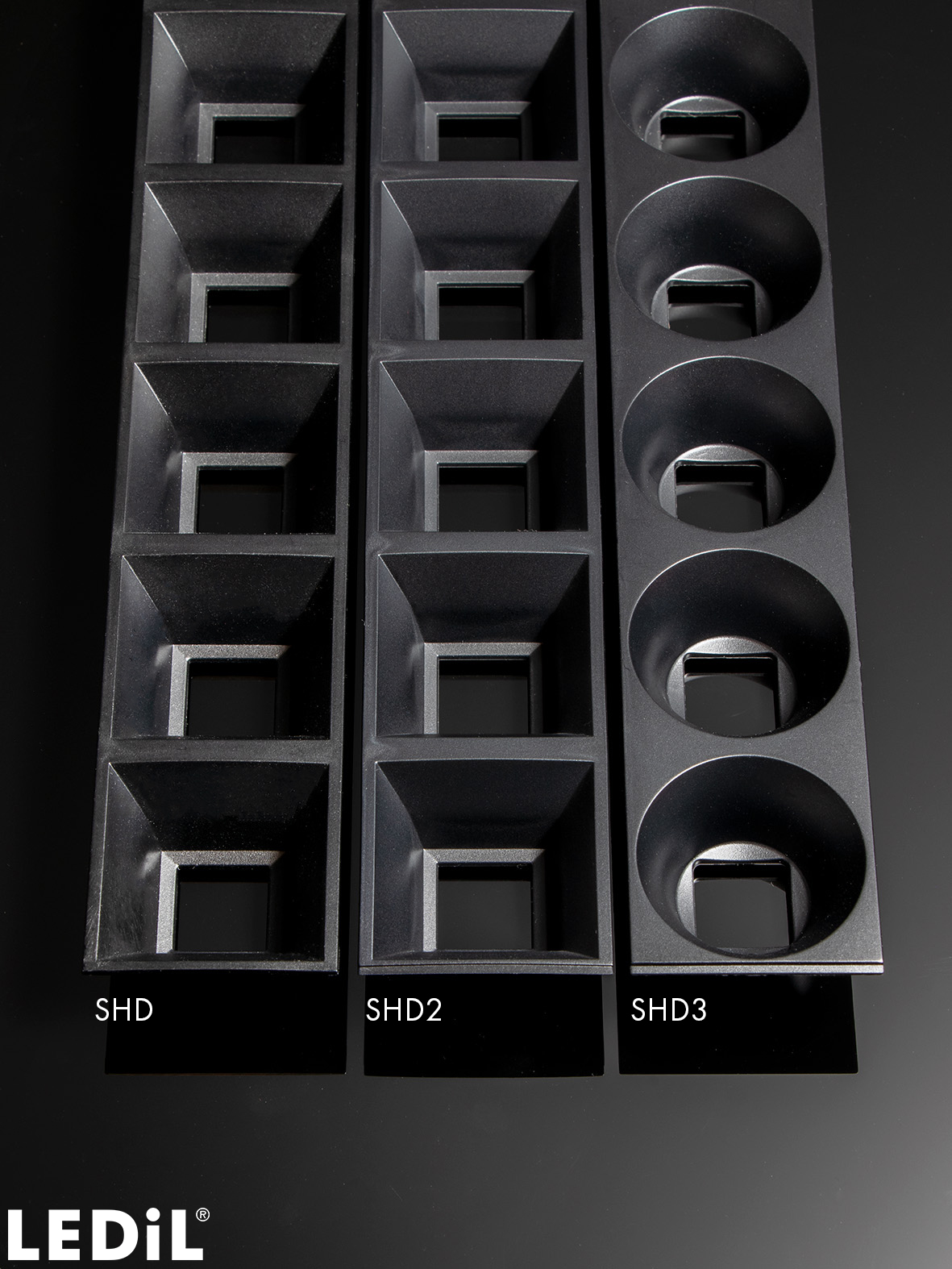

    • DAISY-7X1-SHD
      Shade
      PC
    • DAISY-7X1-SHD-WHT
      Shade
      PC
    • DAISY-7X1-SHD-MATT
      Shade
      PC
    • DAISY-7X1-SHD-WHT-MATT
      Shade
      PC
    • DAISY-7X1-SHD-MET
      Shade
      PC
    • DAISY-7X1-FT-D
      Linear lens
      PMMA
    • DAISY-7X1-SHD-MET-MATT
      Shade
      PC
    • DAISY-7X1-SHD3
      Shade
      PC
    • DAISY-7X1-SHD3-MATT
      Shade
      PC
    • DAISY-7X1-SHD3-WHT
      Shade
      PC
    • DAISY-7X1-SHD3-WHT-MATT
      Shade
      PC
    • DAISY-7X1-SHD3-MET
      Shade
      PC
    • DAISY-7X1-SHD3-MET-MATT
      Shade
      PC
    • DAISY-7X1-SHD-MATT-RED
      Shade
      PC
    • DAISY-7X1-SHD-MATT-GR
      Shade
      PC
    • DAISY-7X1-SHD-MATT-GLD
      Shade
      PC
    • DAISY-7X1-SHD3-MATT-GR
      Shade
      PC
    • DAISY-7X1-SHD3-MATT-RED
      Shade
      PC
    • DAISY-7X1-SHD3-MATT-GLD
      Shade
      PC
    • DAISY-7X1-SHD2
      Shade
      PC
    • DAISY-7X1-SHD2-MATT
      Shade
      PC-ABS
    • DAISY-7X1-SHD2-WHT
      Shade
      PC
    • DAISY-7X1-SHD2-MATT-WHT
      Shade
      PC
    • DAISY-7X1-SHD2-MET
      Shade
      PC
    • DAISY-7X1-SHD2-MET-MATT
      Shade
      PC-ABS
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • C18244_DAISY-7X1-FT-D
      milky
    • Quantity in box:
      312 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      5.60 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      400 x 300 x 300 mm
    • MOQ Weight:
      5.60 kg
    • Shade
    • C16872_DAISY-7X1-SHD
      black,gloss
    • C16876_DAISY-7X1-SHD-WHT
      white,gloss
    • C17051_DAISY-7X1-SHD-MATT
      black,matt
    • C17225_DAISY-7X1-SHD-WHT-MATT
      white,matt
    • C18167_DAISY-7X1-SHD-MET
      metal,gloss
    • C18409_DAISY-7X1-SHD-MET-MATT
      metal,matt
    • C19312_DAISY-7X1-SHD3
      black,gloss
    • C19313_DAISY-7X1-SHD3-MATT
      black,matt
    • C19314_DAISY-7X1-SHD3-WHT
      white,gloss
    • C19315_DAISY-7X1-SHD3-WHT-MATT
      white,matt
    • C19641_DAISY-7X1-SHD3-MET
      metal,gloss
    • C19642_DAISY-7X1-SHD3-MET-MATT
      metal,matt
    • C19763_DAISY-7X1-SHD-MATT-RED
      red,matt
    • C19764_DAISY-7X1-SHD-MATT-GR
      grey,matt
    • C19852_DAISY-7X1-SHD-MATT-GLD
      gold,matt
    • C19853_DAISY-7X1-SHD3-MATT-GR
      grey,matt
    • C19854_DAISY-7X1-SHD3-MATT-RED
      red,matt
    • C19855_DAISY-7X1-SHD3-MATT-GLD
      gold,matt
    • L20010_DAISY-7X1-SHD2
      black,gloss
    • L20011_DAISY-7X1-SHD2-MATT
      black,matt
    • L20012_DAISY-7X1-SHD2-WHT
      white,gloss
    • L20013_DAISY-7X1-SHD2-MATT-WHT
      white,matt
    • L20014_DAISY-7X1-SHD2-MET
      metal,gloss
    • L20015_DAISY-7X1-SHD2-MET-MATT
      metal,matt
    • Quantity in box:
      156 pcs
    • Box size:
      595 x 360 x 230 mm
    • Box weight:
      7.10 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      595 x 360 x 230 mm
    • MOQ Weight:
      7.10 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C18244_DAISY-7X1-FT-D
      C16872_DAISY-7X1-SHD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    Luminaire, example

    Freestanding luminaire with DAISY-7X1/MINI-FT-D and LINDA-UP

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    New products – April 13, 2022

    News

    New beams and products – April 2025

    News

    Transforming workspaces with DAISY

    News

    New beams and products – August 2024

    News

    New beams and products – May 2024

    News

    Square or round, it’s all about your preference

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR 195 - Change of Minimum order quantity in DAISY-7X1 family

    PCN

    Product change notification NR191 - Additional PC material approved

    News

    New products – January, 2023

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Wall-washing with DAISY-7X1-WAS

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    News

    New Products 2019-11-07

    News

    New Products - 2019-08-27

    News

    New Products 2019-06-13

    News

    DAISY the linear solution for premium class office lighting

    Luminaire, example

    Troffer luminaires with DAISY-7X1

    Catalogue

    LEDiL Latest products catalogue Q1 2025

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Office Lighting Optics

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    Optical results

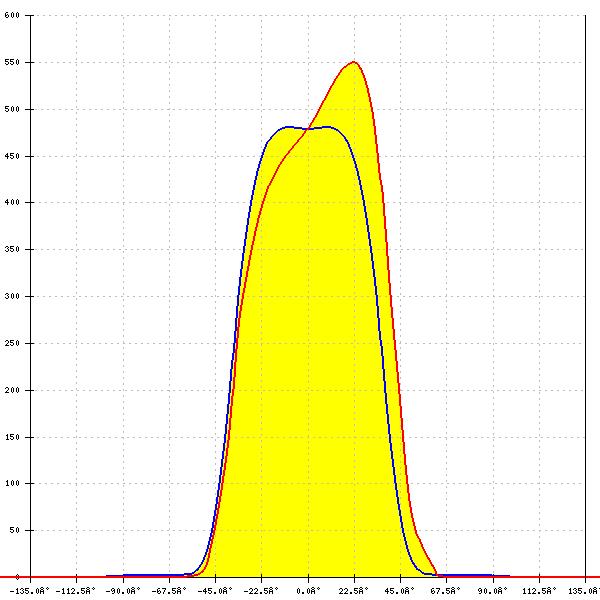

    LED: PL-LIN-2000 280x24mm
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.550 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 4
    Light colour/type: White

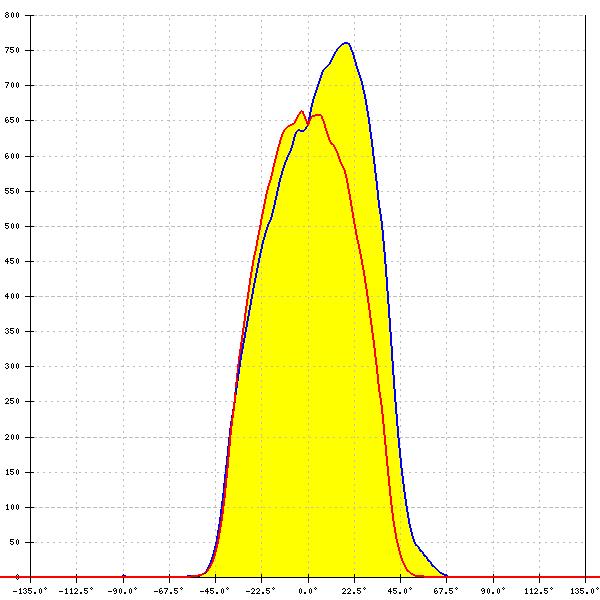

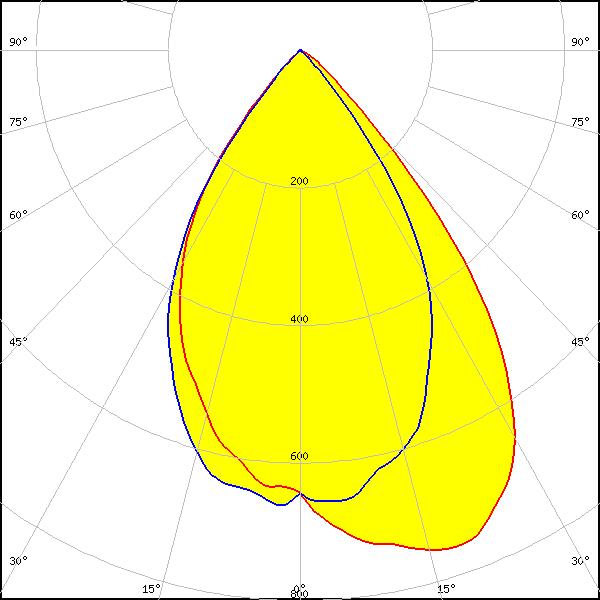

    LED: LUXEON 5050 Square LES
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.760 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

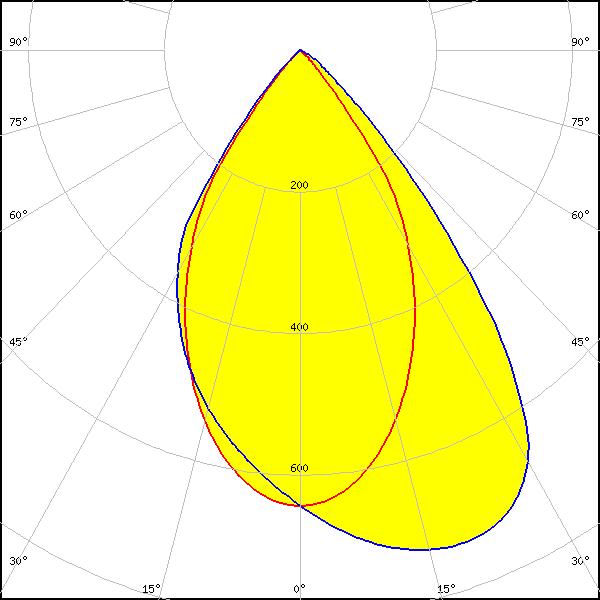

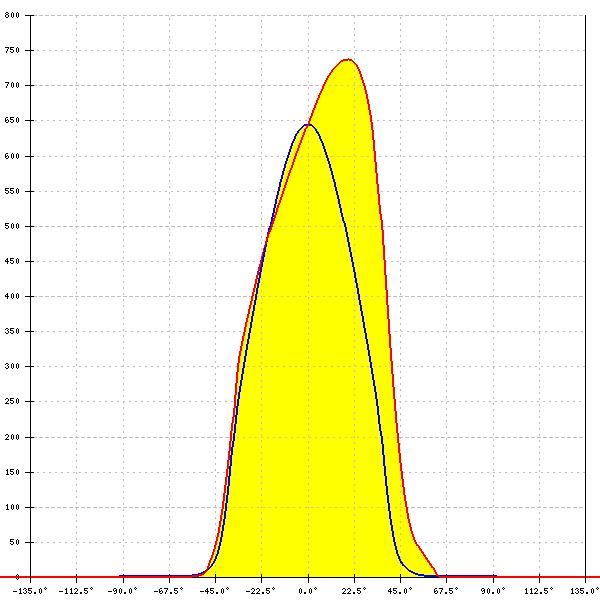

    LED: LUXEON HL2Z
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.737 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 2
    Light colour/type: White

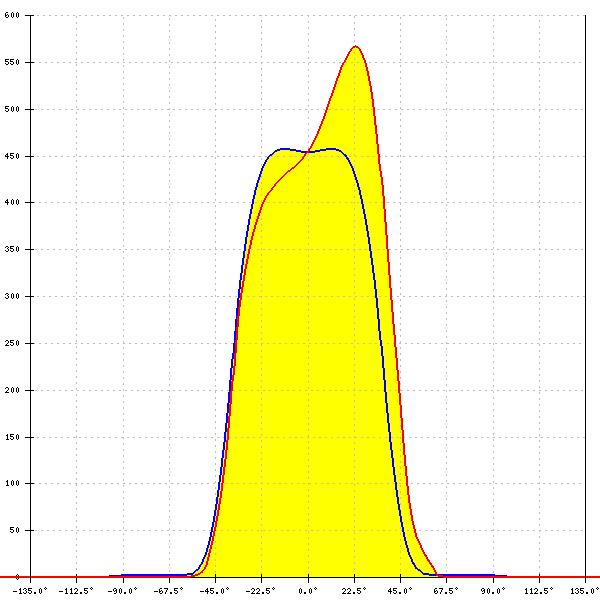

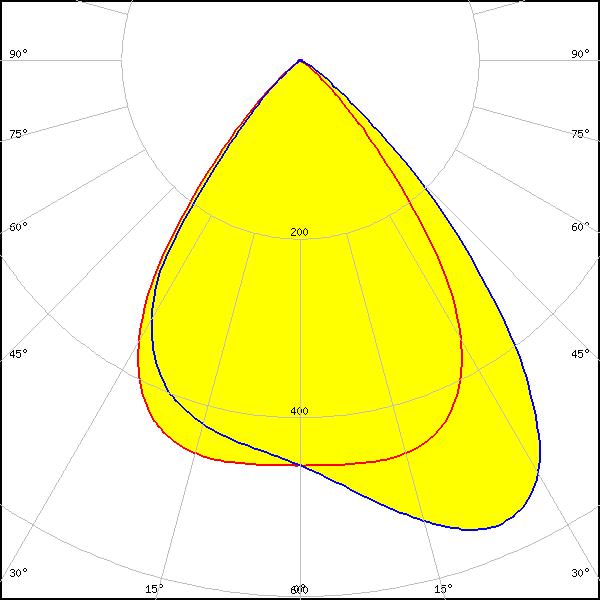

    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    FWHM: asymmetric
    Peak intensity: 0.499 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.566 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 4
    Light colour/type: White

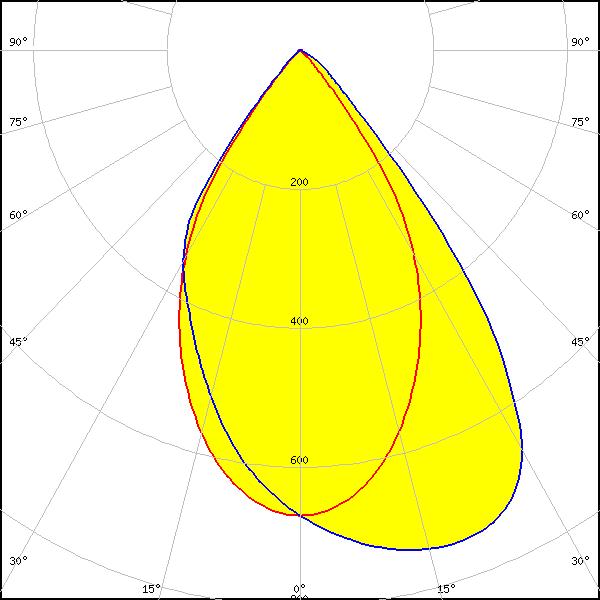

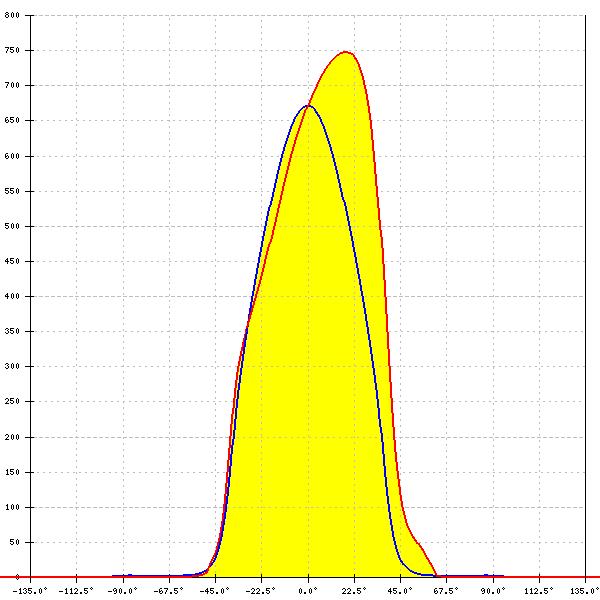

    LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.747 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.563 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

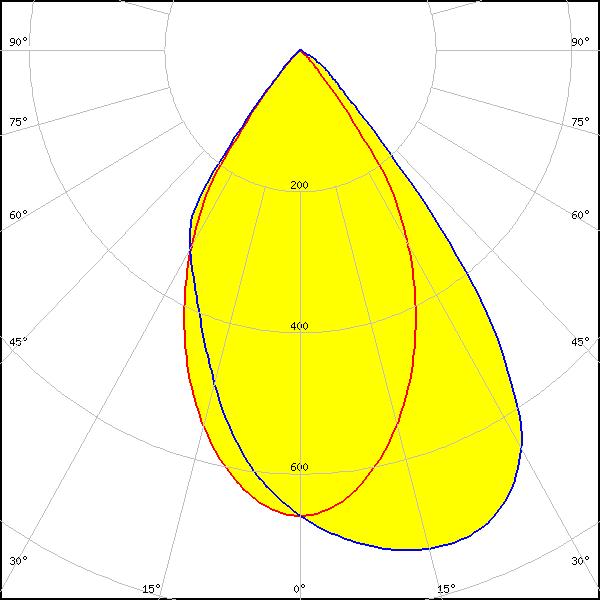

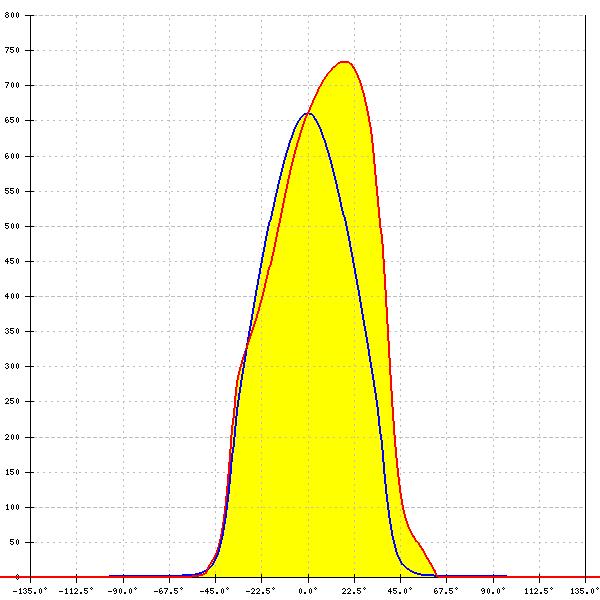

    LED: NCSxE17A
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: asymmetric
    Peak intensity: 0.734 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

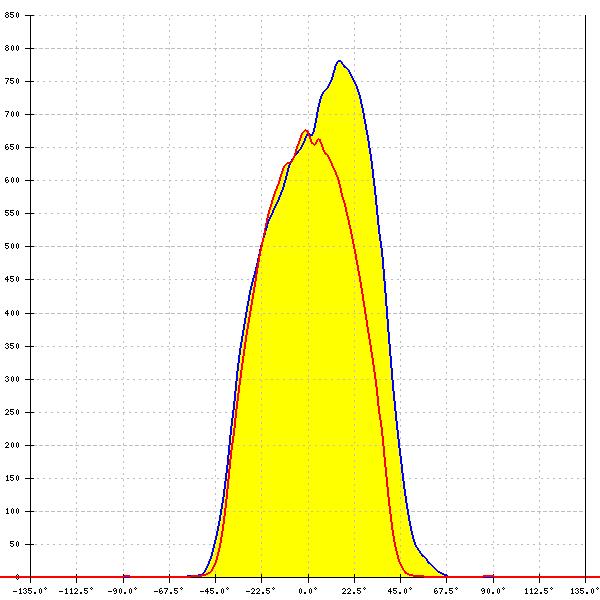

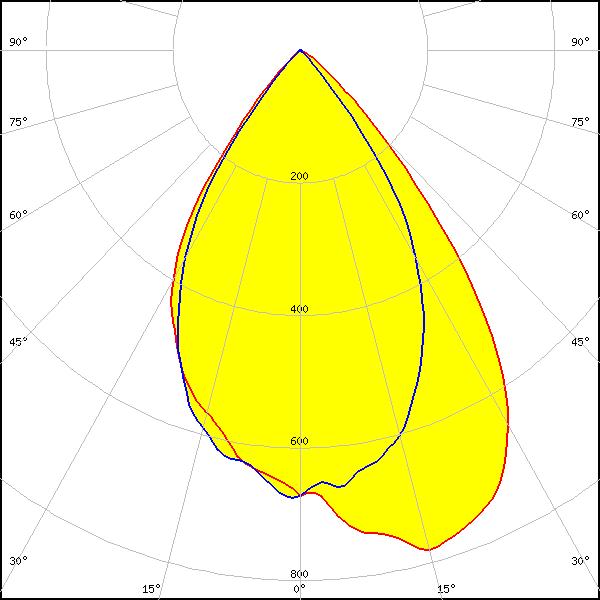

    LED: LH231B
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.781 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LH231B
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.813 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

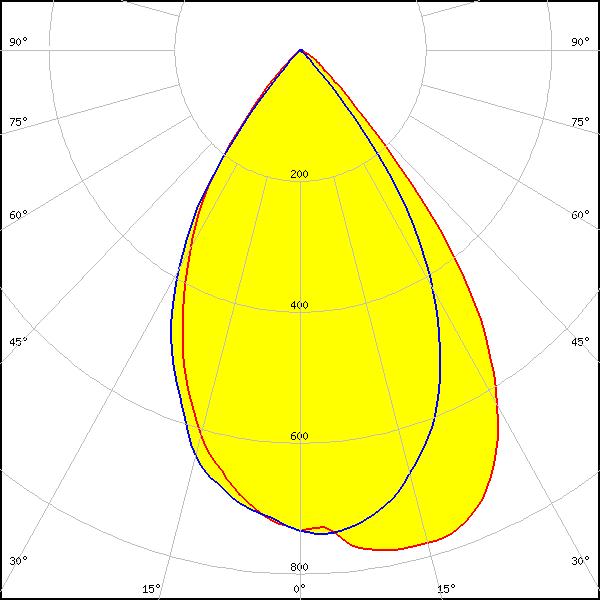

    LED: LM28xB Series
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.786 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 2
    Light colour/type: White

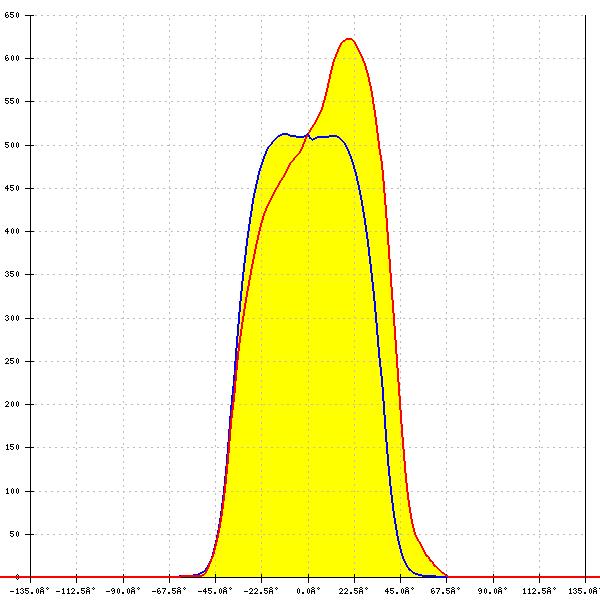

    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: asymmetric
    Peak intensity: 0.622 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 4
    Light colour/type: White
